Heavy Duty Shipping Container Corner Post Making Machine 0-20m/min

Heavy Duty Shipping Container Corner Post Making Machine

Heavy Duty Shipping Container Corner Post Making Machine is an automated mechanical equipment dedicated to producing key structural components of containers - columns. It continuously forms metal coils into high-strength and high-precision columns through cold bending and rolling processes, and is widely used in container manufacturing, storage shelves, modular buildings and other fields.


Product Attributes :

Core Features：

1.High precision and stability
The equipment adopts a 400H steel frame structure, a 20mm thick middle plate, and an 95mm central axis design to ensure strong rigidity, smooth operation, and small forming errors of the whole machine, meeting the strict requirements of container structural strength.
2.Automated control
Equipped with PLC programmable control system and touch screen operation interface, it realizes full computer control, supports fixed pressure and fixed range pressing, adjustable molding speed (such as 8-12 m/min), pressing pressure and stroke, and adapts to various specifications of production.
3.Strong customization ability
Support customized processing, with raw material thickness adapted to 3mm, adjustable feeding width, and the ability to customize columns of different lengths and cross-sectional shapes according to customer needs, meeting the production needs of non-standard parts.
4.Efficient and energy-saving
The main motor power is generally between 11kW. The hydraulic system adopts plug-in valve technology, which has high transmission efficiency and low energy consumption. At the same time, it is equipped with a mobile worktable for easy mold replacement and improves production efficiency.

Typical application scenarios

• Container manufacturing:
used to produce load-bearing components such as corner columns and side beams for standard sea freight containers, ensuring the overall structural strength and stacking safety of the container body.
• Storage and logistics system:
producing shelf columns, suitable for large warehouses, logistics centers, and household storage shelves, with the characteristics of easy disassembly and assembly, good load-bearing performance, etc.
• Modular architecture:
serving prefabricated construction projects such as quick consolidation houses and movable board houses, achieving rapid on-site assembly and shortening construction cycles.
• Industrial equipment support:
Provide core forming equipment support for various metal structural component production lines.


Pattern diagram:

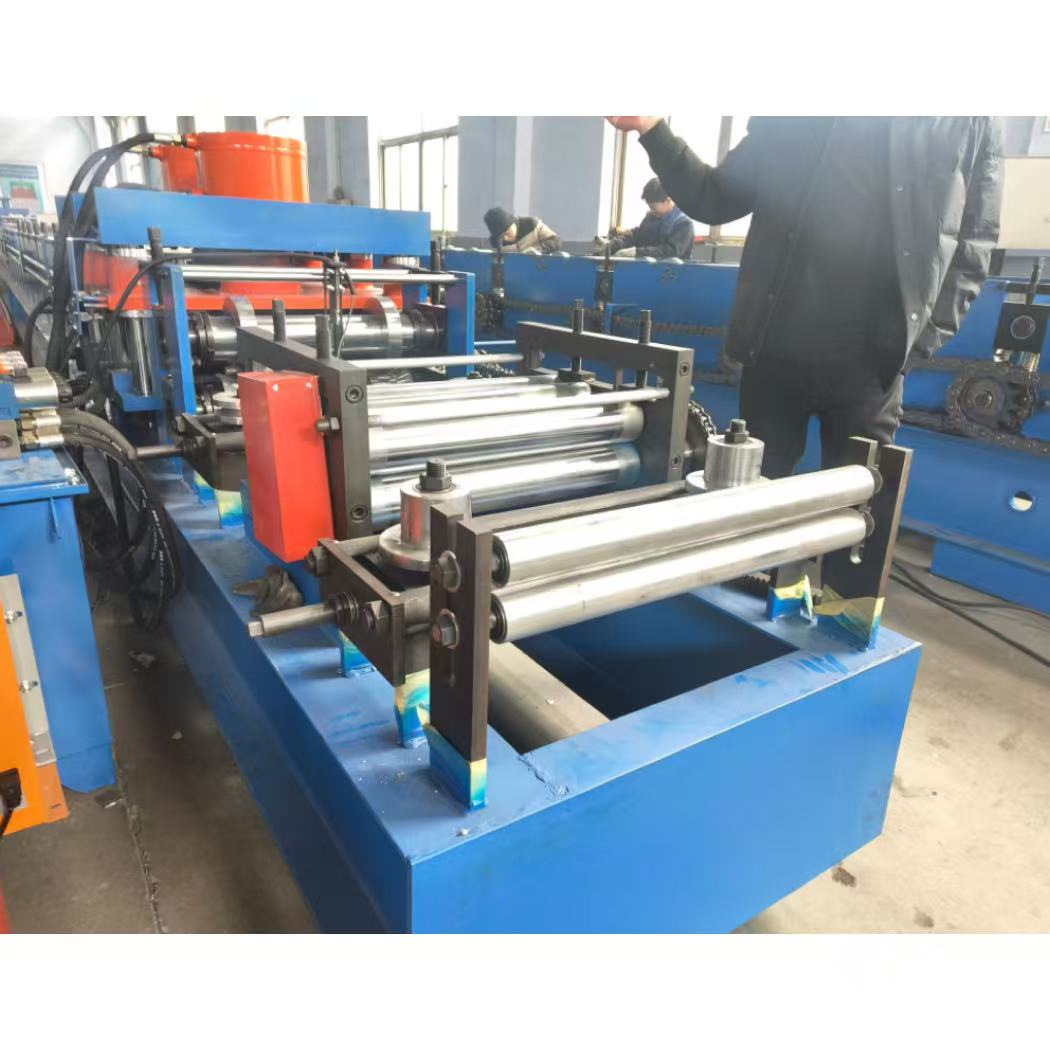

Machine image:

Frequently Asked Questions (FAQ):

Q1: What specifications of corner posts can this device produce?

The equipment can produce various cross-sectional specifications such as standard sea freight container corner columns and container room columns. We can design customized rolling mill molds for customers by providing corner column section drawings or samples.

Q2: Does the equipment support matching with top/bottom beam forming machines?

Support. The equipment can be used in conjunction with container top and bottom beam forming machines to form a complete container steel structure production line, meeting the overall procurement needs of container manufacturing enterprises.

Q3: What materials does the device support?

The equipment supports the processing of various materials such as galvanized steel, high-strength steel, stainless steel, and aluminum alloy, with a suitable thickness range of 1.5-3mm, meeting the material requirements of standard containers and extreme environment container houses.

Q4: How to ensure the forming accuracy of the equipment?

Accuracy assurance comes from multiple levels: the rolling mill is made of GCr15 bearing steel, which has undergone quenching and hard chrome plating treatment to ensure accurate forming contours; The PLC control system, combined with encoders and frequency converters, achieves a pressure control accuracy of ± 1% FS; the hydraulic shearing system achieves a cutting tolerance of ± 1mm.

Q5: What voltage and power standards does the device support?

The equipment can be customized with voltage configuration according to the power grid standards of the customer's country, supporting different voltages such as 220V, 380V, 415V, 440V, etc. The frequency can be selected as 50Hz or 60Hz, and it is a three-phase power supply.

Contact Us：

From the four corner load-bearing columns of standard sea freight containers to the high-strength frames of modular buildings, from the corner column components of logistics transportation to the vertical supports of prefabricated houses, container corner columns are serving the global logistics transportation and modular construction industry with their excellent structural performance and standardization characteristics. A reliable and accurate Automatic Container Corner Post Roll Forming Machine is the core equipment for container manufacturers and modular construction enterprises to seize market opportunities, improve production capacity and quality. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
