Heavy Duty CZ Channel Roll Forming Machine Line Heavy Duty CZ Channel Roll Forming Machine Line (30 m/min)

Overview

Heavy-duty CZ purlin roll forming machine overview with multi-station punching unit and finished C/Z channel profile samples

The Heavy Duty CZ Channel Roll Forming Machine with Multi-Station Hole Punching Production Line is an advanced industrial manufacturing system engineered for the automated fabrication of high-tensile structural C and Z purlins used in commercial steel building framing, roof trusses, and solar racking supports. Equipped with an intelligent stepless size-changing mechanism and rapid C-to-Z profile changeover within minutes, this heavy-duty roll former accommodates coil web widths from 80 mm to 300 mm and material thicknesses from 1.5 mm up to 3.0 mm (PPGI, PPGL, and hot-dip galvanized steel).

Constructed on a heavy welded 350H structural steel bed, the line incorporates 20 precision forming stations driven by 75 mm solid 40Cr steel shafts (HRC 28–32, precision turned, quenched, and hard-chrome plated) and high-grade 45# forged steel forming rollers. Operating at continuous production speeds of up to 30 m/min (adjustable 10–40 m/min), the line features a high-tonnage multi-station hydraulic punching assembly for flange and web holes, an automatic stepless universal hydraulic cut-off unit, and a central industrial PLC touchscreen control system providing millimeter-level accuracy and burr-free end shearing.

• Rapid stepless C to Z profile conversion within 5–10 minutes without roller dismantling
• Wide purlin section coverage: web 80–300 mm (C) / 120–300 mm (Z), flange 30–80 mm, lip 10–20 mm
• Heavy structural capacity handling 1.5–3.0 mm high-strength PPGI, PPGL, and galvanized steel
• Continuous production speeds of up to 30 m/min powered by a 7.5 kW high-torque motor
• 20 forming roller stations with 75 mm solid 40Cr shafts and chrome-plated 45# forged steel tooling
• Multi-station hydraulic punching unit for flexible web and flange hole layouts prior to forming
• Certified to CE and ISO9001 standards; backed by a comprehensive 2-year warranty

Key Features

• Automated C/Z Quick Changeover. Precision linear guide rails and mechanical adjustment screws enable rapid switching between C and Z profiles, as well as stepless web/flange dimension adjustments, drastically reducing tooling downtime.
• Integrated Multi-Station Hydraulic Punching. Multi-cylinder hydraulic punching bank punches round, oval, and slotted holes on webs and flanges simultaneously with computerized spacing, ready for immediate on-site bolt assembly.
• Robust 75 mm Solid 40Cr Shafts. Heavy-duty 75 mm solid 40Cr alloy shafts are precision CNC machined, vacuum heat-treated to HRC 28–32, finish-turned, and electroplated to eliminate torsional deflection under heavy 3.0 mm forming loads.
• Precision 45# Forged Chrome-Plated Rollers. Tooling rollers are CNC machined from high-grade 45# forged steel and hard chrome-plated (0.05 mm thickness), preventing galvanized surface peeling and ensuring prolonged wear resistance.
• Stepless Universal Hydraulic Cut-Off. Employs a universal hydraulic cutting blade set that automatically adjusts to profile web and flange dimensions, delivering clean, square, burr-free purlin ends without blade replacement.
• Intelligent Industrial PLC Control. Color touchscreen HMI allows digital order programming, automated multi-batch sequencing, punch coordinate setting, and real-time operational diagnostics.
• Heavy 6,500 kg Machine Foundation. Welded structural steel chassis with reinforced cross-bracing dampens vibration during high-speed rolling and preserves lifelong alignment.

Technical Specifications

Purlin Dimensions & Geometry

The machine delivers stepless dimensional adjustment across the standard C and Z purlin product spectrum without purchasing secondary roller tooling sets:

C & Z purlin profile dimension specification table and CAD punching hole position drawings (C: a=80-300mm, b=30-80mm, c=10-20mm, t=1.5-3.0mm; Z: a=120-300mm, b=30-80mm, c=10-20mm, t=1.5-3.0mm)

Machine Structure & Stations

The automated production process begins with coil feeding and strip leveling, entering the multi-station hydraulic punching module where customized web and flange holes are stamped with absolute precision. The strip then traverses the 20 forming stations where 75 mm solid shafts progressively shape the purlin contours. Upon exiting the final calibration stand, the continuous purlin is severed to exact programmed lengths by the universal hydraulic shear.

 Heavy-duty hydraulic punching station with multi-station dies for flange and web hole patterns

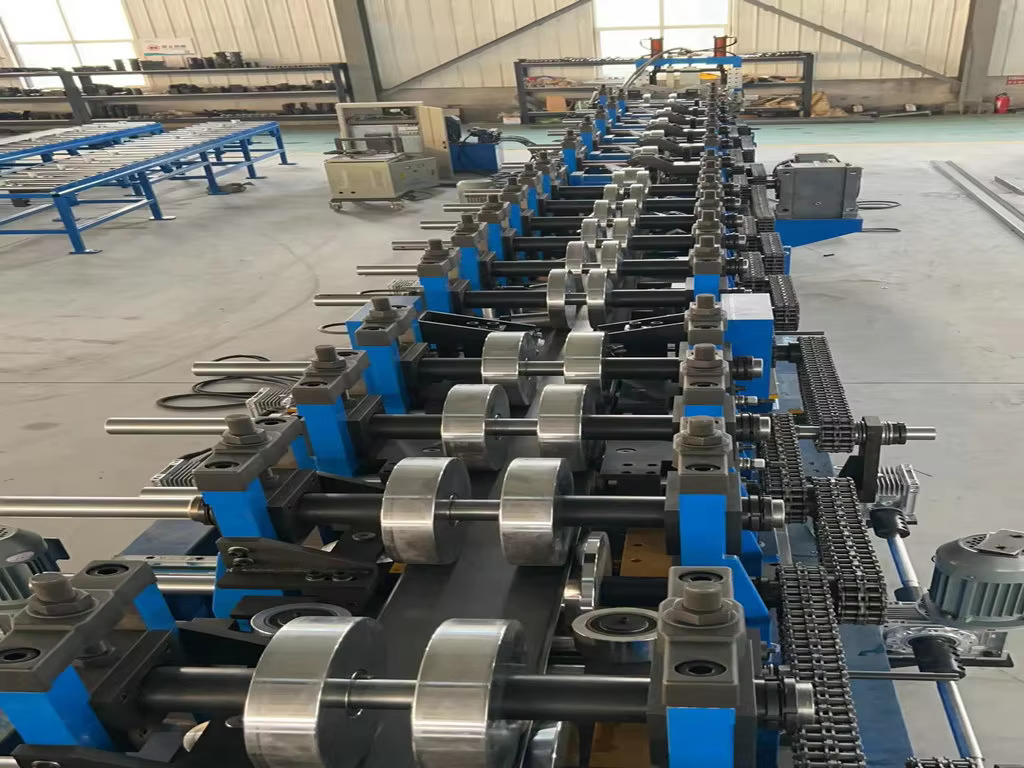

 20-station precision forming rollers with 75mm solid 40Cr shafts and heavy gear transmission drive

Hydraulic universal cutter assembly for automatic stepless size changing and burr-free end shearing

Applications

Structural C and Z purlins manufactured by this production line serve as essential load-bearing secondary framing elements across diverse construction sectors:

• Pre-Engineered Metal Buildings (PEB). Installed horizontally across roof rafters and wall columns to support corrugated roofing sheets and insulated sandwich wall panels.
• Industrial Warehouses & Workshops. High-tensile Z purlins enable overlapping continuous beam spans, delivering exceptional strength-to-weight ratios and material savings.
• Solar Ground & Rooftop Mounting Systems. Serves as corrosion-resistant structural rails and purlin purlines for ground-mounted PV arrays and industrial solar canopies.
• Commercial Wall Framing & Mezzanines. Sturdy C channel sections provide durable headers, floor joist battens, and vertical structural framing studs.

Quality & Certifications

Manufactured under strict ISO9001 certified quality management protocols, every CZ channel roll forming machine undergoes thorough workshop mechanical calibration and a continuous 24-hour trial rolling inspection with actual steel coil before dispatch. Formal CE compliance credentials and third-party inspection documentation (UDEM, COTECNA) accompany each production line.

International CE Machinery Directive conformity certificates and ISO9001 certified manufacturing documentation

Customization Options

Packaging & Delivery

The entire CZ channel roll forming production line is comprehensively protected against maritime corrosion and transit vibration. Polished forming rollers, shafts, and bare steel components are coated with high-grade anti-rust grease and wrapped with multi-layer waterproof film. The machine chassis is securely anchored inside 40-foot open top or standard high cube shipping containers using heavy steel wire rope lashing and timber chocks to ensure damage-free worldwide ocean delivery.
