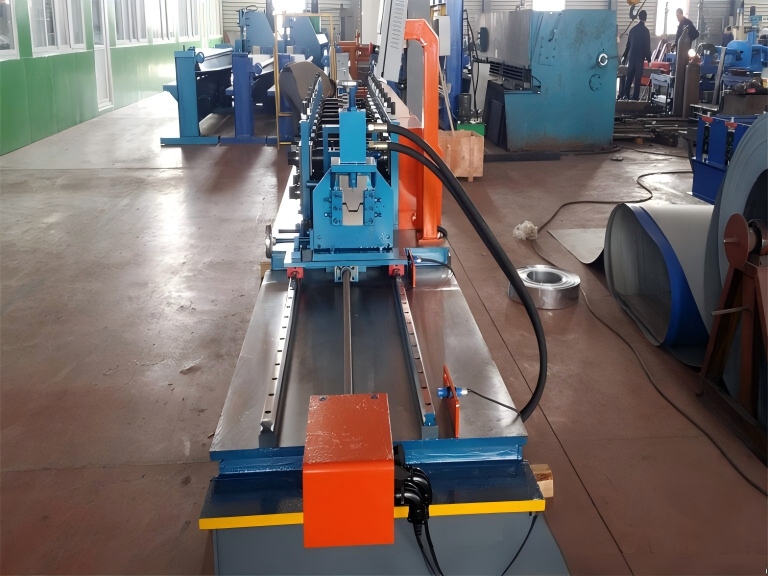

Hat Furring Channel Roll Forming Machine for Efficient Metal Channel Production

The Hat Furring Channel Roll Forming Machine is specially developed for manufacturing galvanized steel furring channels used in ceiling systems, interior framing, and construction applications. The machine processes galvanized steel strips into precise hat-shaped channels through multiple forming stations.

With a compact structure, reliable transmission system, and automatic PLC control, this metal furring channel production line helps manufacturers improve production efficiency while maintaining consistent product quality. In addition, the machine can be customized according to different profile designs, material thicknesses, and production requirements.

Professional Solution for Hat Furring Channel Manufacturing

The machine adopts a continuous roll forming process, where the material passes through carefully designed roller stations to gradually achieve the required profile shape. Compared with traditional manual forming methods, this production method provides better dimensional accuracy and more stable output.

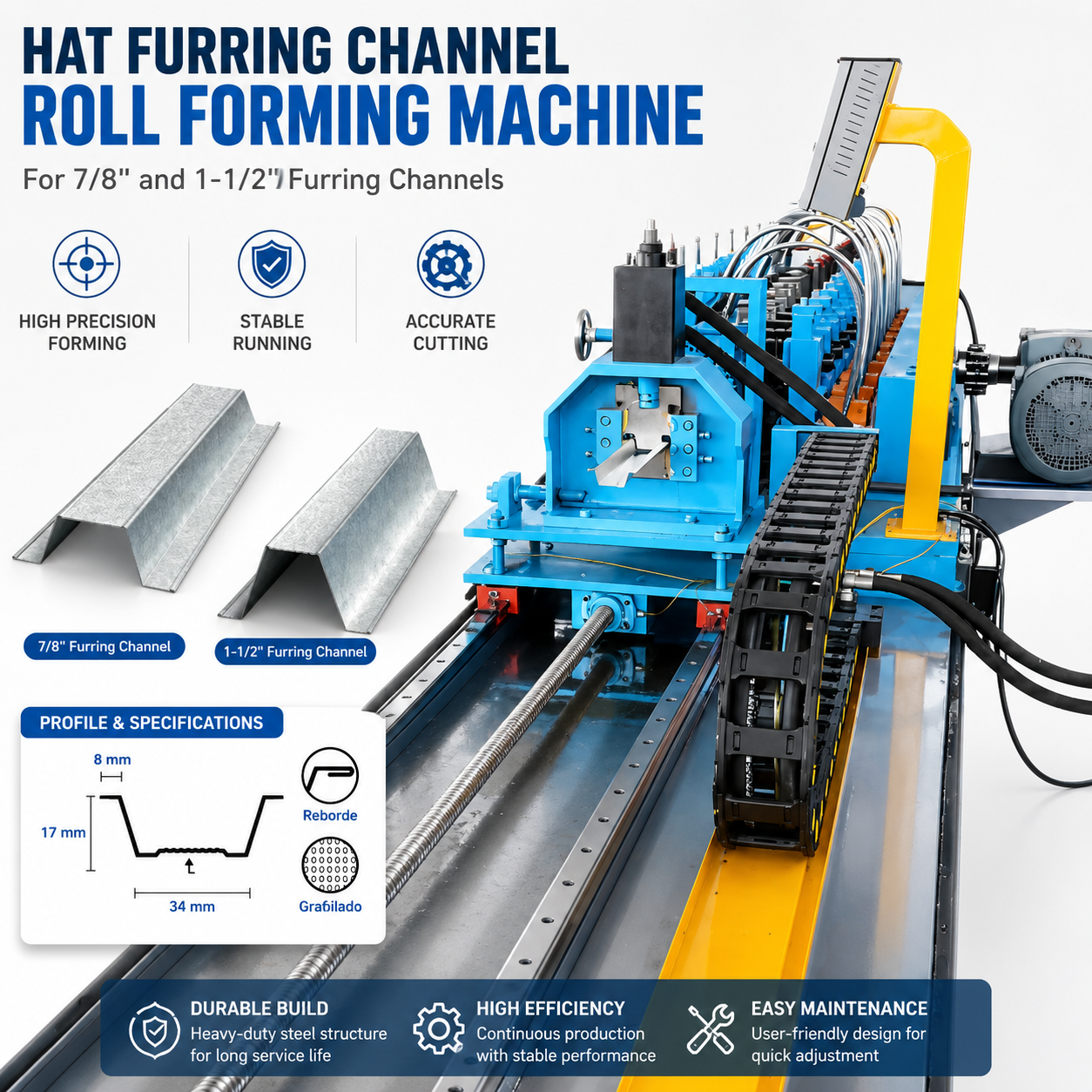

The Hat Furring Channel Roll Forming Machine is suitable for producing different sizes of furring channels, including 7/8" and 1-1/2" models. Meanwhile, the forming rollers use high-quality steel with surface hard chrome plating, which improves wear resistance and extends service life.

Furthermore, Zhongtuo can adjust the roller design according to customer drawings, allowing the equipment to meet various construction standards and market demands.

Main Technical Specifications

High Precision Forming System

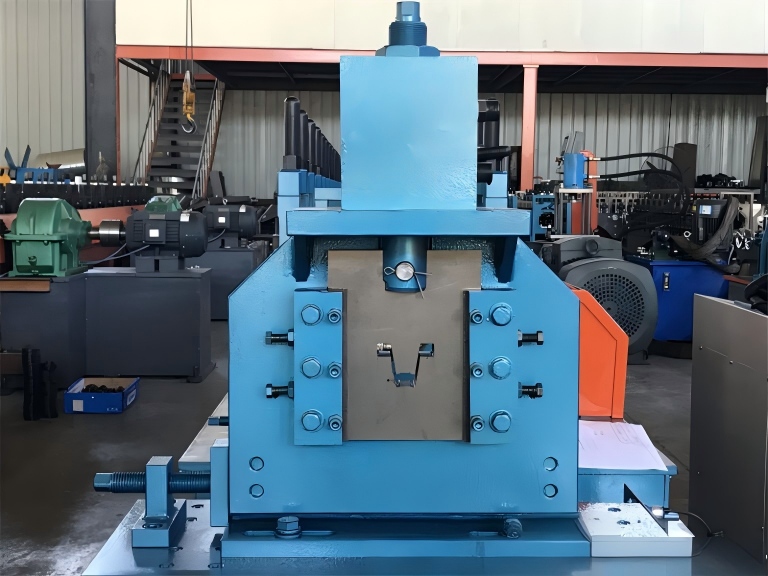

The forming section is the core part of the Furring Channel Making Machine. Zhongtuo designs each roller station according to the profile structure to ensure smooth material forming and accurate dimensions.

The machine uses a 50 mm solid shaft and precision-machined rollers made from 45# steel. After hard chrome plating treatment, the rollers provide excellent surface hardness and reduce wear during long-term operation.

Moreover, the 12-stage forming design allows the machine to gradually shape the metal strip, reducing deformation and improving the overall appearance of finished channels.

Automatic Control and Stable Production

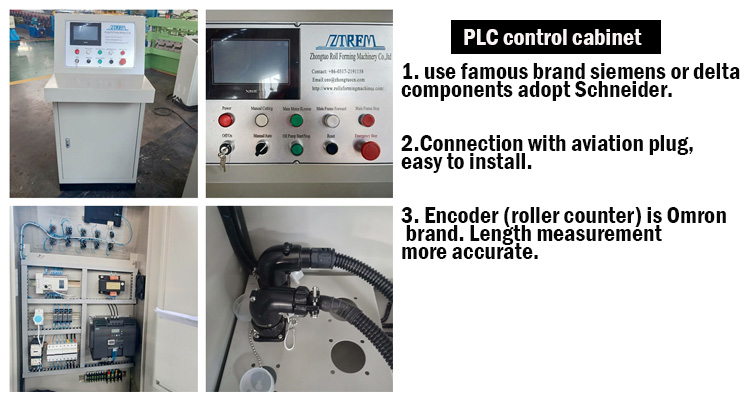

The equipment integrates a PLC control system to simplify operation and improve production management. Operators can easily set production length, quantity, and batch requirements through the control panel.

At the same time, the automatic control system coordinates the forming, cutting, and production process, which reduces manual operation and improves working efficiency.

The machine supports multiple languages, and electrical components can be customized according to customer requirements. Therefore, manufacturers from different countries can operate the system conveniently.

Reliable Cutting and Customized Design

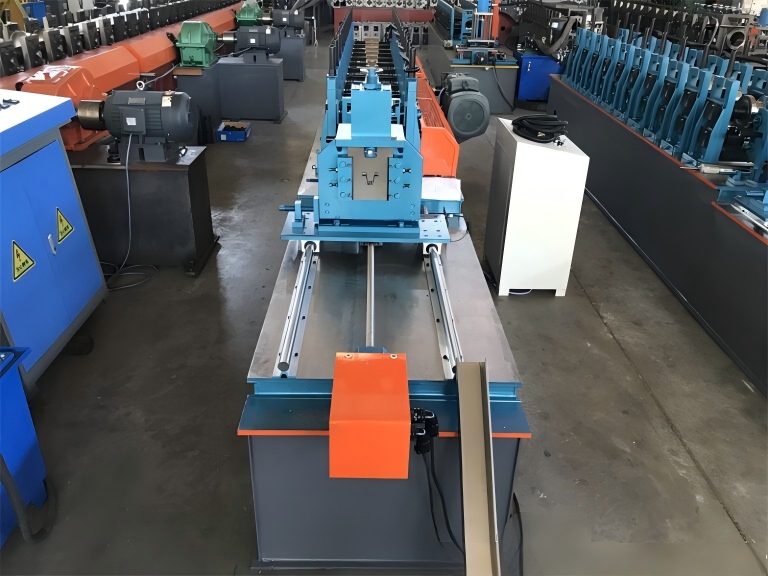

The automatic hydraulic cutting system uses Cr12MoV cutting blades, which provide clean cutting performance without damaging the finished profile surface.

Because different customers may require different channel dimensions and applications, Zhongtuo provides customized solutions based on profile drawings and production requirements.

The machine structure, roller design, production speed, and electrical configuration can all be adjusted to match specific manufacturing needs.

Application Areas and Production Advantages

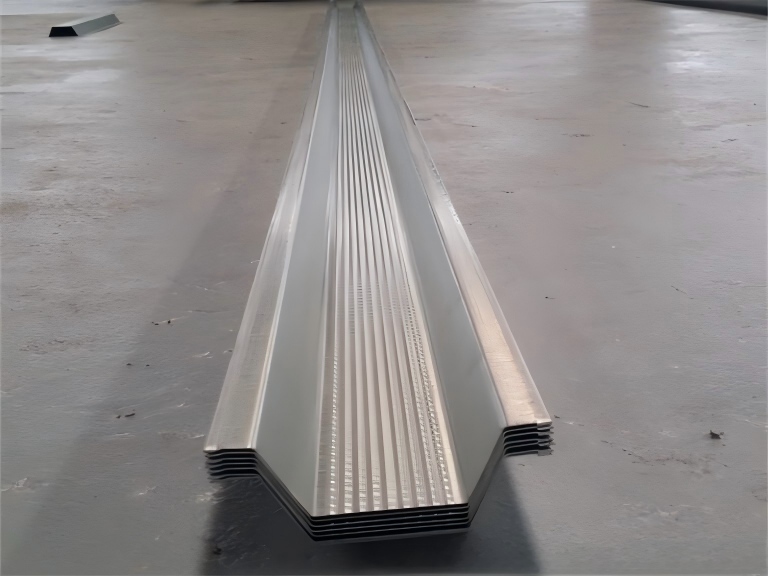

The finished hat furring channels are widely used in ceiling support structures, interior decoration systems, and lightweight steel framing projects.

By using a Hat Furring Channel Roll Forming Machine, manufacturers can achieve continuous production with stable quality and lower labor requirements. In addition, the compact machine design saves factory space while maintaining efficient output.

Zhongtuo focuses on providing complete roll forming solutions, including equipment design, production support, remote technical assistance, and after-sales service, helping customers build efficient and reliable metal profile production lines.
