Hat Channel Sheet Metal Omega Furring Stud Roll Forming Machine stop punching (before forming)

16 Station Hat Channel Roll Forming Machine for Efficient Punching and Safe Operation

You've already decided to produce hat channels or omega profiles with holes, and your product specs and material are mostly clear. But when you start planning a hat channel roll forming machine line, the real questions aren't about forming. They're about more specific things: will punching slow down the production rhythm? What keeps hole positions accurate? How does an operator stop the machine safely when something goes wrong?

These questions seem to fall under efficiency, accuracy, and safety. In real production, they all shape whether a hat channel roll forming machine line runs well.

Hat Channel and Omega Profile Applications That Affect Machine Configuration

Different end uses place very different demands on punching for hat channels and omega profiles. Those differences directly shape the equipment configuration on a hat channel roll forming machine.

• Ceiling grids and partition systems: product lengths are fairly fixed, holes are mainly for installation, hole spacing is wide, and punching frequency is low, so the impact on production rhythm is limited.

• Light gauge framing and prefab houses: more profile sizes, frequent size changes, high requirements for hole consistency, and punching parameters need to be recalled and switched often.

• Load bearing support structures: thicker material, higher load requirements at holes, and stricter demands on punching mold wear resistance and hole position accuracy.

Different applications have different hole counts, spacing, and batch sizes. Equipment configuration needs to be confirmed based on actual product drawings, not just the name hat channel.

How Stopping Punching Affects Production Rhythm

This metal furring studs machine uses pre punching. The strip gets punched while it's still flat, before forming. The machine stops for punching, then continues feeding and forming.

The impact of stop punching on production rhythm depends on hole count and spacing:

• Each punching cycle includes positioning, punching, retracting, and feeding again. Forming pauses during punching.

• More holes and tighter spacing mean longer total stop time and lower average line speed.

• Products with few holes and wide spacing see limited impact on overall rhythm.

• Products with dense holes may see punching become a capacity bottleneck.

The quoted working speed is 0 to 30m/min, while actual production speed depends on the punching pattern and production conditions. To judge whether stop punching fits your product, look at the actual combination of hole count, spacing, and batch size on your hat channel roll forming machine.

Key Parameters That Determine Whether the Machine Fits Your Production

These parameters directly affect whether the equipment meets your punching, accuracy, and rhythm requirements. Values below are based on the quote.

Parameters that require special attention:

• Punching type: pre punching means holes are made before forming, while the strip is flat

• Working speed: marked as depending on hole quantity, which shows punching is a key factor in capacity

• Encoder and length tolerance: these determine hole position and cut length consistency

• Material thickness and strength: these determine whether the equipment can run your product reliably

How Encoder and PLC Work Together for Hole Position Control

Hole position accuracy doesn't come from one part alone. It's the result of the encoder, PLC, and mechanical drive working together on a hat channel roll forming machine.

• The encoder provides length feedback used by the control system for positioning and length management

• The control system uses this feedback to manage punching and cutting according to the set parameters

• This equipment uses an Omron encoder together with the PLC

• Operators set hole quantity and position through the touch screen, and the system follows those settings

Hole position accuracy can't be attributed to the encoder alone. Punching accuracy also depends on control response, mechanical transmission, material movement, and forming conditions. Hole accuracy is the result of the whole line working together.

Machine Advantages That Solve Real Production Problems

• Pre punching happens while the strip is flat, so holes aren't affected by material flow after forming, which helps maintain hole consistency on a sheet metal forming omega machine

• PLC touch screen control makes hole parameter setup straightforward and reduces repeated operator adjustments

• The quoted length tolerance is 3000mm ±1.0mm

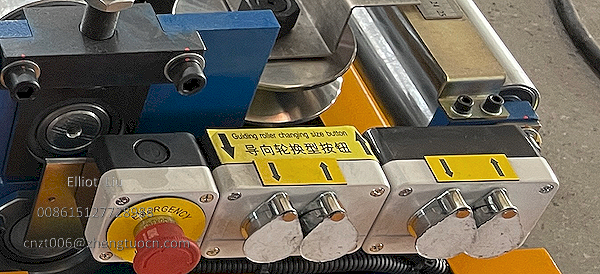

• Emergency stop buttons on both sides give operators access to a stop control from different working positions

Why Emergency Stop and Safety Design Belong to Production Planning

When the machine runs continuously, the material, rollers, and punching molds are all in motion. If material jams, hole positions shift, or the machine makes unusual noise, the operator needs to stop it right away to prevent bigger problems or equipment damage. Emergency stop buttons are designed for exactly this situation. They give the operator a direct, fast way to stop the machine.

This equipment has emergency stop buttons on both sides, giving operators access to a stop control from different working positions. Actual safety configuration still needs to be confirmed with the customer's site safety rules. Different factories may have different requirements for safety protection.

Ending

If you need to produce hat channels or omega profiles with holes, don't just look at whether the machine can form. Whether the punching method fits your hole pattern and output, whether hole control is stable, and whether the machine can stop safely when something goes wrong all affect how the line runs in real production. A hat channel roll forming machine should be configured around your actual product and production flow. Start by confirming your product specs, hole requirements, and batch size, then confirm the specific machine configuration.
