Product Description

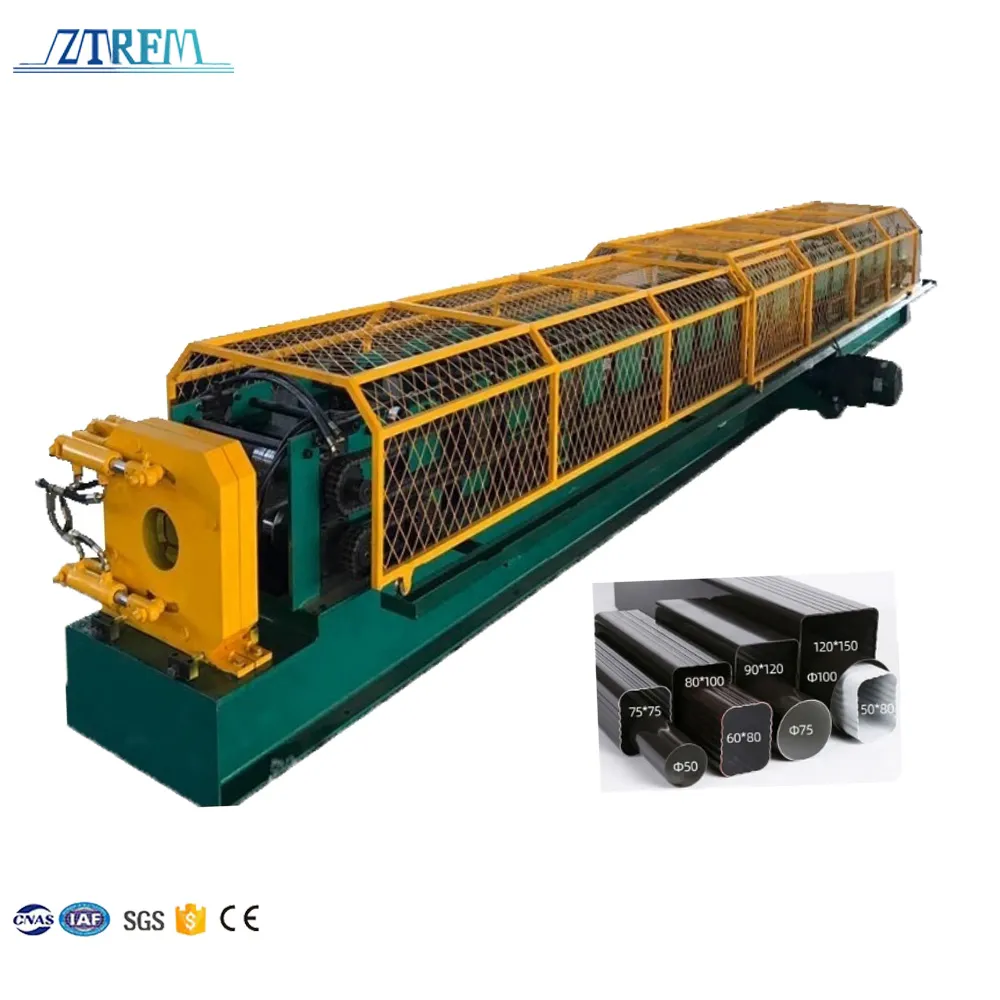

Good price Good quality Round Downspout round pipe roll forming machine

Good price Good quality Round Downspout round pipe roll forming machine:

1.Manual/hydraulic uncoiler

2.Roll former

3.Hydraulic cutting system

4.PLC control system

5.Product receive table

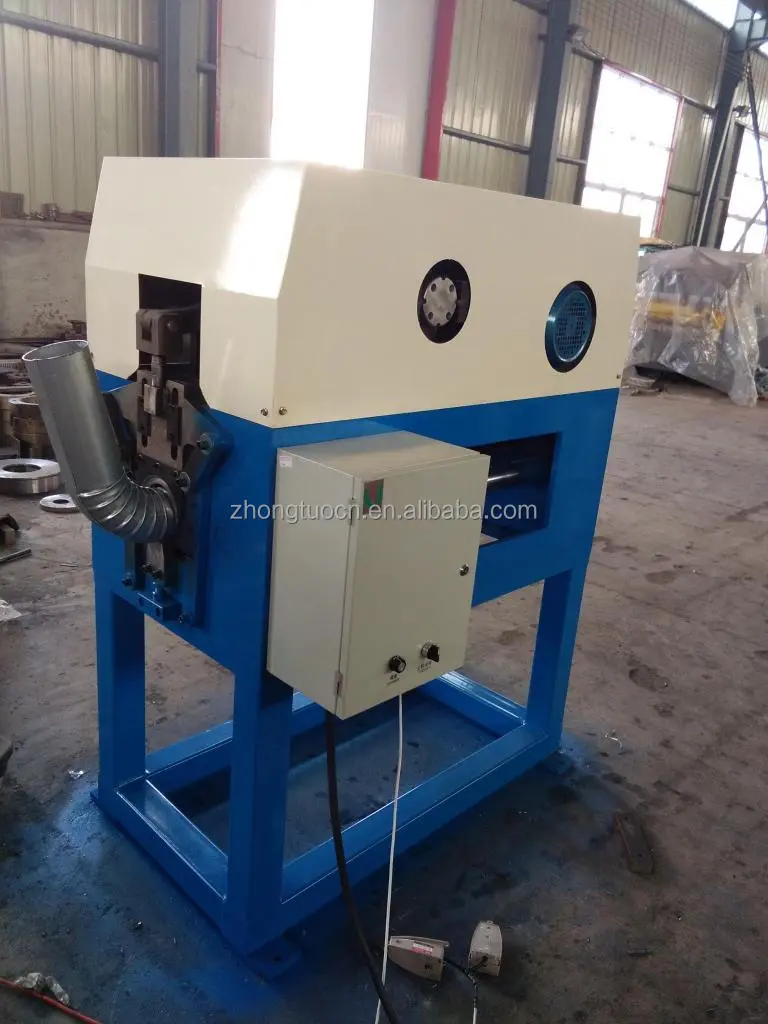

6.Elbow machine

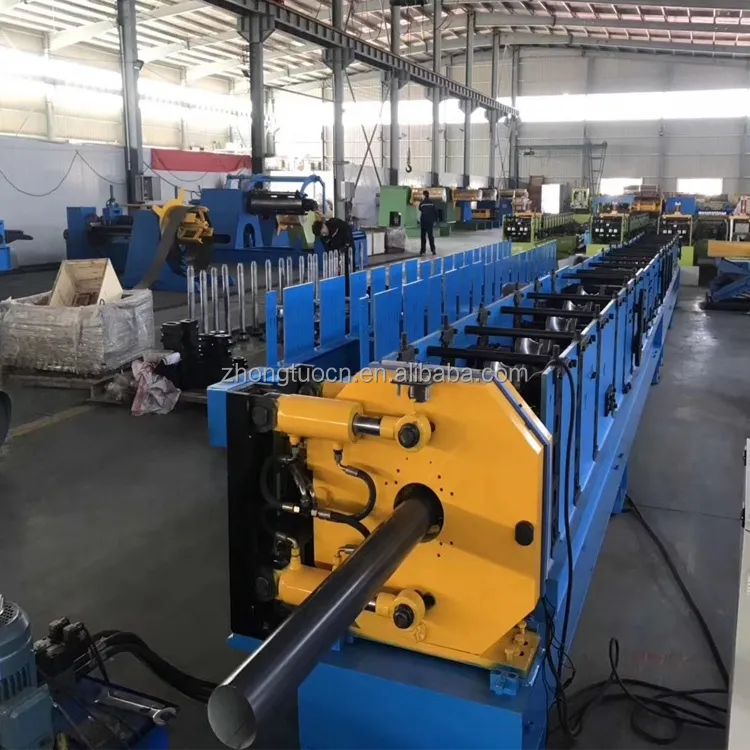

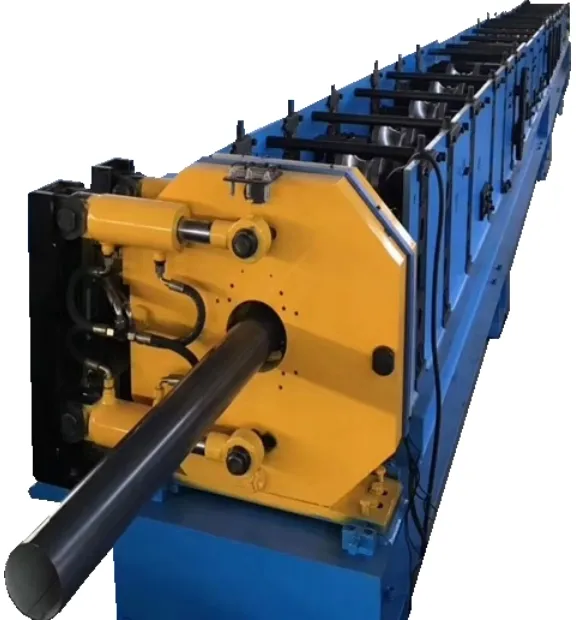

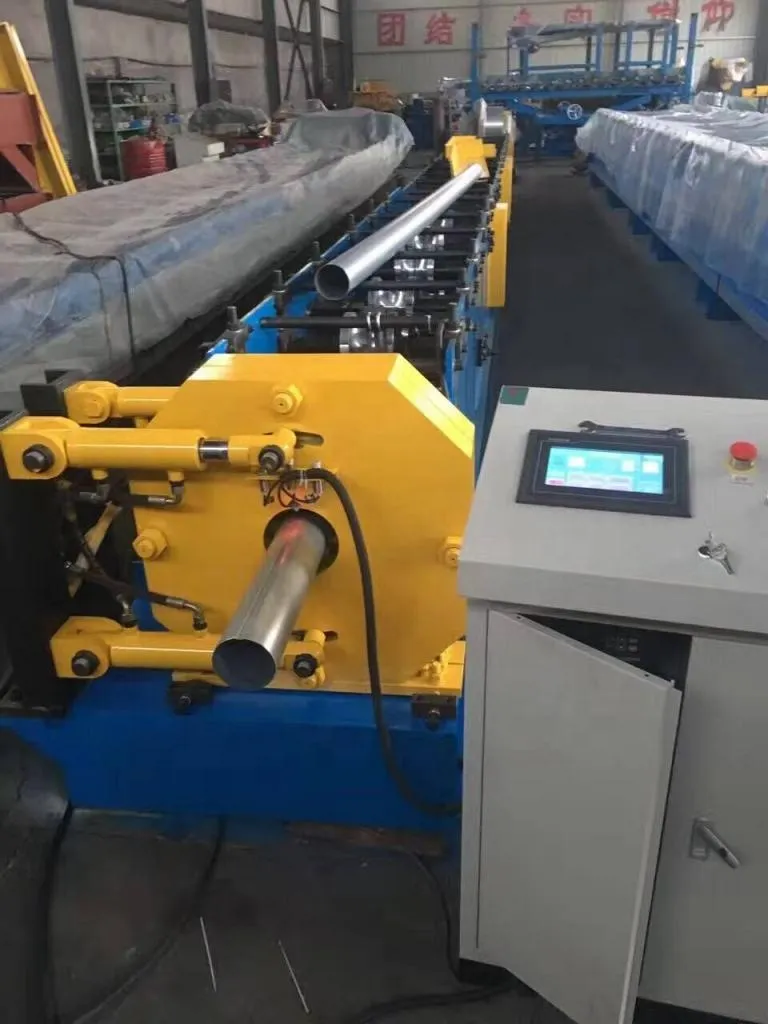

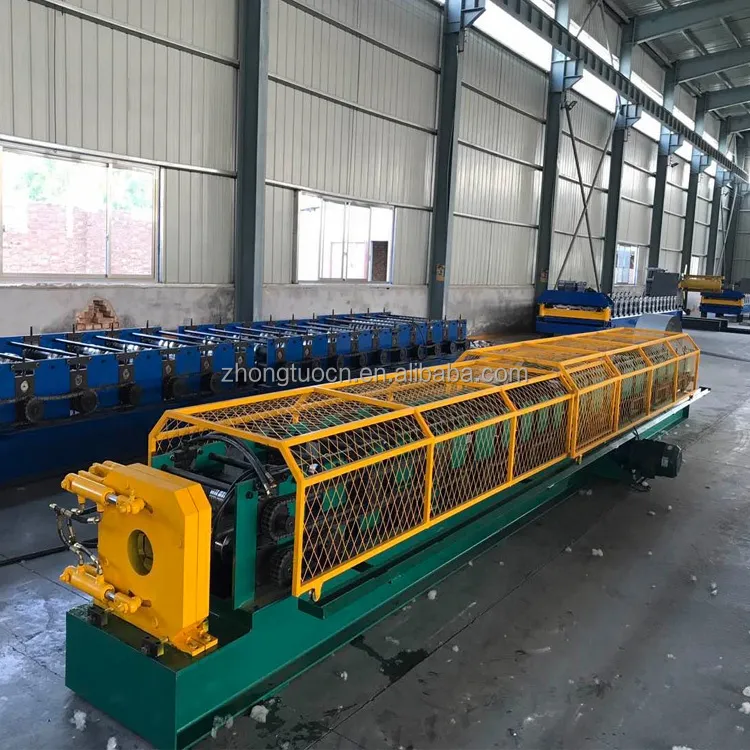

Good price Good quality Round Downspout round pipe roll forming machine picture:

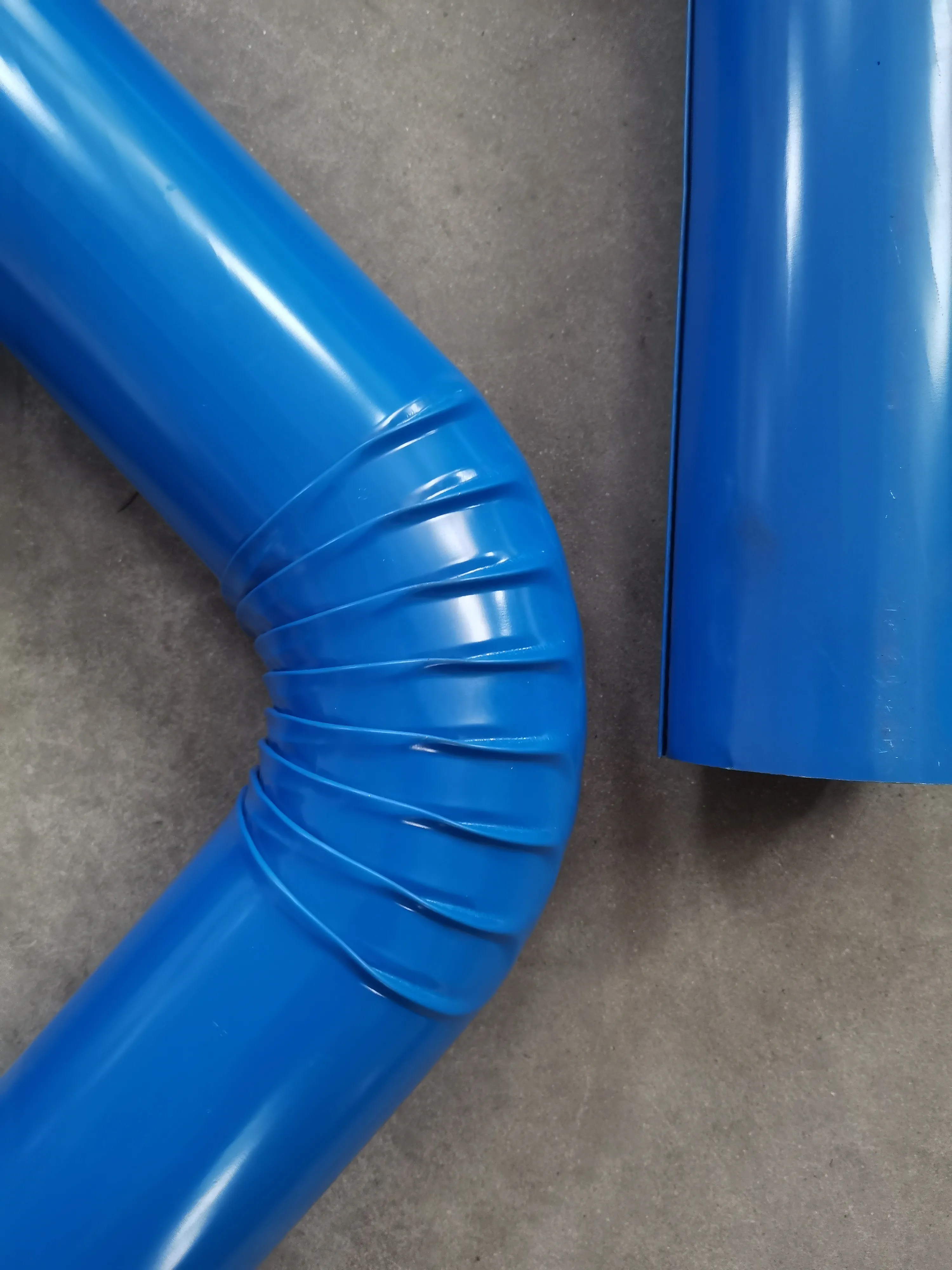

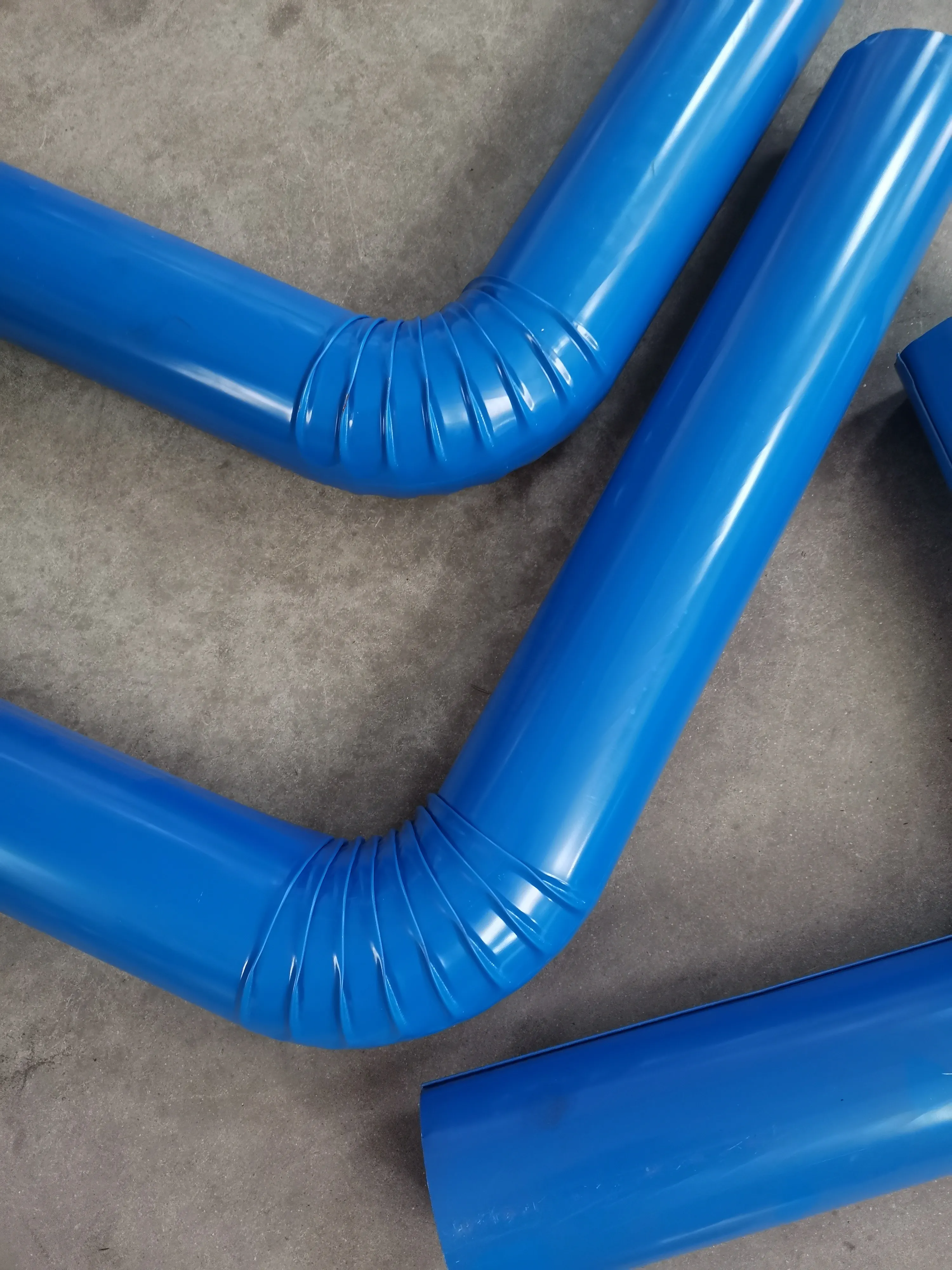

Downspout final product show:

Good price Good quality Round Downspout round pipe roll forming machine
1.Formed Material	PPGI,GI,AI,GL		Thickness:0.4-0.8mm Downspout size:∅100,support customization

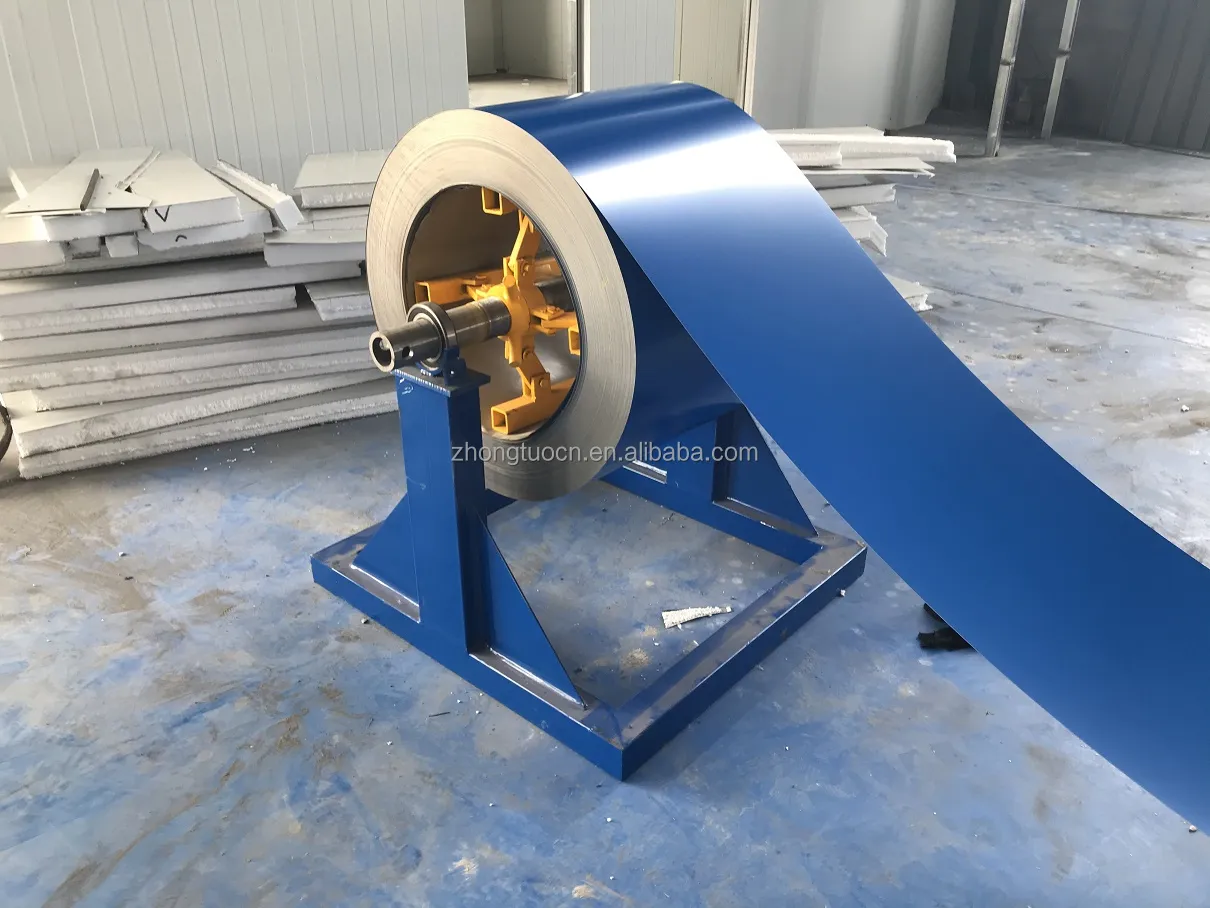

2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）

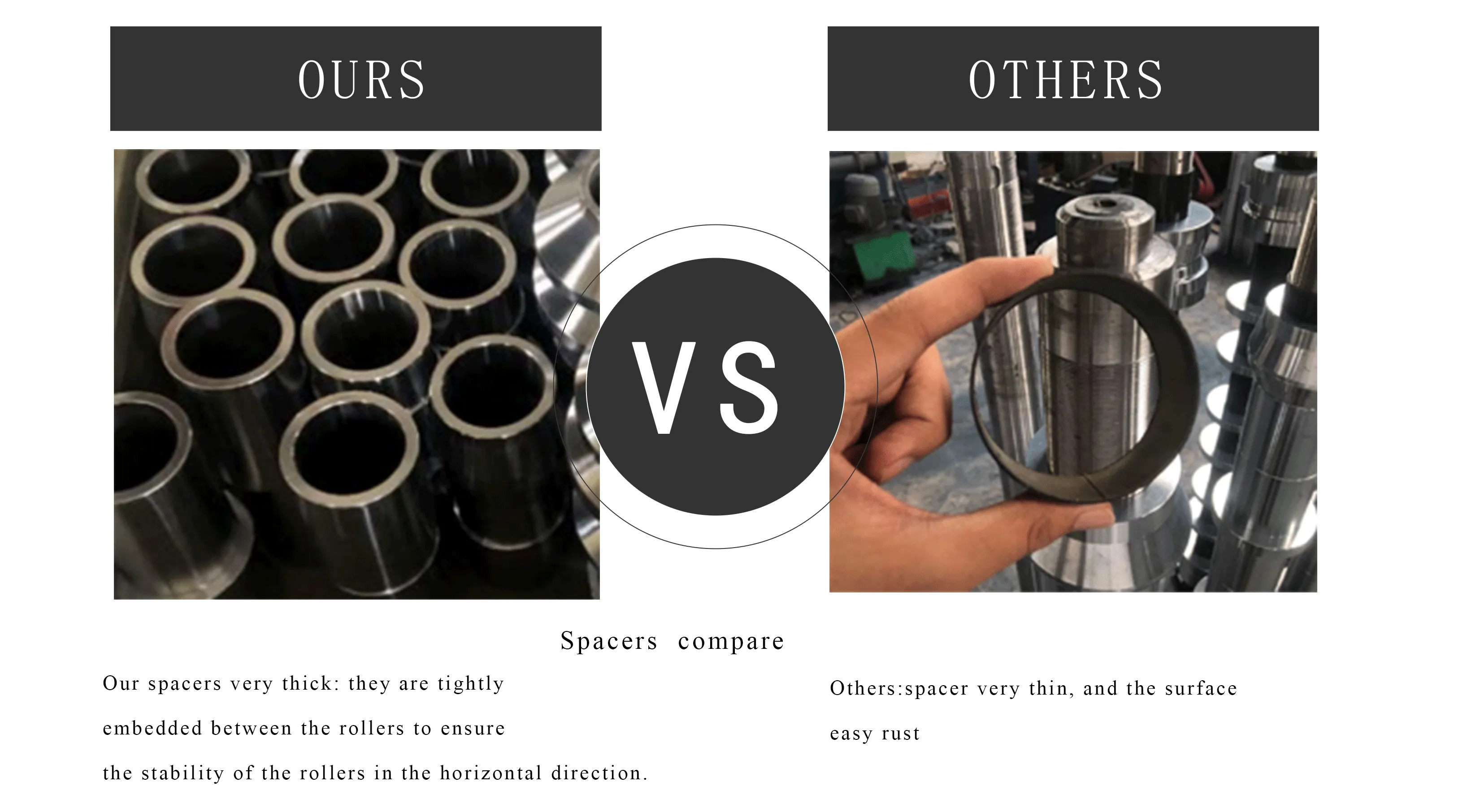

3.Main body	Roller station		19 rows with a series of vertical rollers
		Diameter of shaft		70mm solid shaft

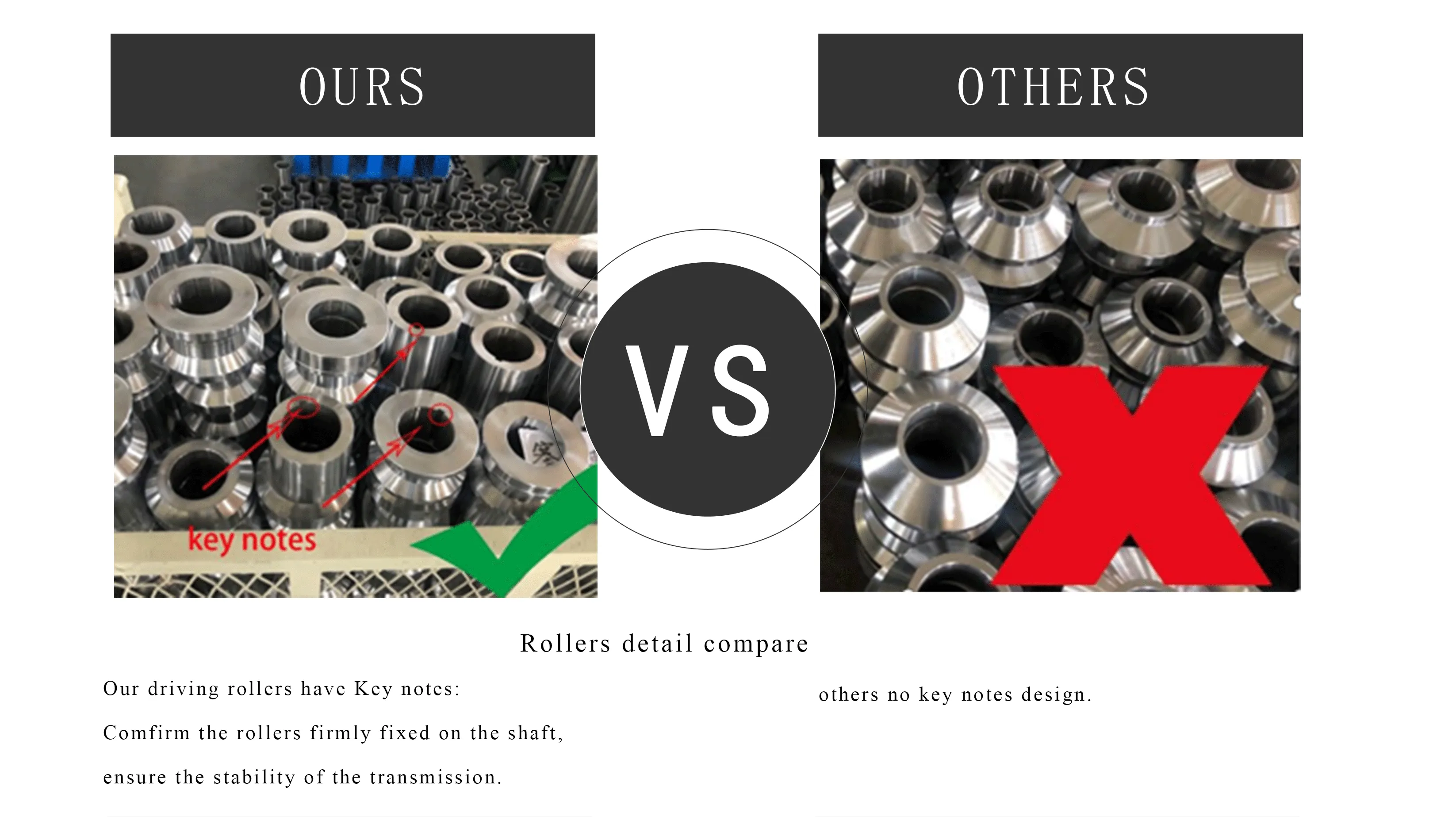

		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Chain transmission
		Dimension(LWH)		110009001100(customize)
		Weight		4.5T

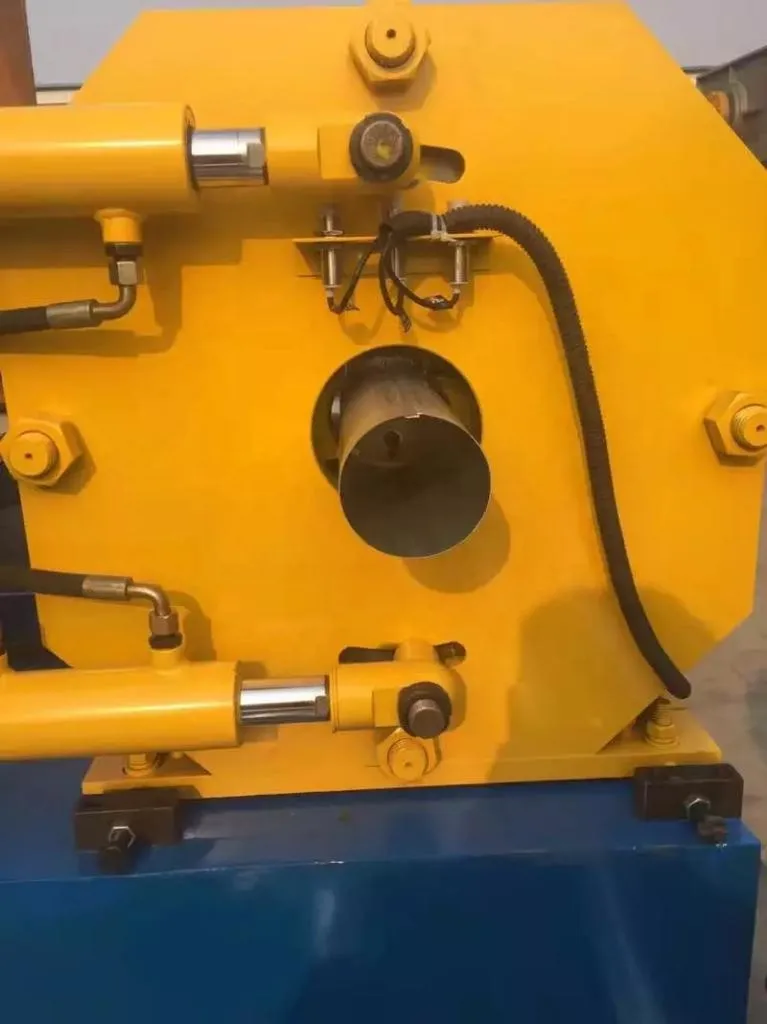

4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5 KW

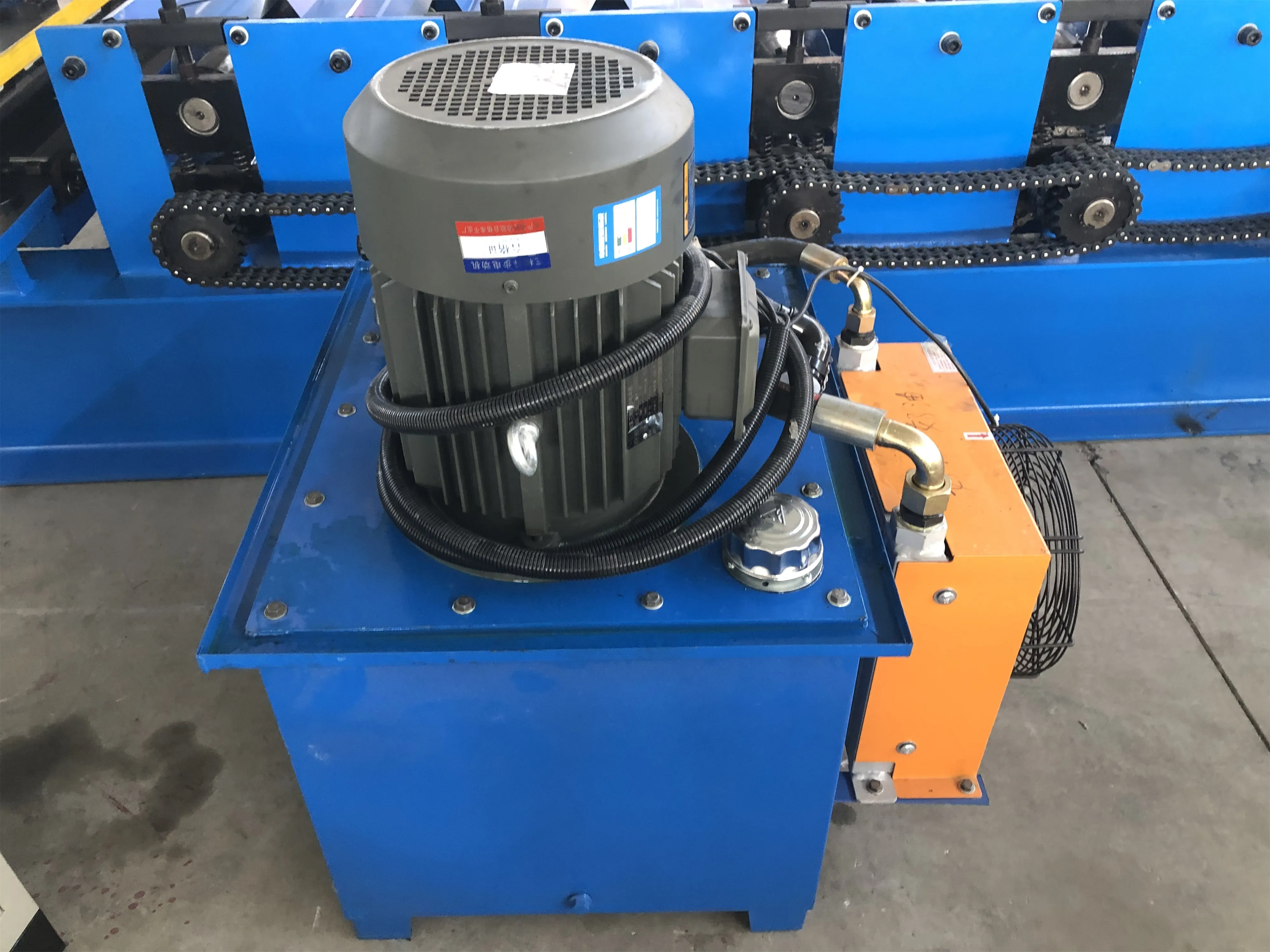

		Hydraulic system power		5.5 KW
6.Voltage	380V 50Hz 3Phase		As your requirement

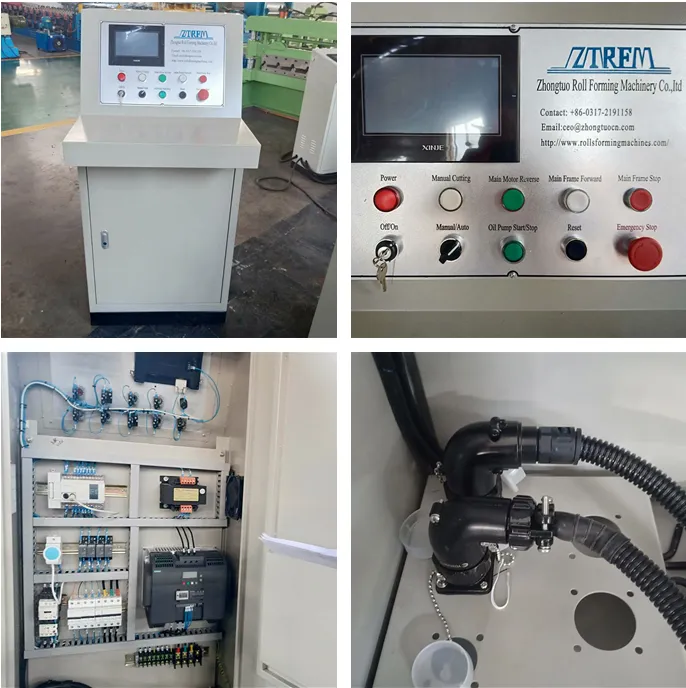

7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min		The speed is adjustable
