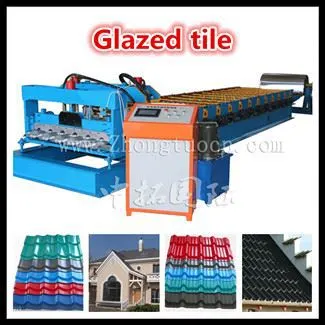

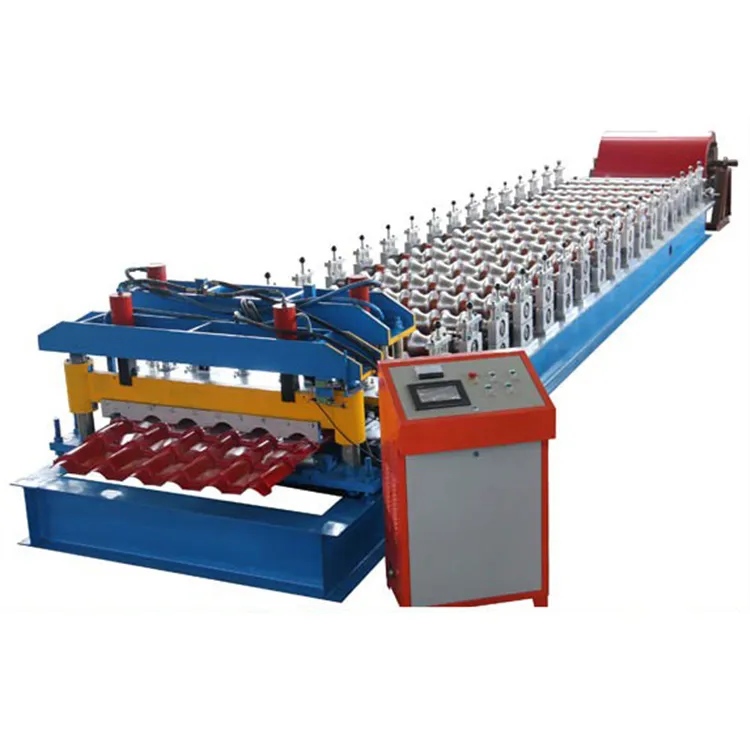

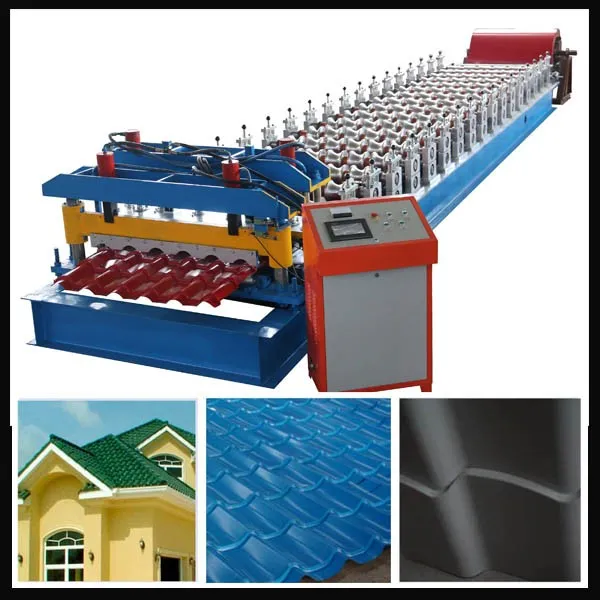

Glazed Color Coated Steel Roof Tile Making Machine, Auto Glazed Tiles Cold Steel Sheet Roofing Machine corrugated sheet metal roof making machine+5.5 kw

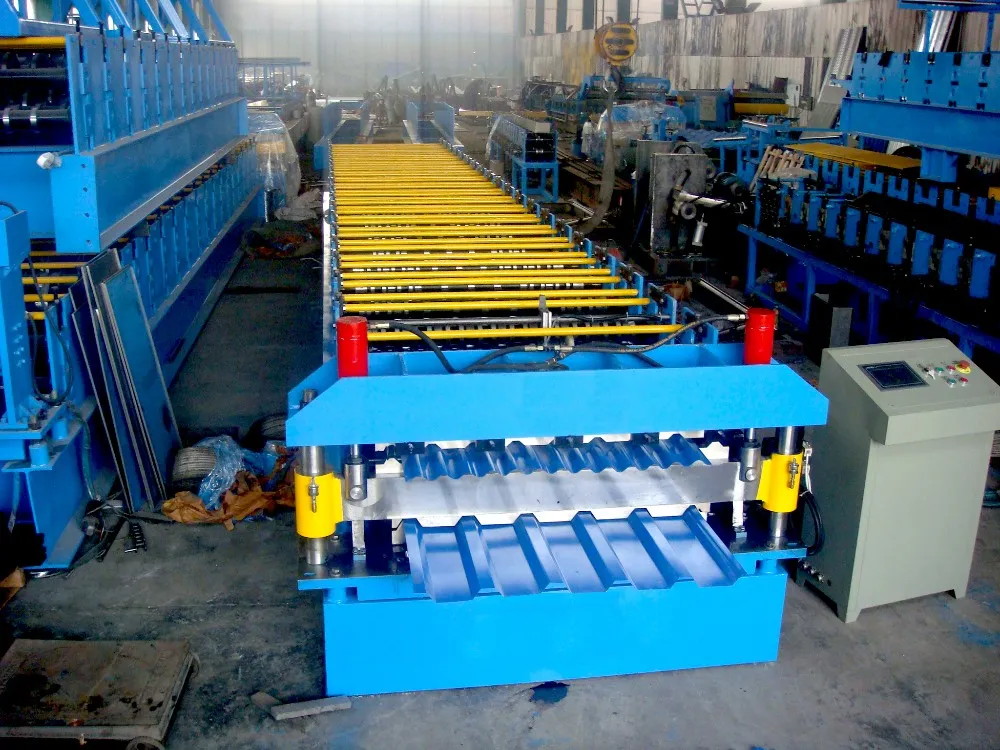

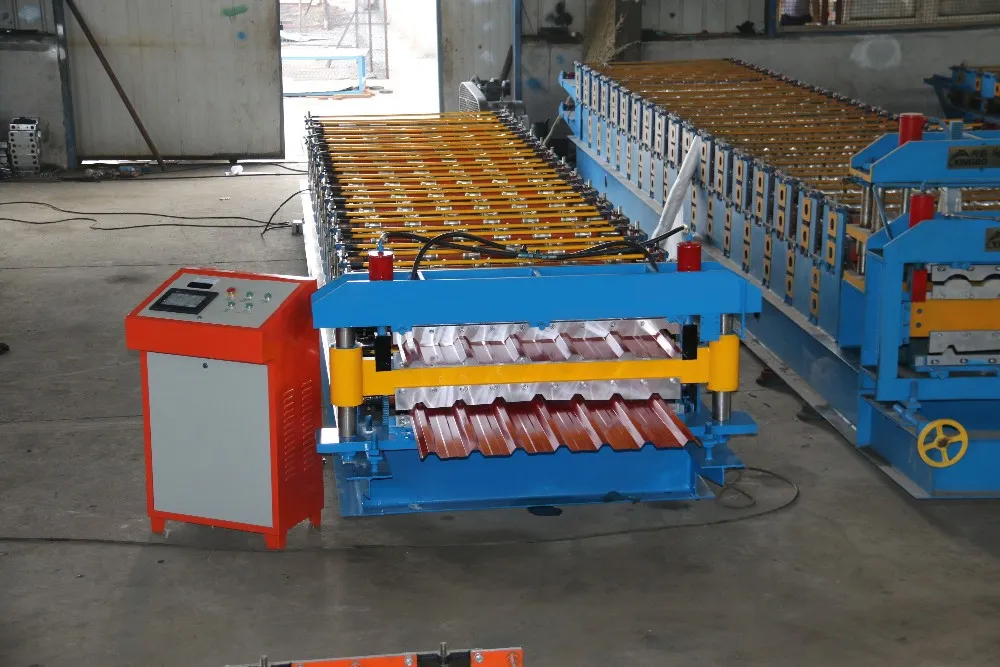

Hot Sale Used Double Wall Corrugated Roll Forming Machine

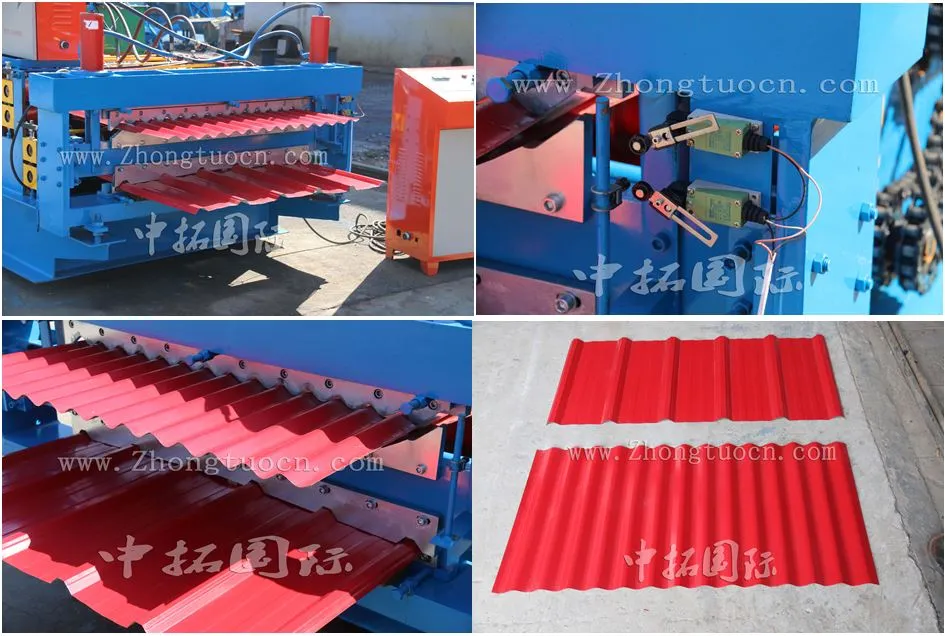

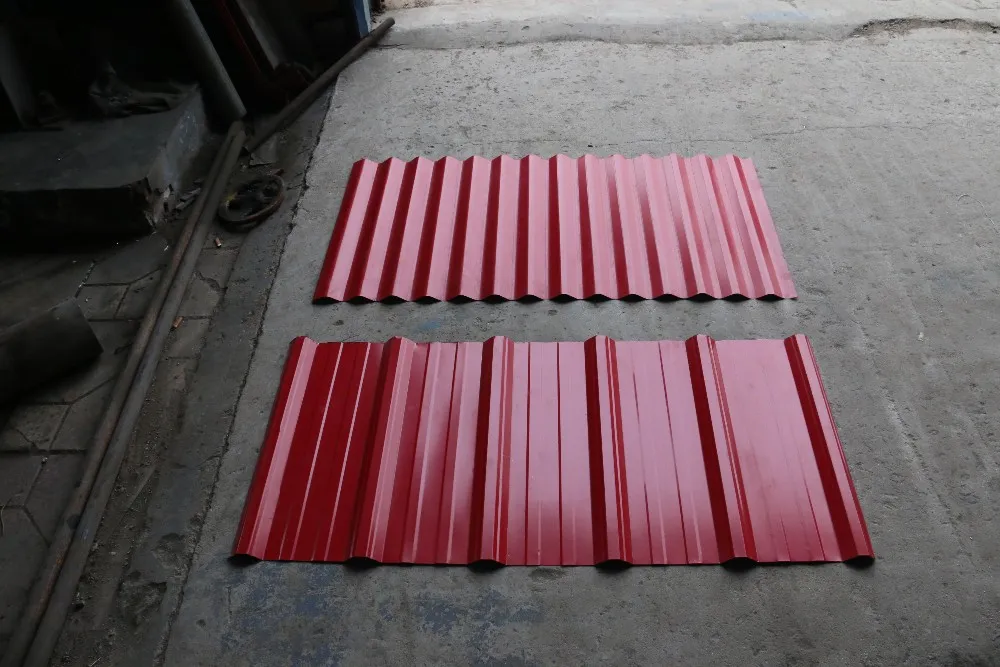

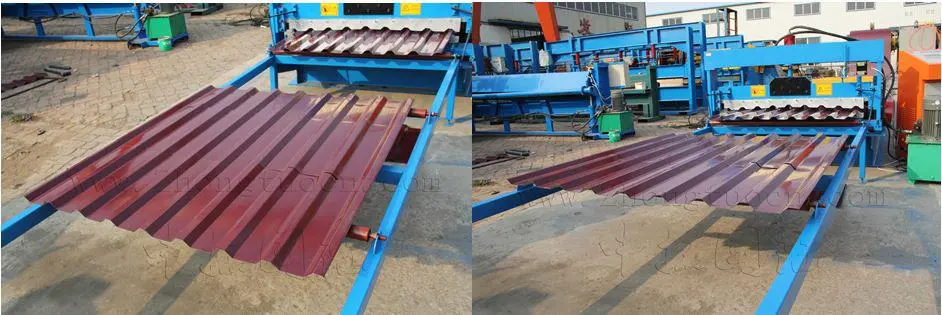

Finished product for your reference:





Materials:

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3- 0.8 mm (or as your request)

Coil width:or as your request

Forming speed: 8-12 m/min or as your requests



Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→

Auto cutting→Products receiving





Components of production line

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1





Detailed introduction of every part for this production line

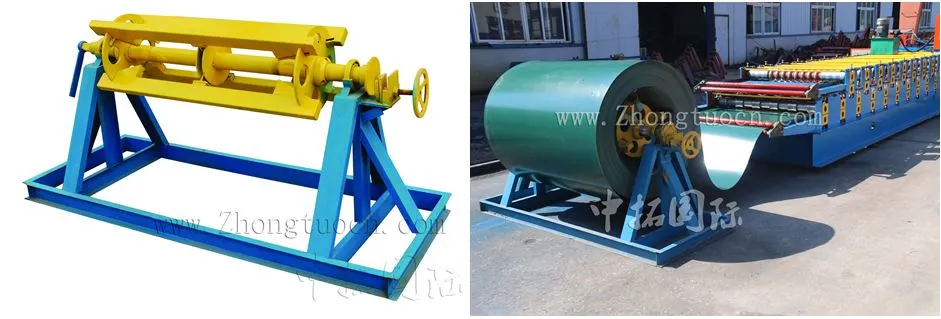

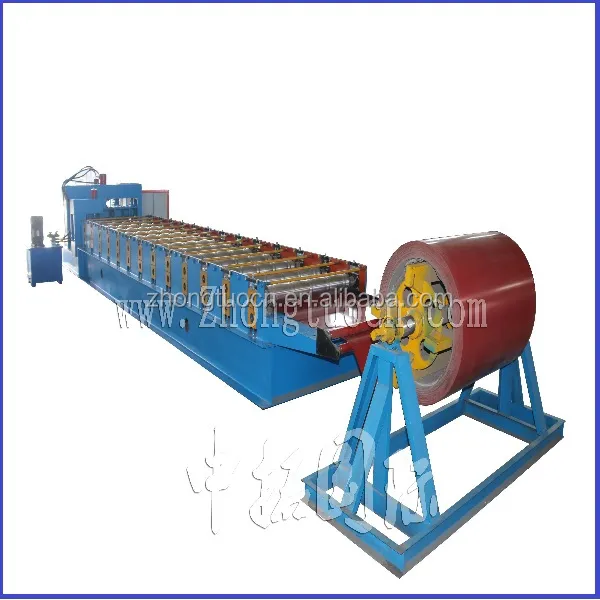

1.Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system



Loading capacity	Uncoiling width	Inner diameter
5T	1200mm	450-550mm

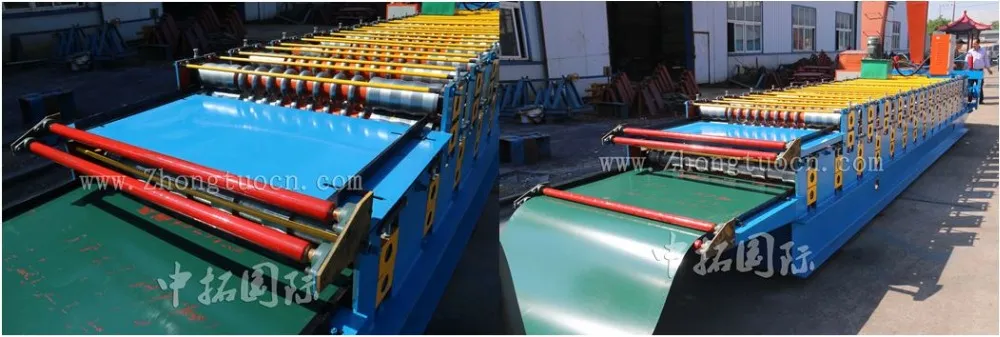

2. Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

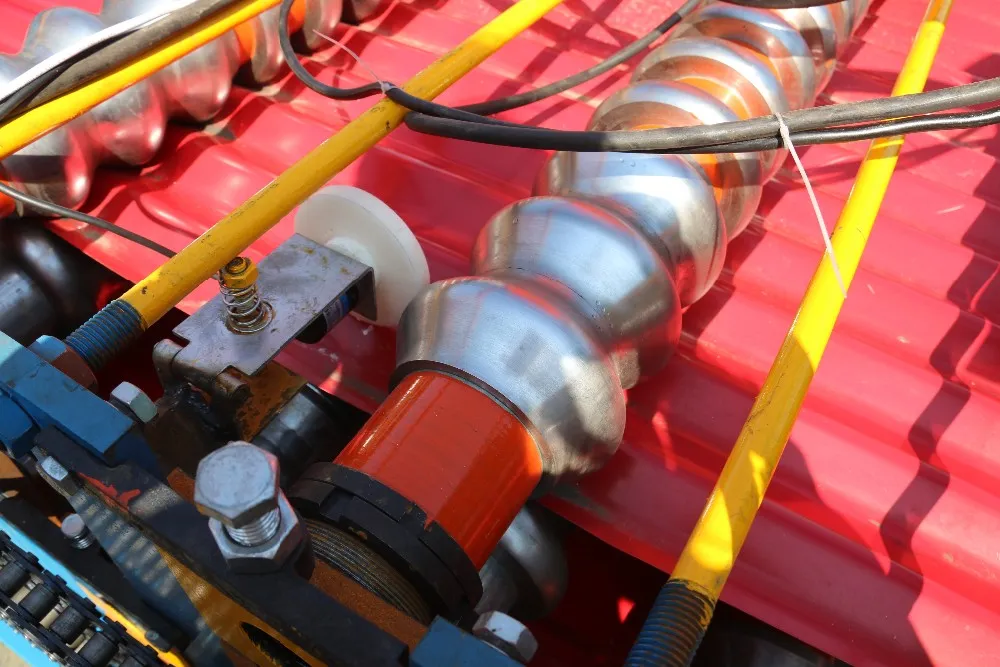

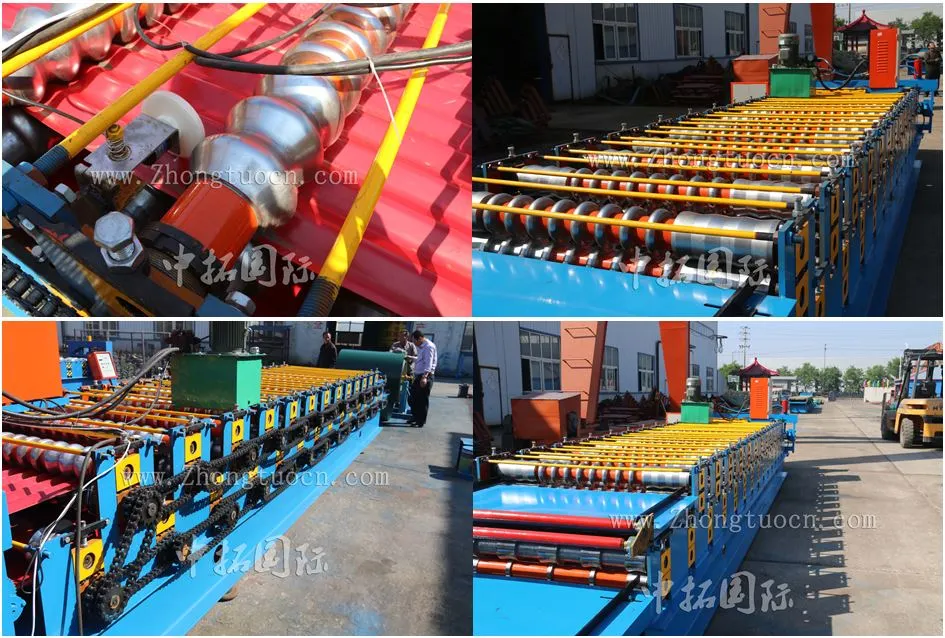

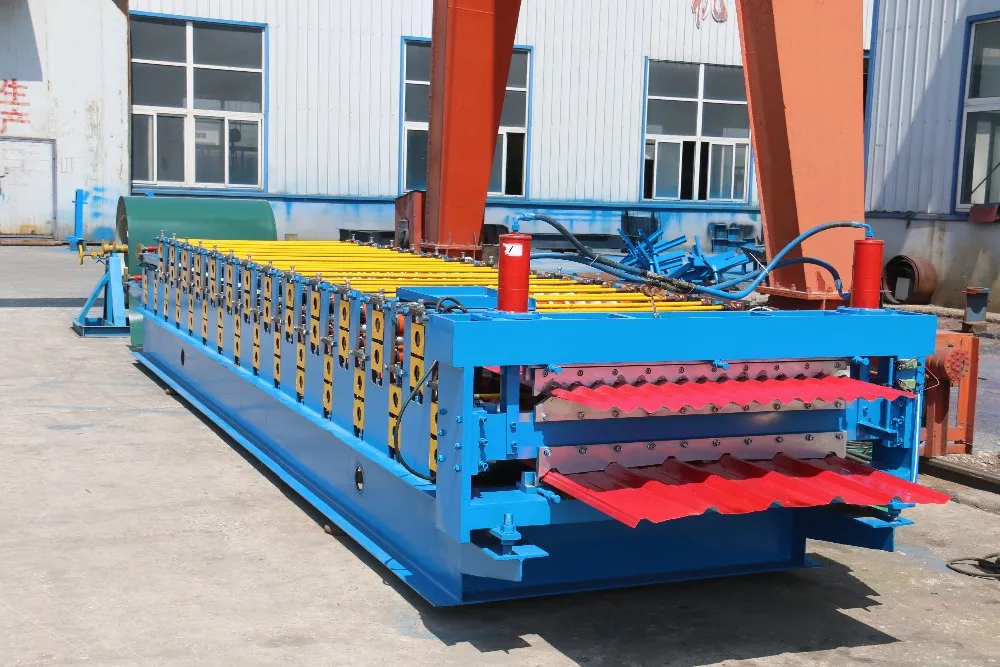

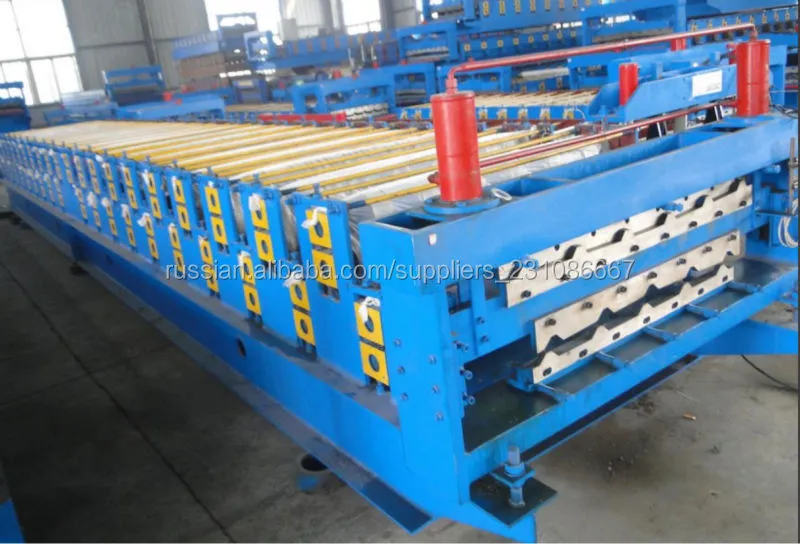

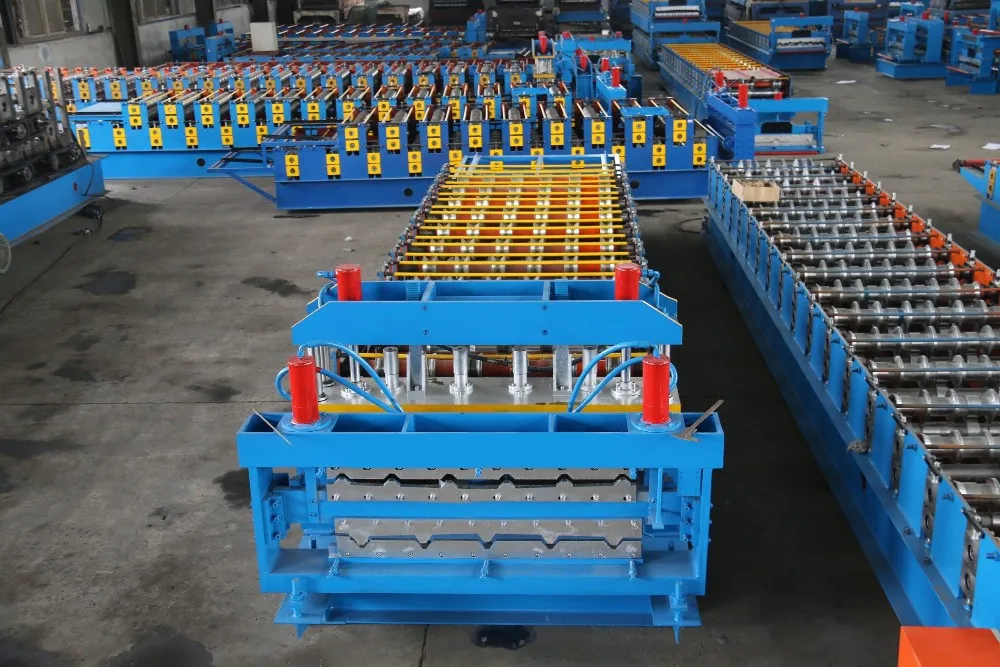

3. Main Roll Forming System

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.

Feature : Ensure stability , precision and lifetime.



No.	Main parameter
1	Length of the main part	About 8500*1650*1500mm
2	Weight of main part	About 6.5 t
3	Voltage	380V/50HZ3Phase (as customer`s request)
4	Roller fixer	Middle plate welded
5	Frame	350 H steel welded
6	Frame thickness	20mm
7	Drive mode	Chain
8	Material of rollers	45# steel, surface hard chromium plating.
9	Material of shafts	45# steel
10	Diameter of shafts	Φ80mm
11	Number of rollers	Up layer: 13 rollers Down layer: 15 rollers
14	Main power	5.5kw





4. Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material	Cutting system
Cr12 quenched	Full automatic







5. Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.





6.Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3*0.9*0.6m

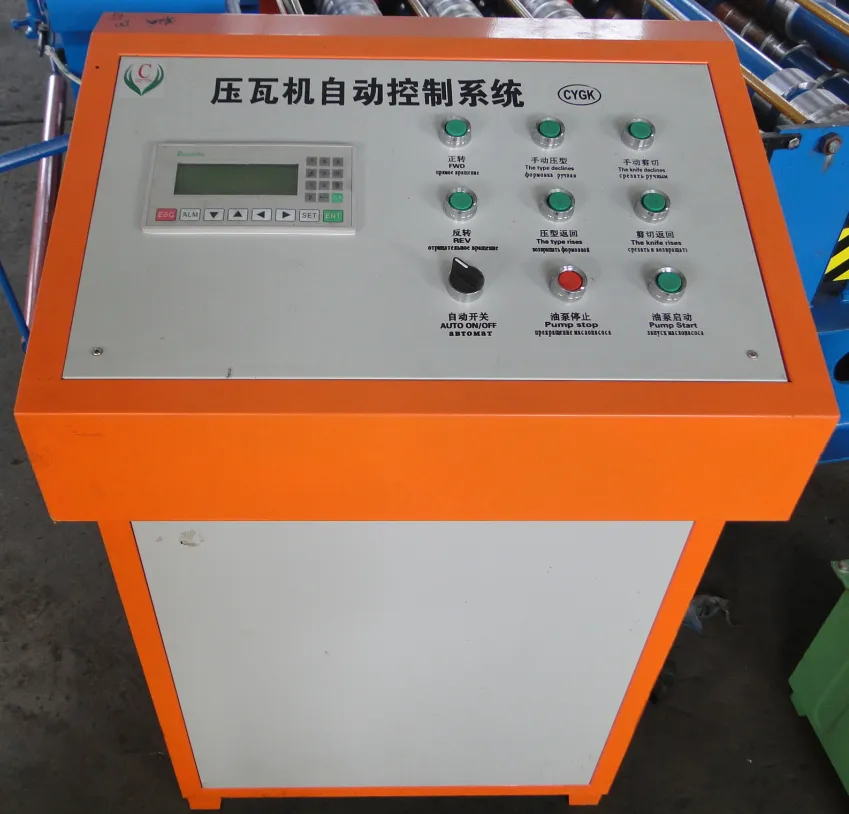

7. Controlling device

1) Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2) Other electric element are Delta

3) Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.



Screen	PLC
Text screen displayer	Taida DVP14ES from Taiwan

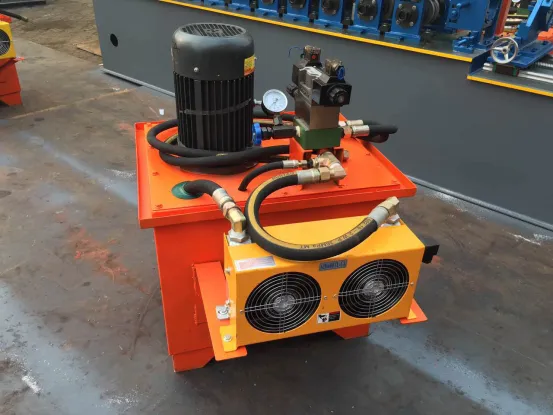

8. Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Origin	Power
Advanced hydraulic system from Taiwan	3kw





 Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs



Remarks

Payment terms	30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery	within 30 working days after receipt of deposit.

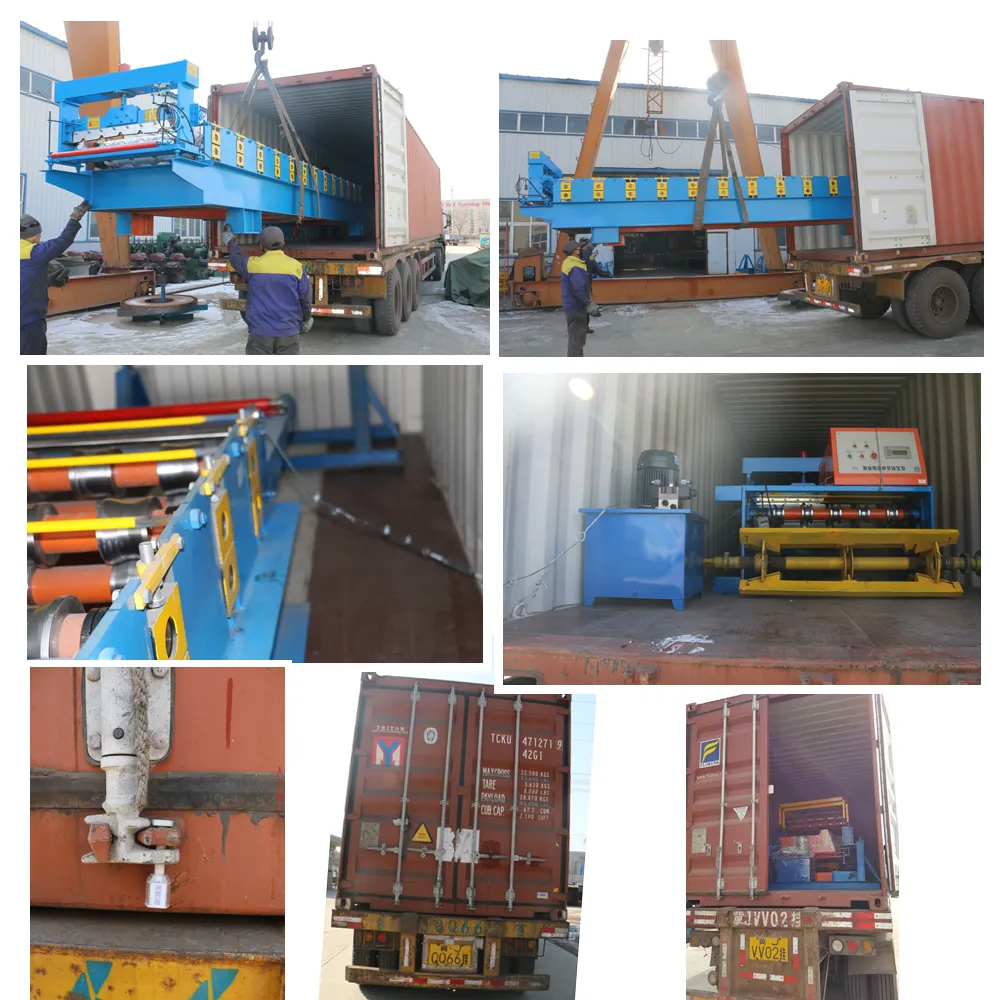

Packing	Nude packing with 1*40GPcontainer
Warranty	One year, and we will provide the technical support for the whole life.
Installation	1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment)
