Galvanized Steel Metal Soffit Panel Wall Cladding Roll Forming Machine

Cangzhou Zhongtuo International Trade Co., Ltd

Galvanized Steel Metal Soffit Panel Wall Cladding Roll Forming Machine

Name: Galvanized Steel Metal Soffit Panel Wall Cladding Roll Forming Machine
Brand: ZTRFM
SKU: ZT70180880
Availability: InStock

$10,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$10,000.00

Quantity:

≥1Set

Order CodeZT70180880

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

Wall cladding metal roll forming machine

Power(W):

5.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
wall cladding panel forming machine
Tile Type
Aluminum/Galvanized steel
Use
Wall
Voltage
380 V
Rolling Thickness
0.4-0.8mm
Feeding Width
610

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

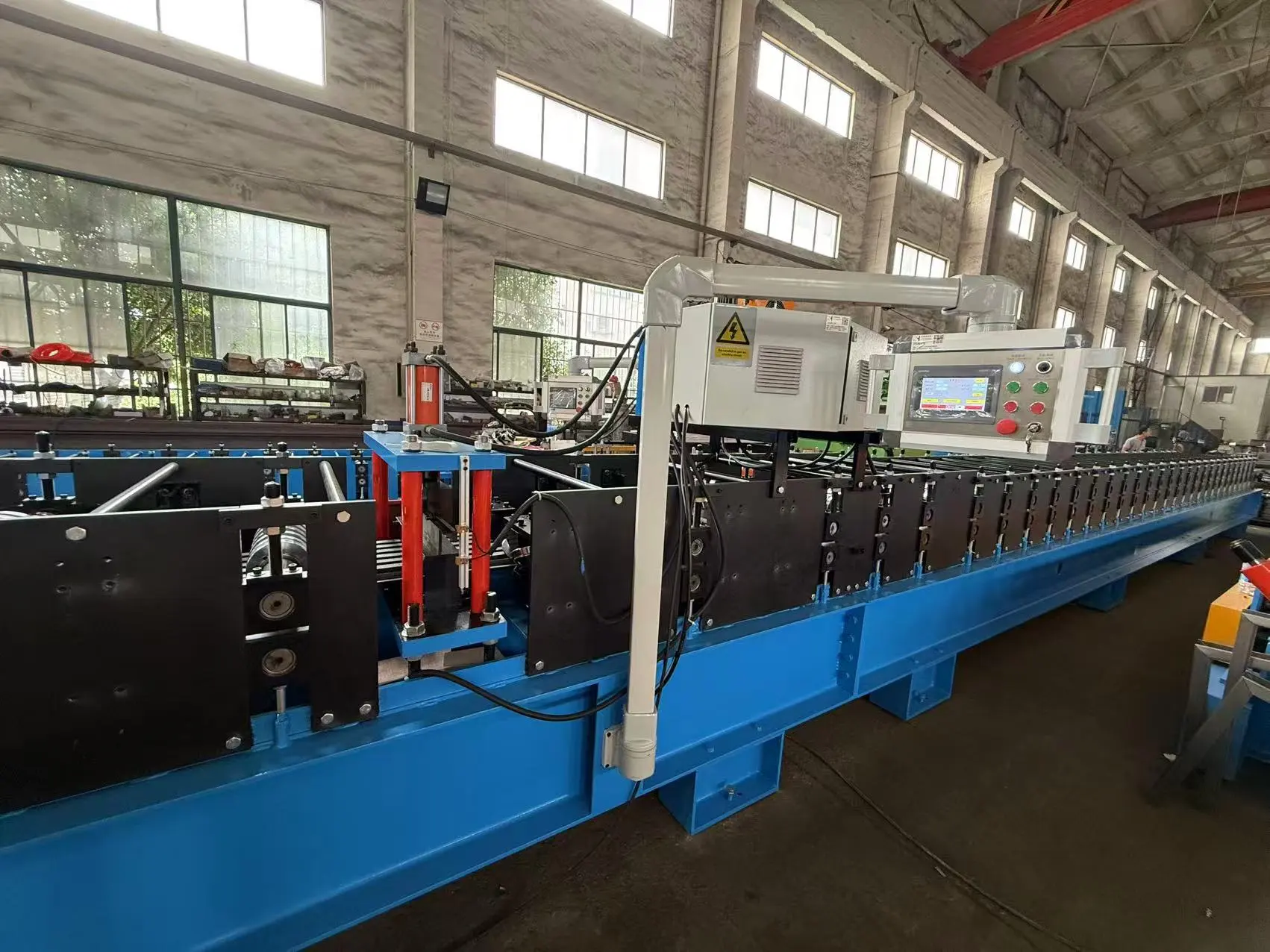

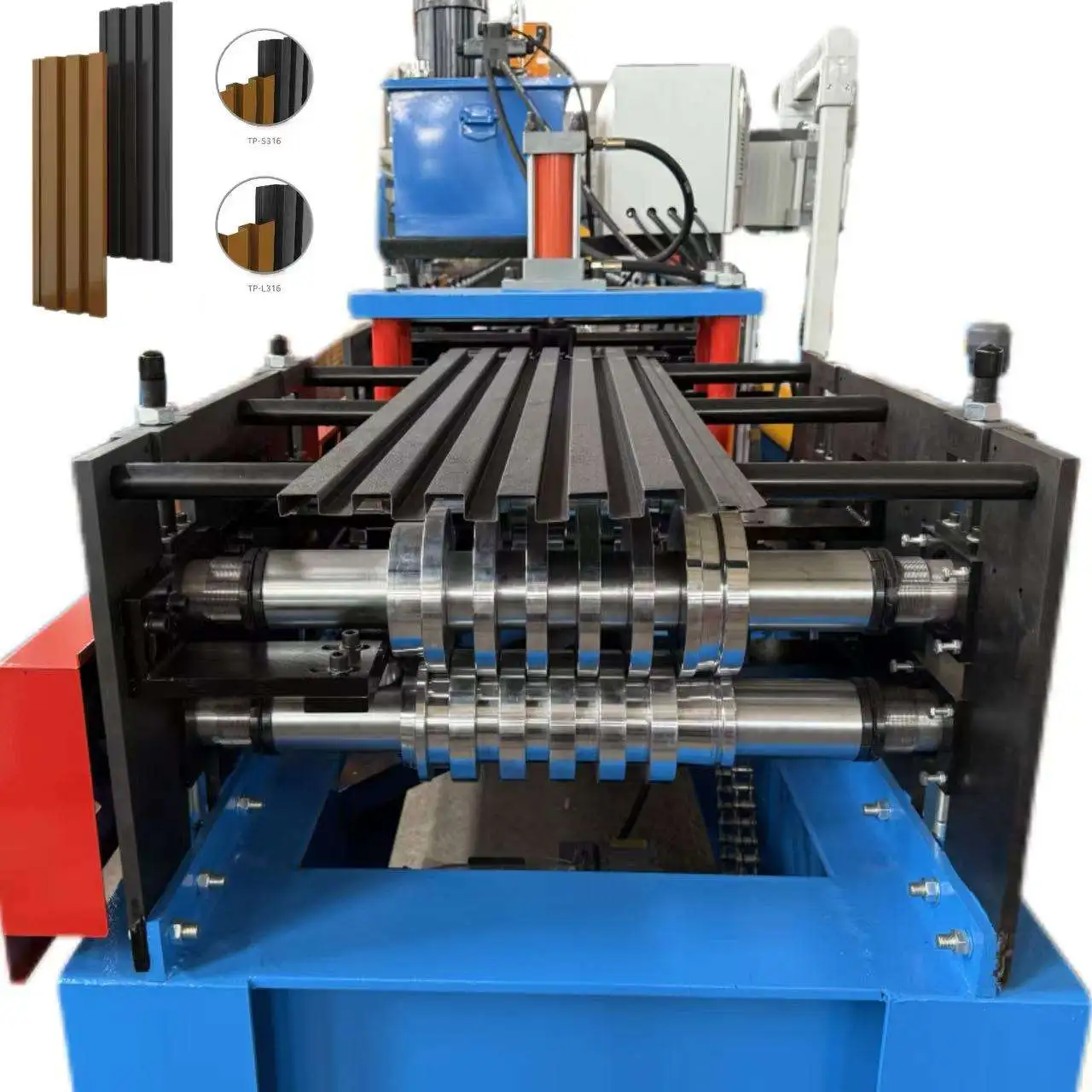

Wall cladding metal roll forming machine

Wall cladding metal rolling forming machine is designed to make the wall cladding sheet in batch fully automatically. Metal roof and wall cladding encompasses a plethora of different materials, each with its own unique strengths and weaknesses. Wall cladding panel become more and more popular in building decoration area, For example, the exterior walls of buildings and restaurant walls in Itaewon, South Korea, and now in China, Saudi Arabia, and European countries, cladding panels are being used to decorate traditional cement walls.

The main advantages of Zhongtuo Wall metal rolling Forming machine: 1. The high efficiency and stability of the machine
Our machine consists of 28row rolls and adopts split forming. Different ribs are formed one by one to improve the forming accuracy and ensure the Angle and production speed. Because for the wall panels, we have achieved a smooth surface without any waves or scratches!
2. Double cut configuration
The machine can be designed with two shearing devices, the front shearing and the rear shearing. The front shearing is conducive to accurate material preparation before molding, ensuring the precise length of the finished product, while the rear shearing guarantees precise and final perfect cutting without deformation. This design enables customers to control and select the cutting device according to their own requirements, making it more intelligent and convenient
3. Imported Delta programmable Logic Controller (PLC)
Equipped with an imported Delta adjustable PLC control system, it enables technicians to easily configure key parameters. The forming speed, cutting length and the precision of the plate shape can be adjusted through the PLC. The imported Delta electronic control system is a globally renowned brand and is also very helpful for the after-sales service and debugging of customers in the later stage! The wiring plugs of the machine's electrical control cabinet adopt first-grade aviation plugs, which are tighter and safer!
4. Reliable after-sales service
Our Zhongtuo Factory Wall cladding sheet making machine has 7*24h online technique service ,and we has professional oversea engineer team , can go customer’s factory to help customers debug machine and teach workers, worth your long time cooperate!

Material	HR,CR,G/Z,PRE-PAINTED COILER
Thickness	0.5 to 0.7mm
Input coil width	607mm（around）
Roller station	28 roller stations
Working speed	15M/Min
Roller shaft	Shaft diameter=70mm
Middle plate thickness	20mm
Roller material	45# hard chroming
Shaft diameter	45#steel
Transmission	By Chain of size 1 inch
Machine power	7.5 kw
Shearing method	Hydraulic shearing
Shearing error	±1mm
Blade material	Cr 12

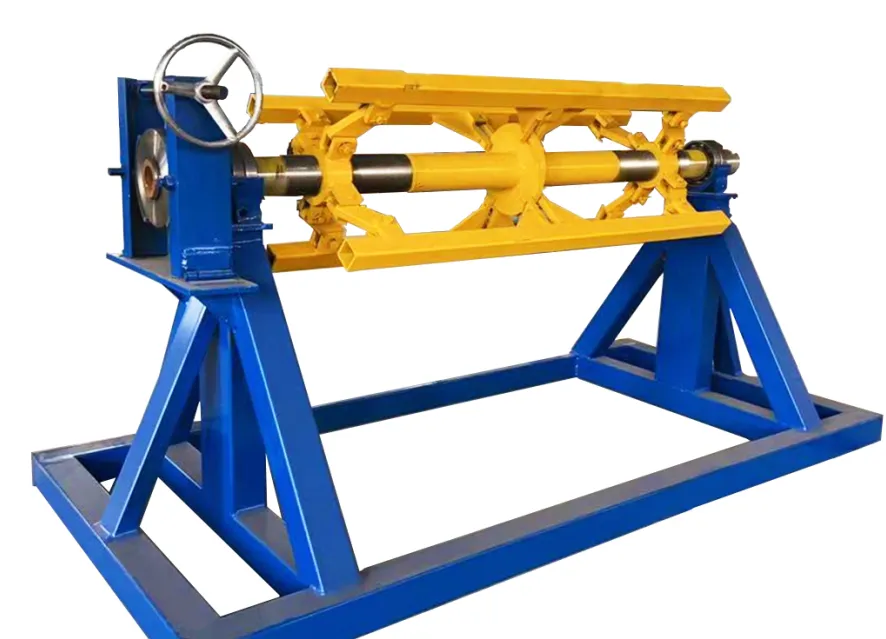

Manual Decoiler

Our manual unwinders are equipped with handwheels that can be operated by workers to assist in unwinding, and are additionally equipped with brakes to prevent slush and facilitate emergency braking and adjustment.

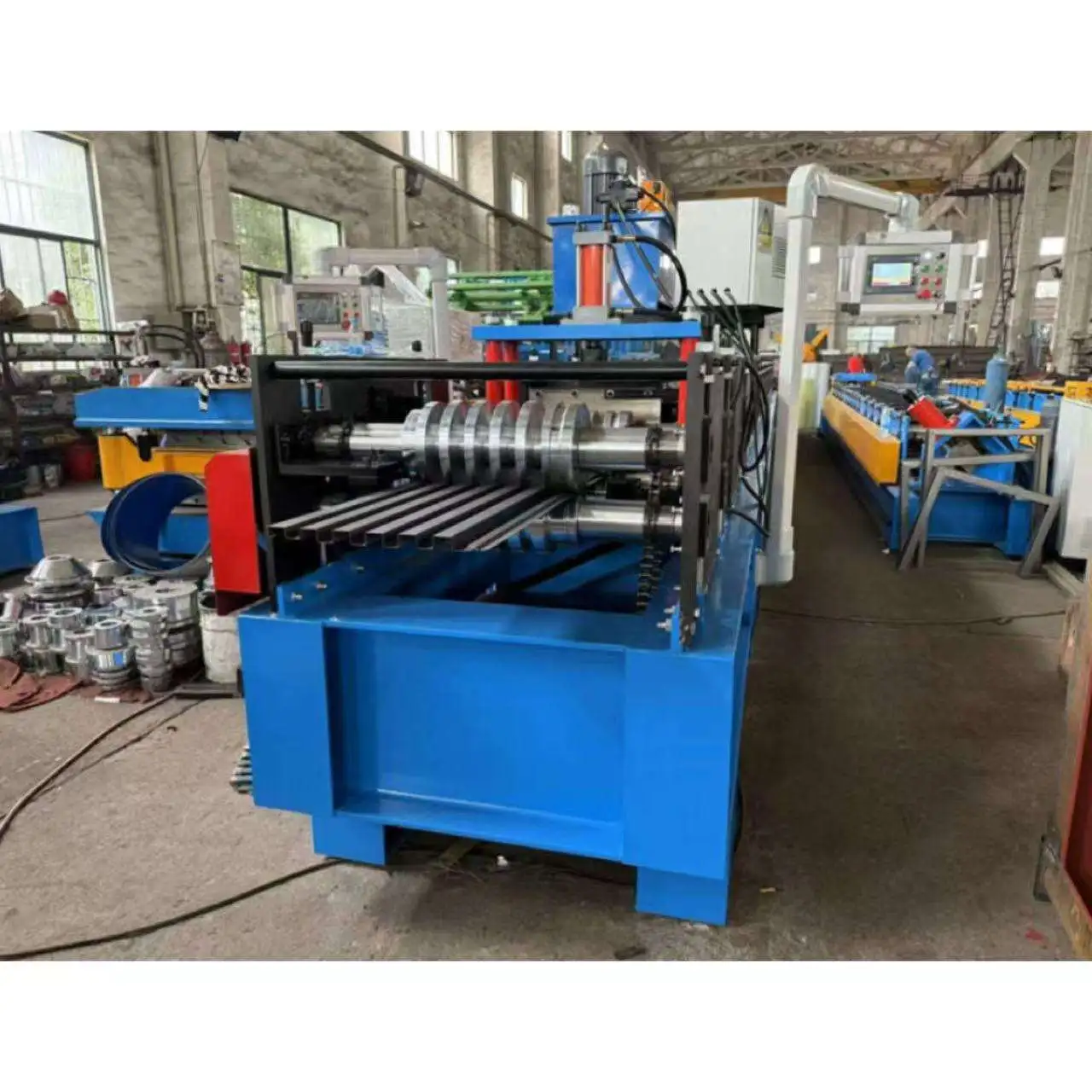

Feeding Device

Our Advantage:
1. With several support rollers, to feed the material more smoothly
2. With hand wheels to adjust the feeding size, more conveniently.
3.Up layer and down layer with manual cutter to cut feed material more easily.

4. Upper layer and down layer with two gears on the outside, so that the upper axis of each layer runs passively to actively, with
more power and faster.

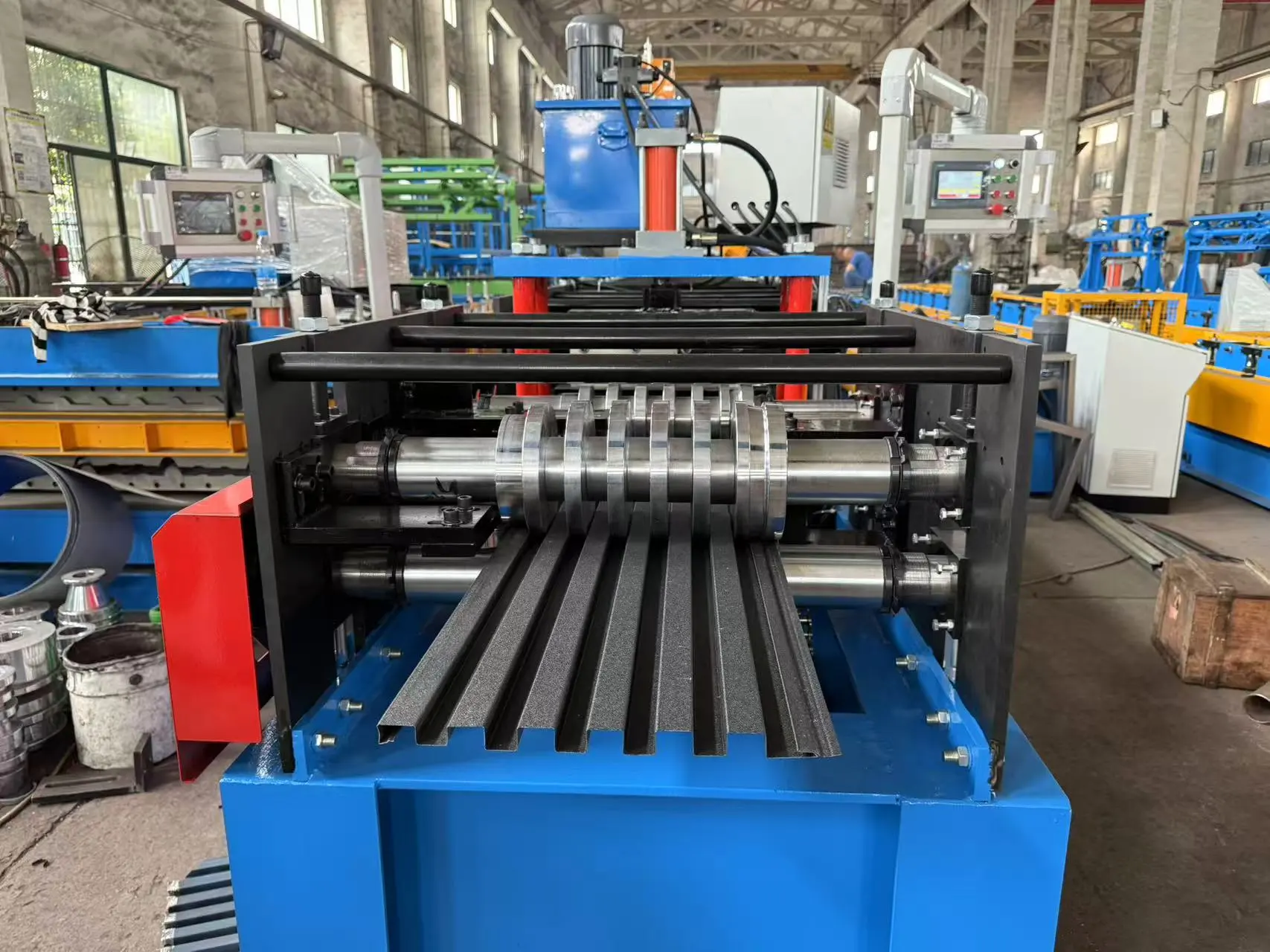

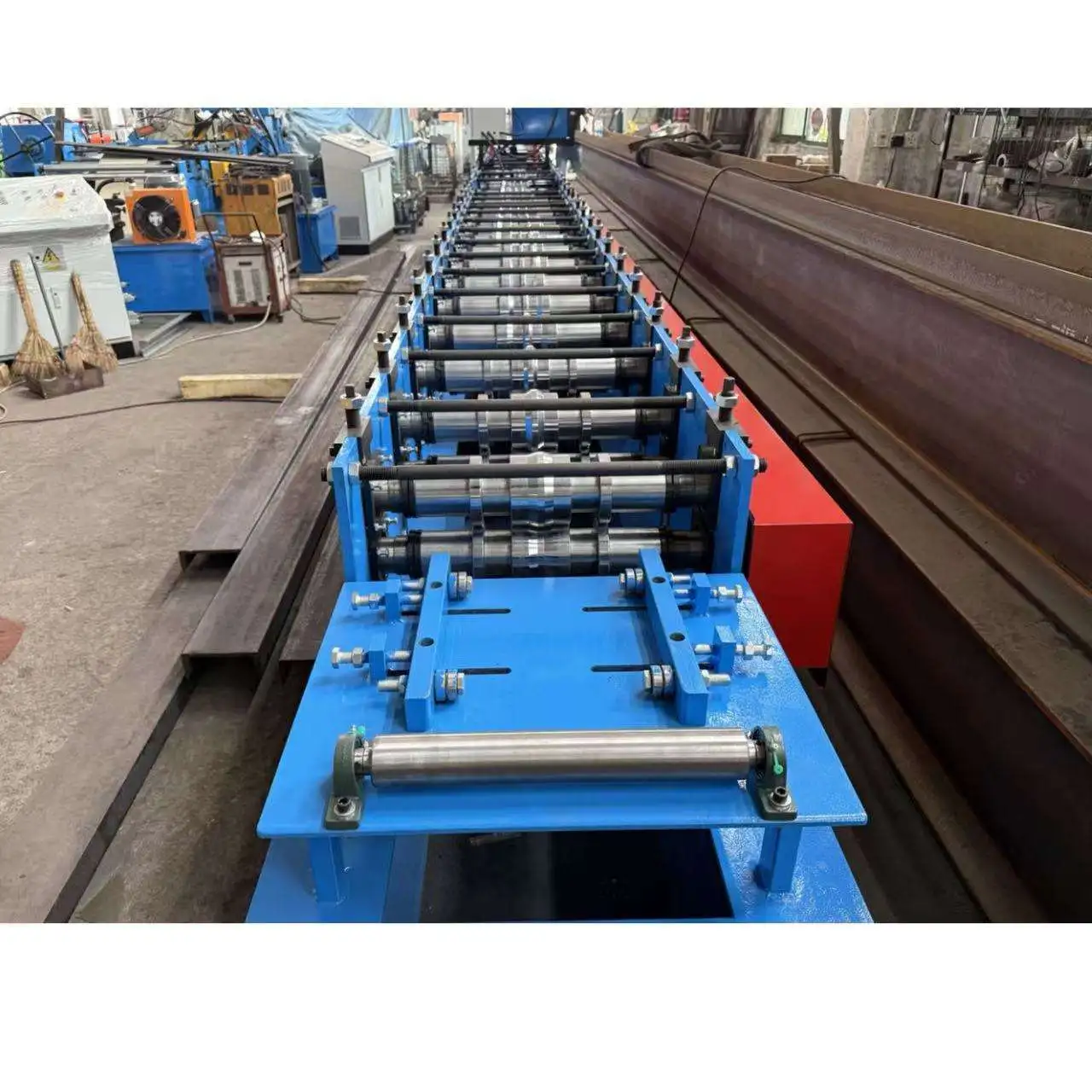

Main forming machine

We use integral forming type

first molding, then roll pressure out of the curvature, to protect the raw material paint layer, the counter is close to the material to roll counting, to ensure that the data is accurate and the molding is perfect.

Moreover, the assembly of
our shafts and rollers is fixed by keys and keyways through insertion, ensuring stable molding and guaranteeing high strength and
resistance to deformation under operating loads.

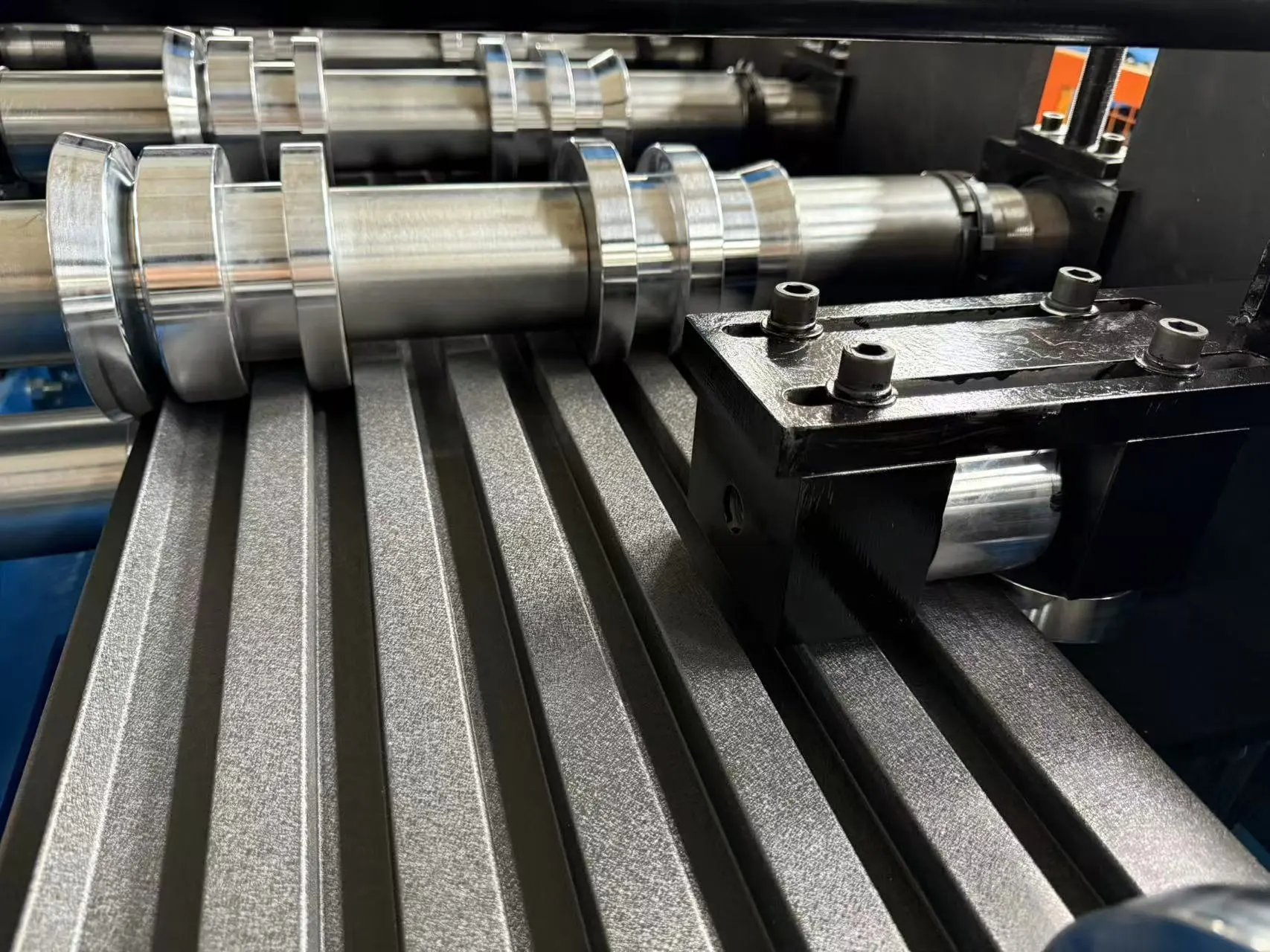

Rollers and Shafts

Roller details: 28 rows rollers, the roller material is 45#steel and chrome-plated. The includ feeding and forming machine can
work at a speed of up to 20 meters per minute. An automatic oiler is installed during the forming process to protect the paint and
zinc layers on the material surface.
Roller shaft details: The material is 45# steel, which has undergone high-temperature quenching treatment. The shaft diameter is
80mm, and the middle plate thickness is 20mm. It has excellent wear resistance and corrosion resistance.

Chain transmision

Double chains transmission

Save machine space

The machine adopts1-inch double-chain drive, which is renowned for its reliability and stable power transmission. The machine is driven by a 7.5kW motor to provide sufficient power. The chain is equipped with a tensioning device to ensure its service life

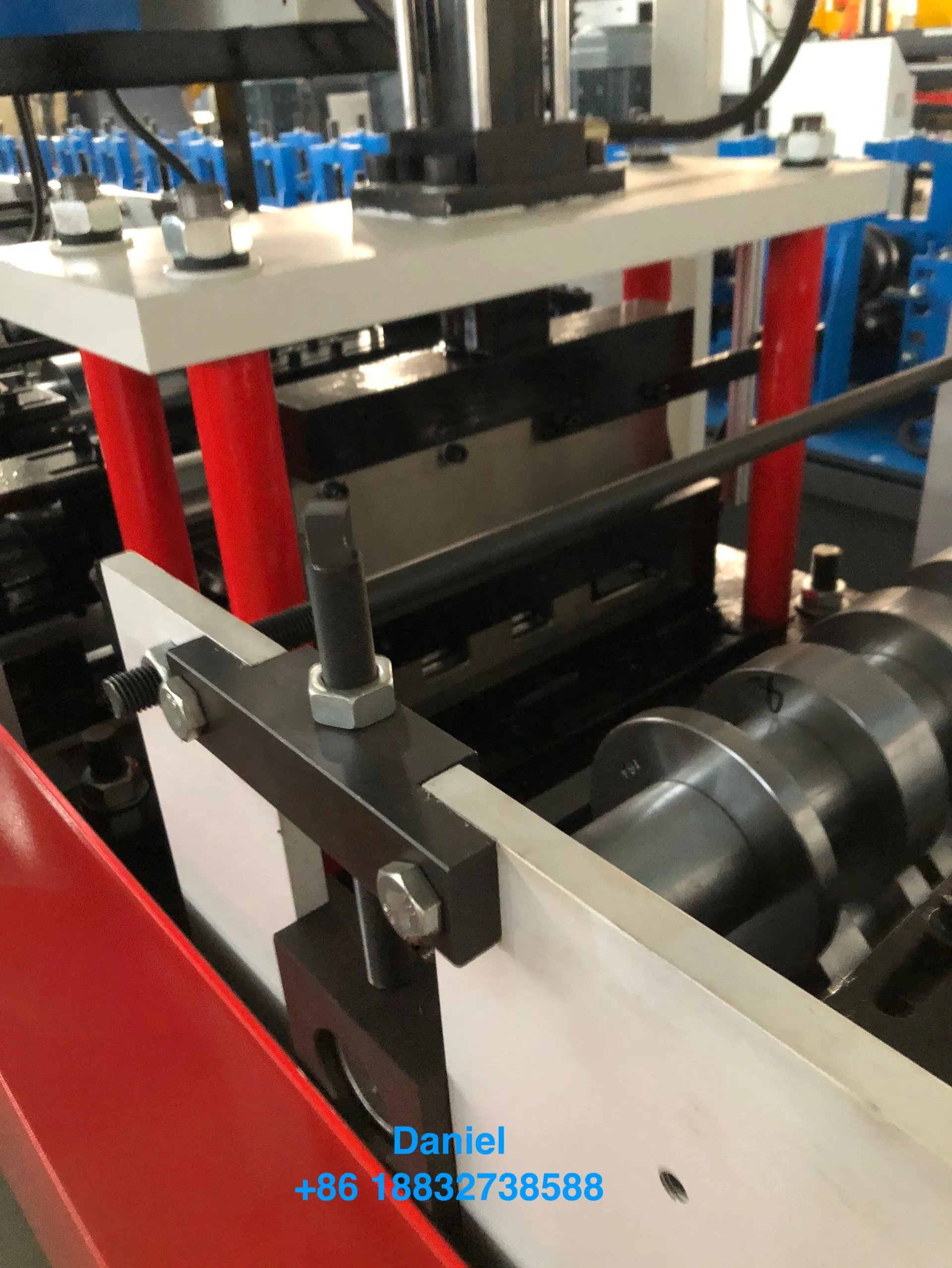

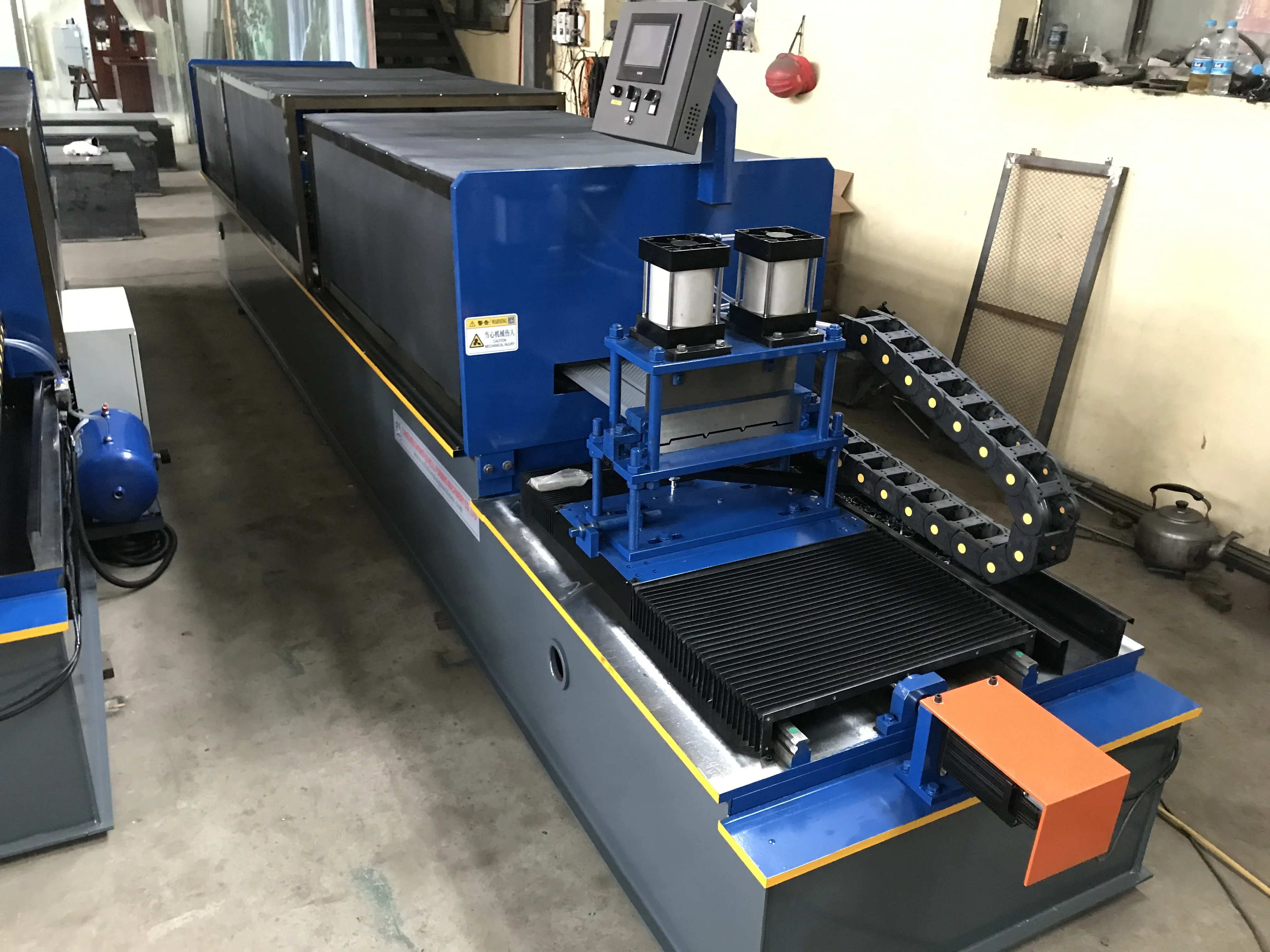

Cutting Device

We use a double guide column structure, a tool holder reinforced with 8.8 grade screws, and an automatic oiler, which is more efficient, more convenient to use, and has a longer machine life.

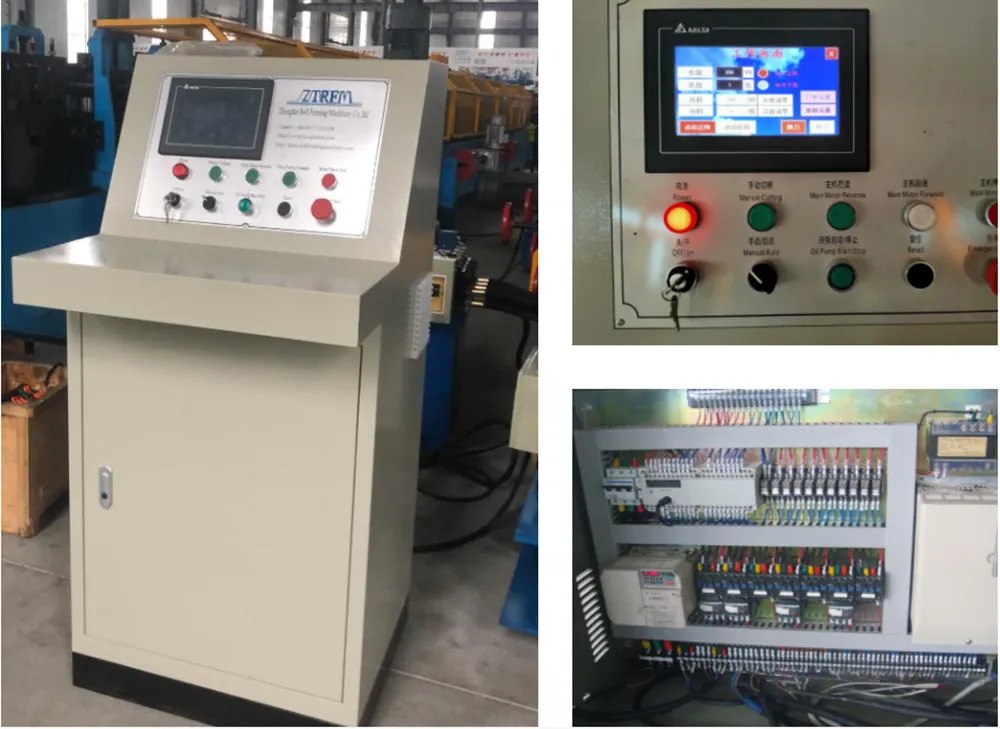

PLC Control System

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation
4.Languages can be customized

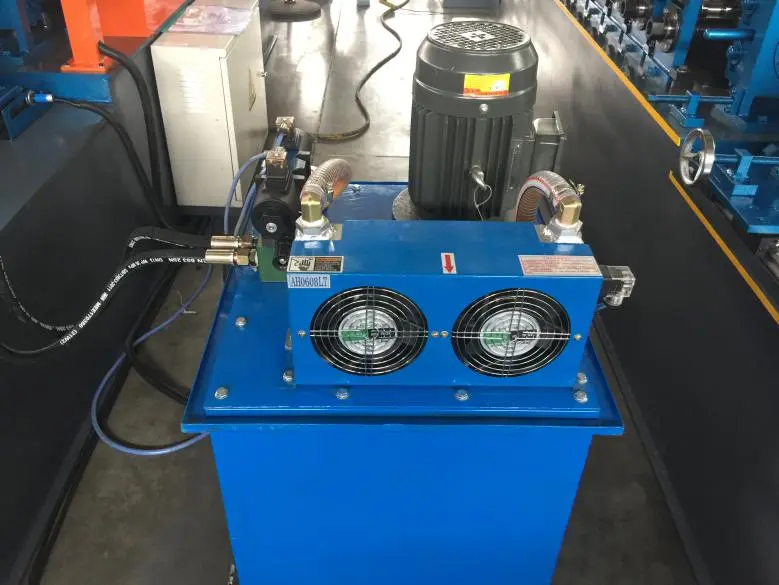

Hydraulic Station + Accumulator

Hydraulic station with accumulator, the machine shear speed faster, more stable operation, higher machine efficiency

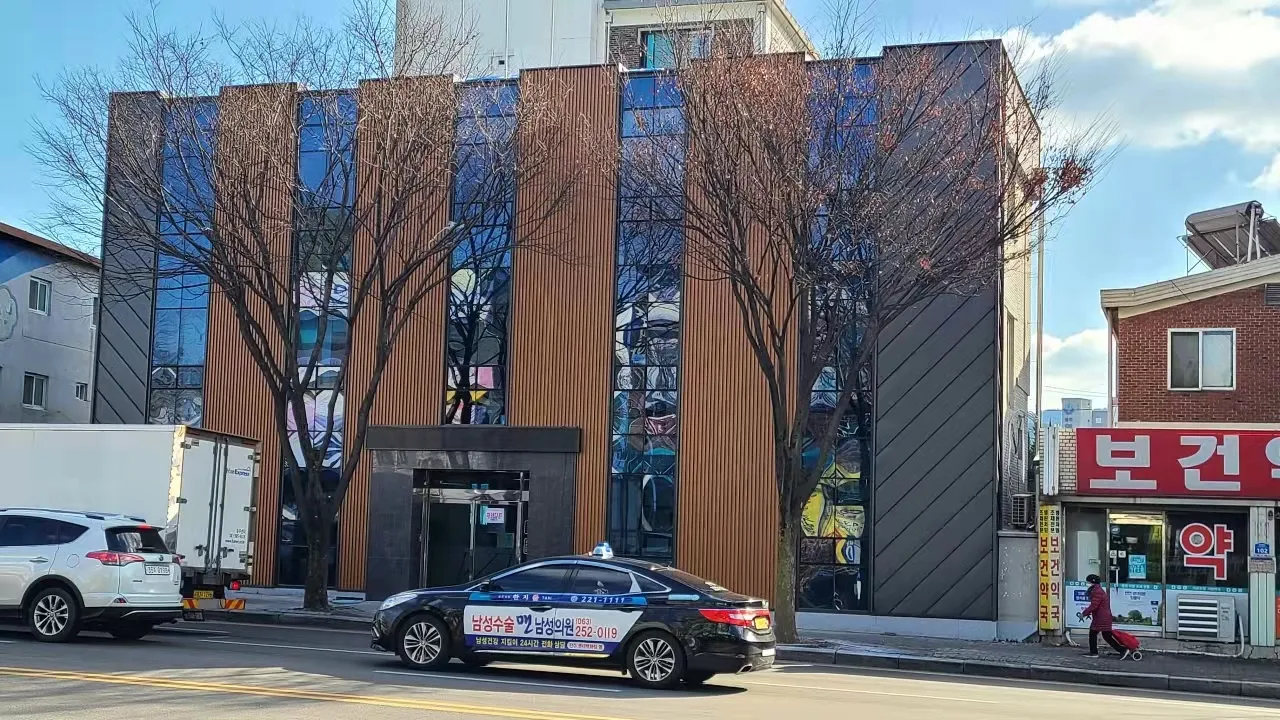

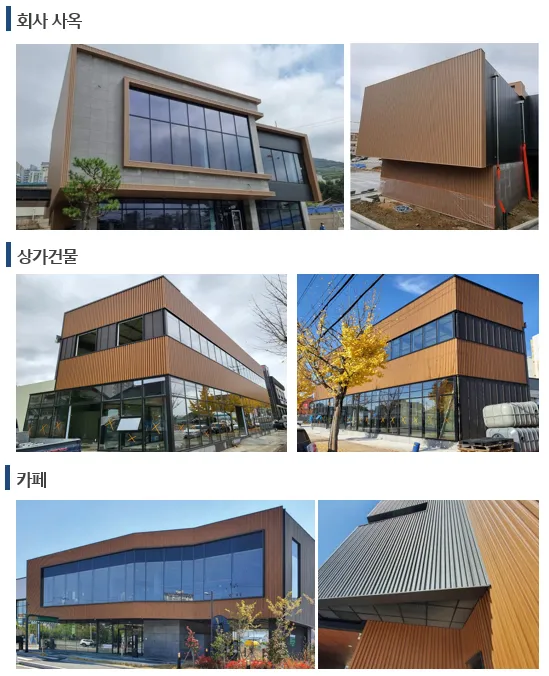

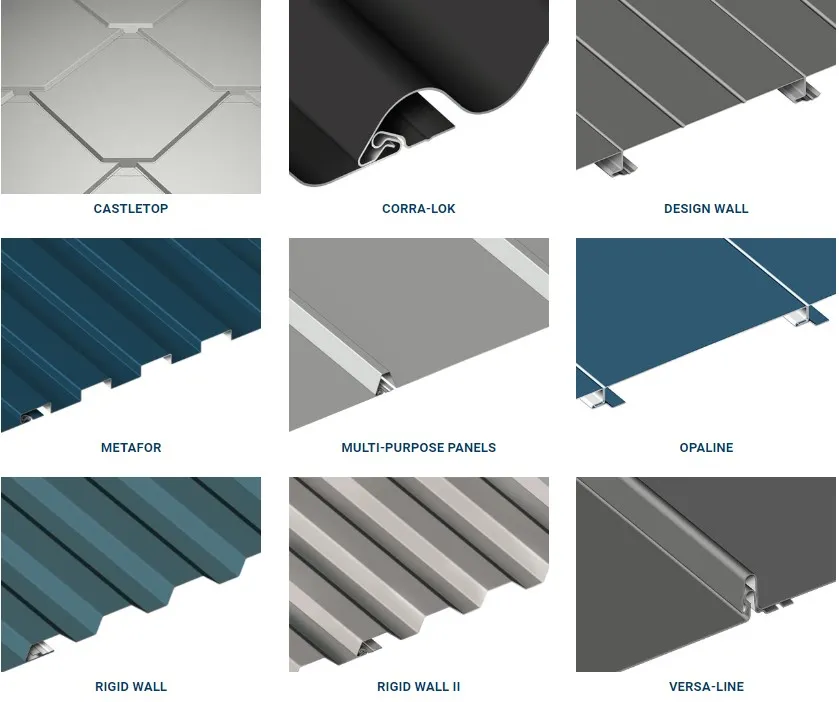

Application

Exhibition

Certification

Customer Photos
