Galvanized Steel Guardrail W-beam Terminal Buffer End DC-GR-30008





No.	Item Name	Specification
1	Terminal end type	Buffer end
2	Terminal Beam Thickness	2.5/2.7/2.75/3/4mm
3	Surface Treatment	Hot Dip Galvanized
4	Galvanizing Thickness	300g/m2(40µ), 550g/m2(80µ)  or 1100 g/m2(160µ)
5	Features	Great corrosion resistant, high intensity,
6	Remarks	Other special specification as per client's requirements.

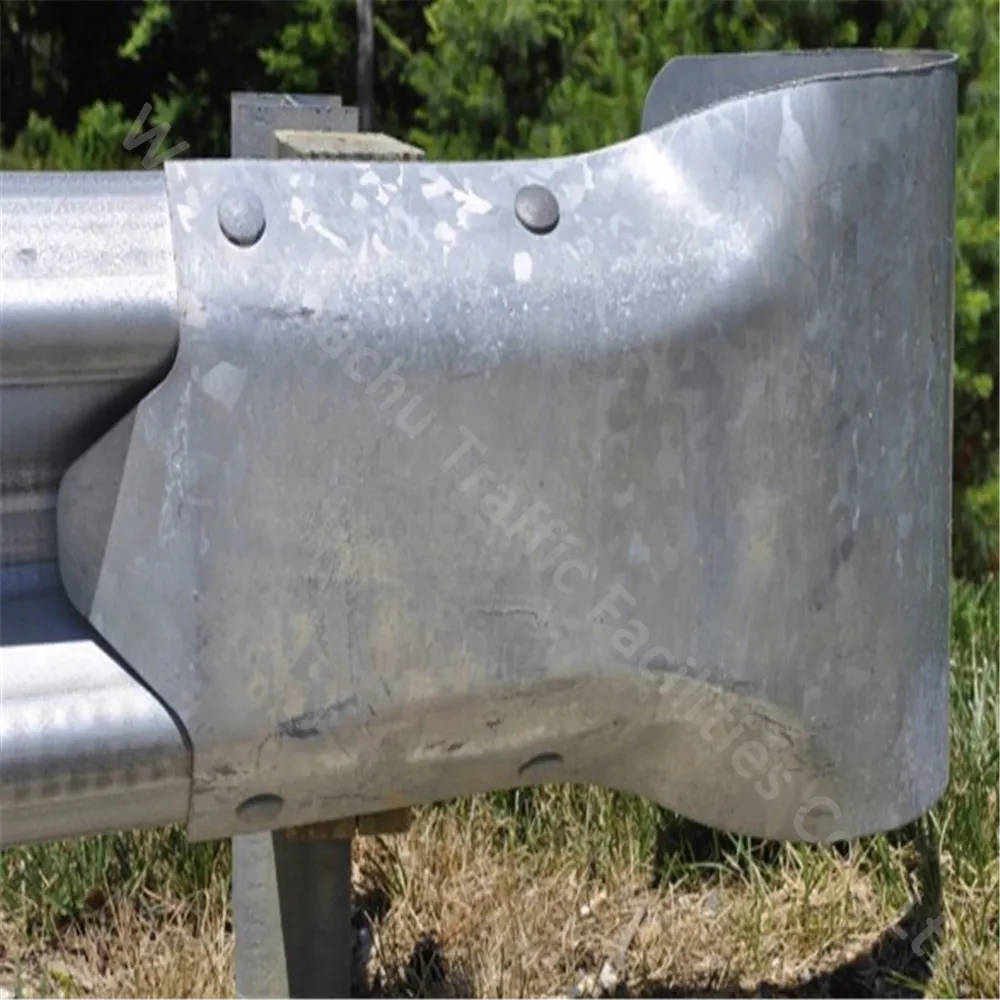

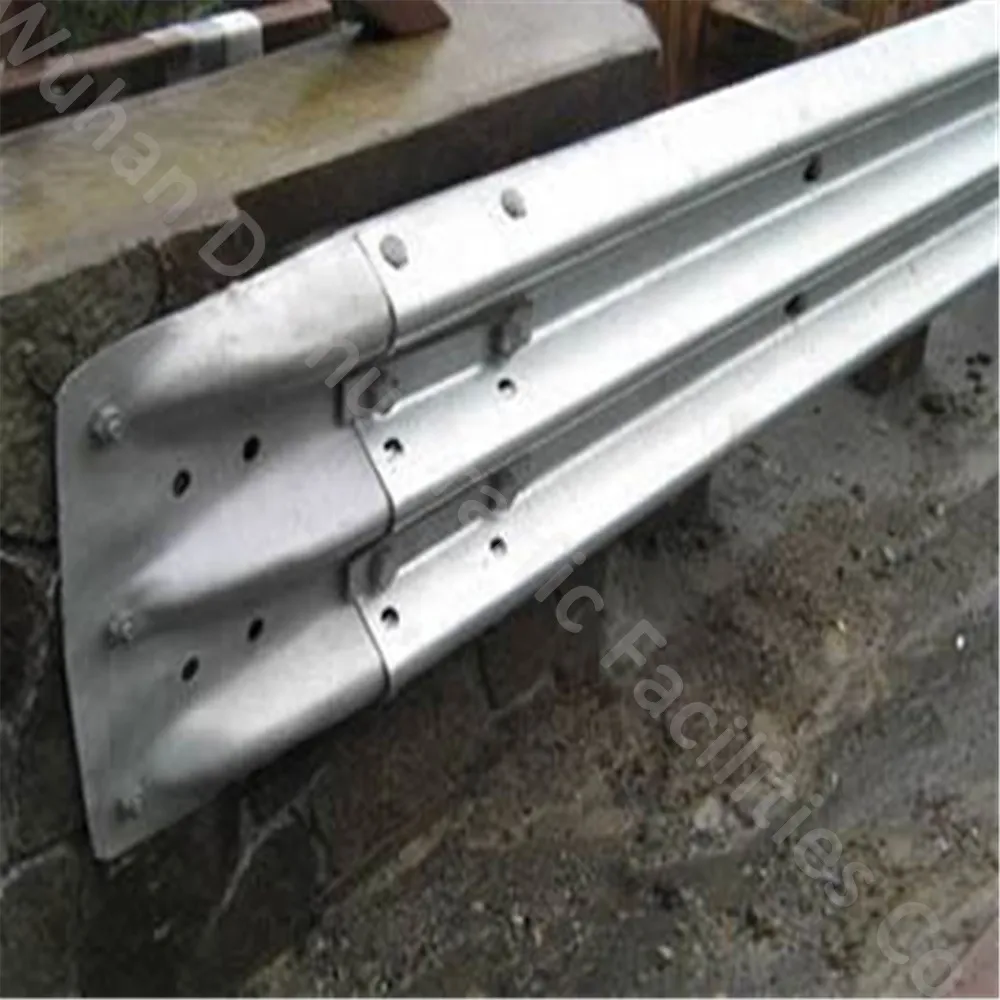

End Terminal—the specially designed end pieces of a road safety barrier system. The leading terminal is on the end of the road safety barrier system that faces oncoming traffic and the trailing terminal is on the other end. Guardrail end terminals are designed to provide a soft gating impact to prevent the end rail from spearing an impacting vehicle. Terminals also introduce tensile and strength necessary to ensure redirection performance of the length-of-need section. Relatively, buffer end is an economical traffic safety terminal ends. It is at least very popular in China.



Surface finish A road safety barrier system shall have a surface finish that minimizes the friction between the system and an impacting vehicle. The surface finish shall be uniform, resistant to incidental damage and shall not be affected by detergents and similar agents that may be used to clean the external surfaces. Protrusions from the surface, which are likely to be struck by an impacting vehicle, shall not exceed 20 mm. Any protrusions shall be rounded or similarly treated, to reduce the possibility of snagging the body work of a vehicle or catching at the person or clothing of an individual. After construction, components shall not be left with splits, burrs or sharp edges after construction. Lapping of elements shall be in the direction of the potential path of an errant vehicle.



Highway guardrail features & application



-To provide railing protection to motor vehicles at dangerous road areas such as steep slop,obscure curve,high embankment and sharp corner,Expressway, etc.

-To absorb sudden impact during collision to minimize injury to vehicles and passengers.

-To act as directional railing for vehicles moving in the right direction.

-To act as a median barrier for avoiding head on collision.

-To act as a protective barrier for pedestrian along the highway.

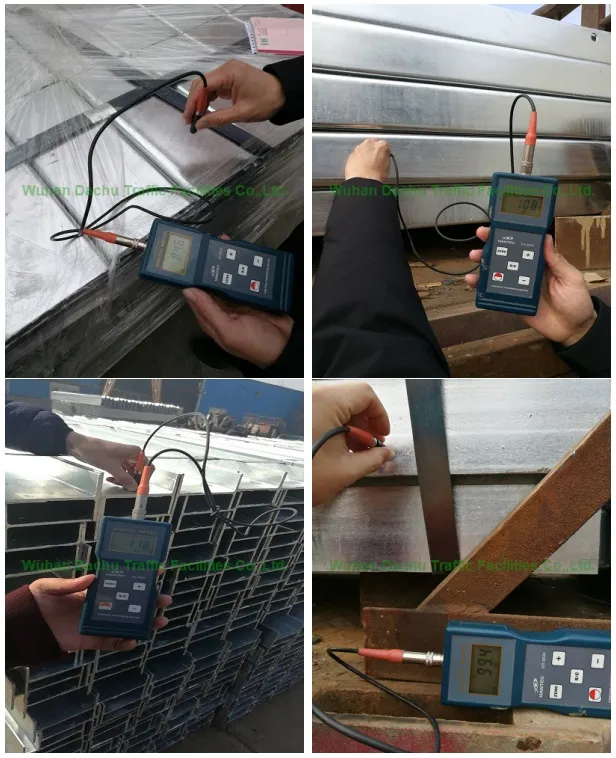

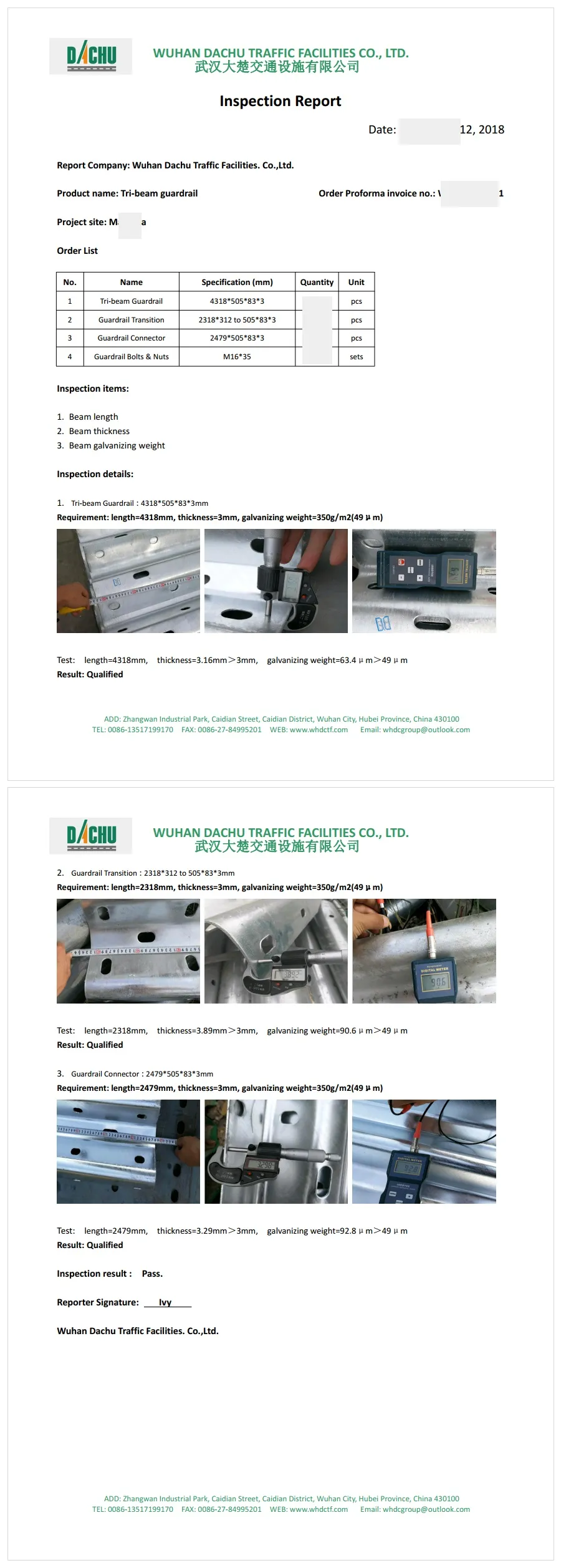

As an expert in manufacturing guardrails, we have very strict procedure in inspection to the products at each procedures. A final complete inspection would also be done before the products are dispatched from the factory, and a formal inspection report would be issued by us to customers . Meanwhile, we would welcome our customers to come and do the factory inspection together.











Wuhan Dachu Traffic Facilities Co.,Ltd. is a leading highway guardrail and Traffic safety products manufacturer and supplier. Our crash barriers can be installed in parking lots, single and multi-lane highways, bridges and bridge approaches. Guardrail systems including the galvanized guardrail terminal ends can be tailored to many popular applications. Great contruction program in traffic safety products especial for highway W-beam / Trie-beam guardrail could be followed , even for the tenders directly.

We produce all the products in our production line then galvanize all the parts and components in our galvanizing plant to make sure every step is strictly controlled and monitored by us, thus ensuring high quality.



Security guardrails made by Wuhan Dachu are easy to install, eliminating the requirement for specialized workers. Wuhan Dachu is proud of its reputation and works hard to maintain it with high attention to details. Constantly exploring new markets, especially for the countries along the One Belt One Road, Wuhan Dachu offers a superior product warrant of its proven expertise and its excellent service. Wuhan Dachu can manufacture special orders according to customers’ specifications.



Wuhan Dachu manufactures highway guardrails according to the Standards as below:
1. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail - USA);
2. AS/NZS 3845:1999(Road Safety Barrier Systems - Australia/New Zealand);
3. BS EN-1317(Road Restraint Systems - Europe);
4. JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China);
5. Or tailor-make according to client's requirements.

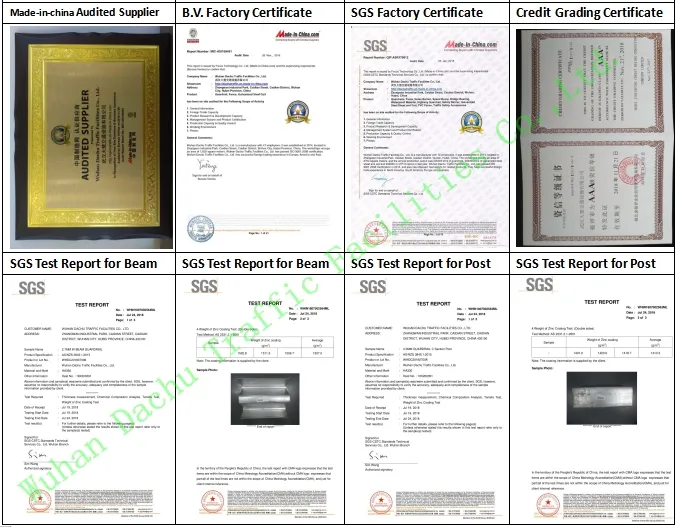

Wuhan Dachu is a certificated guardrail factory with complete qualitification. We could send customers details when required. As a qualified highway guardrail supplier, the stainless steel barrier we provide could meet various standards.







Dachu Guardrail FAQ

Q1: What's your MOQ (minimum order quantity) for guardrails?

 A: 4 km or Two full containers of guardrails.

Q2: Are you trade company or guardrail factory?

 A: We are guardrail factory, self making and self marketing.

Q3: What's your payment terms for guardrail order?

A:  We supply our guardrail by below payment terms:

  1) 30% in advance by T/T ,70% by L/C; or
  2) 100% by L/C; or
  3) Negotiate according to the order status.



Q4: Which delivery terms do you do for guardrails?

 A: FOB China port is recommended for guardrails,but CNF/CIF destination port is also acceptable.

Q5: What is the delivery time for guardrails?

 A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the guardrail order items and quantities.



Q6: Can you do the official test for the guardrail order, which authoritative organization is recommend?

 A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test report in the name of customers' company.

Q7: Can you provide guardrail samples?

A: Yes, we could provide guardrail samples for free, and you just need to pay the postage fee.





How to Place Guardrail Order to Wuhan Dachu

Step 1:  Send us inquiry here, or send us email or call us at 0086-13517199170;

Step 2:  Provide your specification and quantity to us, or we could offer our guardrail product list  for your reference to choose;

Step 3:  We will made detailed quotation as soon as we receive your specification and quantity;

Step 4:  Samples can be arranged if needed, the sample is free to you, you just need to bear the postage fee;

Step 5:  Factory visit if possible, you will be warmly welcomed;

Step 6:  Confirm the order, we will arrange the production as soon as the advance payment is received;

Step 7:  Confirm the delivery time, balance payment need to be arranged before the goods is dispatched;

Step 8:  You could contact us for any questions even after sales.



Why Us :

A. We are manufacturer, with competitive price and reliable quality to enable clients to take the projects;

B. We are certificated plant, with various certificates to secure clients' official requirements;

C. We possess our own export qualification and are rich in trade operation to simplify clients' operation.



For more details, please contact me without hesitation, and we would be very pleased to provide more specific details you need.
