Product Details
Reviews(0)

Technical Specifications

Material
Steel
Max. Working Load
300 kg
Side Rail Height
12-200 mm
Type
Wire Mesh

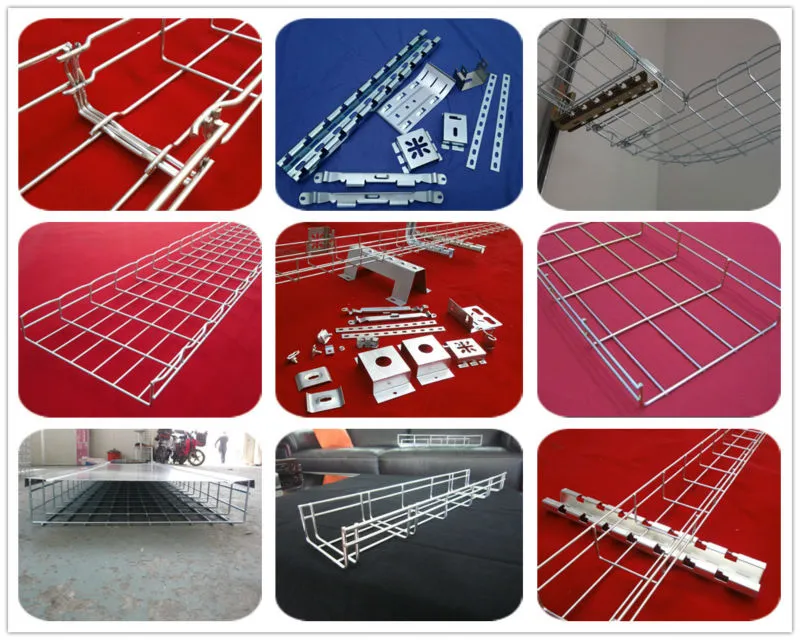

Detailed Images

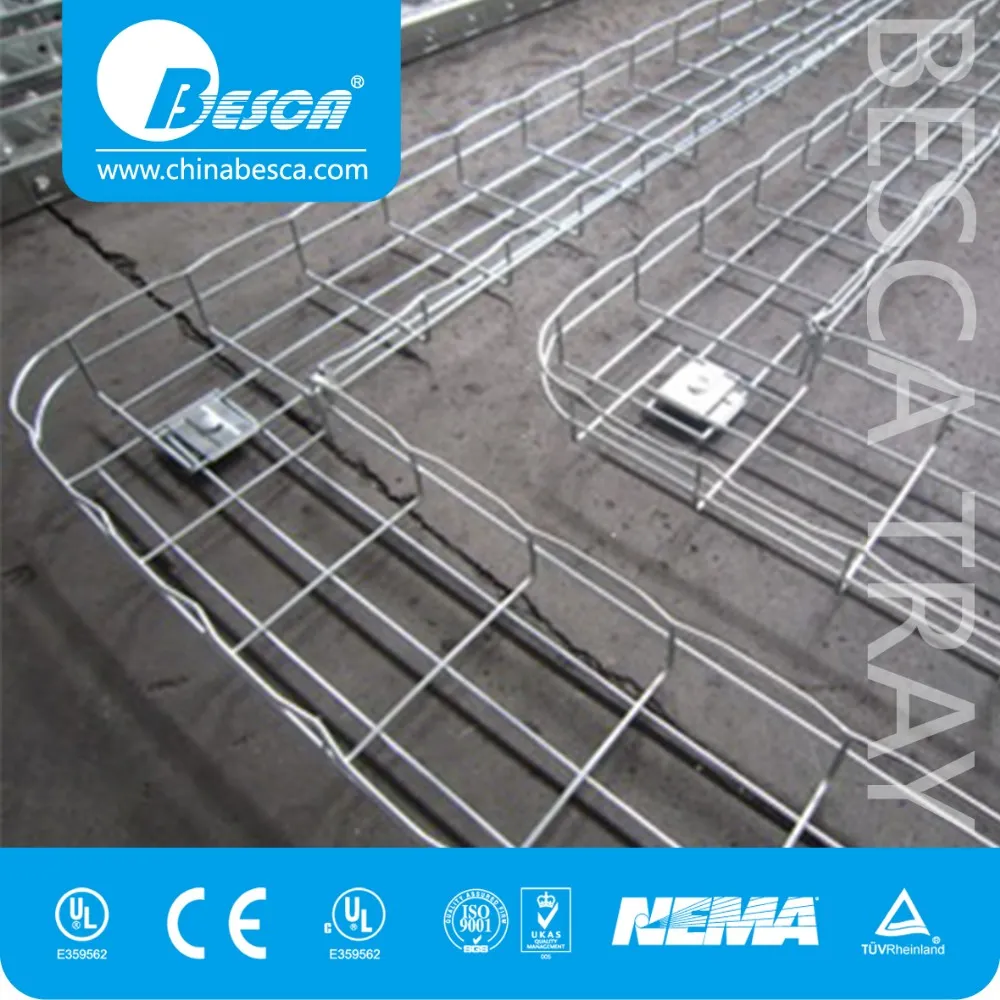

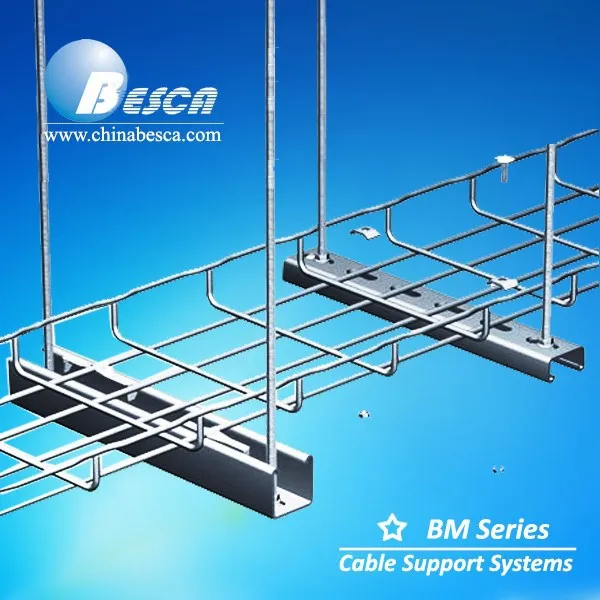

Galvanised Wire Mesh Basket Cable Trays Straight type or Cablofil Type o OEM as customers' enquiry

Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install, Besca Wire Mesh Cable Tray is complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses, Besca Wire Mesh Cable Tray lengths can be fabricated to suit the application on site. Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Tray is available in stainless steel against firm orders only. - Minimum production may quantities apply.

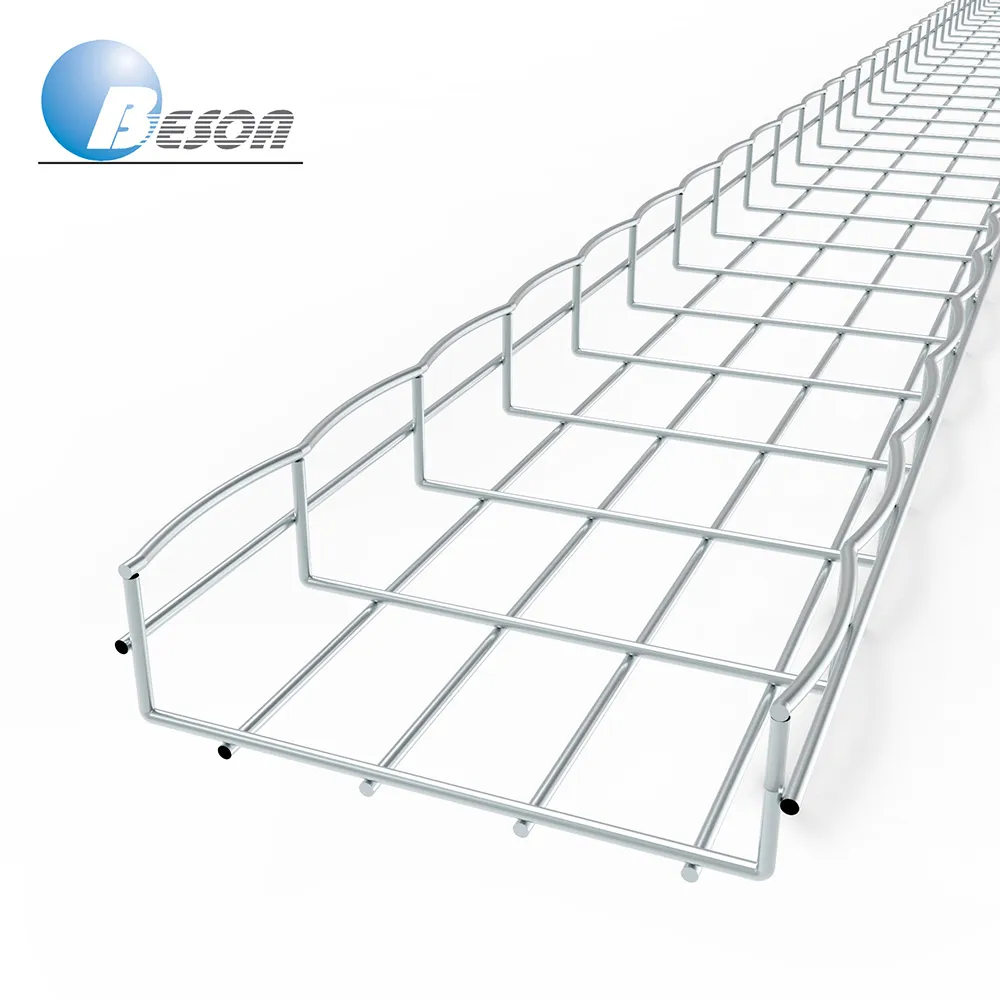

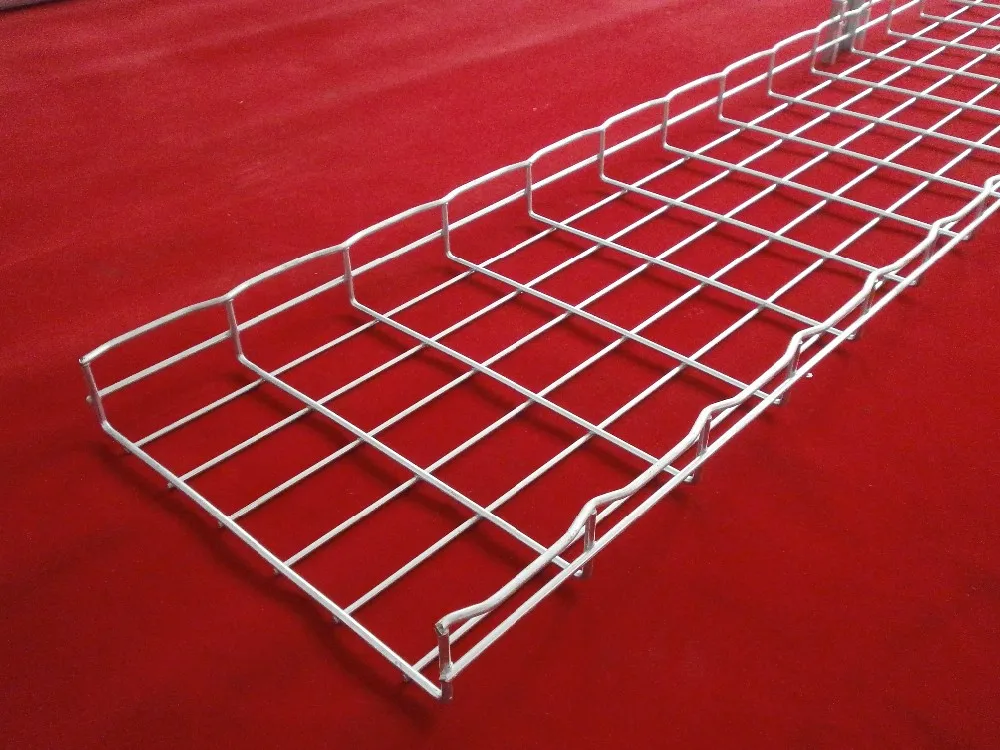

WAVE TYPE (CABLOFIL TYPE)

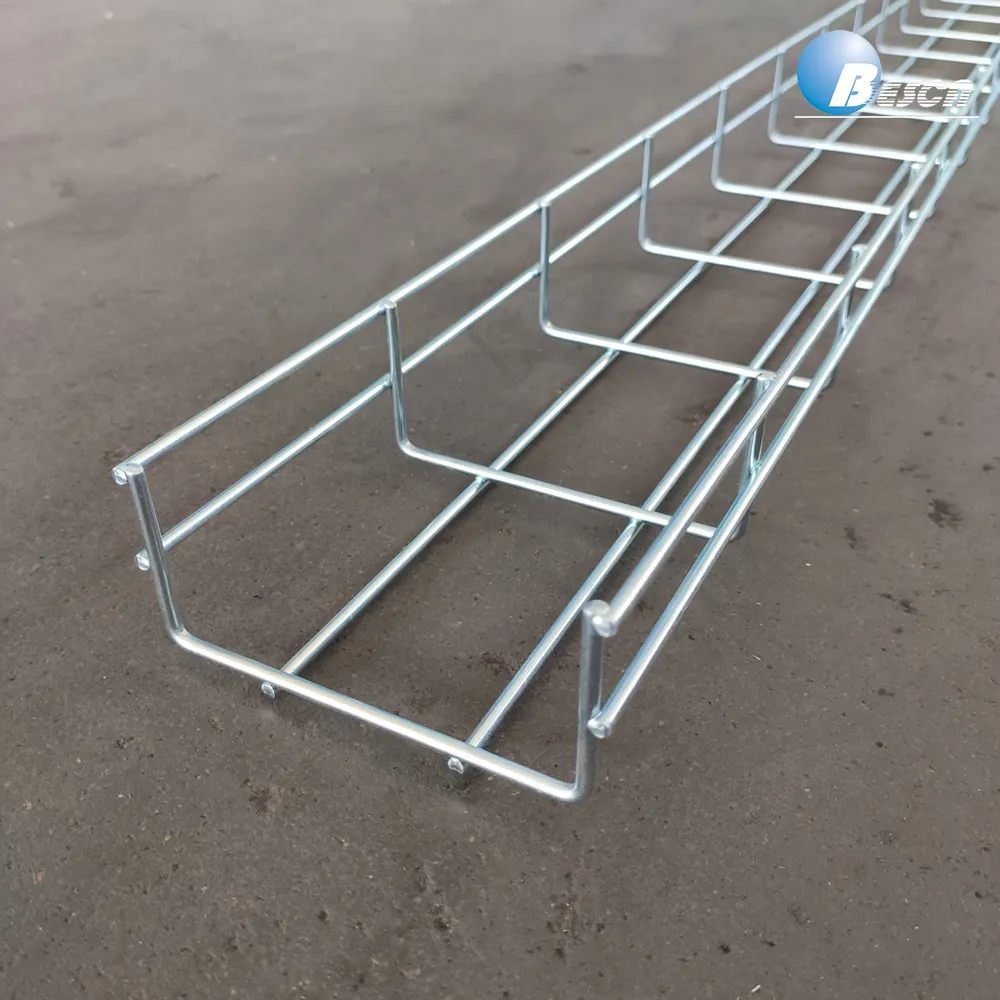

STRAIGHT TYPE

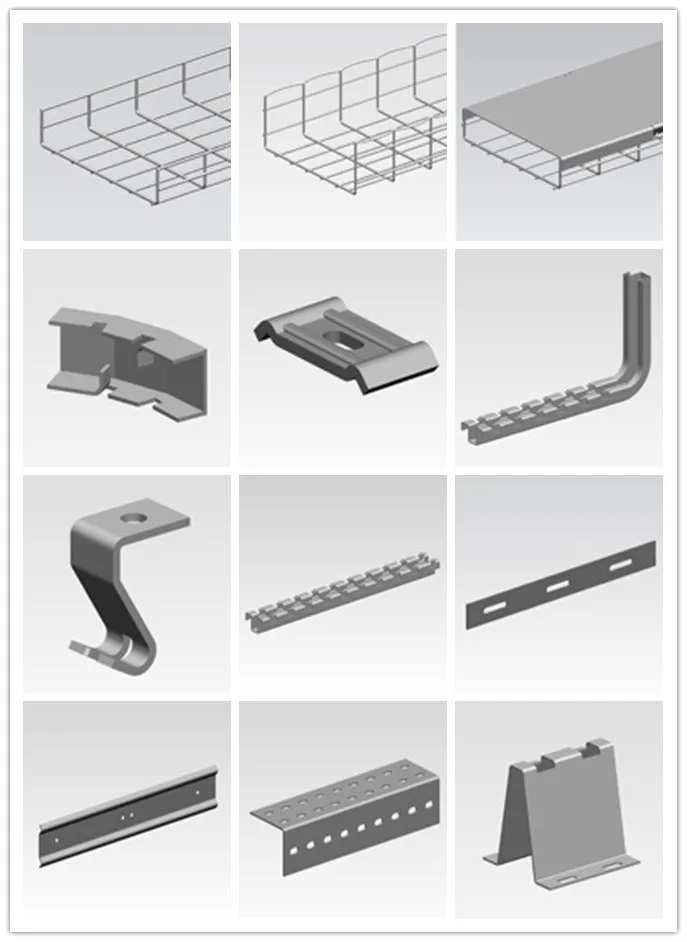

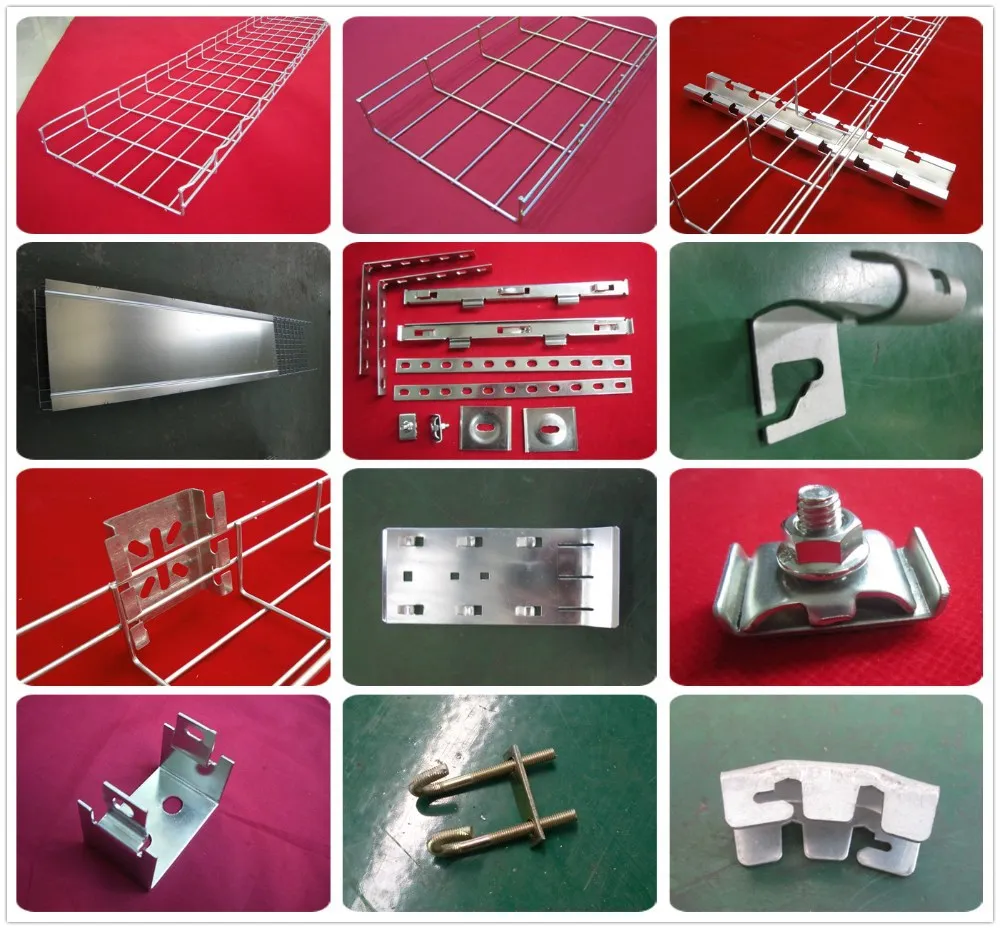

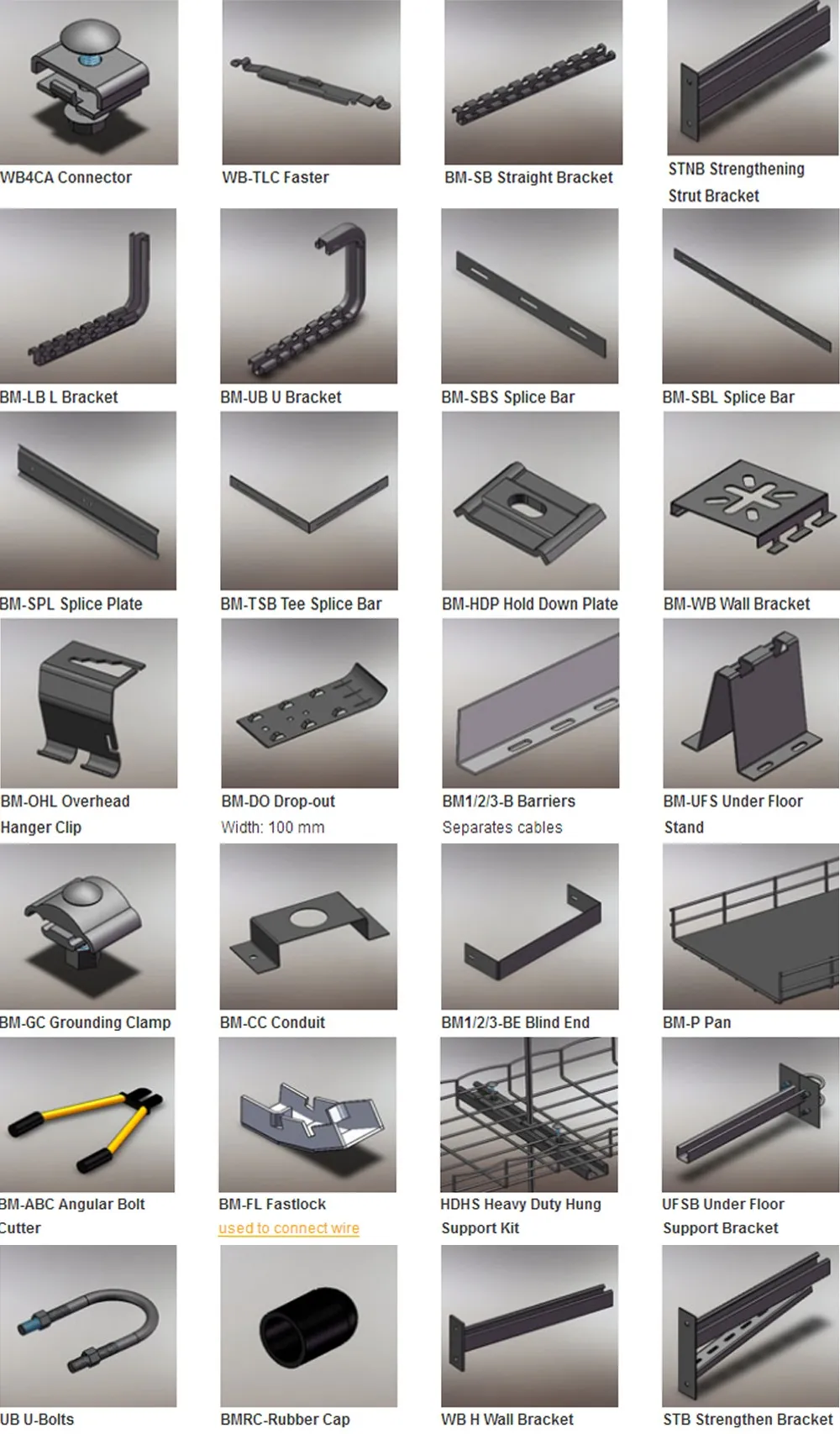

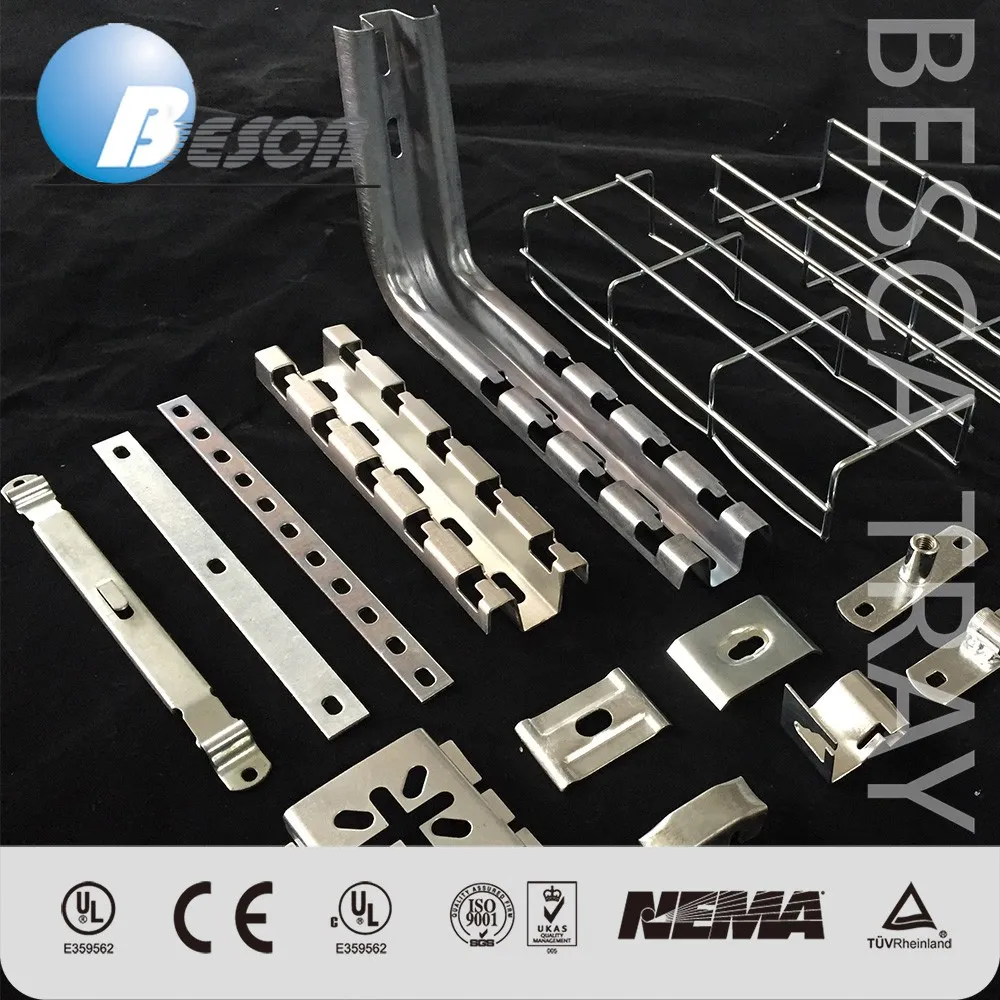

Accessories

Accessories for Galvanised Wire Mesh Basket Cable Trays Straight type or Cablofil Type o OEM as customers' enquiry Wire Mesh Cable Tray for choosing.

Connect Assembly, brackets, Splice, Faster Connector, Hold Down Plate , Over head clip, Drop Out, Separator, Grouding Clamp, Under floor stand, etc...

Standard material is electro-zinc plated

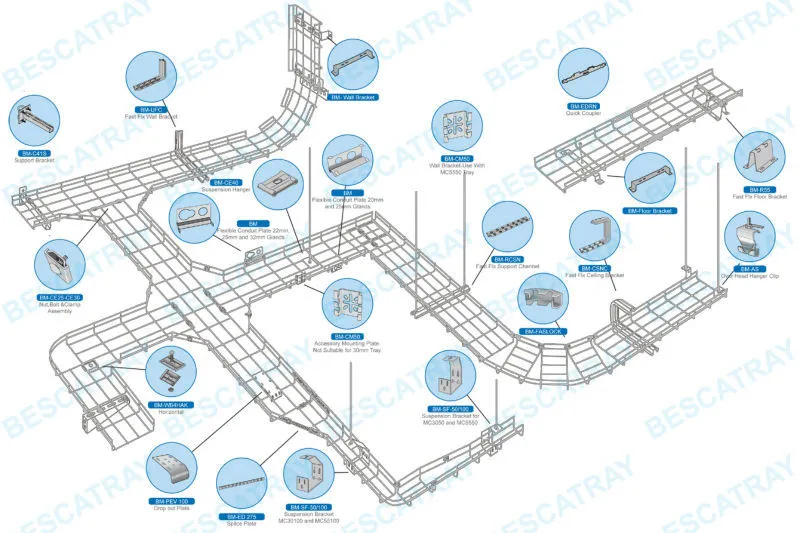

Installation Instructions

BESCA Wire Mesh Cable Tray Galvanised Wire Mesh Basket Cable Trays Straight type or Cablofil Type o OEM as customers' enquiry

Besca Wire Mesh Cable Tray systems are produced from ASTM A510 high strength steel wires. A fully automated welding process produces continuous wire mesh, which is formed into our Wire Mesh Cable Tray system.

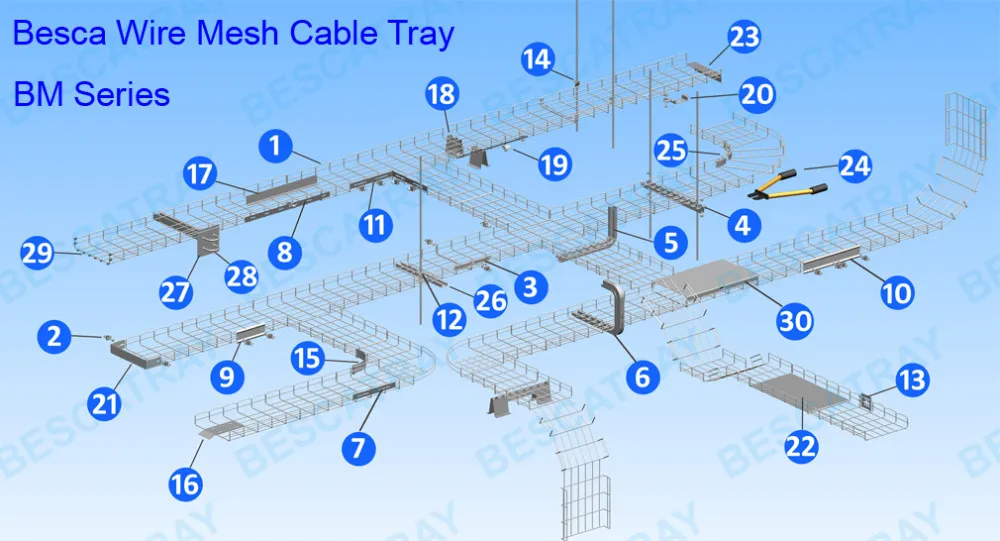

1. Wire meshcable tray straight(BM*)	2. Connector assembly(WB4CA)	3. Faster connector(WB-TCL)	4. Straight bracket(BM*-SB)	5. L Bracket(BM-LB)
6. U Bracket(BM-UB)	7. Splice bar(short)(BM-SBS)	8. Splice bar(long)(BM-SBL)	9. Splice plate(short)(BM-SPS)	10. Splice plate(long)(BM-SPL)
11. Tee splice bar(BM-TSB)	12. Hold dowm plate(BM-HDP)	13. Wall bracket(BM-WB)	14. Overhead hanger clip(BM-OHL)	15. Radius shield(BM*-RS)
16. Drop-out(BM-DO)	17. Barriers(BM*-B)	18. Under floor stand(BM-UFS)	19. Grounding clamp(BM-GC)	20. Conduit connector(BM-CC)
21. Blind end(BM*-BE)	22. Pan(BM-P)	23. Wall termination kit(BM-WTK)	24. Angular bolt cutter(BM-ABC)	25. Fastlock(BM-FL)

Dimension

Ordering Code	W(mm)	H(mm)	L(mm)
BM1-50H	50	35	3000
BM2-50H	50	50	3000
BM3-50H	50	100	3000
BM1-100H	100	35	3000
BM2-100H	100	50	3000
BM3-100H	100	100	3000
BM1-150H	150	35	3000
BM2-150H	150	50	3000
BM3-150H	150	100	3000
BM1-200H	200	35	3000
BM2-200H	200	50	3000
BM3-200H	200	100	3000
BM1-300H	300	35	3000
BM2-300H	300	50	3000
BM3-300H	300	100	3000
BM1-400H	400	35	3000
BM2-400H	400	50	3000
BM3-400H	400	100	3000
BM1-450H	450	35	3000
BM2-450H	450	50	3000
BM3-450H	450	100	3000
BM1-600H	600	35	3000
BM2-600H	600	50	3000
BM3-600H	600	100	3000

All other dimensions are available.

Width - no more than 900mm

Height - no more than 200mm

Length - should be 3 meters for each.

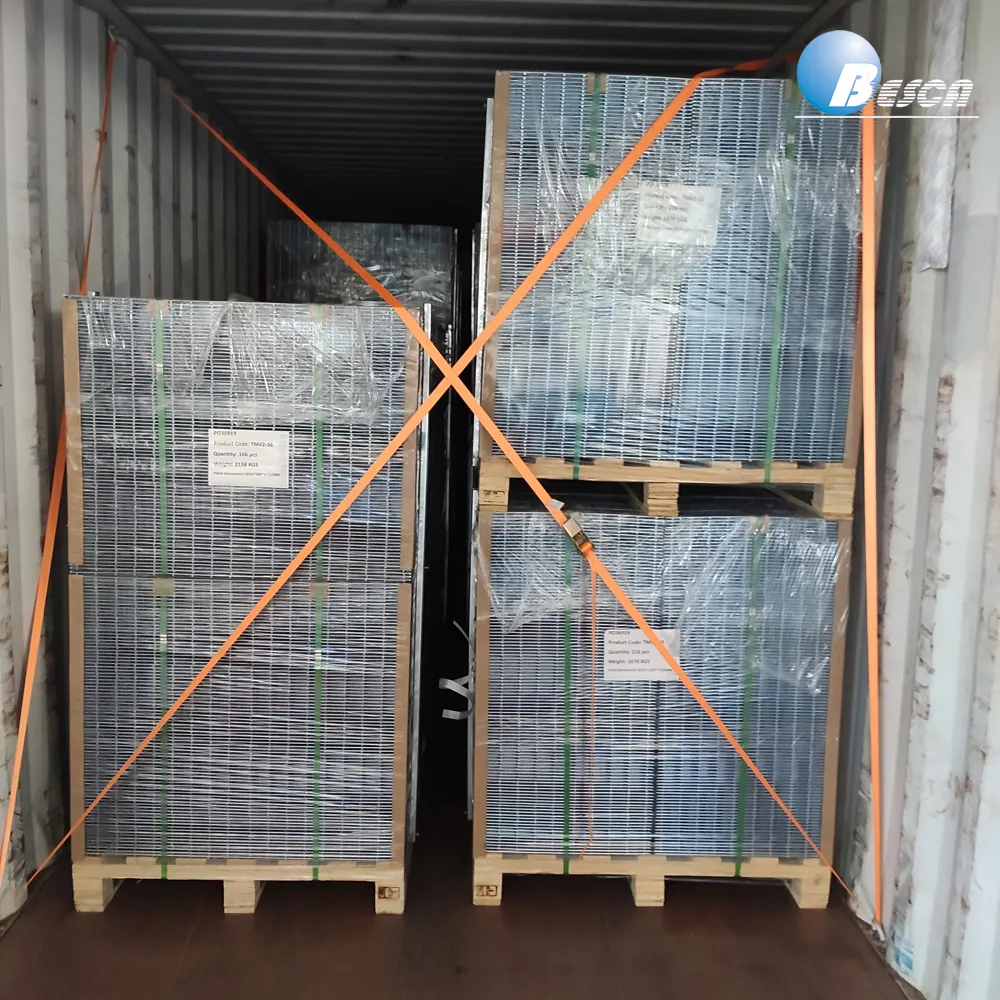

Packing & Delivery

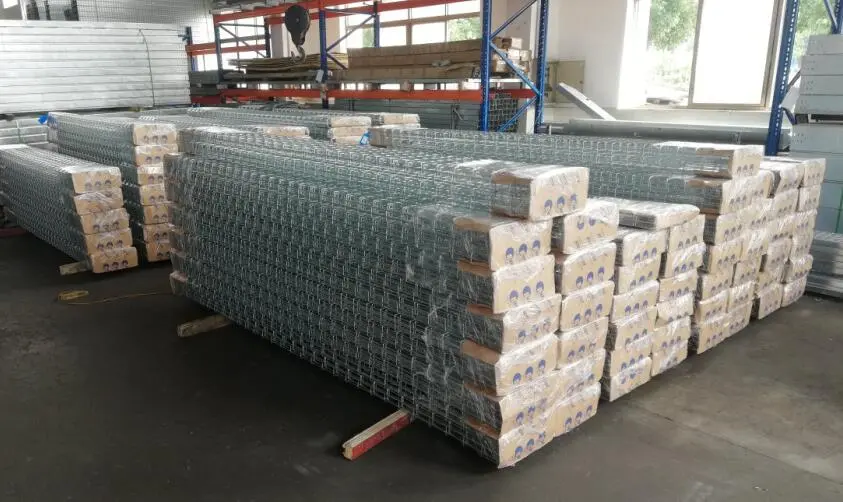

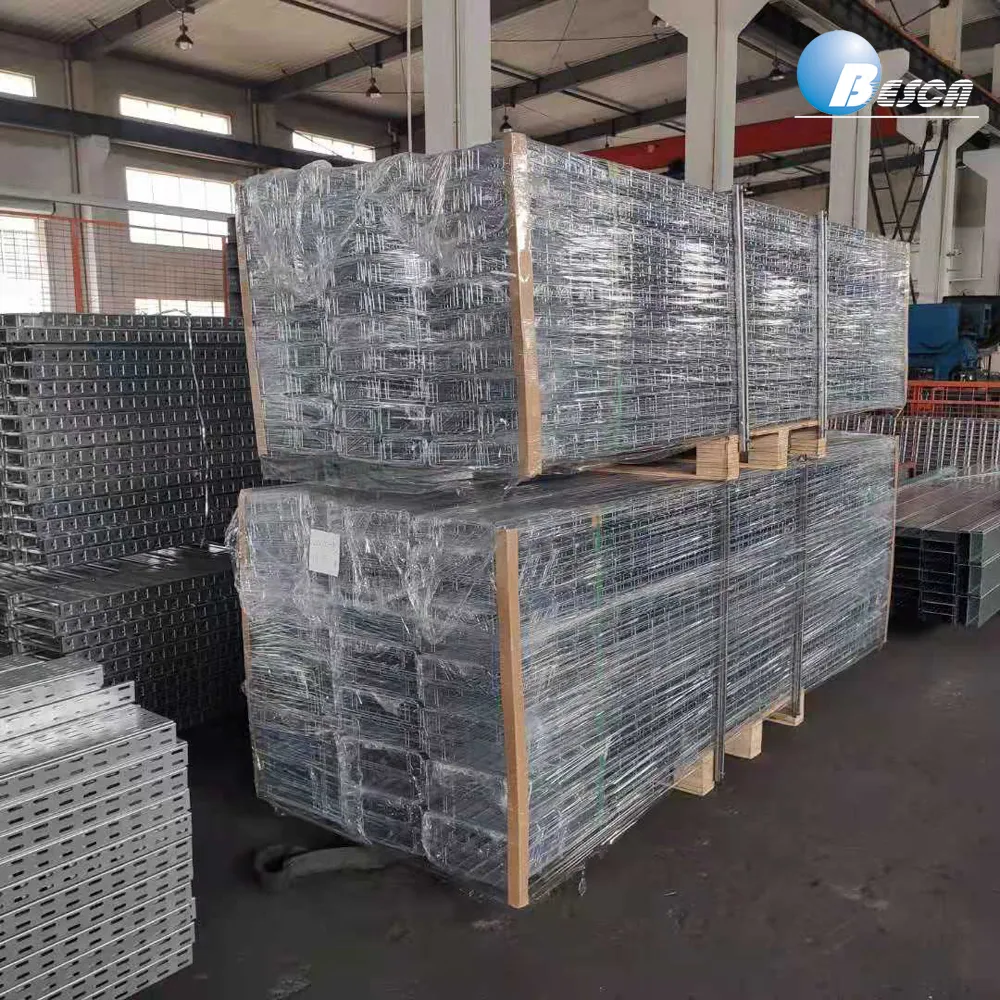

Wire Mesh Cable Tray Besca Standard Packages

We have our standard packages, but if you have any other special package requirements, we can also meet your demand.

Usually, all the orders can be completed production less than 30 days after receiving deposit payment.

We also can sell wire mesh cable tray in flat to save much space in container.

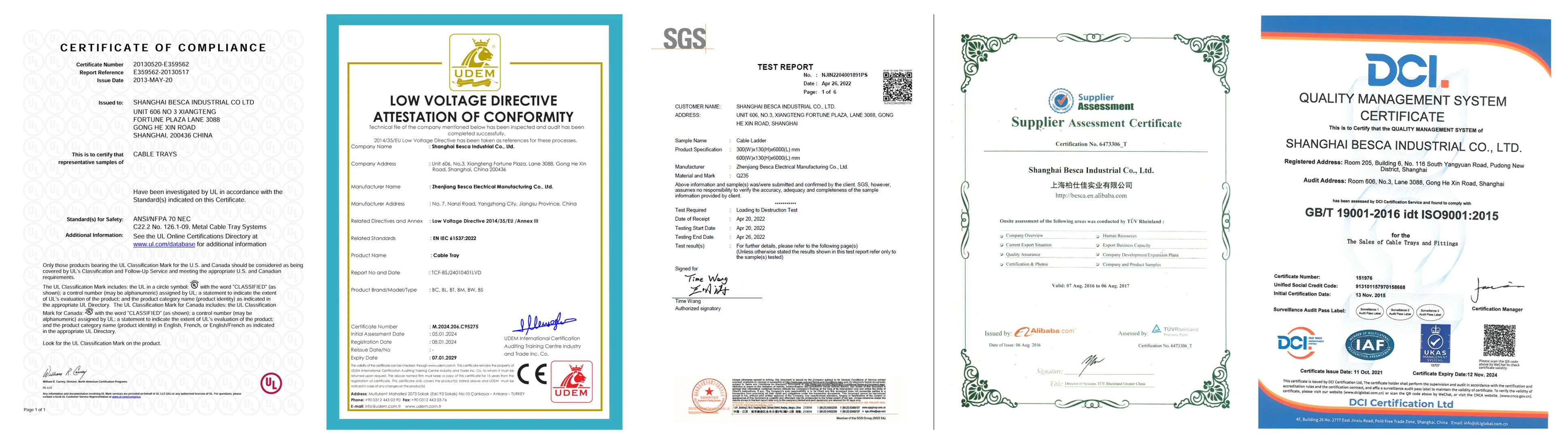

Certifications

UL: NEMA VE1 CE: IEC61537 SGS: EN10346 TUV: FACTORY ISO9001: FACTORY

Company & Factory

Besca Industrial Co., Ltd is a company that manufactures, sells, and services customers. Besca’s subordinate factory: Zhenjiang Besca Electrical Manufacturing Co., Ltd. is located in Yangzhong Science and Technology Industrial Park in Jiangsu, covering an area of 8000 square meters.

Main Featurer

Wire Mesh Cable Tray, Cable Tray, Cable Trunking, Cable Ladder, Wireway, Strut Channel and accessories. Our product can be widely used in construction, energy, electricity, plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)

Achievement

Besca achieved one of the “Best Sellers” in cable tray industry with renowned plant scale, product quality, and warmly service.Besca has formed its own corporate culture through years’ development. “Quality builds Brand.” Four philosophes are emphasized: refinedness, advanced, credibility, and solidarity.

Pre-Sales Service

* Inquiry and consulting support in 24 hours.

* Sample freely with testing support if needing.

* View our Factory.

After-Sales Service

*Get paid if the products quality or package is not good

*Offer different design and installaton solution if the tray system is not matched the products.

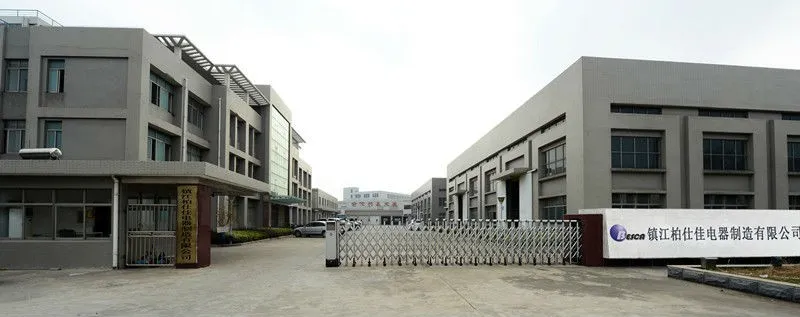

Besca factory welcome to visit

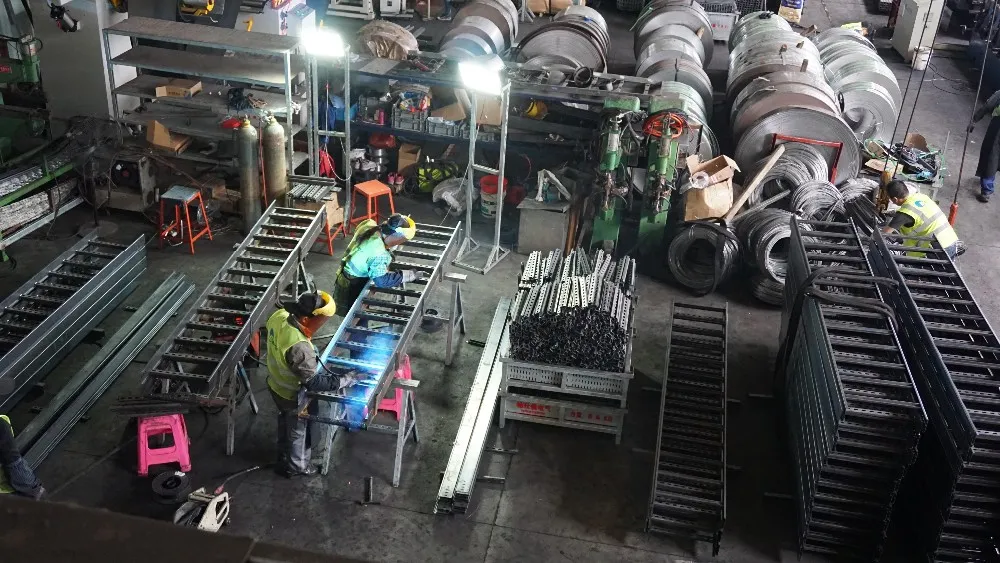

Our worker are fabricating the steel cable ladder

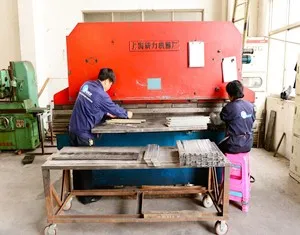

Steel plate shearing machine

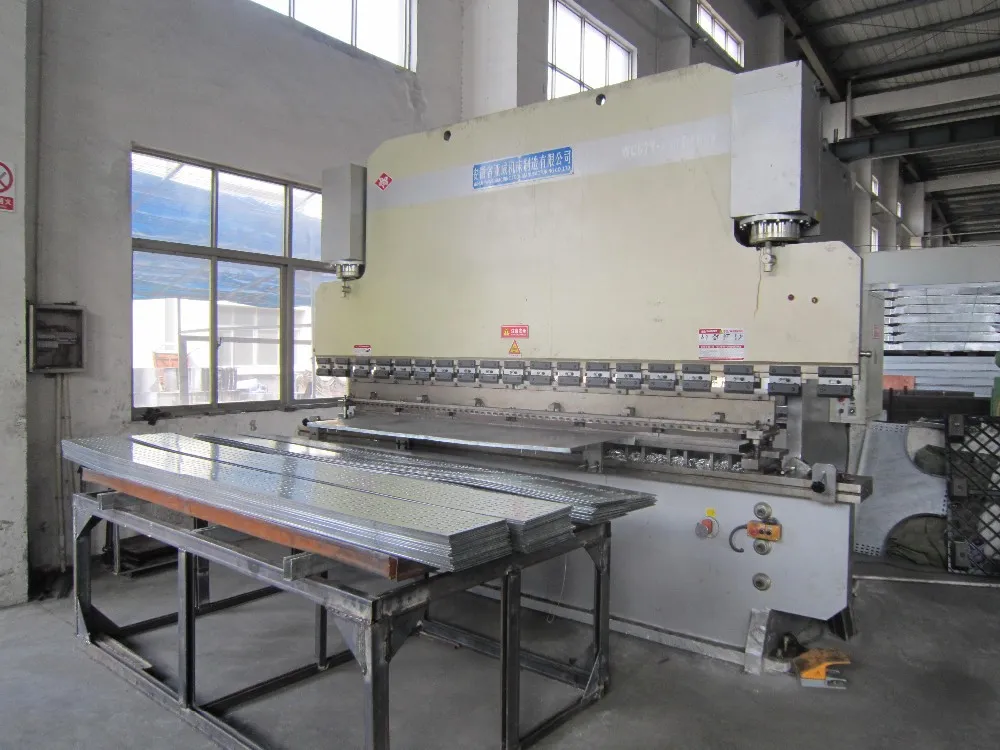

Bending maching for cable ladder shape

Pool for hot dip galvanized cable ladder systemes treatment
