Fully Automatic Trapezoidal Roof Sheet Roll Forming Machine High Percision

Description:The trapezoidal roof tile forming machine is a professional fully automatic cold roll forming equipment independently developed and optimized for the building metal roofing industry. It is specially used for continuous rolling and forming of color steel coils, galvanized steel coils, aluminum-magnesium-manganese alloy coils and other raw materials to produce standard trapezoidal metal roof panels and wall panels. With compact structure, stable operation, high forming precision and wide applicability, this equipment has become the core preferred machinery for building material manufacturers, engineering contractors and roofing material production enterprises worldwide, and complies with EU CE, ISO international quality certification standards, meeting the production needs of global construction projects.

Different from traditional tile pressing equipment, our trapezoidal roof tile forming machine adopts integrated modular design, integrating feeding, leveling, continuous forming, hydraulic fixed-length cutting and automatic discharging into one production line. The whole process realizes unmanned automatic operation, which effectively saves labor costs, improves production efficiency, and solves the problems of low precision, easy deformation and cumbersome operation of traditional forming equipment.

Core Product Advantages

High Precision Forming, Stable Product Quality

This trapezoidal roof tile forming machine is equipped with high-precision alloy forming rollers and imported PLC numerical control system, with a forming error controlled within ±0.3mm. The roller surface is treated with high-frequency quenching and anti-wear coating, which ensures long-term non-deformation and non-scratch of the plate surface. The hydraulic flying saw cutting system realizes tracking and fixed-length cutting, effectively avoiding plate deformation and burrs during cutting. The produced trapezoidal roof tiles have neat lines, uniform wave height and standard size, no secondary trimming is required, which perfectly matches the on-site installation standards of various construction projects.

High Production Efficiency, Energy Saving and High Output

The equipment supports a maximum production speed of 15m/min, with stable continuous operation without shutdown failure. The whole production process adopts cold bending forming technology, no high-temperature heating is required, which greatly reduces energy consumption. The streamlined production process eliminates redundant manual handling and buffering links, and the single-line daily output can meet the mass production demand of medium and large building material factories. In addition, the compact body design saves factory space, which is very suitable for small and medium-sized manufacturers with limited plant area.

Strong Compatibility, Customized Support

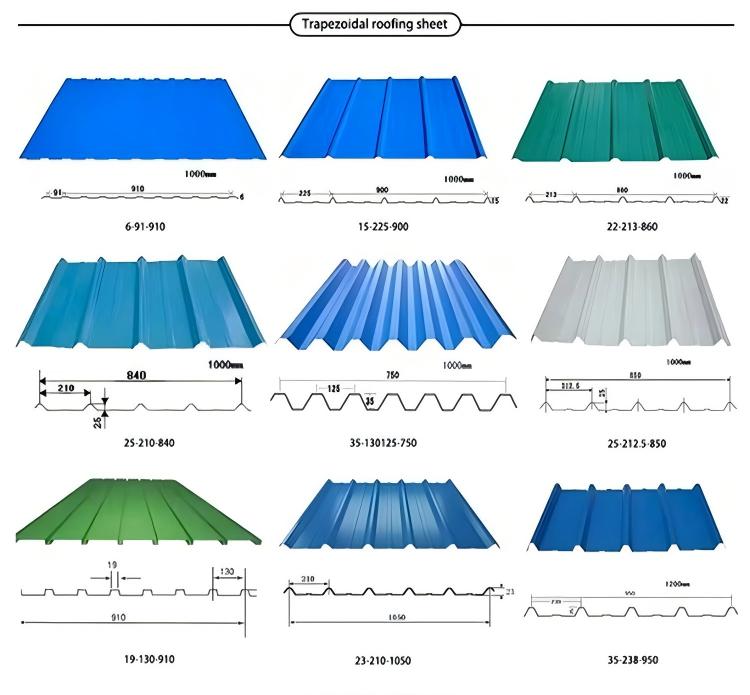

Our trapezoidal roof tile forming machine supports processing raw materials with a thickness of 0.8-1.5mm, covering common color steel plates, galvanized steel plates and aluminum alloy plates in the market. It can produce mainstream trapezoidal roof tile models such as 840, 773, 900, etc. Meanwhile, we support personalized customization according to customer's construction drawings and project requirements, including adjusting tile wave height, effective width, plate thickness parameters and adding multi-functional forming modules, to meet the diversified production needs of different regional architectural styles and engineering standards.

Intelligent Operation, Low Maintenance Cost

Equipped with intelligent PLC touch screen control panel, the operation interface is simple and intuitive, supporting one-click setting of production length, quantity and speed. The equipment has automatic counting, fault alarm and overload protection functions. Once abnormal operation occurs, the system will automatically stop and display the fault code, which is convenient for quick inspection and maintenance. The whole machine adopts thickened steel plate welding frame, with strong shock resistance and stable operation, low failure rate and long service life, effectively reducing later operation and maintenance costs for customers.

Wide Application and Strong Adaptability

The finished trapezoidal roof tiles produced by the equipment have excellent drainage, wind resistance and corrosion resistance, with neat and elegant appearance. They are widely applicable to various construction scenarios, including industrial workshops, logistics warehouses, commercial buildings, rural residential buildings, scenic villas, stadiums and other large and medium-sized building roofing and wall enclosure projects. The products are suitable for high-temperature, rainy, windy and other complex climatic environments, and are highly recognized by customers in Southeast Asia, Africa, Europe, America and other regions.

Complete Production Line Configuration

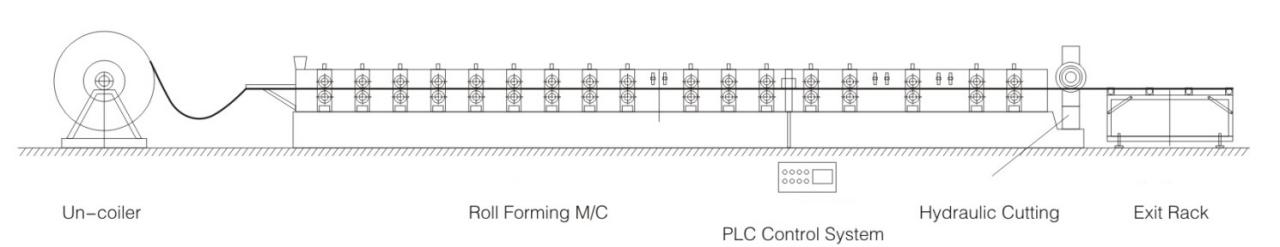

A complete set of trapezoidal roof tile forming machine production line includes: automatic uncoiler, plate leveling device, servo feeding system, multi-group rolling forming host, hydraulic cutting system, PLC intelligent control cabinet and finished product discharging platform. All supporting parts adopt high-quality brand accessories, with coordinated operation of each module, no jamming in long-term continuous production, ensuring the continuity and stability of the production process.

Product Parameter List

1.Applicable Raw Materials: Color steel coil, galvanized steel coil, aluminum-magnesium-manganese coil

2.Processing Thickness: 0.8-1.5mm

3.Forming Speed: 8-15m/min

4.Forming Precision: ±0.3mm

5.Control System: Imported PLC full automatic control

6.Cutting Mode: Hydraulic flying saw fixed-length cutting

7.Power Voltage: 380V 50Hz (customizable)

8.Machine Weight: About 3.5-5T (depending on model)

9.Customized Models: 840/773/900 and other trapezoidal tile specifications
