Fully Automatic Muti Sizes in One Pre Galvanized Cable Tray Rolling Forming Cable Tray Making Machine 20 M/Min+ZTRFM-C01+15KW

Cangzhou Zhongtuo International Trade Co., Ltd

Fully Automatic Muti Sizes in One Pre Galvanized Cable Tray Rolling Forming Cable Tray Making Machine 20 M/Min+ZTRFM-C01+15KW

Name: Fully Automatic Muti Sizes in One Pre Galvanized Cable Tray Rolling Forming Cable Tray Making Machine 20 M/Min+ZTRFM-C01+15KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT116004405

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

ZTRFM-C01

Power(W):

15KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
Cable Tray
Voltage
customize
Rolling Thinckness
1-2mm(customized)
Feeding Width
1000mm

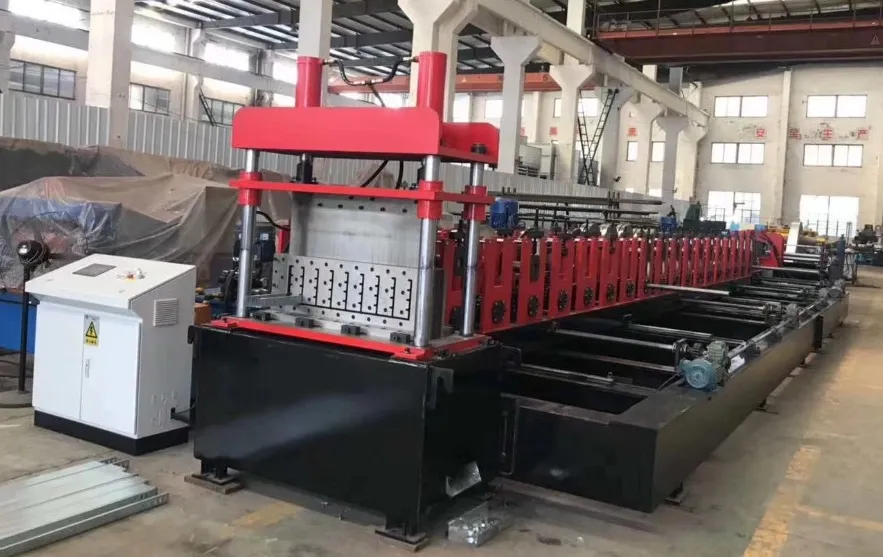

Fully Automatic Muti Sizes In One Pre galvanized Cable Tray Rolling Forming Cable Tray Making Machine

Product Description

Fully Automatic Muti Sizes In One Pre galvanized Cable Tray Rolling Forming Cable Tray Making Machine is for making the metal cable tray,the finished product reflect the characteristics of simple structure, beautiful appearance.

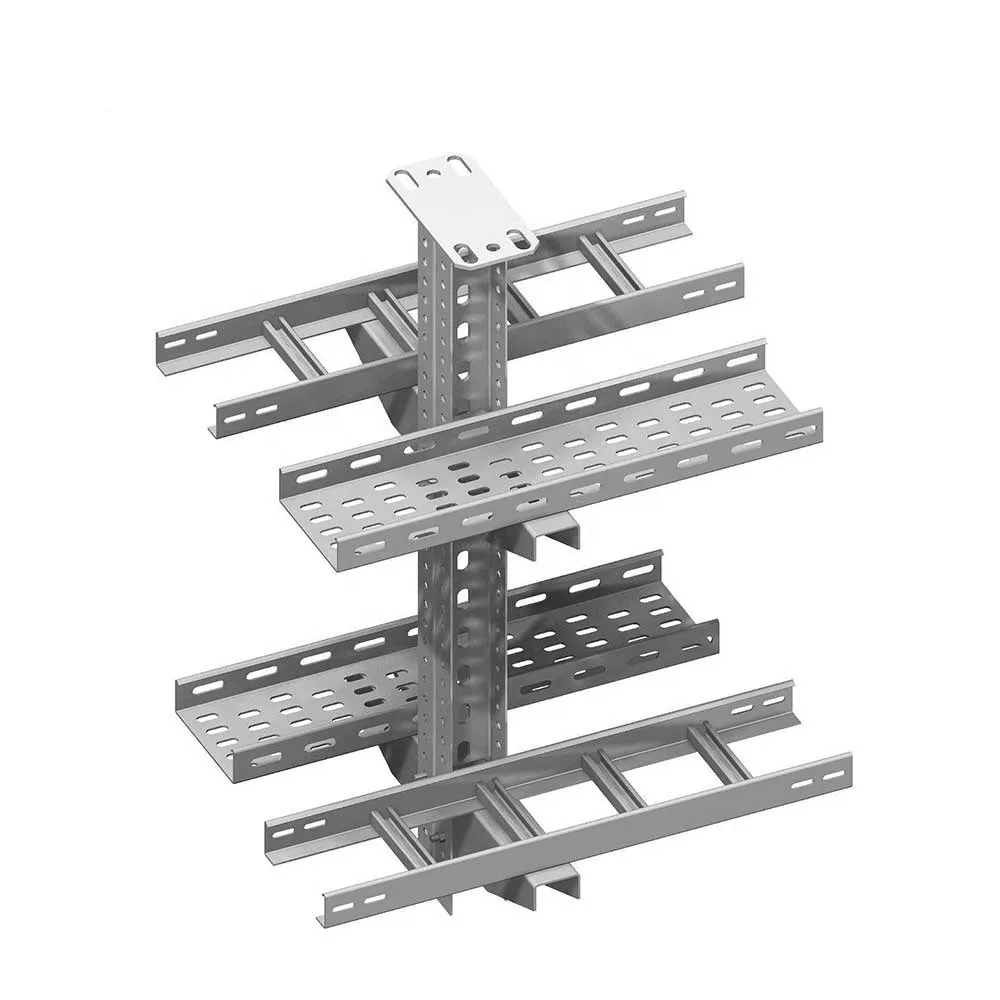

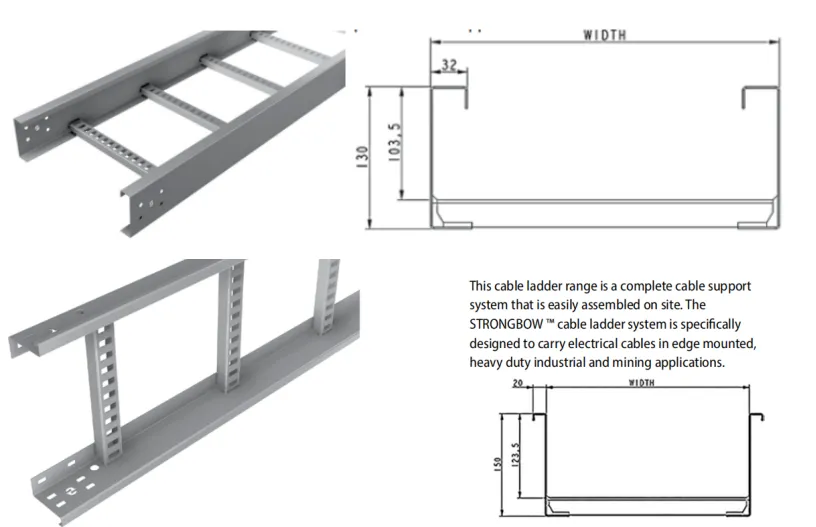

Here our hot sale cable tray making machine's finished products for your reference.

Why choose our machine

Muti sizes in one-can make different sizes of cable trays in one machine

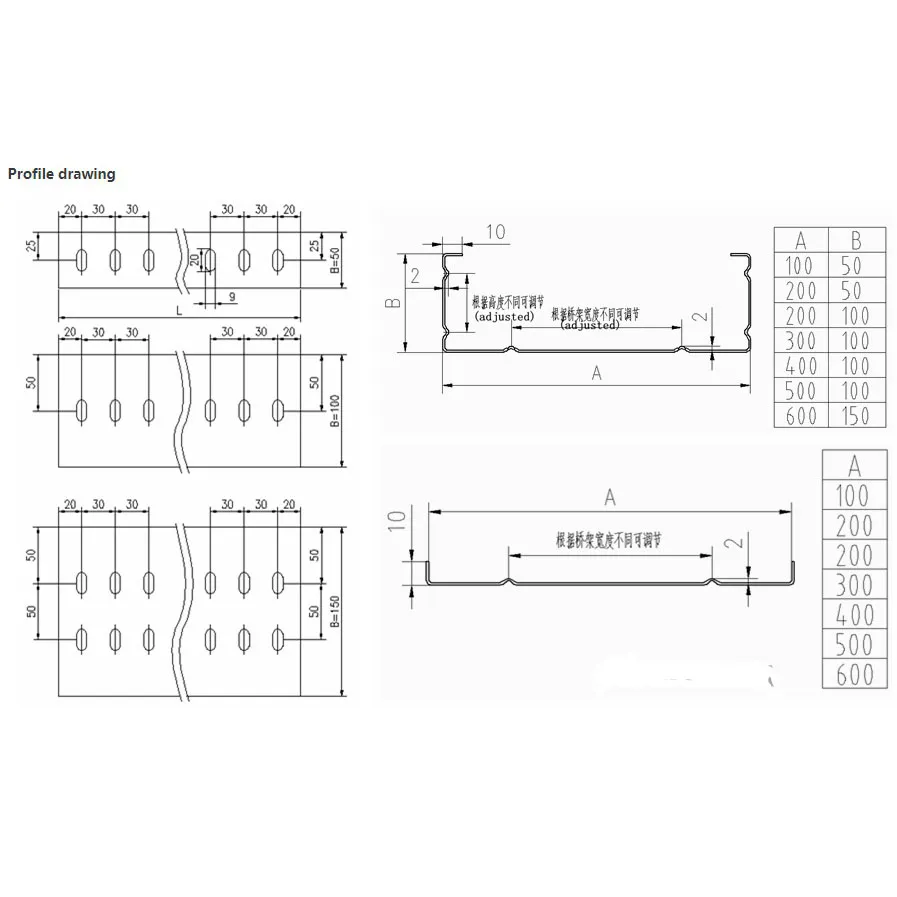

Muti function- By this one machine either the bottom and the cover could be made by this one machine.the size range from 100 to 60mm of bottom width, And the cable tray height could be from 50 to 150mm

Easy Operation Design-Cable Tray Making Machine can be adjusted easily to produce the different sizes and shape(contact us for changing video!)

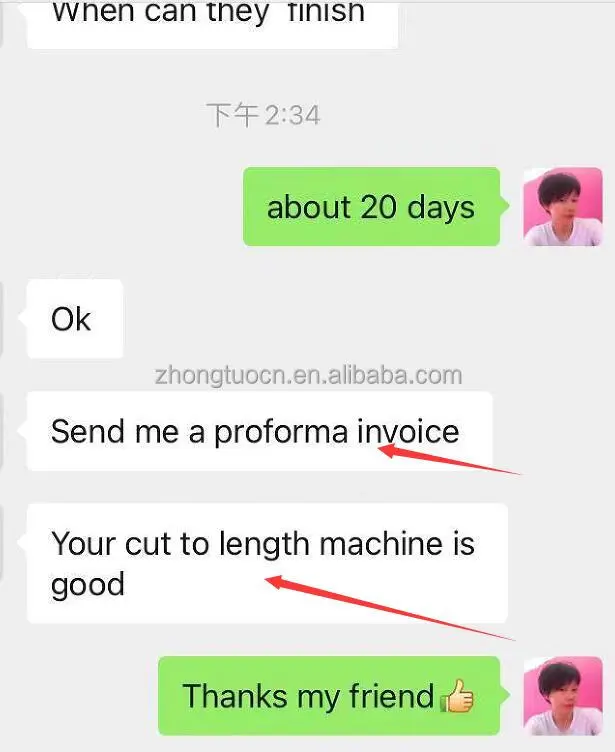

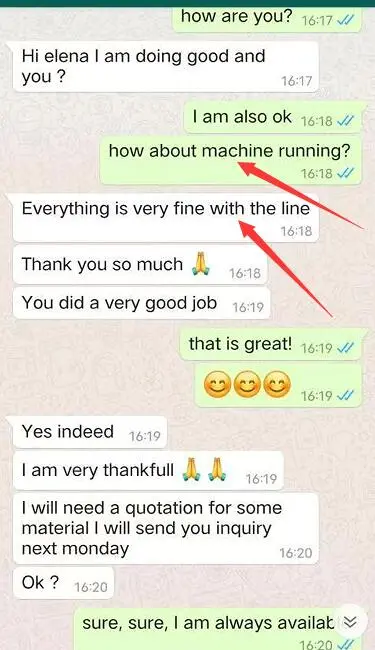

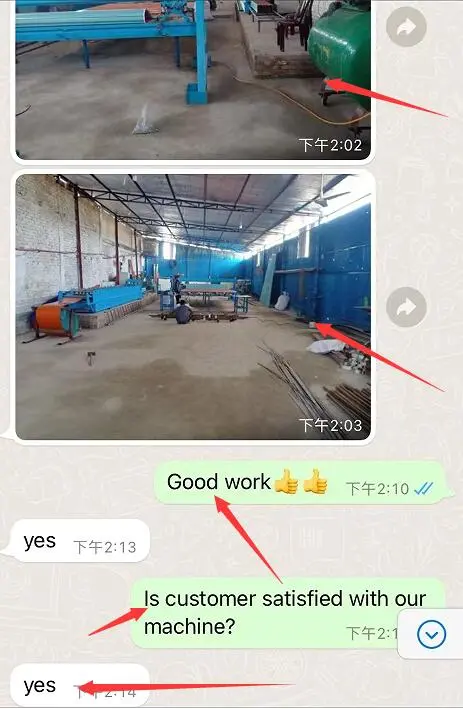

How america customer say about us?

Fully Automatic Muti Sizes In One Pre galvanized Cable Tray Rolling Forming Cable Tray Making Machine
1.Formed Material	Color steel plate, galvanized strip, aluminum coils and etc		Thickness:1.0-2.0mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		18 -22 rows(As your requirement)
		Diameter of shaft		90mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Dimension(LWH)		9.01.31.5mm
		Weight		About 9.0 T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Main Power		11 kw*2
		Cutting power		4kw
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	8-12m/min		The speed depends on the shape of the tile and the thickness of the material.

Products Display

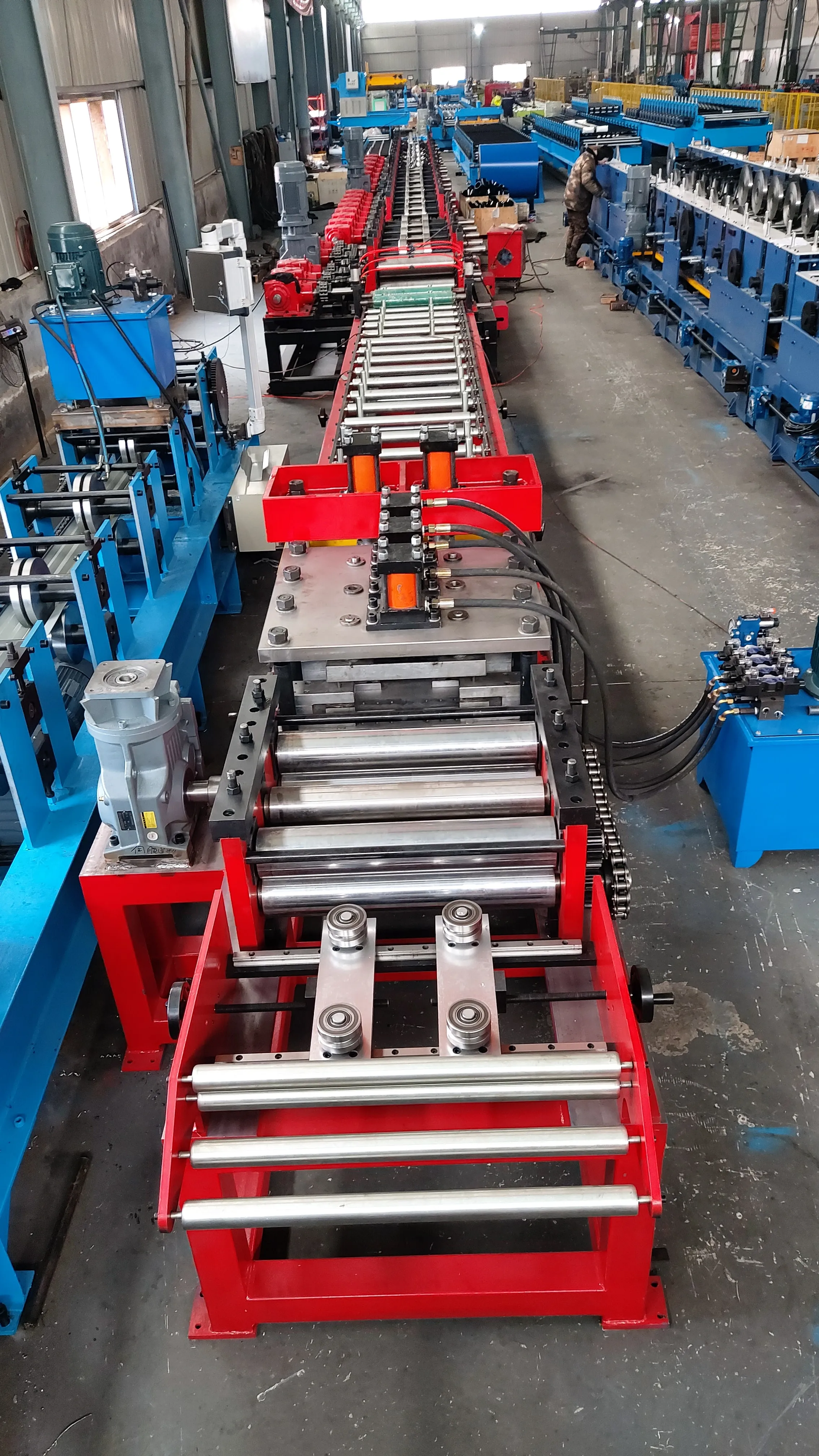

Feeding device

With handwheels for adjust width and thickness,leveling device.

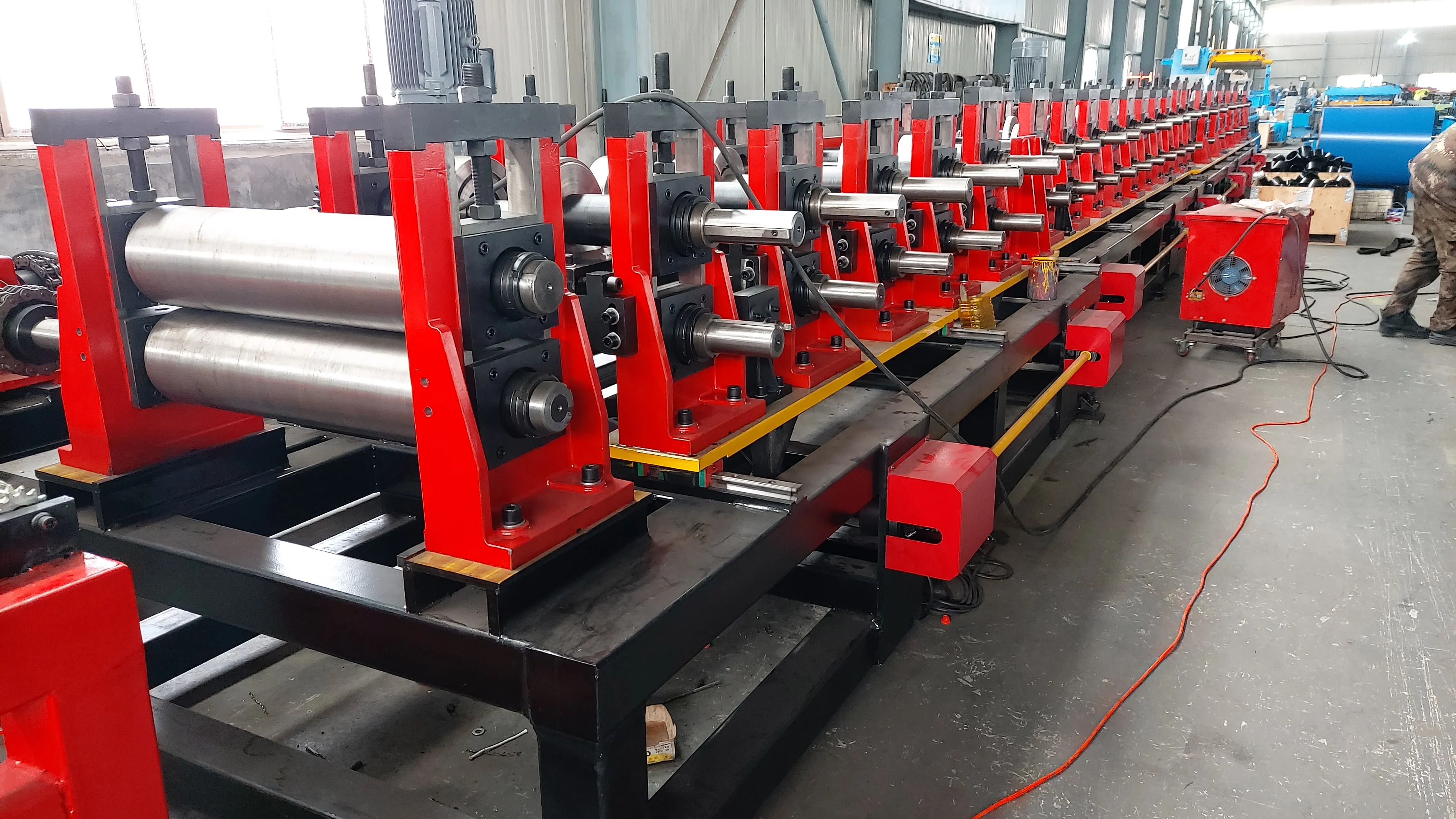

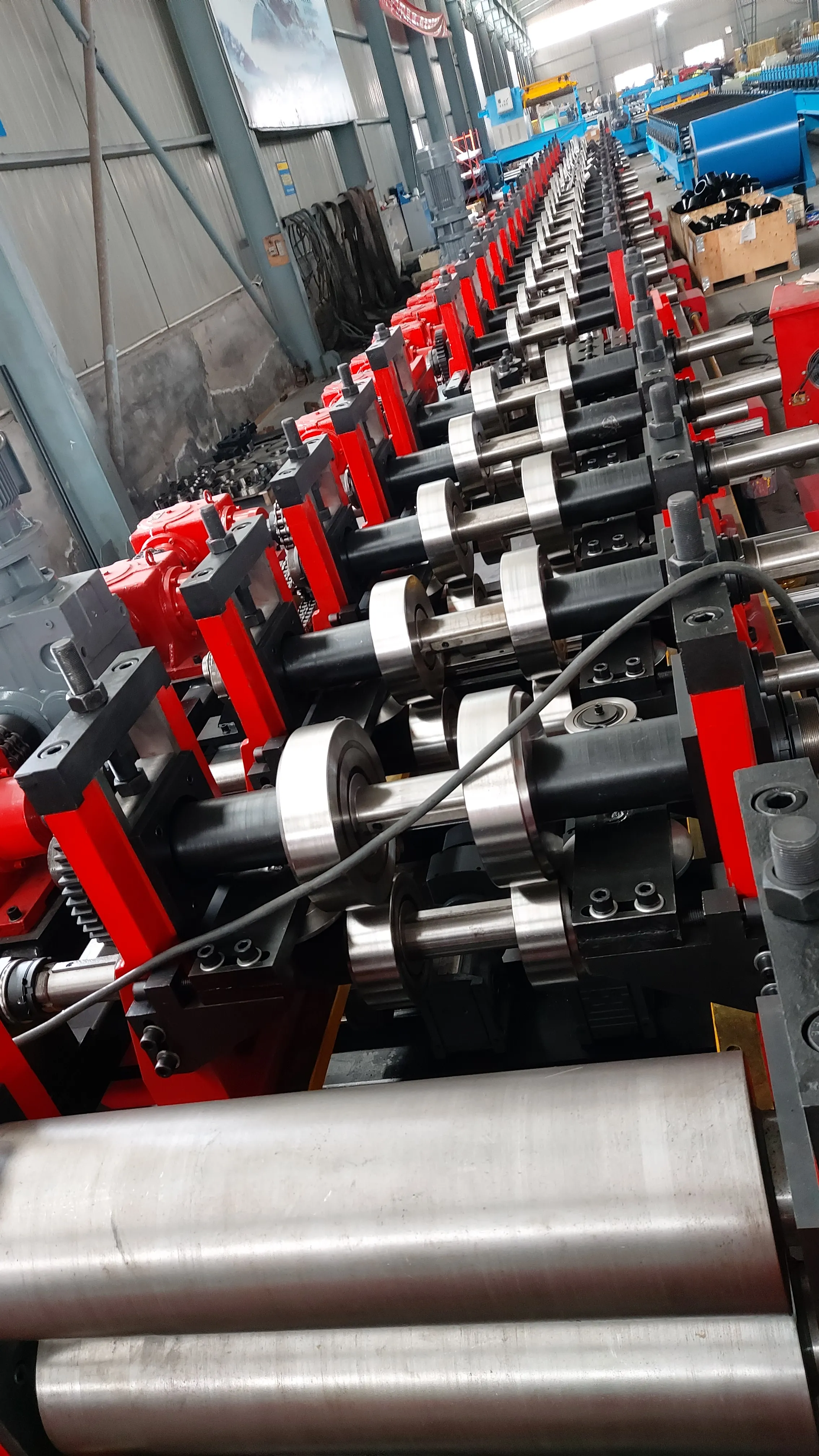

Roll forming device

rollers after thick chromed and quenched for good hardness,east adjust width design.

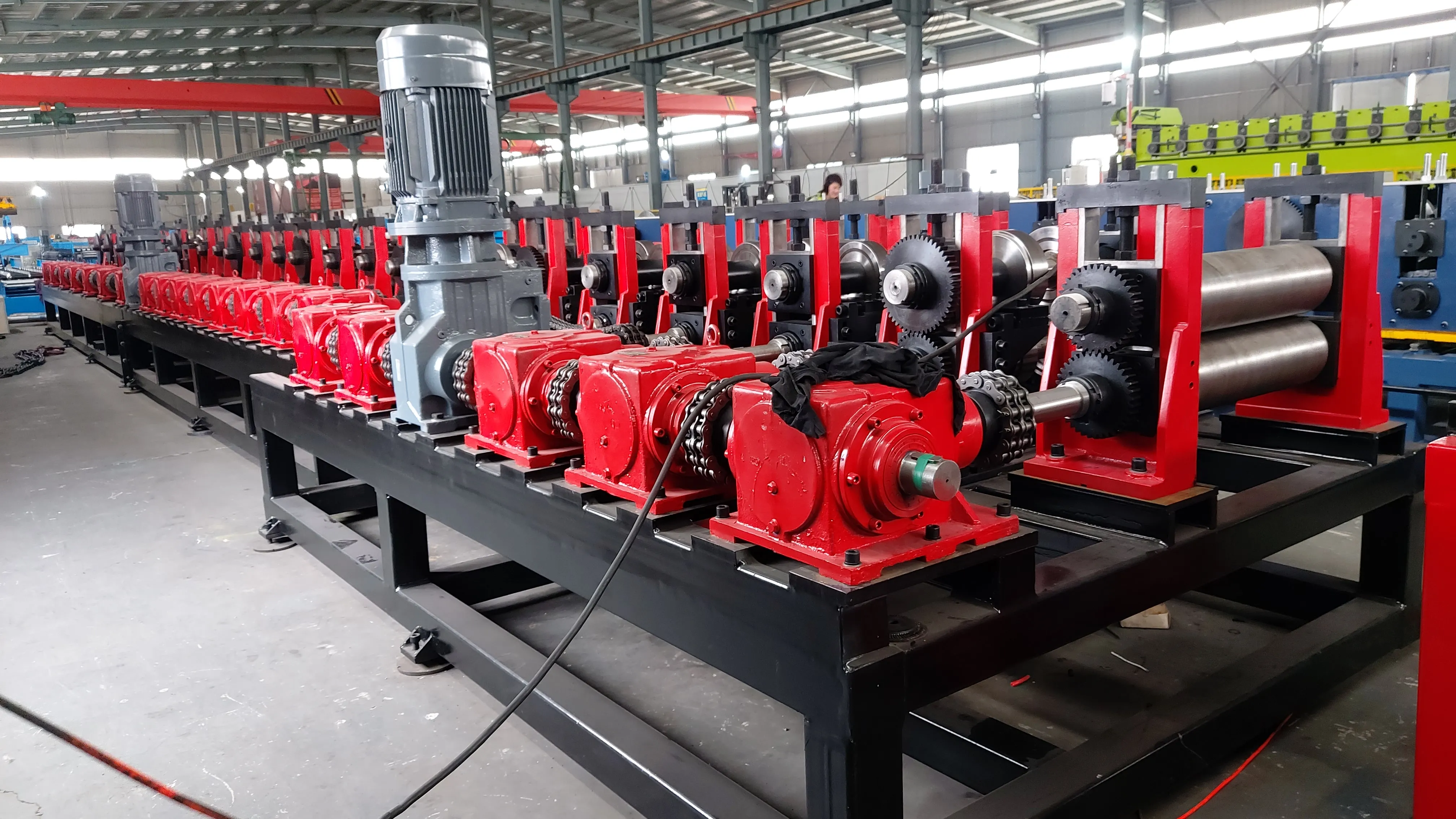

gearbox drive

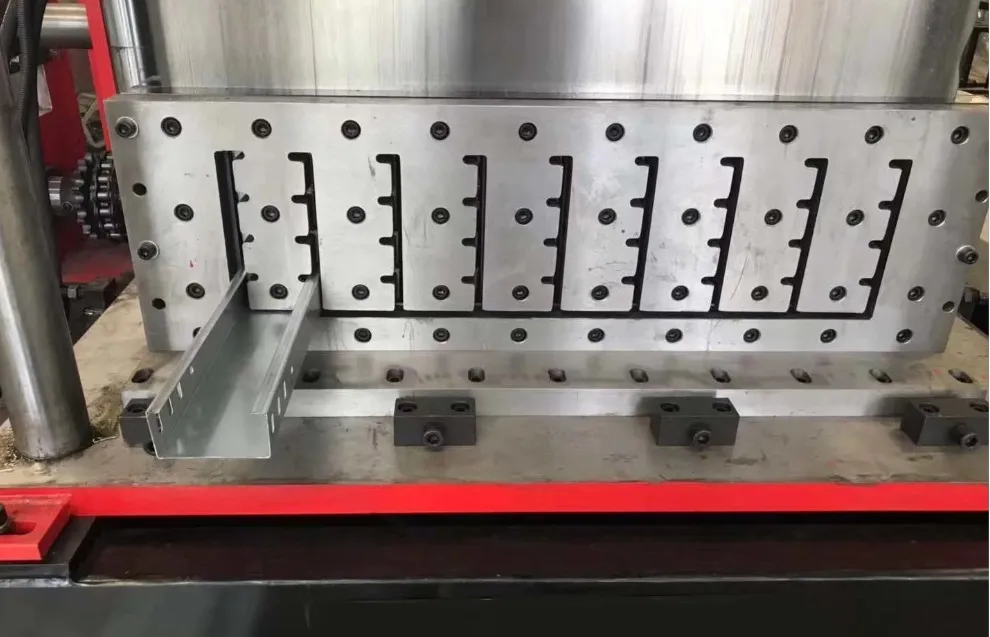

High precision Hydraulic cutting device

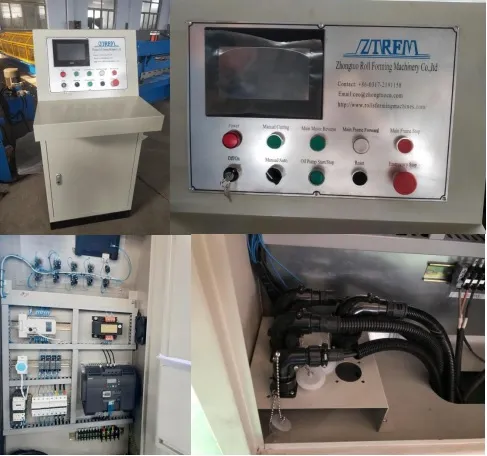

PLC control cabinet

Adopted Aviation plug for buyer easy installation,touch screen for easy adjust.

Remote monitoring and maintenance services

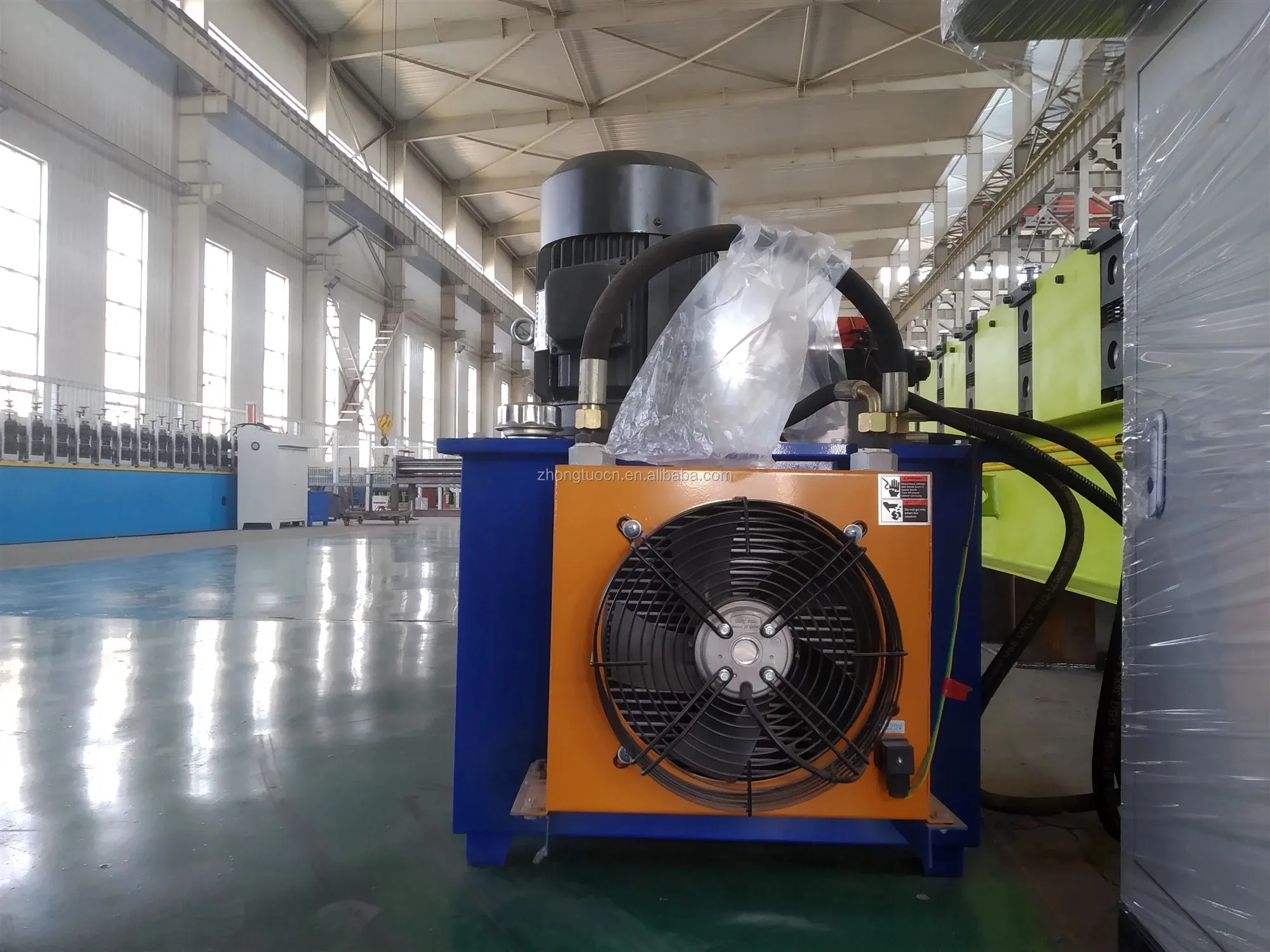

Hydraulic station

With cooling fun for long service time.
