Fully Automatic IBR Trapezoidal Metal Roll Forming Production Line IBR Roof Sheet Roll Forming Production Line

Fully Automatic IBR Roof Sheet Roll Forming Production LineTrapezoidal metal roofing profile forming with customized feeding width and profiles

Product Overview

This fully automatic IBR roof sheet roll forming production line is designed for continuous forming of trapezoidal metal roofing profiles. The line combines coil feeding, roll forming and hydraulic cutting in one production workflow, with PLC control for coordinated operation.

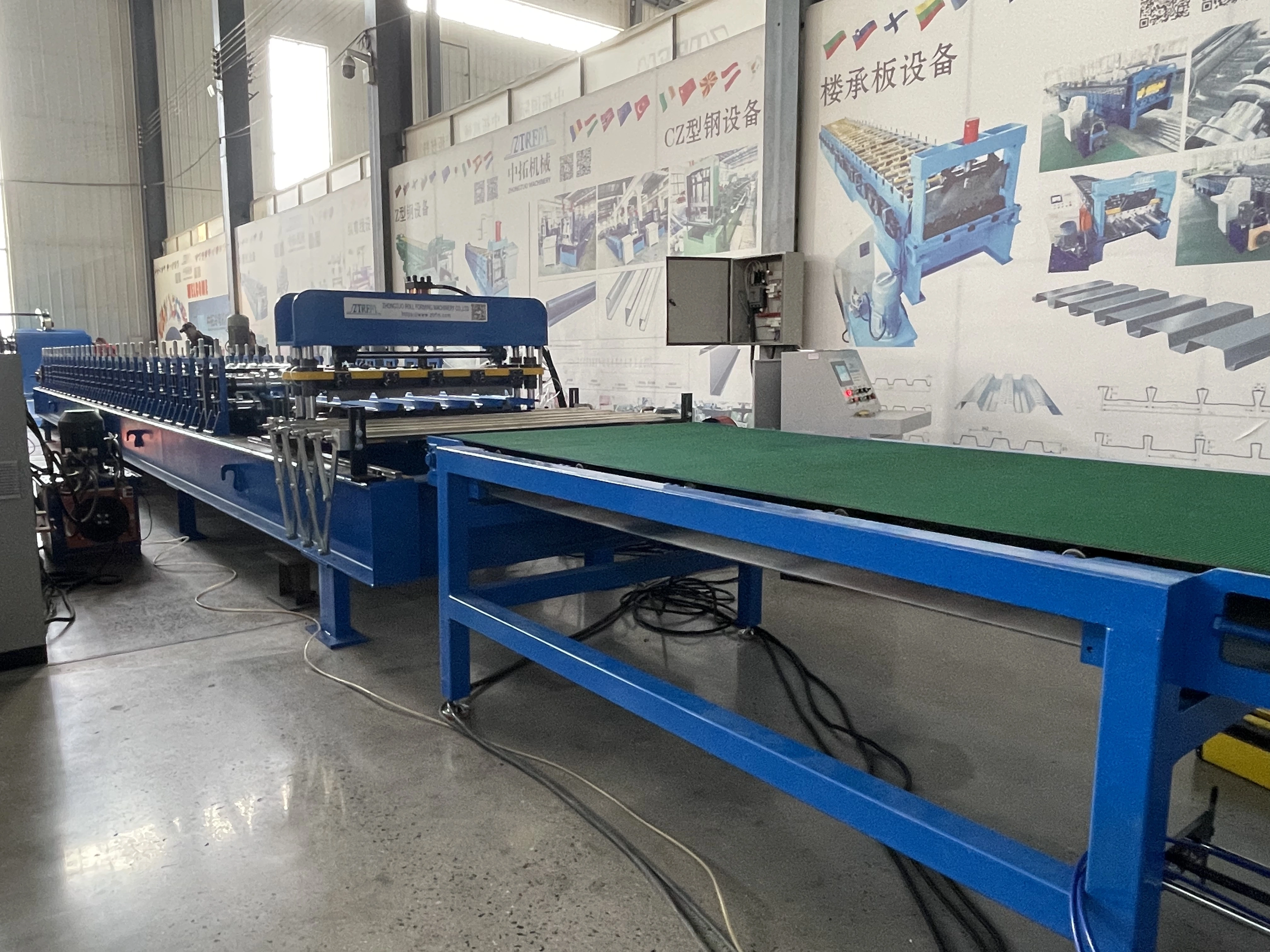

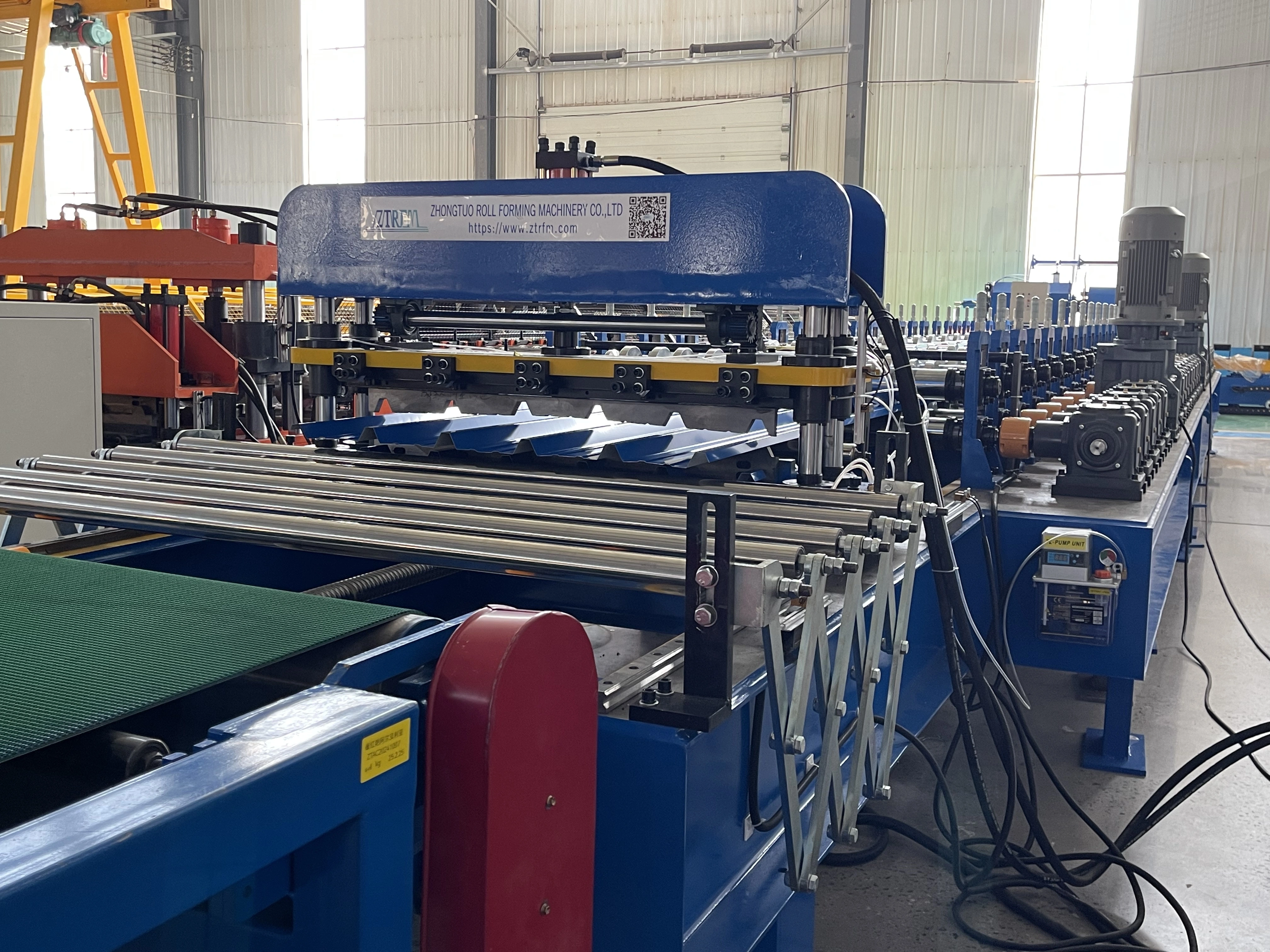

The listed configuration supports a rolling thickness of 0.3-0.8mm and a feeding width of 1220mm or customized. Profiles are listed as customized. The original blue machine body and visible yellow, red, black and green components are retained in the supplied product images.

Why Choose This Line

• Automatic operation: The product is listed with an Automatic key selling point and PLC control.
• Customized input and profile: Feeding width is 1220mm or customized, and the profile is listed as customized.
• Robust forming components: Roll material is listed as 45# high grade steel and frame material as 350 H-high grade steel.
• Hydraulic cutting: The cutting type is hydraulic cutting and the blade material is listed as Cr 12 high grade steel.
• Operation-oriented design: Easy installation and operation are listed as product advantages.

Technical Specifications

Item	Specification
Machine type	Tile Forming Machine
Tile type	Colored
Use	ROOF
Rolling thickness	0.3-0.8mm
Feeding width	1220mm or customized
Voltage	380V
Weight	6500 kg
Roll material	45# high grade steel
Frame material	350 H-high grade steel
Drive method	Double chain and gear
Cutting type	Hydraulic cutting
Cutting blade material	Cr 12 high grade steel
Control system	PLC (Detla) System
Core components	Motor, Gear, PLC
Warranty	1 Year

Machine Structure And Working Flow

The listed line is organized around material feeding, continuous roll forming, PLC-controlled operation and hydraulic cutting. The double chain and gear drive connects the forming movement, while the forming rolls and frame provide the main mechanical support.

1. Feed the selected metal coil through the configured feeding section.
2. Guide the material through the forming stations to create the required roofing profile.
3. Use the PLC system to coordinate forming and hydraulic cutting.
4. Cut the formed roofing sheet according to the agreed configuration.

Applications

This line is positioned for roof sheet production projects that require a 1220mm feeding width or a customized width. It can be evaluated for trapezoidal metal roofing production and customized profile projects.

• Metal roofing sheet production
• Colored glaze roofing profile forming
• Customized roof profile projects
• Workshop production lines requiring automatic forming and hydraulic cutting

Quality Checks And Buyer Confidence

• Machinery test report: Provided
• Video outgoing-inspection: Provided
• Warranty stated in listing: 1 Year

Why Choose Us For This Project

This product is suitable for buyers who need to align the roof profile, feeding width, language system and electrical configuration with a specific project. Feeding width and profiles are listed as customizable, while the language system is available according to client request.

• Requirement-led configuration for profile and feeding width.
• Clear technical points for order confirmation.
• Machinery test report and video outgoing-inspection listed as provided.
• 1 Year warranty stated in the product record.

After-Sales And Warranty

The listed warranty is 1 Year. After-sales arrangements should be confirmed against the final machine configuration and order documents. For installation, operation, spare parts or technical questions, buyers should provide the product ID, profile requirement and machine configuration so the applicable support scope can be confirmed clearly before order.

FAQ

Q1: What material thickness is listed?

A: The listed rolling thickness is 0.3-0.8mm.

Q2: Can the feeding width be customized?

A: Yes. The listing states 1220mm or customized feeding width.

Q3: What cutting method is used?

A: The listed cutting type is hydraulic cutting, with Cr 12 high grade steel listed for the cutting blade material.

Q4: What control system is listed?

A: The listing specifies a PLC (Detla) System.

Q5: What inspection documents are listed?

A: A machinery test report and video outgoing-inspection are listed as provided.
