Fully Automatic High Precision Soffit Panel Roll Forming Machine 0-25m/min

Soffit Panel Roll Forming Machine - Fully Automatic High Precision Soffit Panel Making Machine

Description:Soffit panel roll forming machine is a professional automated metal forming equipment specially developed for mass production of building soffit panels, ceiling cladding panels and fascia panels. Widely used in residential roofing, commercial building facade decoration, industrial plant ceiling and exterior wall cladding projects, this machine can process galvanized steel, aluminum alloy, color coated steel and other metal coils into standard, perforated and concealed-buckle soffit panels in one continuous process. With high automation, stable operation and flexible customization capabilities, it has become the core processing equipment for building material manufacturers and construction engineering companies worldwide.

Product Overview of Soffit Panel Roll Forming Machine

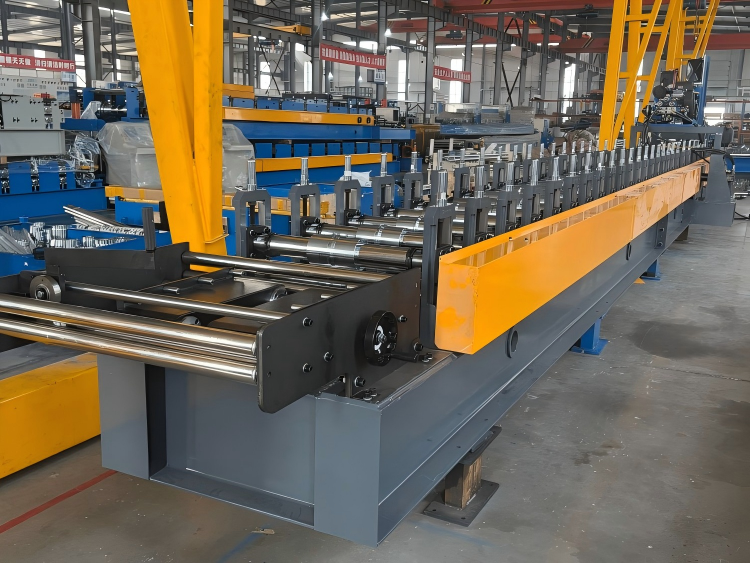

Different from traditional manual cutting and stamping processing methods, the soffit panel roll forming machine adopts continuous cold roll forming technology. It completes automatic feeding, leveling, roll forming, punching, embossing and hydraulic cutting at one time, realizing unmanned continuous production. The whole production process does not require secondary processing, which greatly improves the dimensional accuracy and surface flatness of finished soffit panels.

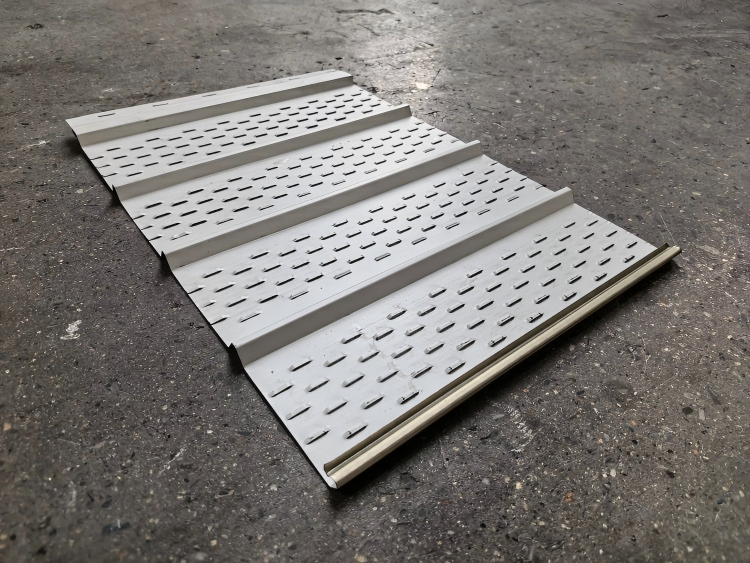

This roll forming equipment supports processing metal materials with a thickness of 0.3mm to 2.0mm, covering most conventional building soffit panel production needs. It can produce various specifications of 12-18 inch standard soffit panels, and can adjust molds and parameters to customize special-shaped panels according to customer project requirements, including perforated sound-absorbing soffit panels, flush soffit panels and curved facade panels. The finished products have uniform texture, precise size and strong weather resistance, fully meeting international building decoration standards.

Core Advantages of Our Soffit Panel Roll Forming Machine

High Production Efficiency & Stable Output

Equipped with high-power servo drive system and optimized roller arrangement structure, the machine’s forming speed can reach 15-25 meters per minute. The fully automatic assembly line design eliminates frequent manual intervention, effectively solving the problems of low efficiency and inconsistent output of traditional processing equipment. It can stably supply large quantities of qualified soffit panels for large-scale construction projects and building material batch production, greatly shortening the production cycle and improving enterprise production capacity.

High Forming Precision & Good Product Consistency

All forming rollers are made of high-quality Cr12 high-strength steel with hard chrome plating treatment, which ensures high hardness, wear resistance and long service life. The precision CNC machining process ensures the uniformity of each roller gap, making the formed soffit panels free of deformation, warping and scratches. Equipped with a professional counting and fixed-length cutting system, the dimensional error of finished products is controlled within ±0.5mm, realizing 100% consistent product specifications, which is convenient for standardized packaging and on-site installation.

Intelligent PLC Control & Simple Operation

The whole machine adopts mature PLC touch screen intelligent control system, with simple and intuitive operation interface. Workers only need to set parameters such as panel width, thickness, length and production quantity on the touch screen to realize automatic operation of the whole equipment. The system has automatic fault detection and alarm functions, which can timely prompt abnormal equipment operation, effectively reducing operation risks. Even operators without professional technical foundation can quickly master the operation skills after simple training.

Durable Structure & Low Maintenance Cost

The equipment body is welded with thickened national standard steel plates, which has undergone strict stress relief treatment, with stable overall structure and no deformation after long-term high-load operation. The key transmission parts are equipped with high-quality bearings and wear-resistant accessories, which reduces equipment loss during operation. The modular design is adopted for all parts, which is convenient for daily inspection, maintenance and replacement of accessories. Compared with similar equipment in the market, our machine has lower failure rate and longer service life, effectively reducing the later operation and maintenance cost for customers.

Strong Versatility & Flexible Customization

This soffit panel roll forming machine has strong compatibility. By replacing different molds and adjusting operating parameters, it can produce various types of building cladding panels such as roof soffit panels, wall fascia panels, perforated sound-insulation panels and concealed buckle ceiling panels. It can adapt to multiple production scenarios including fixed workshop mass production and on-site mobile processing, perfectly meeting the diversified production needs of small and medium-sized building material factories and construction engineering teams.

Complete Production Workflow

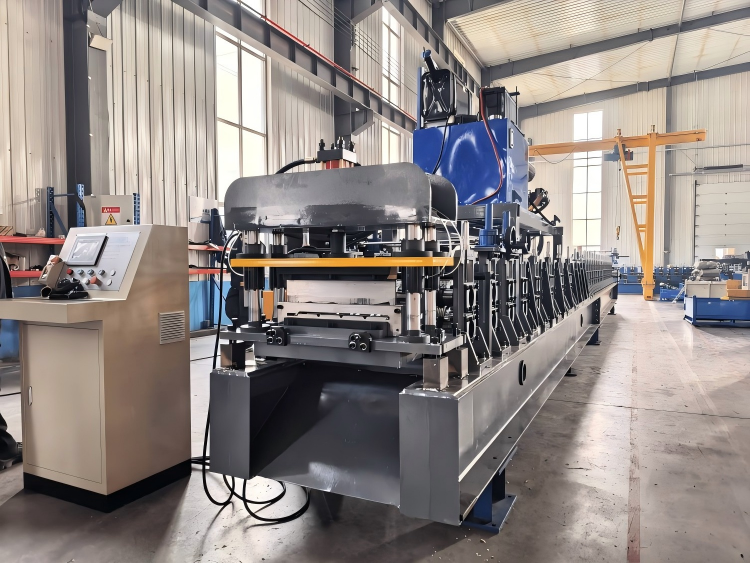

The soffit panel production line realizes one-stop integrated processing, and the complete workflow is smooth and efficient. First, the raw metal coil is placed on the automatic uncoiler for stable feeding. Then the leveling device flattens the coiled material to eliminate material bending and deformation. After that, the material enters the multi-group roll forming system for gradual bending and shaping to form the standard soffit panel profile. Next, the equipment completes automatic punching and embossing according to product requirements. Finally, the hydraulic cutting system cuts the panels to the set fixed length, and the finished products are automatically output through the receiving platform. The whole process is automated and continuous, with no manual secondary operation required.

Wide Application Scenarios

Finished soffit panels produced by this roll forming machine are widely applicable in various construction and decoration fields. In residential buildings, they are used for roof eaves, ceiling and exterior wall decoration, with good waterproof and decorative effects. In commercial buildings such as shopping malls, office buildings and hotels, perforated soffit panels can be used for ceiling sound absorption and noise reduction, improving indoor acoustic environment. In industrial plants, warehouses and logistics parks, the panels have strong wind resistance, corrosion resistance and weather resistance, adapting to harsh outdoor working environments. In addition, the products are also suitable for municipal engineering, scenic area supporting buildings and other facade cladding projects, with wide market applicability.

Quality Assurance & After-Sales Service

All our soffit panel roll forming machines strictly comply with international production standards and have passed ISO quality system certification. Every piece of equipment will undergo strict factory testing including no-load operation test, load forming test and precision detection to ensure stable performance and qualified quality before delivery. We support customized equipment parameters and mold development according to customer’s local market and project needs.

In terms of after-sales service, we provide one-stop full-cycle service including equipment installation guidance, on-site commissioning, operator training, long-term technical support and spare parts supply. Our professional technical team can quickly respond to customer problems, solve equipment operation and maintenance issues in a timely manner, and ensure long-term stable and efficient operation of customer production lines. We adhere to high-quality product quality and intimate after-sales service to create maximum value for global customers.

Why Choose Our Soffit Panel Roll Forming Machine

We have more than ten years of professional experience in roll forming equipment R&D and production, focusing on the research and innovation of building material forming machinery. Compared with other manufacturers, our soffit panel roll forming machines have more stable performance, higher forming precision and more reasonable structural design. While ensuring product quality, we optimize equipment production costs to provide customers with cost-effective industrial equipment solutions.

All equipment supports factory direct sales, eliminating intermediate links, ensuring customers get high-quality products at competitive prices. At the same time, we can provide personalized production scheme design according to customer’s production scale, product types and project needs, helping customers quickly open the local building material market and gain market competitive advantages.

Frequently Asked Questions

Q1: What metal materials can this soffit panel machine process?

A1: The machine is compatible with galvanized steel sheet, color coated steel sheet, aluminum alloy sheet and other conventional building metal materials, with a processing thickness range of 0.3mm to 2.0mm, which can meet most civilian and commercial building soffit panel production needs.

Q2: Is the equipment easy to operate for new workers?

A2: Adopting intelligent PLC touch screen control, the operation is simple and standardized. We will provide detailed operation manuals and video tutorials, and support remote guidance and on-site training. New workers can proficiently operate the equipment in a short time.

Q3: Can the machine produce customized size soffit panels?

A3: Yes. We support full customization of equipment molds and parameters. We can adjust the panel width, thickness, profile shape and punching style according to customer’s drawings and market demands to produce non-standard customized soffit panels.

Q4: What is the service life of the equipment?

A4: The main body of the equipment is made of thickened steel, and the forming rollers are treated with hard chrome plating. Under normal operation and regular maintenance, the service life can reach more than 10 years, with low failure rate and long-term stable performance.
