Fully Automatic High Precision C Purlin Roll Forming Machine High Percision

C Section Steel Roll Forming Machine：Fully Automatic High Precision C Purlin Forming Machine

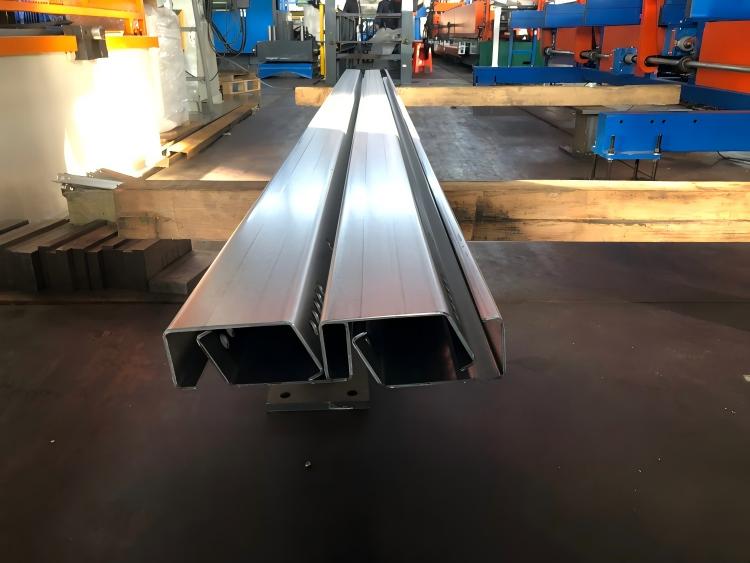

Description:Our C section steel roll forming machine is a fully automatic continuous cold forming equipment independently developed for global steel structure manufacturing industries. Designed for high-efficiency and high-precision mass production of C-shaped steel purlins, this machine integrates feeding, leveling, punching, forming, cutting and discharging into one automatic production line. It is widely applicable to industrial factory buildings, warehouses, photovoltaic power stations, prefabricated buildings and agricultural greenhouses, becoming the preferred core equipment for steel structure manufacturers worldwide.

Product Overview

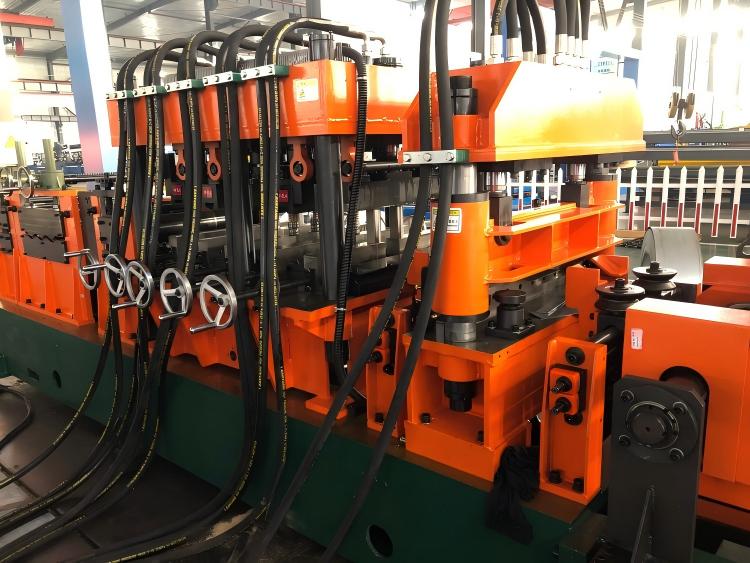

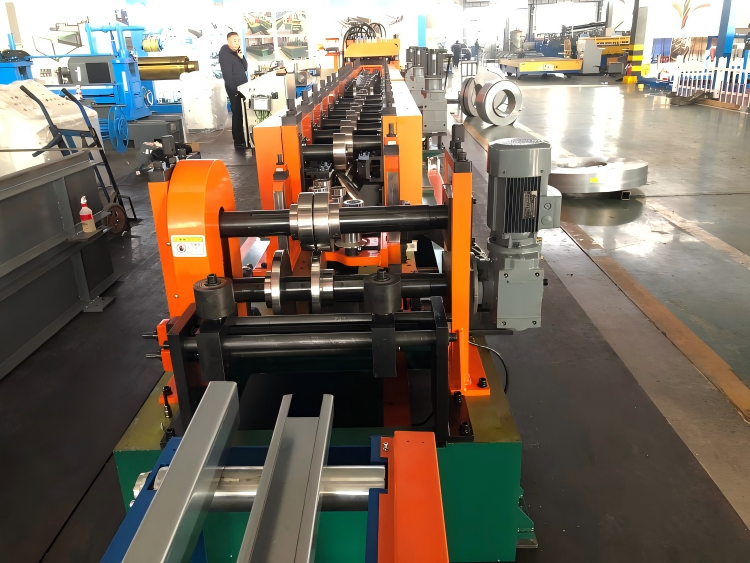

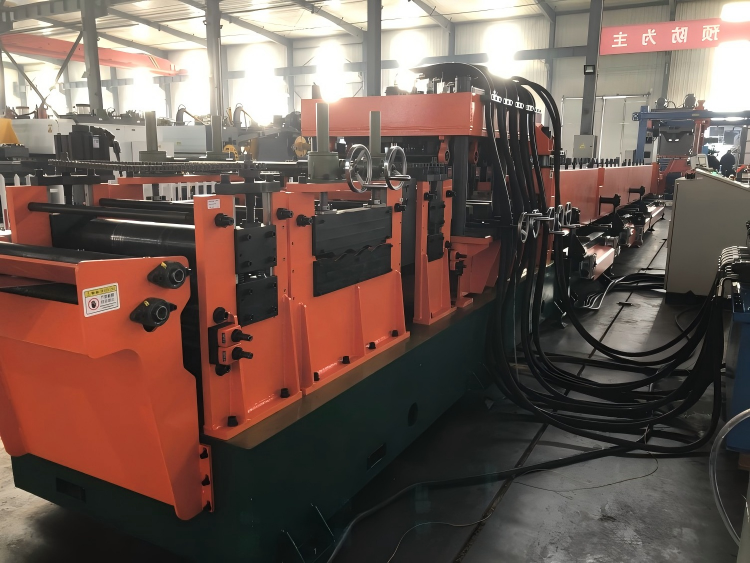

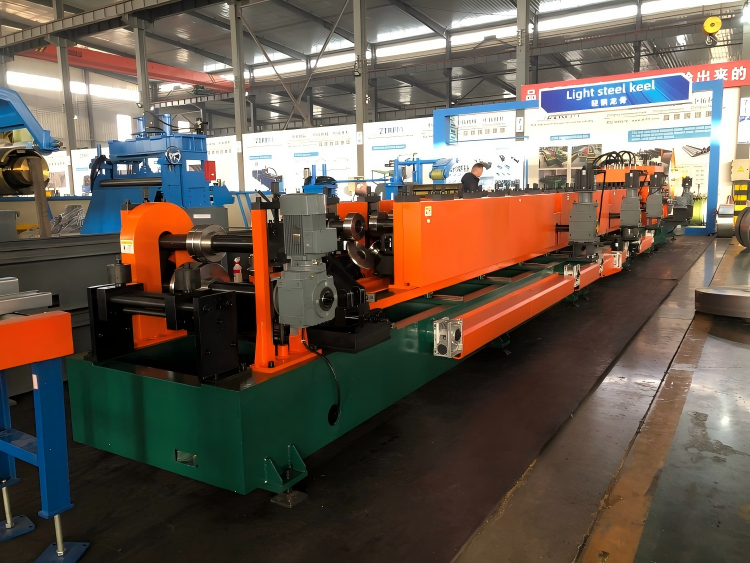

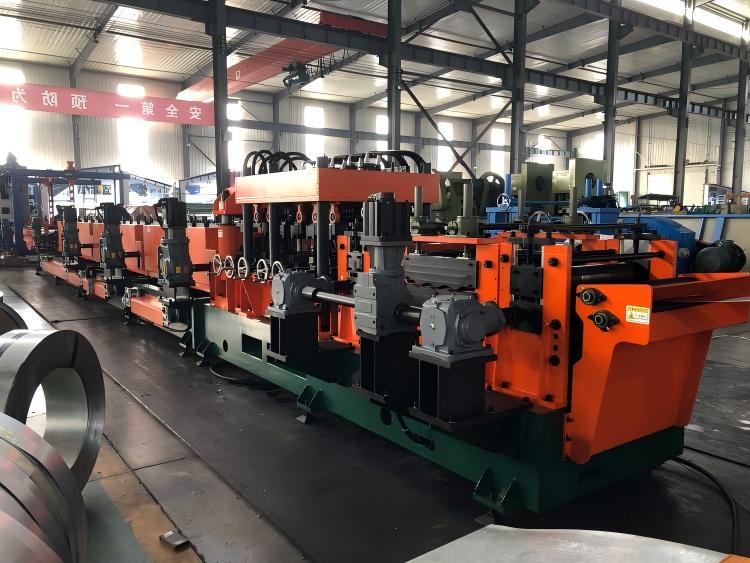

The C section steel forming machine adopts advanced cold roll forming technology, which processes galvanized steel coil, carbon steel coil and stainless steel coil into standard C-shaped steel profiles through continuous rolling and cold bending without damaging the metal material properties. Different from traditional semi-automatic forming equipment, our upgraded C steel forming machine supports stepless width and thickness adjustment, realizing one-key switching of multiple specifications without manual die replacement, which greatly saves production preparation time and labor costs.

This equipment features stable operation, low noise, high molding precision and long service life. The whole production line can realize 24-hour uninterrupted continuous production, with a material utilization rate of over 95%, effectively reducing raw material waste and improving enterprise production benefits. It is suitable for large-scale standardized production and customized personalized profile processing, meeting the diversified procurement needs of global customers.

Core Advantages

Full Automatic Intelligent Control, Labor-Saving & Efficient

Equipped with international brand PLC intelligent control system and touch screen human-computer interaction interface, the machine supports preset production parameters, automatic operation, real-time data monitoring and remote parameter adjustment. The whole process from coil feeding to finished product discharging is unmanned, which increases production efficiency by more than 3 times compared with traditional equipment. The system has automatic fault alarm and self-detection functions, which can quickly locate and solve equipment problems, reducing downtime loss.

High Precision Molding, Stable Product Quality

The forming roller is made of high-quality 45# steel with overall heat treatment and hard chromium plating process, featuring high hardness, wear resistance and non-deformation. The solid thickened forming shaft ensures uniform stress during rolling, with the molding precision controlled within ±0.5mm. The hydraulic cutting system adopts pillar-type hydraulic cutting, with smooth and burr-free cutting section, ensuring consistent size and flatness of each C steel profile, fully meeting international steel structure engineering standards.

Wide Compatibility & Strong Customization

The equipment supports multiple raw materials including galvanized steel, cold-rolled carbon steel and stainless steel. The adjustable processing thickness ranges from 0.8mm to 1.5mm, and the width can be adjusted freely according to customer engineering requirements, covering common C purlin specifications for global construction projects. It can produce multi-size C-section steel without replacing rollers, realizing one machine for multiple purposes and greatly improving equipment utilization.

Durable Structure & Low Maintenance Cost

The main frame adopts 350mm thickened H-beam integral welding structure, with strong rigidity and no deformation after long-term heavy-load operation. The transmission system adopts stable gear transmission, which is more durable and less faulty than chain transmission. The whole machine is treated with anti-rust spraying, adapting to complex production environments such as high temperature and humidity, suitable for long-term outdoor and factory fixed production, with low daily maintenance cost and long service life of more than 15 years.



Technical Parameters

Item	Technical Specification
Applicable Raw Materials	Galvanized steel, carbon steel, stainless steel
Processing Thickness	0.8mm - 1.5mm
Forming Speed	8 - 40m/min (adjustable)
Molding Precision	±0.5mm
Control System	PLC full automatic control + touch screen operation
Cutting Mode	Hydraulic automatic cutting
Main Frame Structure	Thickened H-beam integral welding
Roller Material	45# steel, heat treatment + chrome plating
Continuous Working Time	24-hour uninterrupted operation
Material Utilization Rate	≥95%



Application Scenarios

Our automatic C section steel forming machine is widely used in global construction and steel structure manufacturing fields, with strong scene adaptability:

Industrial Buildings: Steel structure factory buildings, logistics warehouses, workshop roof and wall purlins production

New Energy Projects: Ground photovoltaic power stations, distributed photovoltaic support C-shaped steel processing

Prefabricated Buildings: Light steel villa keels, assembled building enclosure structural profiles

Agricultural & Civil Facilities: Livestock breeding sheds, greenhouses, temporary construction steel structures

Engineering Supporting: Steel structure brackets, support beams and other mechanical building profiles processing



Our Service & Advantages

As a professional cold roll forming equipment manufacturer with years of export experience, we provide one-stop customized solutions for global customers. All our C section steel forming machines have passed international quality system certification, with reliable quality and compliant with global export standards.

We provide free machine customization according to customer’s profile drawings and production demands, support exclusive design of special specifications. In terms of after-sales service, we offer 24-month warranty, lifelong technical support, remote debugging guidance and overseas door-to-door installation and maintenance services. We have stable supply chain and fast delivery cycle, and can provide complete export documents and logistics support to ensure smooth customs clearance for customers.



FAQ

Q1: Can this machine produce different sizes of C steel?

A1: Yes. This machine supports stepless adjustment of width and thickness, which can produce multiple common C purlin sizes without replacing molds, meeting diverse production needs.

Q2: What kind of after-sales support can you provide?

A2: We provide long-term warranty, free technical guidance, remote fault diagnosis, and overseas on-site installation and training services. Professional teams support multi-language communication to solve customer problems efficiently.

Q3: Is the machine suitable for large-volume industrial production?

A3: Absolutely. The equipment supports 24-hour continuous operation with high speed and high material utilization rate, which is very suitable for large-scale, long-term and batch production of steel structure manufacturers.

Q4: Can you accept customized machine parameters?

A4: Customization is available. We can adjust machine speed, processing range, functional configuration according to customer’s local engineering standards and production requirements.
