Color Coated Steel System > Production Equipment > Purlin roll forming machine

Fully Automatic Furring Purlin Machine Omega Purlin Steel Frame Roll Forming Machine 15m/min+Furring Purlin Roll Forming Machine+350mm/400mm/Customized

Cangzhou Zhongtuo International Trade Co., Ltd

Fully Automatic Furring Purlin Machine Omega Purlin Steel Frame Roll Forming Machine 15m/min+Furring Purlin Roll Forming Machine+350mm/400mm/Customized

Name: Fully Automatic Furring Purlin Machine Omega Purlin Steel Frame Roll Forming Machine 15m/min+Furring Purlin Roll Forming Machine+350mm/400mm/Customized
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT77377215

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15m/min

Model Number:

Furring Purlin Roll Forming Machine

Max. Working Width:

350mm/400mm/Customized

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
Customized
Voltage
380V or Customized
Power(W)
22kw

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

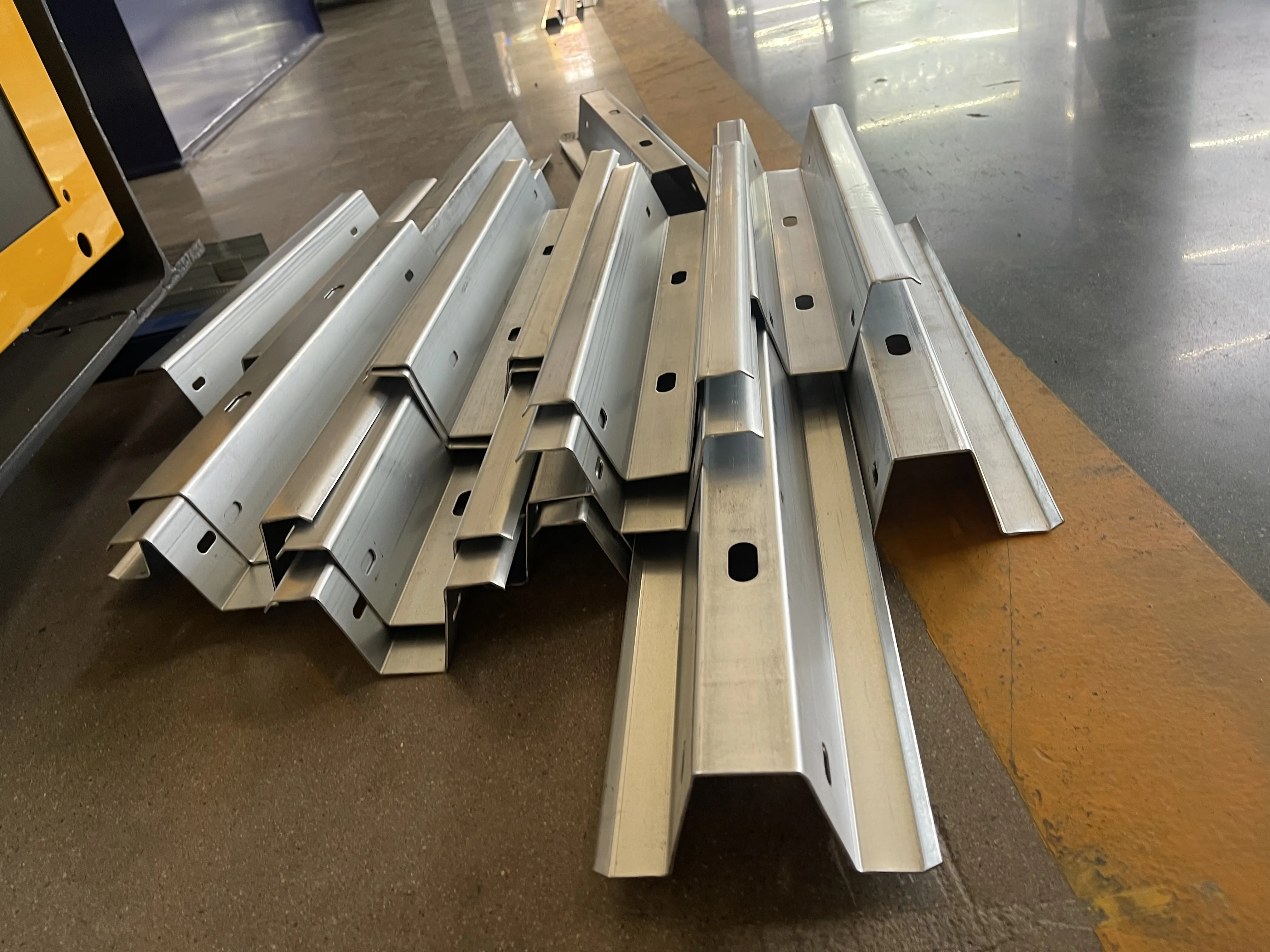

Omega purlin Furring purlin roll forming machine

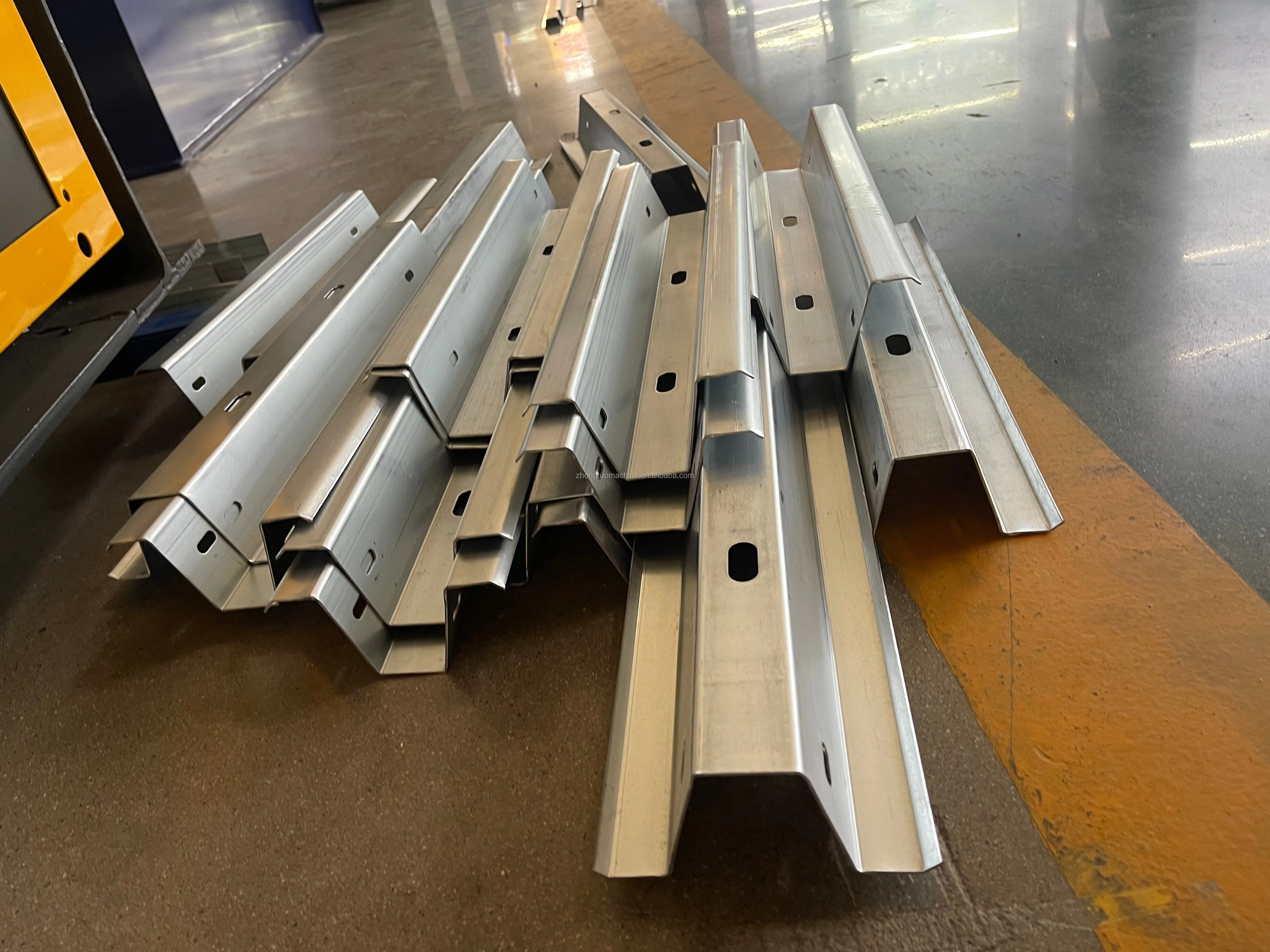

Omega purlins are a term commonly used in the construction industry to describe steel bars shaped like the letter “Ω” (Omega) when viewed from above. Omega purlins are often used as the main component of steel structures in construction projects. The “Ω” feature of Omega purlins provides many benefits during construction, including good bearing capacity, design flexibility, and stability during installation. Omega purlins are often made from high quality steel and are corrosion resistant to ensure sustainability and safety of the construction structure.

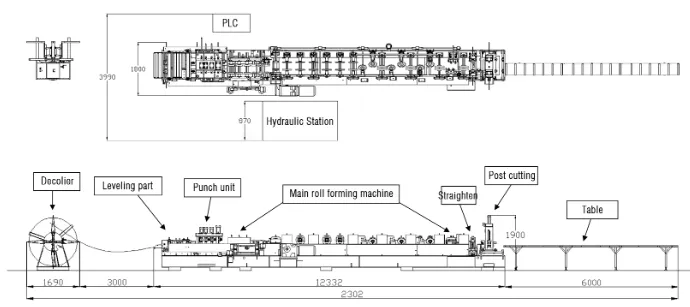

With high stability, Omega purlins are often used as secondary purlins in multi-layer roof structures, acting as load-bearing and as an intermediate part between layers of corrugated iron. Zhongtuo omega purlin Furring purlin roll forming machine can has higher automatic degree, The machine is equipped with imported Delta/Siemens brand electrical control. The entire production line can complete the processes of feeding materials, leveling, forming small edges, punching holes, and cutting in a continuous and integrated manner. The entire production line of this machine only requires 1-2 operators to complete the operation.

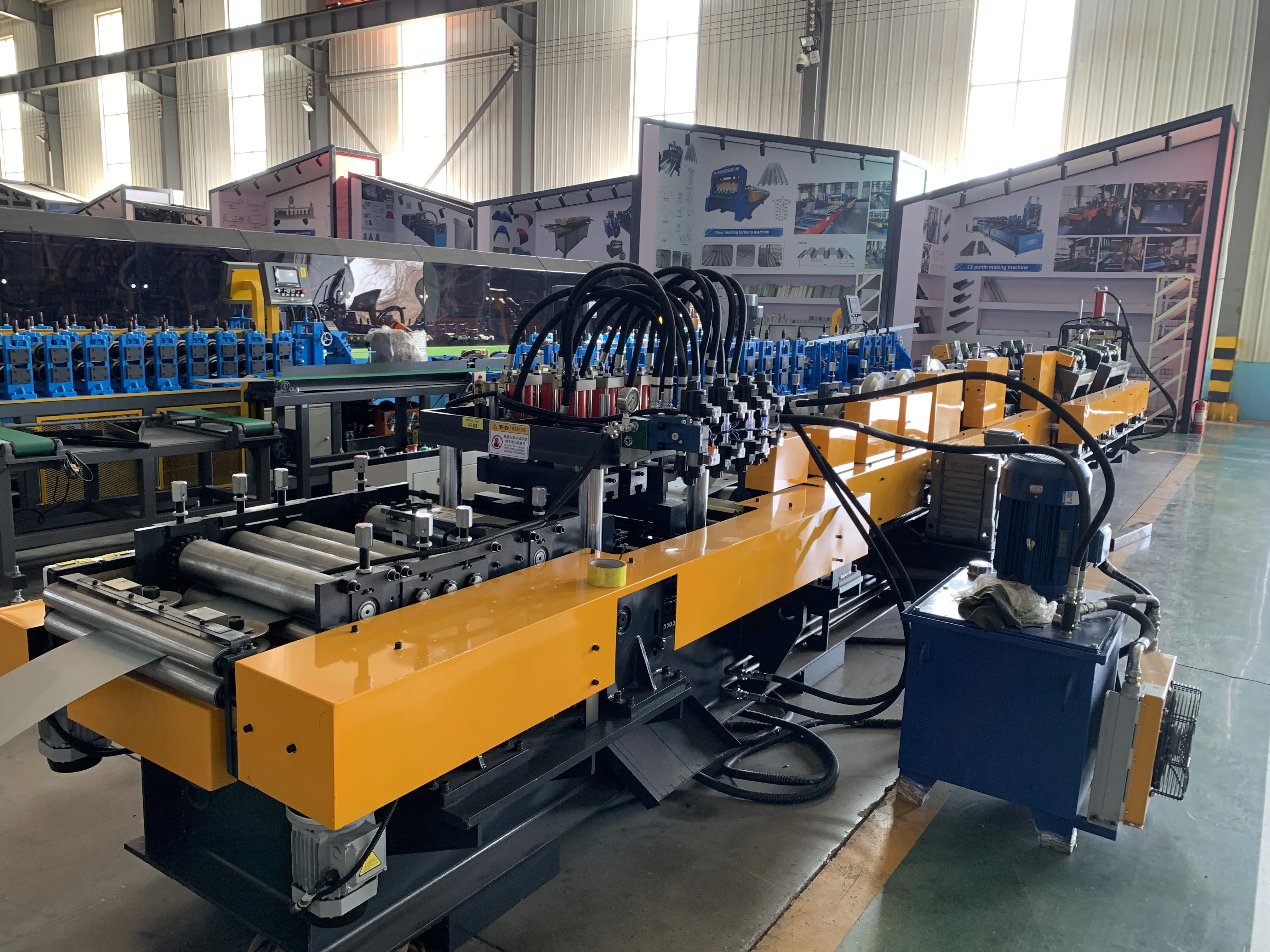

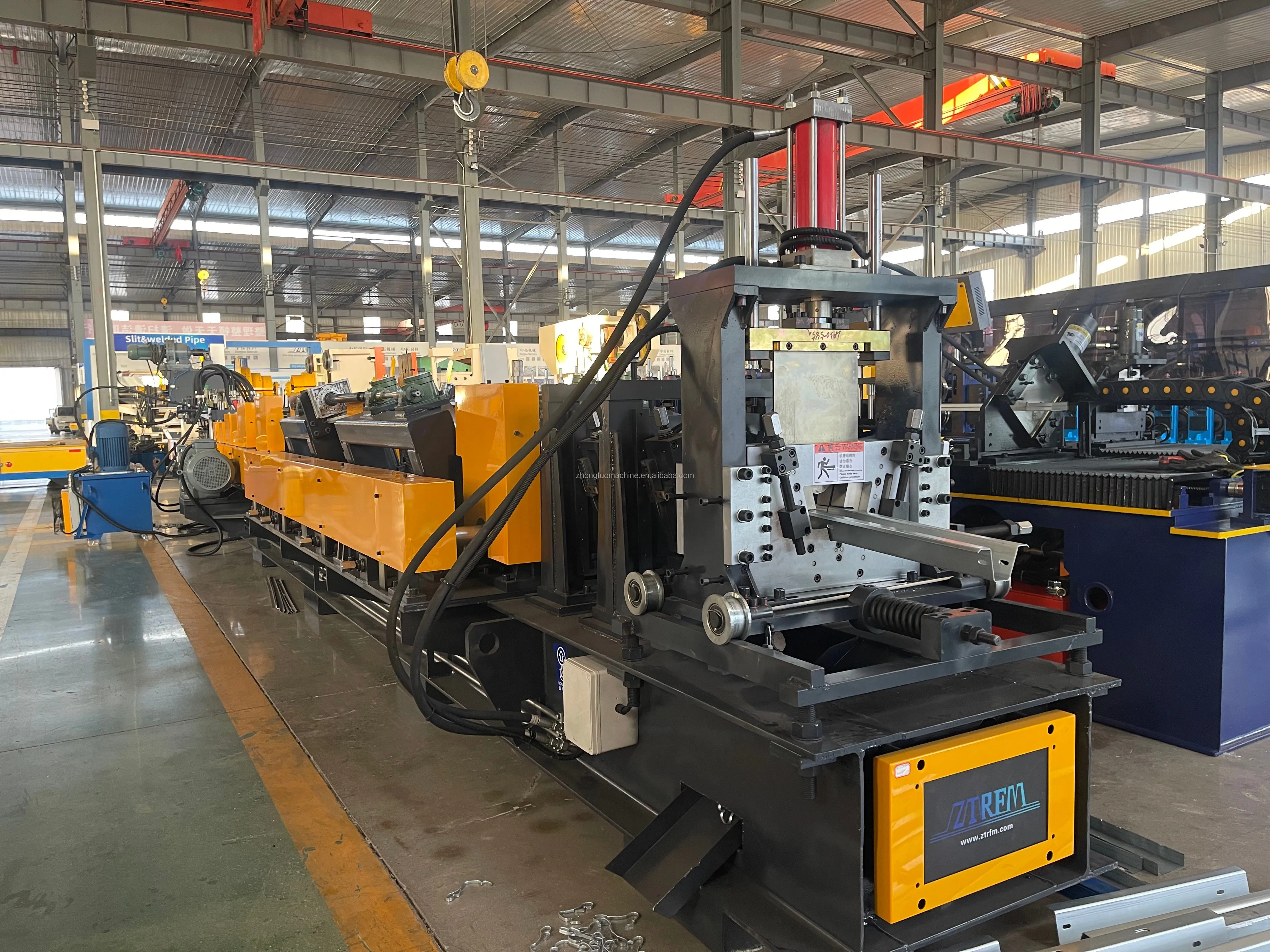

Furring purlin roll forming machine
1.Formed Material	PPGI,GI,AI		Thickness:1.5-3mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		16 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		Gcr 15 with quenched teeatment
		Machine body frame		Metal steel welded
		Drive		Chain transmission
		Dimension(LWH)		95008001200(customize)
		Weight		About 8T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		15KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	60-70m/min(customized)		The speed depends on the shape of the tile and the thickness of the material.

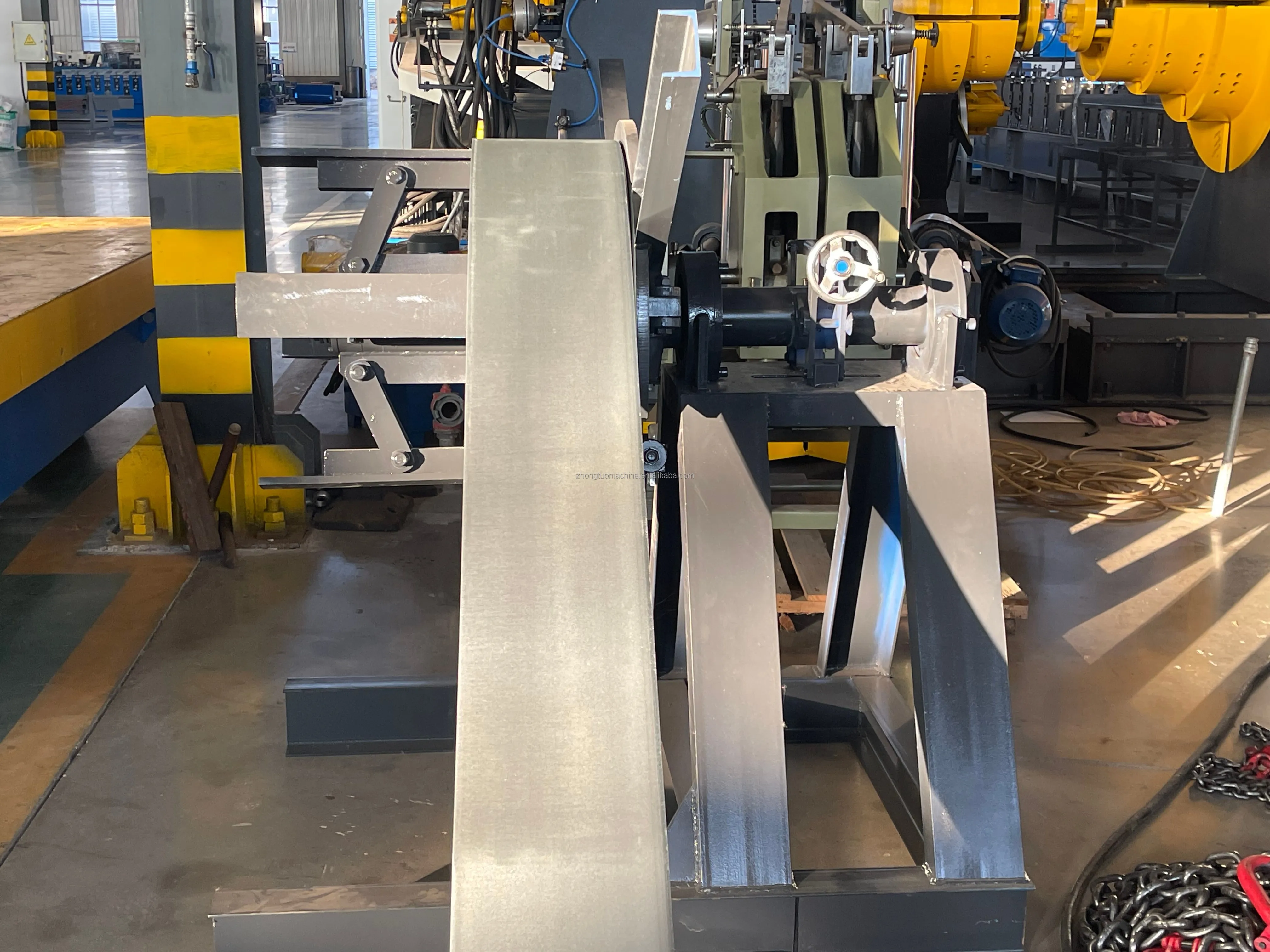

5T Manual Decoiler

1.Manual working 2.Manual expansion
3.Depond the main forming machine provide tension power to opening the coils
4.With braking system can prevent accidents during the unloading process to ensure the safety of workers

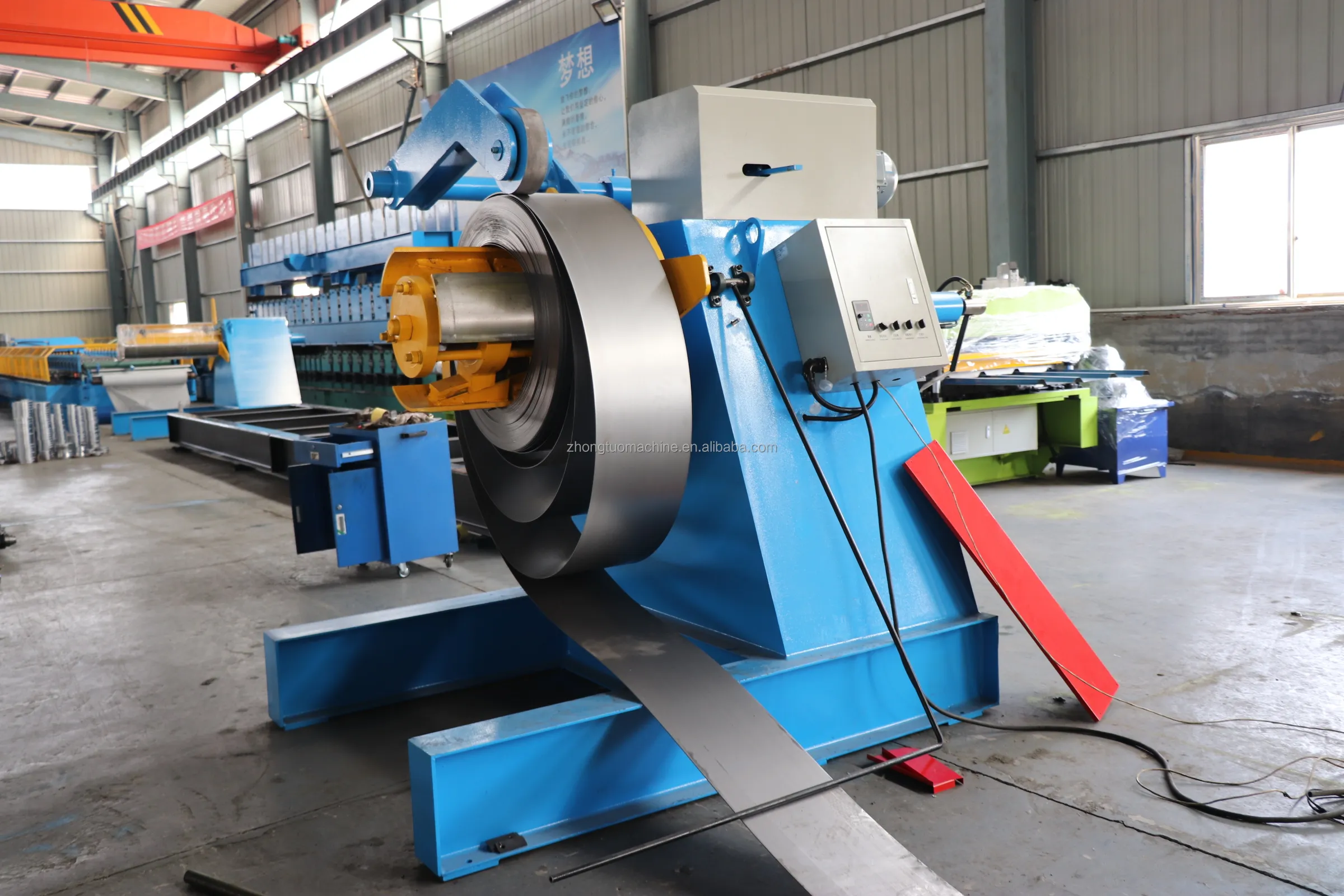

Automatic 5T hydraulic decoiler (Optional)

1. Automatic tension coils

2. Automatic opening coils , can according main forming machine speed adjust out hydraulic decoiler 3. Have pneumatic press arm can protect workers safety , also have Sensing device can prevent deposit coils

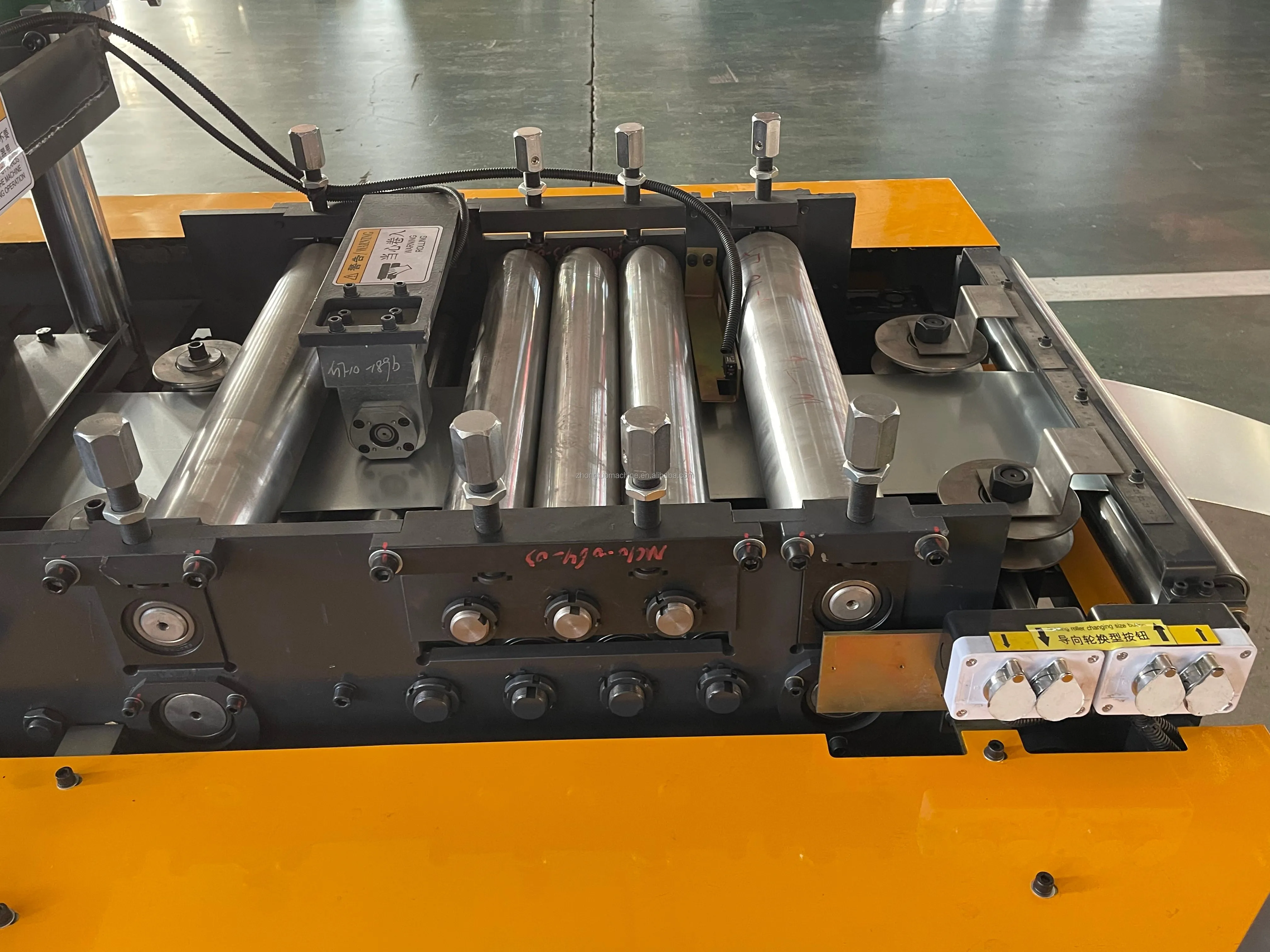

Electric Feeding device

1. Feeding roller add electric motor and chains transmission , can keep machine active feeding coils , keep punching more accuracy and keep forming more fluently 2. Leveling roller , keep leveling the coils , protect coils has wrinkle damage the rollers

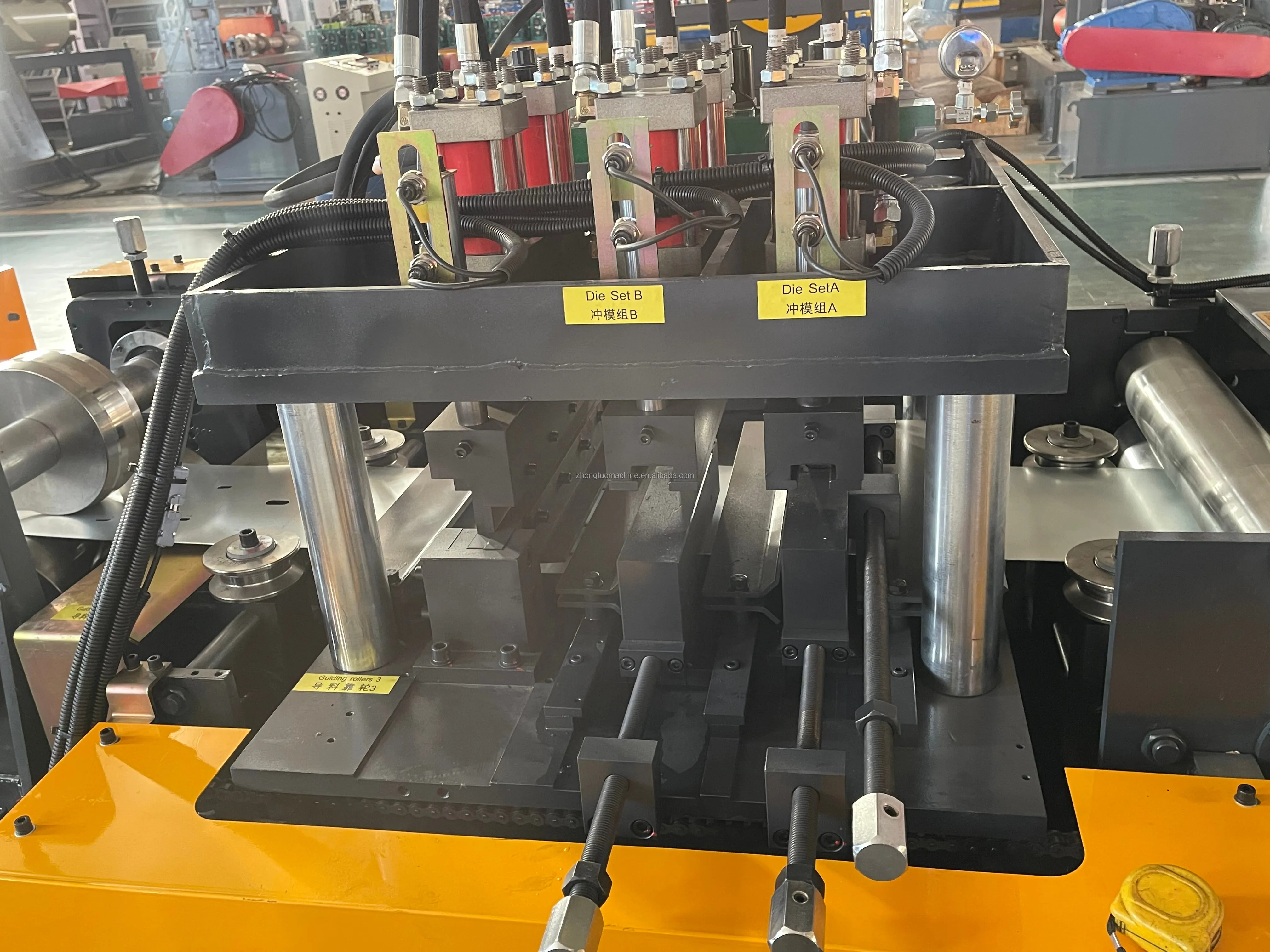

Punching device

1. Punching distance and punching hole number all can adjust , keep machine production can using different building needs 2. punching speed can control in PLC control system , easy to operate and more accuracy

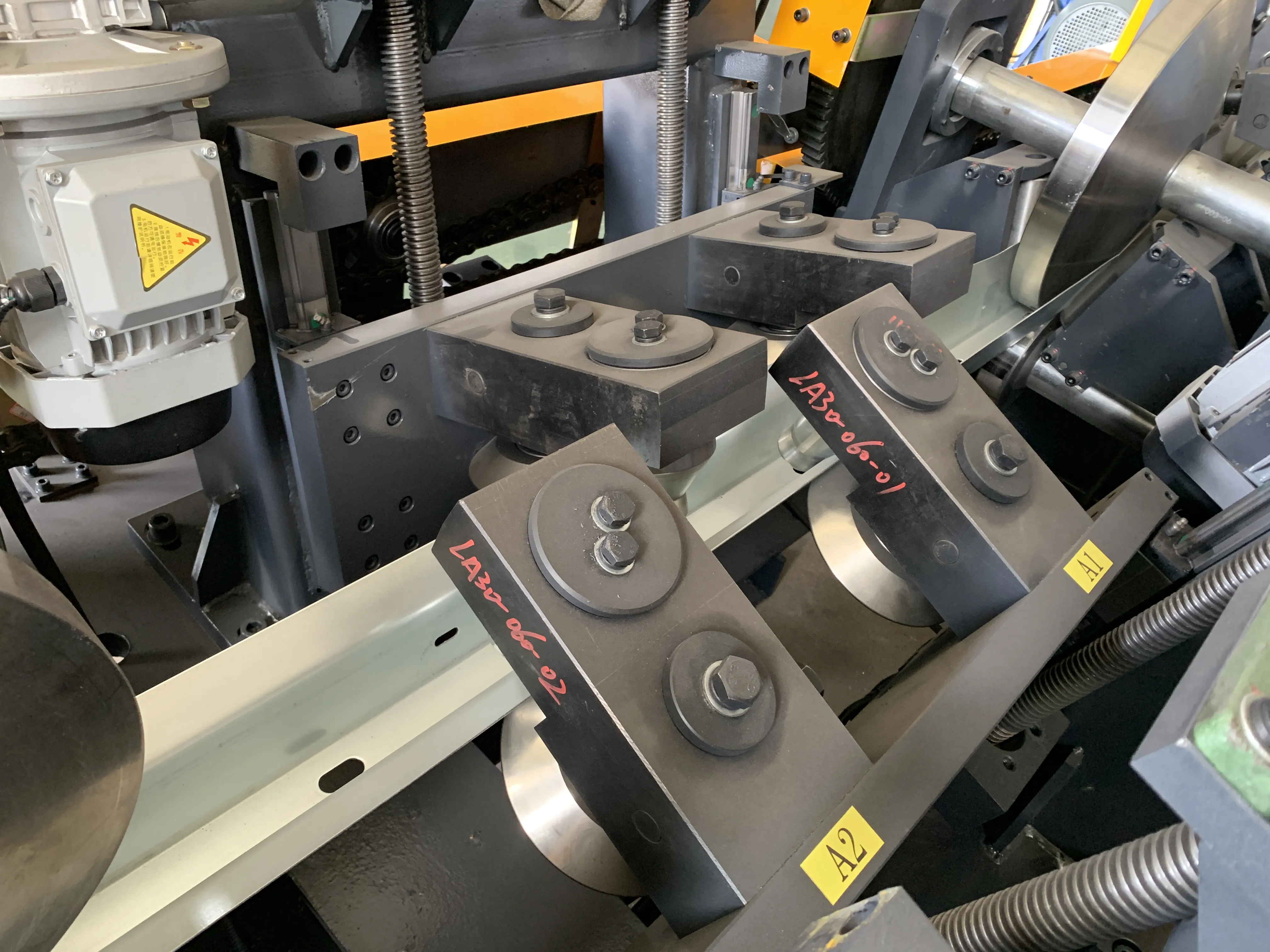

Little flap forming roller

1.Surface with chromed treatment
2.Material:CR12 3.Roller station:16-18Rows(Cuetomized as profile ) 4.Gear transmission , keep enough forming power and keep stable foming effect.

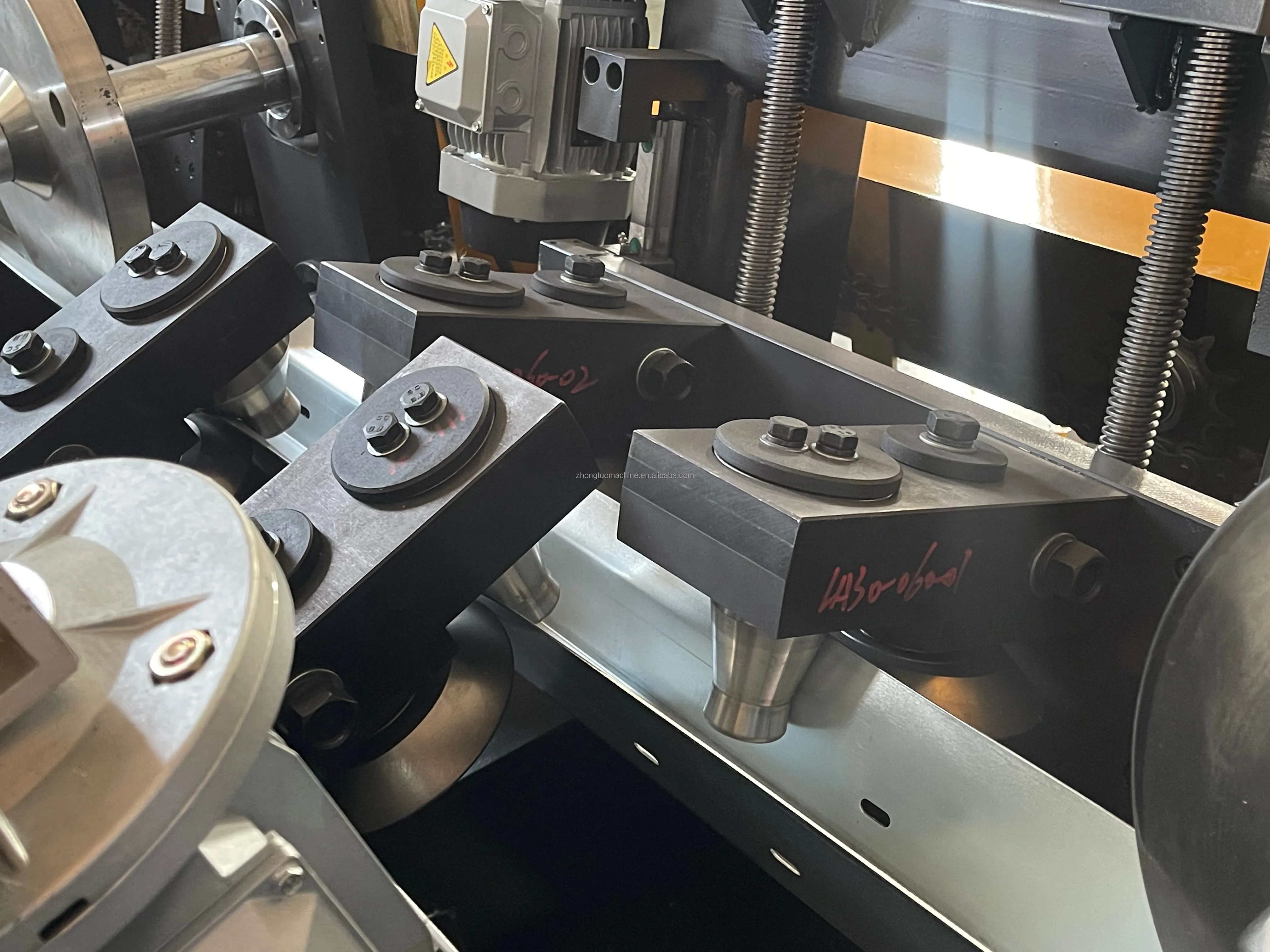

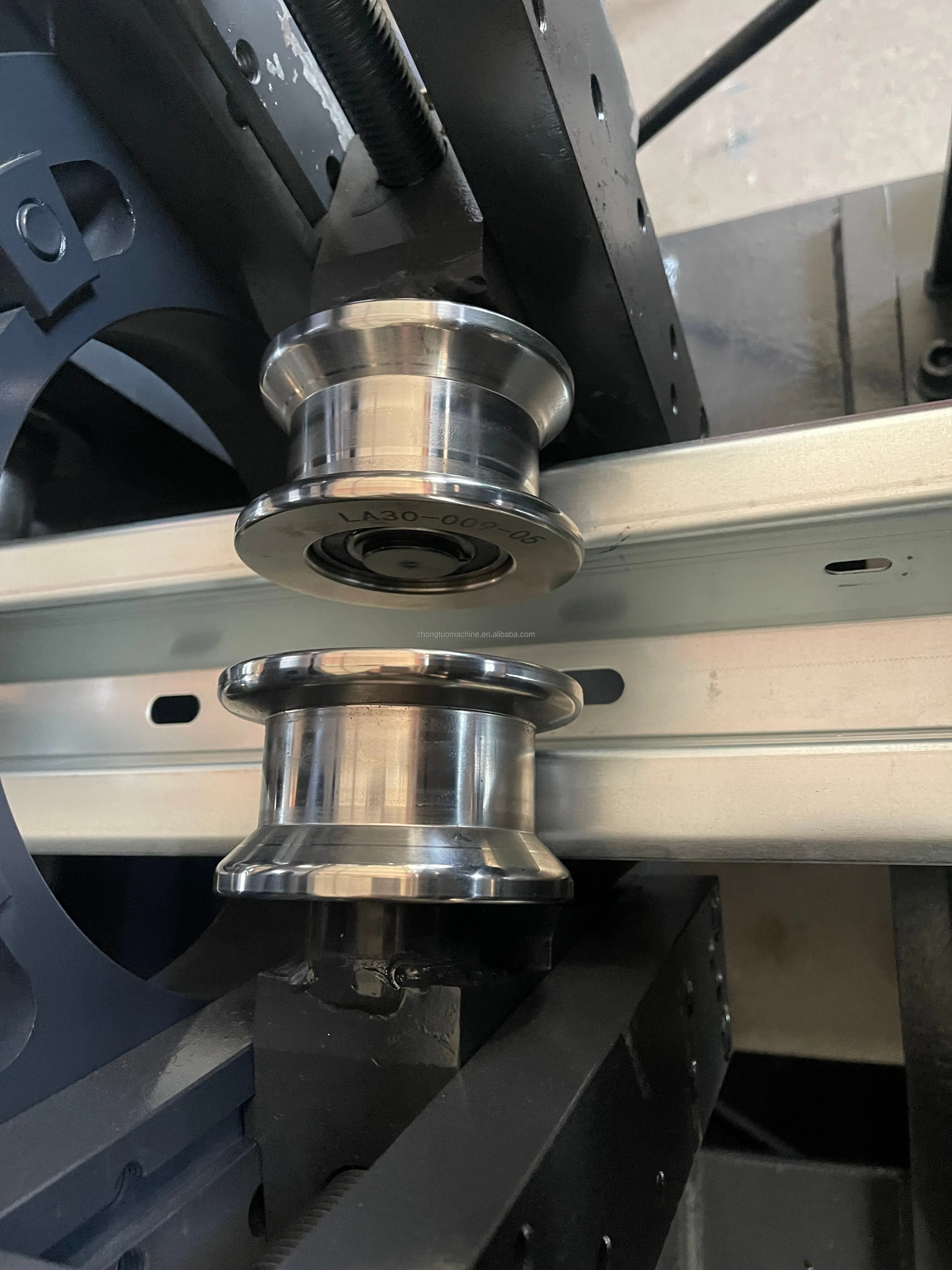

Main forming rollers

1. Shaft materials: 40CR 2. Main structure:40mm cast iron plaque structure, with an additional design of a scale-equipped screw cap, facilitating customers' adjustment.

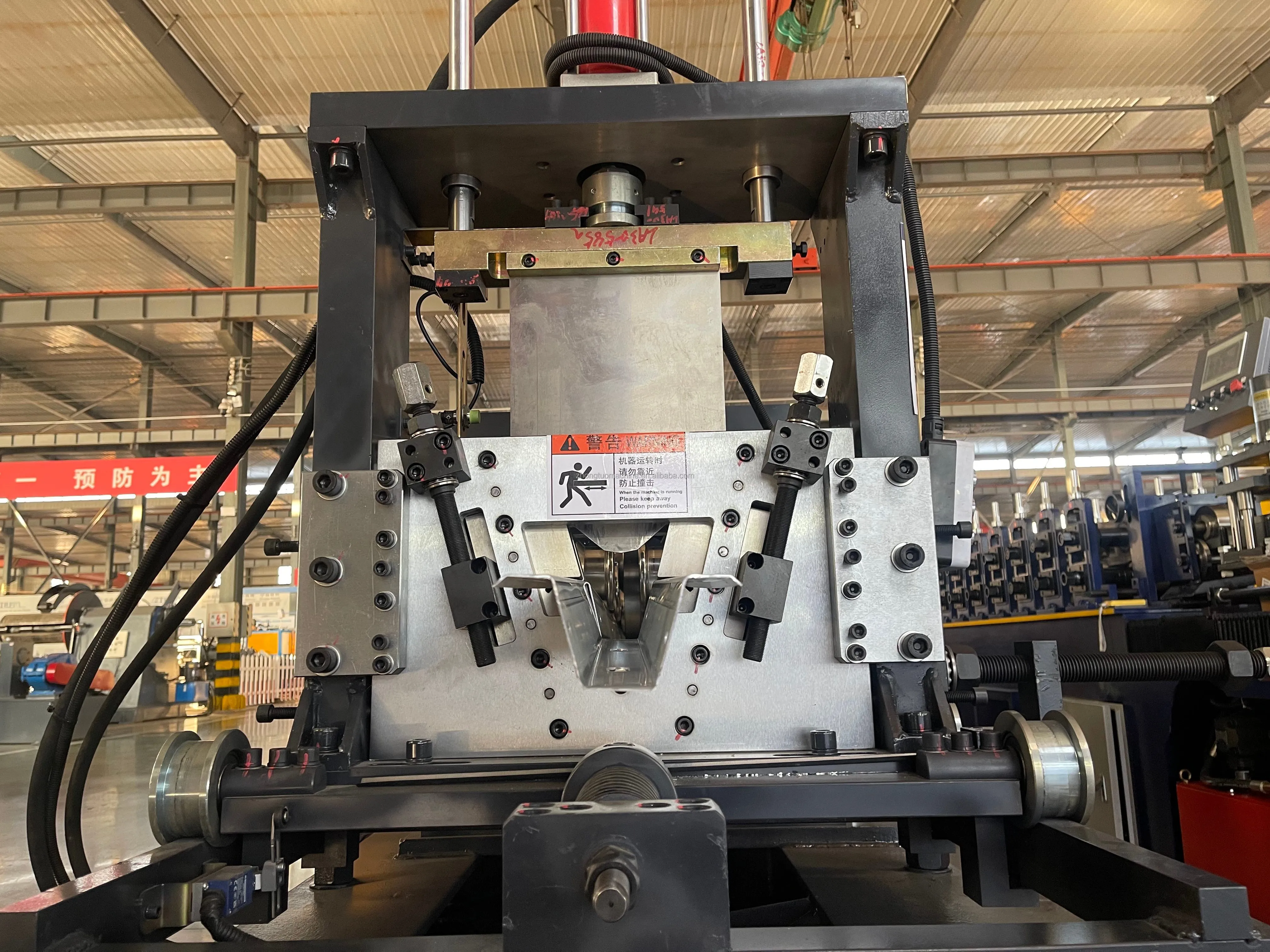

Cutting system

1.Cutter Materials: Cr12MnF 2.Fully automated knuckle pressing and cut products

3.The knife holder part adopts a professional screw design, ensuring precise cutting with minimal error.

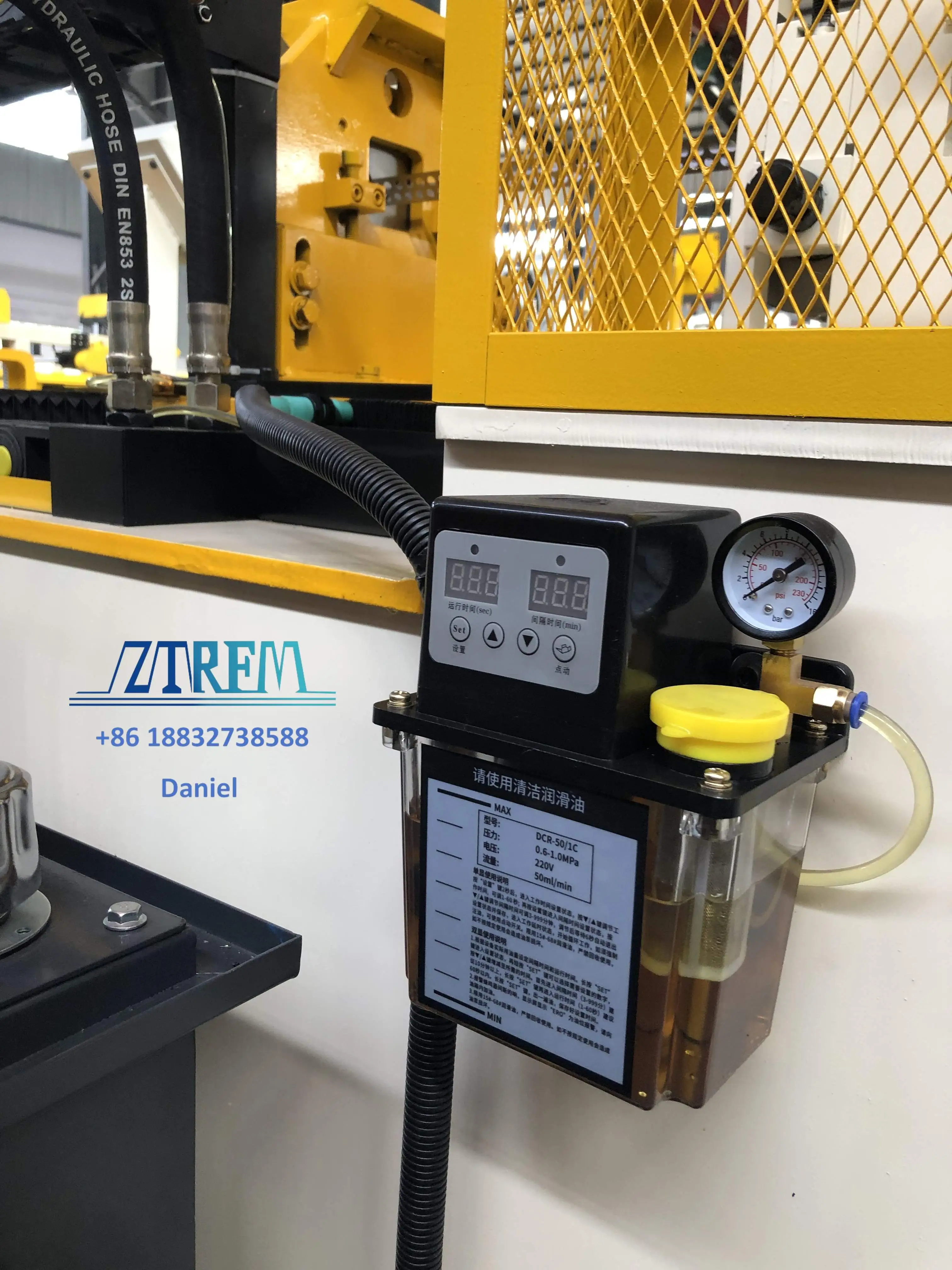

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

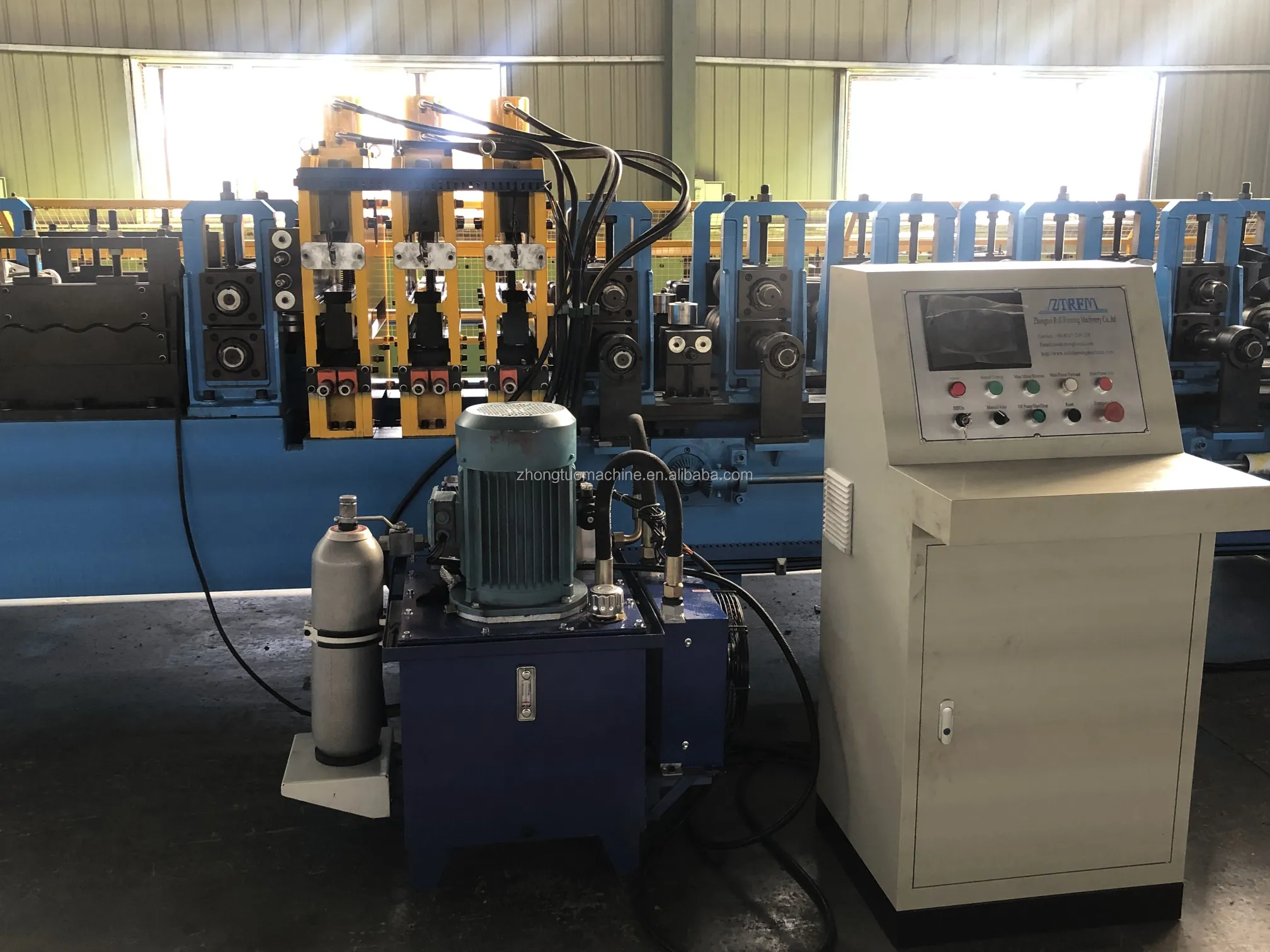

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control 2.Adopt touch screen for easy operation. 3.Adopt aviation plugs for easy installation
4.Languages can be customized

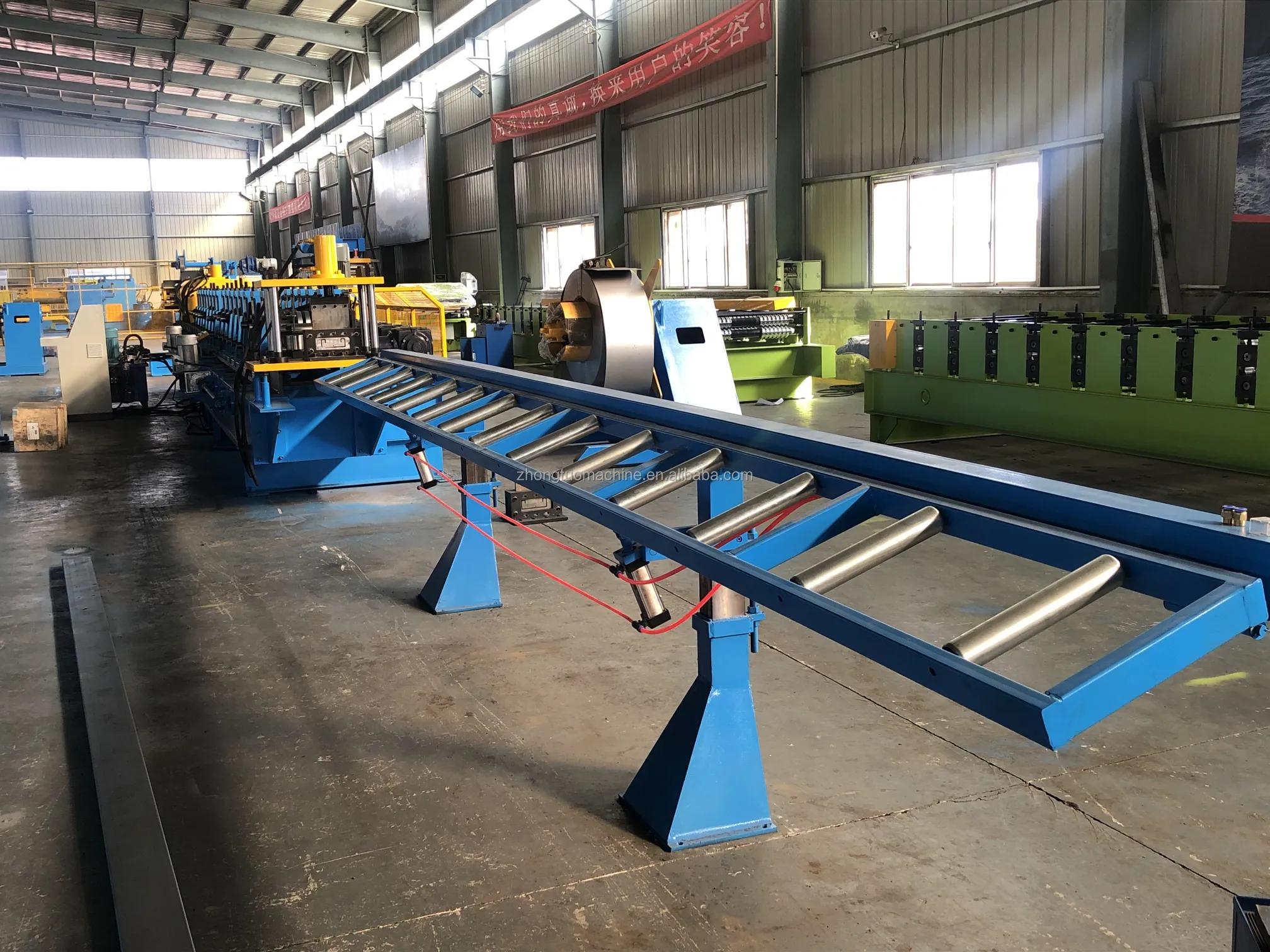

6M Production receive table

1.The surface is composed of flexible rotating stainless steel rollers, which effectively ensure the smooth discharge of the finished steel profiles and prevent any damage to the surface zinc coating.

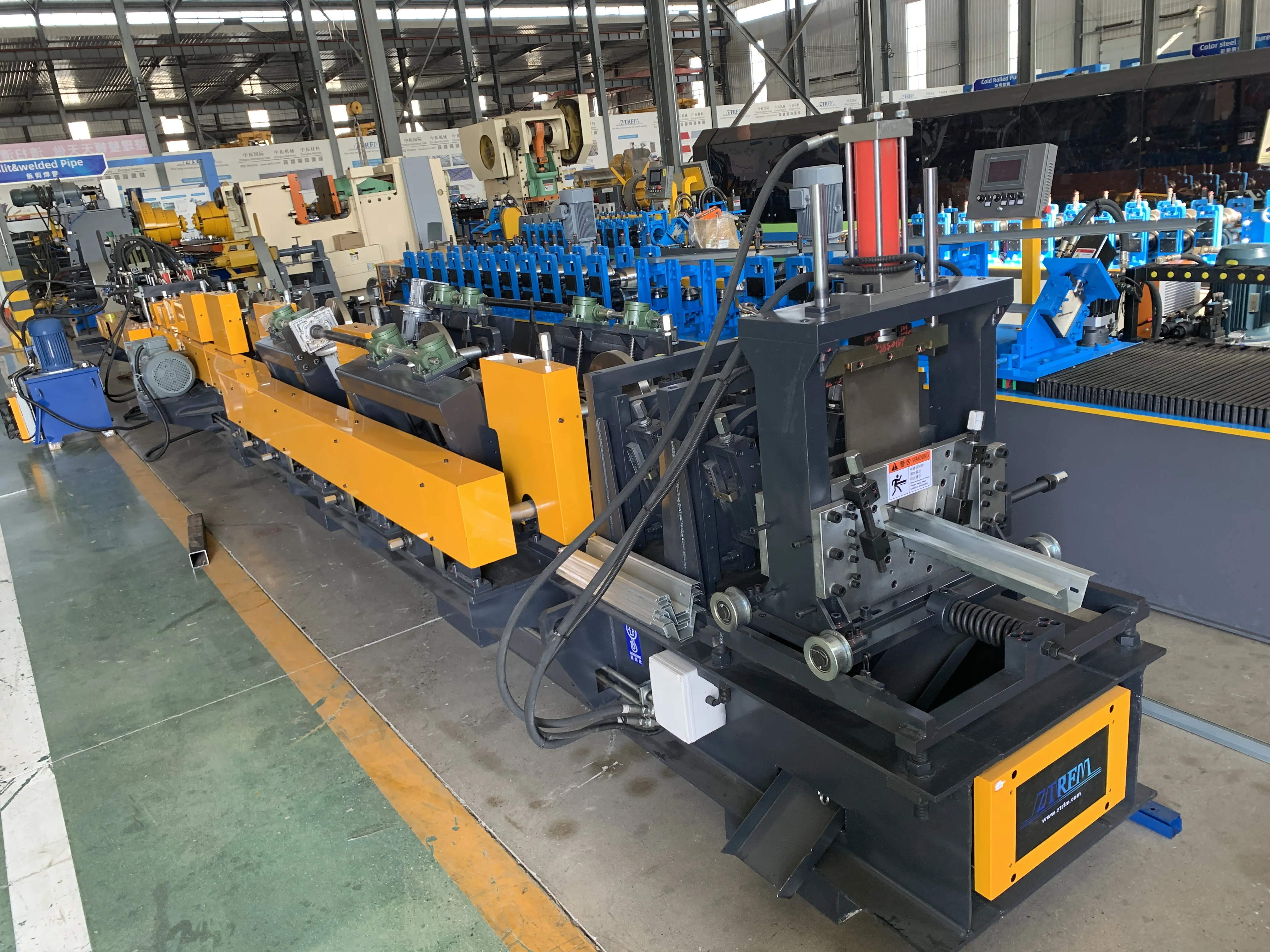

Product display

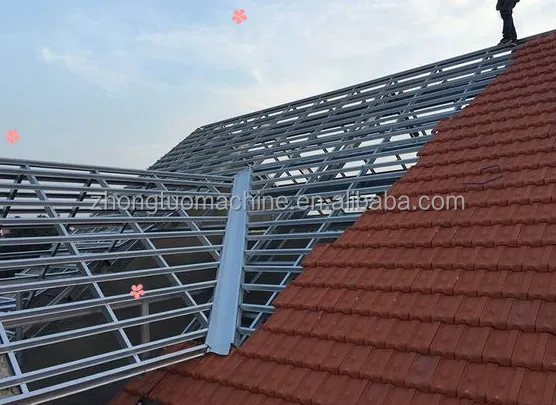

Application

Exhibition

Certification

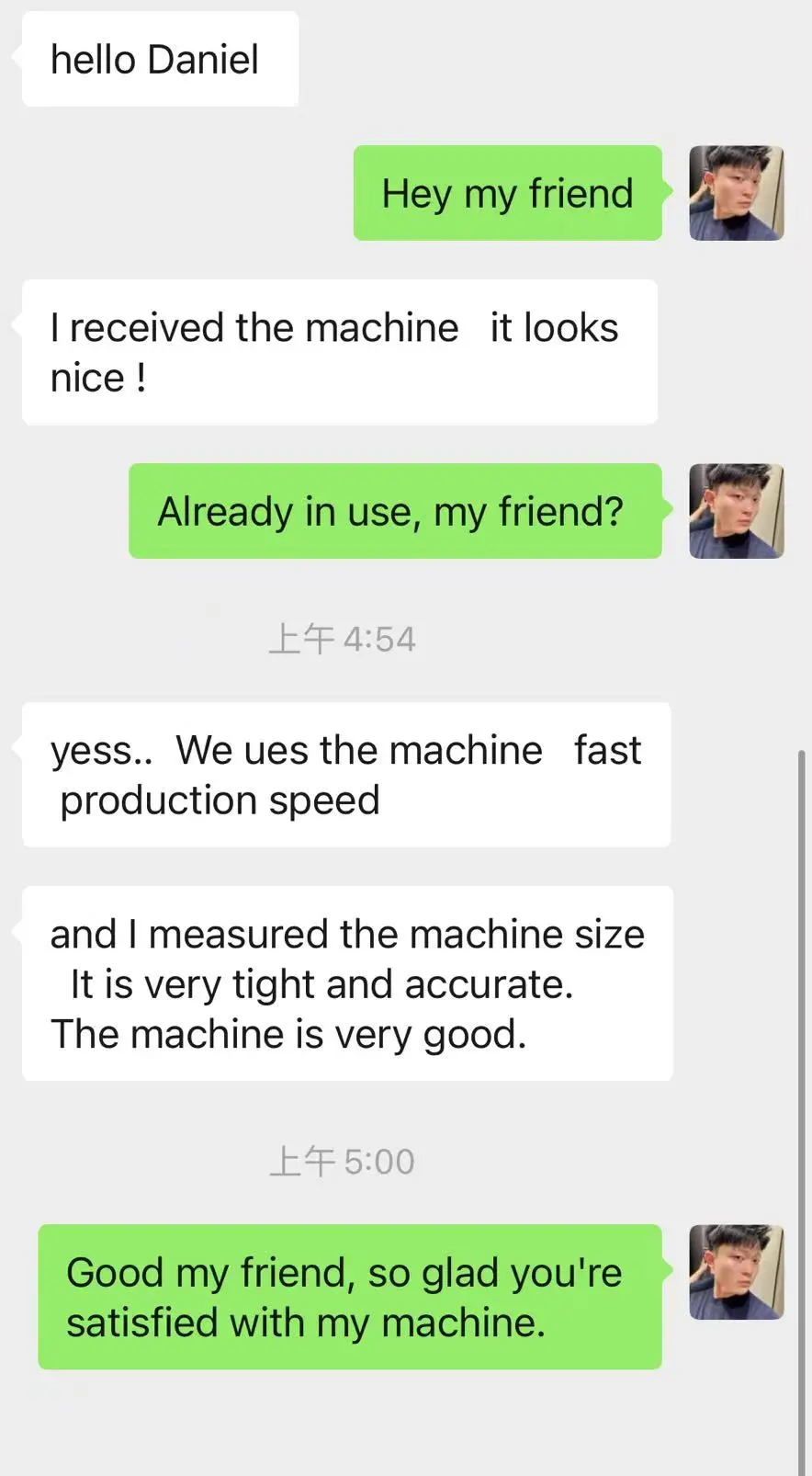

Customer Photos
