Color Coated Steel System > Production Equipment > Purlin roll forming machine

Fully Automatic Electric Junction Cabinet Roll Forming Machine Fully Automatic Electric Junction Cabinet Roll Forming Machine

General Industry Tech Hebei Developing Co.,Ltd

Fully Automatic Electric Junction Cabinet Roll Forming Machine Fully Automatic Electric Junction Cabinet Roll Forming Machine

Name: Fully Automatic Electric Junction Cabinet Roll Forming Machine Fully Automatic Electric Junction Cabinet Roll Forming Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120581370

Machine TypeElectrical cabinet frame making machine

Cutting SystemAutomatic hydraulic cutting

Bending TypeAfter forming then automatic bending

Machine Weight10000 kg

WarrantyMore than 5 years

CertificationCE, ISO

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Fully Automatic Electric Junction Cabinet Roll Forming Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Machine Type
Electrical cabinet frame making machine
Cutting System
Automatic hydraulic cutting
Bending Type
After forming then automatic bending
Machine Weight
10000 kg
Warranty
More than 5 years
Certification
CE, ISO
Roller Rows
16 rows
Material Thickness
0.8-1.5 mm (can be customized)
Power
7.5 kW
Voltage
220 V / 380 V / 400 V
Roller Material
GCR15
Shaft Material
40Cr
Cutter Blade
Cr12Mov
Control System
PLC (DELTA/SIEMENS imported brand)

Fully automatic electrical metal box making machine with cabinet frame sample

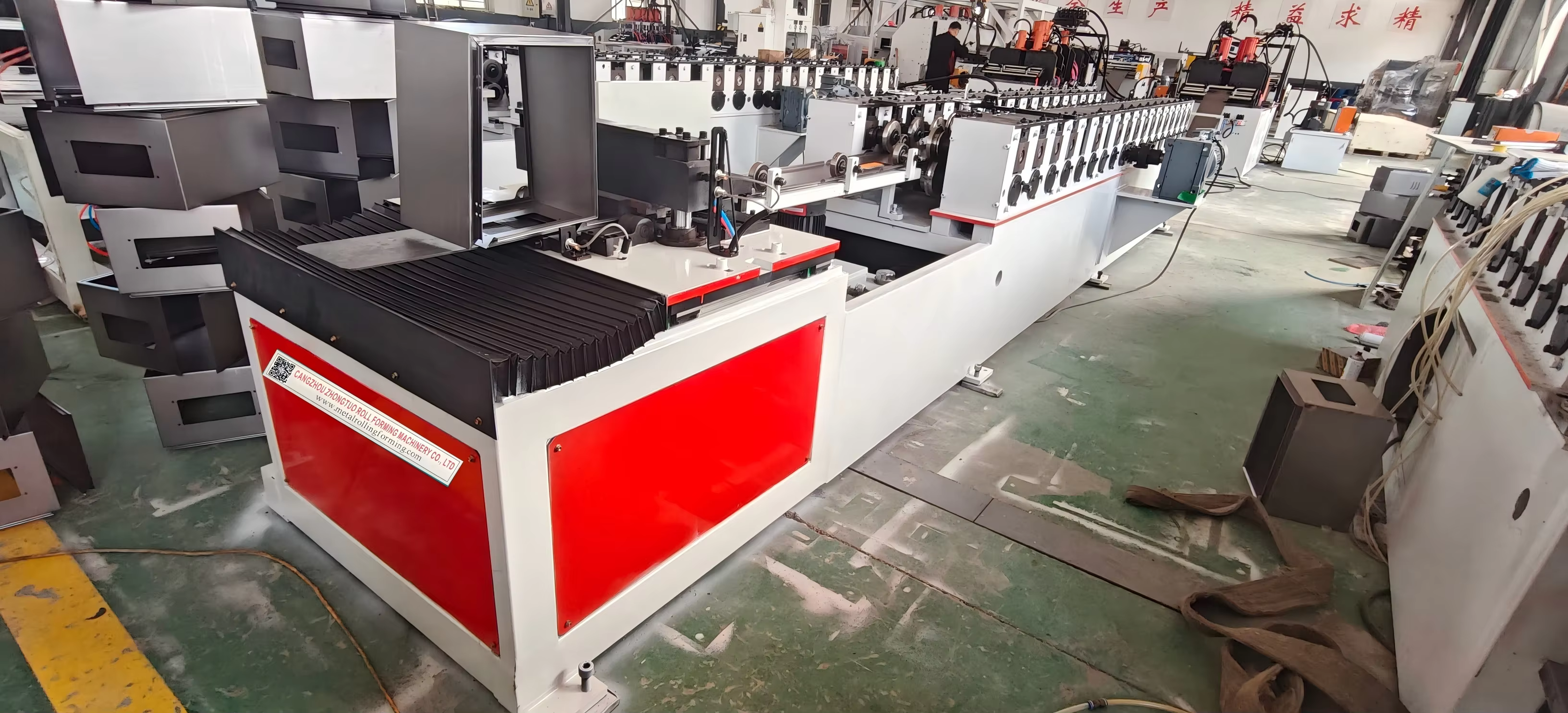

Electric junction cabinet roll forming machine in factory

Product Overview

The fully automatic electric junction cabinet roll forming machine is an electrical cabinet frame making machine producing GGD box / Pz30 distribution cabinet frames. With 16 rows of rollers, PLC (DELTA/SIEMENS) control and in-line hydraulic punching, cutting and automatic bending after forming, it delivers high productivity, easy operation and high accuracy for electrical cabinet frame production.

High productivity with 16 rows of rollers and automatic continuous line
Easy to operate with PLC (DELTA/SIEMENS imported brand) control
High accuracy forming, punching and cutting in one line
Automatic bending after forming - frames come out ready for assembly
Material thickness 0.8-1.5 mm, customizable
CE and ISO certified

Key Features

High Productivity - 16 rows of rollers form cabinet frame sections in a fully automatic continuous line, ideal for GGD box and Pz30 distribution cabinet production.
Easy to Operate - PLC (DELTA/SIEMENS imported brand) control simplifies setup and operation; one machine replaces manual forming and bending work.
High Accuracy - GCR15 rollers and 40Cr shafts keep profile dimensions accurate; Cr12Mov cutter blades deliver clean cuts.
Automatic Bending After Forming - Frames are automatically bent after roll forming, so cabinet frames come off the line ready for assembly.
Hydraulic Punching & Cutting - Automatic hydraulic punching and cutting are integrated in-line, no secondary processing.
Customizable Thickness - Processes 0.8-1.5 mm sheet (customizable) with 7.5 kW power.

Technical Specifications

Item	Specification
Machine type	Electrical cabinet frame making machine
Machine name	Electric junction cabinet frame roll forming machine
Roller rows	16 rows
Material thickness	0.8-1.5 mm (can be customized)
Roller material	GCR15
Shaft material	40Cr
Cutter blade material	Cr12Mov
Cutting system	Automatic hydraulic cutting
Bending type	After forming then automatic bending
Control system	PLC (DELTA/SIEMENS imported brand)
Power	7.5 kW
Voltage	220 V / 380 V / 400 V
Machine weight	10000 kg
Warranty	More than 5 years
Certification	CE, ISO
Place of origin	China
After-sales service	Engineers overseas technique support

Machine Structure

Forming line with double rows of roller stations and output chute

The line has two parallel rows of forming stations on a sturdy off-white base with a red stripe, a drive motor at the front and an output chute where the strip emerges with pre-cut rectangular notches, ready for bending and assembly.

Finished Product

Stacked galvanized electrical cabinet enclosures and frames

Finished galvanized electrical cabinet enclosures and frames with punched openings are stacked in the workshop, ready for powder coating and final assembly.

Certifications

CE certified equipment certificates

The machine is CE certified for international procurement (CE trust No. 4Q230524.CZIDW02 / 4Q230524.CZIDW03), supported by COTECNA, Ente Certificazione Macchine, UDEM and BAC certificates; the machine is CE and ISO certified.

Company Profile

ZTREM factory, showroom and workshop

Zhongtuo Roll Forming Machinery Co., Ltd (ZTREM) is a cold forming equipment manufacturer with a modern factory, corporate showroom featuring development history (2010-2024) and honors, and a high-capacity workshop delivering roll forming lines worldwide.

Packing & Shipping

Package size: 850 x 150 x 120 cm; machine weight: 10000 kg
Delivery time: 60 days for 1 set, 90 days for 2 sets
Machinery test report and video outgoing inspection provided
