Fully Automatic C/Z Purlin Roll Forming Machine with Quick Change System High Speed

CZ Section Steel Forming Machine：Fully Automatic Interchangeable C Z Purlin Roll Former

Description:CZ Section Steel Forming Machine is a high-efficiency multi-functional cold roll forming equipment specially developed for producing C purlin and Z purlin steel profiles. As the core processing equipment in the steel structure construction industry, it can realize automatic switching between C-type and Z-type steel forming without replacing rollers. Widely used in steel structure factories, building material processing plants, and engineering construction enterprises worldwide, this machine helps users realize one-device multi-purpose production, greatly saving equipment investment costs and improving production flexibility.

In modern industrial plant construction, warehouse engineering, and large-scale steel structure projects, CZ purlins are indispensable building supporting materials. Our fully automatic CZ purlin roll forming machine features stable operation, high forming precision, and intelligent adjustment, which has become the mainstream choice for global steel structure processing manufacturers.

Outstanding Advantages of CZ Section Steel Forming Machine

Different from traditional single-function C steel or Z steel forming equipment, our integrated CZ section steel forming machine integrates multiple core technologies, solving the pain points of single production function, complicated operation and low precision of traditional equipment:

Automatic C/Z Interchangeable Production

The machine adopts electric automatic switching structure, which can freely switch between C purlin and Z purlin production through PLC touch screen setting. No need to manually replace rollers or adjust mechanical structures, realizing fast model conversion within 3-5 minutes. It supports continuous production of different specifications of CZ steel, perfectly meeting the diversified order production needs of processing enterprises.

High Precision Forming & No Deformation

Equipped with high-hardness alloy forming rollers and integral thickened steel plate welding frame, the equipment has strong rigidity and no vibration or deformation during long-term high-speed operation. The forming size error is controlled within ±0.3mm, with neat punching, flat cutting surface and no burrs. The produced CZ section steel has uniform specifications, good straightness and strong assembly compatibility, fully complying with international steel structure engineering standards.

Intelligent PLC Control & Easy Operation

Adopting mature PLC intelligent control system and humanized touch screen operation interface, the equipment supports automatic uncoiling, leveling, punching, forming, fixed-length cutting and automatic discharging. The whole production line only needs one operator to monitor and set parameters, which effectively reduces labor input. It can store multiple sets of product parameter formulas, realizing one-key call-up of conventional specifications and improving production efficiency.

High Production Efficiency & Cost Saving

The stable running speed of the CZ section steel forming machine can reach 20-30m/min, supporting 24-hour continuous uninterrupted production. Compared with traditional separate C steel and Z steel equipment, it saves more than 30% of workshop space and 40% of equipment investment cost. Equipped with energy-saving frequency conversion motor, it effectively reduces power consumption and production operating costs, bringing higher economic benefits to users.

Strong Material & Specification Compatibility

This roll forming equipment is suitable for processing galvanized steel, color steel plate, cold-rolled steel and other materials, with processing thickness ranging from 1.5mm to 3.5mm. It can produce various common specifications of C and Z purlins, and supports customized size, hole spacing and forming parameters according to customer project requirements, adapting to different regional construction standards and engineering needs.

Complete Working Process of CZ Purlin Forming Machine

Our CZ section steel production line adopts integrated assembly line design, with streamlined and automated overall process, realizing one-time forming from raw material coil to finished CZ purlin products:

Automatic Uncoiling: The hydraulic uncoiler stably releases steel coils automatically, with stable feeding speed and no material deviation.

Material Leveling: The multi-group leveling device corrects the flatness of raw materials to eliminate plate bending and deformation, ensuring subsequent forming accuracy.

Precision Punching: According to the set engineering parameters, the automatic punching system completes fixed-distance punching of mounting holes, with accurate hole position and uniform spacing.

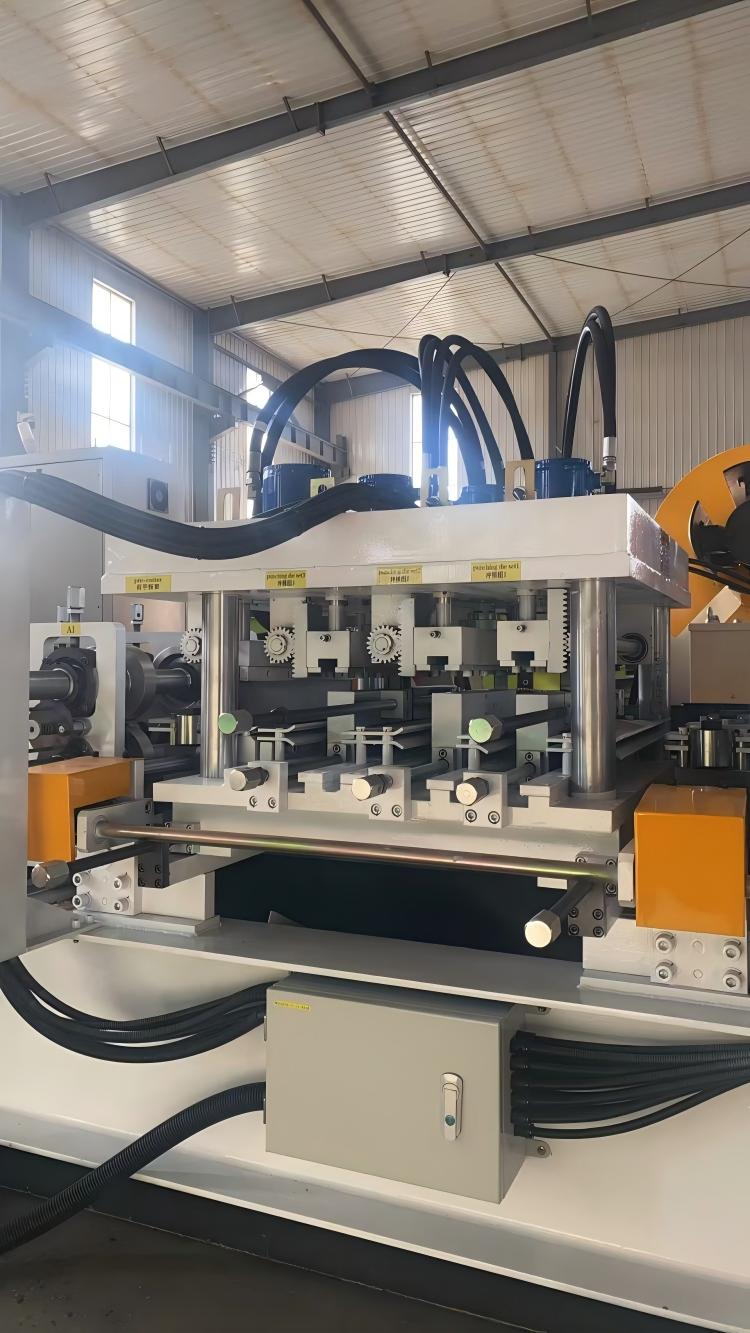

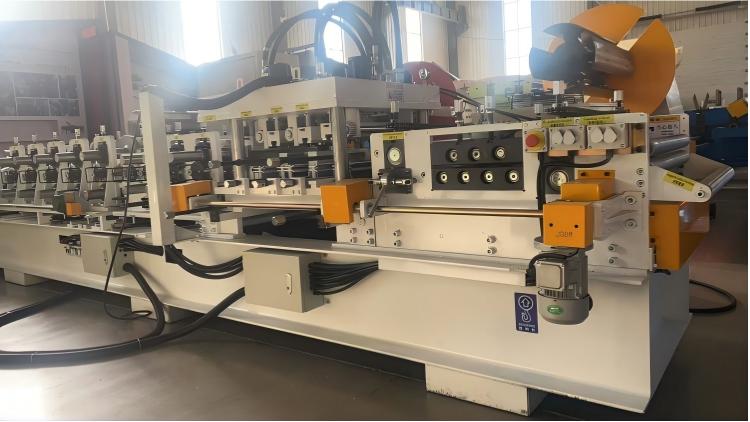

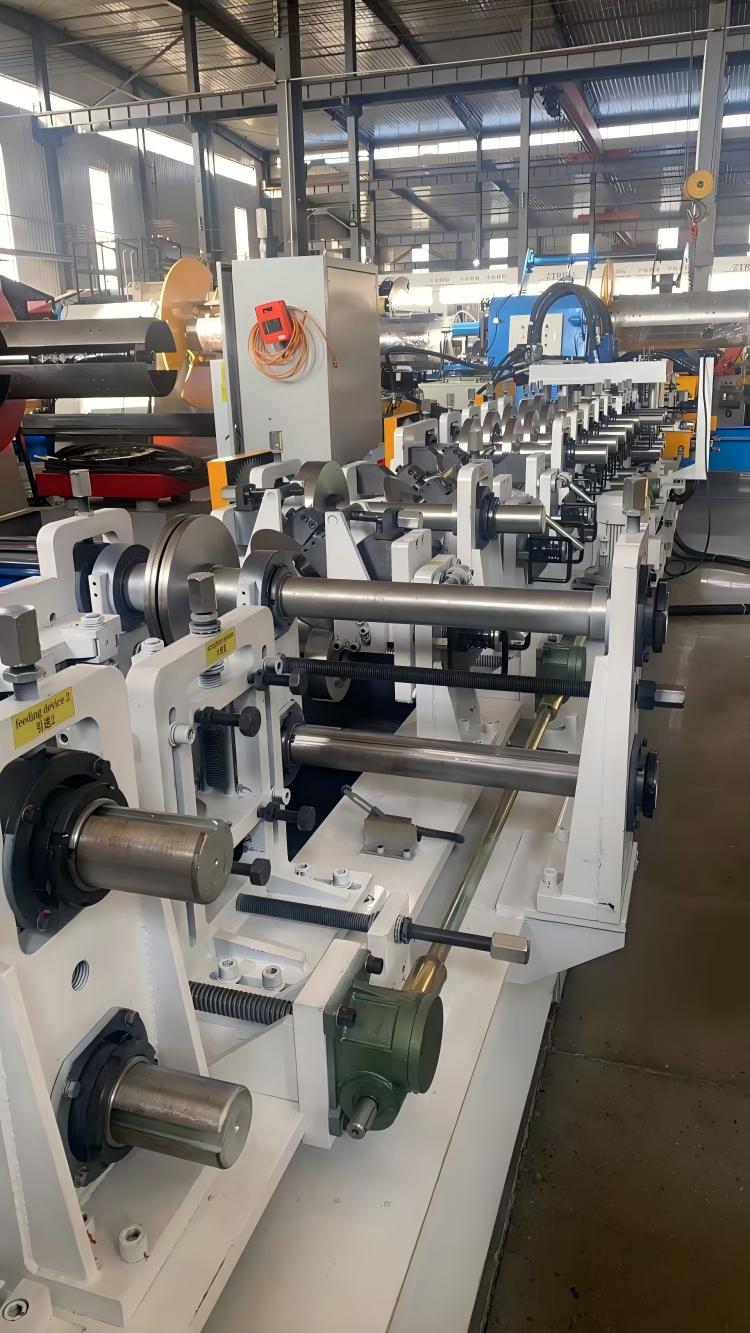

Roll Forming & C/Z Switching: Through multi-pass precision rolling, the steel plate is gradually bent and formed, and the equipment automatically adjusts the roller position to complete C-type and Z-type section conversion.

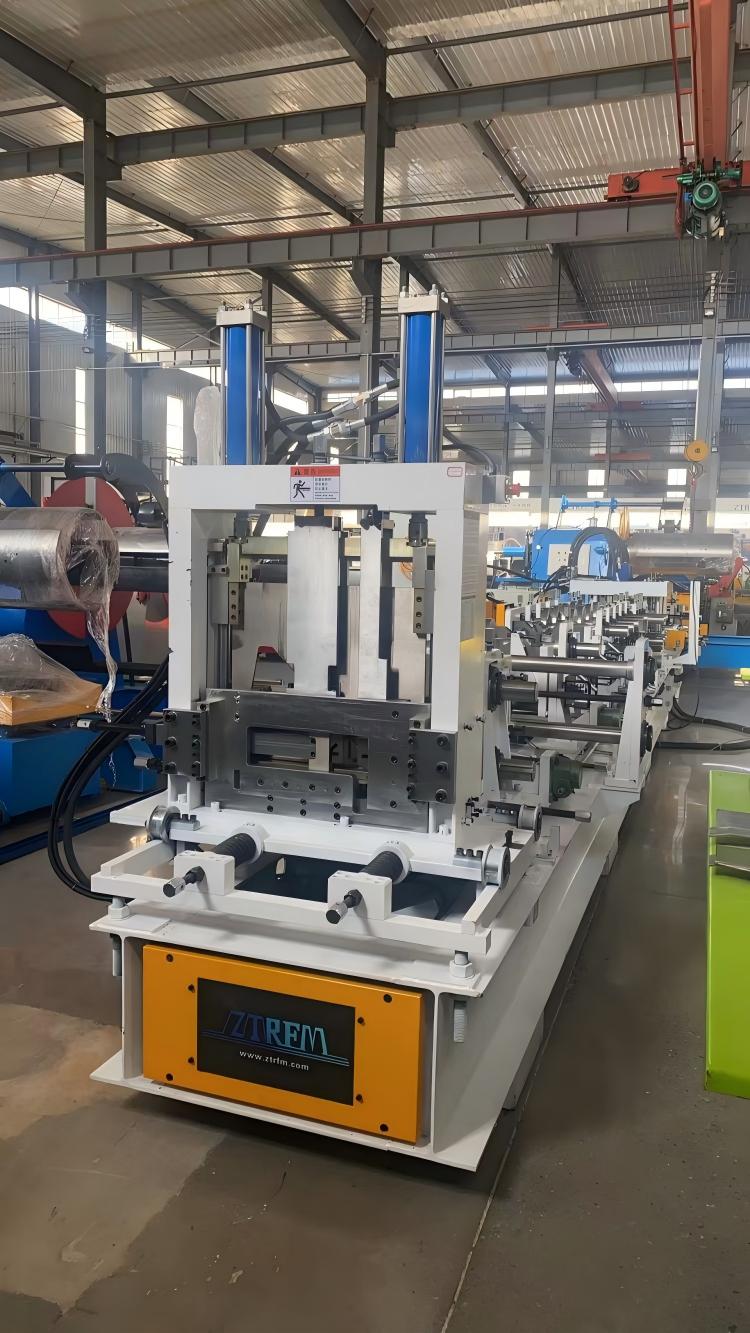

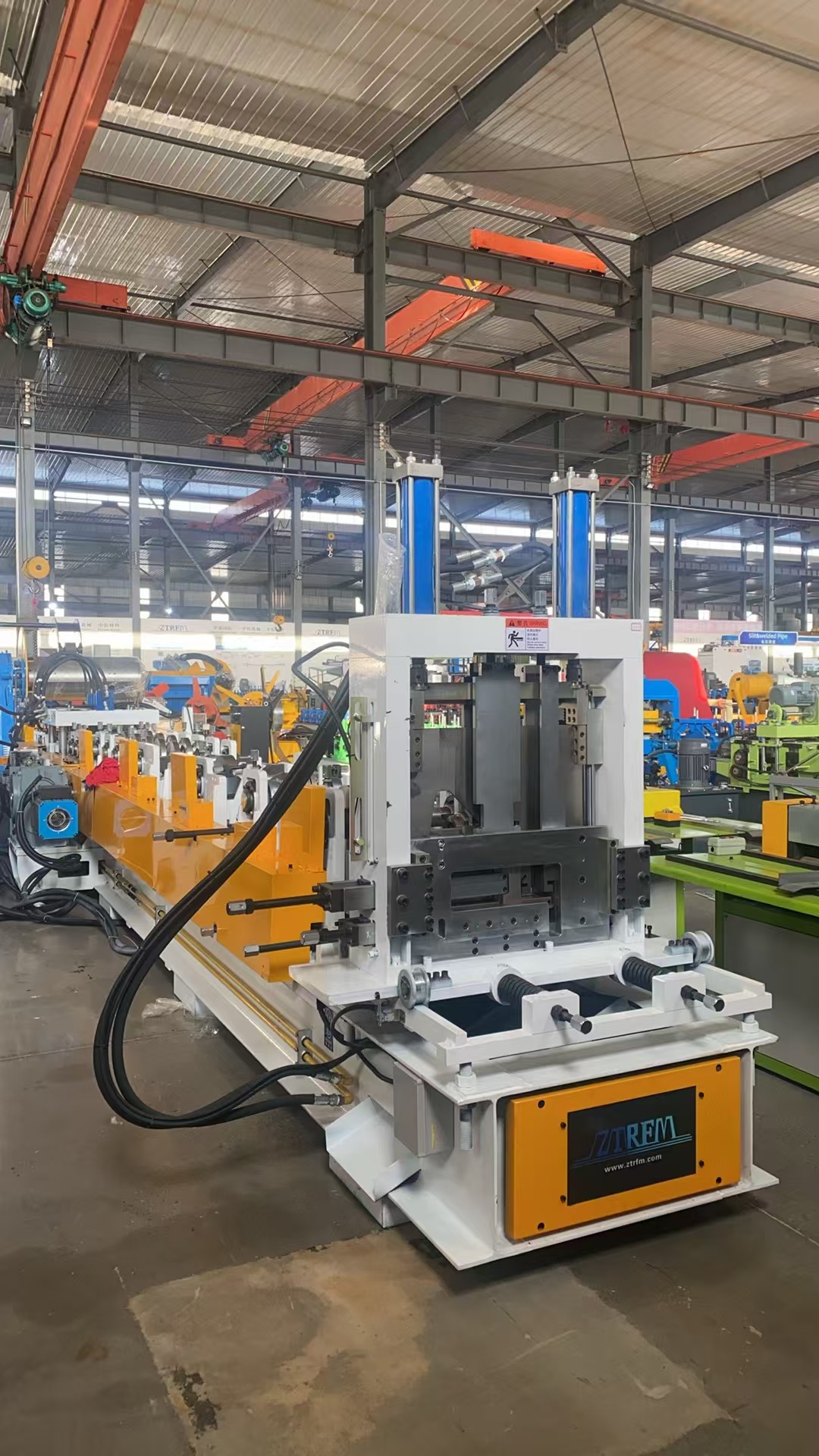

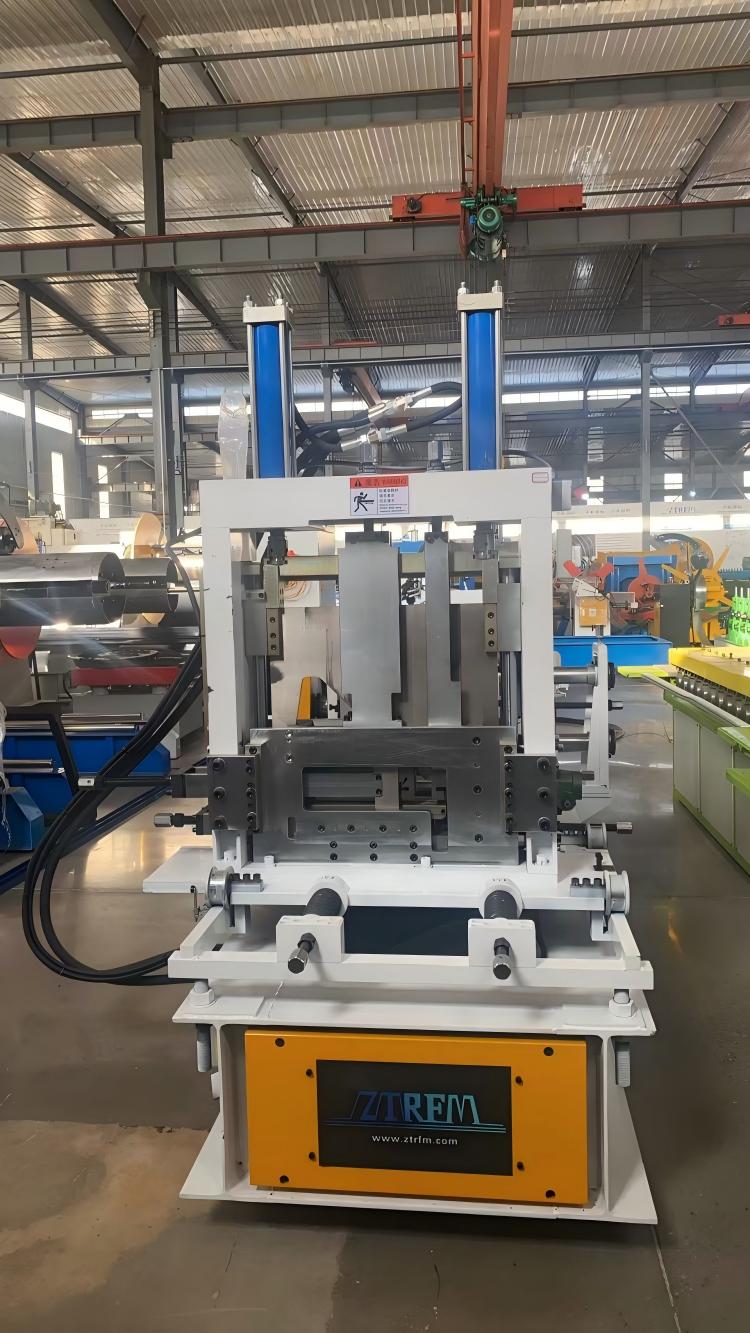

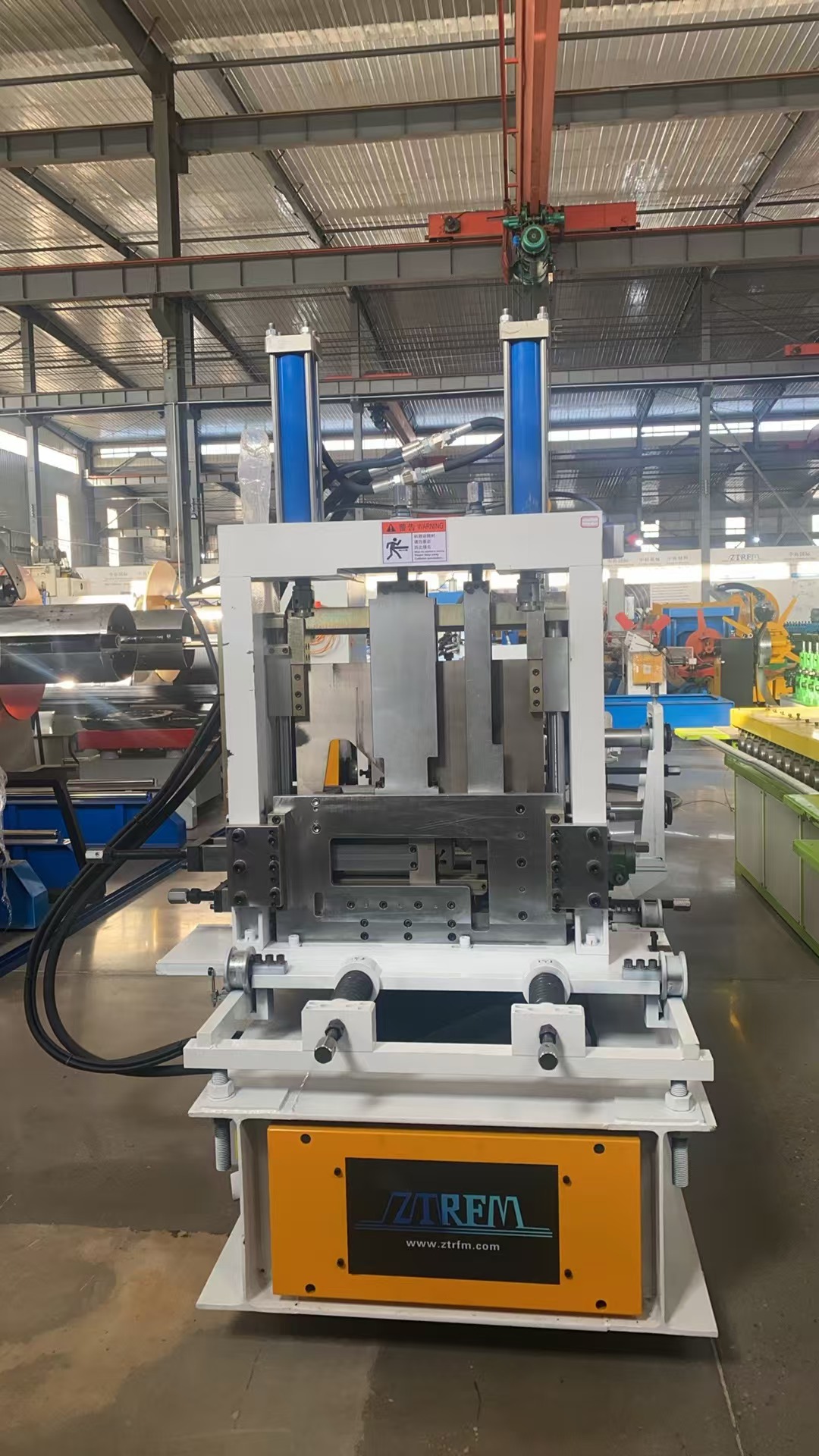

Fixed-Length Cutting: The high-speed hydraulic cutting system realizes fixed-length cutting according to customized size, with smooth incision and no deformation.

Automatic Discharging: The finished CZ purlins are automatically stacked and discharged, convenient for subsequent packaging, transportation and on-site use.

Main Technical Parameters

We provide standardized and customized CZ section steel forming machines, with mainstream parameters as follows for global customer reference:

Processing Materials: Galvanized steel, cold-rolled steel, color steel coil

Material Thickness: 1.5mm - 3.5mm (customizable)

Production Speed: 20-30m/min

Forming Precision: ±0.3mm

Control System: PLC intelligent control + touch screen operation

Switching Mode: Automatic electric C/Z conversion

Power Supply: 380V 50Hz 3Phase (support global voltage customization)

Equipment Weight: 4500KG-7000KG (based on configuration)



Wide Application Scenarios

The C and Z section steel produced by our forming machine is widely used in global steel structure construction and industrial manufacturing fields, with strong market adaptability:

Large industrial factory buildings and steel structure workshops

Logistics warehouses, cold storage and storage buildings

Commercial buildings, exhibition halls and stadiums

Agricultural greenhouses and breeding steel structure buildings

Prefabricated steel structure engineering and temporary construction projects

Why Choose Our CZ Section Steel Forming Machine?

Professional Roll Forming Technology

We have more than 10 years of professional R&D and manufacturing experience in cold roll forming equipment, focusing on steel structure profile processing equipment. We accurately grasp the market demand and quality standards of CZ purlin equipment, and continuously optimize equipment structure and production technology to ensure stable and durable equipment performance.

International Quality Certification

All equipment is manufactured in strict accordance with international industrial standards, with high-quality accessories and rigorous production processes. The machine has passed CE, ISO and other international certifications, meeting the import and export inspection standards of Europe, America, Southeast Asia, the Middle East and other regions, helping customers pass customs smoothly.

Full Lifecycle After-Sales Service

We provide one-stop services including equipment customization, factory pre-commissioning, overseas on-site installation, technical training and long-term after-sales maintenance. Professional overseas technical teams support door-to-door debugging and operation guidance, provide lifelong technical consultation and spare parts supply, and solve all production problems for global customers in a timely manner.

Customized Professional Solutions

In addition to standard equipment, we can customize exclusive CZ purlin forming production lines according to customers' product specifications, output requirements, factory site and budget, provide targeted production solutions, and help customers gain competitive advantages in the local market.

Conclusion

With the rapid development of global prefabricated steel structure construction, the market demand for efficient and multi-functional CZ section steel forming equipment is increasingly vigorous. Our fully automatic CZ section steel forming machine relies on automatic switching, high precision, high efficiency and low failure rate to become the preferred equipment for steel structure processing enterprises. We always adhere to quality-oriented and customer-centric, provide high-cost performance roll forming equipment and professional technical solutions for global users, and create greater value for customers' production and operation.
