Fully Automatic Anchor Bolt Roll Forming Machine 0-20m/min

Fully Automatic Anchor Bolt Roll Forming Machine

The Fully Automatic Anchor Rod Roll Forming Machine with PLC Control is a specialized equipment designed for efficient, precise, and mass production of this critical safety component, upgrading traditional manufacturing to intelligent continuous production.

What is a Fully Automatic Anchor Rod Roll Forming Machine ?

The fully automatic steel anchor rod roll forming machine is an automated production line that uses cold bending roll forming technology to continuously process high-strength steel strips into pipe seam anchor rods (also known as split type anchor rods, friction anchor rods). The equipment is based on cold bending technology, which applies multiple progressive deformations to metal strip at room temperature, and can complete the complete processing from steel strip to finished anchor rod without heating.

The pipe seam anchor produced by this equipment is a supporting component that works based on the principle of friction: high-strength steel pipes with longitudinal cutting seams, which expand radially after being inserted into slightly smaller diameter boreholes, forming continuous frictional resistance along the entire length of the anchor, thereby firmly locking the rock layers together. Anchor rods are widely used in coal mine roadway support, mine tunnel support, water conservancy and hydropower engineering cavern support, slope reinforcement, and foundation pit support.

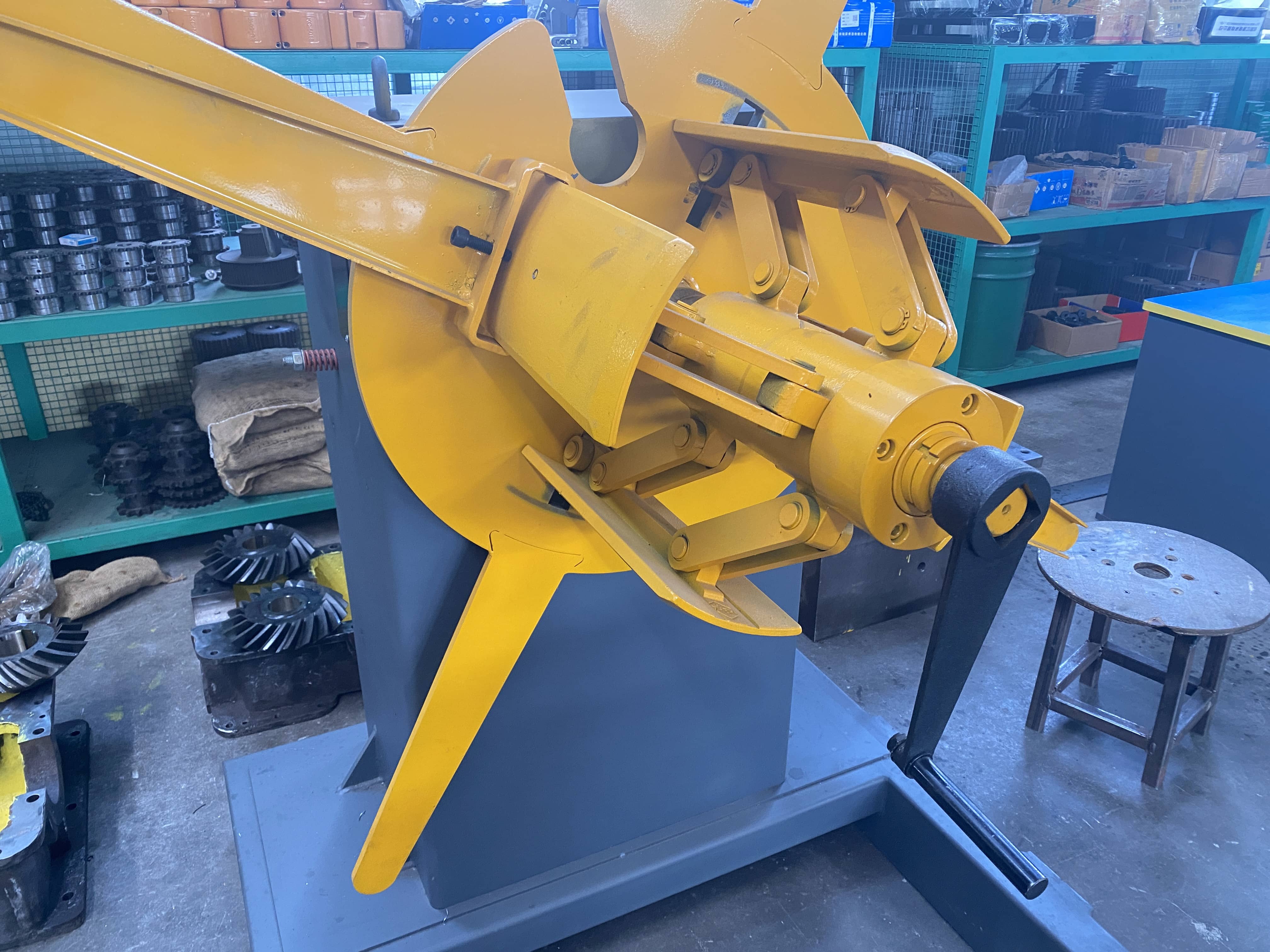

The equipment mainly consists of unwinding device, leveling device, roll forming host, sizing straightening device, flying saw/hydraulic shearing system, PLC electronic control system, and discharge platform.

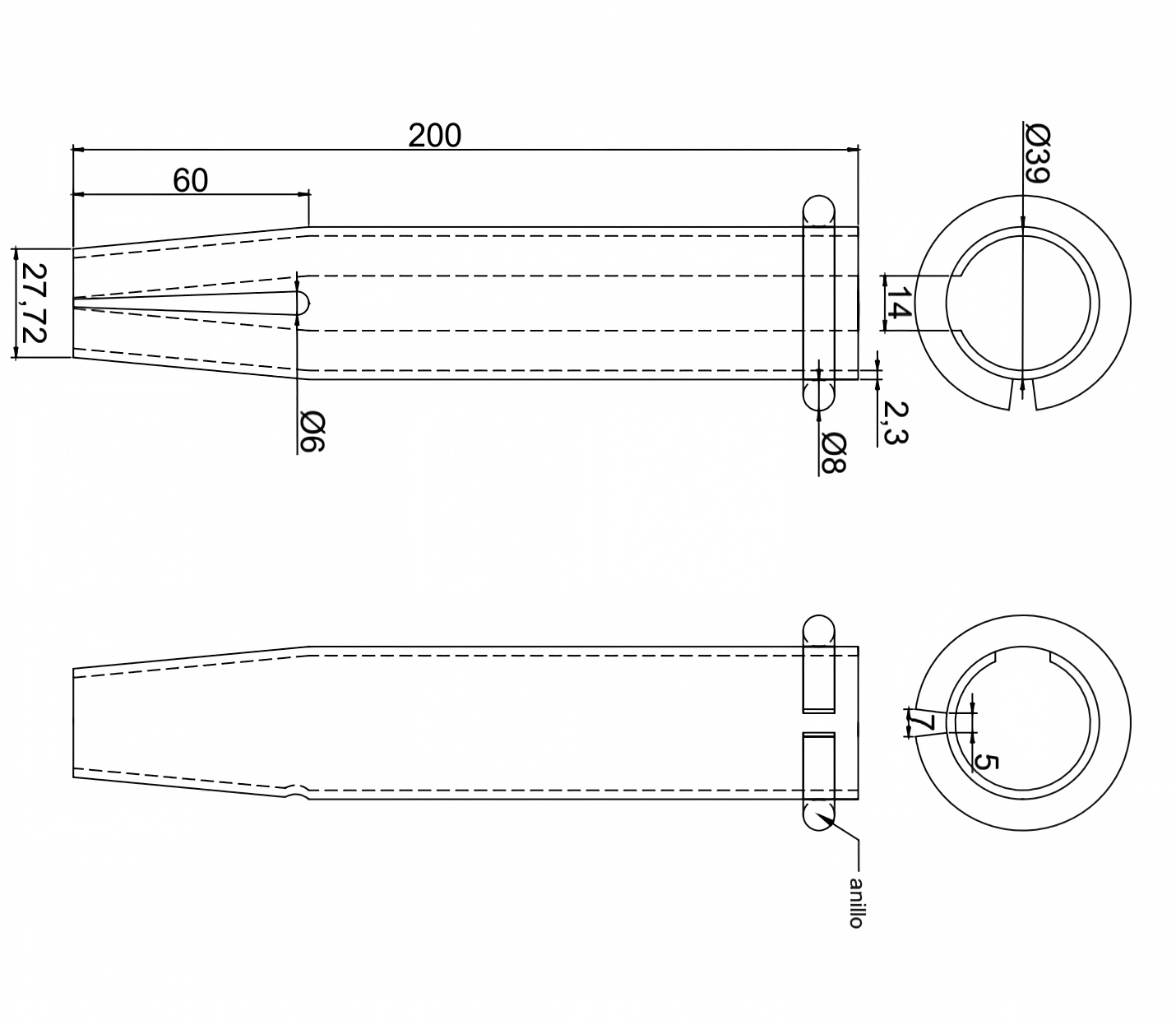

Pattern diagram：

Widely applicable fields ：

The fully automatic steel anchor rod roll forming machine produces pipe seam anchor rods, which are widely used in various geotechnical engineering and underground support fields:

• Coal mine roadway support: rock reinforcement and roof control of underground roadway

• Metal mine roadway support: geological stability in deep mining

• Tunnels and Underground Engineering: Surrounding Rock Reinforcement of Highway, Railway Tunnels, and Hydraulic Tunnels

• Water conservancy and hydropower engineering: anchoring support for dam foundations and underground caverns

• Slope reinforcement and foundation pit support: high slope stability and deep foundation pit enclosure

• Geotechnical anchoring engineering: various geological hazard control and slope protection


Product Attributes :

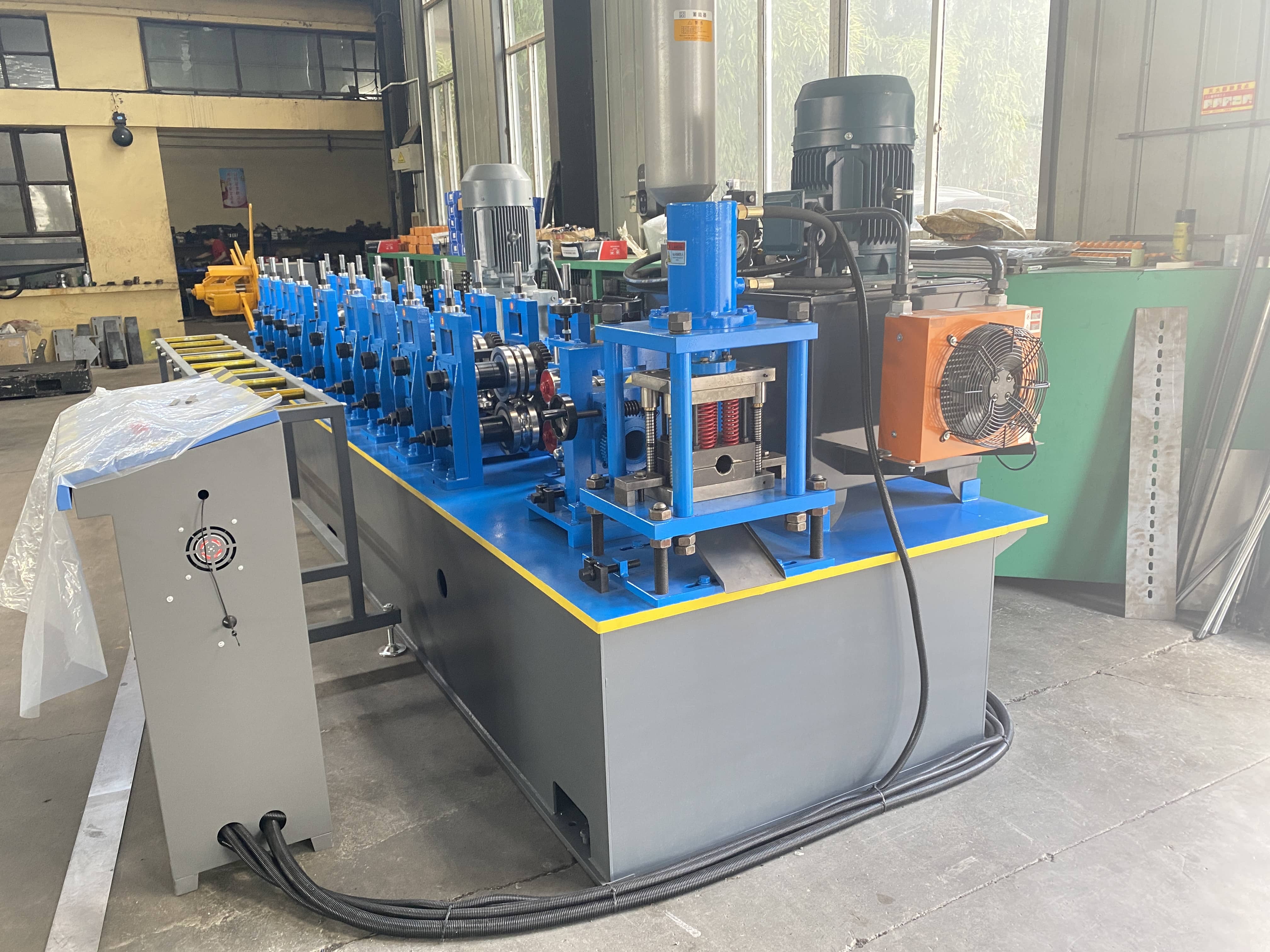

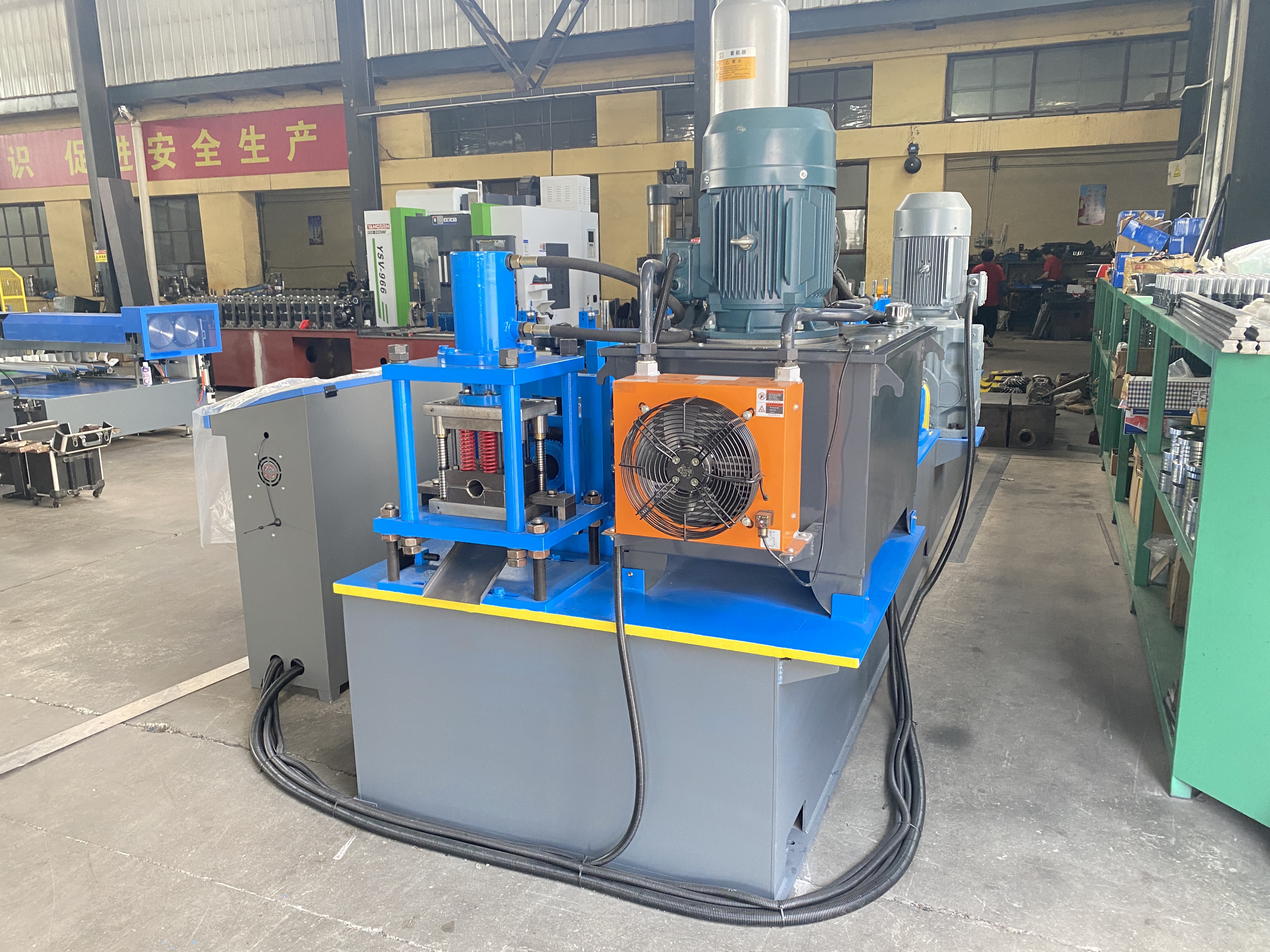

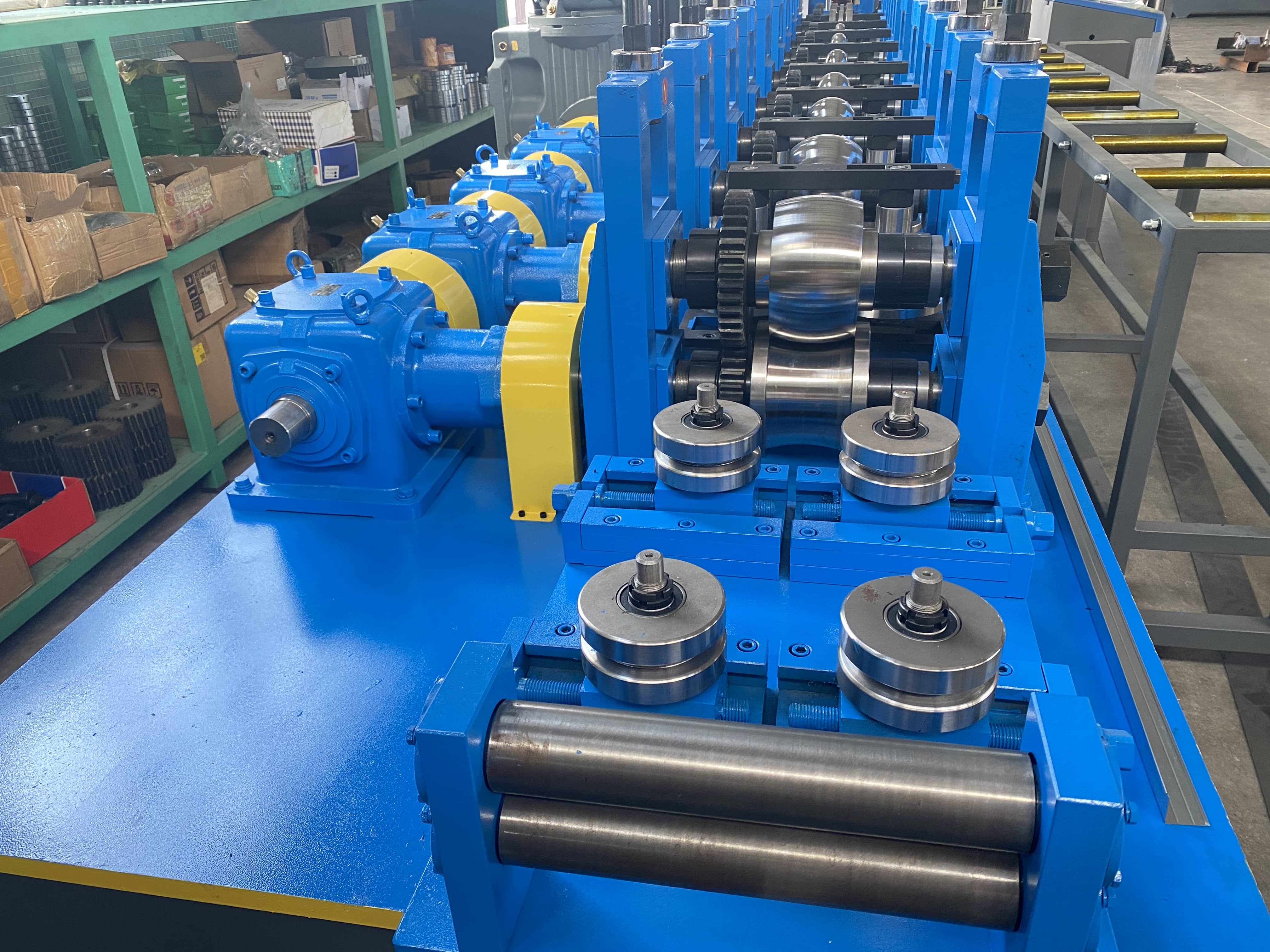

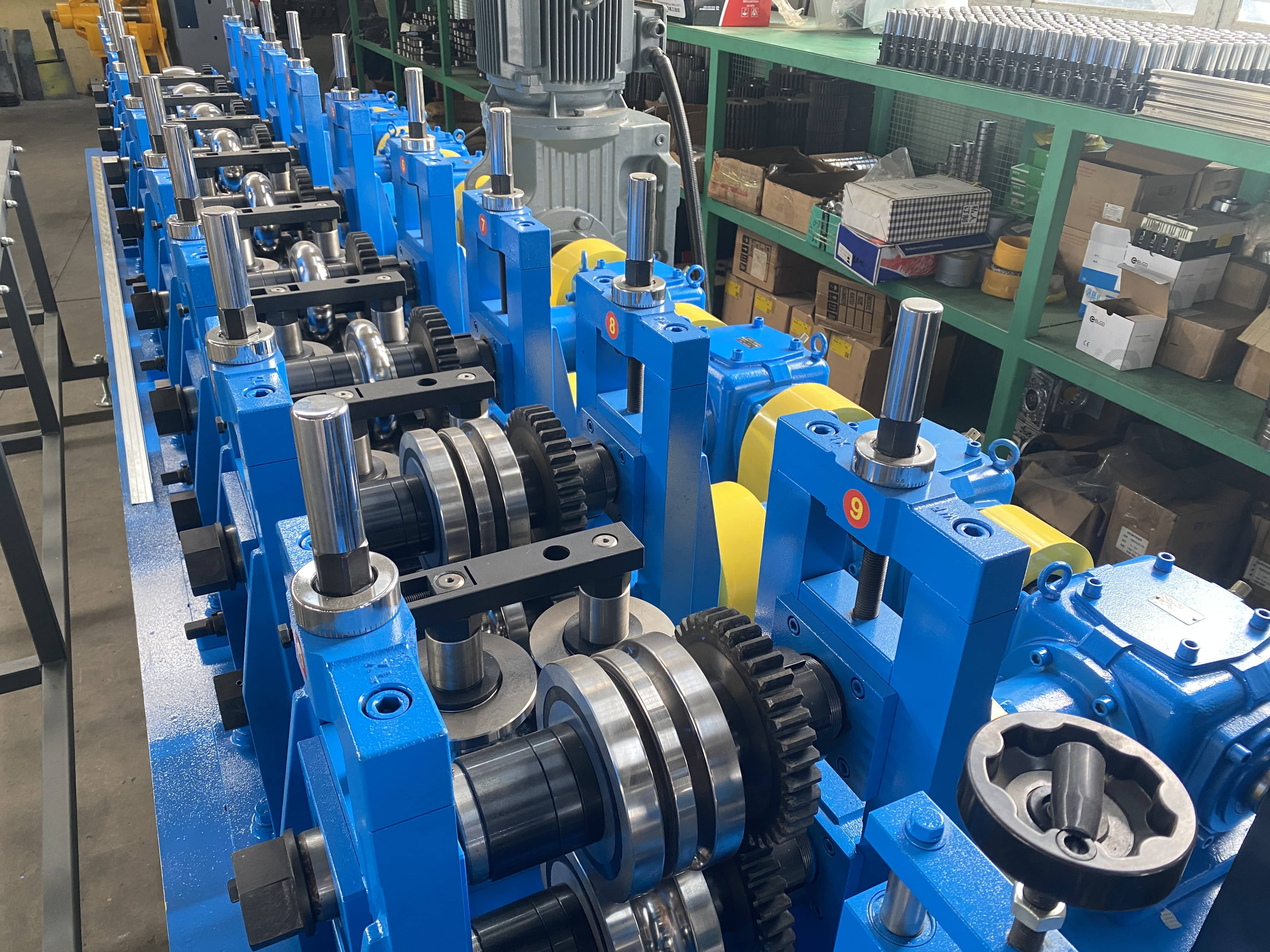

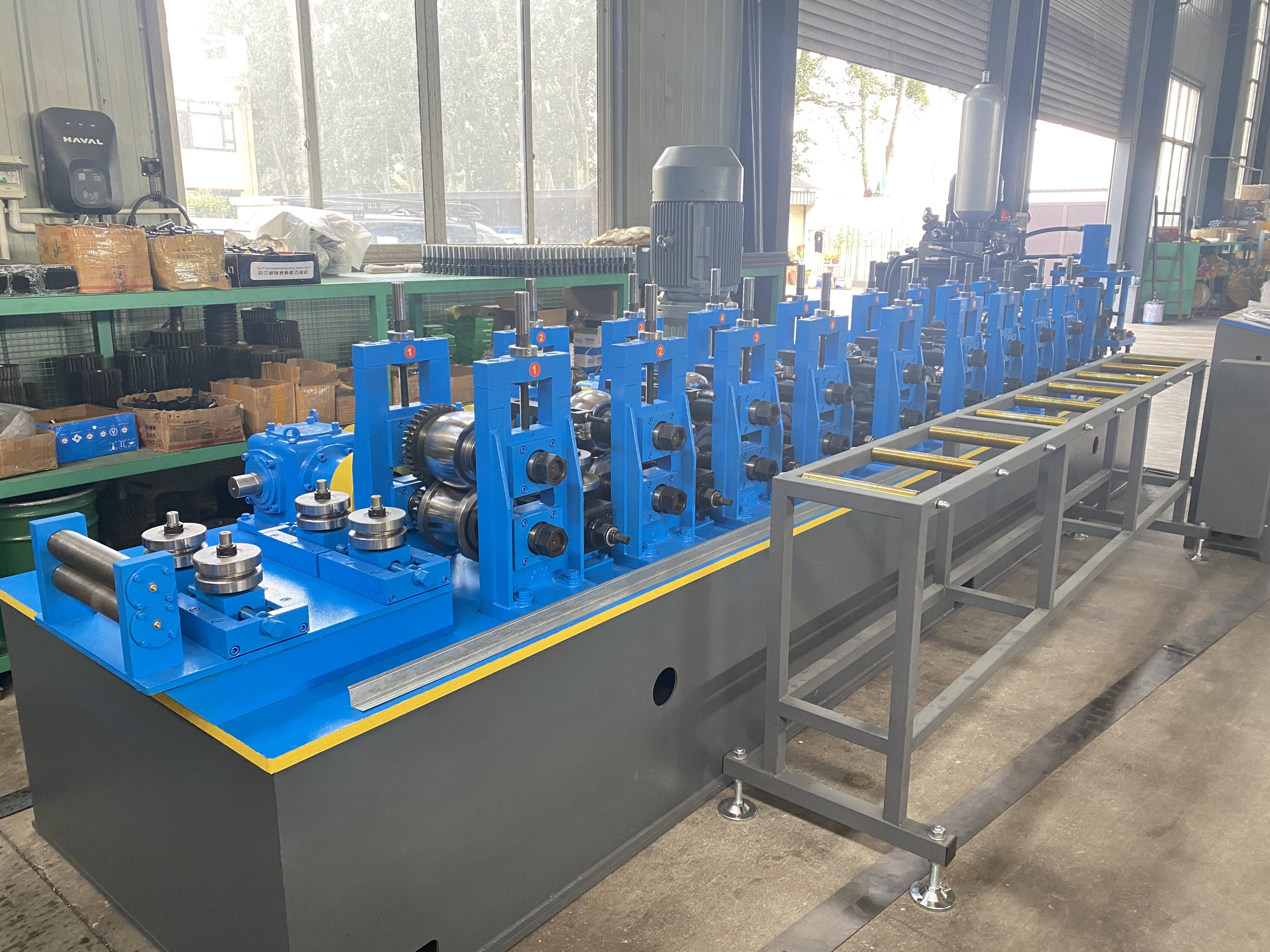

Machine photo:

Contact Us：

Today, as underground engineering and mining continue to extend deeper and safety requirements continue to increase, the fully automatic steel anchor rod roll forming machine is the ideal choice to assist anchor rod manufacturing enterprises and mining support suppliers in transforming and upgrading, and seizing market opportunities. It simplifies the production of anchor rods, making underground support safer, more efficient, and more reliable.
