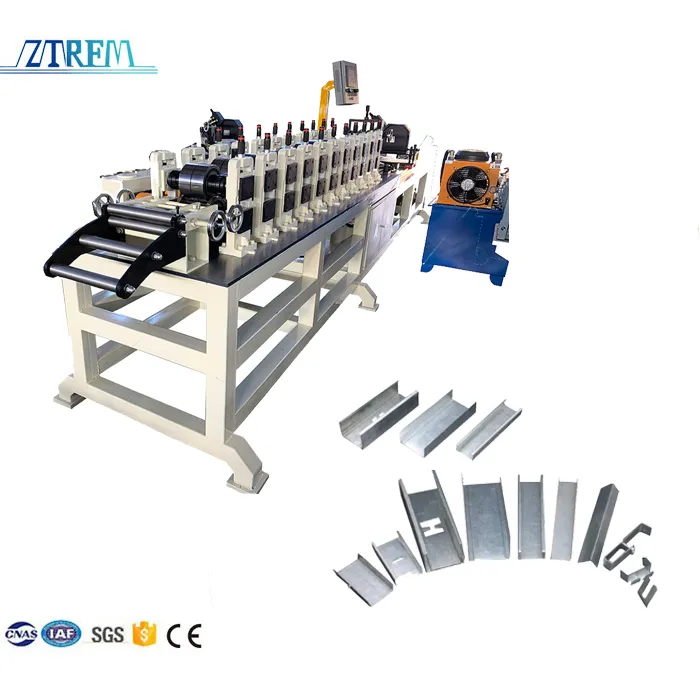

Full Automatic Suspended Ceilings Furring Channel Hat Channel C U Channel Roll Forming Machine 10kw

Name: Full Automatic Suspended Ceilings Furring Channel Hat Channel C U Channel Roll Forming Machine 10kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT74495815

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

10kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380V 50HZ 3Phase or customized
Rolling Thinckness
0.4-0.6 mm
Feeding Width
Other

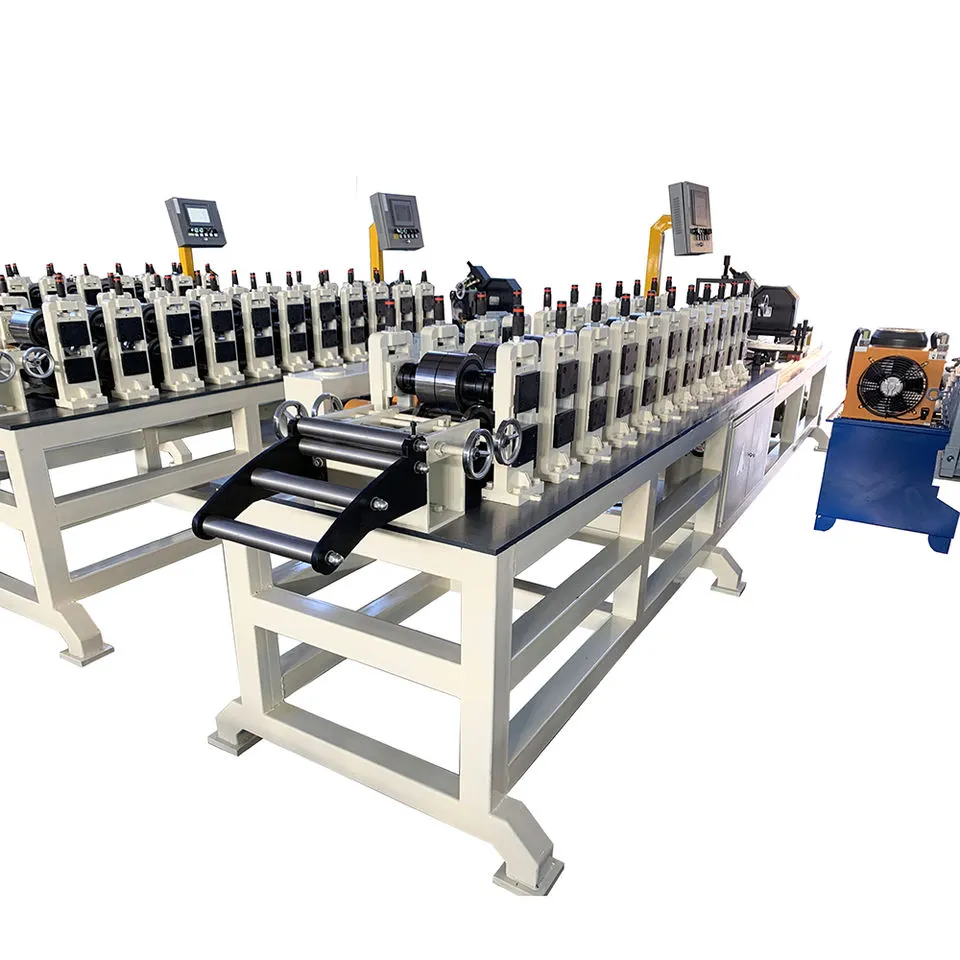

Full Automatic Suspended Ceilings Furring Channel Hat Channel C U Channel Roll Forming Machines

Suspended Ceilings Furring Channel Hat Channel C U Channel Roll Forming Machines are designed to make the metal furring channel in batch fully automatically by the rolling forming method. Ceiling System provides a high-performance ceiling with fire protection

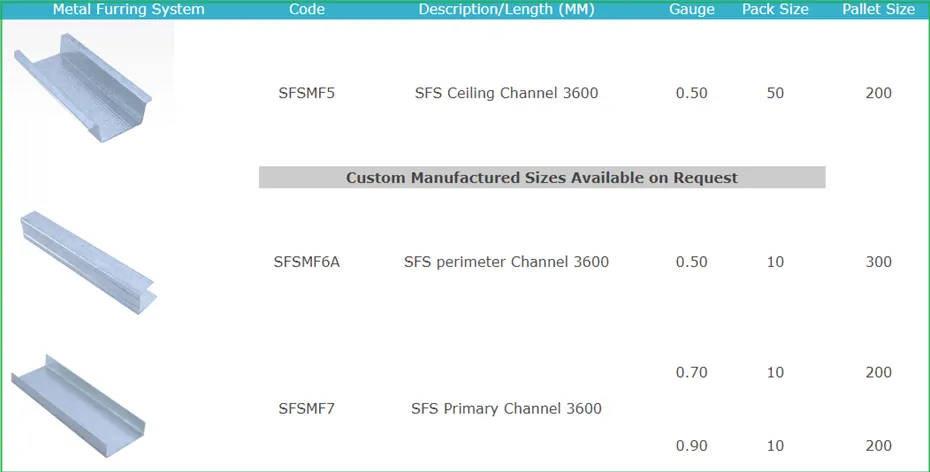

and sound insulation. A suitable fixing from the structural soffit should be used and care should be taken to avoid overloading the Ceiling System. Here are some drawing profile for your reference:

Normally the metal furring channel machine for the ceiling system has the following types: furring omega channel, stud channel and track channel. And it also may use the wall angle profiles. All those profiles could be made by our machines. Here I will take a random track channel for example to show you our machine parameters and quality.

Suspended ceiling system metal furring channel rolling machine features:

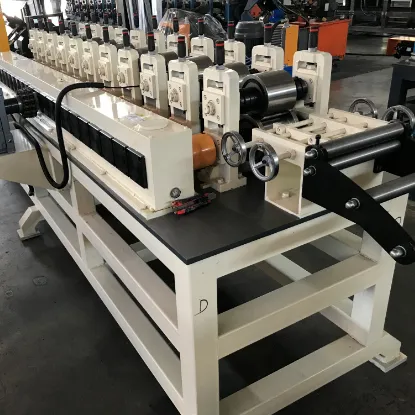

1. For the base frame we use the frame work, it is not only beautiful in the appearance but also strong and

steady when machine working.
2. It is with servo tracking system, the speed can reach 35 to 45 meter per minute. The servo motor we

will use world famous brand.
3. The machine we designed using the molding frame the thickness range is around 35 to 40mm, so even

if when the machine working in high speed, it also could be steady.
4. The rollers we use Gcr12mov, it is tough and strong for long time to use.

Machine weight:	1.95 Tons (main roll forming machine)
Machine dimension:	52009301460 mm
Machine color:	Blue and Yellow
Work voltage:	380V-50HZ-3P (As requested)
Total power:	10 kw
HS code:	8455221000
Package:	Nude package
Container:	1*20 GP

Use the gearbox as transmission for fast speed and long time to use

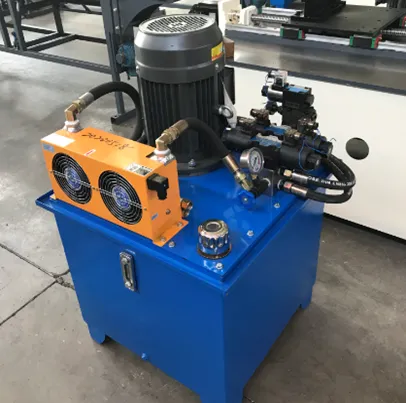

The hydraulic station with the cooling fan system.

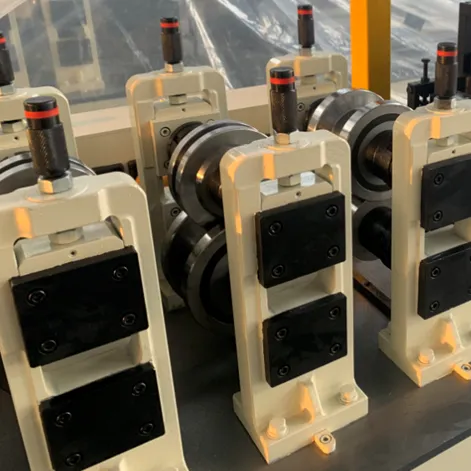

Strong molding frame

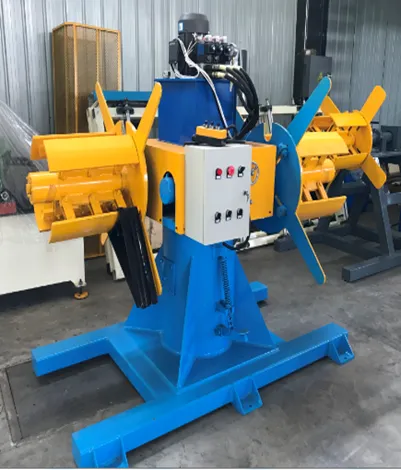

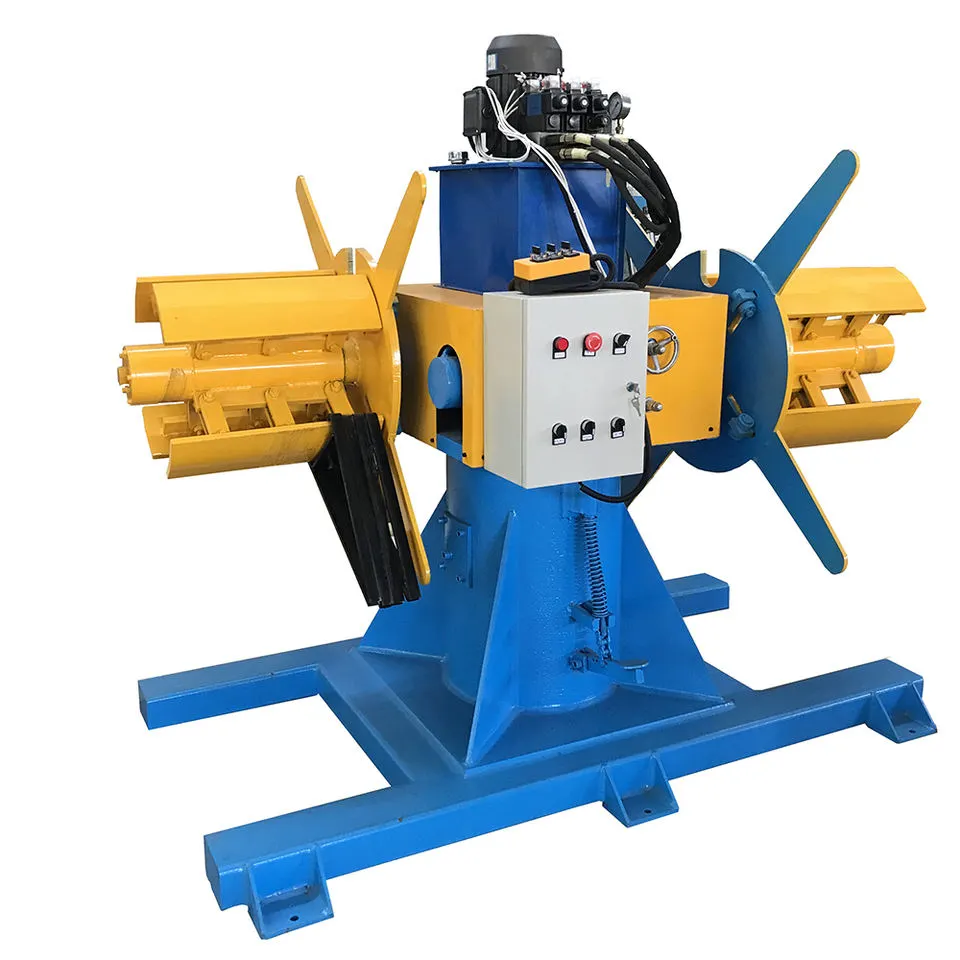

Double head decoiler for changing coil easily.

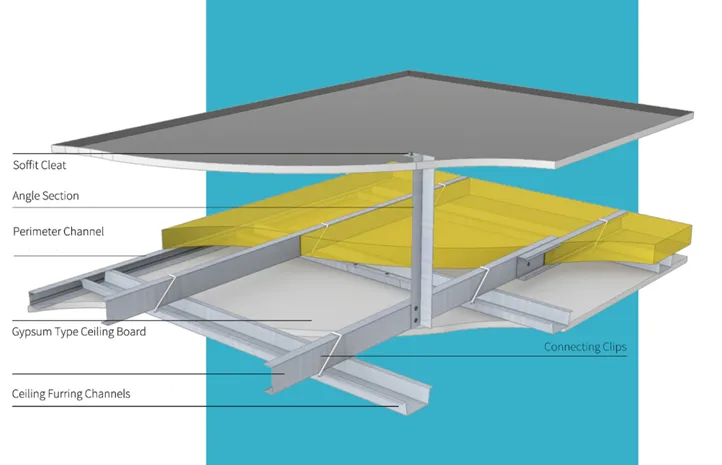

Suspended ceiling system metal furring channel usage:
