Manufacturer and Exporter of Cut to Length Line Machine, HR Fully Automatic Cut To Length Line, Cut To Length Lines, Cut To Length Machine, NC Servo High Cut To Length Line.
Cut To Length Line are available in a wide range based on sheet thickness to meet the demands of our customers. By offering the qualitative range, we promise to provide best solutions for clients demand. Our product found application in various recognized metal cutting industries

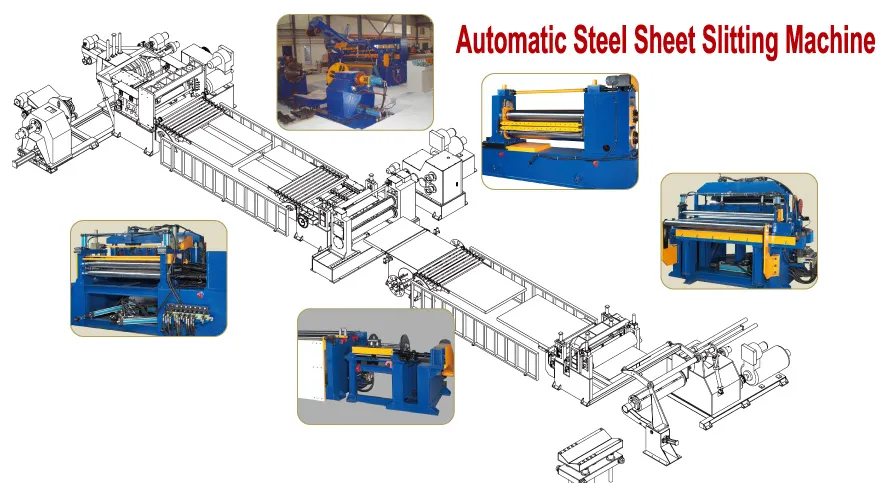

work flow of CTL line
details of CTL Line
|
Hydraulic de-coiler with car It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever. inner diameter: 508mm . The Max width:1500mm The capacity is 15Tons (max) |
|

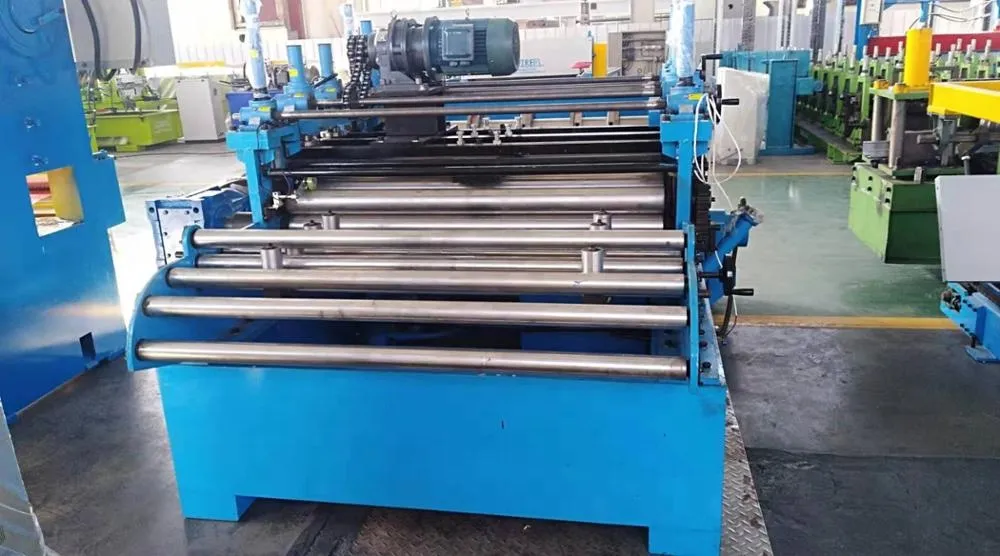

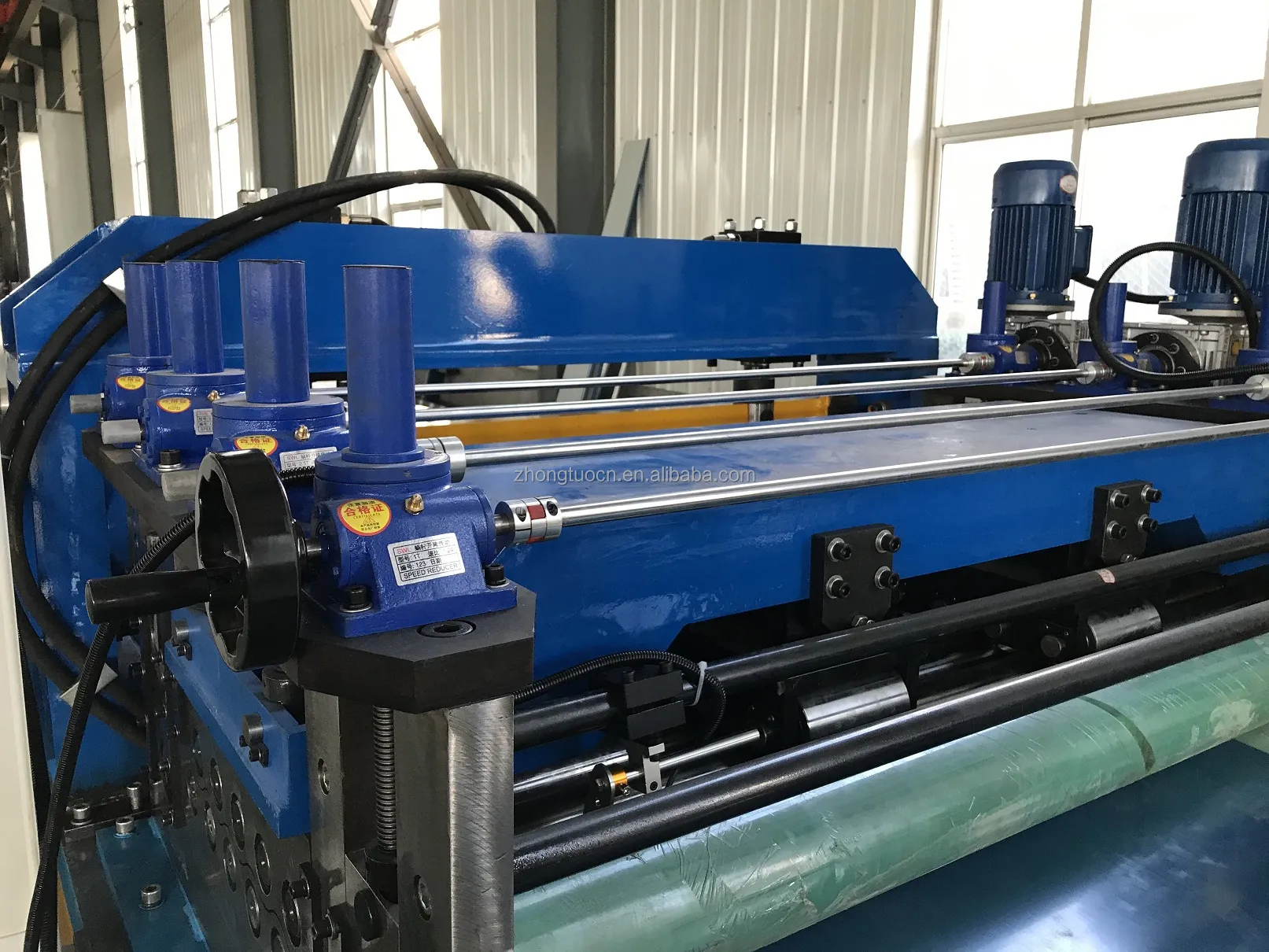

pre-leveling machine It can straighten the rough plate and guide strip right after entering the process Mechanical structure: it is composed of two rows leveling roller, two rows middle supporting roller, 2 groups of supporting rollers, driving device, 2 pinch rollers and frame. Each roller both of ends drive with roller pin bearing, the working rollers can be adjusted the gap electrically which is controlled by 2 hand wheels to ensure the leveling quality. Driving model: driven by 55kw frequency control motor Roll process:hardened HRC55-60 -finishing grinding- hard chromium plating Automatic lubrication system |
|
Servo precision straightening machine It is controlled by servo electromotor and used to regulate for high speed feed and precise length control. The operation is done at the control table with programmable control. Drive model: 15 KW servo motor |
|

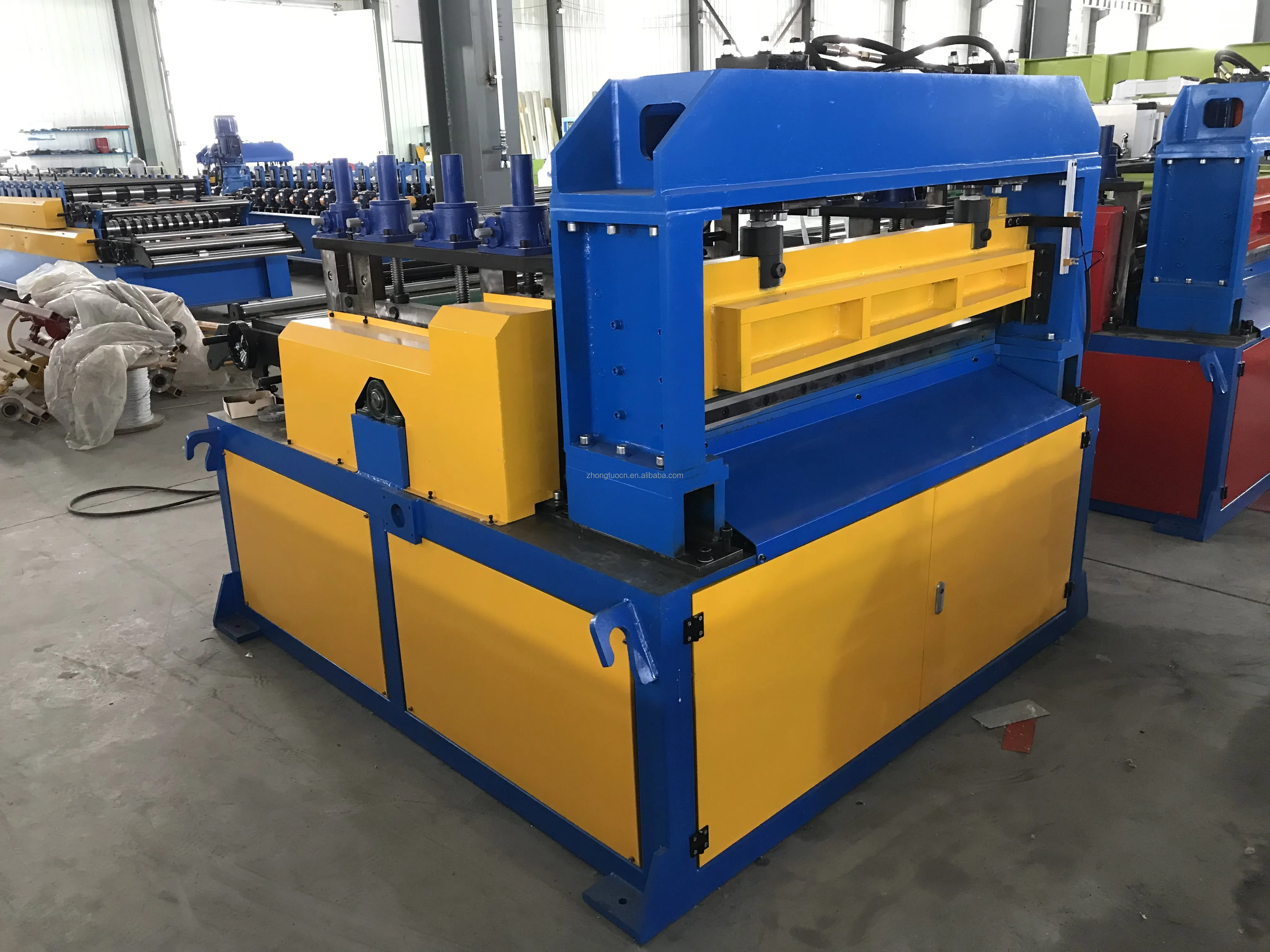

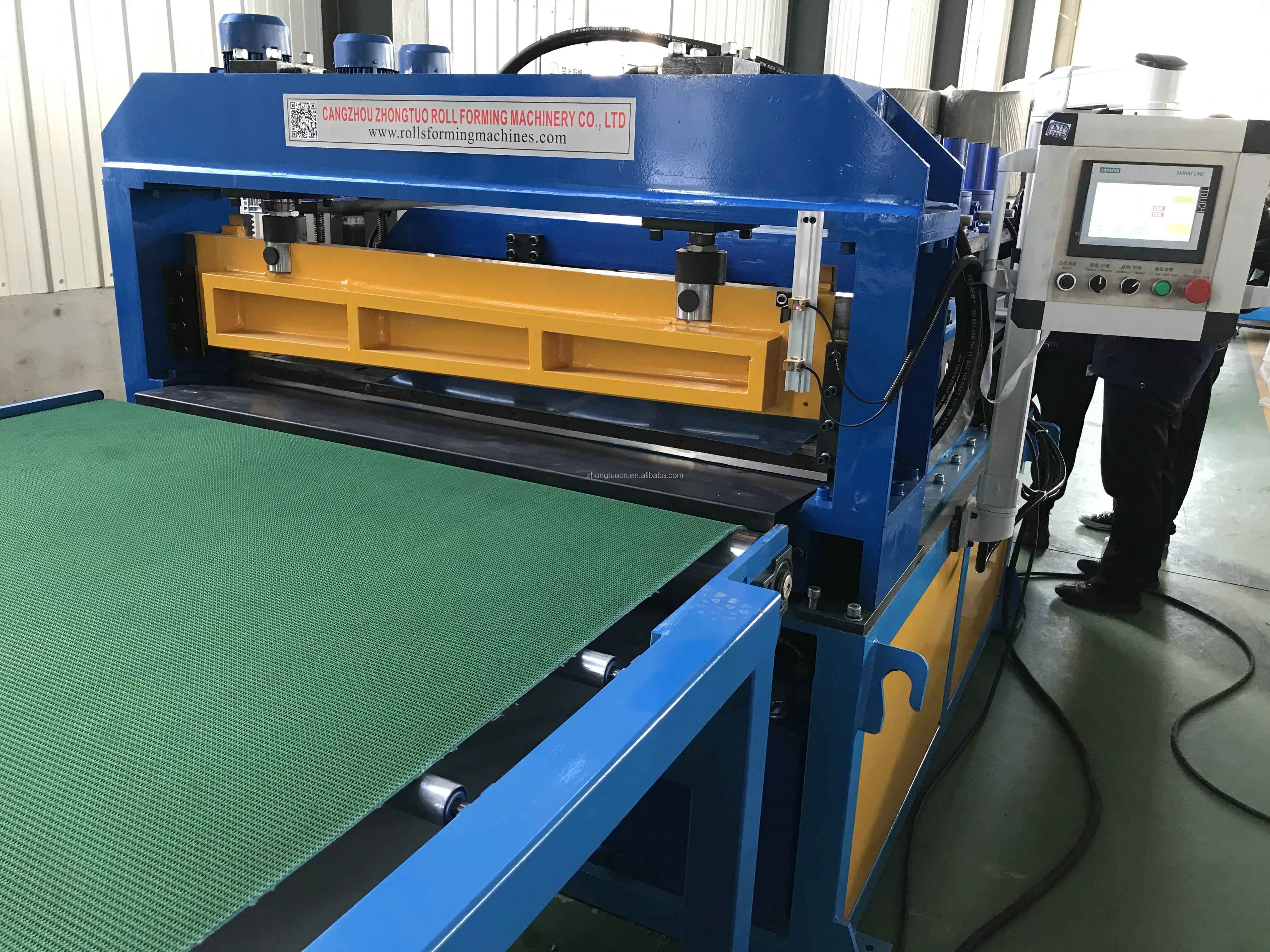

High speed Cutter 1). The width range :200--1300mm 2). The precious of the width:±1mm 3). The speed of slitting:50m/min 4). The width can be change. 5). Material of the slitting: Cr12MoV. Hardness of slitting blade:HRC5860. 6).slitting:2~3mm 6 lines. 7).quantity of blades:10 sets . 8).Width of side scrap:3-15mm 9).The precious of side scrap:±0.5mm 10).Quantity of side scrap:2 strips 11).Power of the slitting:37KW,1000r/min,with ZQ750 Reducer. |
|

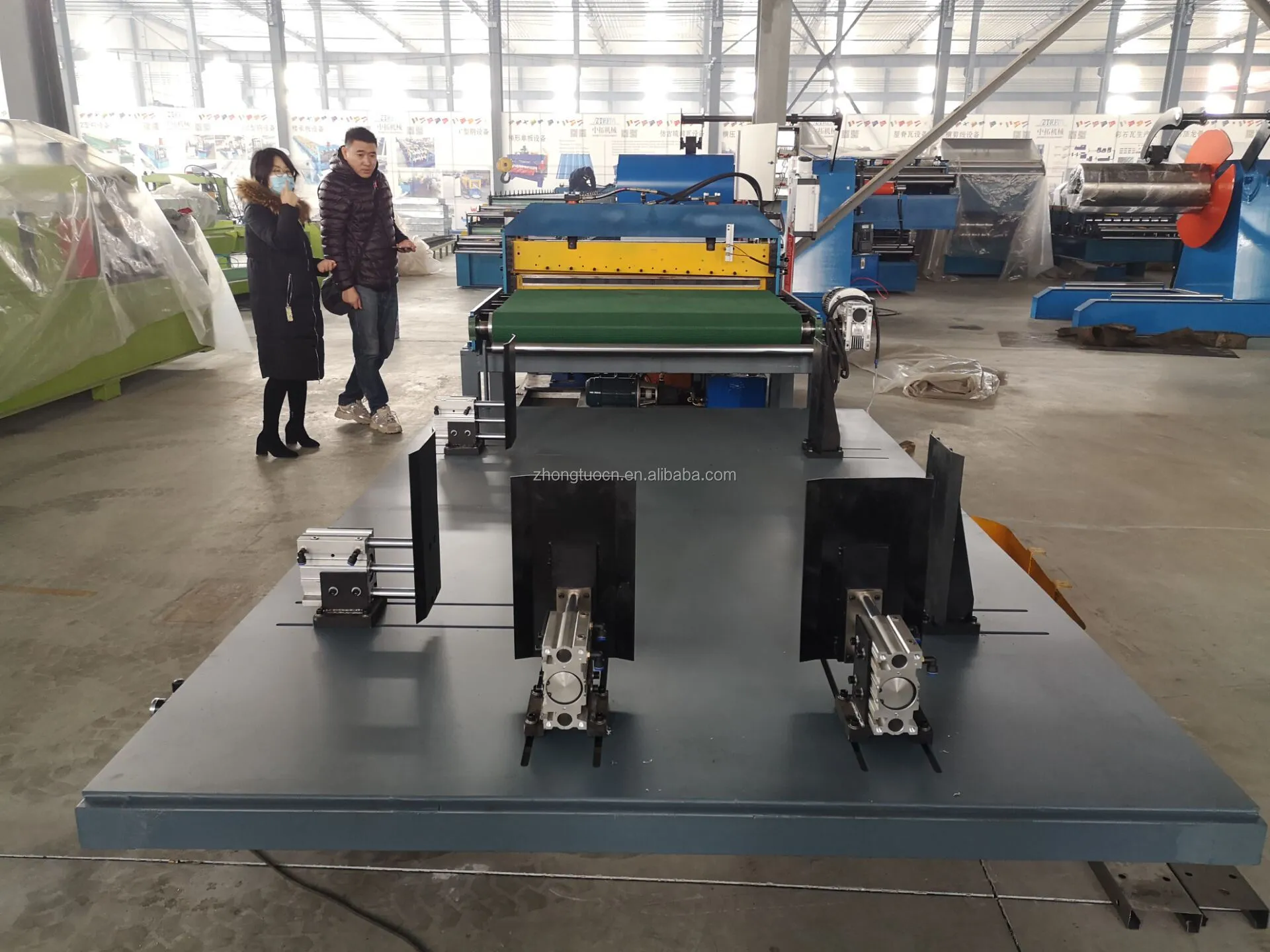

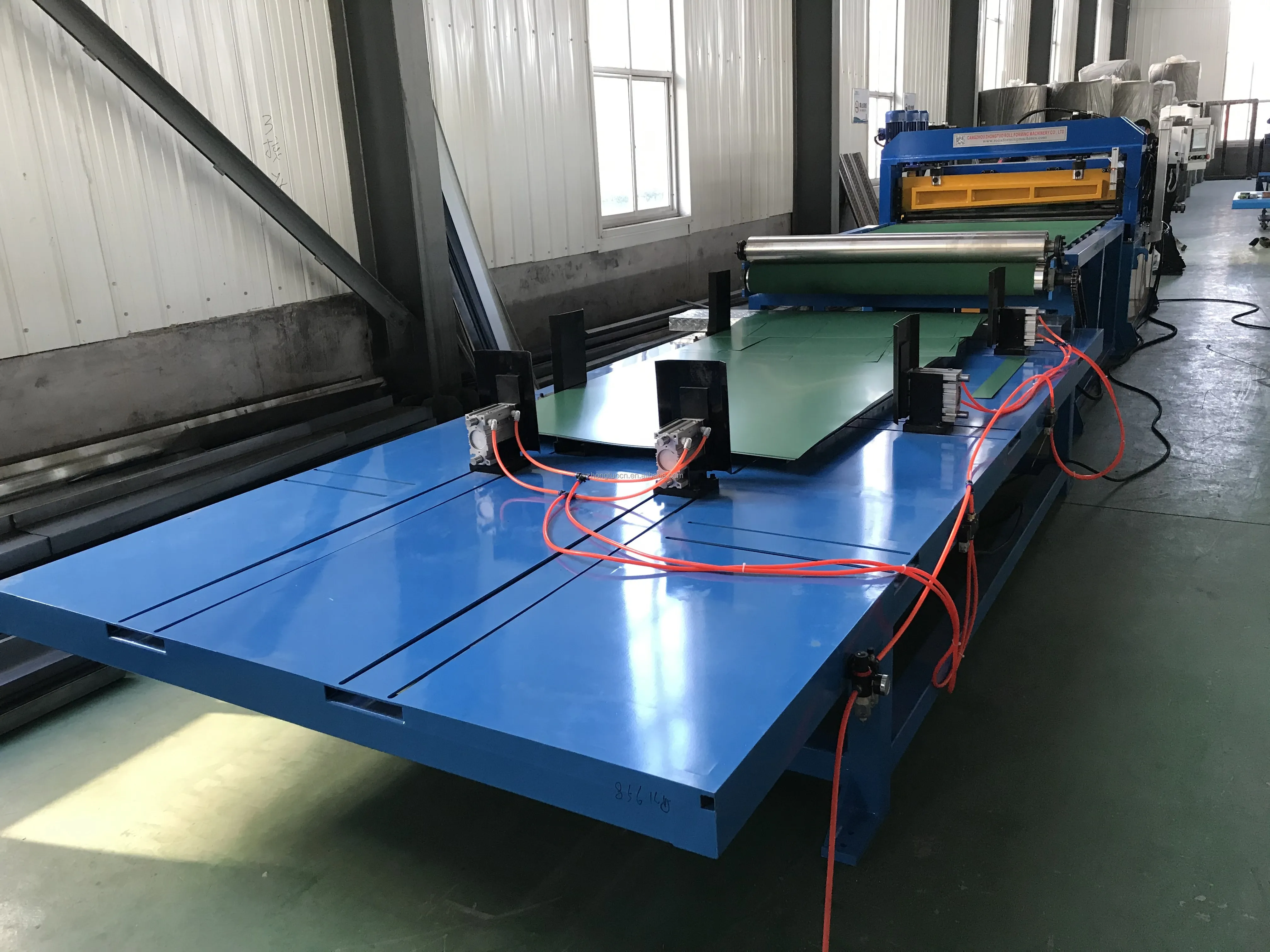

Pneumatic stacker device The plates are piled pneumatically and PLC controls the lifting. Three 0.75kw motors drag to adjust the width and the length. It is equipped with the wind device which cooperates with the high pressure fan to prevent the sheets from friction. stress of air source: 0.4-0.6Mpa. The capacity:1m³ /min. |
|
Electrical system 1). Screen:3.2inch button screen 2). PLC:Delta |
Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines.
All products comply with international quality standards and are greatly appreciated in markets throughout the world.
We specialized in manufacturing metal roofing roll forming machine, purlinmachine,Glazed tile roll forming machine, floor tile making machine,rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, pipe welding machine.
FAQ:
1.How to get a quotation of slitting machinery?
If you want to order this machine, kindly contact me by Email or Phone, please tell us your requiremnts,
Then we can offer you the most proper solution for your machine and will send you quotations with specifications and price.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection. We also accept the payment L/C, O/A , D/P.
3. What is your after-sale service?
slitting machinery warranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost.
we supply the technical support for the whole life of the equipment.
4. How to visit your company?
Kindly tell us your visting time, we can pick up you AT the stations. and help you check the airport ticket and train ticket.
Our city is near Beijing, it is about 54 minutes by high speed train, it is short time and convenient for you to by train to our city from Beijing ,
so we suggest you come by high speed train.
