Full Automatic PLC Controlled Steel Coil Cut to Length Line CTL 3*1250mm

General Industry Tech Hebei Developing Co.,Ltd

Full Automatic PLC Controlled Steel Coil Cut to Length Line CTL 3*1250mm

Name: Full Automatic PLC Controlled Steel Coil Cut to Length Line CTL 3*1250mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT122827152

Machine TypeFull automatic steel coil cut-to-length line

Coil MaterialGI, PPGI, HR, SS

Material Thickness0.5 - 3 mm

Cutting Width10 - 10000 mm

Cutting Speed1 - 20 m/min

Leveling Precision0.5 ±mm/m

Cutting Accuracy+/-1mm

Control SystemPLC+touch Screen

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

SKU:

3*1250mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Machine Type
Full automatic steel coil cut-to-length line
Coil Material
GI, PPGI, HR, SS
Material Thickness
0.5 - 3 mm
Cutting Width
10 - 10000 mm
Cutting Speed
1 - 20 m/min
Leveling Precision
0.5 ±mm/m
Cutting Accuracy
+/-1mm
Control System
PLC+touch Screen
Control System
PLC+touch Screen
Coil Material
GI,PPGI,HR,SS
Material Thickness
0.5 - 3 mm
Cutting Width
10 - 10000 mm
Cutting Speed
1 - 20 m/min
Cutting Accuracy
+/-1mm
Rated Power
27 KW
Moq
1
Ladder Prices
1-2 pcs: 45000 USD; >=3 pcs: 35000 USD
Lead Time
60 days (1-1 pcs)

Full Automatic PLC Controlled Steel Coil Cut to Length Line CTL

This full automatic PLC controlled steel coil cut-to-length line is designed to process GI, PPGI, HR and SS coils into accurately cut metal sheets. The CTL machine integrates coil feeding, leveling, length control and sheet cutting for industrial metal processing and building-material production.

Enhanced full automatic steel coil cut-to-length line

Full automatic operation: The source lists full automatic operation with PLC and touch-screen control.
Multiple coil materials: GI, PPGI, HR and SS are listed as suitable coil materials.
Controlled sheet cutting: The source lists cutting accuracy of +/-1mm and cutting length according to request.
Wide processing range: The current attributes list 10-10000 mm cutting width and 0.5-3 mm material thickness.
Production flexibility: Cutting speed is listed as 1-20 m/min, with 10-20tons coil weight in the detailed attributes.
Inspection support: Video outgoing-inspection and machinery test report are listed as provided.

Technical Specifications

Item	Specification
Product Type	Steel coil cut-to-length line (CTL)
Control System	PLC + touch screen
Coil Material	GI, PPGI, HR, SS
Material Thickness	0.5 - 3 mm
Cutting Width	10 - 10000 mm
Cutting Speed	1 - 20 m/min
Width	1250mm or as request
Steel Coil Weight	10-20tons in detailed attributes; 10-30T in product description
Cutting Accuracy	+/-1mm
Leveling Precision	0.5 ±mm/m
Cutting Length	As request
Voltage	As request
Rated Power	27 KW
Machine Weight	4500 kg
Core Components	PLC and motor
Warranty	1 Year, with technical support for the whole life
MOQ	1

Machine Structure and Process

The CTL line is arranged around a coil feeding and leveling path, followed by a cutting section and sheet receiving table. The supplied images show blue, green and yellow machine assemblies, control cabinets, roller units and cut metal-sheet output. The exact cutting length is configured according to the buyer's request.

Applications and Output

The line is intended for industrial metal-sheet processing where steel coils are leveled and cut into specified sheet lengths. The source images show a factory installation, a green-and-yellow cutting unit, blue sheet receiving tables and a blue steel coil feeding assembly.

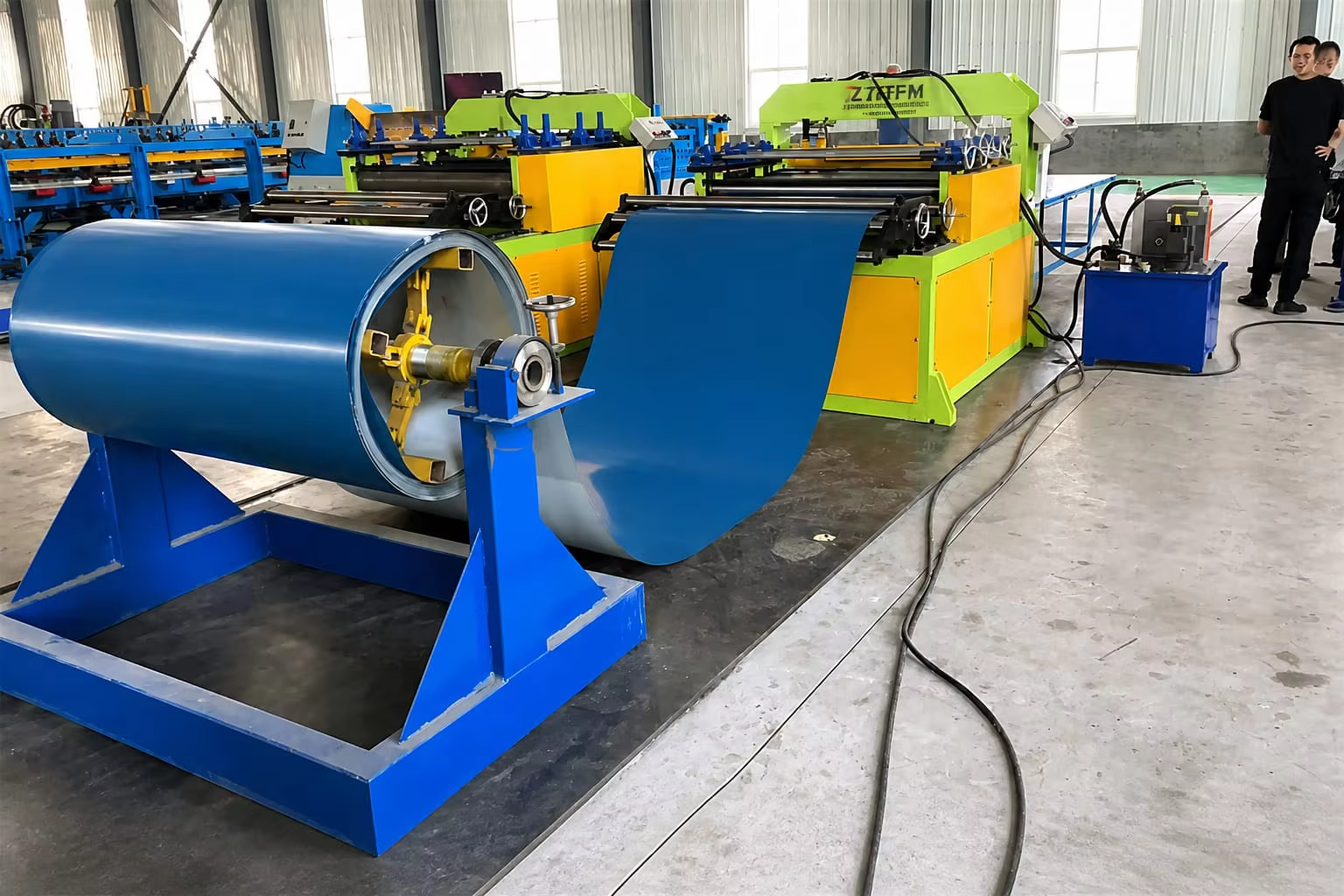

Enhanced CTL cutting unit and sheet receiving table

Enhanced steel coil cut-to-length line in a factory

FAQ

Which coil materials are listed?
The source lists GI, PPGI, HR and SS.

What control system is specified?
The source lists PLC + touch screen control.

What cutting accuracy is listed?
The source lists +/-1mm cutting accuracy.

What documents are provided?
Video outgoing-inspection and machinery test report are listed as provided.
