Product Details
Reviews(0)

Technical Specifications

Work Pressure
Customized
Voltage
380V or Customized
Power(W)
22kw

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

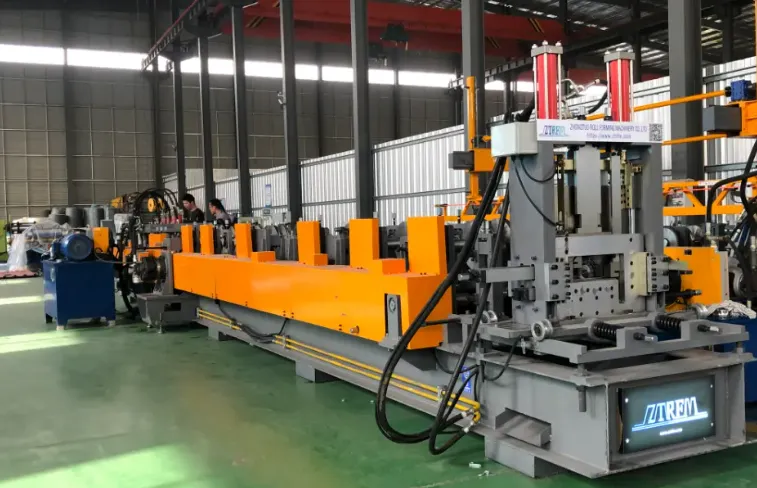

CZ purlin roll forming machine

Full Automatic Muti Function c and z purlin roll forming machine is designed to make C purlin, Z purlin in batch fully automatically with punching or without. ZTRFM North America Hot Sale Full Automatic Muti-function c and z purlin roll forming machine Designed to reduce the distance the rafters have to span, metal purlins support the loads from the roof deck and help to prevent the roof from sagging.

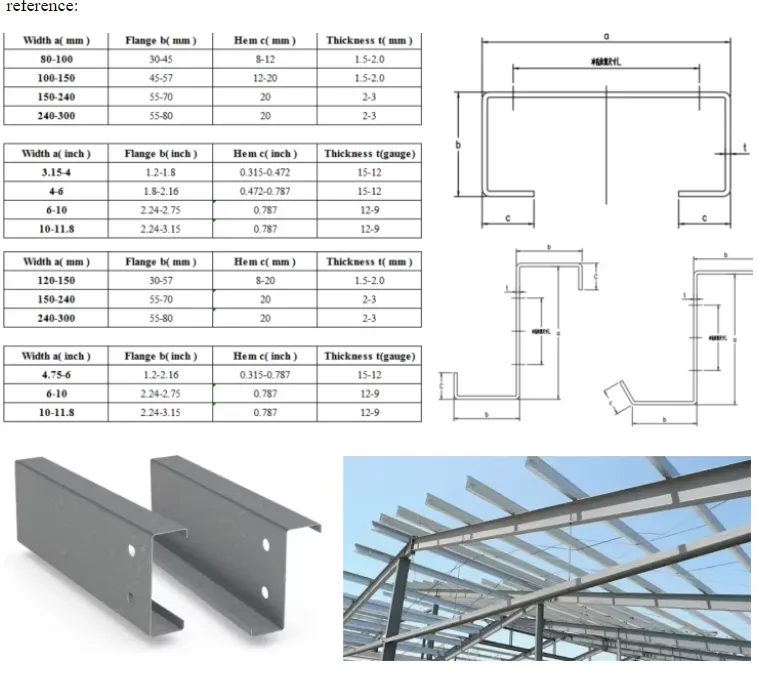

C Purlin - Cee or C purlins are shaped like a squared-off letter C. They are often used for structural support in walls and as floor joists in addition to roofs. Z Purlin - The zee or Z purlin is shaped like a letter Z.
Its shape allows the purlin to overlap with others at the joints. This gives zed purlins the potential to be much stronger than C purlins. Z Purlins are mainly used in walls or for large roofing projects.

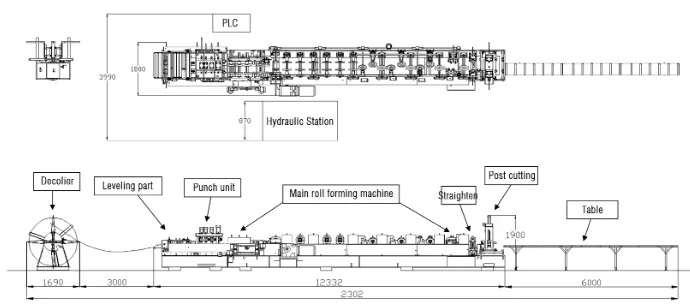

Full Automatic Muti-function CZ purlin roll forming machine
1.Formed Material	GI		Thickness:1.5-3 mm (standard)
2.Decoiler	3 Tons Hydraulic automatic decoiler		3 Tons Manual decoiler(will give you as free）
3.Main body	Roller station		18 rows (As your requirement)
		Diameter of shaft		80 mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gear and chains transmission
		Dimension(LWH)		1500018001600(customize)
		Weight		15T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		11KW*2 sets,Siemens brand
		Hydraulic system power		15 KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	25 m/min		The speed depends on the shape of the tile and the thickness of the material.

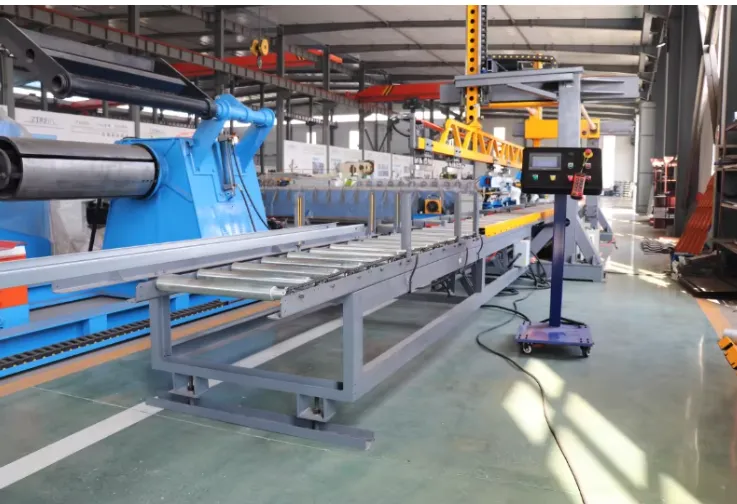

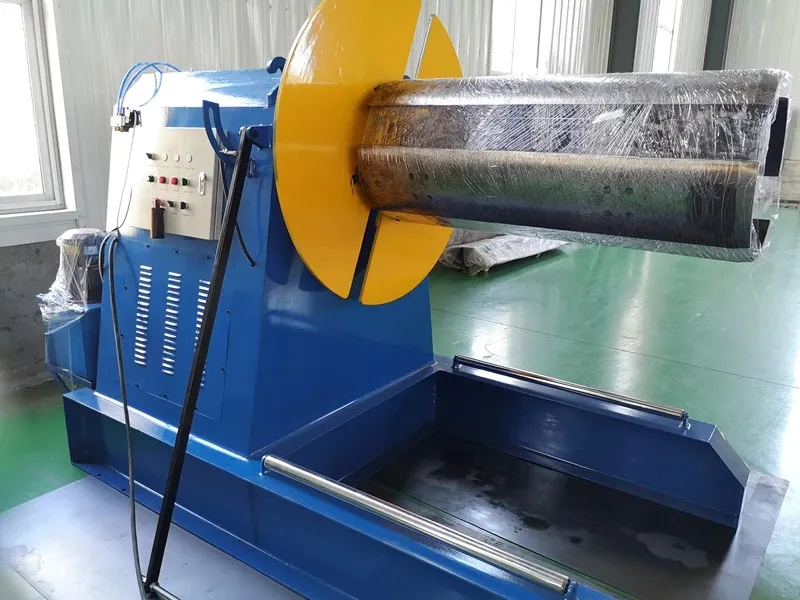

Hydraulic Decoiler

1.Automatic working

2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines

5.Saving labor

Transportation

Gear transmission
Ensure the high speed of the machine

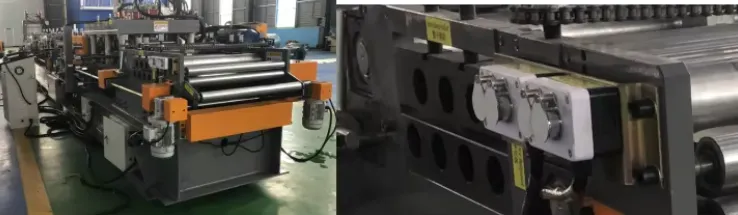

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

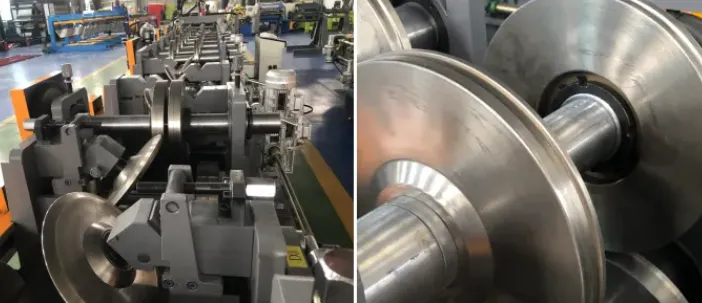

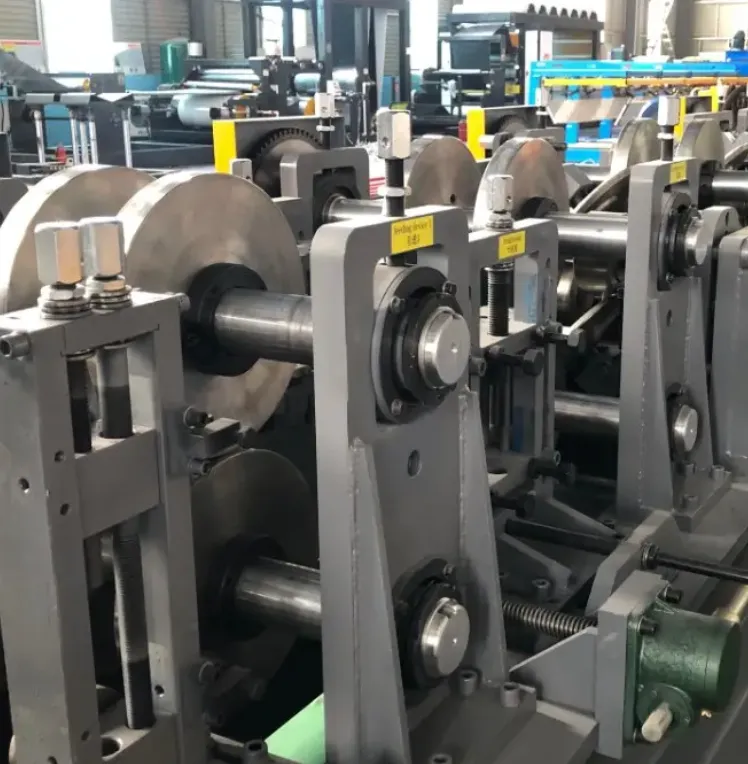

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

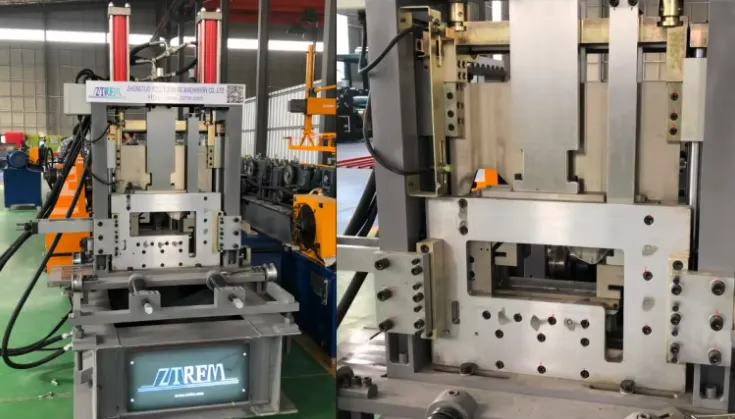

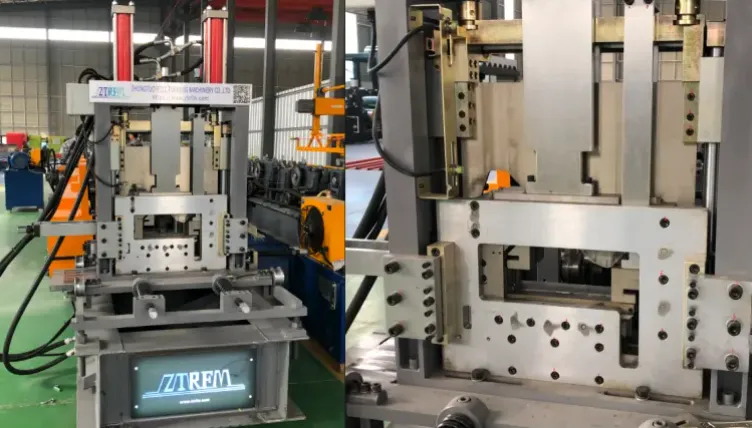

Cutting system

1.Fully automated knuckle pressing

2. Fully automated cut of products

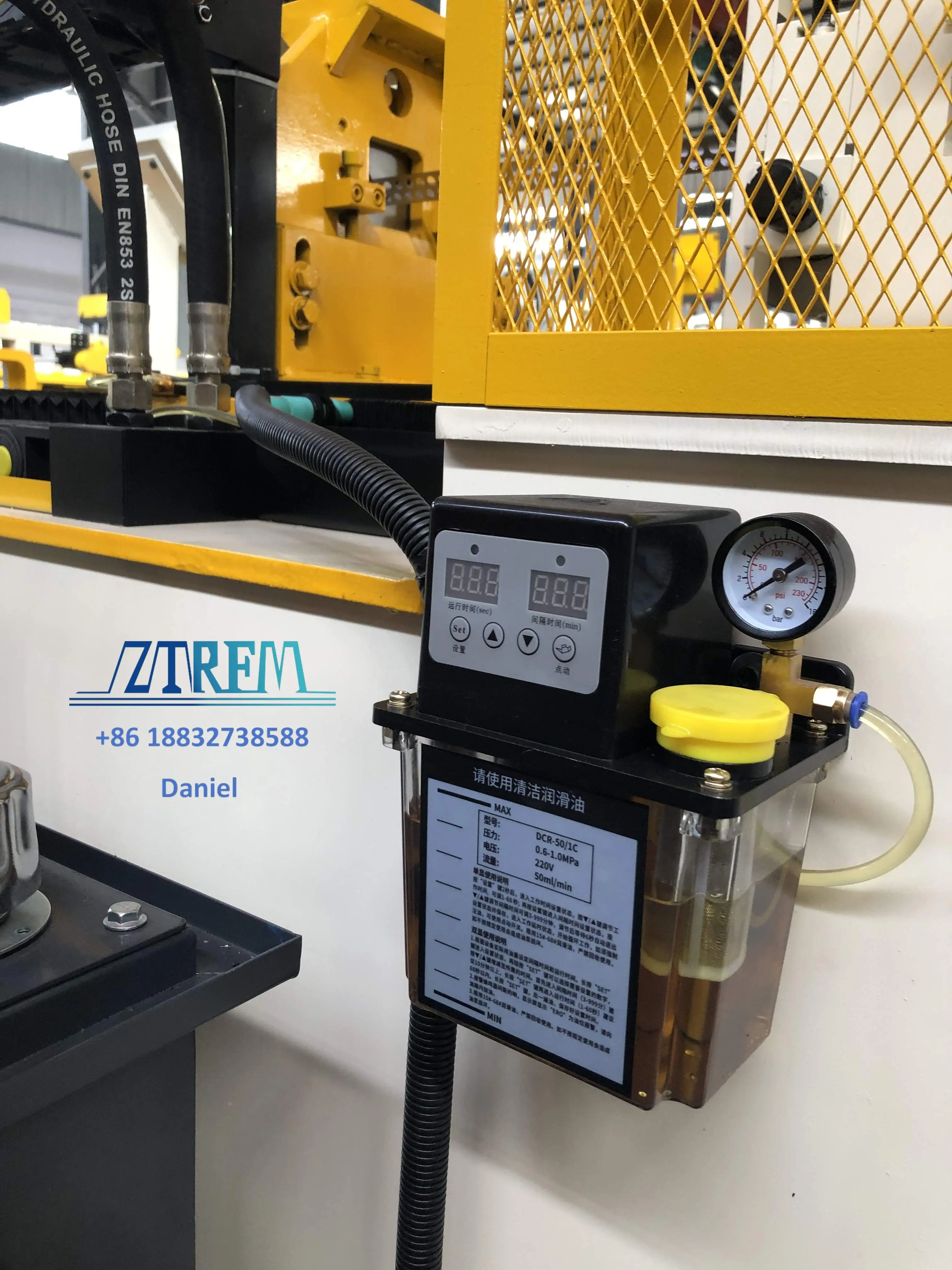

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

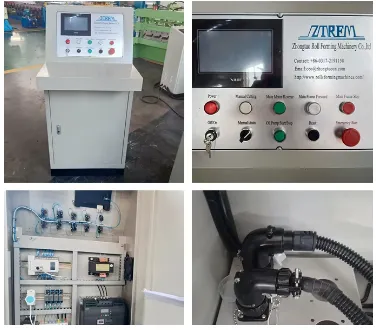

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

Automatic Stacker

1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

4.Length: 6 meters The frame body is welded with channel steel and angle steel, and the roller is installed on the surface.

5.Related suggestion: If the local labor cost is high, you can also choose automatic palatalizing ( Price:28000 USD )

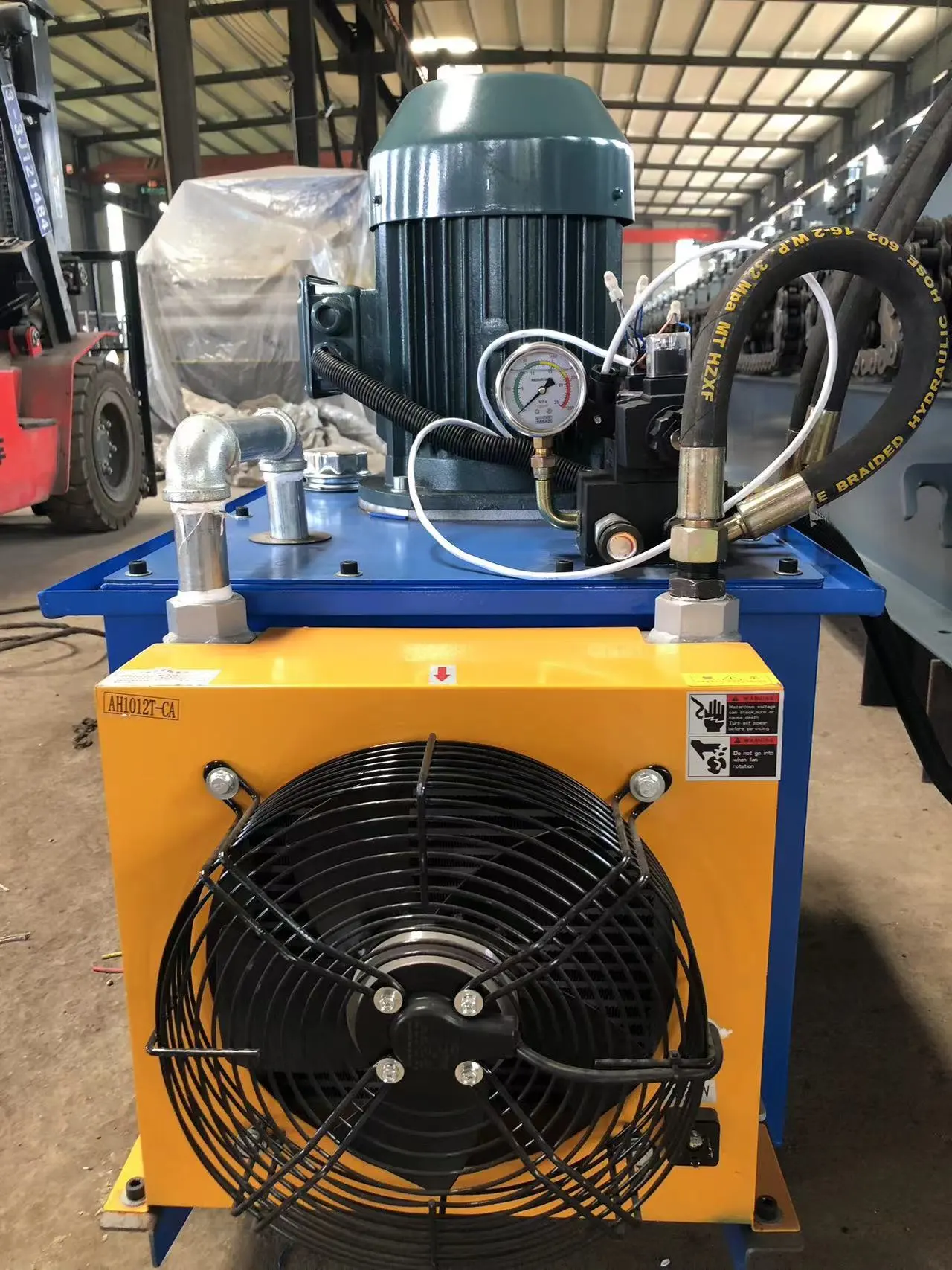

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

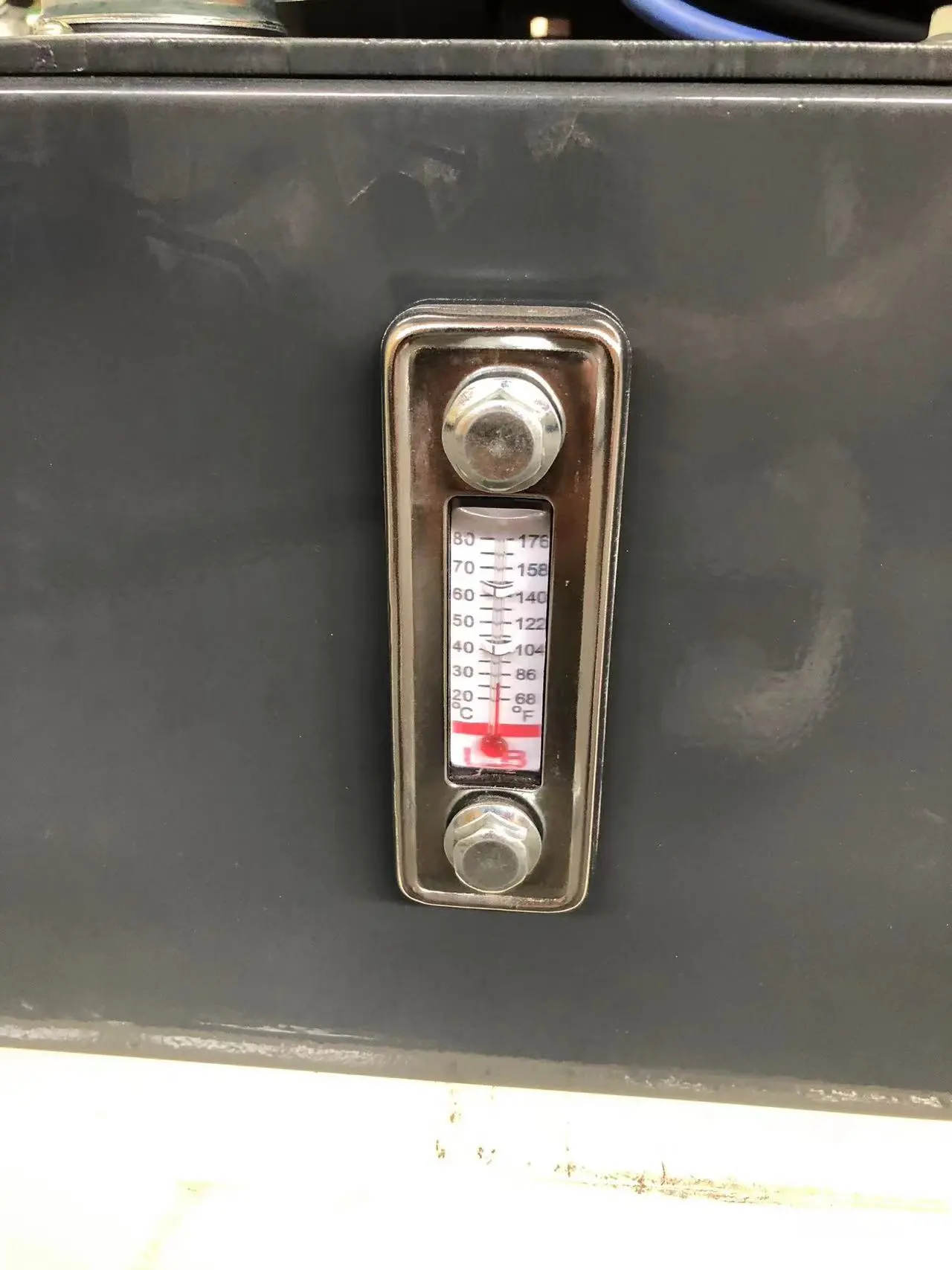

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

Product display

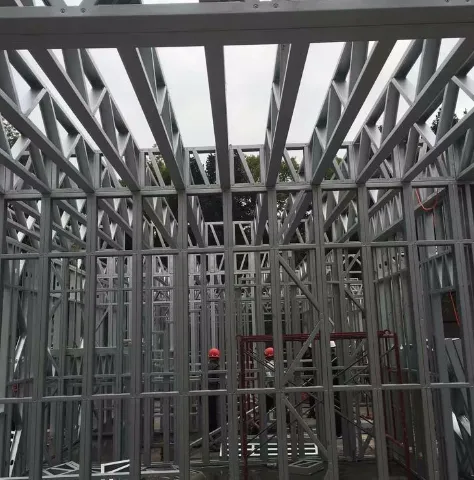

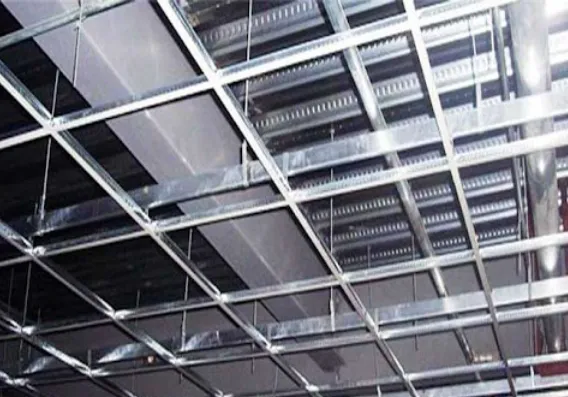

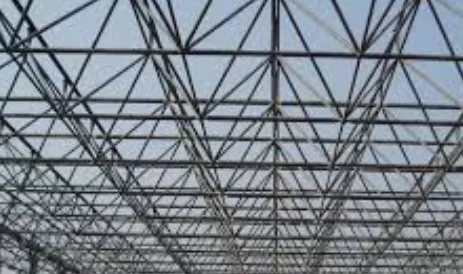

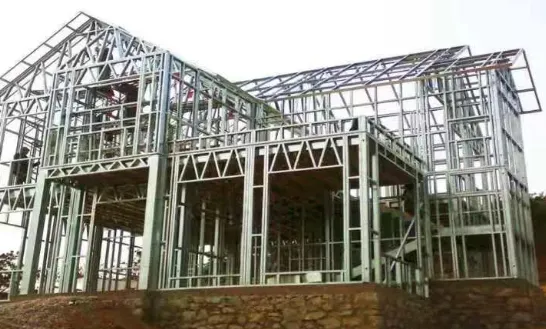

Application
