Full Automatic Motor Pump Bearing Drywall Steel Frame Stud Track Light Keel Gauge C U Channel Profile Ceiling System Making 40m/min+CU automatic size changing roll forming machine+17.5kw

Name: Full Automatic Motor Pump Bearing Drywall Steel Frame Stud Track Light Keel Gauge C U Channel Profile Ceiling System Making 40m/min+CU automatic size changing roll forming machine+17.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT76104742

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

40m/min

Model Number:

CU automatic size changing roll forming machine

Power(W):

17.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Type
  CU channel steel stud and track roll forming machine
- Tile Type
  Steel
- Use
  Steel frame
- Voltage
  220V/380V/415V
- Rolling Thinckness
  0.6-1.2mm
- Feeding Width
  100-300mm
Product Description

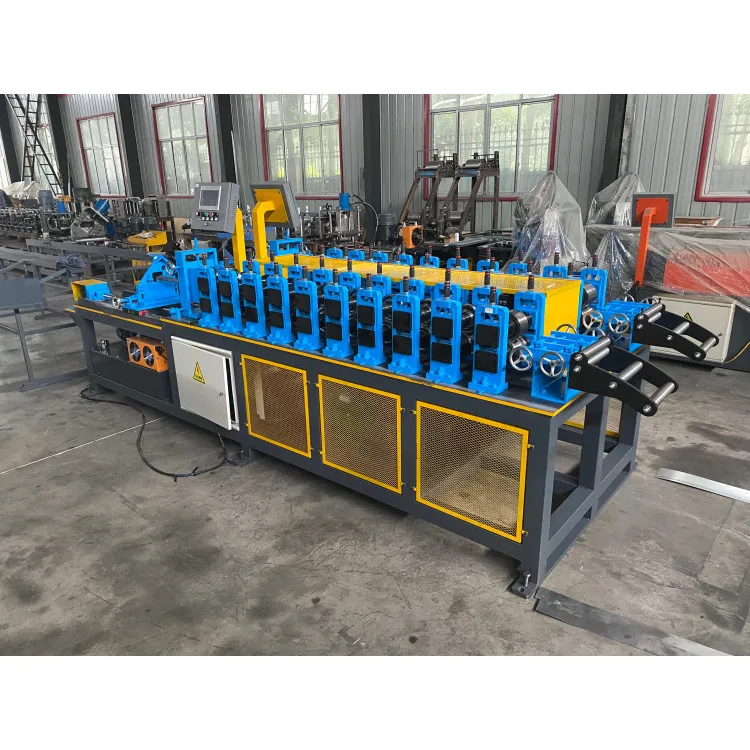

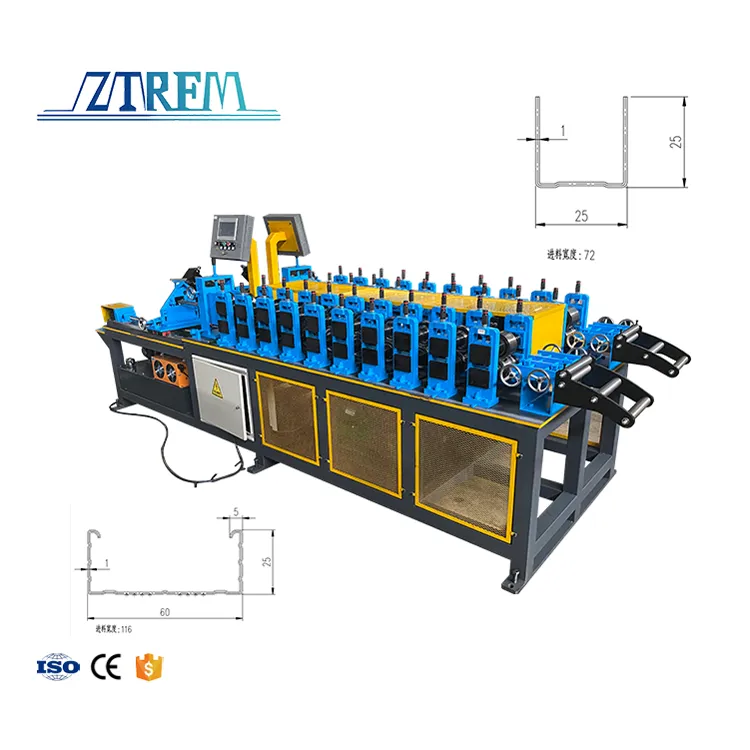

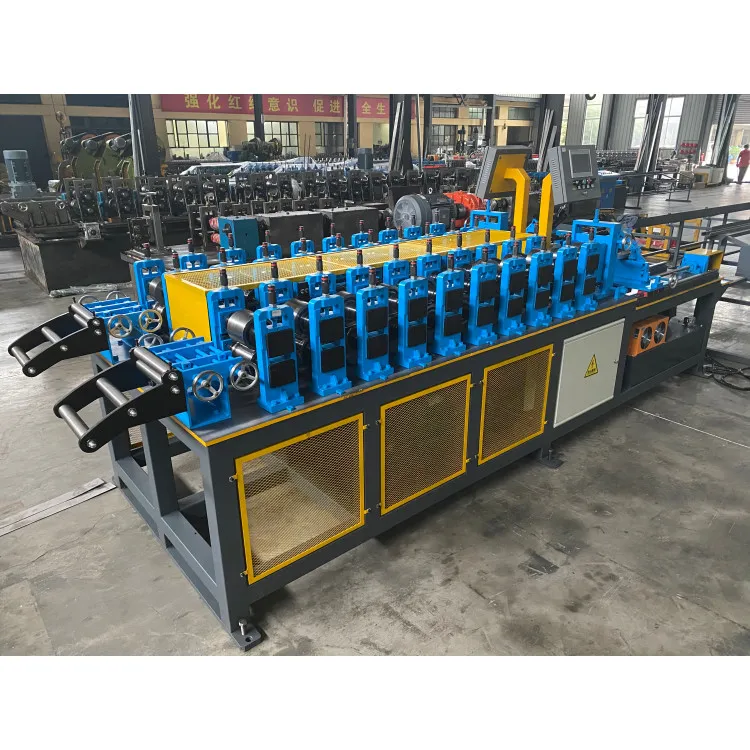

ZTRFM Full Automatic CU Drywall Steel Frame Stud & Track Light Keel Gauge Forming Machine With Automatic Packing System
C U channel steel stud and track automatic size changing roll forming machine and automatic packing system can continuously and efficiently produce different types and sections of light steel keel according to the design specifications and sizes. The use of automatic control system to reduce manpower needs and improve production efficiency.
High speed production capacity and with punching holes.

Machines' advantages 1.Efficient cutting : The equipment usually has an efficient cutting function and can quickly complete the keel cutting, drilling and other processes. 2. Surface treatment: Some equipment can surface the keel during the production process, such as zinc plating, to improve its corrosion resistance and durability. 3.Quality Testing: The advanced light steel keel machine also has online quality testing function, which can detect problems in time and make adjustments to ensure product quality. 4.Energy saving and environmental protection: Light steel keel machine is designed to take into account energy saving and environmental protection, reducing energy consumption and waste generation. 5.Flexibility : light steel keel roll machine has high flexibility and can quickly adjust the production line configuration according to different production needs. 6.Customized Production: Light steel keel machine can be customized to produce light steel keels of different specifications and performance according to the specific needs of customers.

Transportation
By gearbox: ensure the high speed and stable of the production line

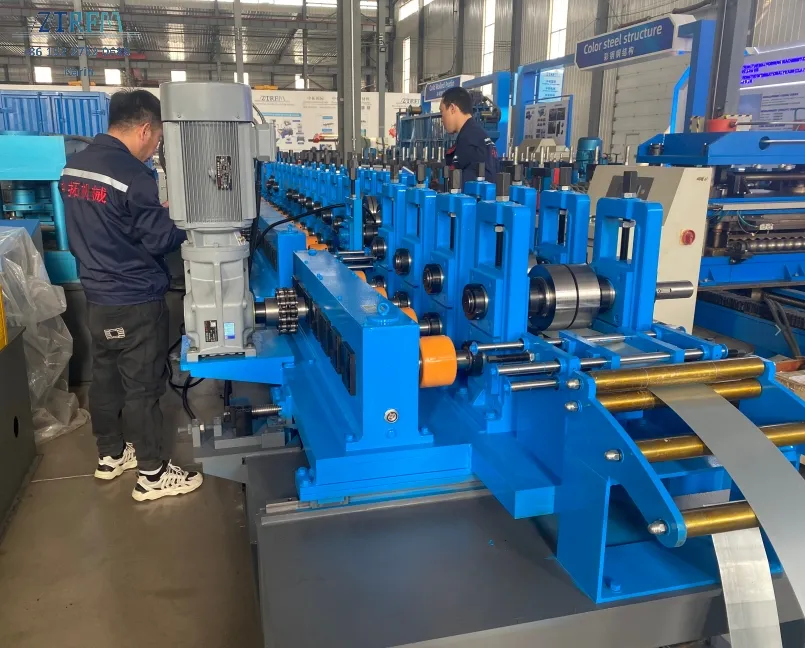

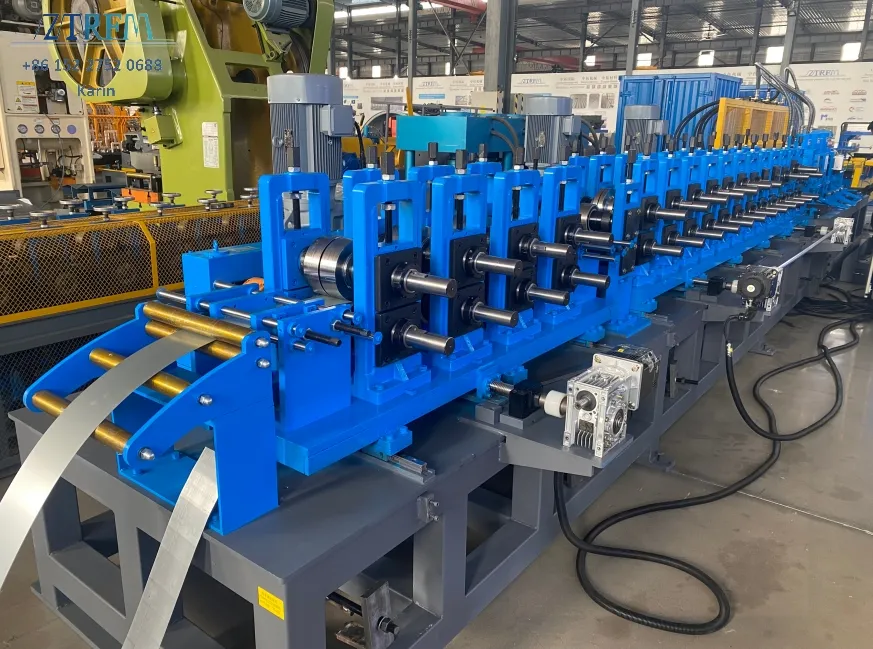

Feeding device
1.Protect coil material
2.With handwheels for easy adjustable.

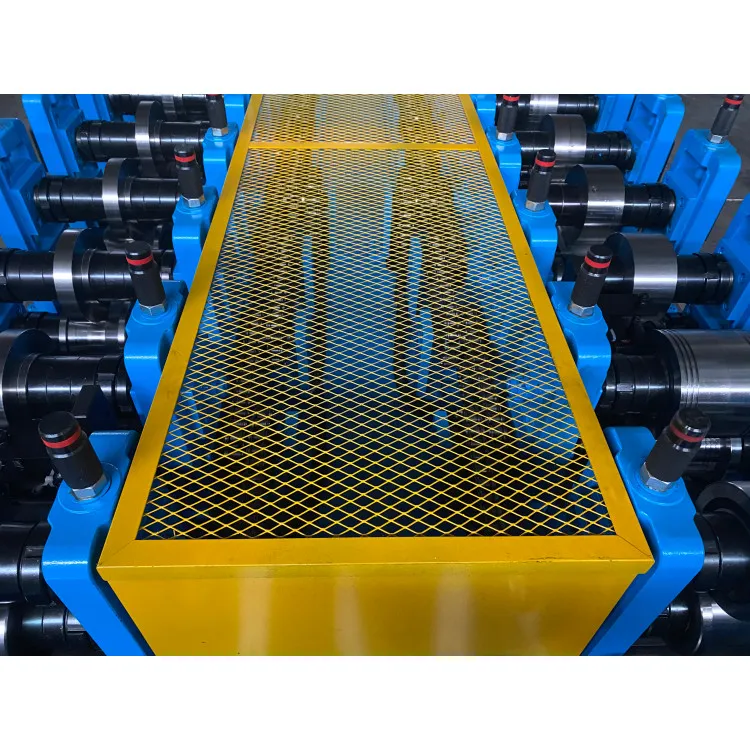

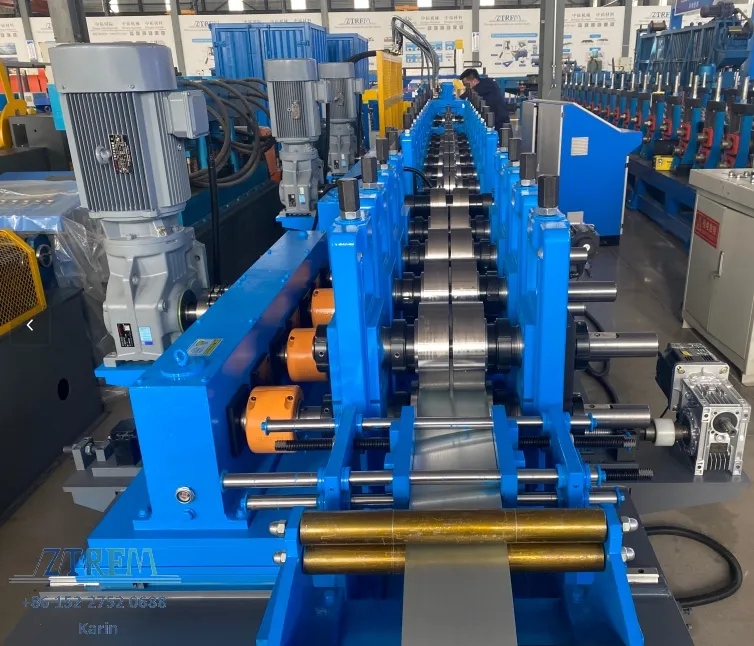

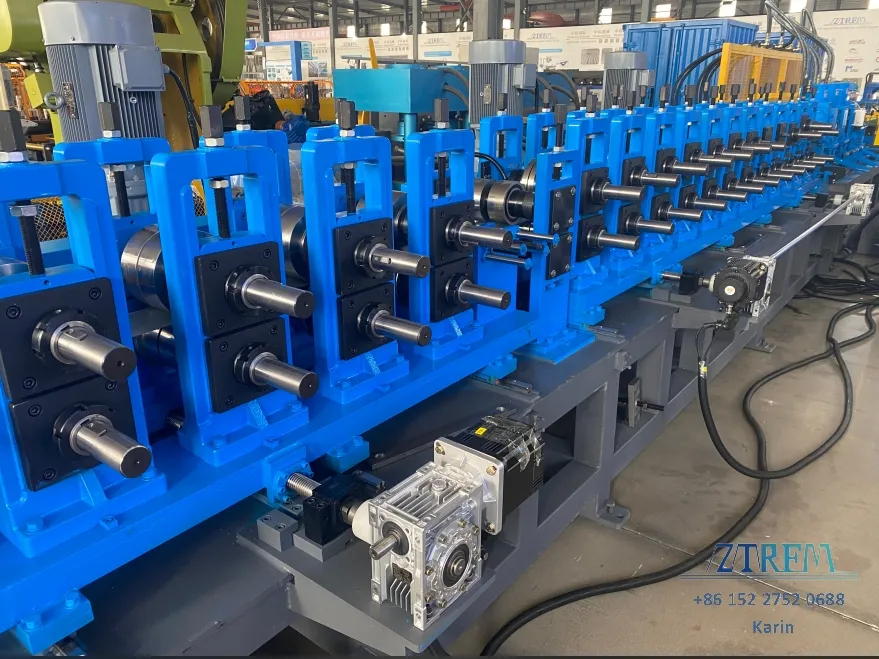

Rollers and shaft
1.Surface with chromed treatment
2.Material:45# steel

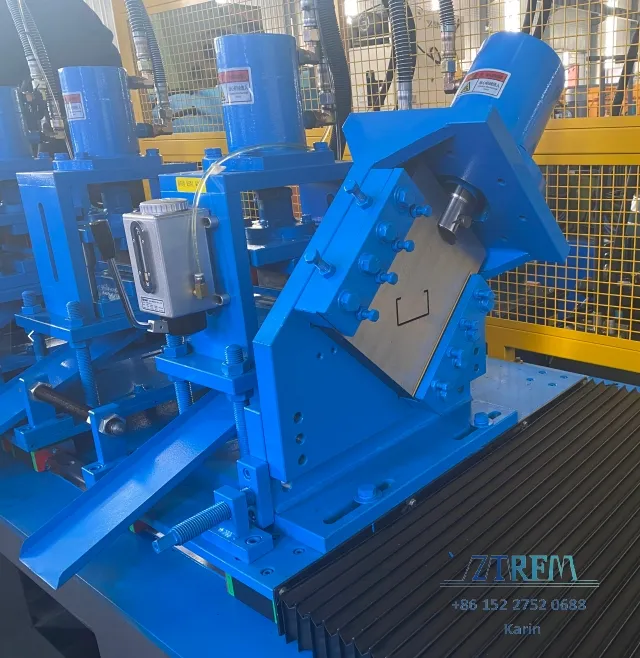

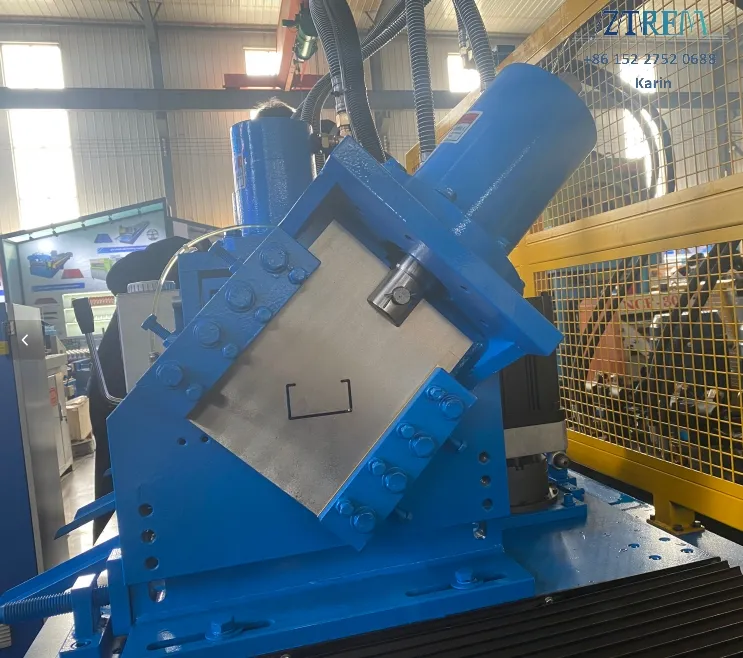

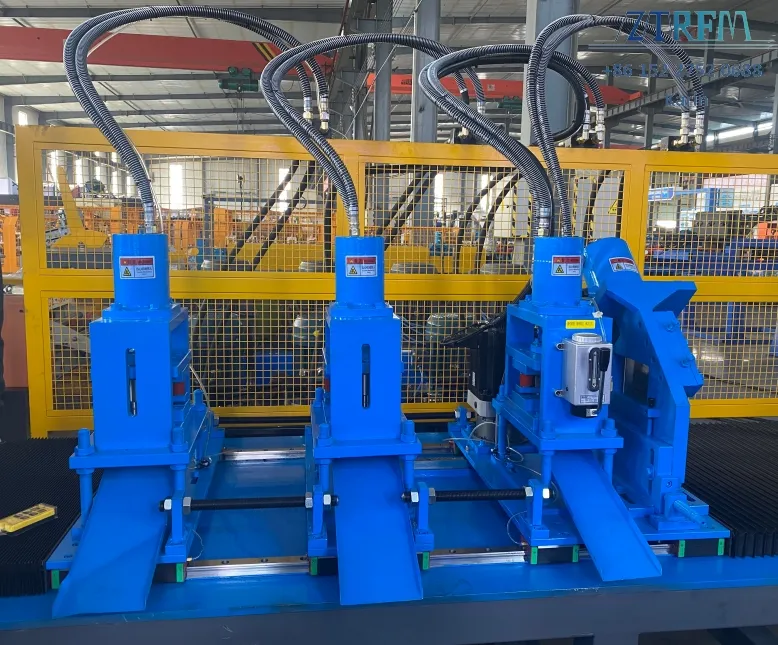

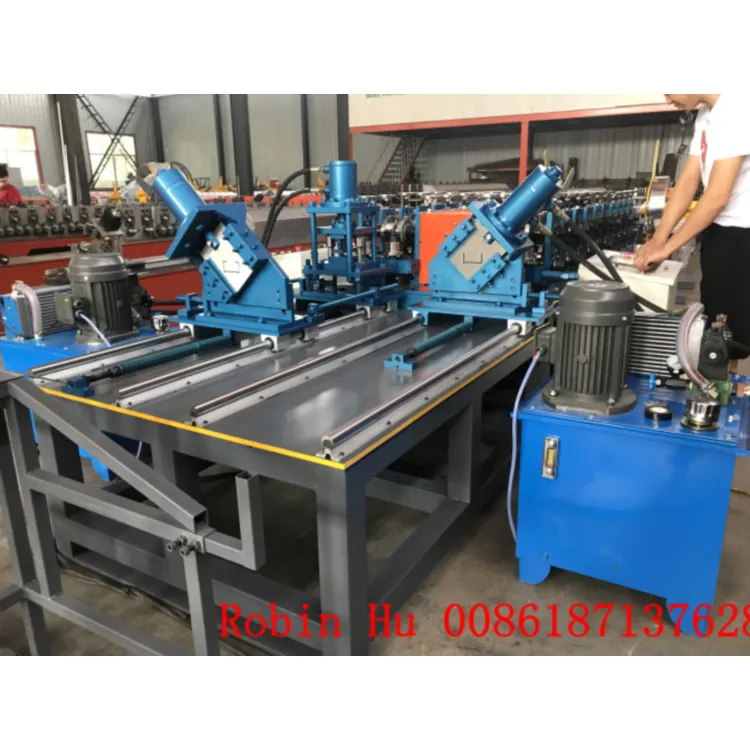

Cutting system
1.Fully automated knuckle pressing
2. Fully automated cut of products
Automatic oil filler
1.Automatic lubrication for the cutter
2.Reduce machine maintenance time and cost

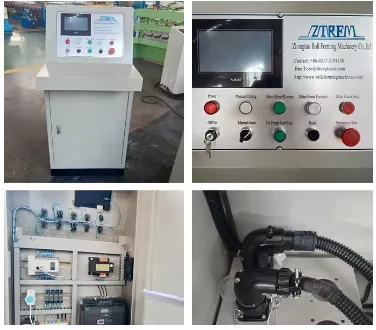

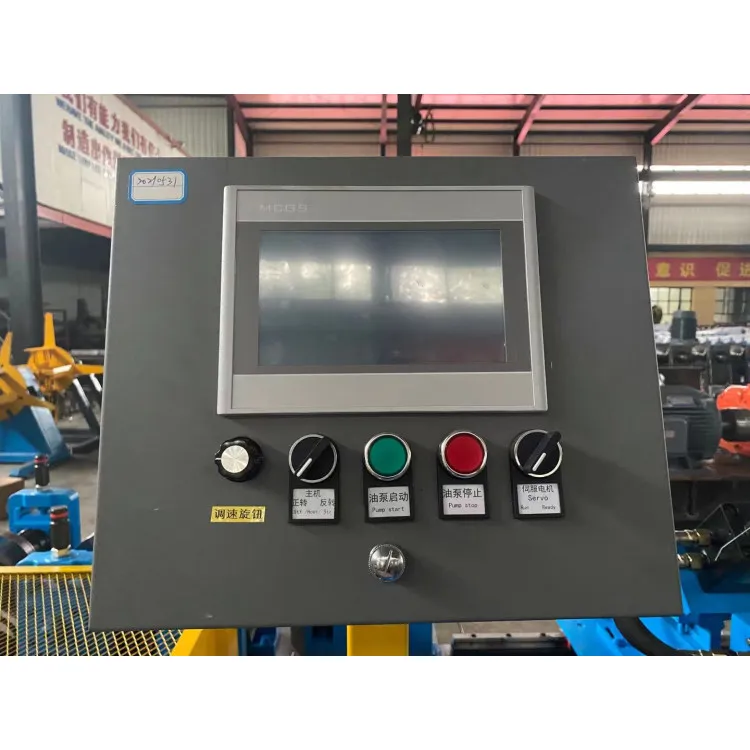

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control
2.Adopt touch screen for easy operation.
3.Adopt aviation plugs for easy installation
4.Languages can be customized

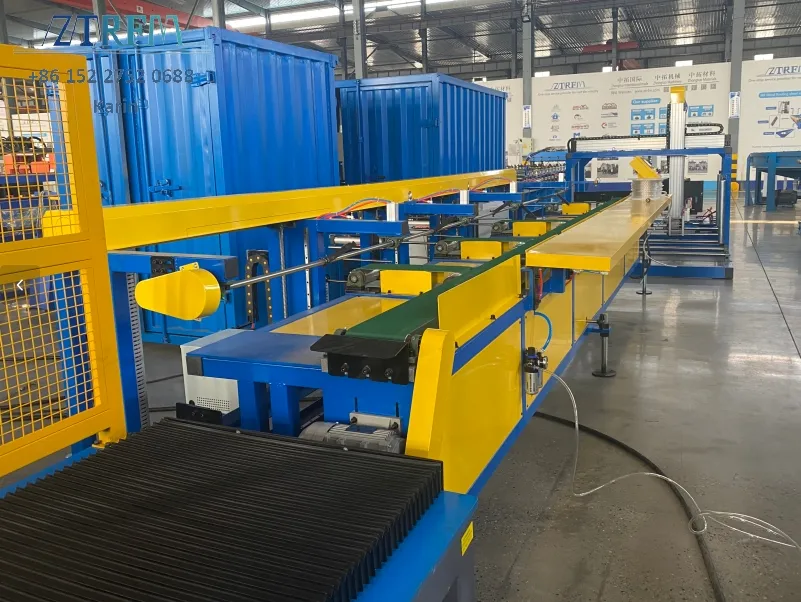

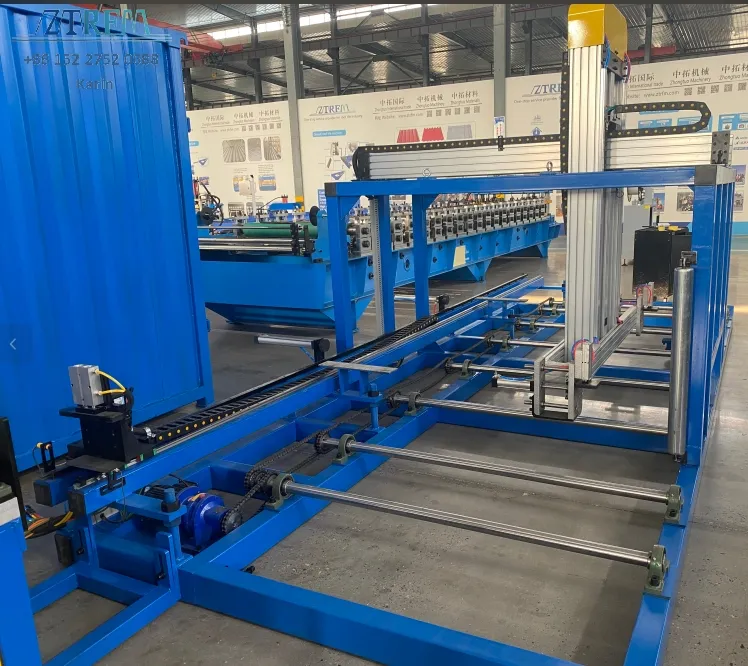

Automatic Stacker
1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

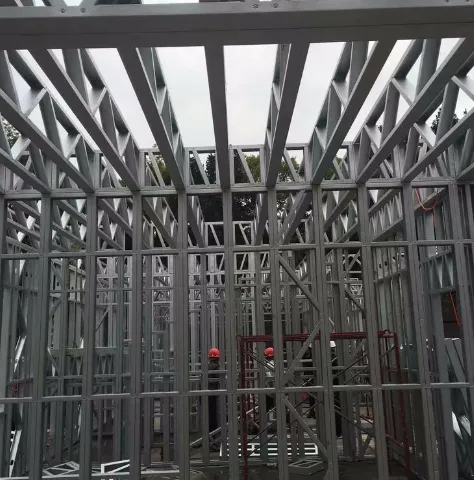

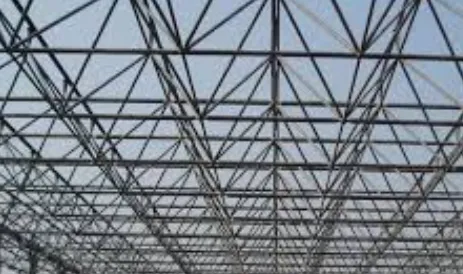

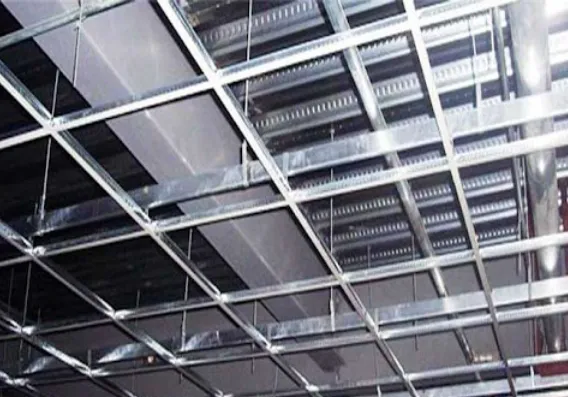

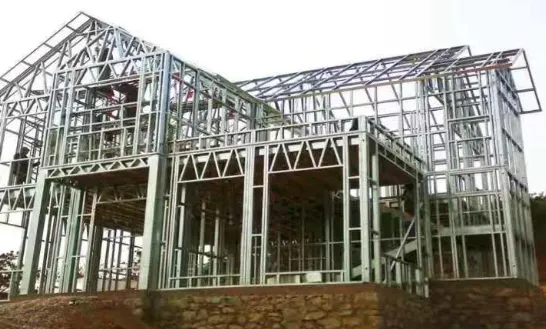

Application
