Full Automatic Metal Galvanized Steel Closed Type Inter Lock Dovetail High-Accuracy Tile Forming Machine with Pump & Gear 20 M/Min+Closed type Floor Deck Making Roll Forming Machine+13KW

Cangzhou Zhongtuo International Trade Co., Ltd

Full Automatic Metal Galvanized Steel Closed Type Inter Lock Dovetail High-Accuracy Tile Forming Machine with Pump & Gear 20 M/Min+Closed type Floor Deck Making Roll Forming Machine+13KW

Name: Full Automatic Metal Galvanized Steel Closed Type Inter Lock Dovetail High-Accuracy Tile Forming Machine with Pump & Gear 20 M/Min+Closed type Floor Deck Making Roll Forming Machine+13KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT67911167

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

Closed type Floor Deck Making Roll Forming Machine

Power(W):

13KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
Floor
Voltage
380V or Customized
Rolling Thinckness
0.7-1.5mm
Feeding Width
1250 mm

Product Description

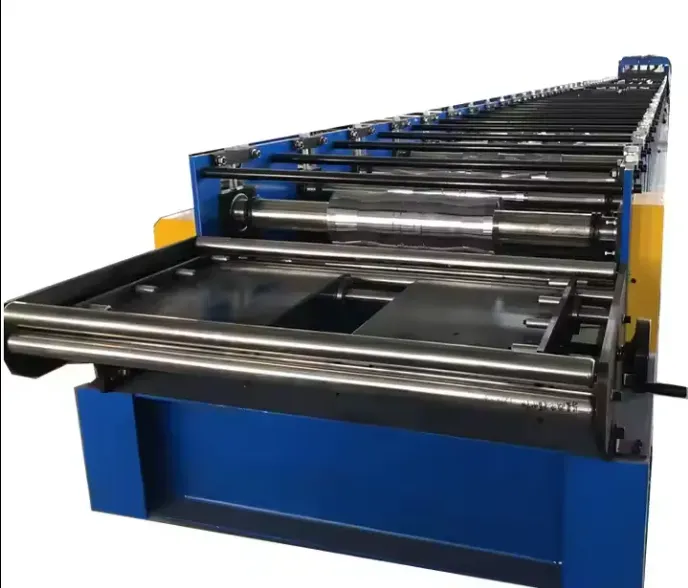

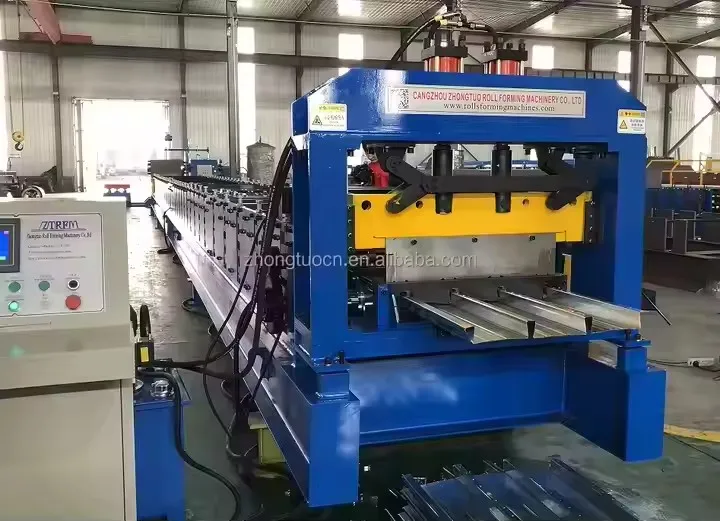

Full Automatic Metal Galvanized Steel Closed type Inter Lock Dovetail Metal Floor Decking Machine

Full Automatic Metal Galvanized Steel Closed type Inter Lock Dovetail Metal Floor Decking Machine is a powerful industrial tool that expertly crafts floor decks. This advanced machine deftly transforms galvanized steel sheet metal into high-quality floor decks through a precise roll forming process. Its closed type design ensures stability and accuracy, enabling it to consistently produce top-notch floor decks. With its efficient operation, the Closed type High Quality Galvanized Steel Sheet Metal Floor Deck Making Roll Forming Machine is a valuable asset for any manufacturing enterprise looking to create durable and aesthetically pleasing floor decks.

Full Automatic Metal Galvanized Steel Closed type Inter Lock Dovetail Metal Floor Decking Machine
1.Formed Material	Thickness		0.7-1.5mm Width:as request
2.Decoiler	Hydraulic automatic decoiler		will give you as free
3.Main body	Roller station		24 rows(As your requirement)
		Diameter of shaft		90mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gearbox transmission
		Dimension(LWH)		customize
		Weight		13T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	15-20m/min		The speed depends on the shape of the tile and the thickness of the material.

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

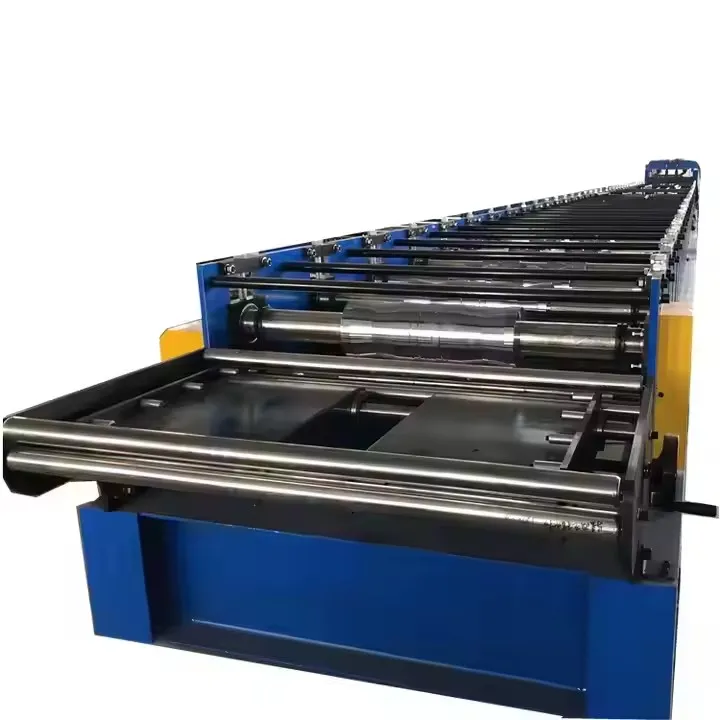

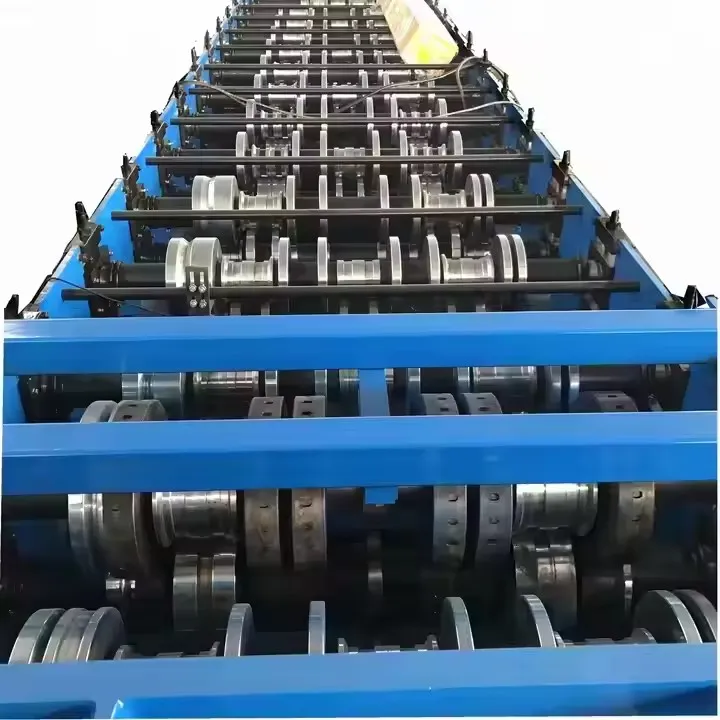

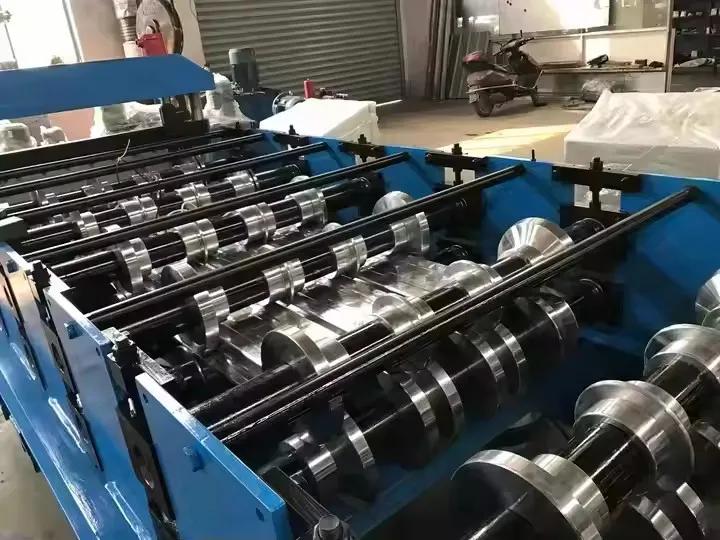

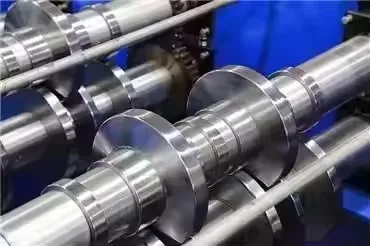

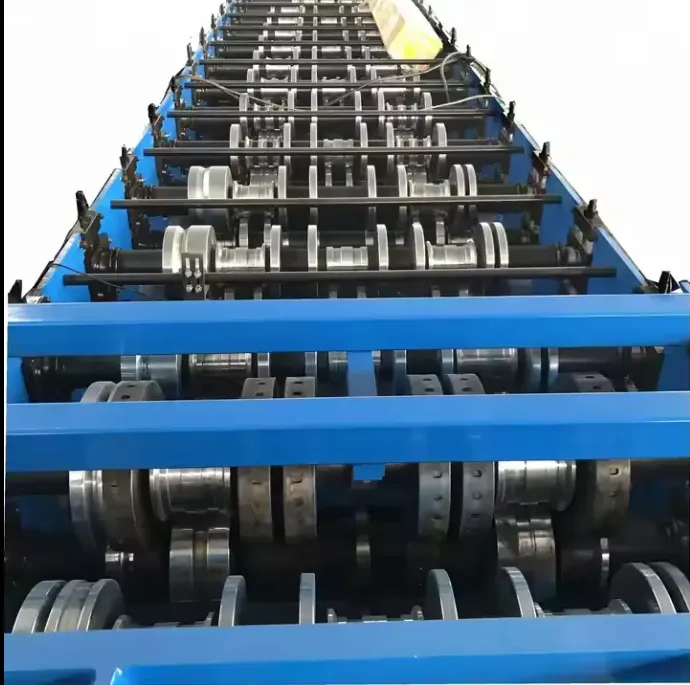

Main roll forming machine

1.Shaft material:45# steel with quenched treatment
2.Shaft diameter: 70mm
3.Roller station:18 stations
4.Roller material: 45# steel with chromed
5.Motor power: 5.5kw
6.Speed: 0-10m/min
7.Transmission:gear and chain
8.Voltage:customized

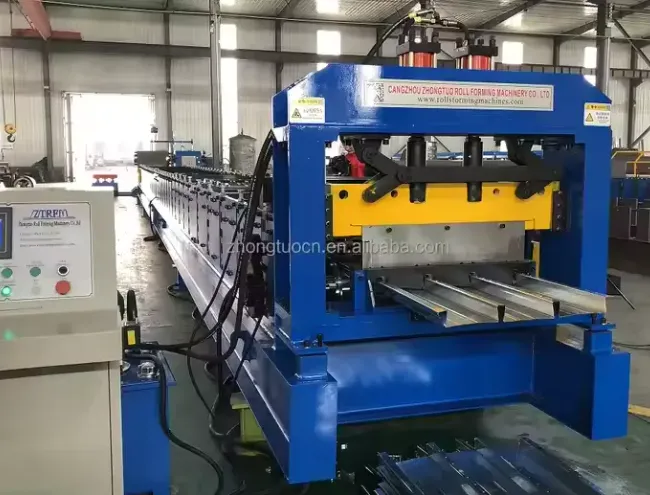

Hydraulic cutting system

1.Feature: it is used to make the step , the glazed tile's final formed.
2.Material of mold: Cr12 quenched

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation
4.Languages can be customized

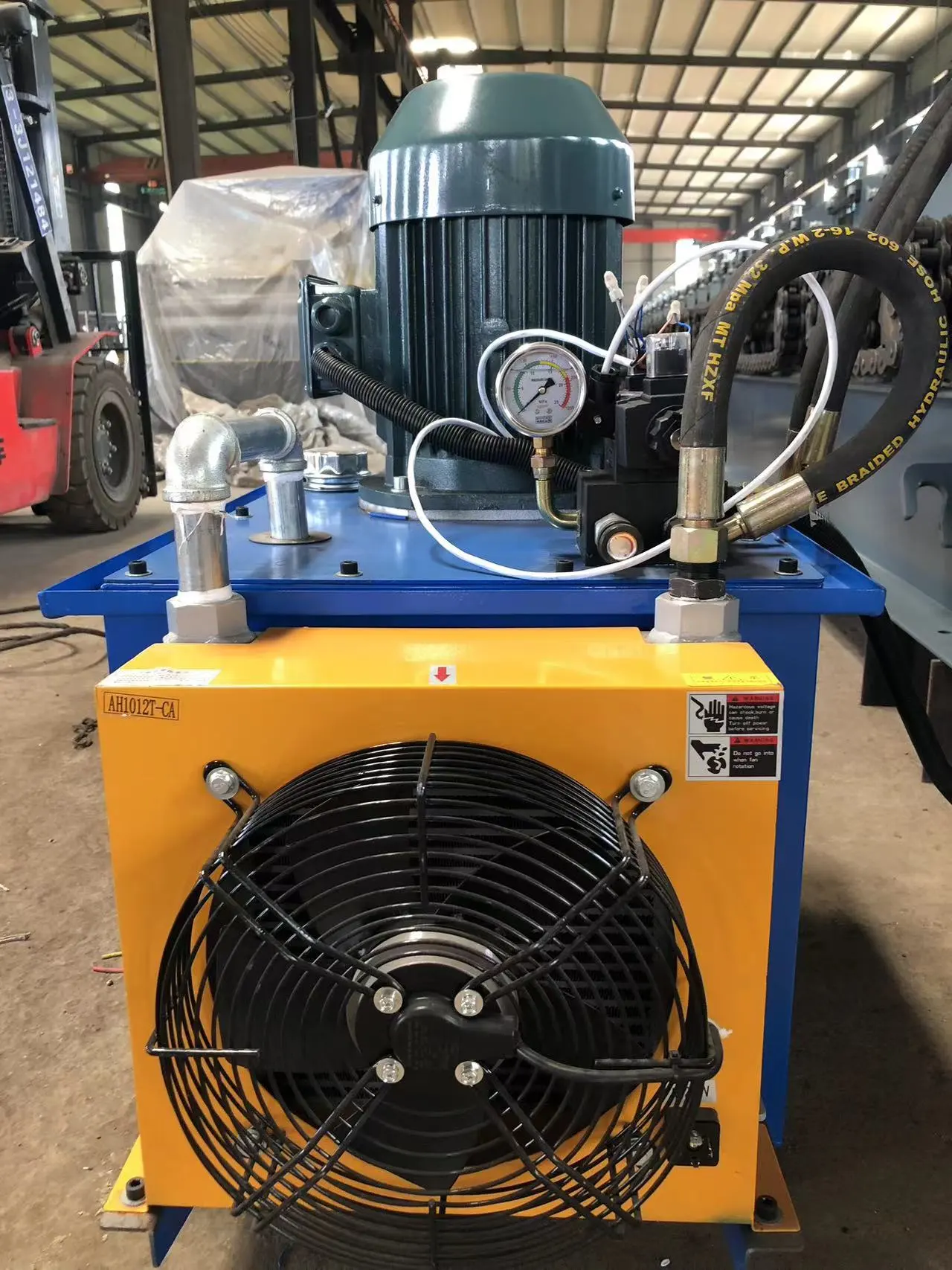

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

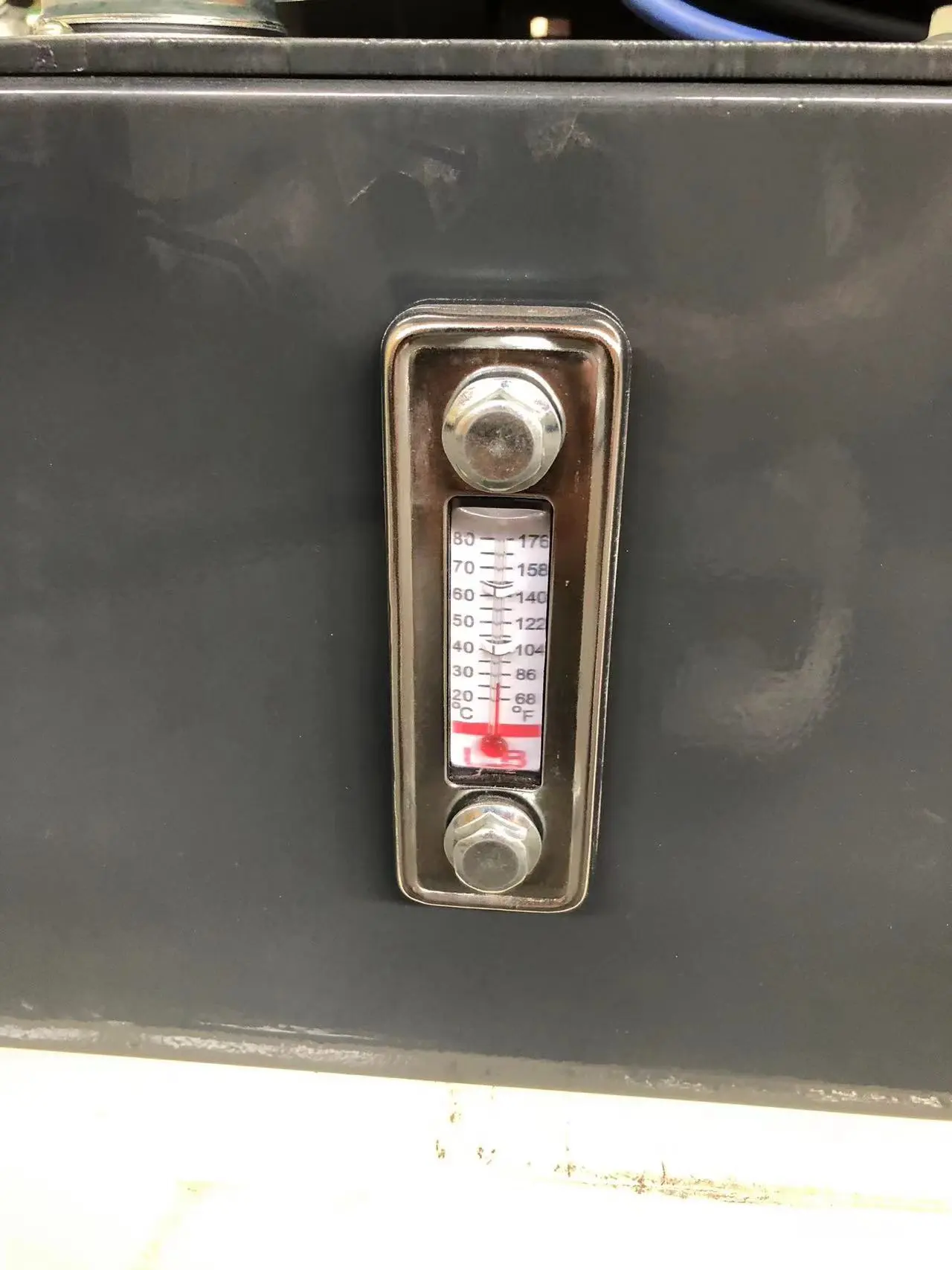

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

Company Profile

CANGZHOU ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.
