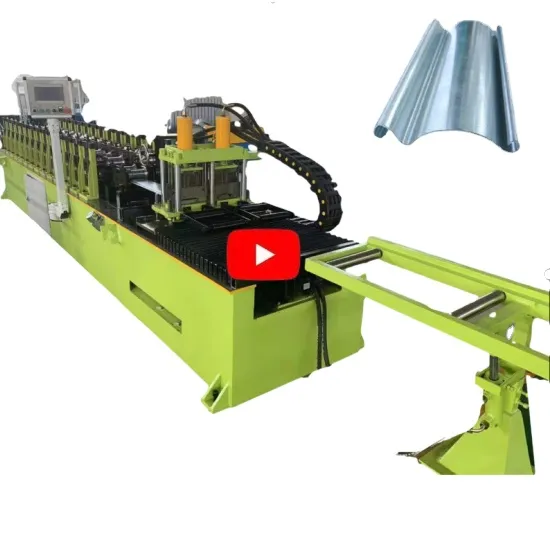

Full Automatic Aluminium Shutter Door Roll Forming Machine Rolling Shutter Panel Machine Roll up Door Machine Price zhongtuo-door+7.5kw

Full automatic shutter door roll forming machine rolling shutter panel machine price

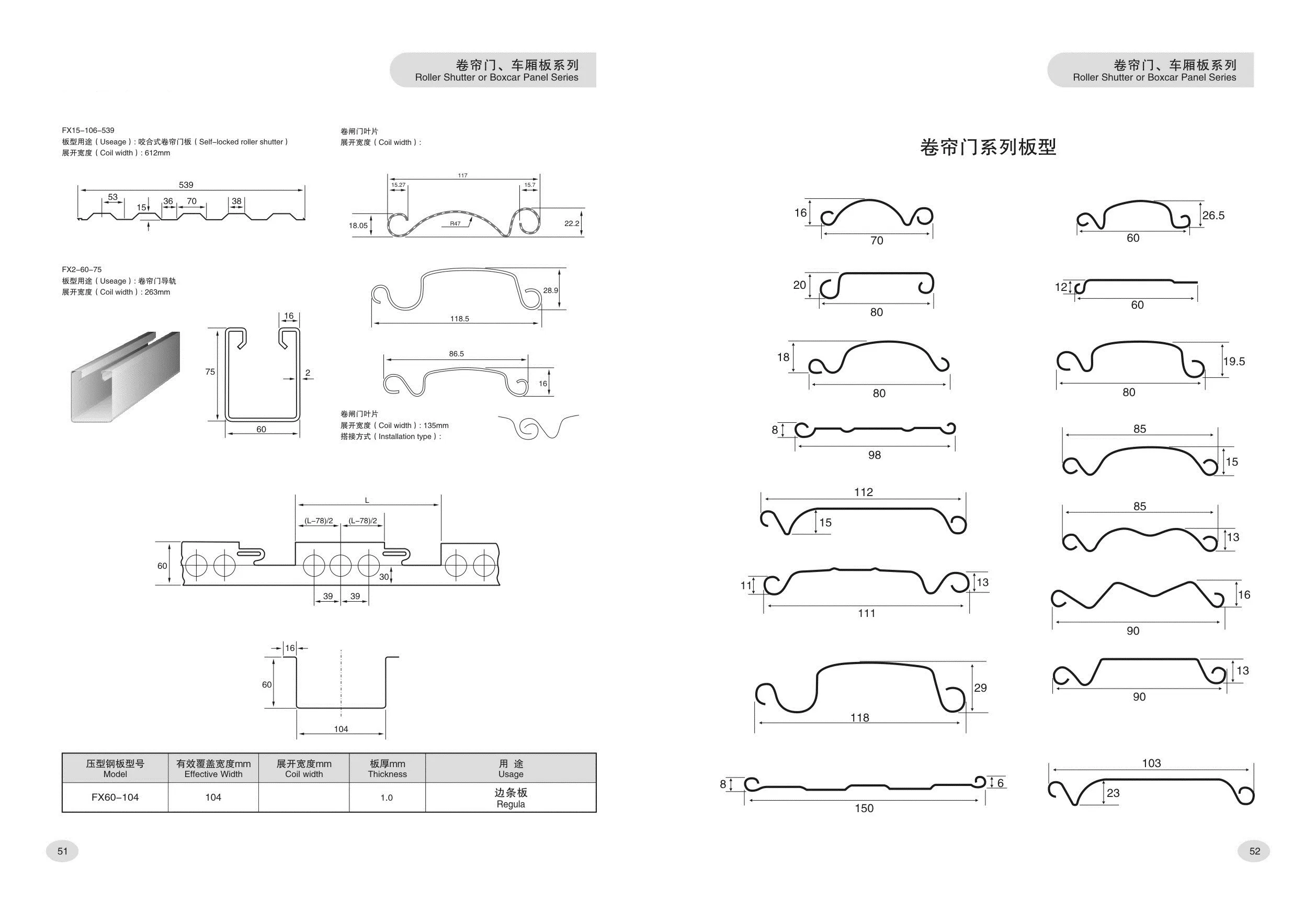

1. Some drawings of shutter door roll forming machine

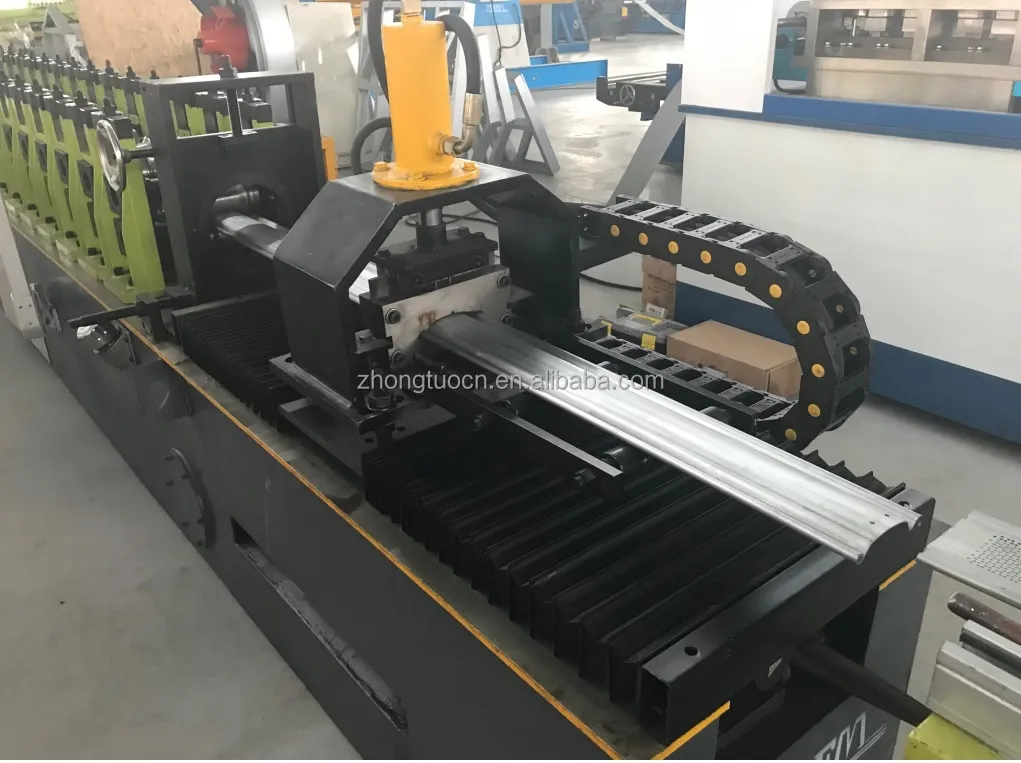

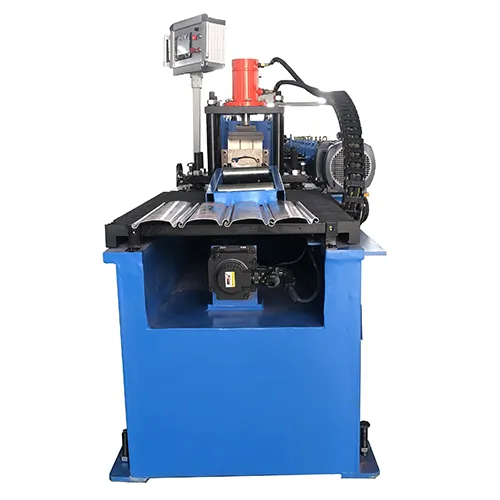

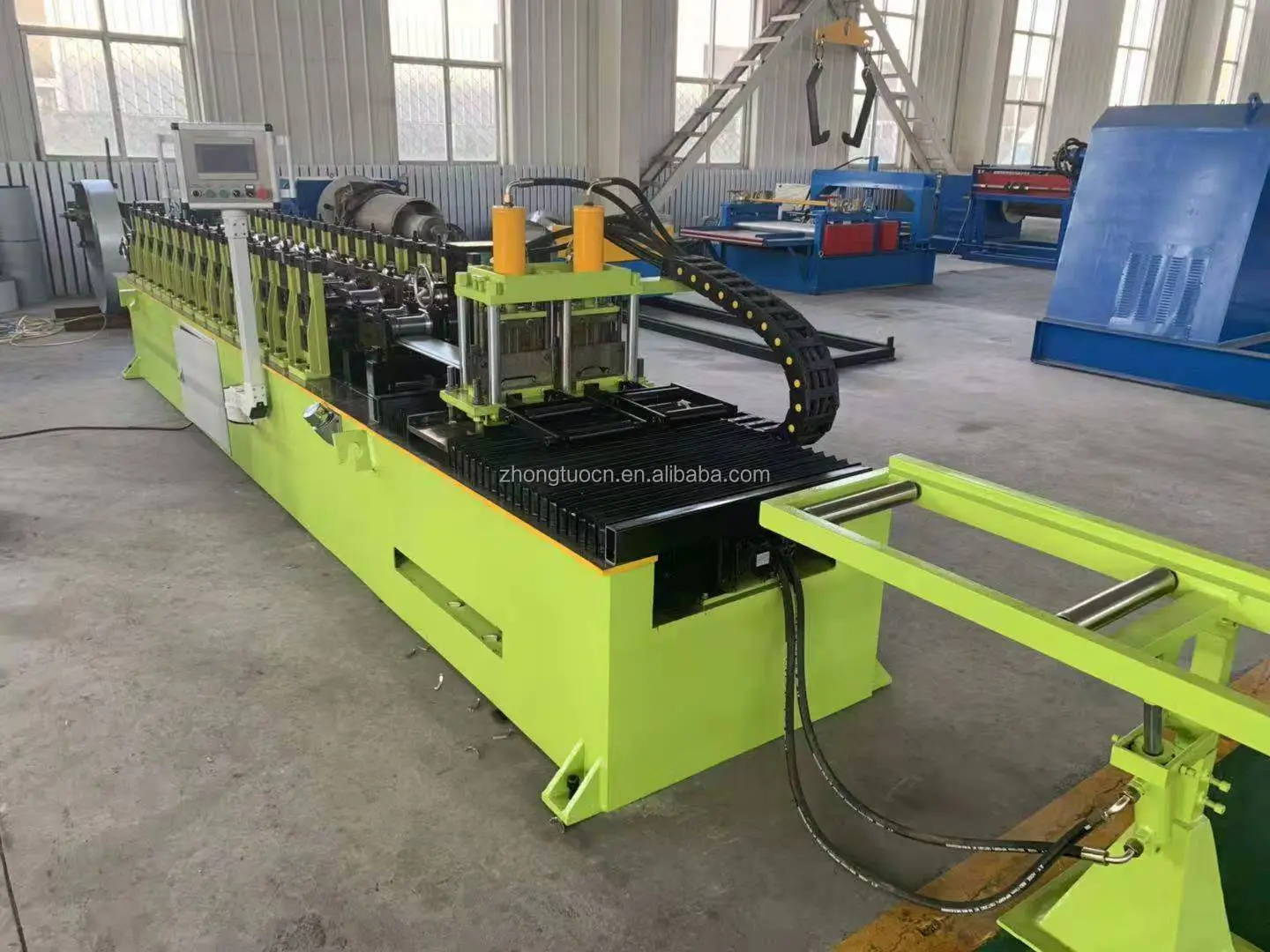

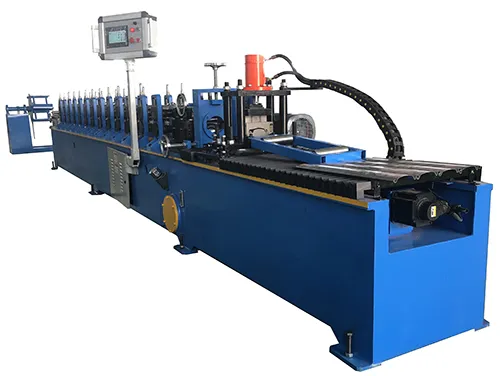

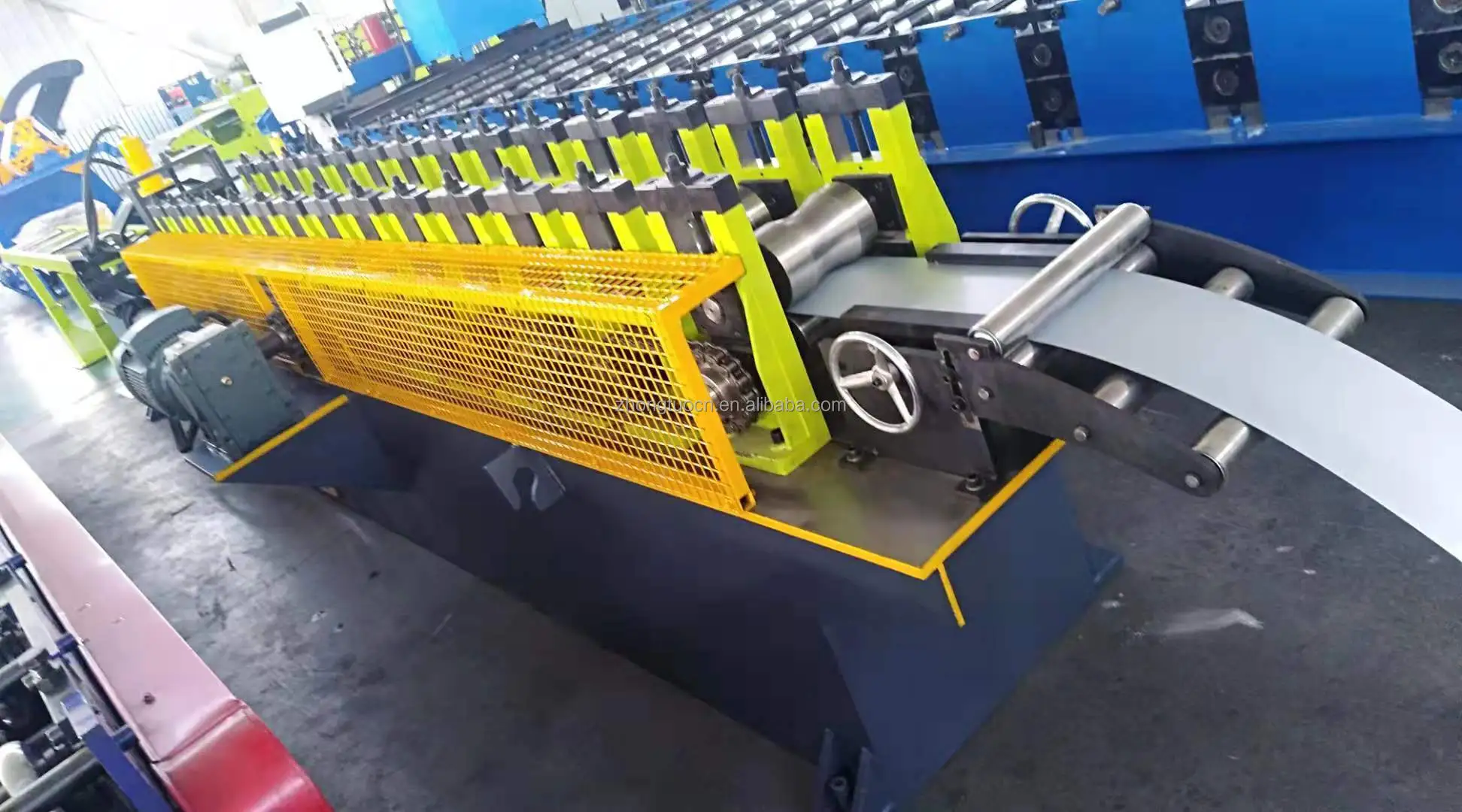

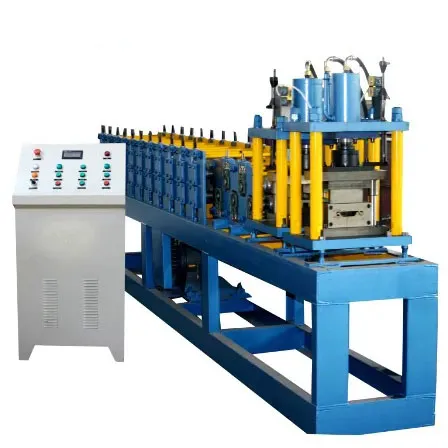

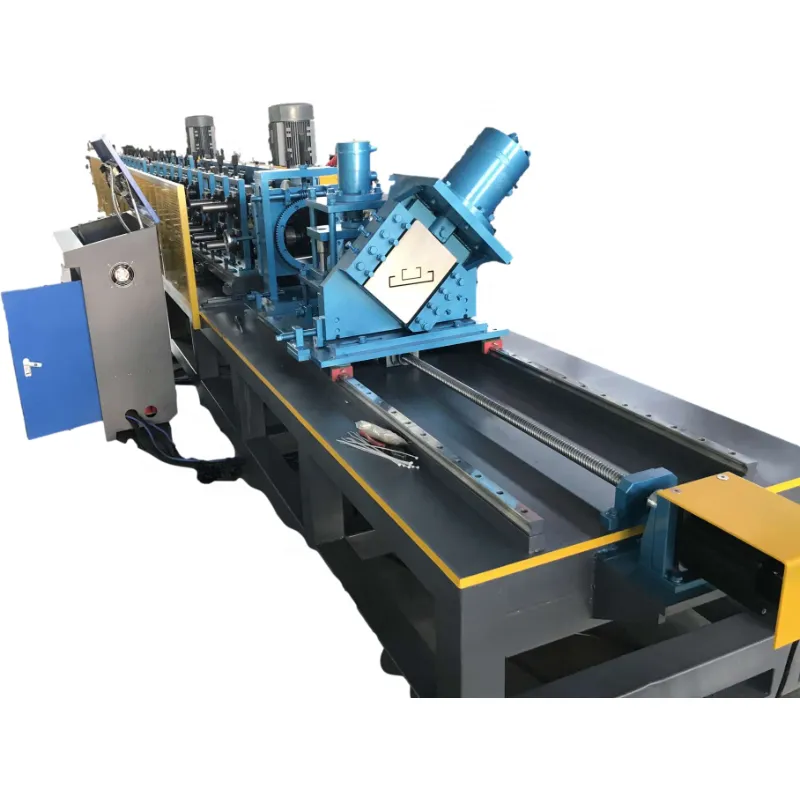

2. Pictures of shutter door roll forming machine

3. Specifications of shutter door roll forming machine



Article No.	Item Name	Specification
1	Feeding width	Customized as customer' drawing
	Effective width	Customized as customer' drawing
2	Thickness of panel	0.7-1.2 mm coil sheet
3	Roller station	12+5 stations
4	Shaft Diameter	60 mm
5	Productivity	8-15 m/min
6	Rollers' material	45# steel with 0.05mm chrome
7	Shaft material	45# steel with 0.05mm chrome
8	Weight	3 tons
9	length	4.5 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	3 tons
13	Motor	3 kw
14	Driving way	Chain transmission
15	Chain size	1 inch
16	Cutting system	Hydraulic cutter



4. Production Line of shutter door roll forming machine

5. What make our shutter door roll forming machine different with others?



1. For making the perfect shape rolling shutter door panel, we manufactured the shutter door roll forming machine with the hydraulic cutting.

2. We add more embossing rollers for making different types.

3. High speed rolling forming. we use the gearbox as the transmission to make sure the high speed can reach 50 m/min.we use the best brand like Siemens to make give steady power and easy to change.

4. Good quality and good material of rollers, supported testing data from laboratory.

5. There are single shutter door roll forming machine and double production line shutter door roll forming machine .that is to say, you can design the machines in one table, and you can design the machines in double table, with one PLC/motor.
