Frame Steel Shaftwall C-T Stud Roll Forming Production Line 32 rollers

Reliable Frame Steel Machine for 64mm to 152mm CT Stud Production

Shaftwall systems in large public buildings demand strict straightness from CT studs. Renovation projects also need light steel framing components, often under more complex site conditions. The CT studs and tracks produced on a frame steel machine must meet dimensional accuracy and straightness requirements for efficient on site installation and wall quality.

Frame Steel Machine Applications in Shaftwall and Renovation Projects

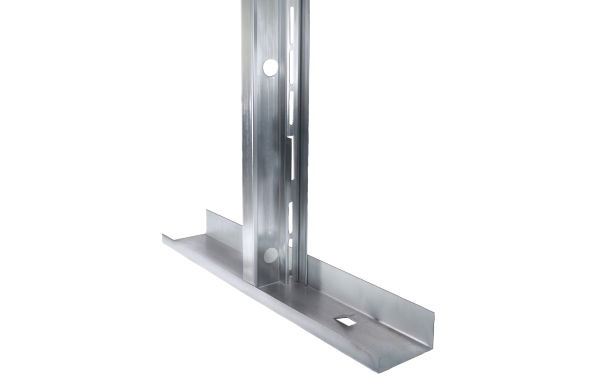

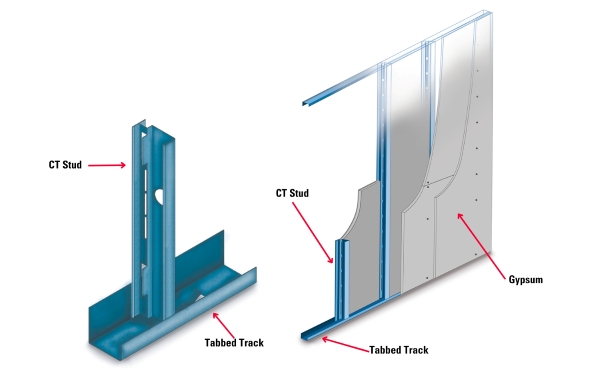

CT studs and tracks are widely used in elevator shaft enclosures, stairwell partitions, and equipment chases. In these systems, CT studs work with J tracks to hold gypsum liners and form a complete enclosure from the shaft exterior.

Renovation projects also use light steel framing components. Existing buildings differ from new construction in floor height, bay width, and service layout, which places different demands on component dimensions and on site fit. These differences mean manufacturers need a frame steel machine that handles a range of orders.

Key application areas include:

• Elevator shaft enclosures in high rise buildings

• Stairwell partitions

• Equipment chases and ventilation duct enclosures

• Renovation and retrofit projects with complex site conditions

CT Stud Straightness in Progressive Forming

Shaft walls run from the building's lowest level to the top, and a single CT stud can measure several meters long. Bending or twisting along its length gets amplified during installation and affects wall verticality.

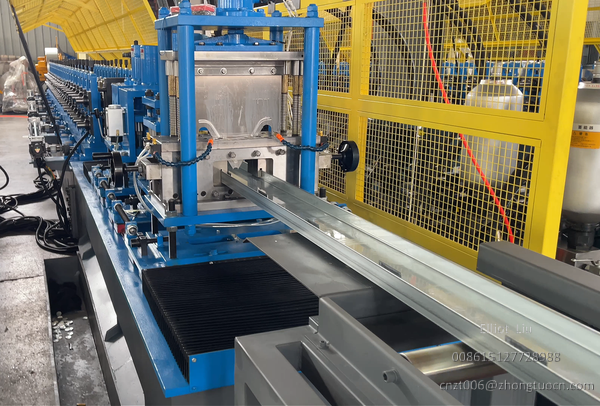

A CT stud cross section contains several bends, and progressive forming shapes them one pass at a time. The 32 pass forming configuration in the equipment data distributes deformation across the profile.Strip position offset as material enters the forming section directly affects finished straightness. The guiding device keeps the strip on the machine centerline, which can contribute to more stable forming.

Key production factors for CT stud straightness:

• Progressive forming distributes deformation across multiple passes

• Strip position at entry affects forming stability

• The guiding device keeps the strip on the machine centerline

Equipment Reference Specifications

The following specifications come from equipment configuration data:

Equipment Advantages for CT Stud Production

The Shaftwall C-T Stud And Track Roll Forming Machine offers practical advantages for CT stud and track production:

• Factory commissioning: The machine is fully tested before shipment, reducing on site adjustment work.

• Modular transport: Each unit can be packed and shipped separately, then assembled on site.

• Multi size support: Adjustable spacers allow production of different web heights for CT studs and tracks.

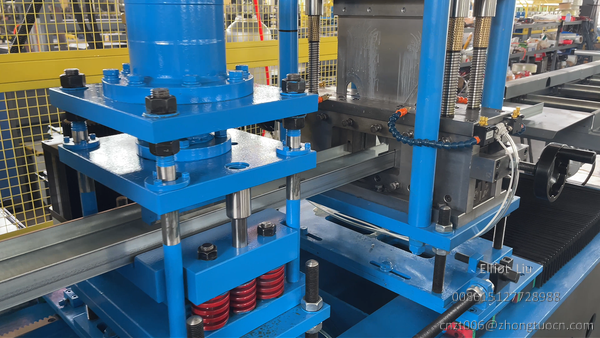

• Profile precision: Cr12MoV/D2 forming rollers and punching dies hold profile accuracy during continuous production.

• Simple operation: PLC control with touchscreen interface makes parameter setting and daily operation straightforward.

Matching the Frame Steel Machine to CT Stud Production

For CT stud and track production, several factors should be confirmed before selecting equipment:

• Product specifications: confirm cross section sizes and web height range

• Material range: check that your galvanized coil thickness and yield strength fall within the machine's working range

• Production environment: confirm site power conditions and operating environment in advance so installation and commissioning proceed smoothly after delivery

For Building Material Automatic Production Line configurations, output requirements can be matched to your project needs. For specific configuration recommendations based on your product requirements and production conditions, feel free to reach out.
