For 0.4mm-0.6mm Galvanized Steel Roofing Sheet Glazed Tile Making Arching Machine with Motor and Pump 3-4m/min+7.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

For 0.4mm-0.6mm Galvanized Steel Roofing Sheet Glazed Tile Making Arching Machine with Motor and Pump 3-4m/min+7.5kw

Name: For 0.4mm-0.6mm Galvanized Steel Roofing Sheet Glazed Tile Making Arching Machine with Motor and Pump 3-4m/min+7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT52757085

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

3-4m/min

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Arching Machine
Tile Type
Steel
Use
ROOF
Voltage
380V,50HZ,3P or as request
Rolling Thinckness
0.4-0.6mm
Feeding Width
1200mm

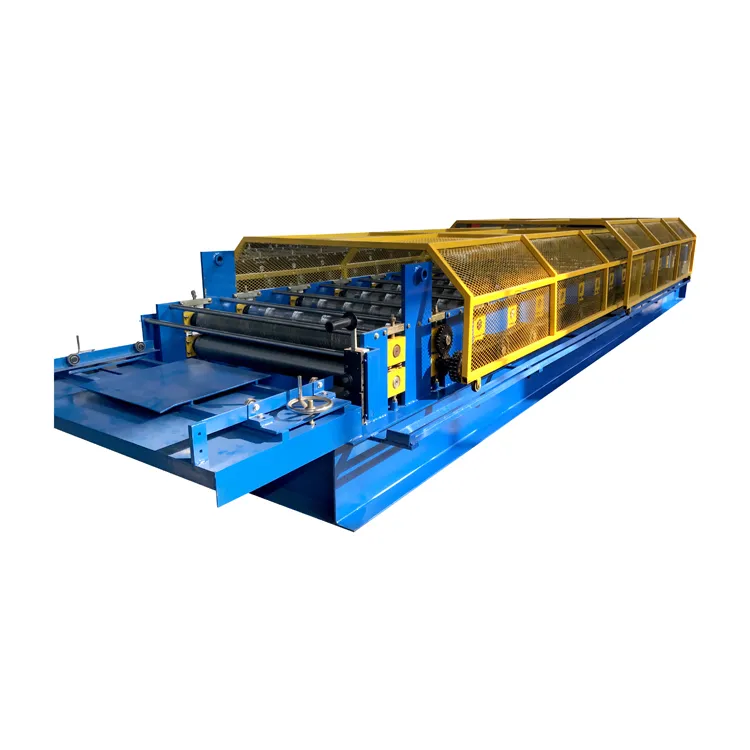

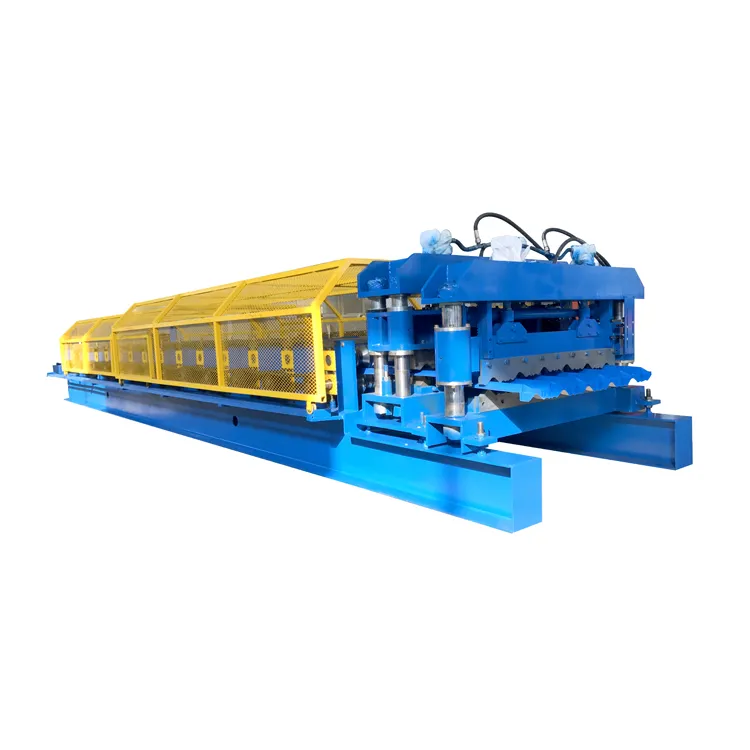

ZTRFM Full Automatic Glazed Roll Forming Machine Building Materials Roof Tiles Machine

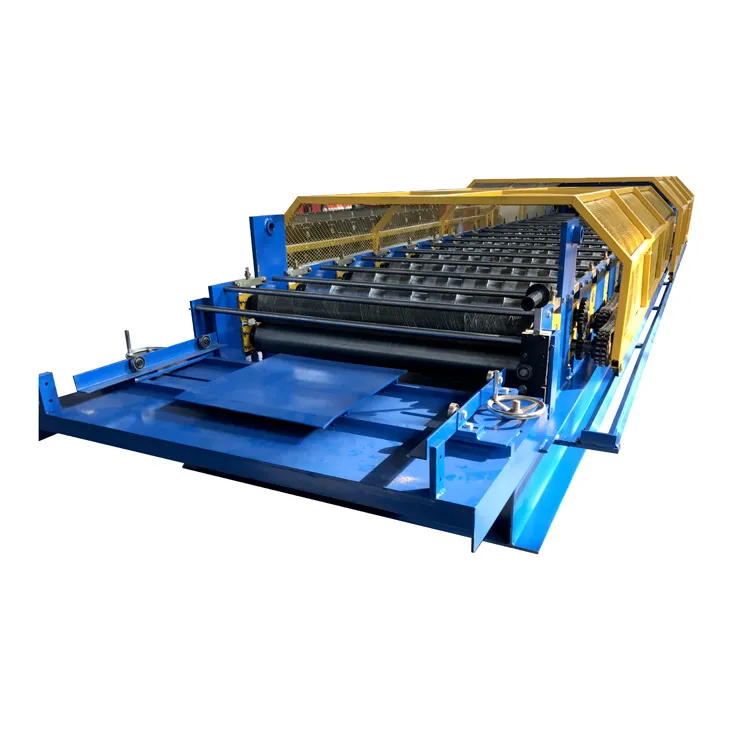

ZTRFM Full Automatic Glazed Roll Forming Machine Building Materials Roof Tiles Machine is used for making the color glazed tiles in batch. This machine adopted PLC control cabinet achieved full automatic easy operation produce. As the machine customized,the finished products shape and machine speed specifications we can design for you as your need.

The working flow as below:

Decoiling---Feeding width---Main roll forming machine--- Shearing system---PLC Control system---Receiving table

ZTRFM Full Automatic Glazed Roll Forming Machine Building Materials Roof Tiles Machine
Formed Material	GI,PPGI
Thickness	0.4-0.6mm
Roller station	16 rows(As your requirement of profile)
Roller material	45# steel with quenched treatment
Shaft diameter	80mm solid shaft
Shaft material	45# steel with tempered
Transmission	By chain
Motor power	15KW
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	5.5kw
Cutting blade material	Cr12 with quenched treatment
Control system	PLC

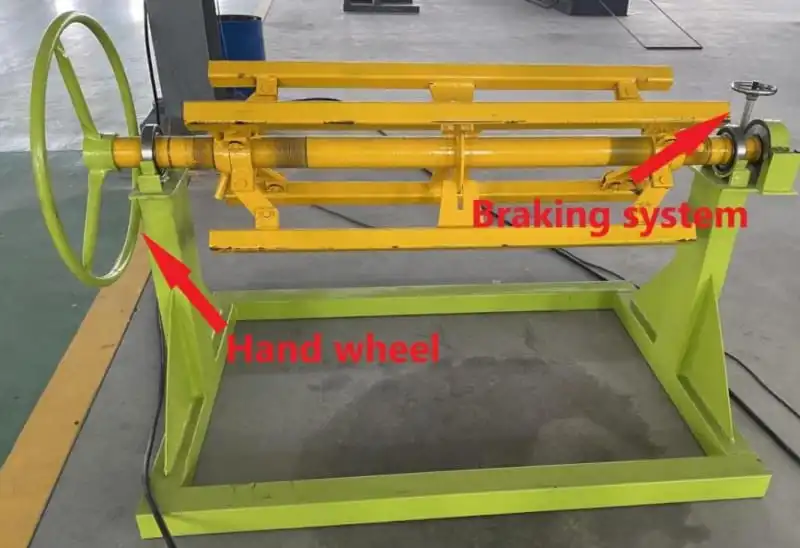

Manual decoiler

1. Capacity: 5T
2. Coil diameter: 450-550mm
3. Coil outer diameter: 1500mm
4. Coil width: 1250mm(as customers' request)
5. Structure: welded by the steel plates and profiled bar.

Feeding Part

1. The feeding rollers which we use is stainless steel.
2. And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.

3. Hand wheels on both sides can be used to adjust the feeding width.

4. There are two rows of orange plastic rollers can make the steel coil go into the machine smoothly.

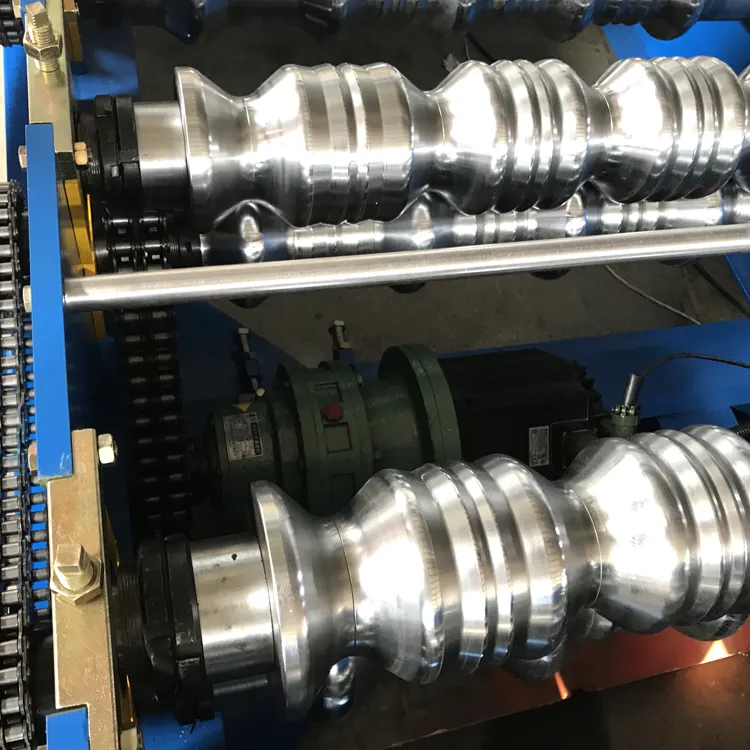

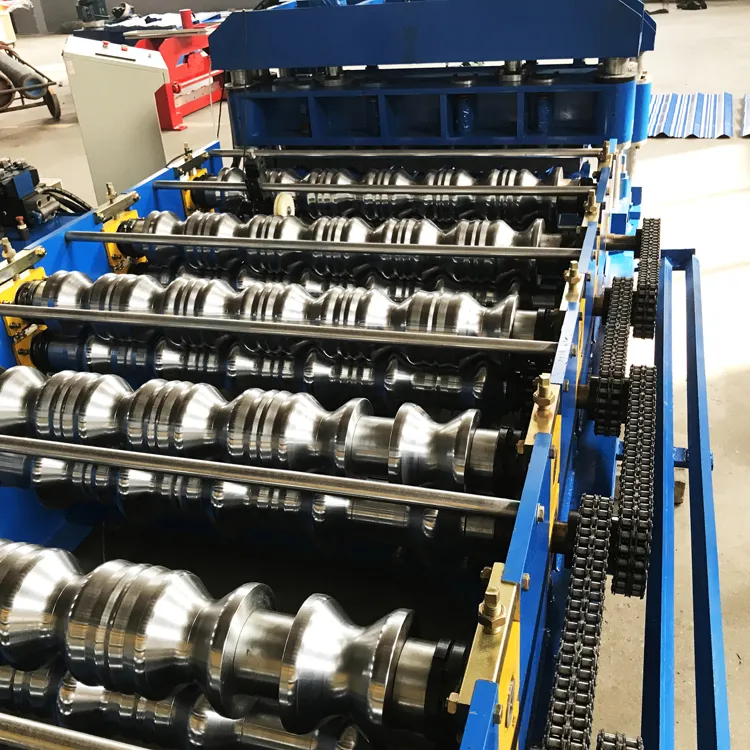

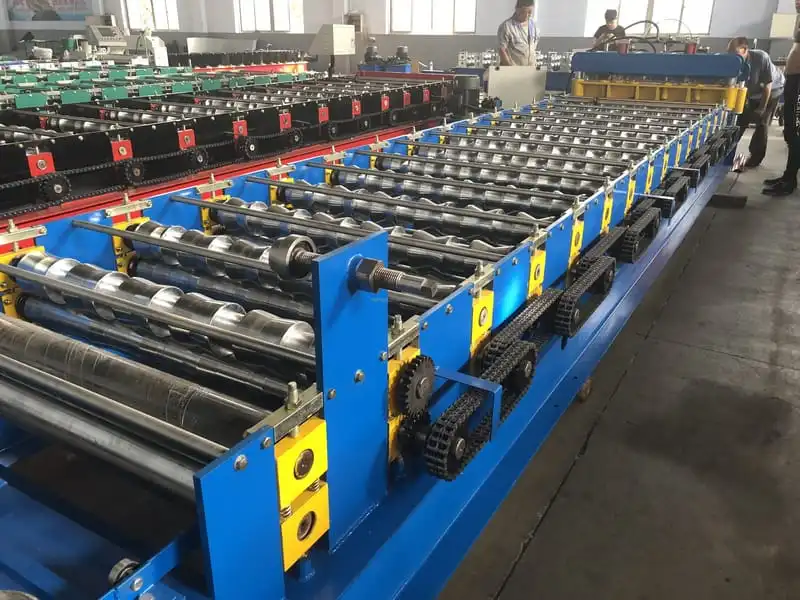

Roll Forming System

1. Frame: 350H steel,with 20mm middle plate support
2. Roller stations: 16 stations(depend on the profile drawing)
3. Roller material: 45# steel with quenched treatment and hard chroming
4. Shaft diameter: 80mm,solid
5. Shaft material: 45# steel with tempering treatment
6. Motor power: 7.5kw

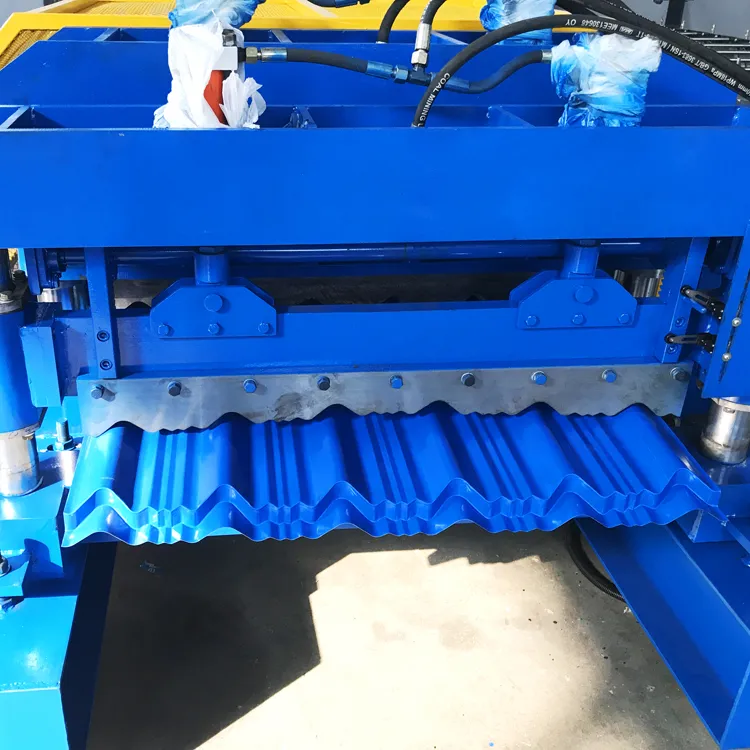

Hydraulic Cutting Device

1. Blade material: Cr12, with quenched treatment
2. Hydraulic power: 7.5kw
3. Cutting tolerance: ±1mm
4. With fan cooling on the oil pump

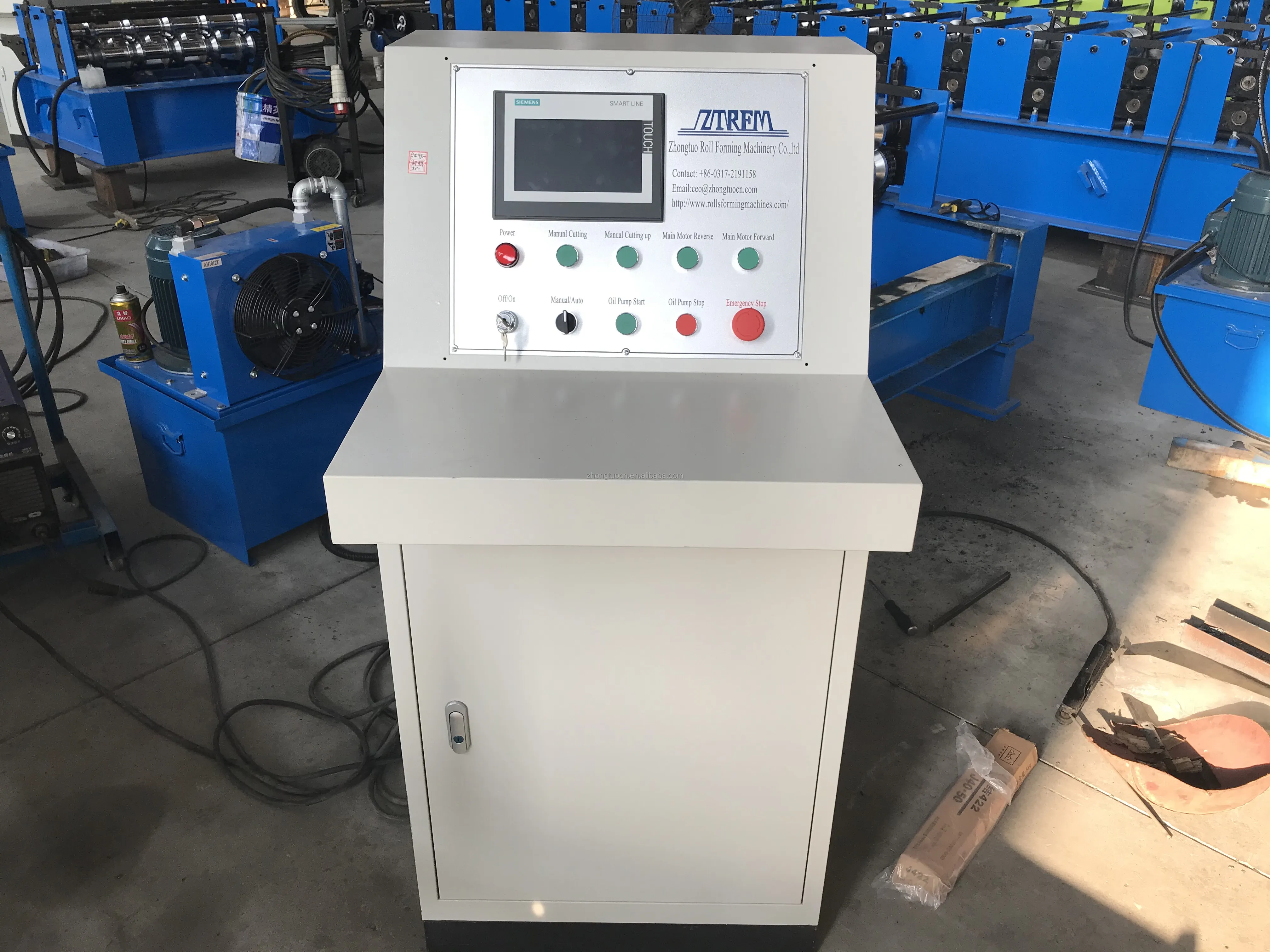

PLC control system

1. Control system: PLC
2. PLC brand: Delta from Taiwan
3. Frequency converter brand: Delta from Taiwan
4. Encoder: Omron
5. Function: Automatic control the length and quantity

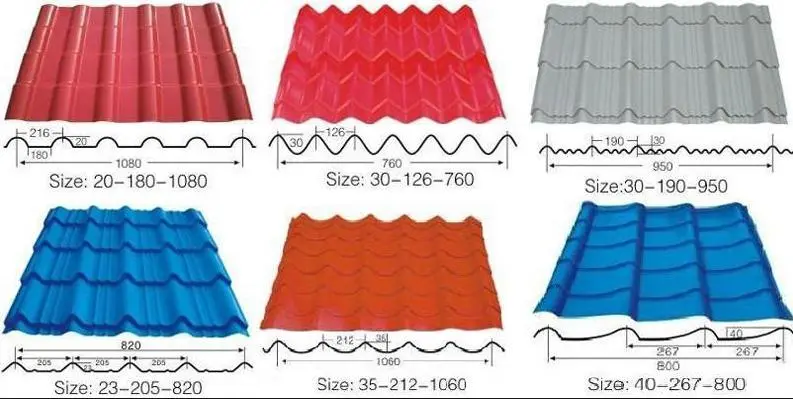

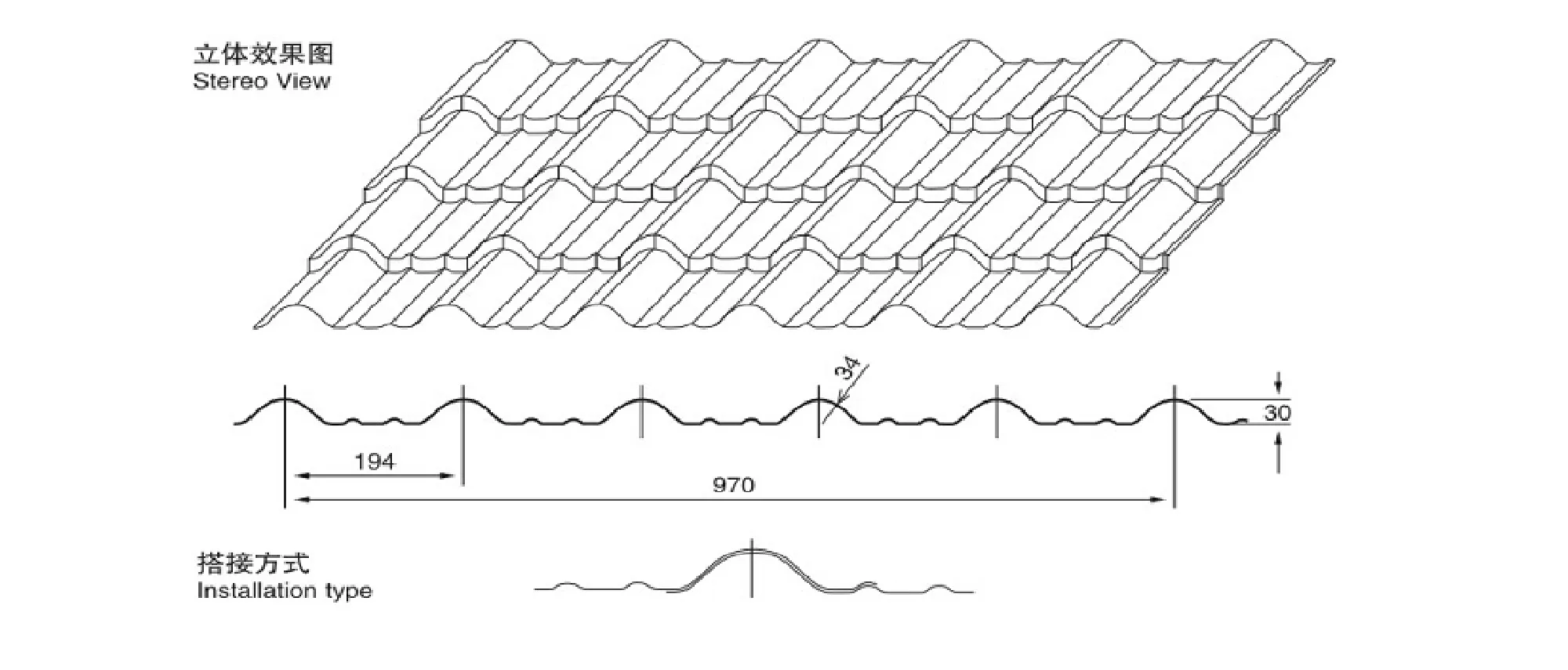

Take the following drawing profile for example:

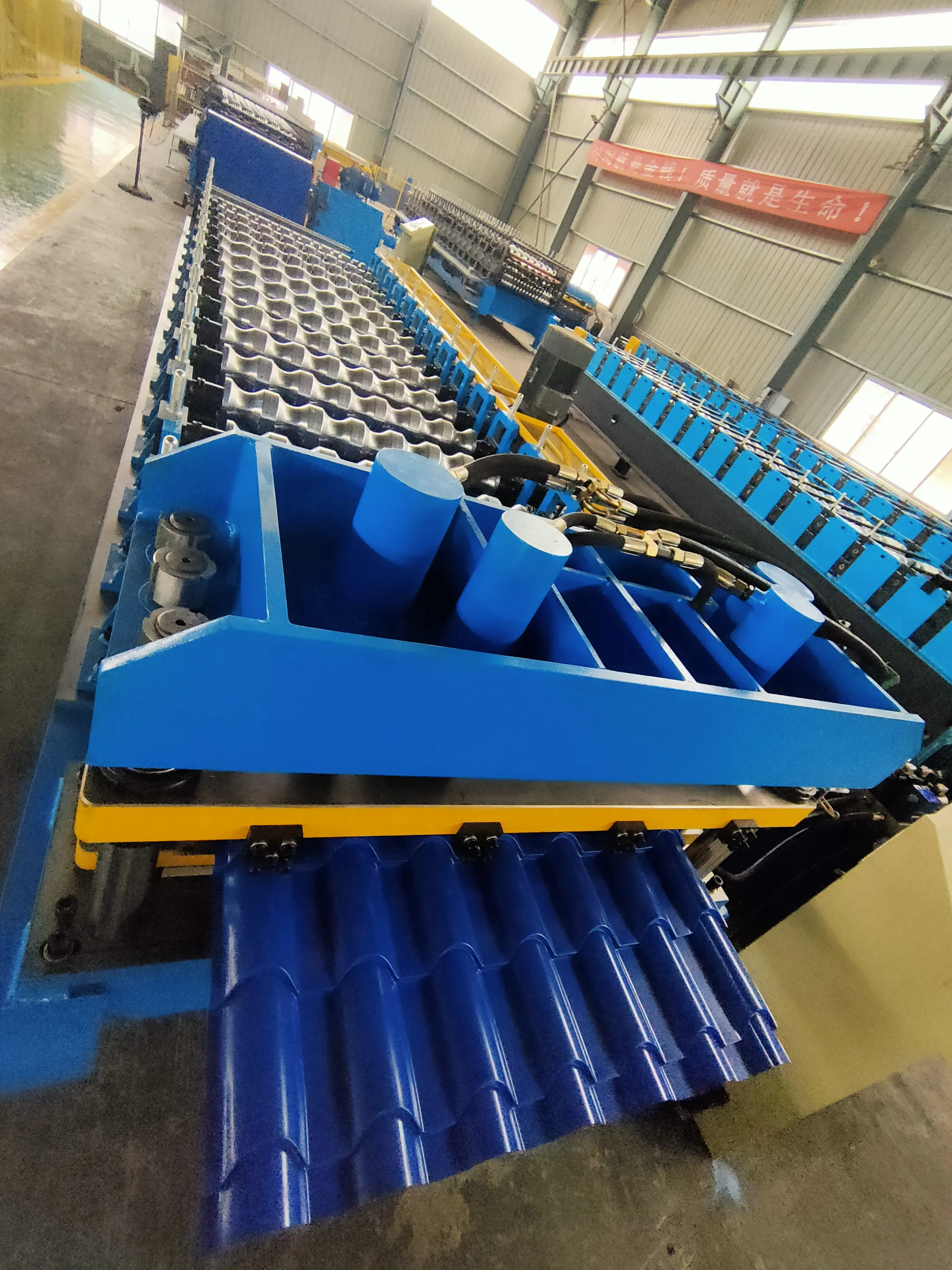

Stereo View for reference:

The finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance.

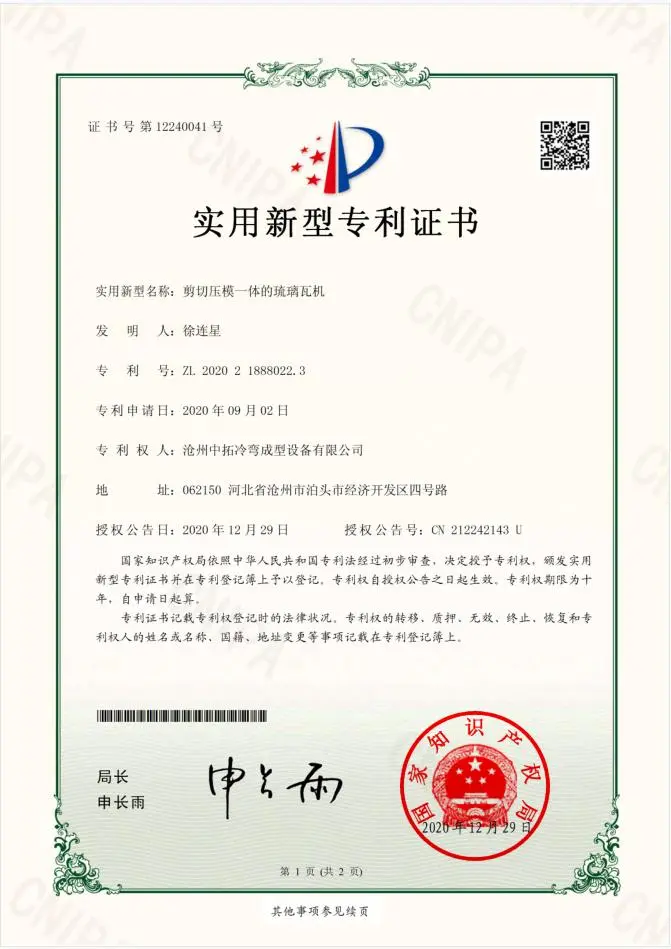

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
