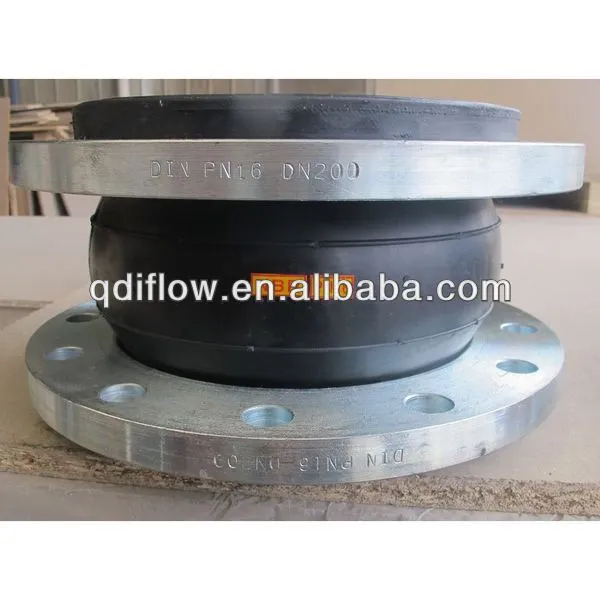

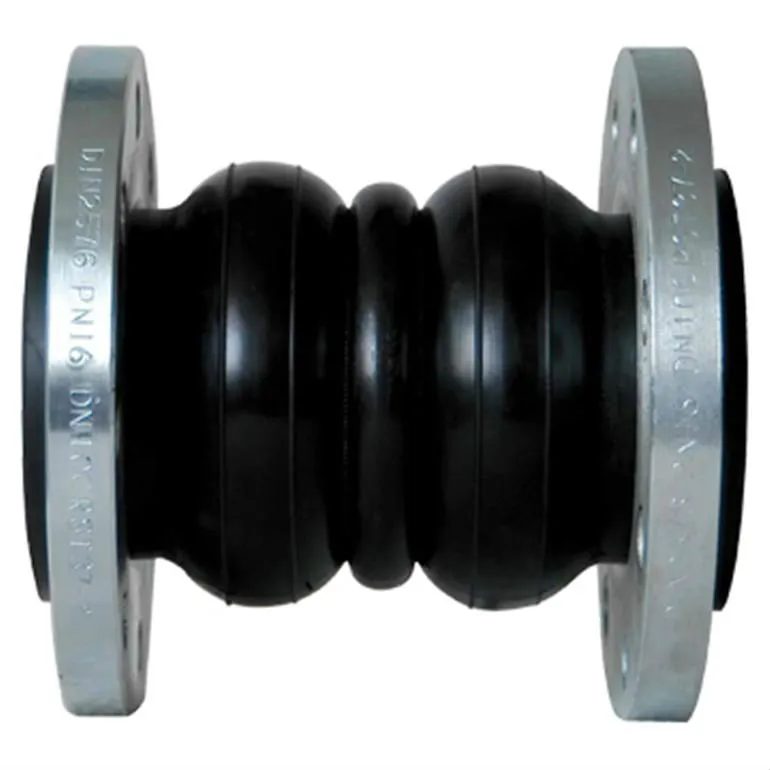

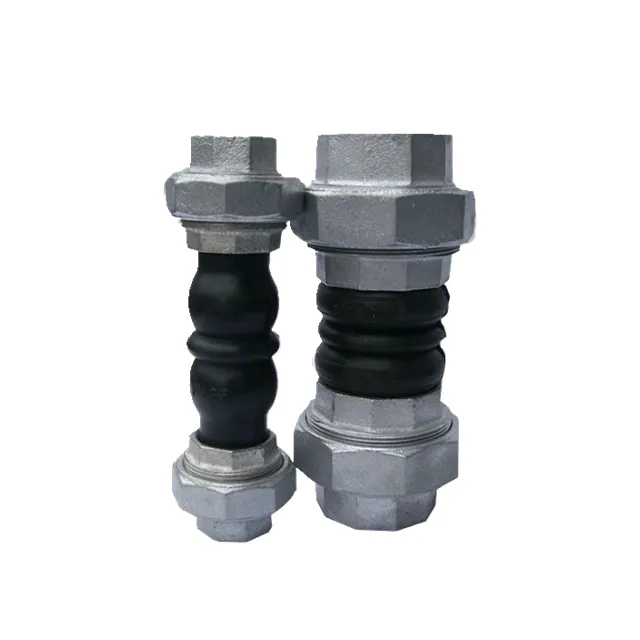

Flexible rubber expansion joints in EPDM, NBR, NEOPRENE
Outer & Inner Rubber: EPDM,NR,NBR,NEOPRENE, HYPALON
Casing Ply. : Nylon Polyester Fabric
Strengthen Ring: Steel wire ring
Flange: Q235, SS304, SS316
Technical data:
|
Model |
KXT-1 |
|
KXT-2 |
KXT-3 |
|
Working Pressure MPa(Kgf/cm2) |
1(10) |
|
1.6(16) |
2.5(25) |
|
Burst Pressure MPa(Kgf/cm2) |
2(20) |
|
3(30) |
4.5(45) |
|
Vacuum Degree KPa(mmHg) |
53.3(400) |
|
86.7(650) |
100(750) |
|
Suitable Temperature °C |
-15~115 (-30~250 for special materials) |
|||
|
Suitable Medium |
Air, Compressed Air, Fresh Water, Sea Water, Oil, Acid, Alkali etc. |
|||
Dimensions:
|
Nominal Diameter DN |
Length mm |
Axial Displacement |
Lateral Displacement mm |
Deflection Angle a1+a2 |
||
|
mm |
Inch |
Extension mm |
Compression mm |
|||
|
32 |
1 1/4 |
95 |
6 |
9 |
9 |
15° |
|
40 |
1 1/2 |
95 |
6 |
10 |
9 |
15° |
|
50 |
2 |
105 |
7 |
10 |
10 |
15° |
|
65 |
2 1/2 |
115 |
7 |
13 |
11 |
15° |
|
80 |
3 |
135 |
8 |
15 |
12 |
15° |
|
100 |
4 |
150 |
10 |
19 |
13 |
15° |
|
125 |
5 |
165 |
12 |
19 |
13 |
15° |
|
150 |
6 |
180 |
12 |
20 |
14 |
15° |
|
200 |
8 |
210 |
16 |
25 |
22 |
15° |
|
250 |
10 |
230 |
16 |
25 |
22 |
15° |
|
300 |
12 |
245 |
16 |
25 |
22 |
15° |

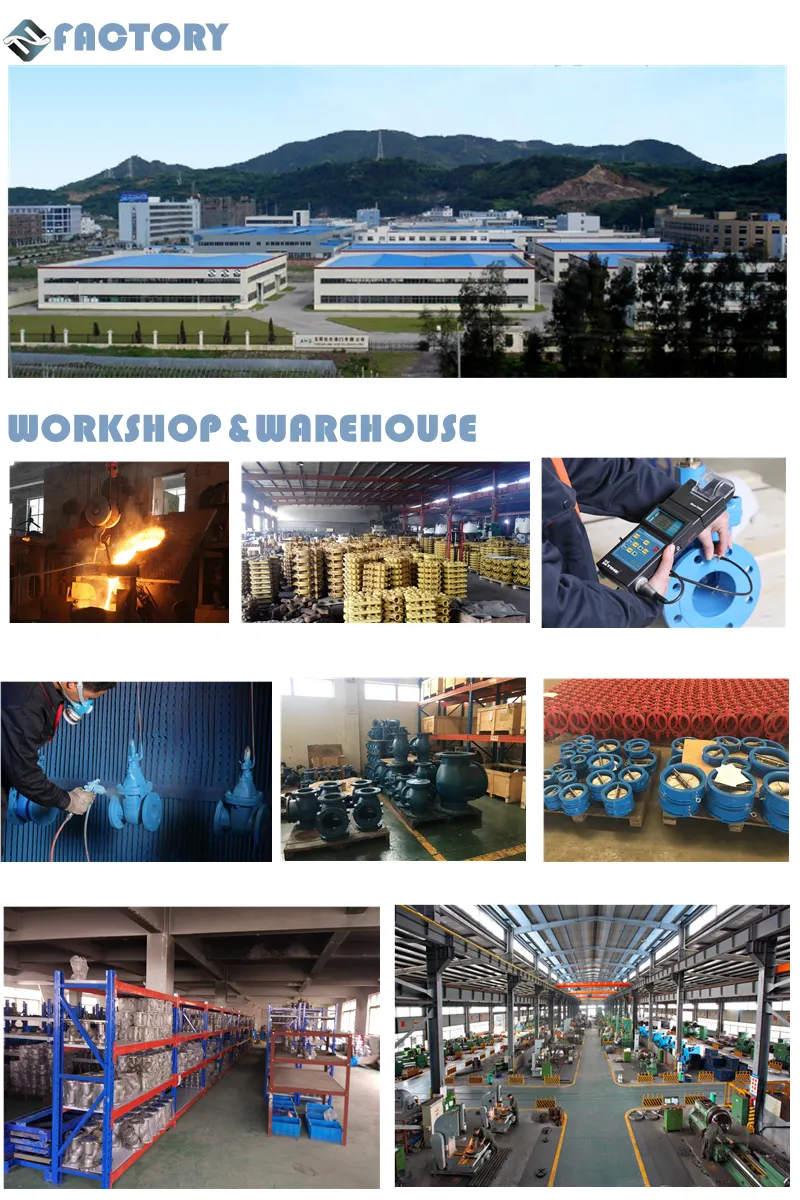

Company Profile
I-Flow has been specializing in flow control area for more than 15 years.
As a professional supply chain manager of flow control products, I-Flow offer gate,globe,check,butterfly,ball, JIS and DIN marine valves,strainers,actuators, flanges, pipes and fittings,with pressure range from 0.5-6.4MPA, size from DN15-DN3000, as well as valve design, inspection, consultation services etc.
With profound understanding of the importance of customer requirement and 15 years experience,we offer highly cost-effective products,enjoying a good reputation. And we have various kinds of certificates, such as ISO9001, API, ABS,PED, UL,FM, WRAS, DVGW, DNV, LR, BV etc, selling to more than 30 countries. Being a reliable partner, we are looking forward to cooperating with you.
