Technical Specifications
- Type
  Tile Forming Machine
- Tile Type
  Steel
- Use
  ceiling
- Voltage
  380V-3P-50HZ
- Rolling Thinckness
  0.3-1.2 mm
- Feeding Width
  Other
Light gauge galvanzied steel frame U C channel metal track stud machine use for construction

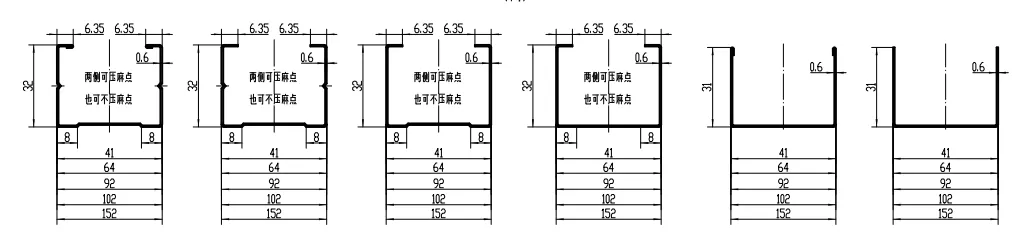

Profile drawing for reference:

Processing Flow

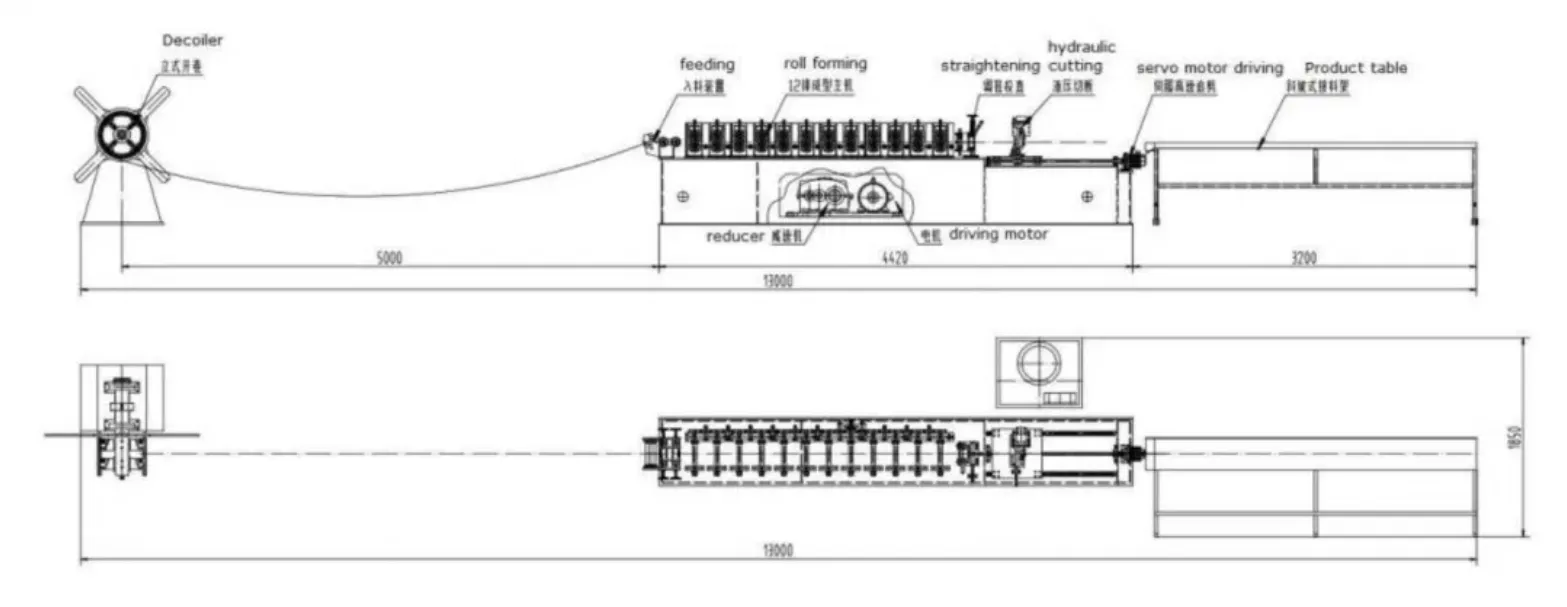

Work flow for automatic stud & track machine:
Uncoiling---feeding material---roll forming---tracking punching---tracking cutting---automatic stacker and bundling machine

About Material
Raw material
Galvanized steel & H.R
Material thickness
16-24 gauge
Cutting length
Adjustable

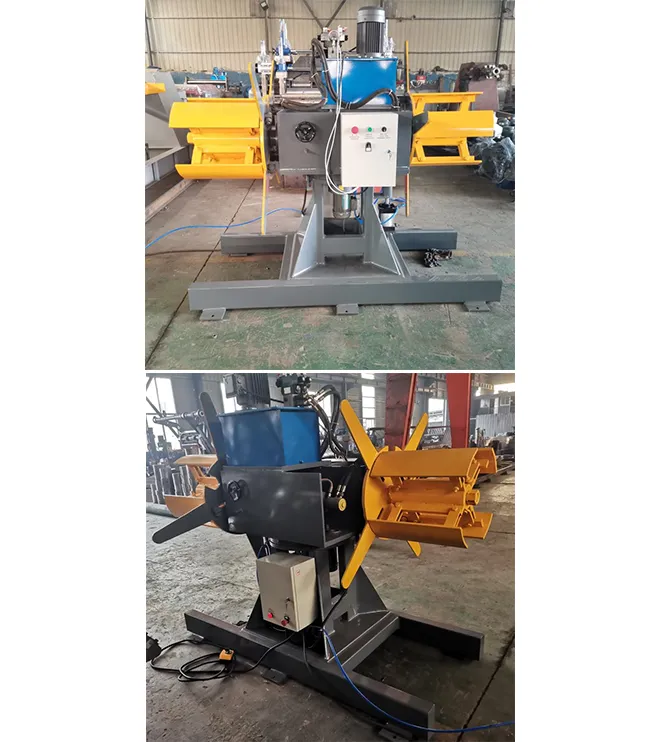

Double Head Hydraulic Decoiler
Loading capacity：3T + 3T Power：Hydraulic power tensioning and loosening and Electric power for turning Coil inner diameter：450-550
mm (adjustable) Details of the decoiler： 1)Tension cylinder diameter : 125*80mm 2)Tension stroke: 470-525mm 3)Rotation mode:
electric rotation, motor 0.75kw 4)Host feeding: passive feeding, wireless remote control of the control system 5) Main hydraulic
pump station power : 3kw

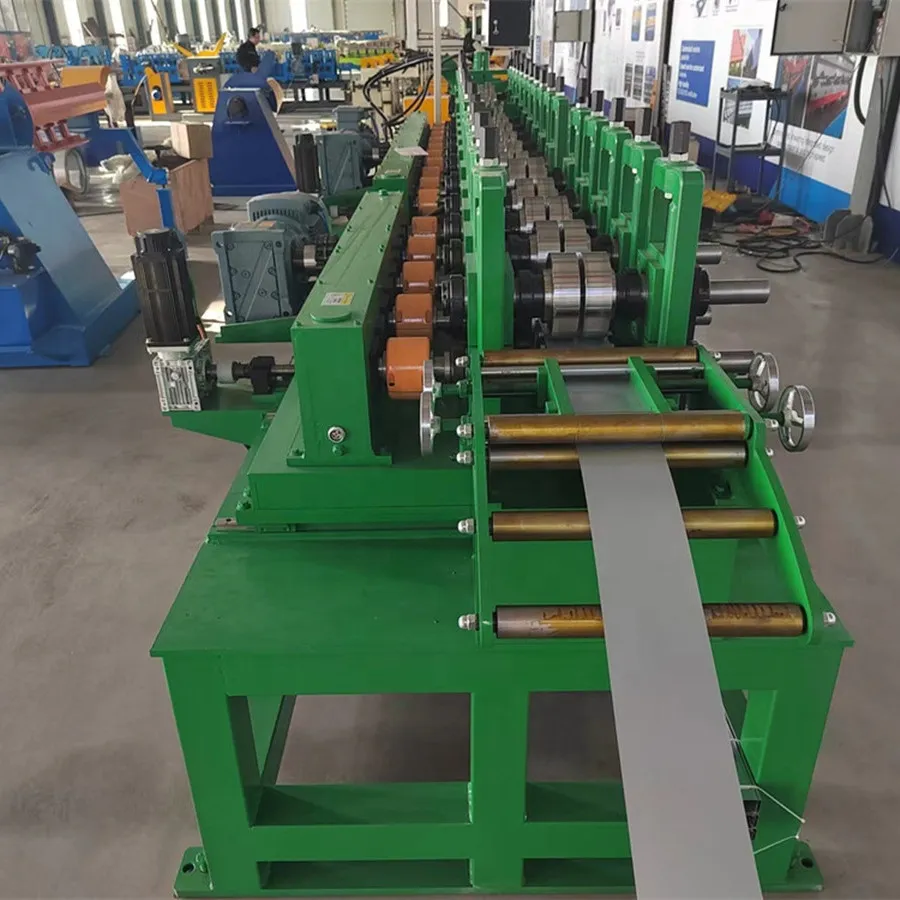

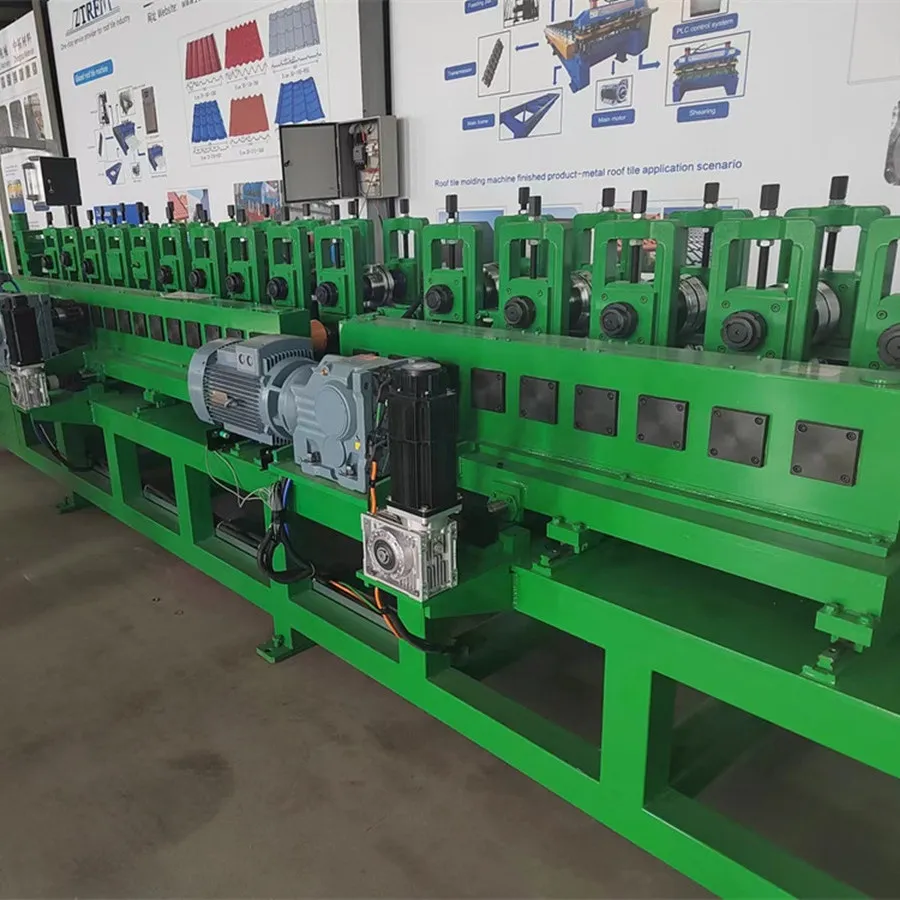

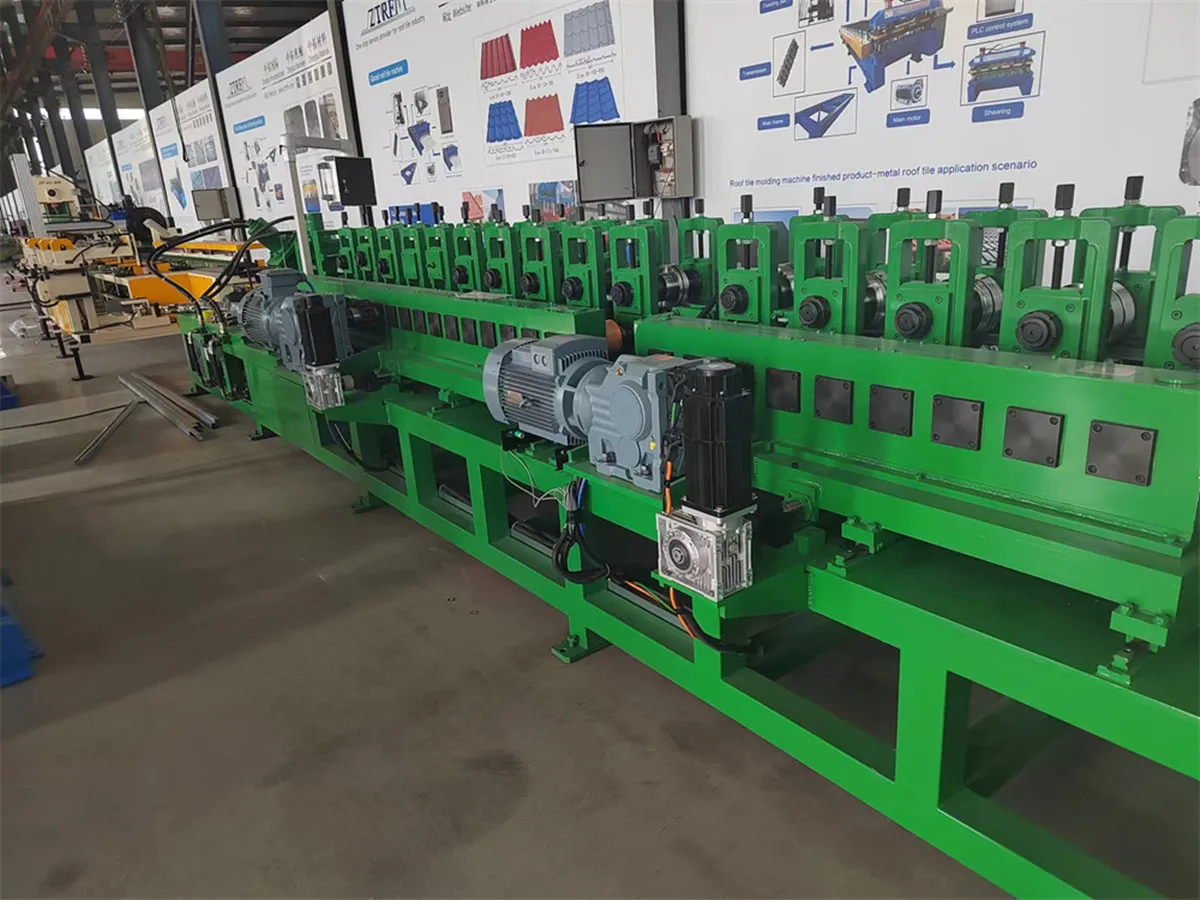

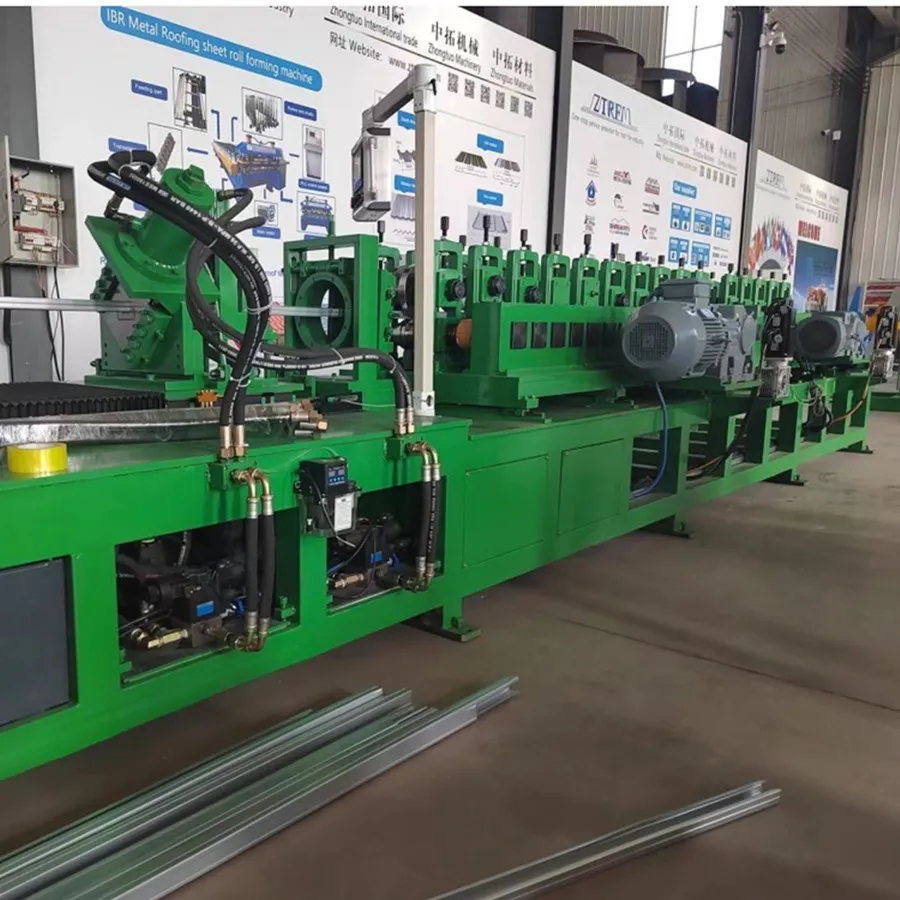

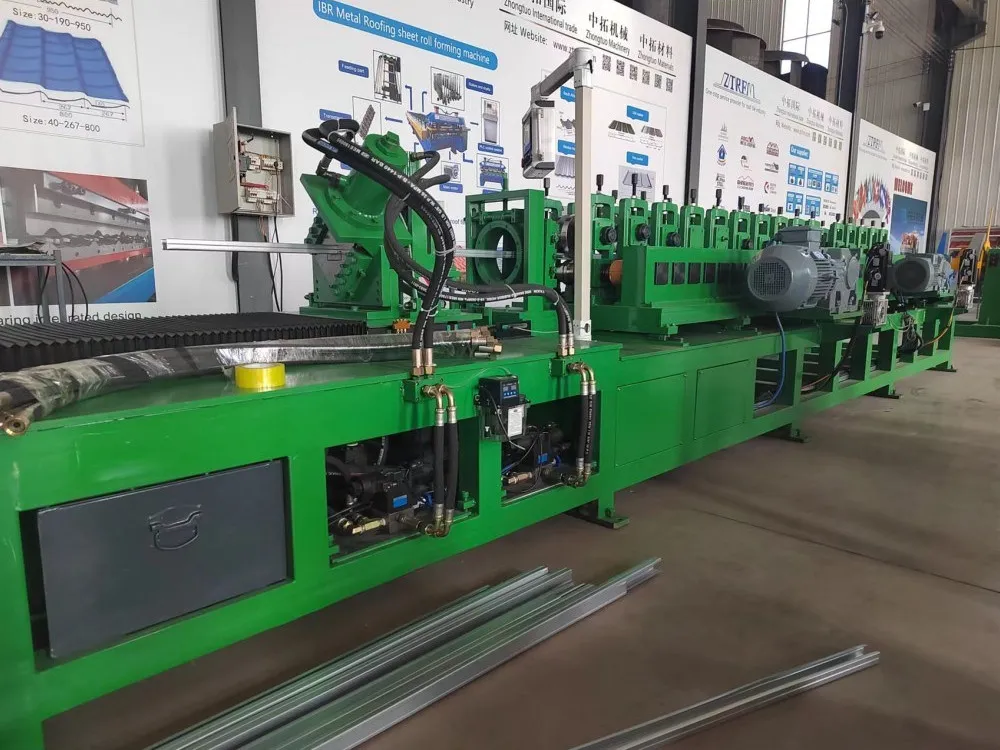

main roll forming machine

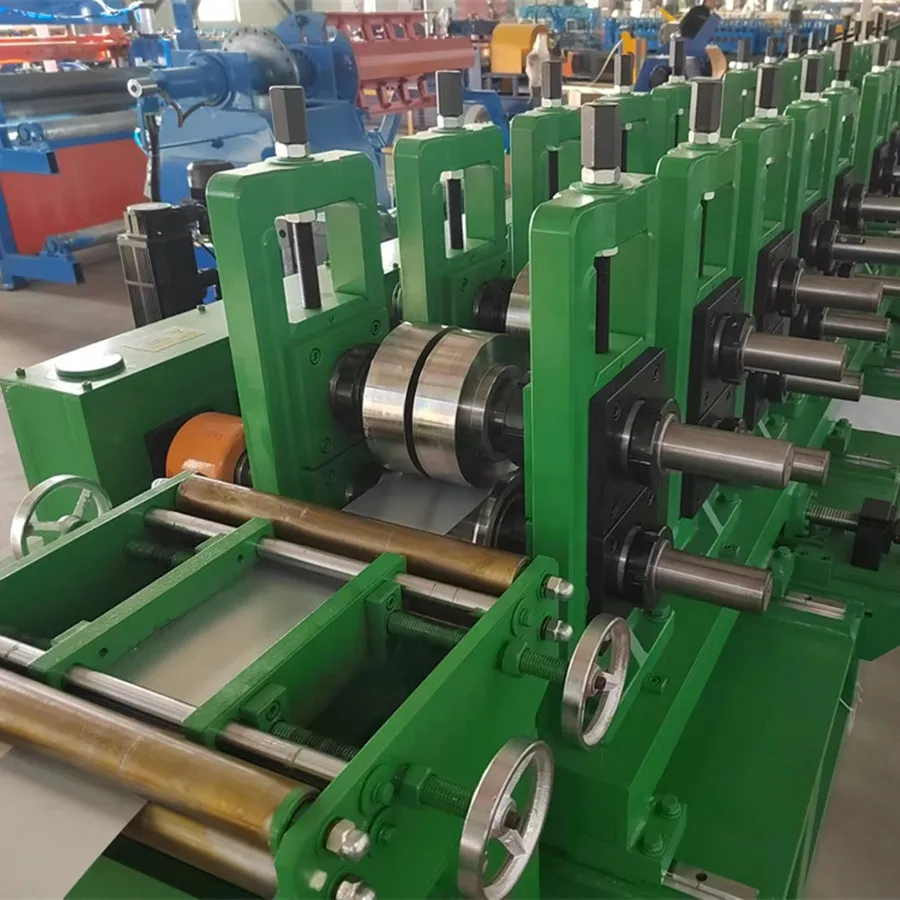

rolling station: 14 rolling station,
shaft: 45#, diamdeter 60mm
rollers : Cr12 quenched , HRC 58-60
speed: 0-70m/min
arch way structure, with movable frame, change size automatic
basic frame: steel channel and plate welded
main motor: 7.5kw*2 set
cutting type: hydraulic cutting, servo motor 2.3kw
punching unit: punching holes / logo

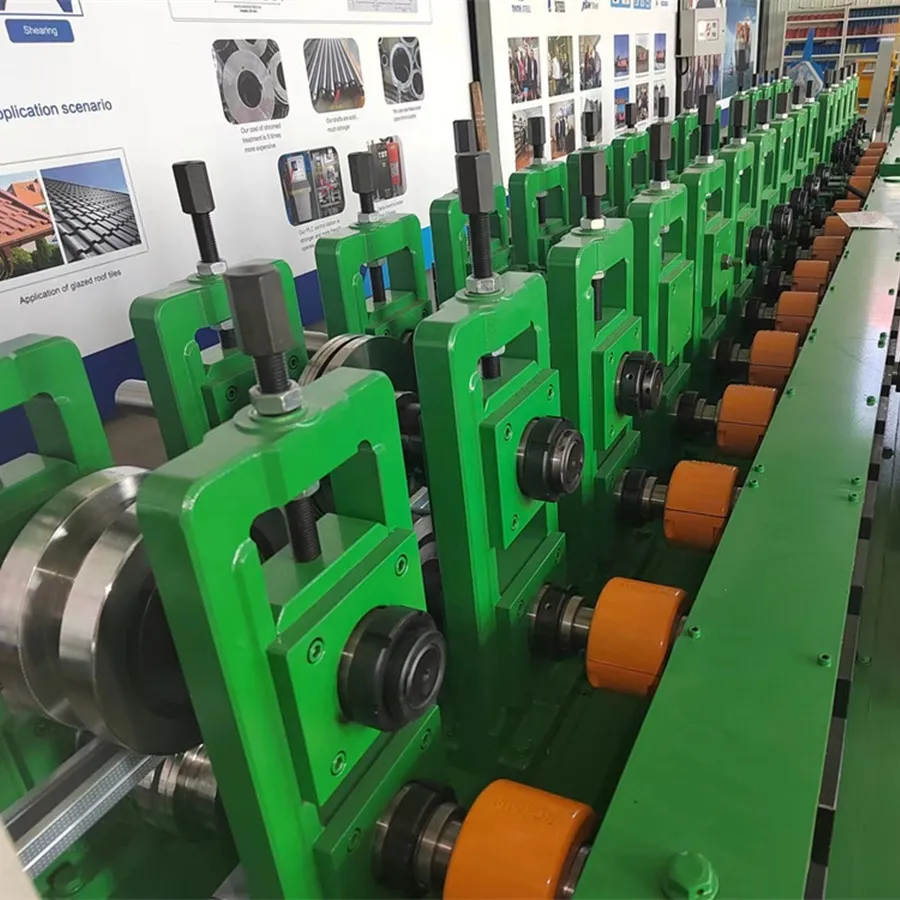

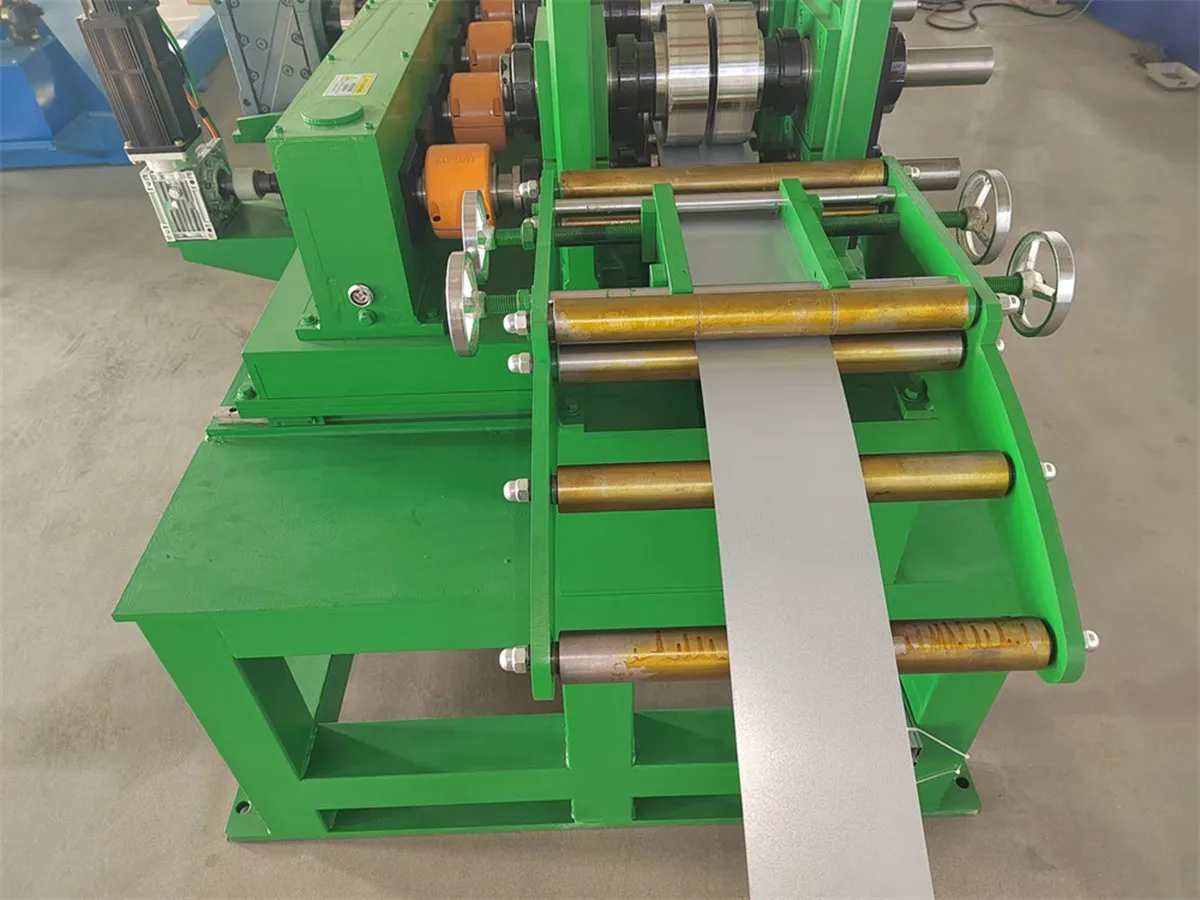

feeding device
feeding device: 3 support rollers, 1 press rollers, turnable and smoothly, help feeding steel stip
there are 4 hand wheels, use to adjust the entrance width, in order to produce different size;
guiding device: help steel stip feed into main roll forming machine smoothly, and ensure steel stip in the center of prodution line

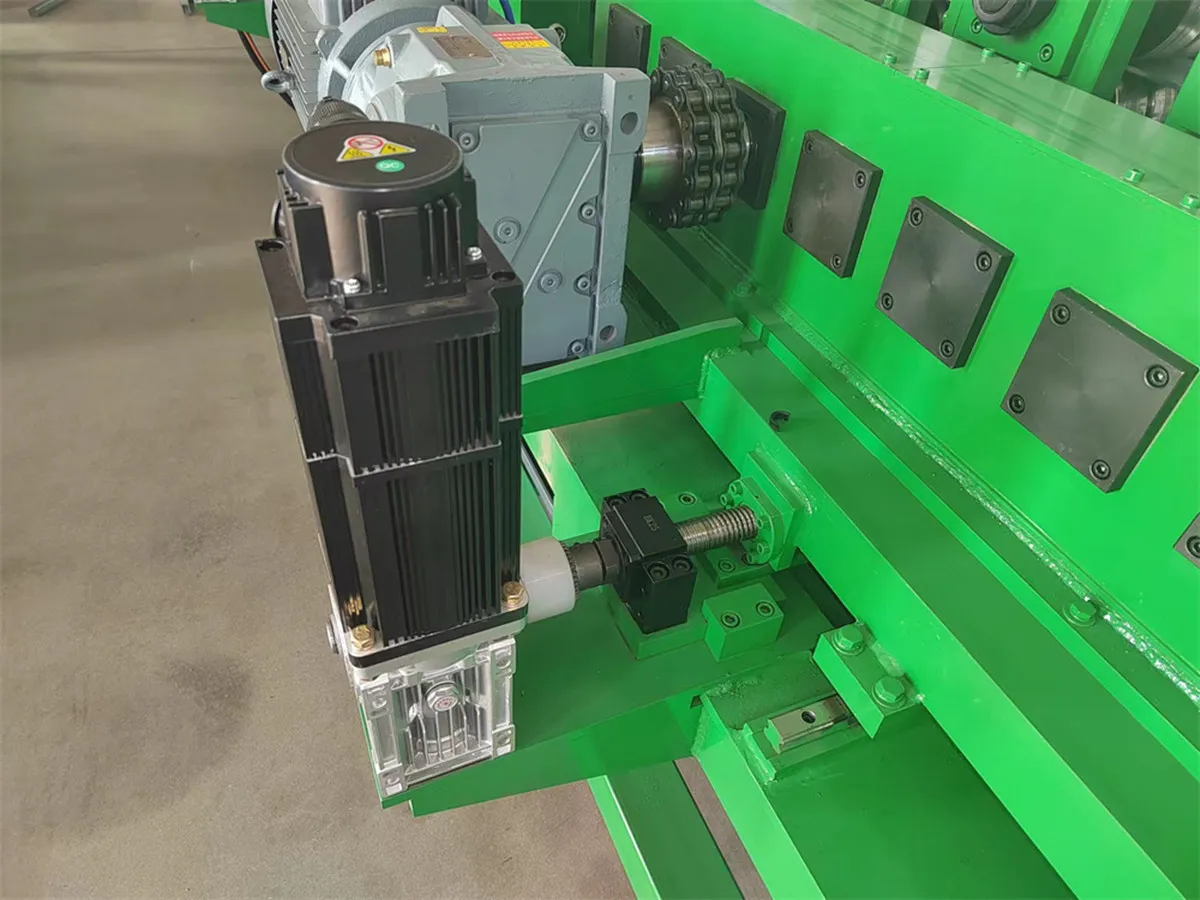

change size through servo motor
servo motor, controlled movable frame, change size automatic

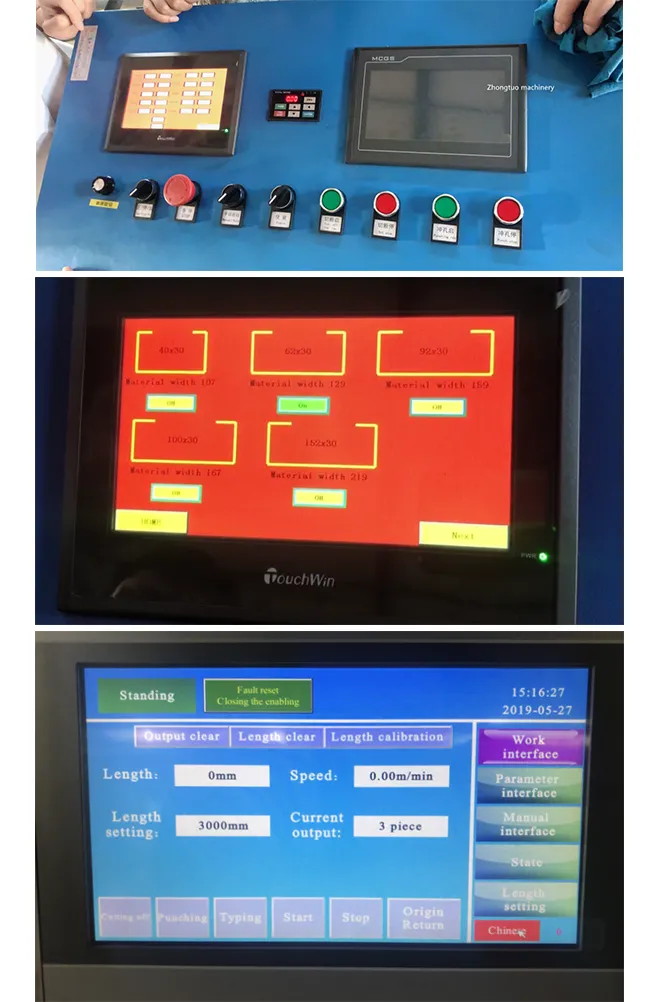

PLC Control System
Note: There are two screens on the PLC control station, one screen is used to set the product size you want to produce, then the machine will adjust automatically according to what you set, another screen is used to set the speed, length and other specifications of the machine. Frequency brand：Delta (original) PLC & Screen brand：Xinjie, China Screen type：Touch screen & buttons Screen language：English/Chinese Encoder：Omron Low pressure electrical part brand：Schneider Function：1.Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved; 2.Length inaccuracy can be amended easily

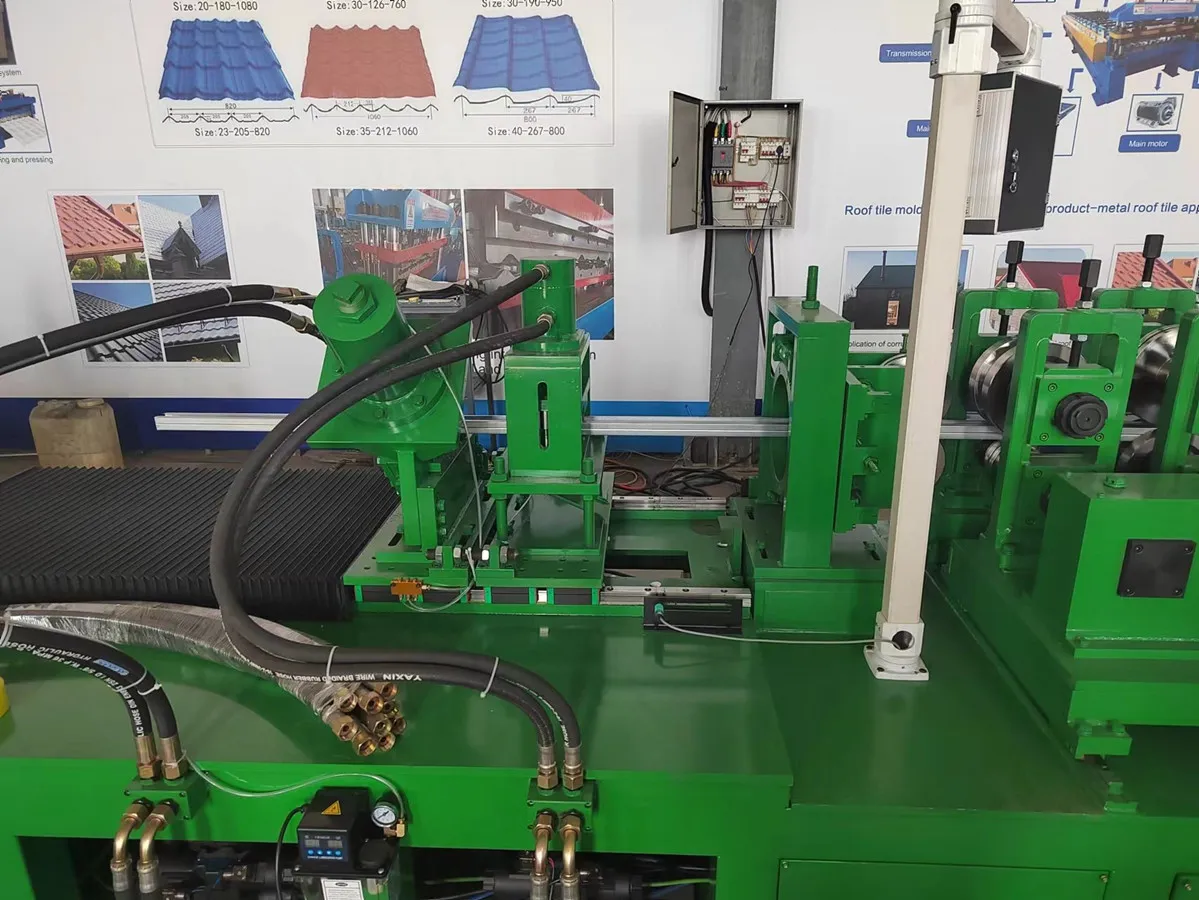

punching device and cutting system
Feature：The cutter with different sizes according to the product dimension. Work type：Servo flying Hydraulic cutting system Servo
flying Punching system Servo motor power：YASKAWA 5.5 kw Hydraulic power：5.5+5.5 kw; 5.5+5.5 kw Driving method：By pillar type
Cylinder Cutter material：GB-Cr12 Cutting length tolerance：±1mm/3m Cutting feature：Flying cutting. When the machine cutting it will
not stop

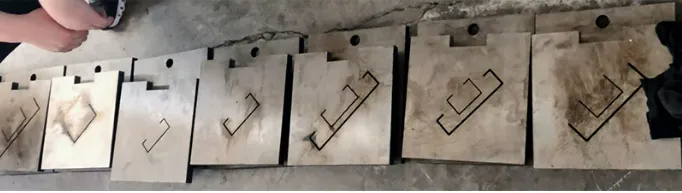

cutting blade
when change different size, need change cutting blade; it is easy to operate

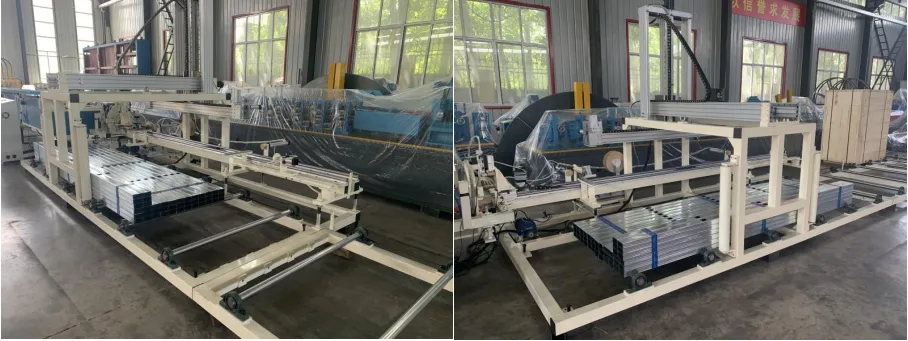

Automatic Stacker & Bundling Machine
Table quantity：1 set Profile length：Within 4m per piece Maximum speed：70m per minute Dimension：8.5m x 2.5m

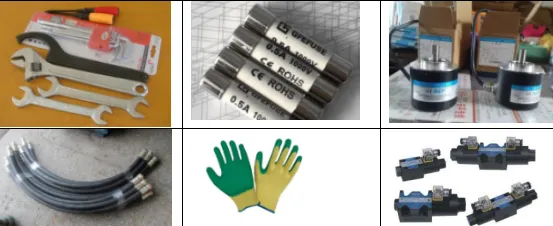

Spare Parts
Maintain tools：1 set Spare glove：3 pieces Spare fuse：3 pieces Spare encoder：2 pieces Instruction manual：1 book Spare oil pipe：4 pieces Solenoid valve：2 pieces Spare blade：1 full set

Afer-Sale Service
1.Payment: 30%T/T in advance and 70%balance after testing and before shipment. 2.Delivery: 70 working days after the deposit. 3.After-sales service A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available. B: Training and service: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD 100/person/day for salary. C.We have a team of skilled engineers and one team for after-sale service, when you meet any problem, contact us freely, we will help you solve that We will provide you the manual for installation, operation and maintenance in English. And all connection parts, we will mark labels for you before delivery, easy for installation.

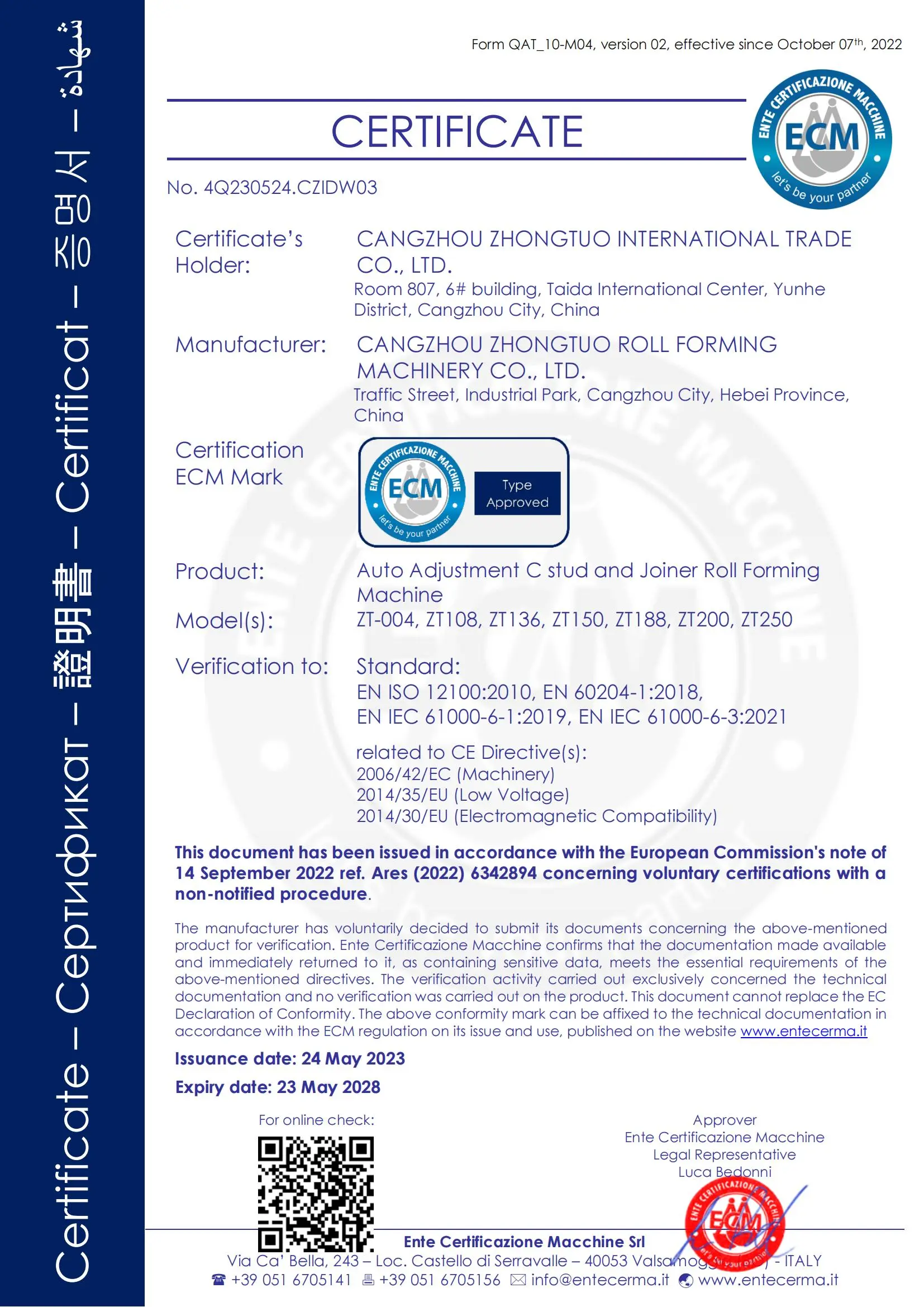

No. 4Q230524.CZIDW03
