FarSun Adjustable Triangle Racks PV Mounting Support 10-15 / 15-30 / 30-60+Al6005-T5 & SUS304+Ground Mounting

FarSun Adjustable Triangle Racks PV Mounting Support 10-15 / 15-30 / 30-60+Al6005-T5 & SUS304+Ground Mounting

Name: FarSun Adjustable Triangle Racks PV Mounting Support 10-15 / 15-30 / 30-60+Al6005-T5 & SUS304+Ground Mounting
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:10 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥10Set

Order CodeZT33411415

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Tilt Angle:

10-15 / 15-30 / 30-60

Material:

Al6005-T5 & SUS304

Mounting Type:

Ground Mounting

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Products Description

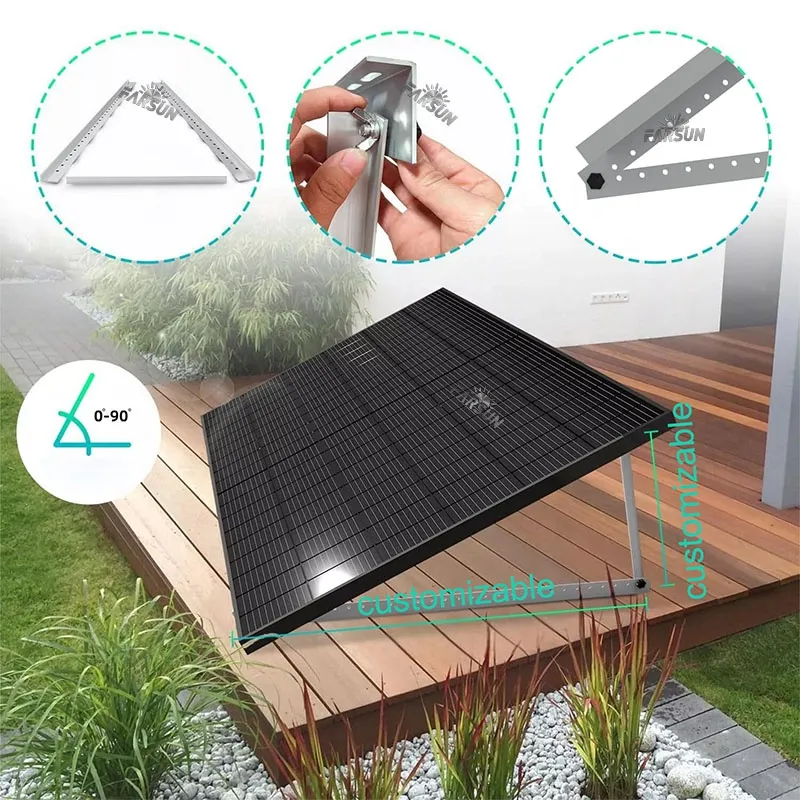

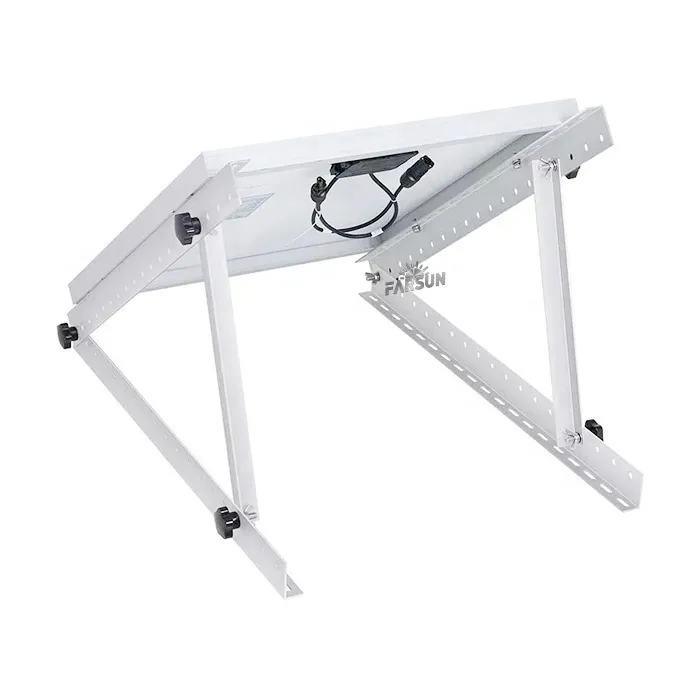

FarSun Adjustable Triangle Racks PV Mounting Support

Solar brackets are structures used to fix and support solar panels in solar mounting systems. They can ensure that solar panels capture sunlight at the most appropriate angle, thereby maximizing power generation efficiency. A triangle bracket is a common solar bracket structure, so named because its structural shape resembles a triangle.

Details Images

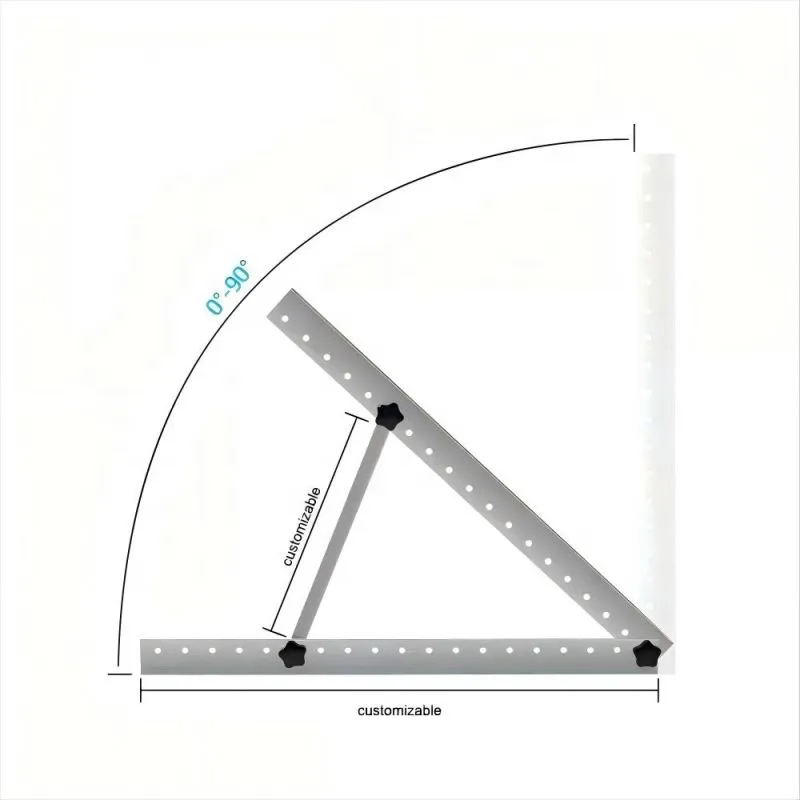

Customizable Dimensions

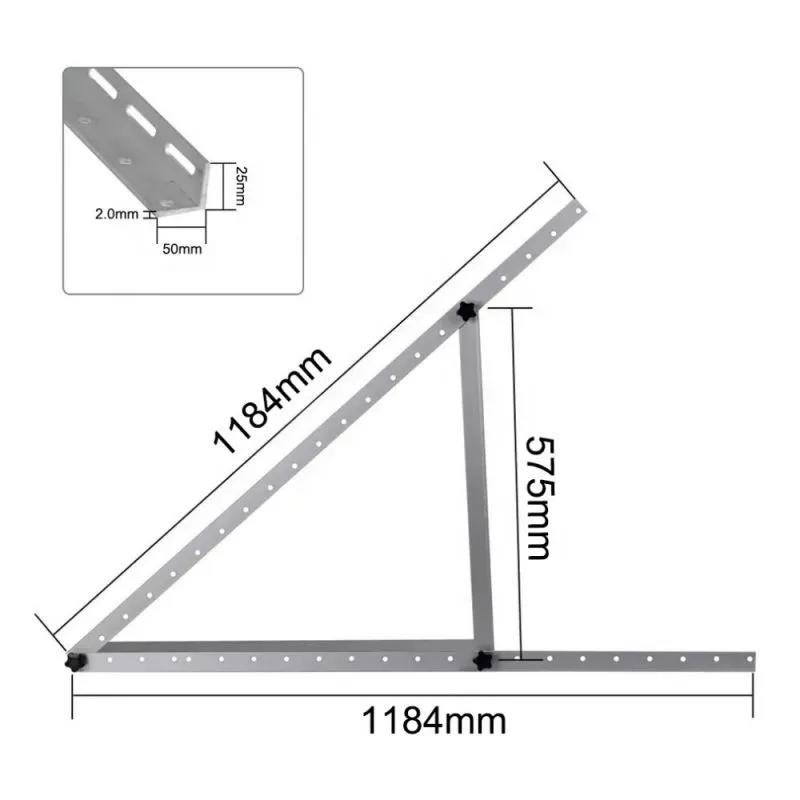

We offer two standard models of aluminum triangular brackets for solar panels:

the 40*28-T3.0 or the 50*25-T2.0. These brackets are designed to provide robust and reliable support for solar panels, ensuring optimal positioning and stability.

The dimensions of these brackets can be customized to meet specific requirements. Depending on the desired angle and size, the length of the brackets can also be tailored to fit your needs. This flexibility allows for precise installation and maximizes the efficiency of your solar panel setup.

Customizable Packaging

We also offer customizable packaging based on customer requirements.

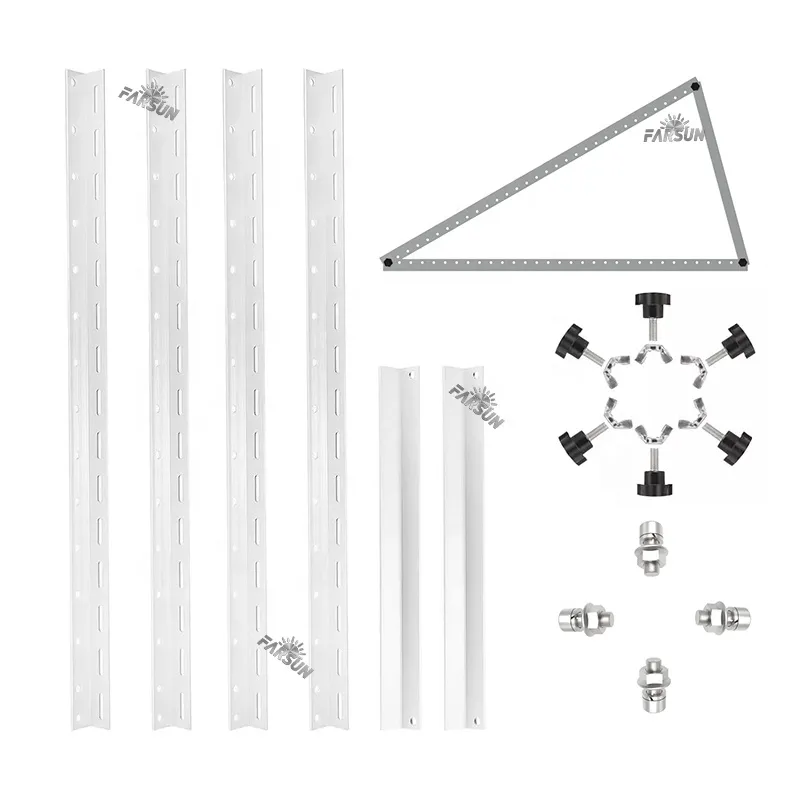

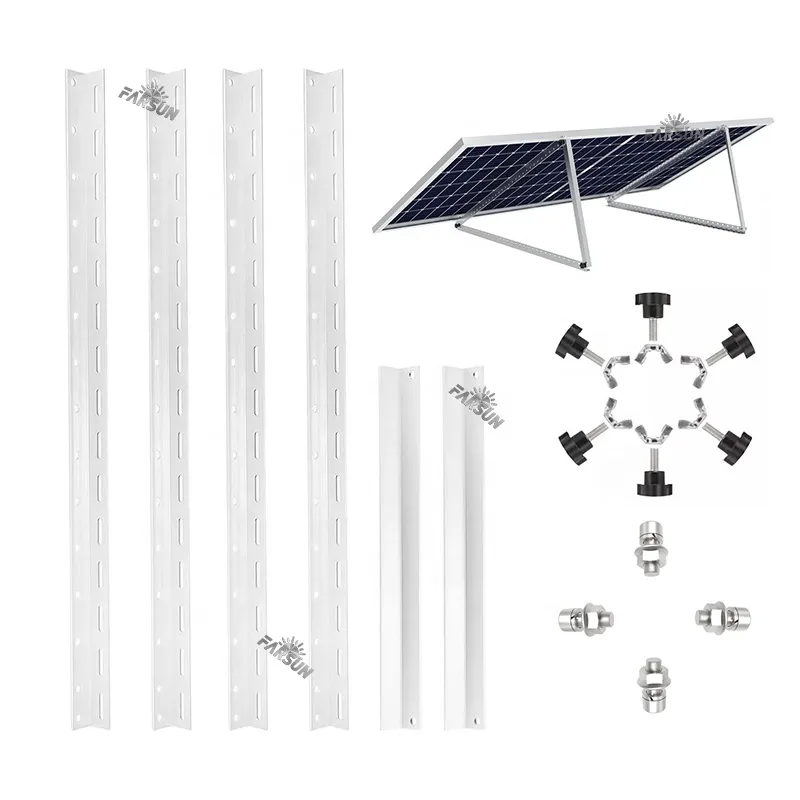

Each set for one solar panel includes: 1) 4*long rails 2) 2*support rails 3) 6*star bolt kits 4) 4*bolt kits

This comprehensive packaging ensures that you have all the necessary components for a seamless installation.

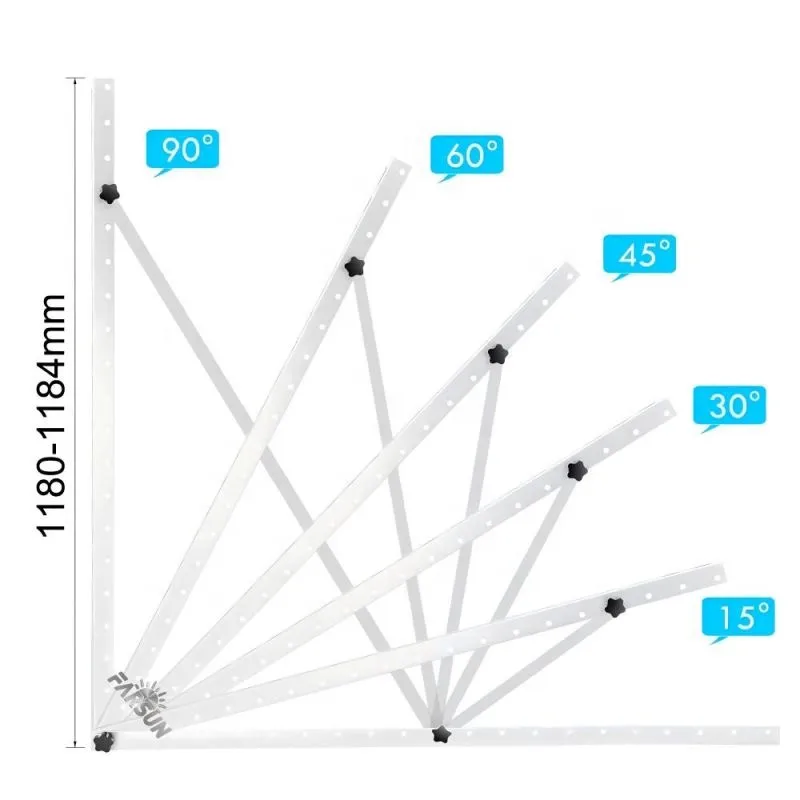

Adjustable Angles

Our solar panel triangular brackets feature adjustable angles within a range of 0-90 degrees.

Common angle ranges include：

10-15 degrees

15-30 degrees

30-60 degrees

Specific angles outside these ranges can also be achieved. This adjustability allows you to optimize the solar panel’s orientation for maximum energy conversion efficiency.

Material	Al6005-T5 4028-T3.0 or 5025-T2.0
Angle	10-15 degrees / 15-30 degrees / 30-60 degrees, within a range of 0-90 degrees
Packaging	Customizable, carbon box
One Panel Including	1) 4long rails 2) 2support rails 3) 6star bolt kits 4) 4bolt kits

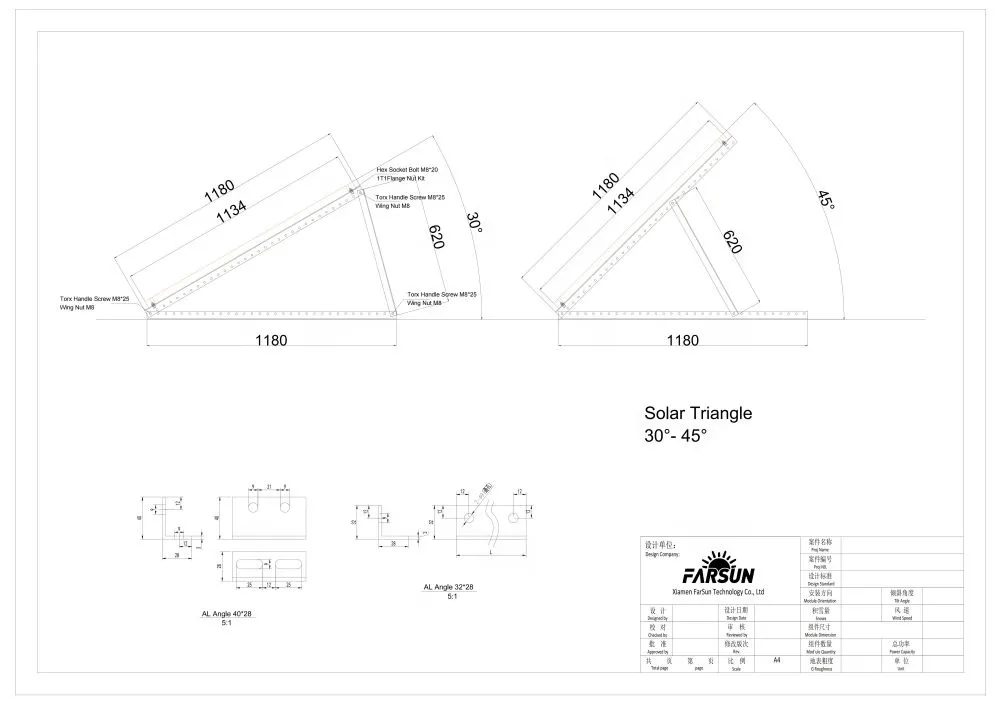

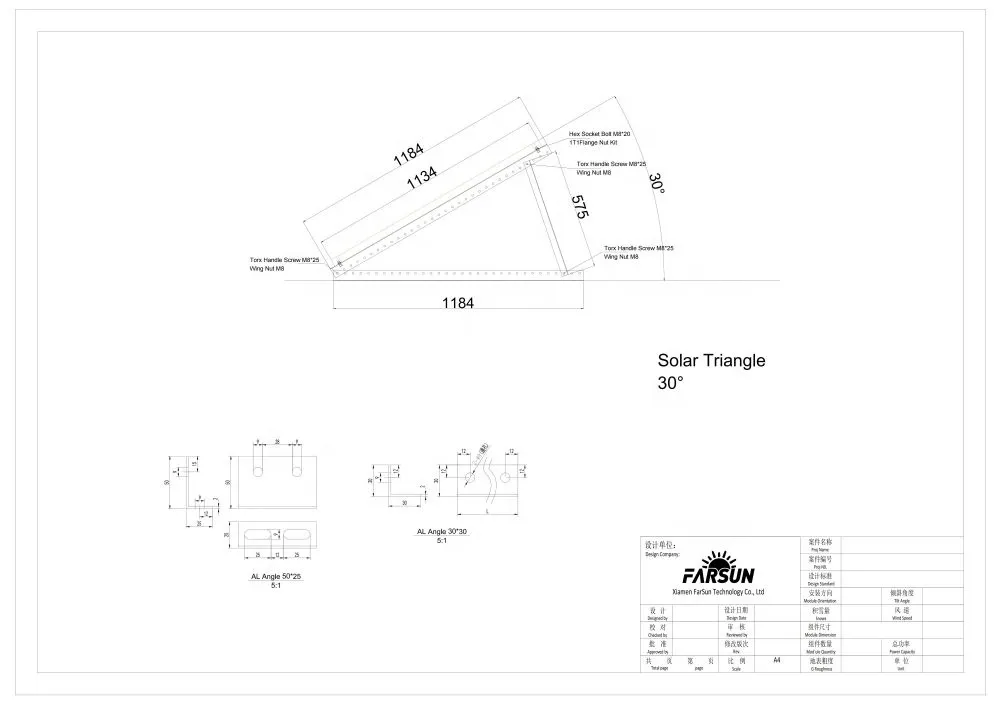

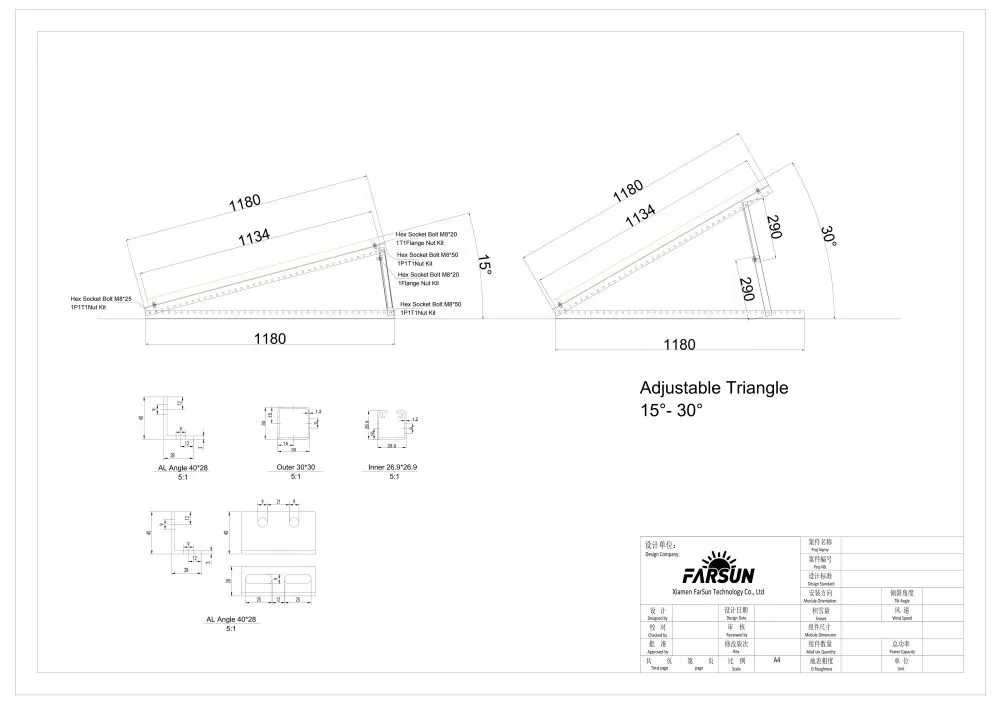

Solution Design

More Details & Free Design

1. What is dimension of the solar panel? _____mm Length x_____mm Width x____mm Thickness 2. How many panels will be mounted for the project? _______PCS. 3.What is your planned panel layout? ________Nos. in a row × ________Nos. in a column (OPTIONAL/RECOMMEND please advise place images and size) 4. What's wind speed and snow load? ___m/s wind speed and____KN/m2 snow load 5. What installation orientation for solar panel? _______(Horizontal or Vertical)

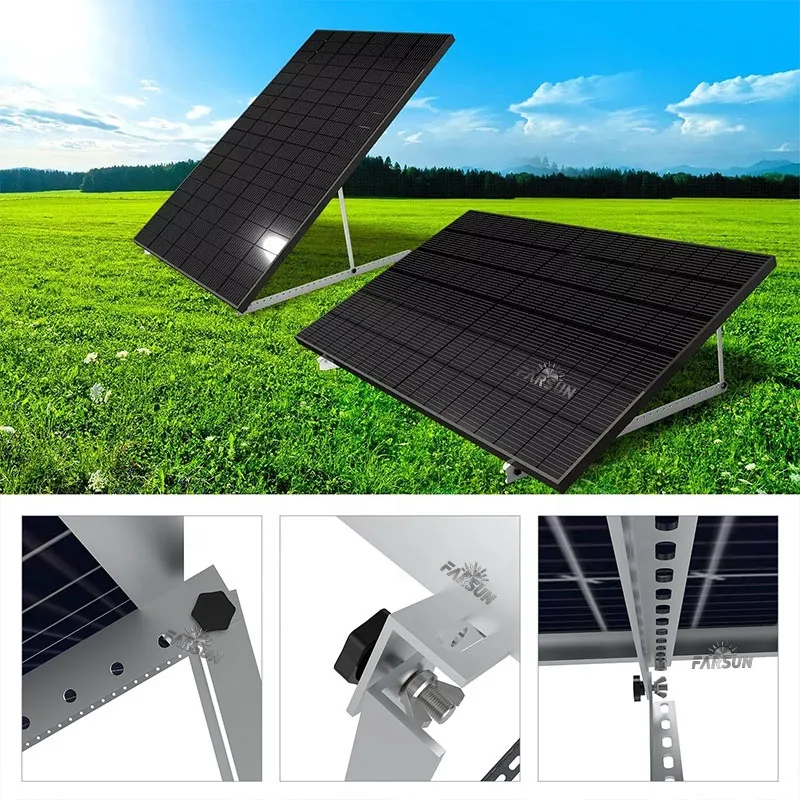

Applications

Triangle bracket are usually made of metal materials, such as aluminum alloy or stainless steel, which have good corrosion resistance and wind pressure resistance. This bracket is designed to be simple and stable, able to effectively carry the weight of the solar panels and provide good stability and wind resistance through its triangular geometry. The three vertices of a tripod are usually connected to the ground or other fixed structure to form a solid support point.

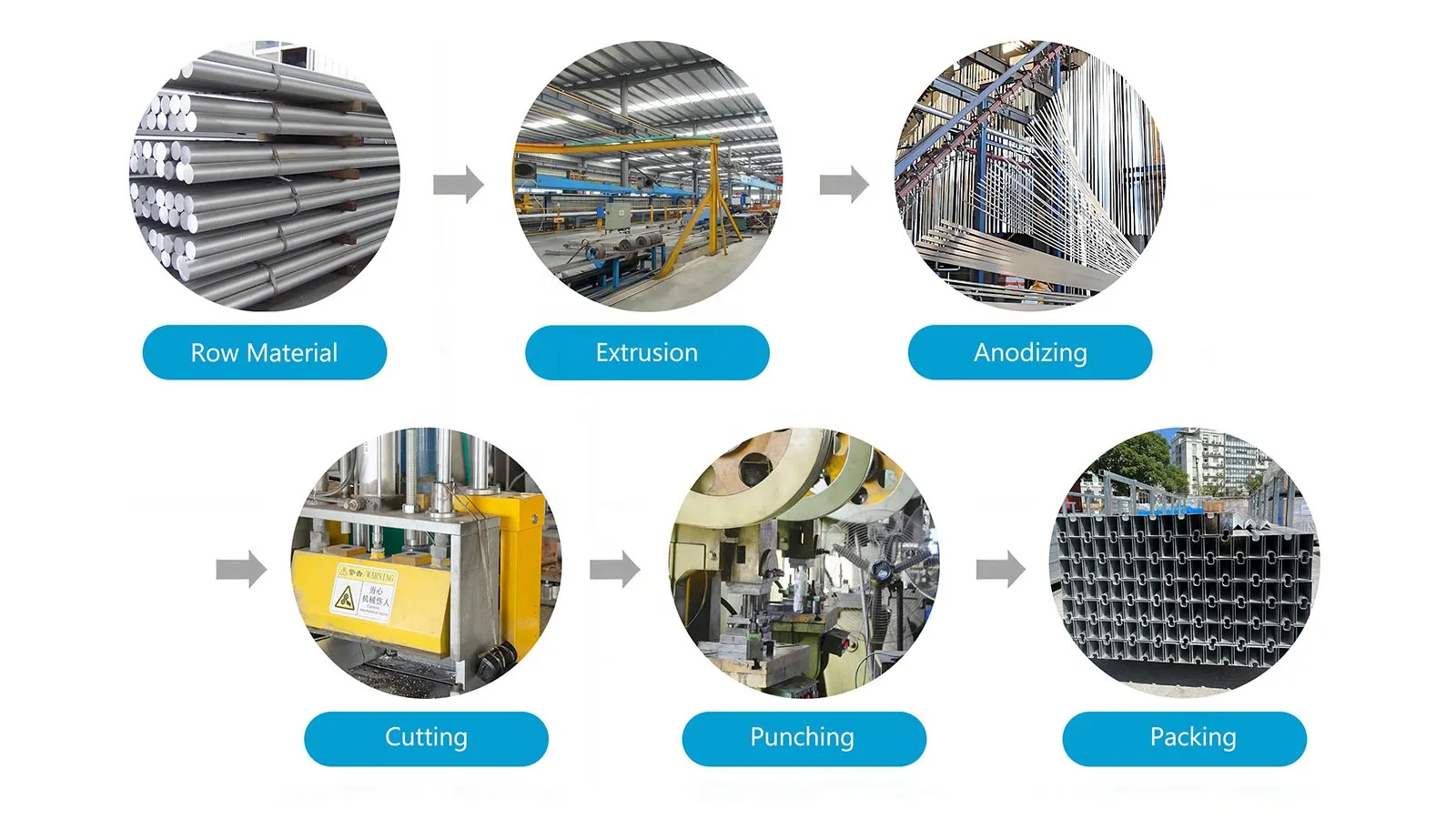

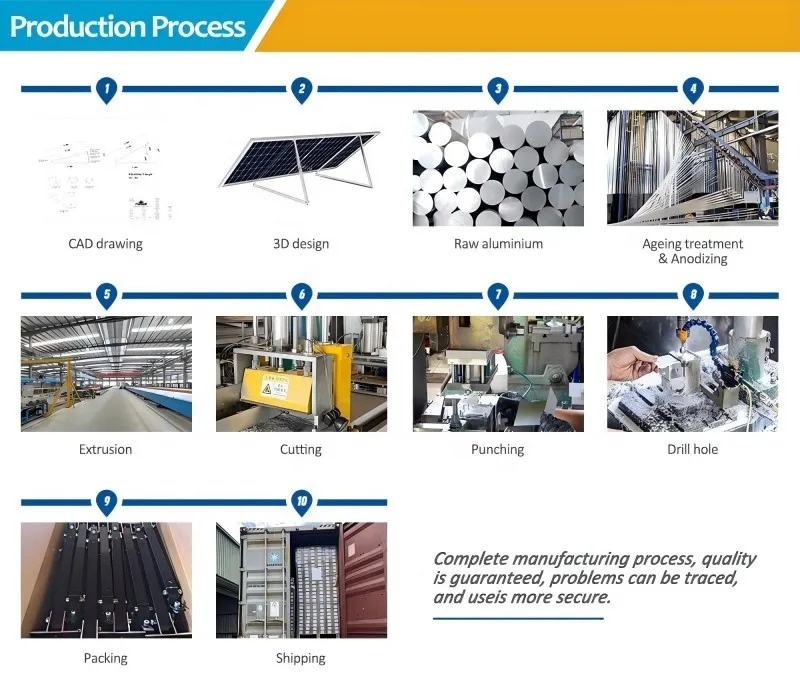

Production Process

Xiamen FarSun Technology Co.,Ltd is an innovative company committed to providing stable, reliable and cost-effective solar PV products. Our products are widely applied to residential, commercial and industrial which have been sold to many countries and earned high reputations from clients.
