Product Details
Reviews(0)

Lihao Pre-sales Service

1. Customized Equipment: Based on the technical parameters of the application-related equipment provided by the customer, we can modify our machines to meet the customer's convenience and high production efficiency.

2. Solution Design: According to the customer's product processing requirements, we design unique solutions to support higher manufacturing efficiency and better processing quality.

Lihao After-sales Service

1. As a professional manufacturer and supplier of automation machines, LIHAO provides English training videos and user manuals for all machines, covering installation, operation, maintenance, and troubleshooting. Additionally, we offer technical guidance through remote means such as TeamViewer, email, phone, mobile, WhatsApp, Skype, and 24/7 online chat when you encounter issues with installation, operation, or adjustments.

2. Customers can choose to come to our factory for 2-5 days of training. We will provide professional guidance and effective face-to-face training. 3. Our engineers will provide on-site guidance and training services at your location. We will require your assistance in arranging visa procedures, prepaying travel expenses, and accommodating us during the business trip and service period.

MAIN FEATURES

● It can feed material for various thicknesses and feeding stroke length.

● It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.

● It adopts pneumatic cylinder releasing method, without malfunction.

● Mechanical releasing method can be made according to customers requirement.

● High precision feeding, ±0.02mm

● Releasing device for a roller is high effective, as per press machine’s cam position electronic signal, and steel material thickness.

● Feeding roller is hollow, surface hardness is HRC60, with chrome plating.

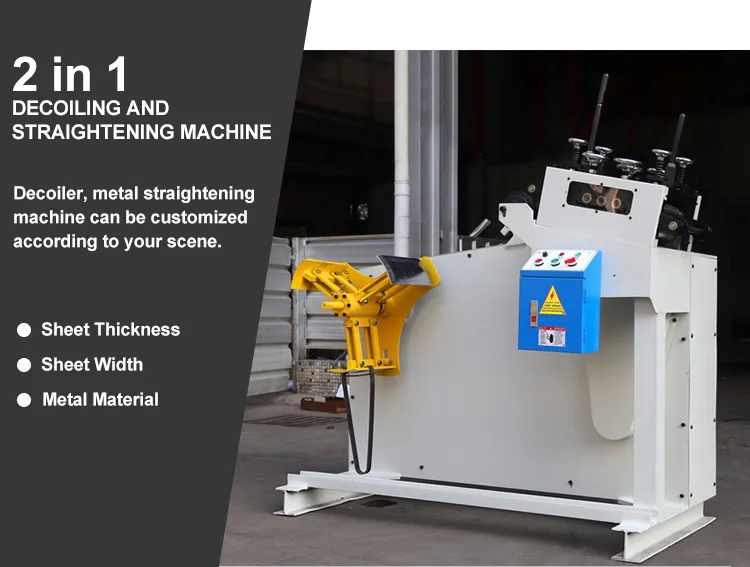

● Integrated with uncoiler and straightener, save volume, suitable for board processing. Automatically adjust feeding time according to output speed.

● Feeding roller is hollow, surface hardness is HRC60, with chrome plating.

● Use Japanese electromagnetic contact and electric parts, long service life.

● A stepless variable speed control is used normal and high speed operation, control by modern frequency converters, keep pace with straightening, stable feeding.

● Leveler inclines appropriately to reduce feeding loop distance.

● Constructed with highly rigid structure and designed with a powerful motorized feeder.

PRODUCT FUNCTION

Decoiler is for the metal coil(or other material )uncoiling to be straight and smooth ,then easily for the feeding to the machine like slitting,cut to length and roofing sheet,etc.It can be divided into manual decoiler and electric decoiler,hydraulic decoiler.The hydraulic decoiler whether has the loading car and the length of the guaiding is all customized.

Model	GO-200B	GO-300B	GO-400B	GO-500B	GO-600B
Material width	200mm	300mm	400mm	500mm	600mm
Material thickness	0.1~1.8mm
Coil weight	800kg	1000kg	1500kg	1500kg	2000kg
Coil inner dia.	450~530mm
Coil outer dia.	1200mm
Straightener motor	1/2hp	1hp	2hp	2hp	3hp
Decoiler motor	1hp	1hp	2hp	2hp	3hp
Straightening roller	ø20*9/10（all gear drive）
Straightener adjustment	Four points fine adjust
Speed	0~15m/min
Expand type	Manual expansion
Induction type	Touching type

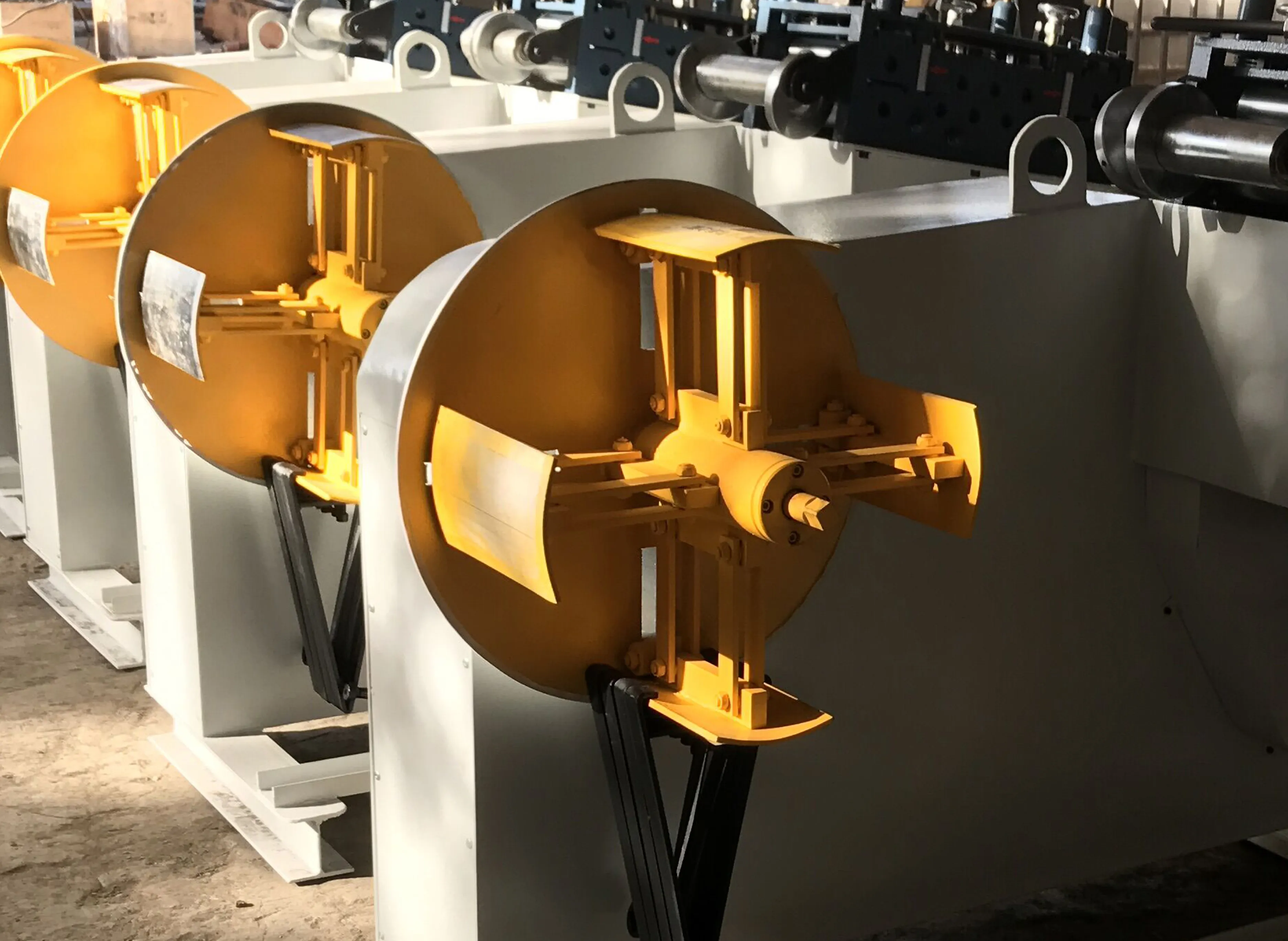

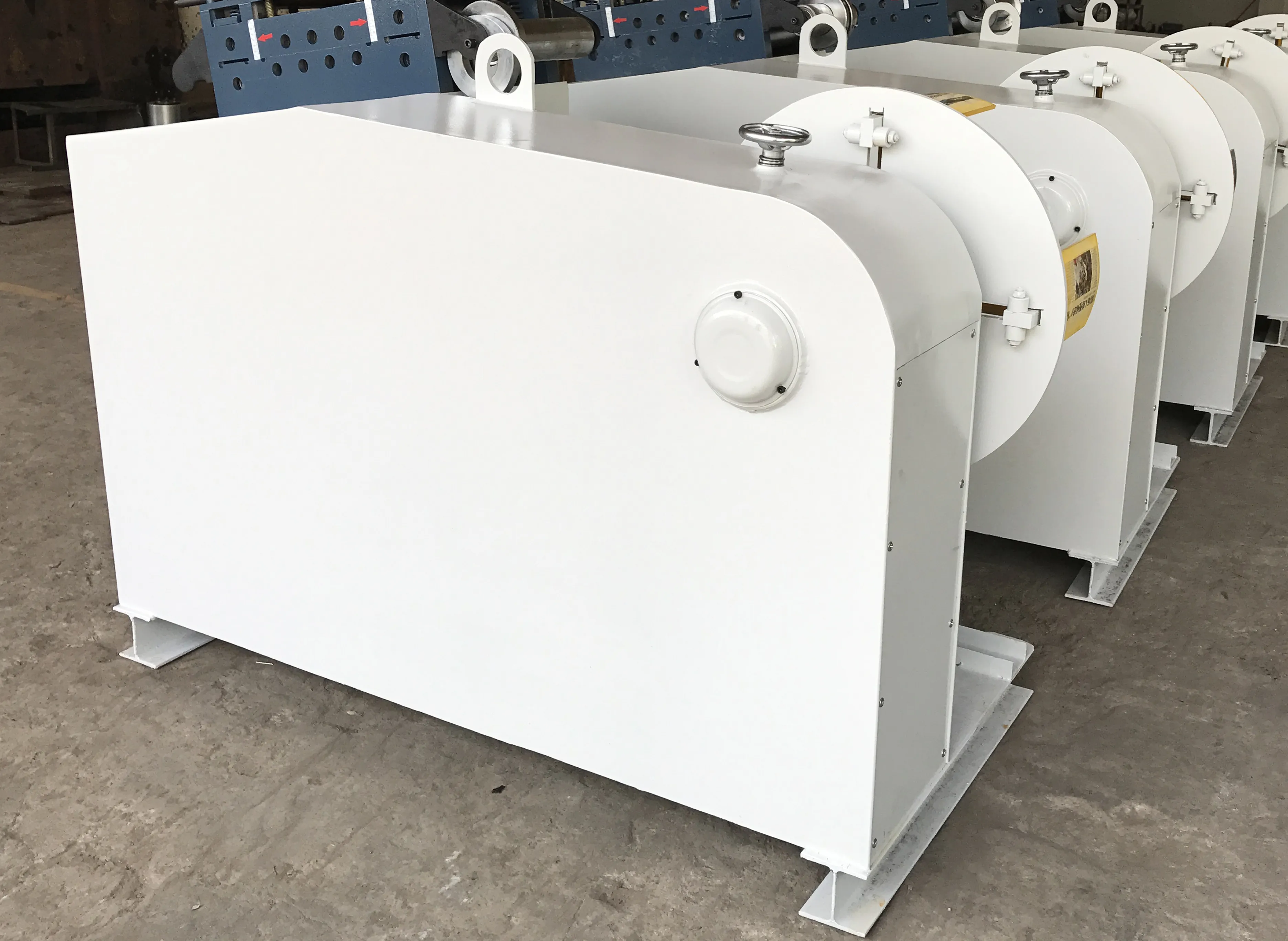

Decoiling Machine

Single-end configurations are provided as standard, and Double-ended configurations can be provided to optimize production efficiency by lowering the coil changeover time. Most models are available as Traveling Reels that can be combined with automatic centering functions.

Custom engineering can be provided to meet any application demands.

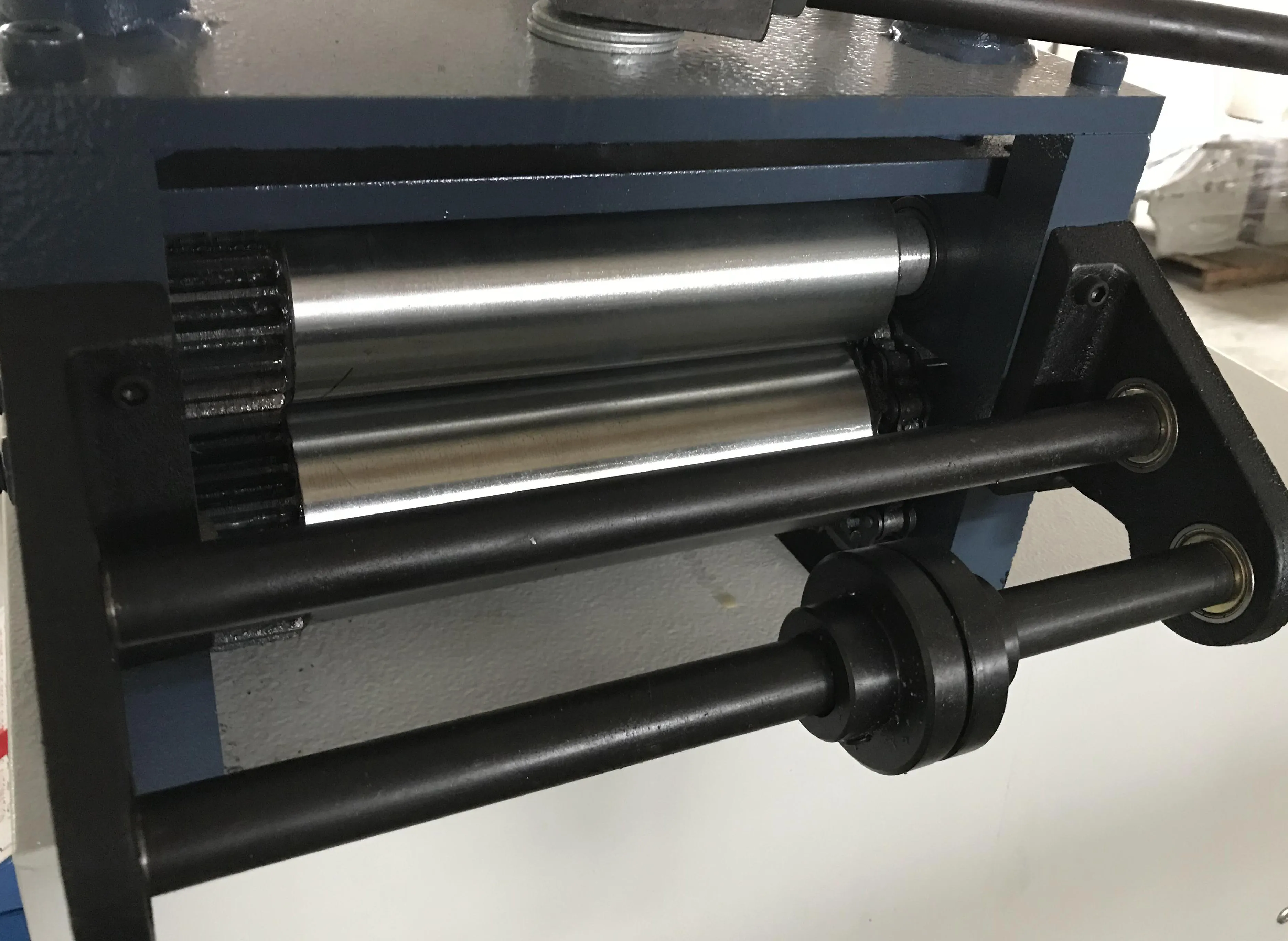

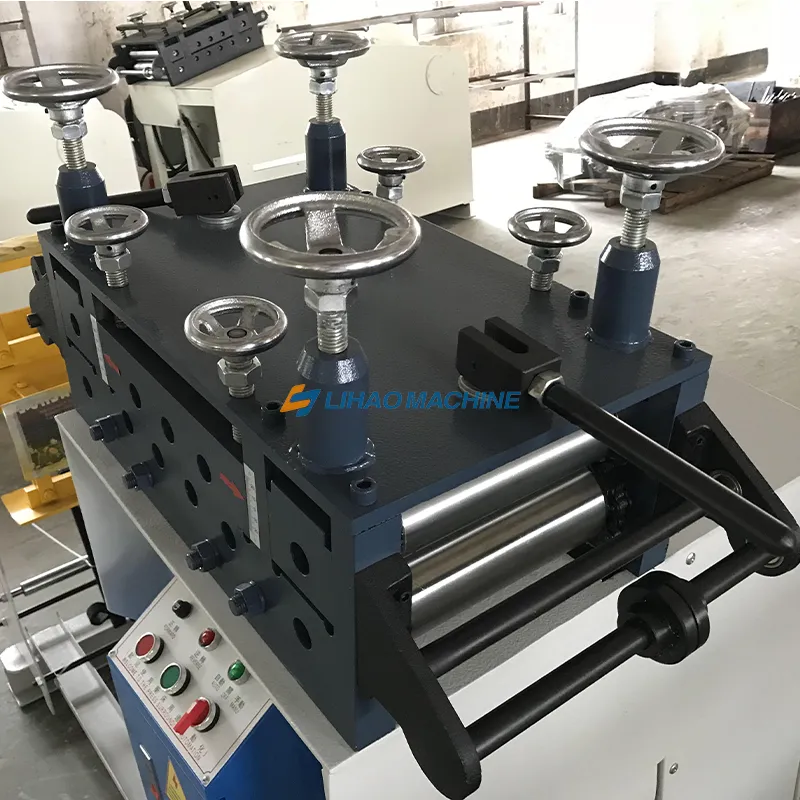

Metal Straightening Machinery

Adopt parallel roller design, 3 up / 4 down, totally 7 rollers.

Adopt four point fine adjustment is adopted, which is more suitable for processing high-precision products. Adopt four point independent pressure to adjust the pressure of feeding roller for entrance and exit, which can prevent material deviation and deformation effectively.

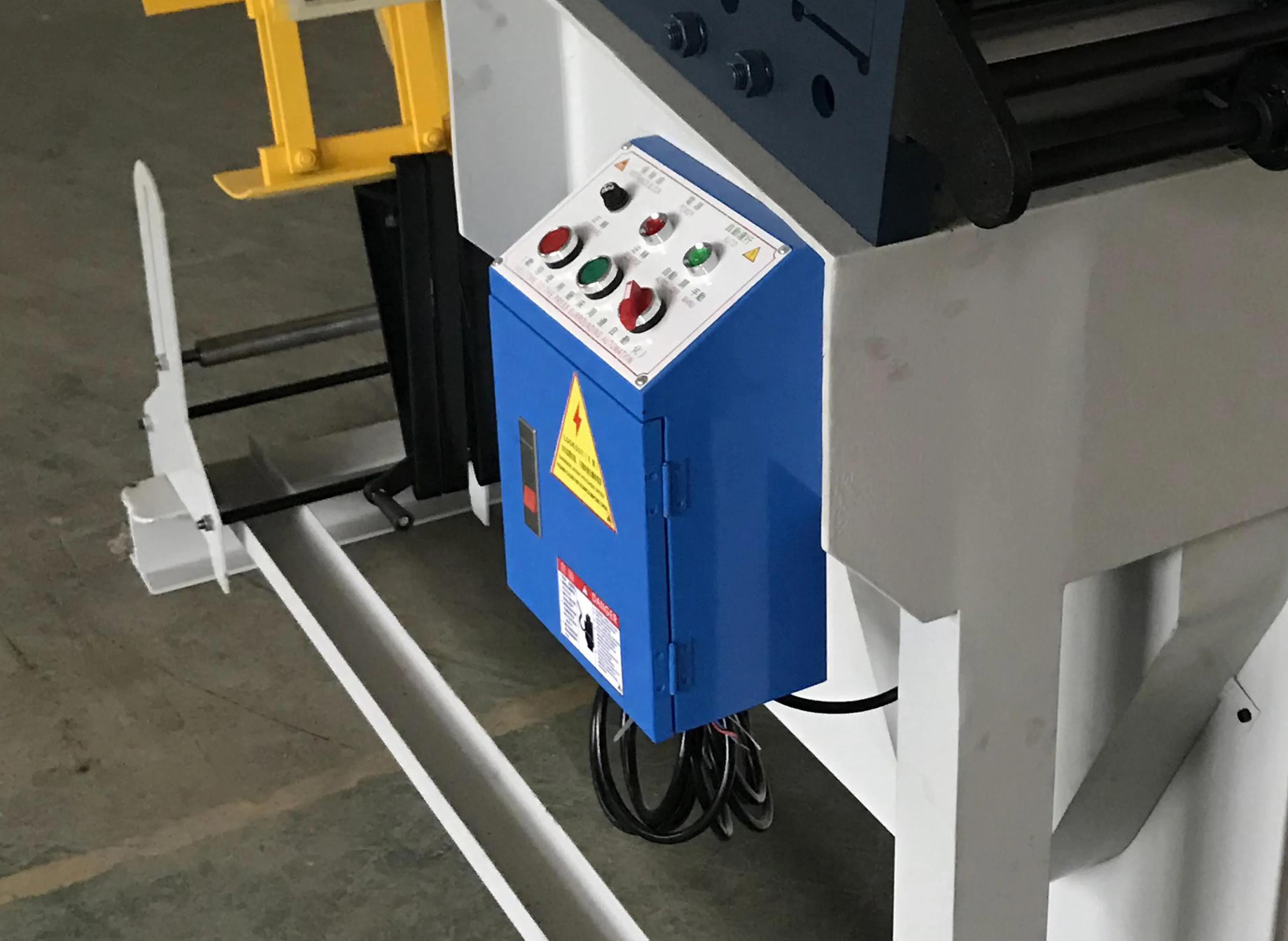

Electric control box

Adopt silver alloy relay, full copper coil, flame retardant safety base, long lasting and durable.

Adopt safety protection adjustment circuit time delay relay, silver alloy contact, satisfied different delay ranges.

Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.

Product Bracket Shell

Surface hardness is HRC60, with chrome plating.

Constructed with highly rigid structure and designed,Provide a more stable processing platform

Noted

（1）Turn on the power supply first check whether the power supply voltage is matched, whether there is a lack of phase contact, etc., so as not to damage the electrical motor. （2）There should be a reliable grounding wire to prevent injury when the appliance is damaged. （3）Immediately remove the handle of mandrel after loading the coil, it is avoid injury when runing. （4）The power should be cut off during charging. After power-on, it is strictly forbidden to stand around the pallet.

Maintenance

（1）For long-term use, the spindle bearing grease should be added once a month, and the reducer oil should be replaced every six months, and the oil should be added to 1/3. （2）The wiring points in the electric control box shall not be loose, so as to avoid burning the electrical appliances and affecting normal use, and no oil or water is allowed to enter. （3）For long-term use, attention should be paid to checking the bearing housing and whether the screws are loose. （4）If it is not used for a long time, add the oil to the spindle and check the electric control box.

Shipping to Around the World

All machines can be shipped worldwide via sea, air, or express logistics through DHL, FedEx, and UPS. You are welcome to obtain afree quote by filling out the form with your name, email, detailed address, product, and requirements. We will promptly contact you with complete information, including the most suitable delivery method (fast, secure, discreet) and shipping costs.

Seeking Quality Distributors Worldwide

We are Shenzhen Lihao Machinery Equipment Co., Ltd., specializing in the development and manufacturing of stamping automation equipment. Our products are widely used in the home appliance, automotive, hardware, and electronics industries. To expand our market reach, we are inviting experienced and resourceful Agents from around the world to join our team and drive industry growth together.

Why Partner with Us?

- High-Quality Products: ISO9000 and CE certified

- Expert Technical Support: Over 20 years of R&D experience

- Comprehensive Market Assistance: Extensive marketing resources

We look forward to a successful partnership with you!

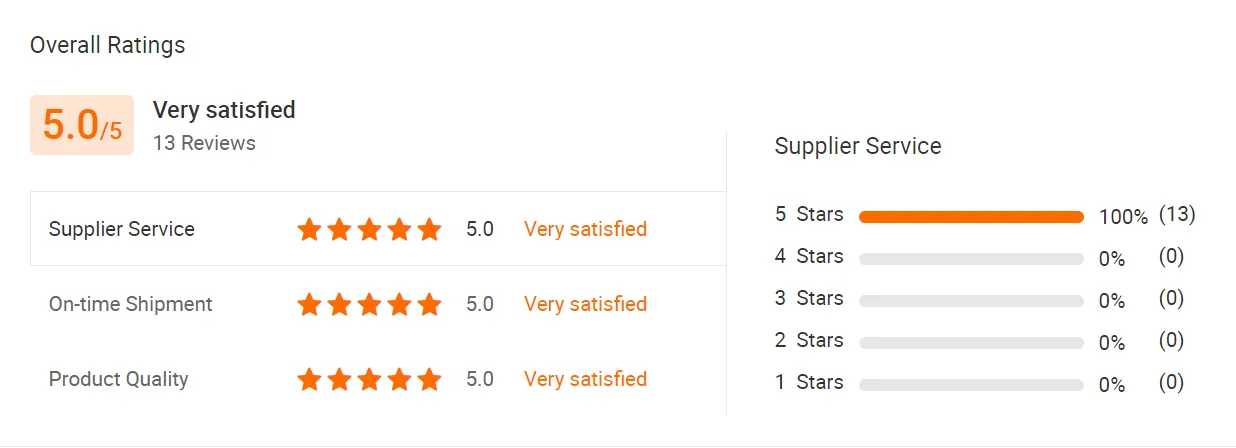

5.0
