Factory Price Ensure Quality 1.0mm 1.2mm 1.5mm DX51D+AZ AluZinc Coating Steel Sheet Az120g AZ150g Hot Dip Galvalume Steel Coil Customized+750-1250mm

Factory Price Ensure Quality 1.0mm 1.2mm 1.5mm DX51D+AZ AluZinc Coating Steel Sheet Az120g AZ150g Hot Dip Galvalume Steel Coil Customized+750-1250mm

Name: Factory Price Ensure Quality 1.0mm 1.2mm 1.5mm DX51D+AZ AluZinc Coating Steel Sheet Az120g AZ150g Hot Dip Galvalume Steel Coil Customized+750-1250mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:5 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥5Set

Order CodeZT21310530

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Length:

Customized

Width:

750-1250mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Coating
AZ121~Z150
Hardness
Hard
Spangle Type
Regular Spangle
Thickness
0.12-2mm
Type
Steel Coil

Products Description

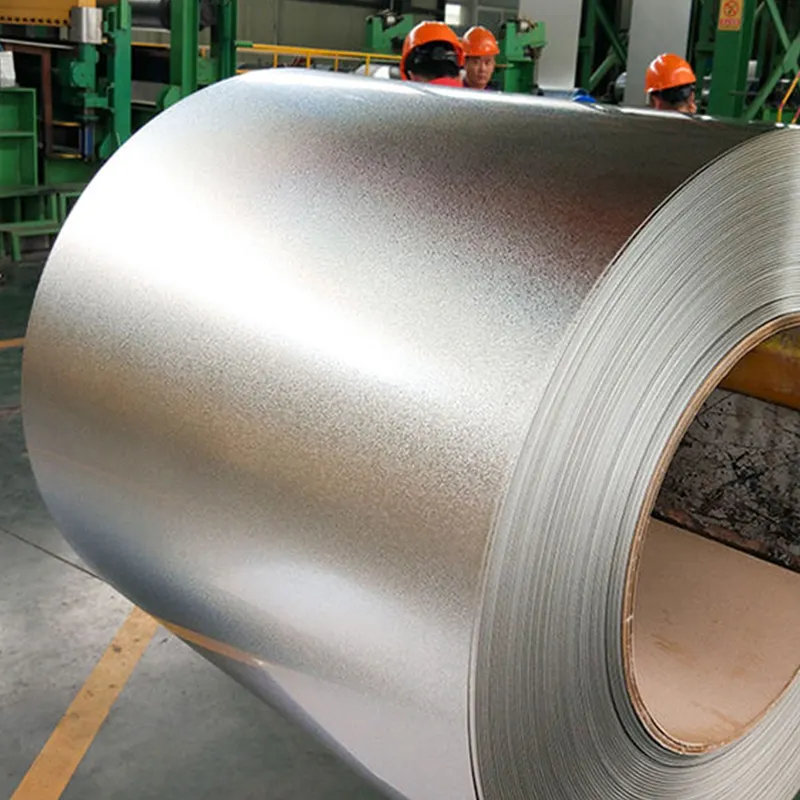

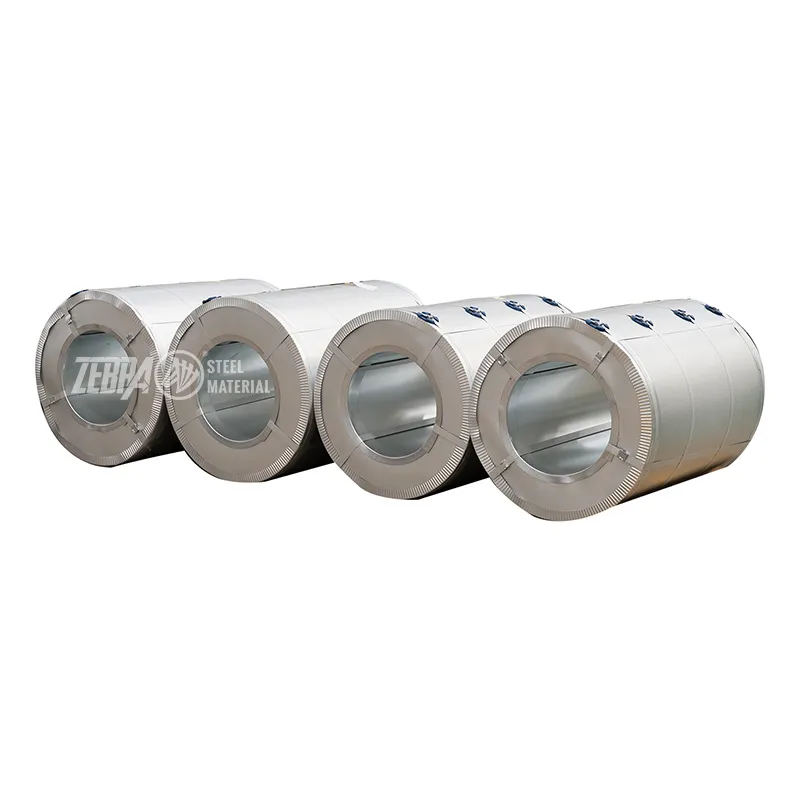

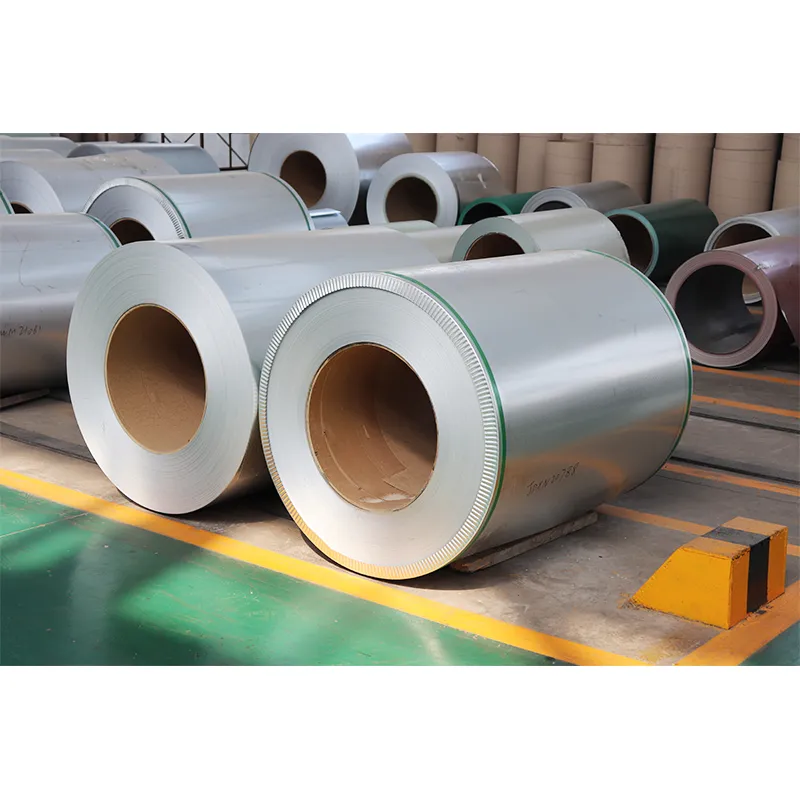

AluZinc Coated Galvalume Steel Coil
No cutting corners on Aluzinc weight.

Galvalume Steel Coil is composed of 55% aluminum, 43.4% zinc and 1.6% silicon by weight. The production process of aluminized zinc steel plate is similar to that of galvanized steel plate and aluminum plate, and it is a continuous melting coating process.

Name	Hot dipped galvalume steel coil
Alu-Zinc	20-150g/m²
Thickness	0.12-2mm
Width	750-1250mm
Coil ID.	508/610mm
Surface	Anti-figerprint or Non
OEM	Provide
Service	Cuting Length & Slitting Strip
Standard	ASTM/DIN/JIS/BS/GB

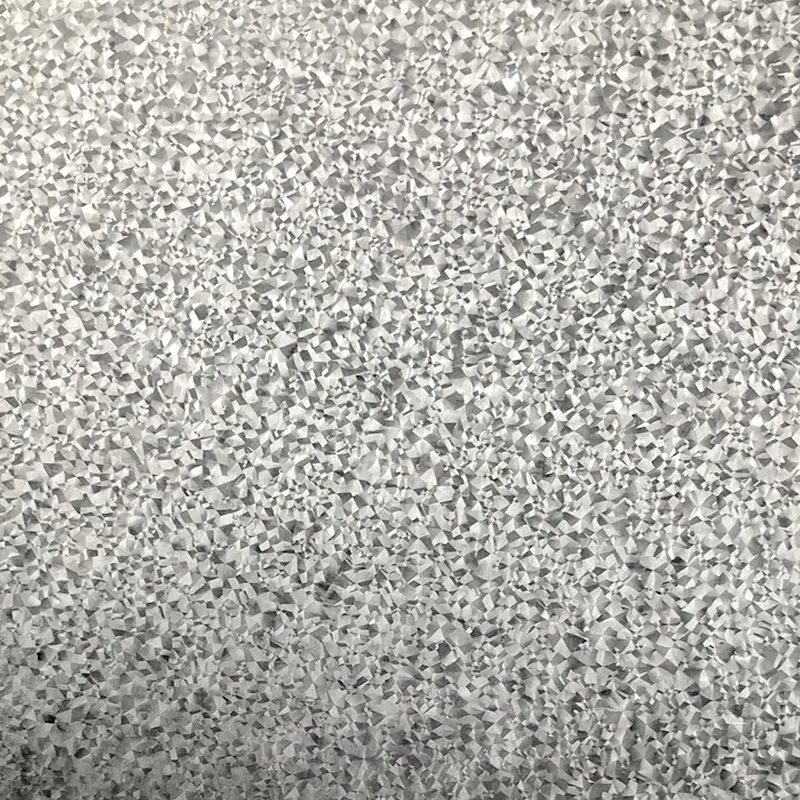

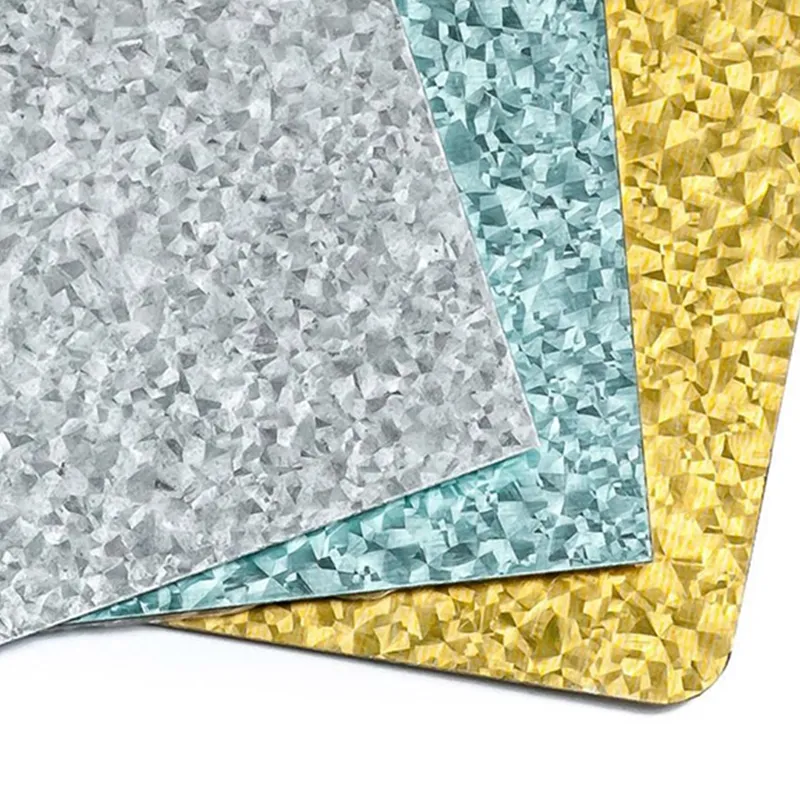

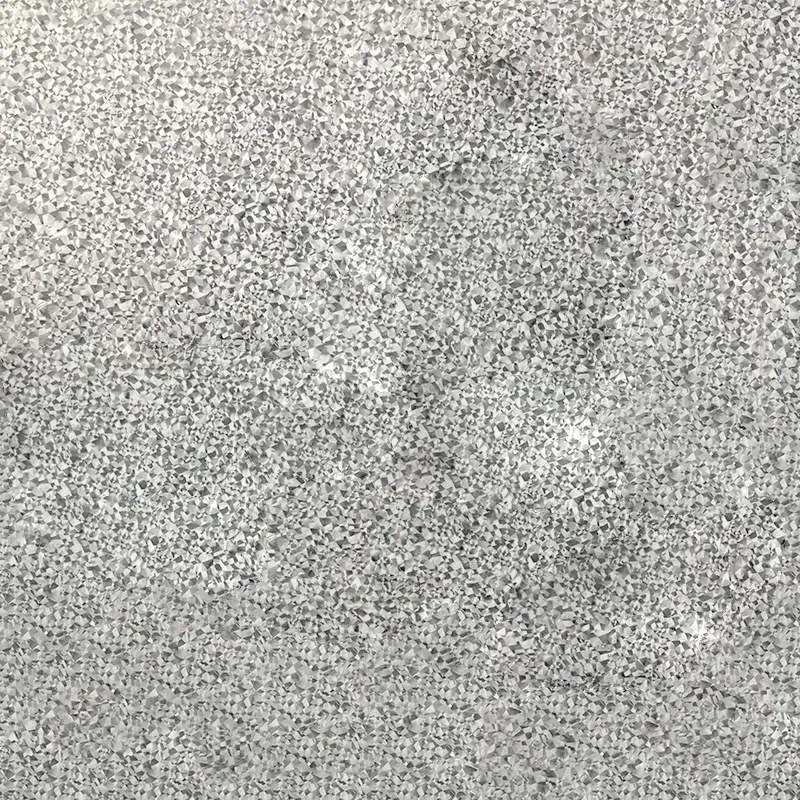

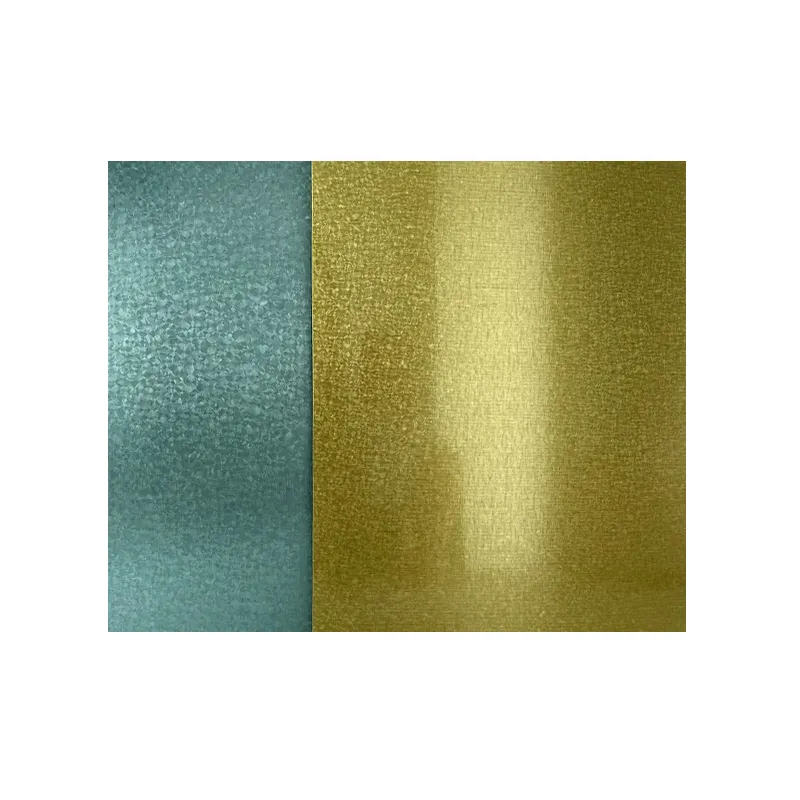

Big Spangle AZ150g/m2

Natural solidification, with obvious Alu-zinc flowers on the surface and a larger diameter

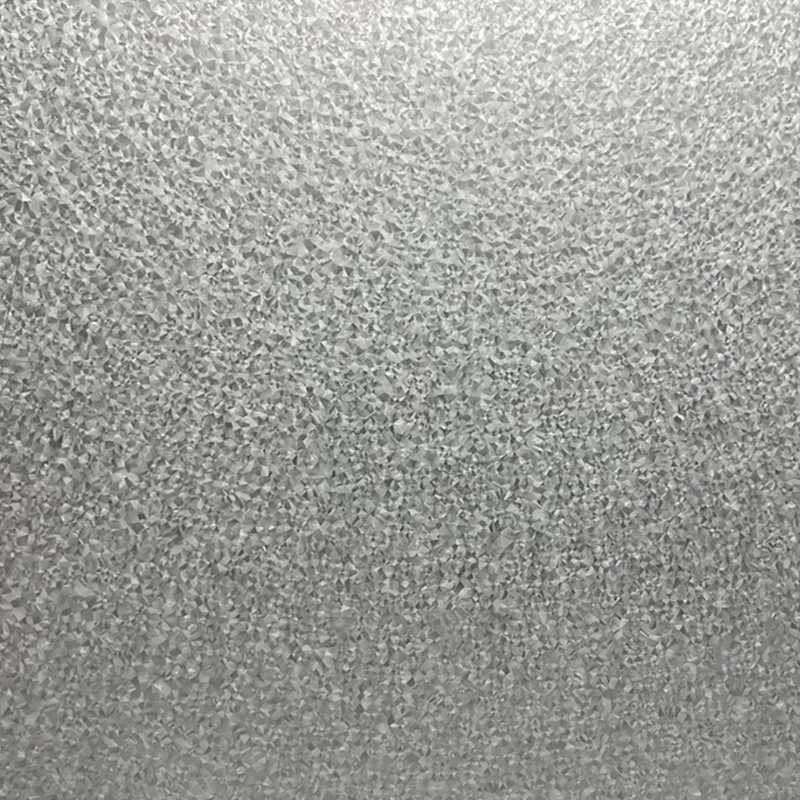

Regular Spangle AZ60g/m2

Conventional Alu-zinc flower for hot-dip galvanizing

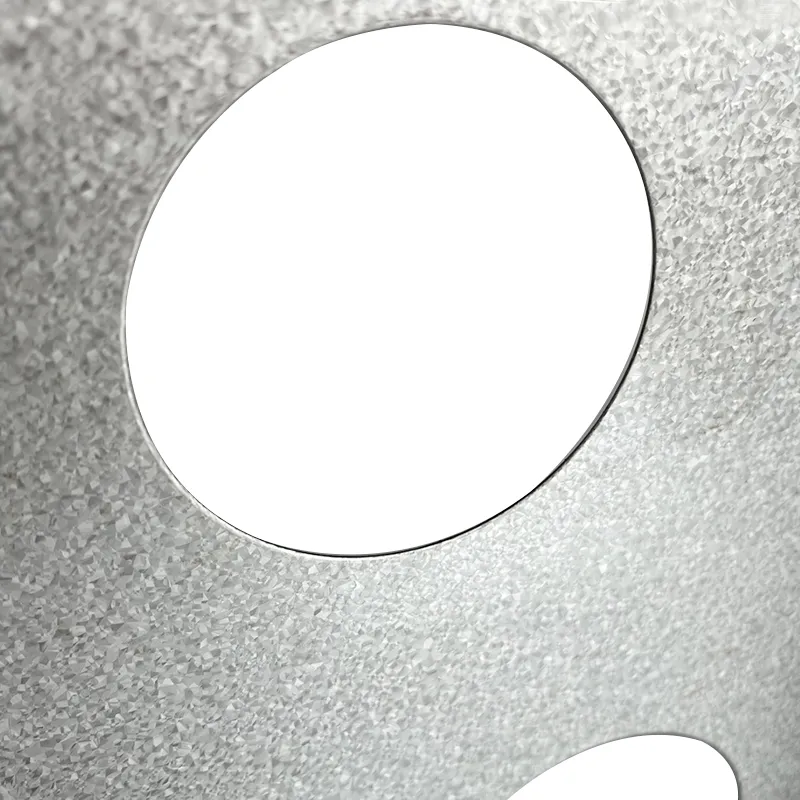

Small Spangle AZ30g/m2

Smooth surface without obvious Alu-zinc flower structure

Anti-figerprint Surface Layer

After aluminum zinc plating is completed, an anti fingerprint coating is added, which will not leave fingerprints when touched by hand

Hot dipped galvalume steel advantage

1.Corrosion resistance is 5 to 10 times that of ordinary galvanized steel sheets

2.The hardness is more than twice that of ordinary galvanized steel plates, and it is wear-resistant and scratch-resistant.

3.The anti-rust performance is 15 times that of ordinary galvanized sheets.

4.The incision will form a protective film, and the incision has the function of self-healing.

5.The coating has strong adhesion and is easier to stretch, stamp, bend and weld.

6.All aspects of performance meet stainless steel standards, and the price is much lower than stainless steel.

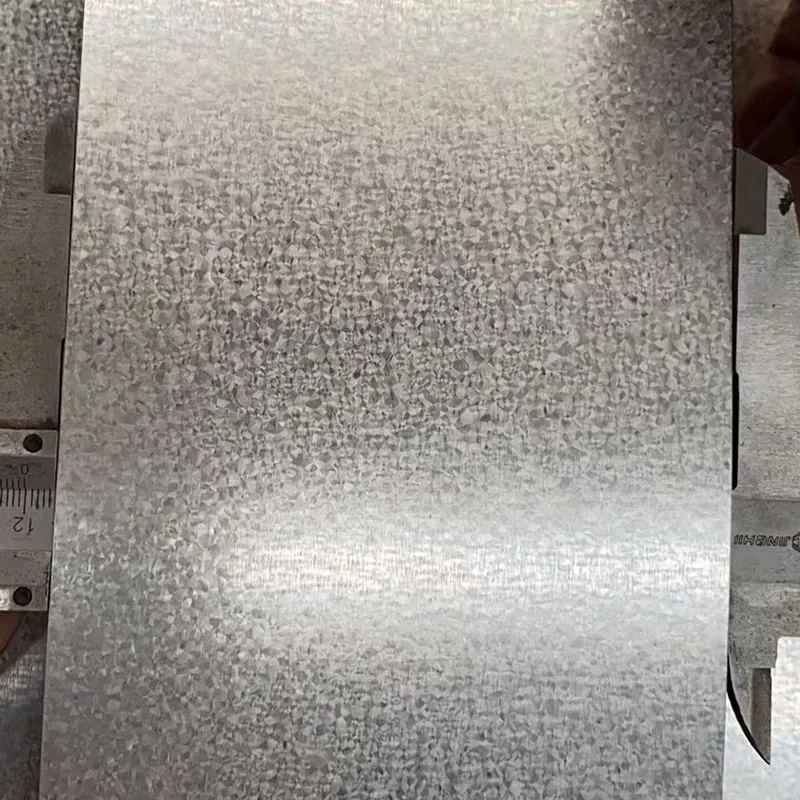

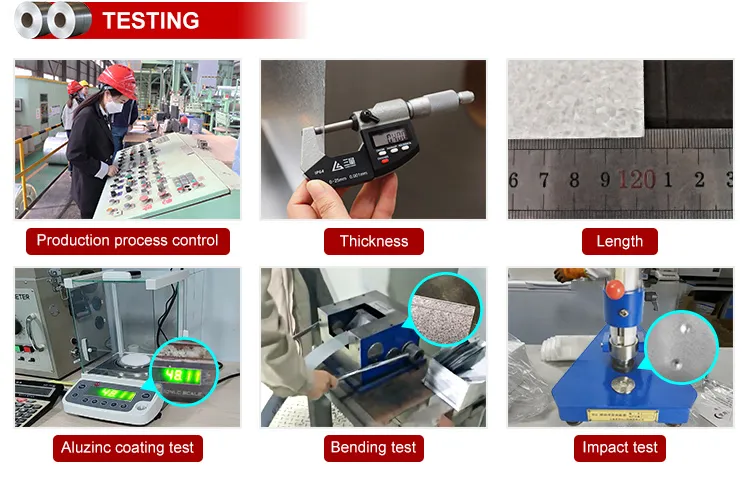

Product Testing

Package & Shippment

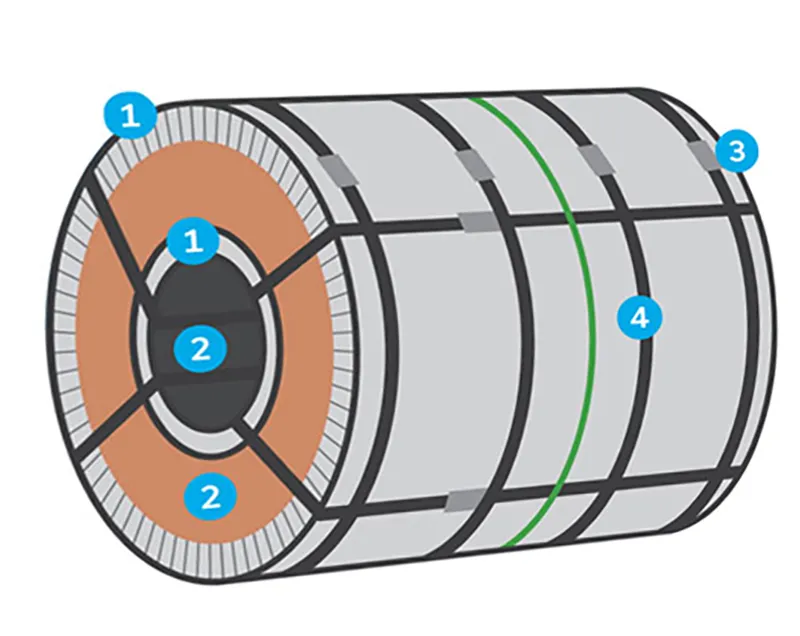

Sheet Packing

1：Metal protective ring
2：Waterproof wrapping paper
3：Buckle
4：Wood pallet

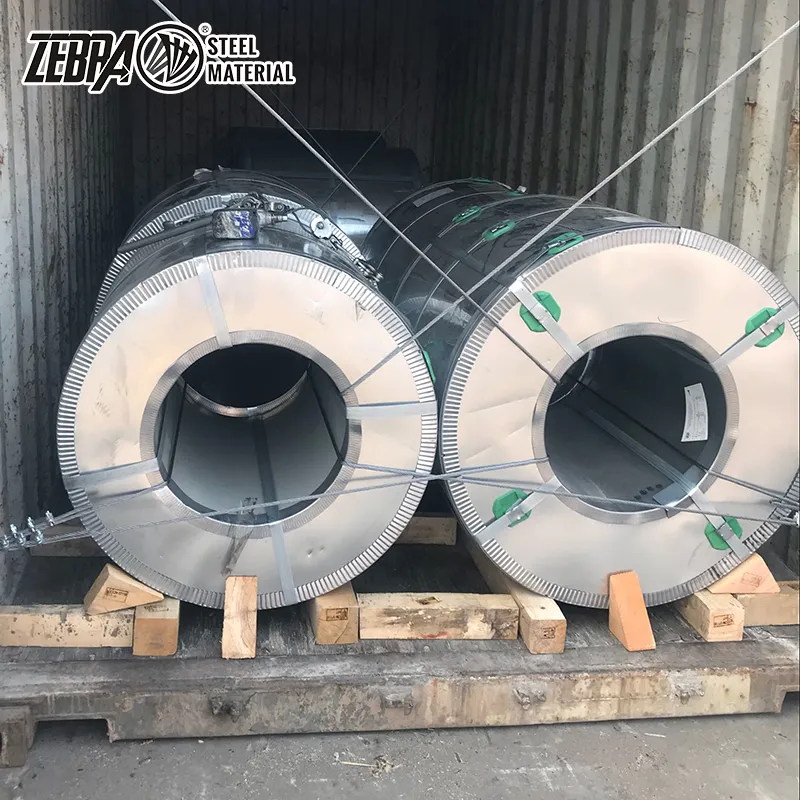

Shipping and Port

1：Wooden pallets

2：Wooden frames for fixing

3：Steel wire ropes for fixing steel coils

4：Loading Port: Tianjin/Qingdao/Shanghai Port.

Our service

Cut into steel plates

Cut into the required size as needed

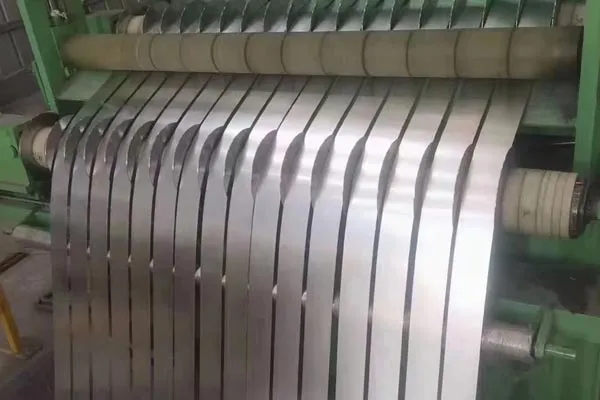

Coil Slitting

Divide the steel coil into the required fine strips

Forming and bending

Forming and deep drawing systems combined with rollforming；corrugated roof sheet.

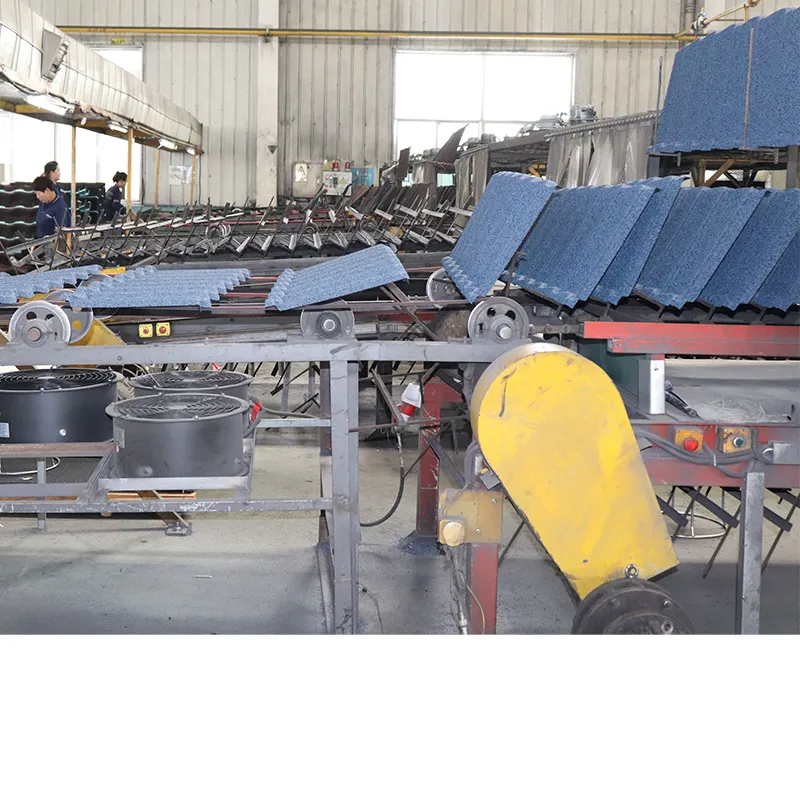

Processing colored stone tiles

Can be processed stone coated roof tile

Why Choose Us

Shandong Zebra Steel Material Co. ,Ltd.

Main steel materials，since 2008, Located in jinan city.China , which main products are Cold rolled steel 、 Gl 、 GL、 PPGl, PPGL、 Corrugated roofing sheet Colorcoated steel 、 Stainless steel, Carbon steel and Steel pipe.

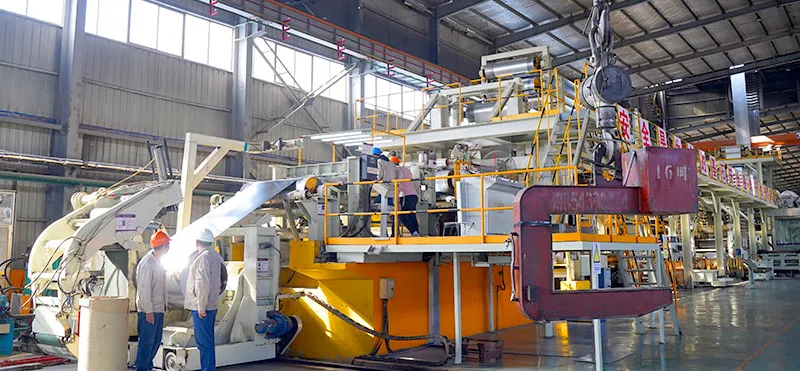

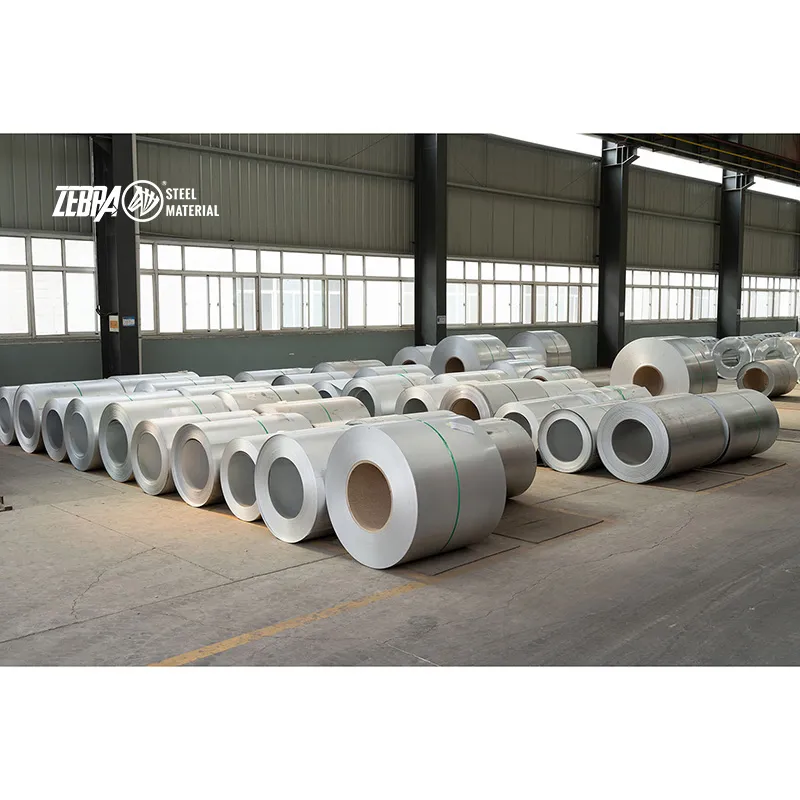

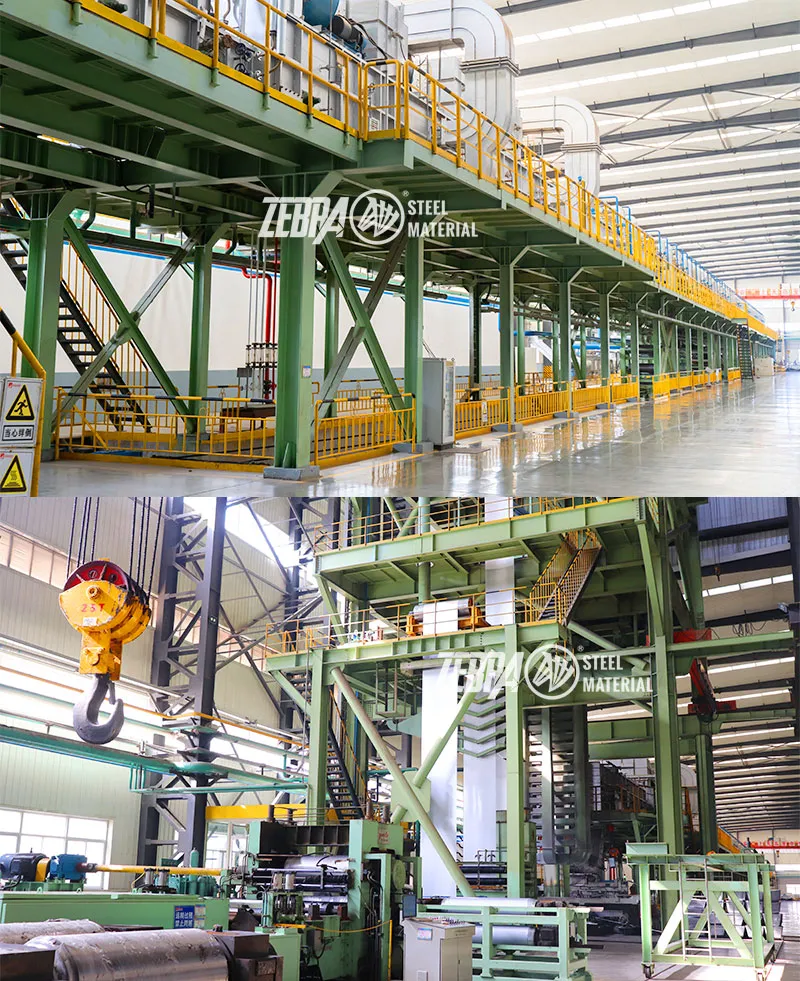

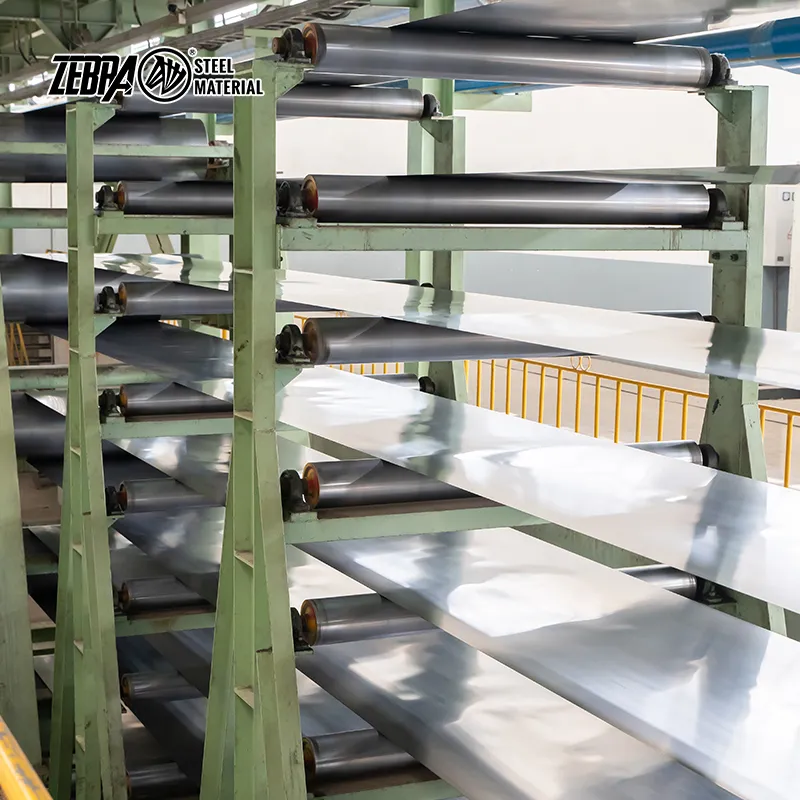

Factories and production lines

Covering an area of 226,000 m, Zebra steel Owned8 production lines, 3 of Cold-roling steel production lines , 2 of Galvanized steel and Aluminized zinc silicon production lines , color coated production line steel pickling prqduction lines and stainless steel processing workshop.

Superior Corrosion Resistance

The Aluzinc coating provides a robust barrier against rust and corrosion,extending the lifespan of your projects.

Perfect for construction, manufacturing, and more. Whether you need material forroofing, wall panels, or structural components,
our coils are up to the task.

Application

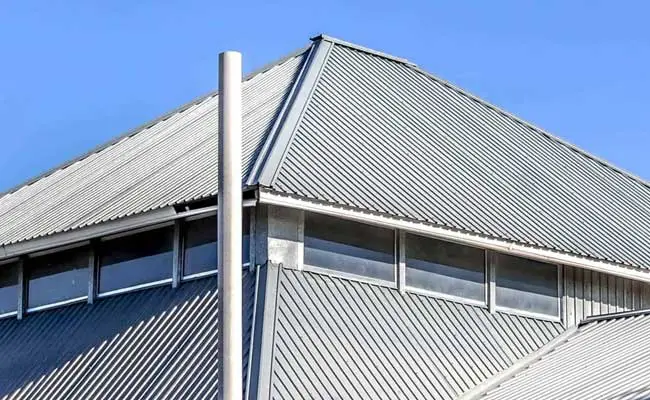

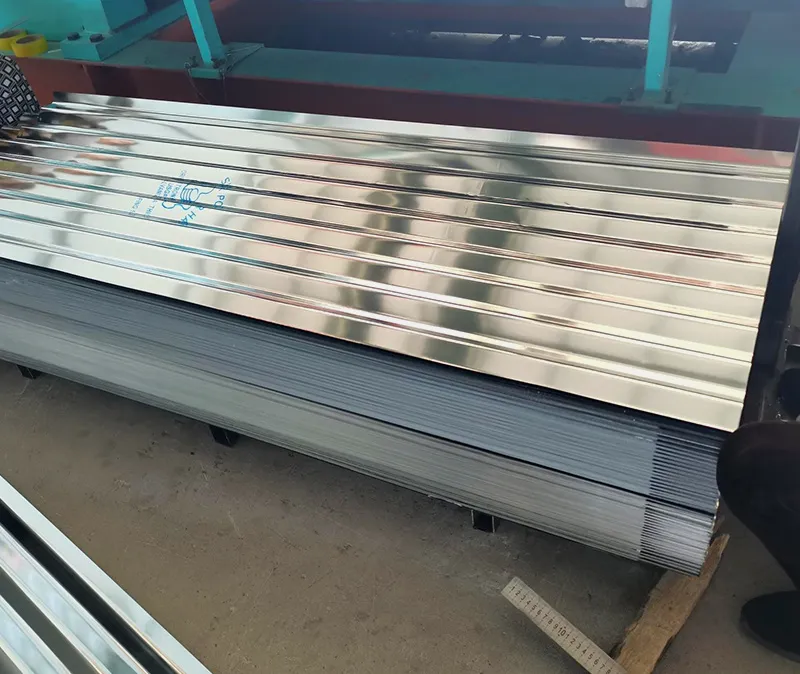

Galvalume Steel Corrugated Roofing Sheet

AluZinc coating: 30-120 g/m2

Thickness: 0.12-0.8 mm

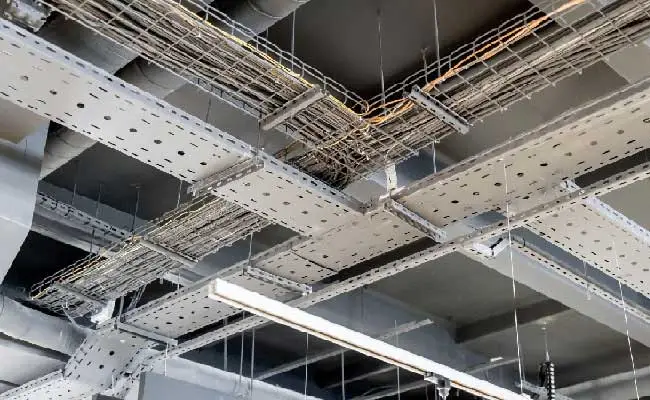

Cable Trays

AluZinc coating: 50-150 g/m2

Thickness: 0.5-1.5 mm

Customer Photos

Certifications

FAQ

Q：HS Code

A：7210610000,Check tariffs before ordering from China.

Q：The service life of galvalume steel coils

A：The life of galvalume steel coil depends on the end application and environment, as well as the weight of Aluzinc. The life of AZ150gsm cable tray in an indoor environment is 30 years.

Q：The price of galvalume steel coils

A：The price of galvalume steel sheet depends on the raw material hot/cold-rolled, the aluzinc weight, and the width and thickness of the coil.

Q：Galvalume steel sheet could be oiled?

A：Yes, it could be oiled. 8-20g per square meters. Oiling can prevent the oxidation of galvalume sheets in a short time.

Q：Does the product have quality inspection before loading?
A：Of course, all our products are strictly tested for quality before packaging, and unqualified products will be
destroyed.weaccept the third party inspection absolutely.

Q：What product information do I need to provide?
A：You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
