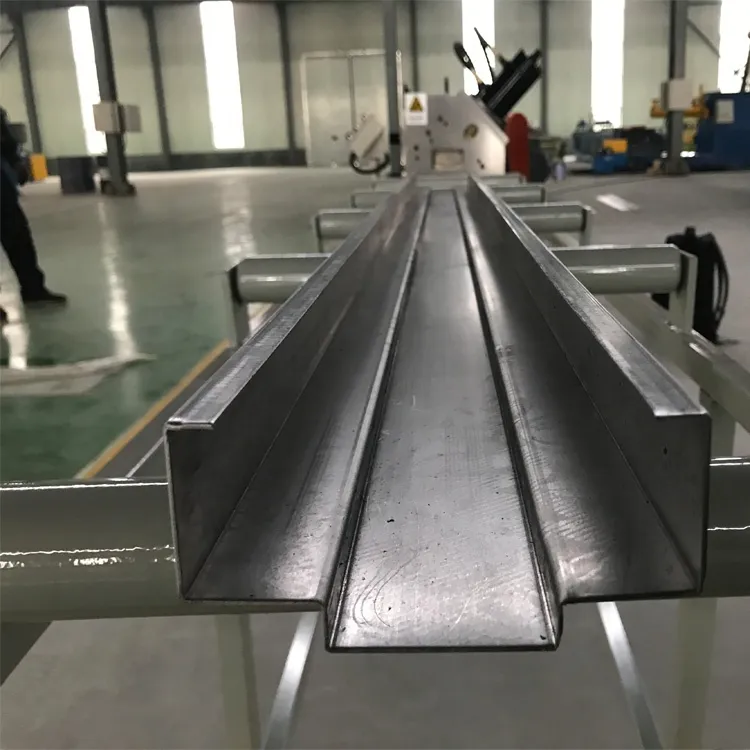

Meral steel sheet door frame roll forming machine is designed to roll form the galvanized steel to the door frame or window frame shape.
Normally the thickness of the door frame or window frame is from 0.65mm to 1.0mm.
Our door frame machine is widely used in the steel door or steel window manufacturing.
Metal steel sheet door frame machine consists of uncoile, leveler, mail roll forming machine, cutting part, runout table, PLC control box and hydraulic station.
The whole machine are controlled by the industrial PLC, which can gurantee the machine work automatically and precison of the final products.


What is the application of steel door frame making machine ?
What is the working flow of metal steel sheet door frame roll forming machine ?
steel door frame making machine is consisted of decoiler, main forming machine,cutting device,runouttable.The working flow is as follows:
Uncoiling---Main roll former---Cutting system---Product collect table

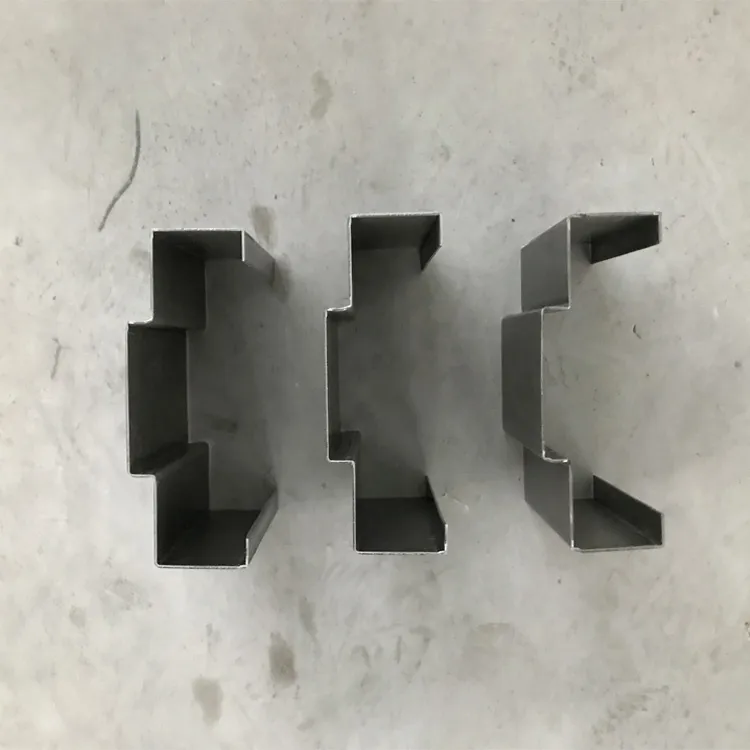

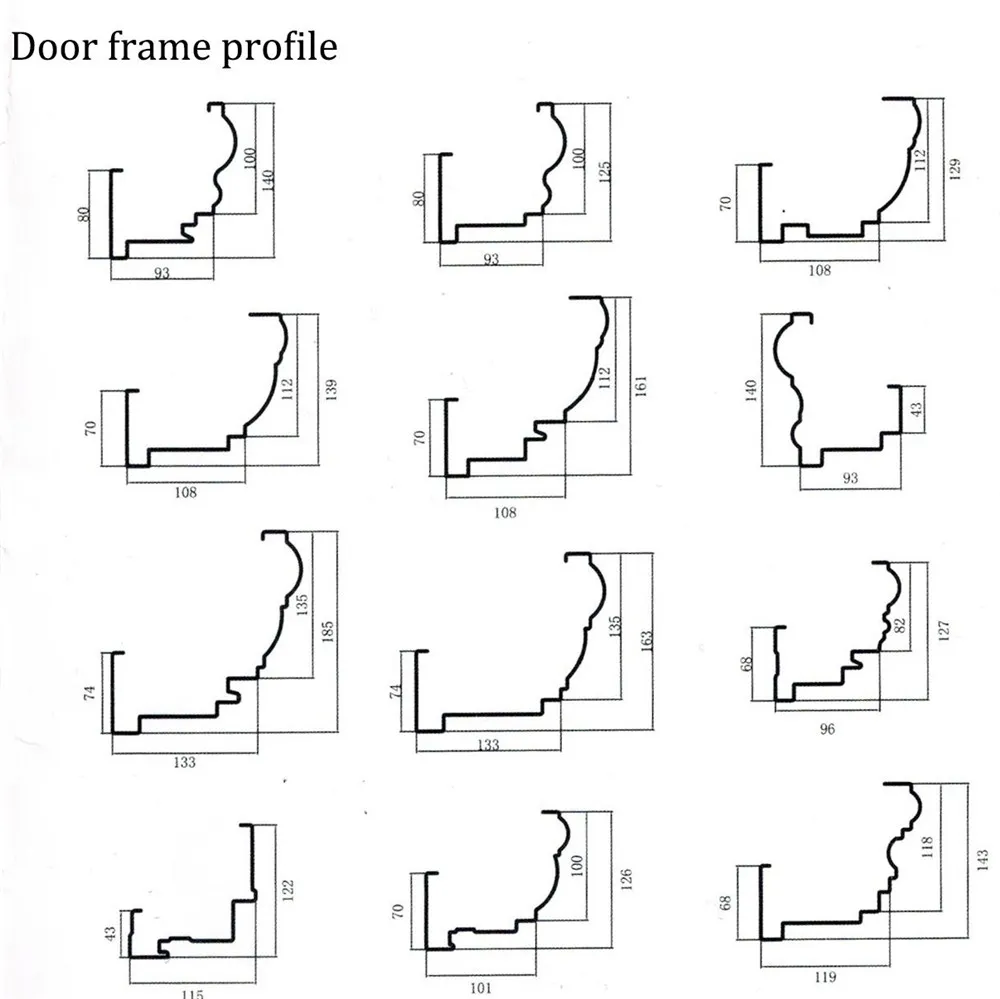

some drawings of steel door frame making machine
If you want to buy a steel door frame roll forming machine, first you should give us a profile drawing of the steel door frame like the following.
And if you don't have a drawing, we can recommend you the most popular steel door frame drawing in your country.

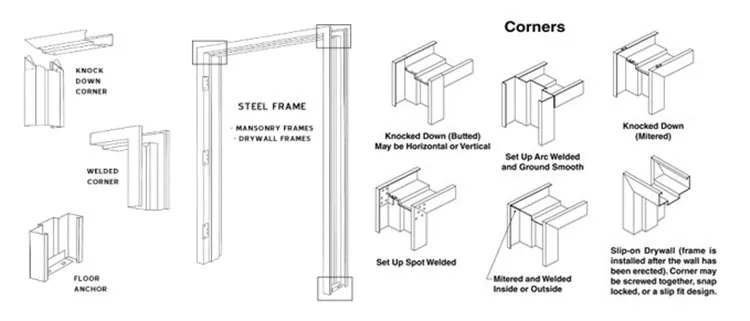

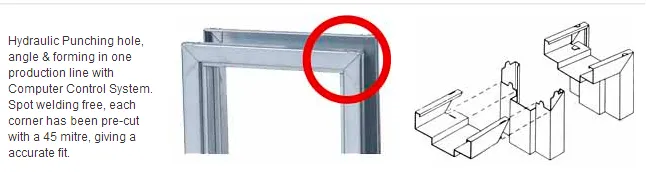

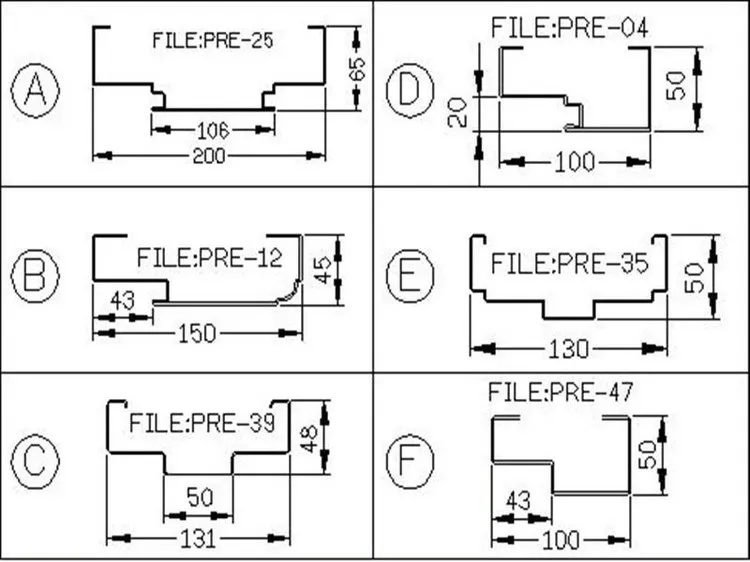

The following is some drawings for your reference, we can also design the door frame cold-bending machine according to your drawing.


The basic information of metal steel sheet door frame roll forming machine
| Name | Metal steel sheet door frame roll forming machine |
| Processing material | colored steel, galvanized sheet, or aluminium plate |
| Material thickness | 0.6-1 mm |
| Material hardness | 550 mpa---350 mpa |
| Material width | 200mm(according to the profile) |
| Formed width | 101.6mm (according to the profile) |
| Forming speed | 12m/min |
| Working speed | 8m/min |
| Voltage | 380V 50HZ 3Phase |
| Roller fixer | Guide column |
| Frame | 400 H steel |
| Drive mode | chain |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | φ70mm |
| Number of rollers | 20 rollers |
| Main power | 5.5kw |
| Hydraulic power | 3kw |

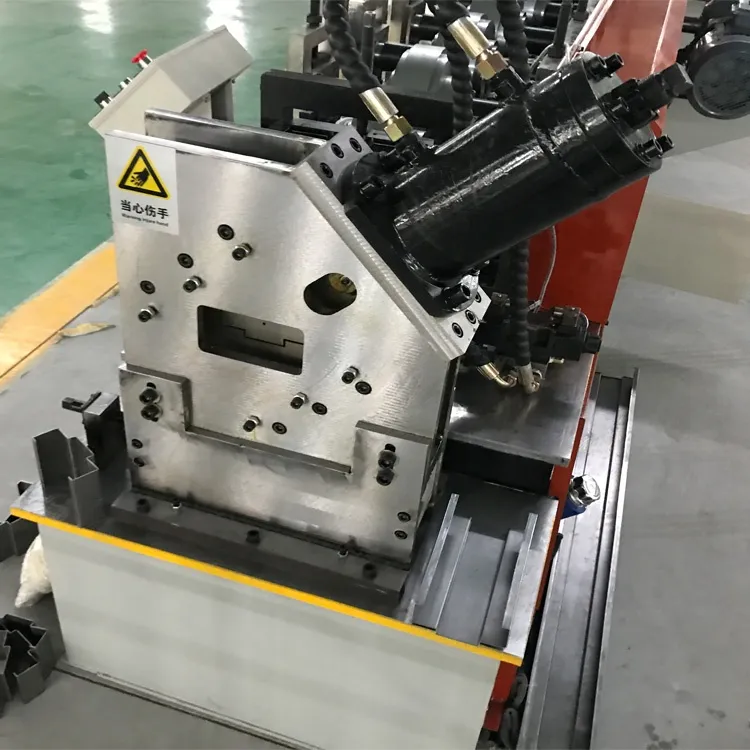

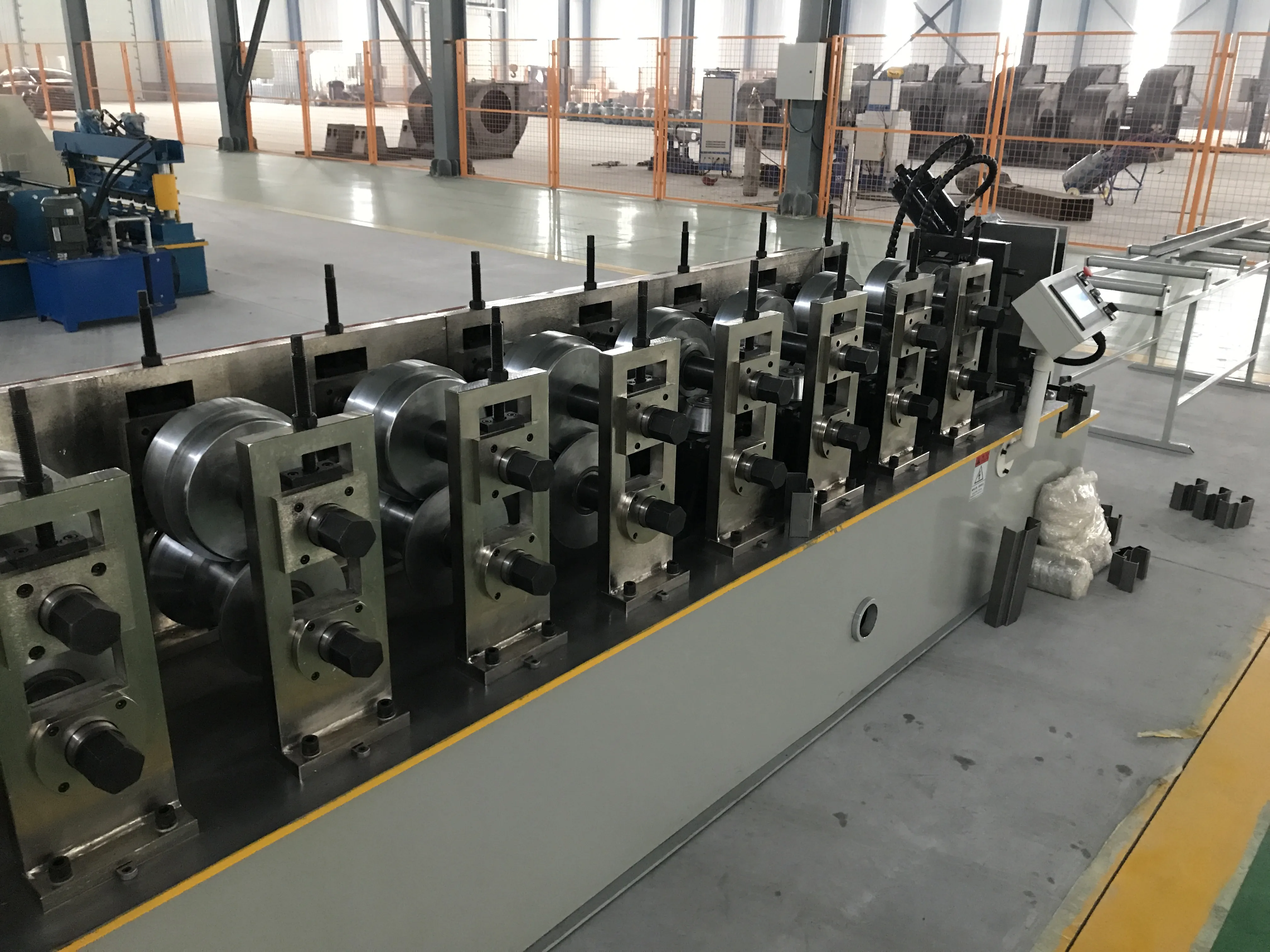

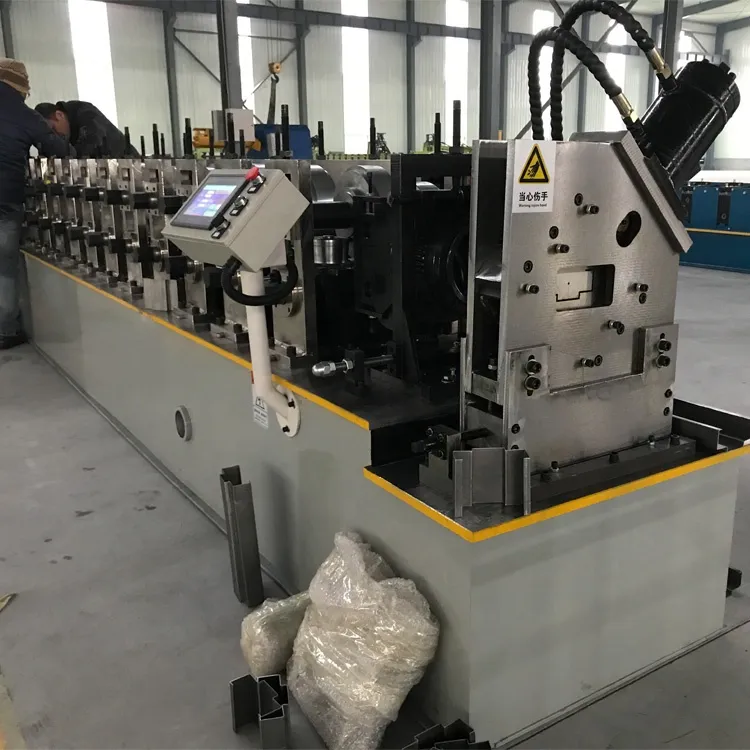

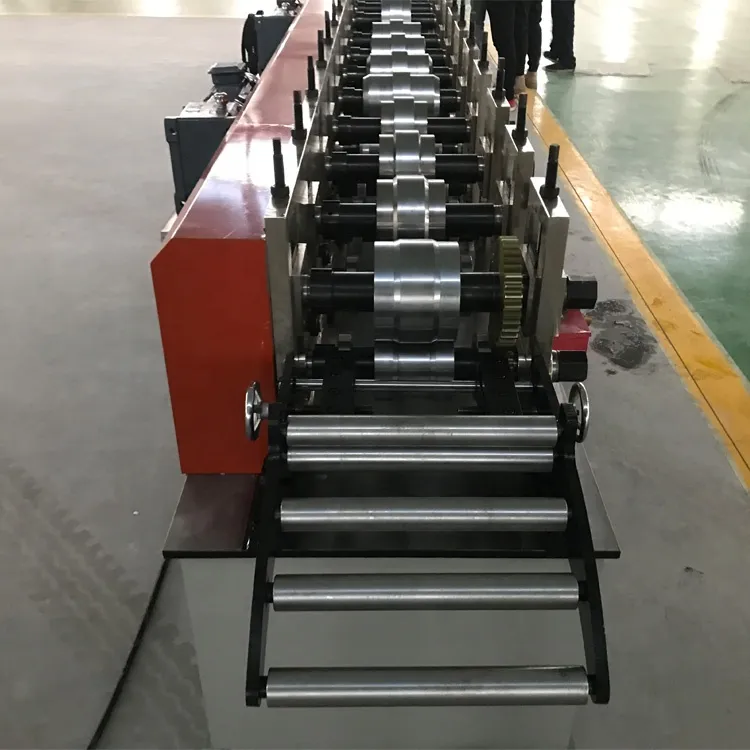

Some details of steel door frame making machine

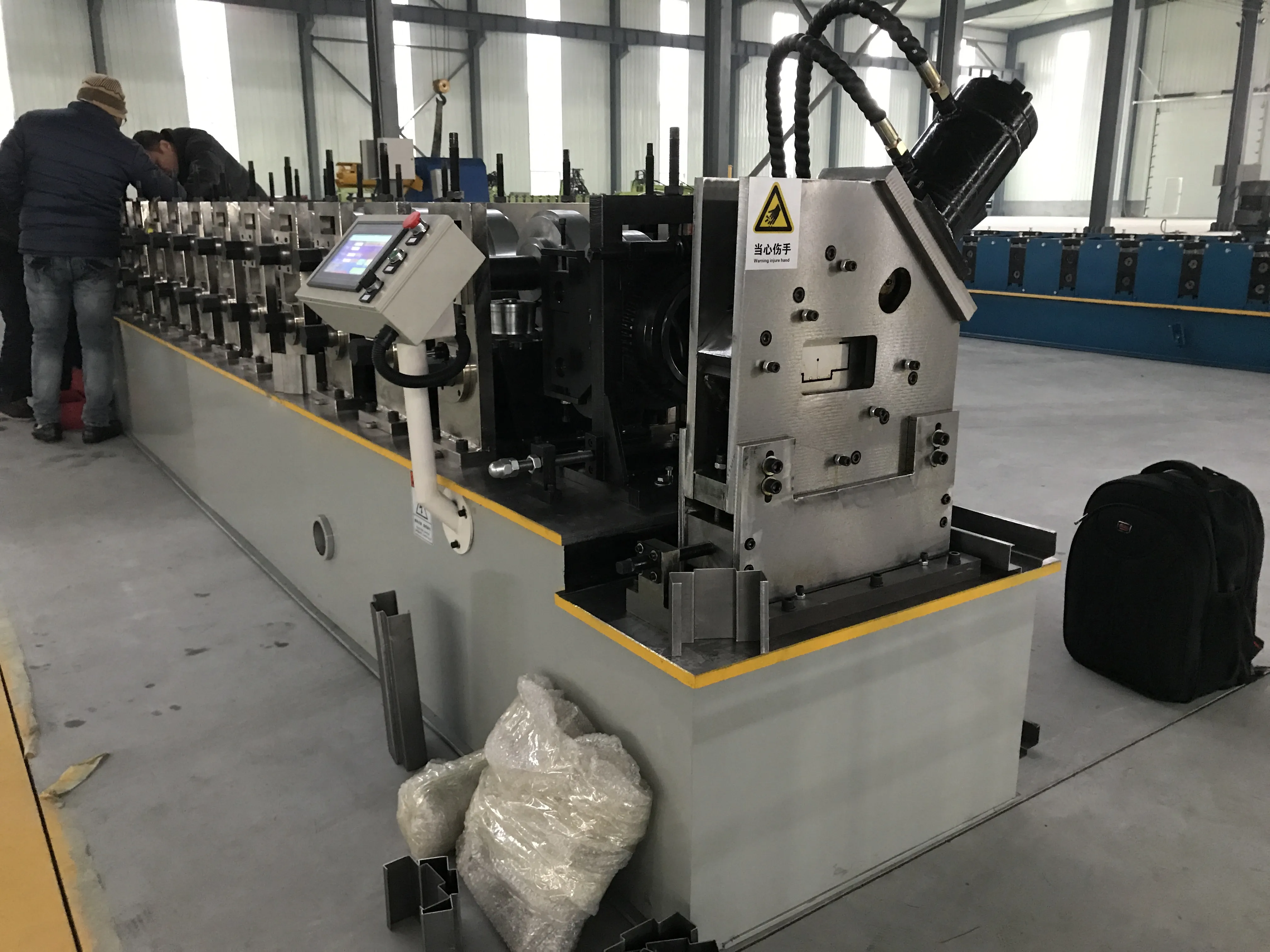

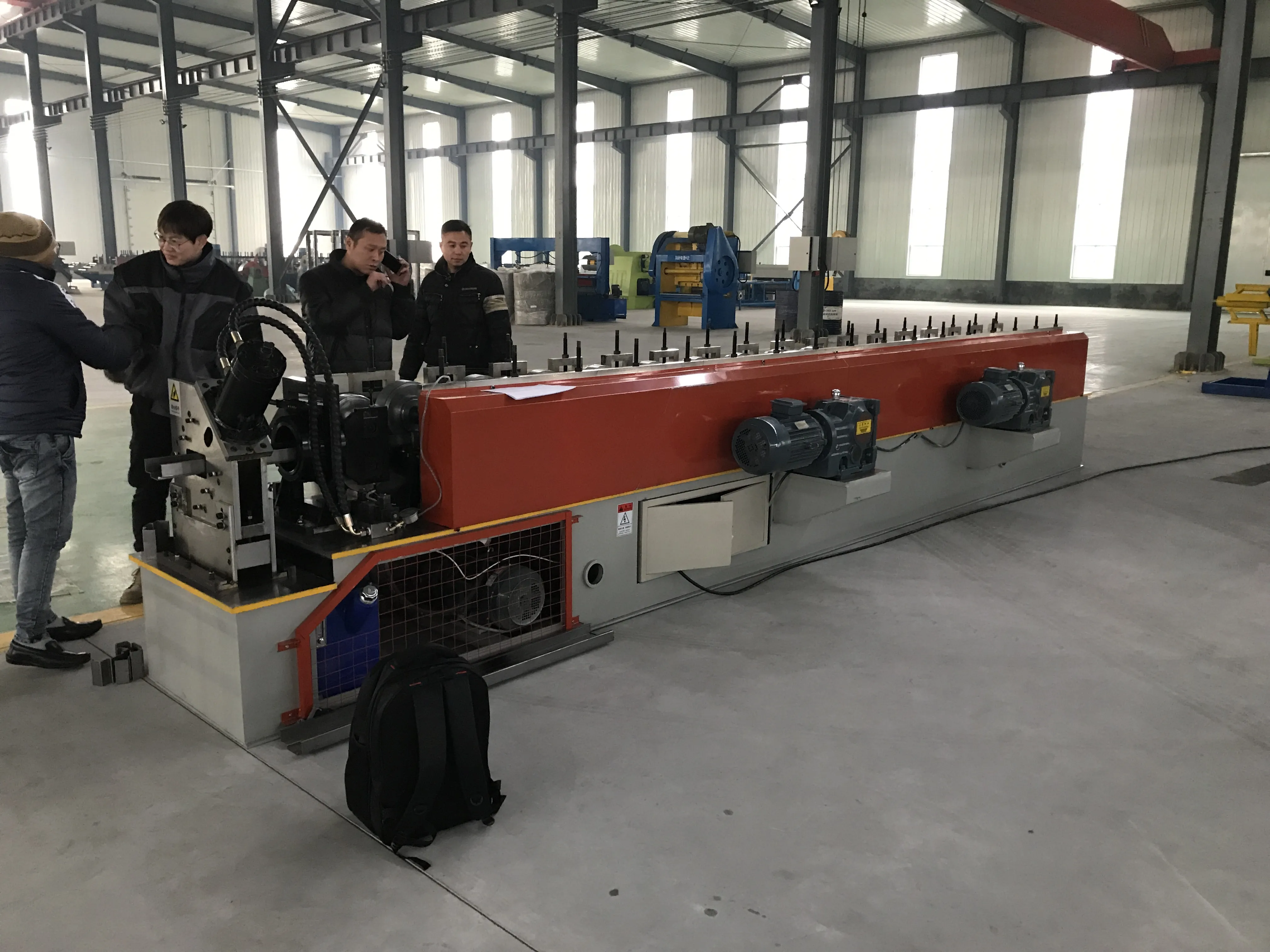

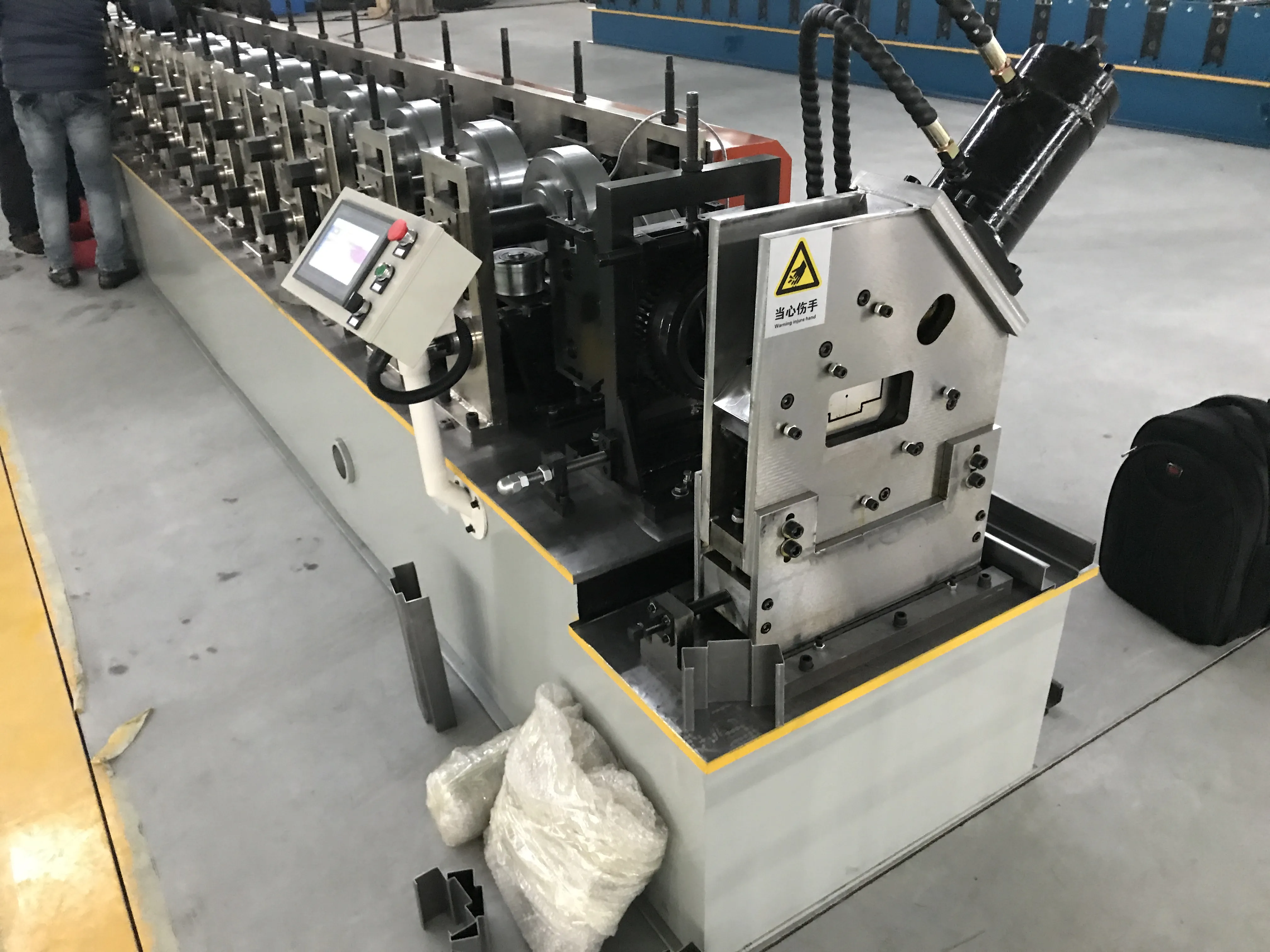

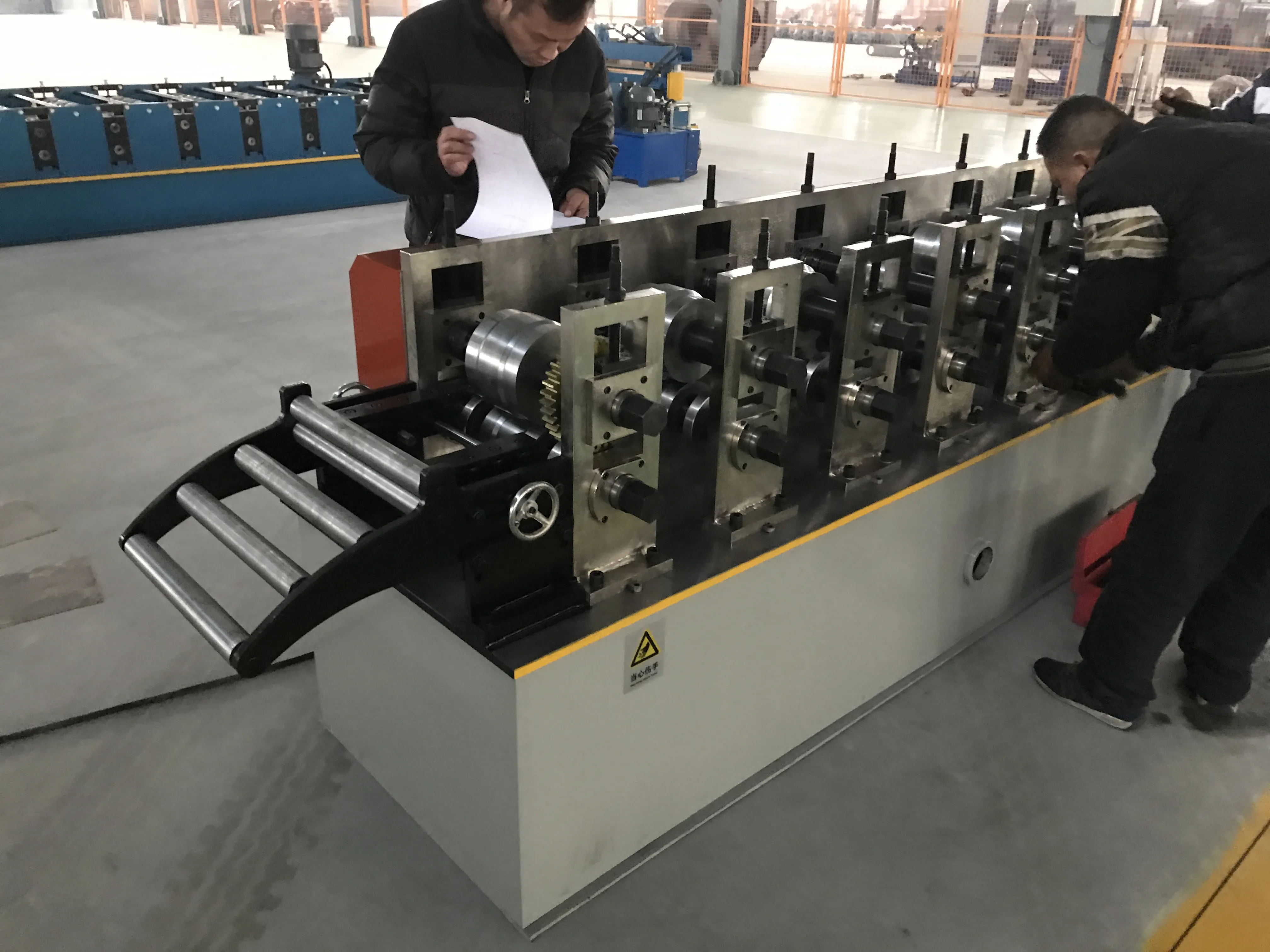

Some photos about the machine test that customer come to our factory

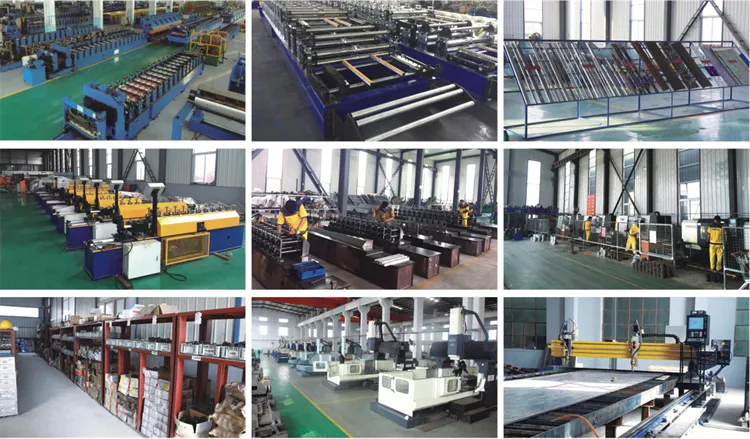

Cangzhou zhongtuo roll forming machinery co., ltd as a manufacturer since 1996, we are specialized in manufacturing color steel forming machine, light keel machine, c&z purline machine, glazed tile forming machine, welded tube mill, steel structural floor panel roll forming machine and so on. We can provide you one station, non-stop service. Our machines have been exported to 90 countries, such as Canada, South Korea, Russia, Holland, Sri Lanka, Malaysia, India, Brazil as so on. Our company insists on the service aim: Quality First, Credit First. We believe that we can make the future cooperation and achieve win-win.

Why choose to cooperate with us ?
1. We are professional manufacturer, we can produce best quality machine for you.
2. We have strong design ability, we can design machine as your requirements.
3. We have much experience for installation and training experience overseas.
4. We have successfully exported our machines to more than 90 countries.
5. We provide one year machine warrant and whole life technical support.
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you. b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself. if after warranty period, we can through negotiation to solve the problems,a nd we supply the technical support for the whole life of the equipment.
4. Can you be responsible for transport?
Yes, please tell me the destination port. We can help you to do the shipping if you need. we have rich experience in transport. We can give you the cheaper freight and send the machien to your country port.
5. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
6. How long the machine could be made?
Normally speaking, all the machines could be made without 45 working days. But if you need machines in a hurry, we can make it for you less than a month.
