Electrical Zinc Coated Wire Mesh Cable Tray and Cable Management Jiangsu, China+BM5-50Z+Besca+Max 6000mm+50-900mm

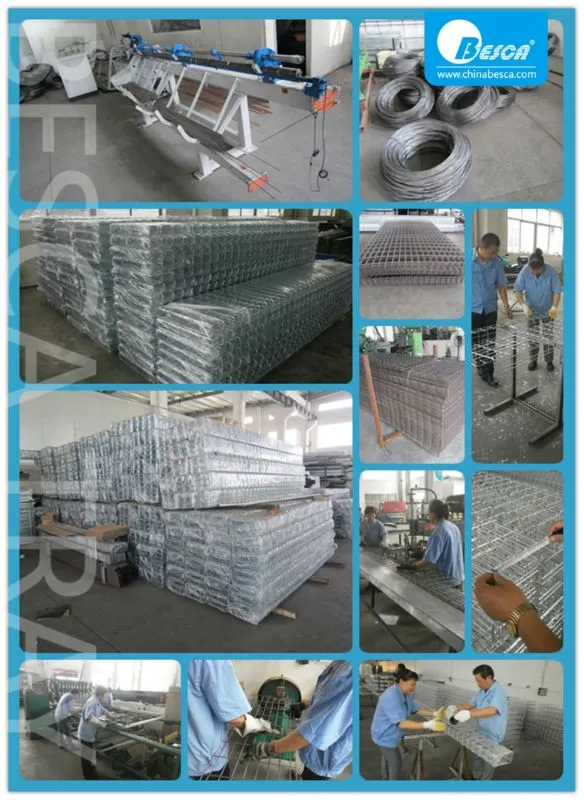

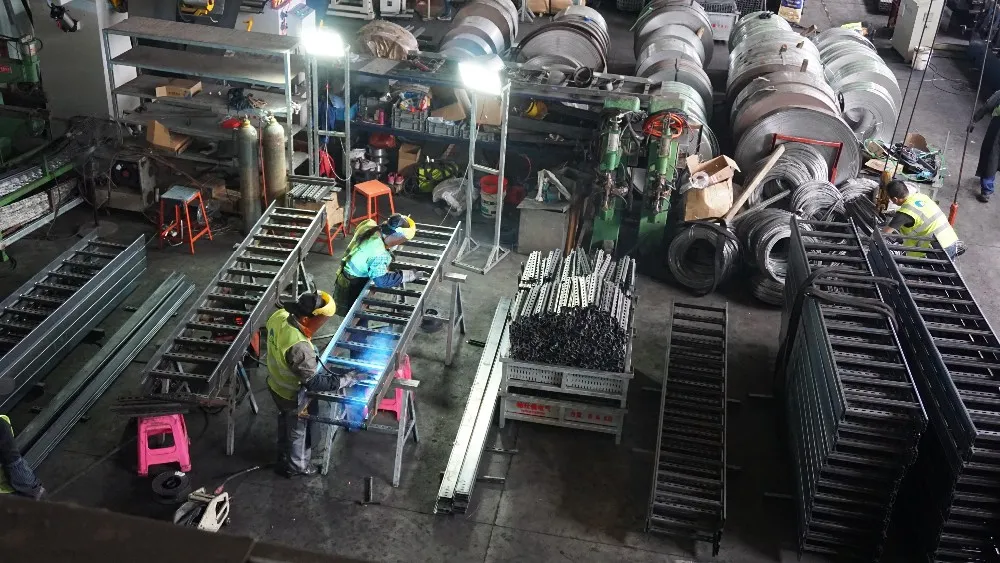

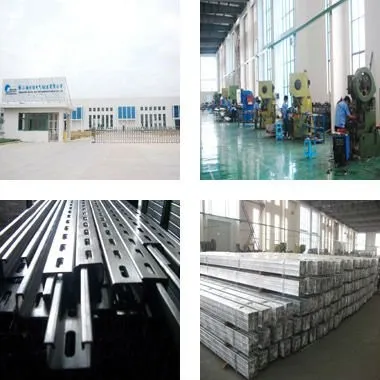

Besca manufacturing unit is well equipped with an in house design unit well supported by a CAD/CAM facility ensuring in customizing our range as per the latest design and specifications of our clients. Further, we regularly update our range of machines so as to keep ourselves abreast of the current changes and trends in the industry.

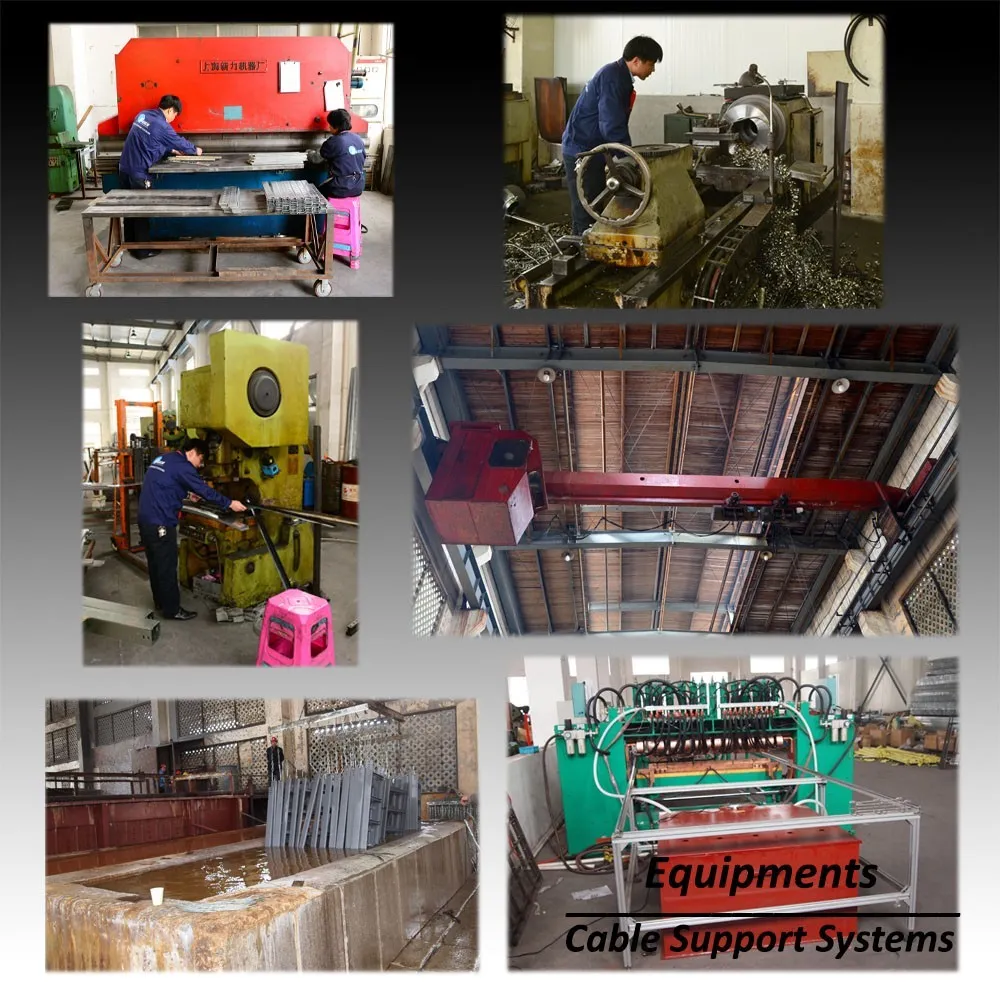

From now on ,we have the belows machines to ensure the customized capacity;
Drilling Machines
Grinding Machines
 Cutting Machines
 Welding Machines

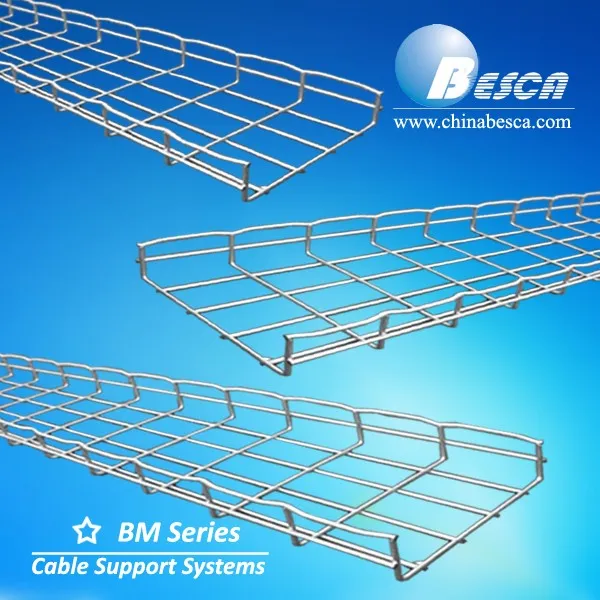

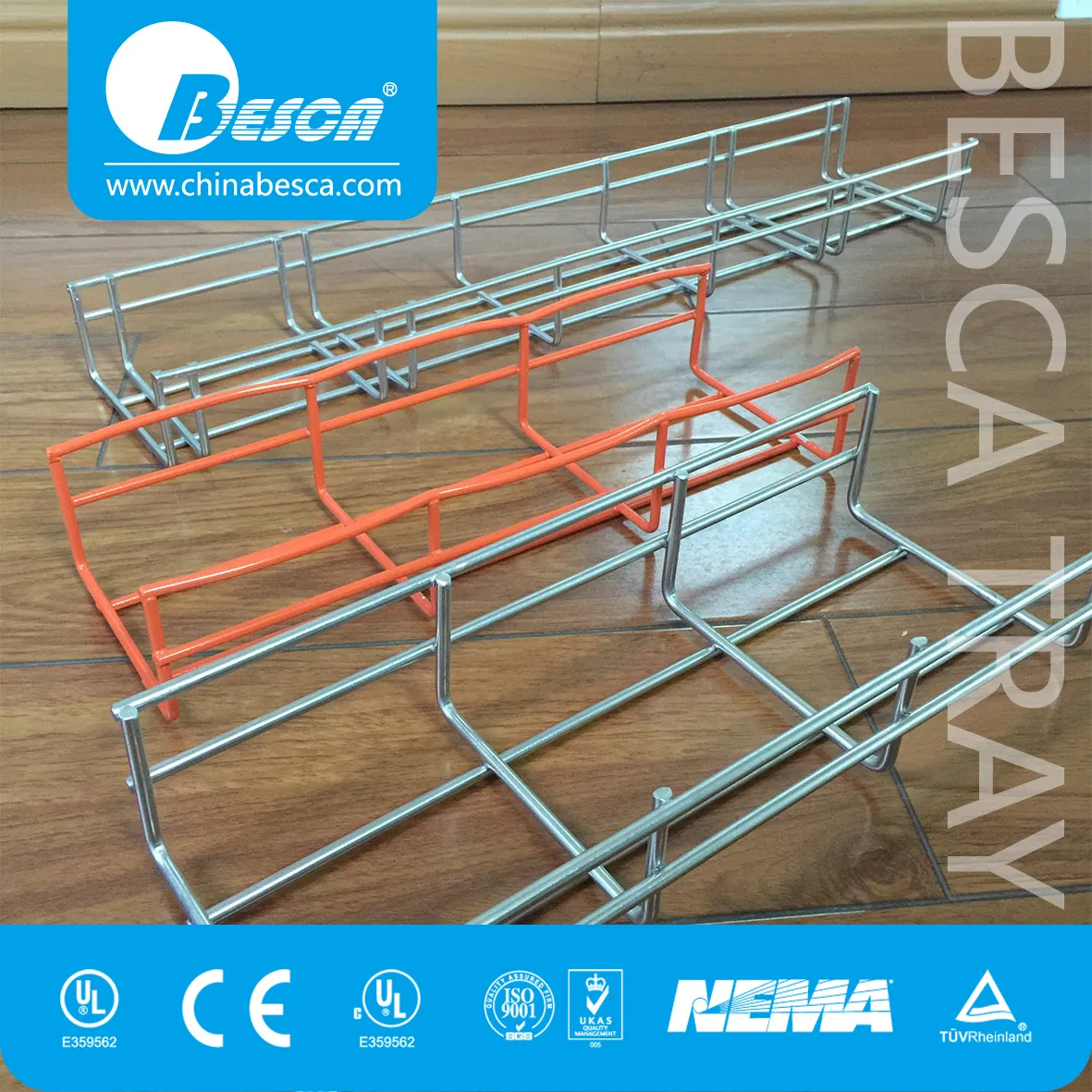

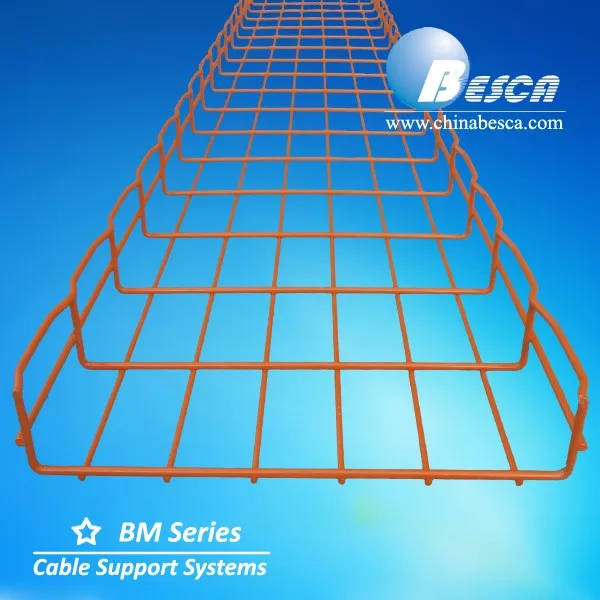

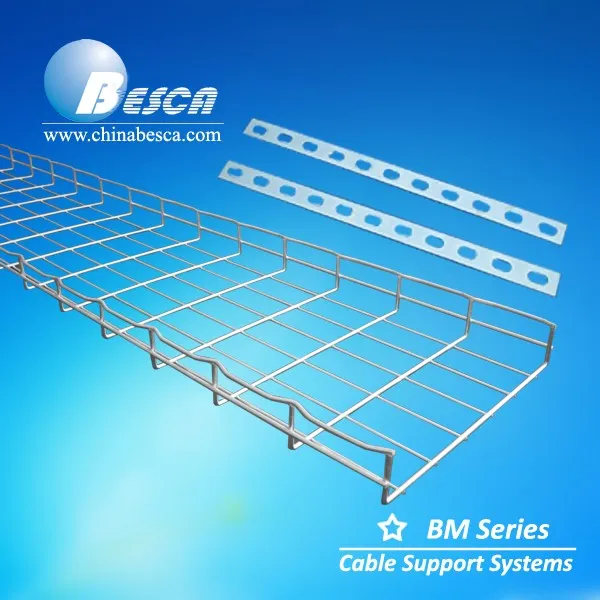

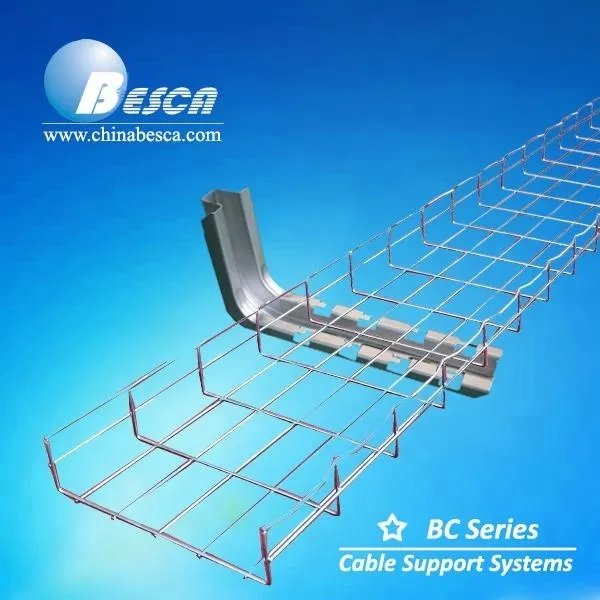

The detailed images of our product wire mesh cable tray

Presentation of wire mesh cable tray

Material of wire mesh cable tray

Q235B Steel (Chinese standard steel), SS304, SS316

Surface Finish of wire basket cable tray

Electro zinc plated – for indoor use to BS EN 12329-2000, 12microns thick.

Hot Dipped Galvanized – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Electrolytic Polishing – for stainless steel use



Dimensions of wire mesh cable tray

Cable Tray dimensions are all internal.

Depth of 50mm, 100mm &150mm

Widths of 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm & 600mm.

Length of 2997 fit max loading capacity in 40'ft containers.

Wire Mesh Cable Trays are constructed with a 50mm x 100mm mesh configuration. Diameters of wires are 5.0mm



Installation Notice of wire mesh cable tray

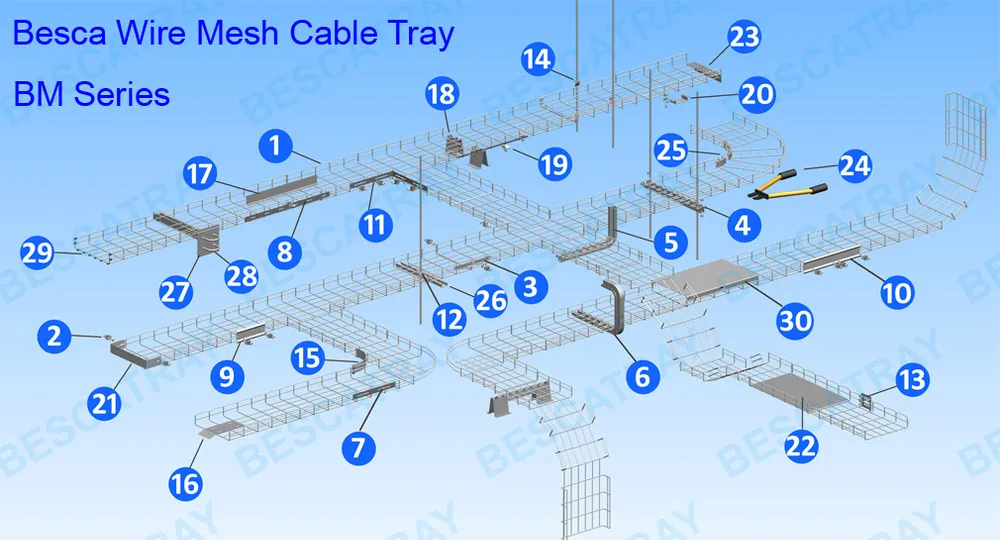

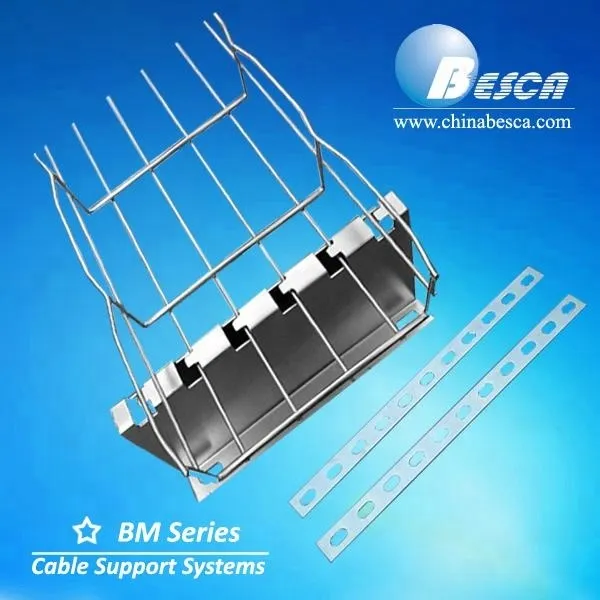

Bends, Risers, T Junctions, Crosses & Reducers can be made from wire mesh cable tray straight sections flexibly in projects.Trays shall be supported at a maximum span of 2.5 m by trapeze, wall, floor or channel mounting methods and will not exceed maximum loads as specified by the manufacturer. Wire Mesh Cable Tray systems can be safely employed in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.

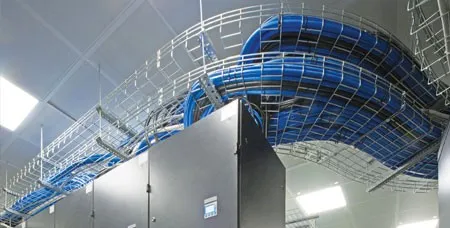

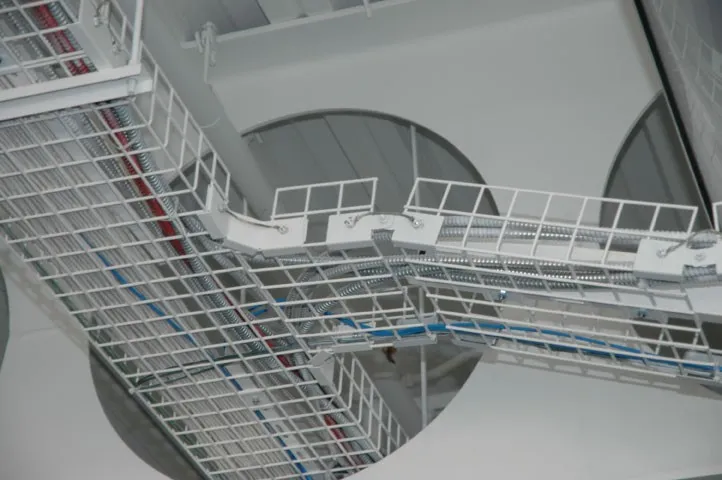

Application of wire basket cable tray

Wire Mesh Cable Trays are mainly used for low voltage,

telecommunication, and fiber optic cables supported on short spans.



Features & Advantages of wire mesh tray

All sharp ends are cut off to protect cables. Weight loading capacity is 27% stronger than traditional cable trays and cable ladders.

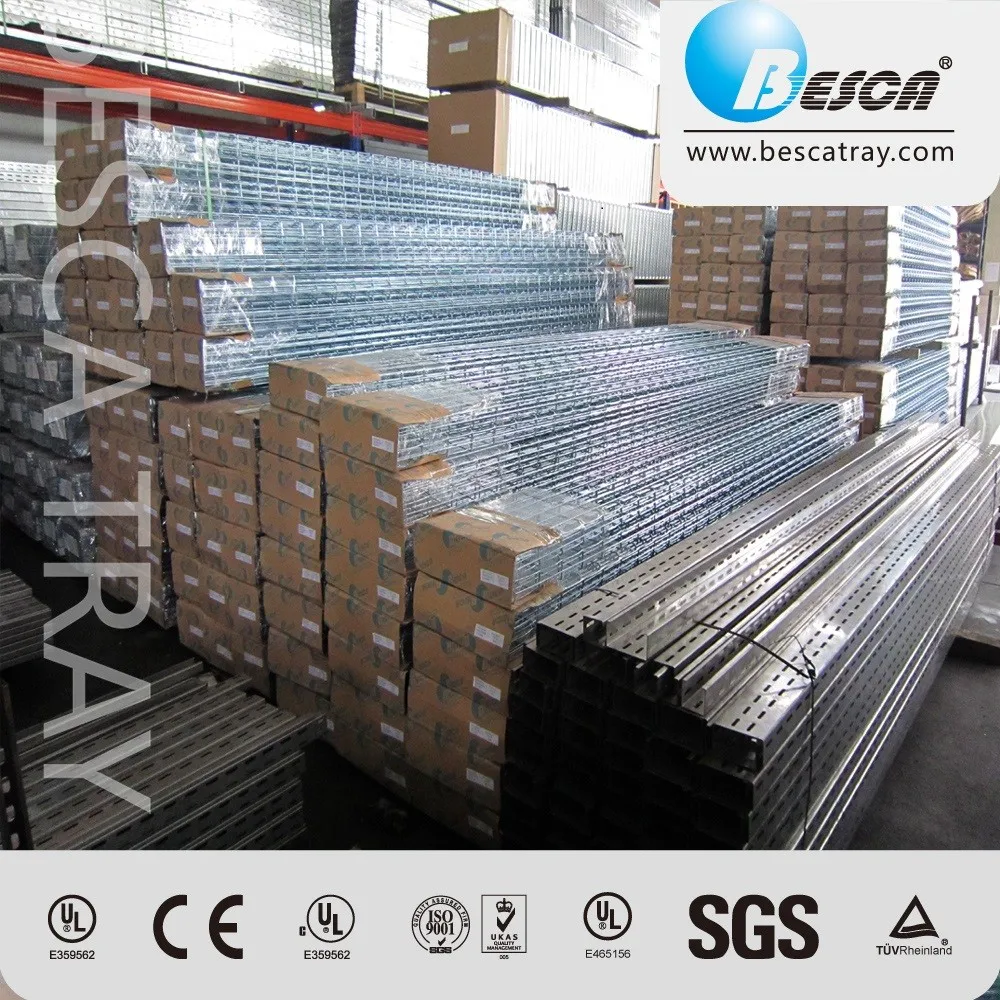

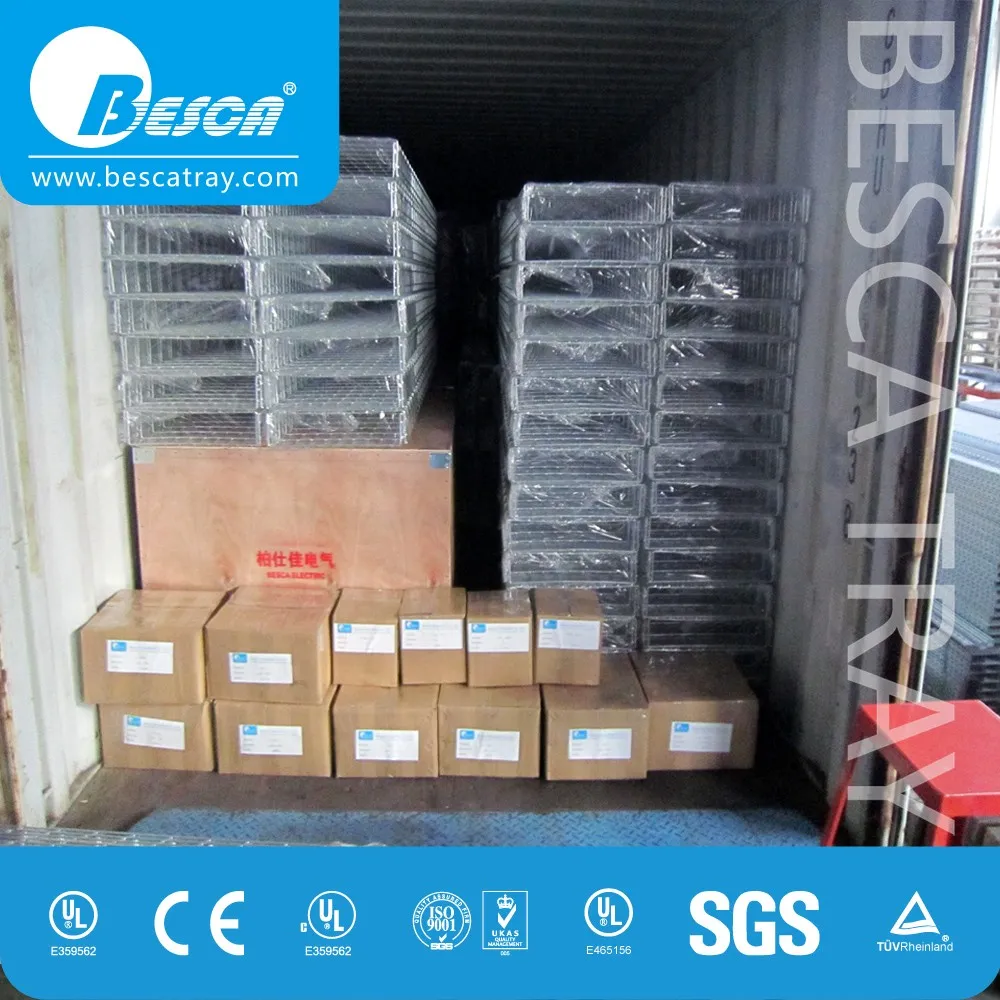

Packaging Details:

Standard export packing or according to customer's requirement

Delivery Detail:

10-30days(normal)or according to order

Wire mesh cable tray

Wire mesh cable tray
