Easy to Operate Roller Shutter Door Slat Rolling Mill Roller Shutter Door Making Machine Roller Door Lath Machine ZTE-RDRM+7.9KW

Name: Easy to Operate Roller Shutter Door Slat Rolling Mill Roller Shutter Door Making Machine Roller Door Lath Machine ZTE-RDRM+7.9KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT81813006

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTE-RDRM

Power(W):

7.9KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
door making machine
Tile Type
Steel
Use
garage door
Voltage
220V 60HZ 3P or as request
Rolling Thinckness
0.8-1.2mm
Feeding Width
121mm

Rolling Shutter Garage Door Slat Roll Forming Machine

Rolling shutter doors are connected in series with multi-joint movable doors. In a fixed slideway, the upper and lower doors are rotated with the reel above the door as the center. Rolling shutters are usually widely used in shops.

There are many types of rolling shutter doors, Cangzhou Zhongtuo can customize high-quality machines for you according to your requirements and provide you with several satisfied solutions.

In order to meet the requirements of small-scale rolling door manufacturers, we have designed and developed an economical machine, which has the advantages of simple operation, small footprint and affordable price.

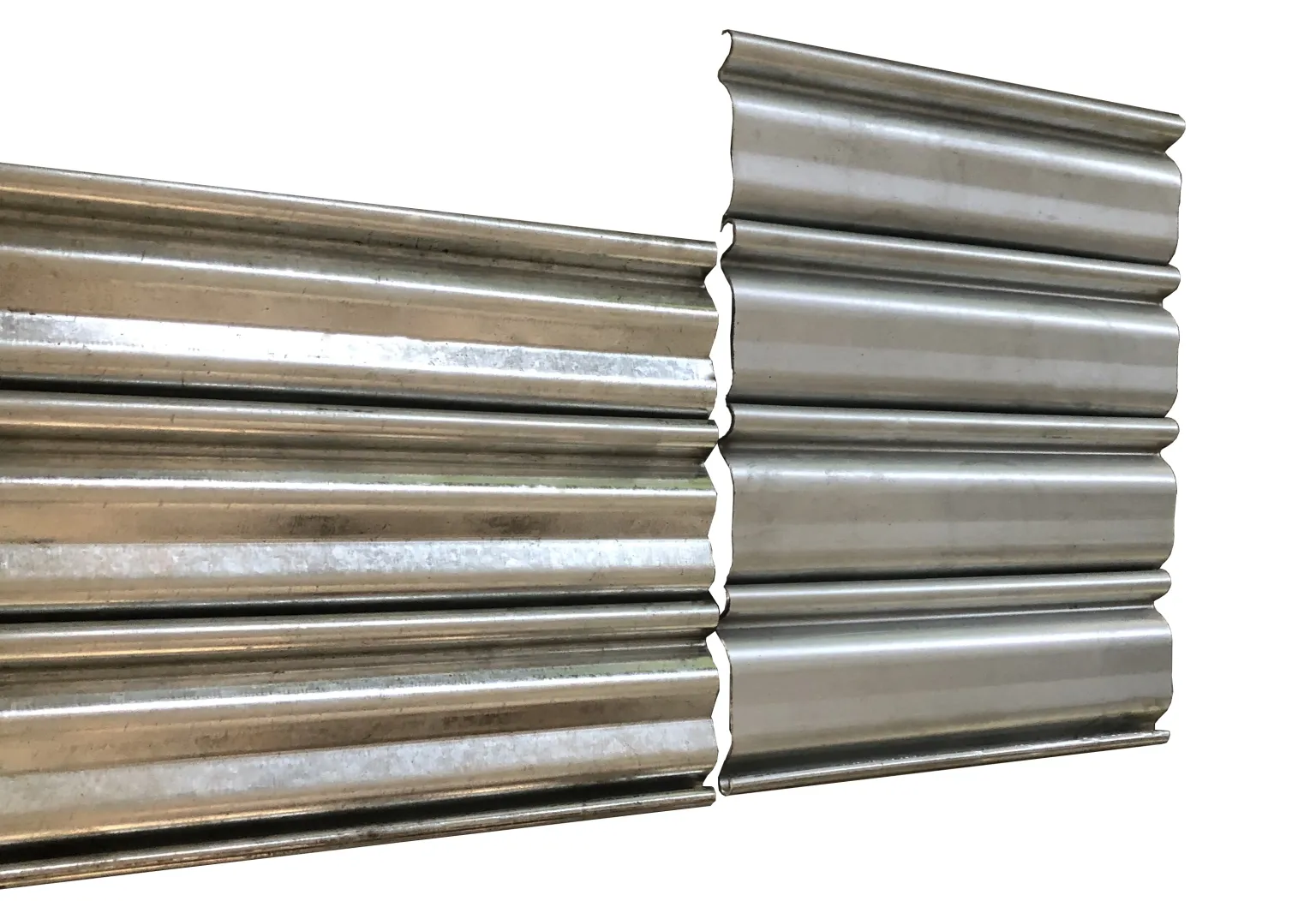

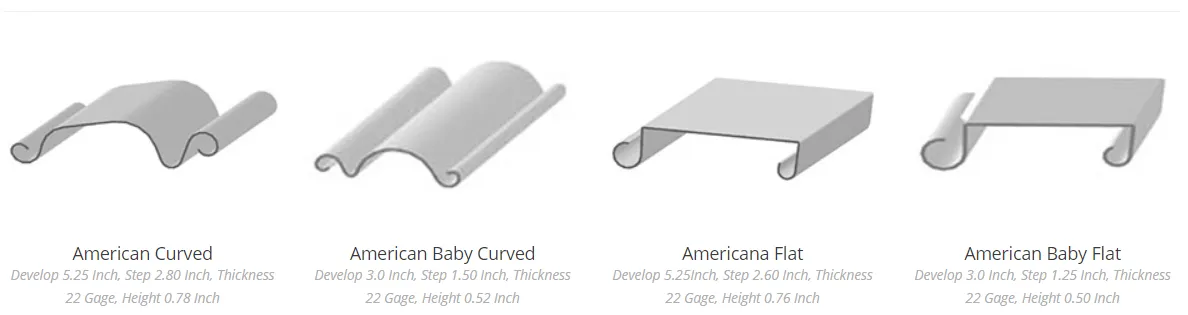

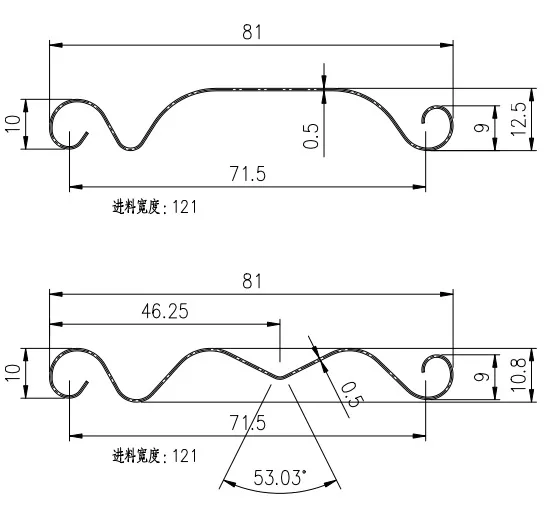

This machine can process two type rolling shutter lath, profile drawing as follow.

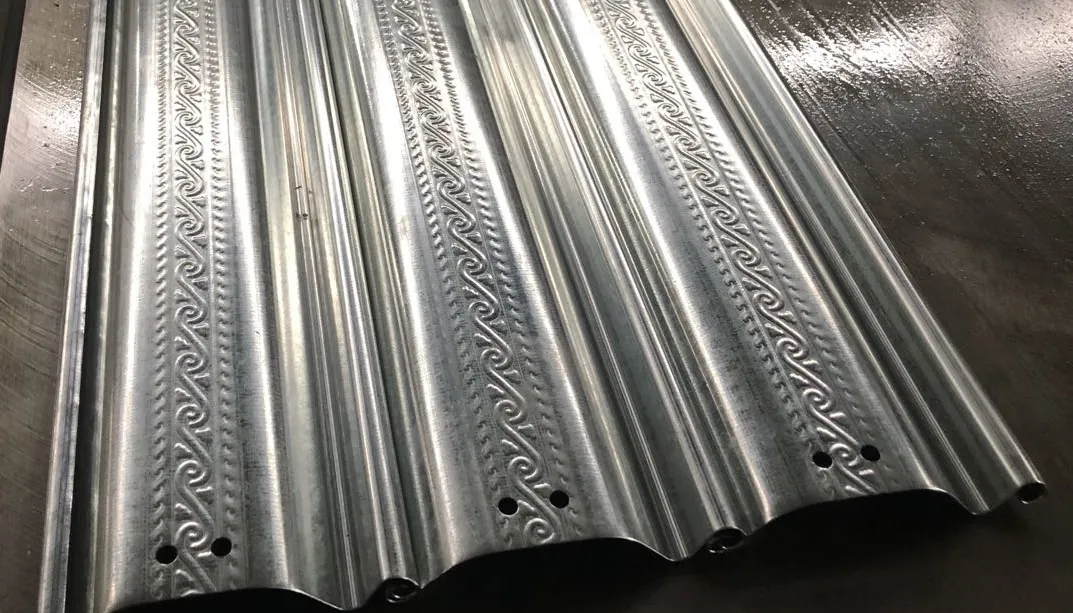

We can add embossing moulds on the machine if you need patterns on the finished products.like this.

Main components

Item	Description	Unit	Quantity	Remark
Part 1	3T manual decoiler	set	1	Manual
Part 2	Main forming machine	set	1
Part 3	cutting system	set	1	Manual
Part 4	Receiving table	set	1	regular

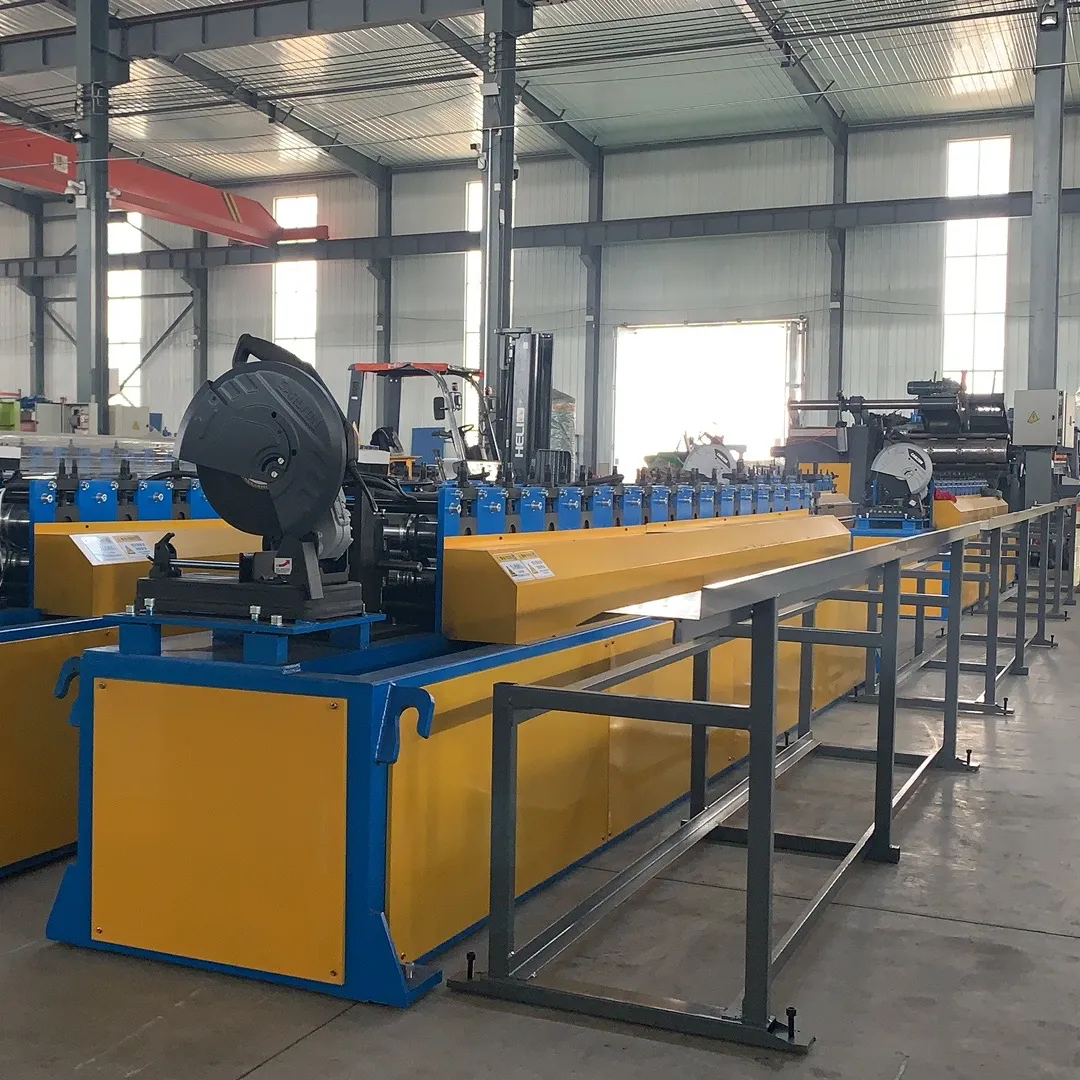

The work flow of production line

Technical parameter
Series	Details	Parameter
Product	Raw material	galvanized steel
	Material thickness	0.6-1.2mm
	Feeding width	121mm
	Cutting length	adjustable

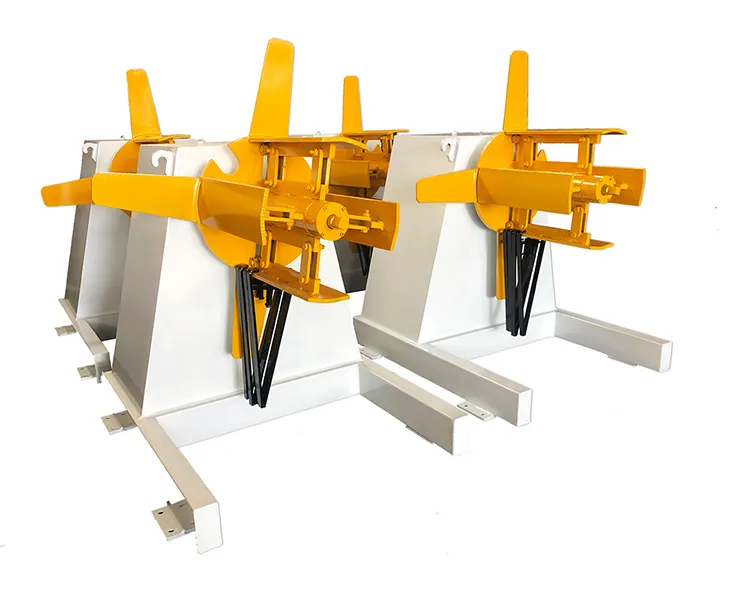

Part 1: Manual Decoiler (3 Ton)
Type	Passive
Coil width	max 400mm
Loading capacity	3Tons
Inner diameter	450-550mm

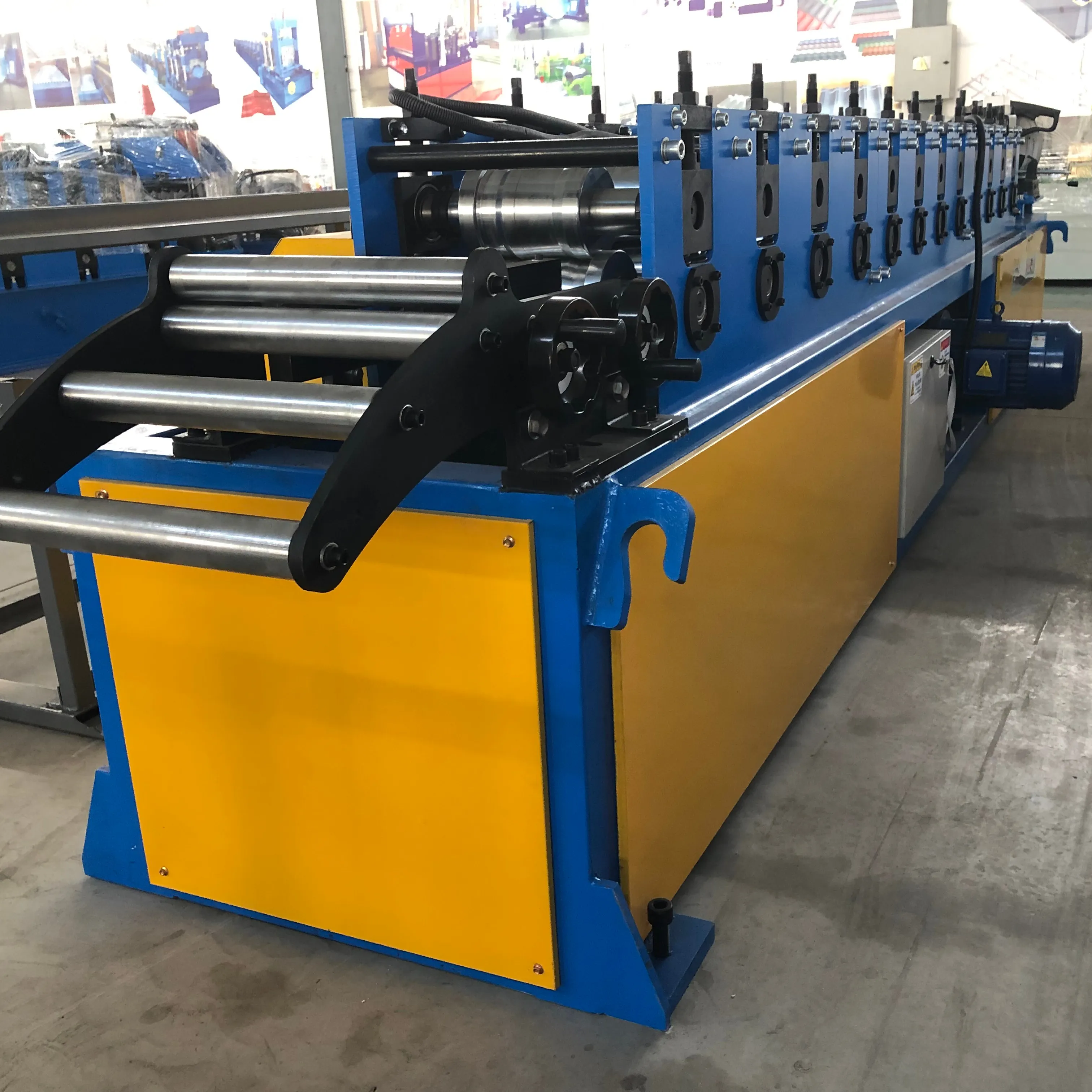

Part 2: Main roll forming machine

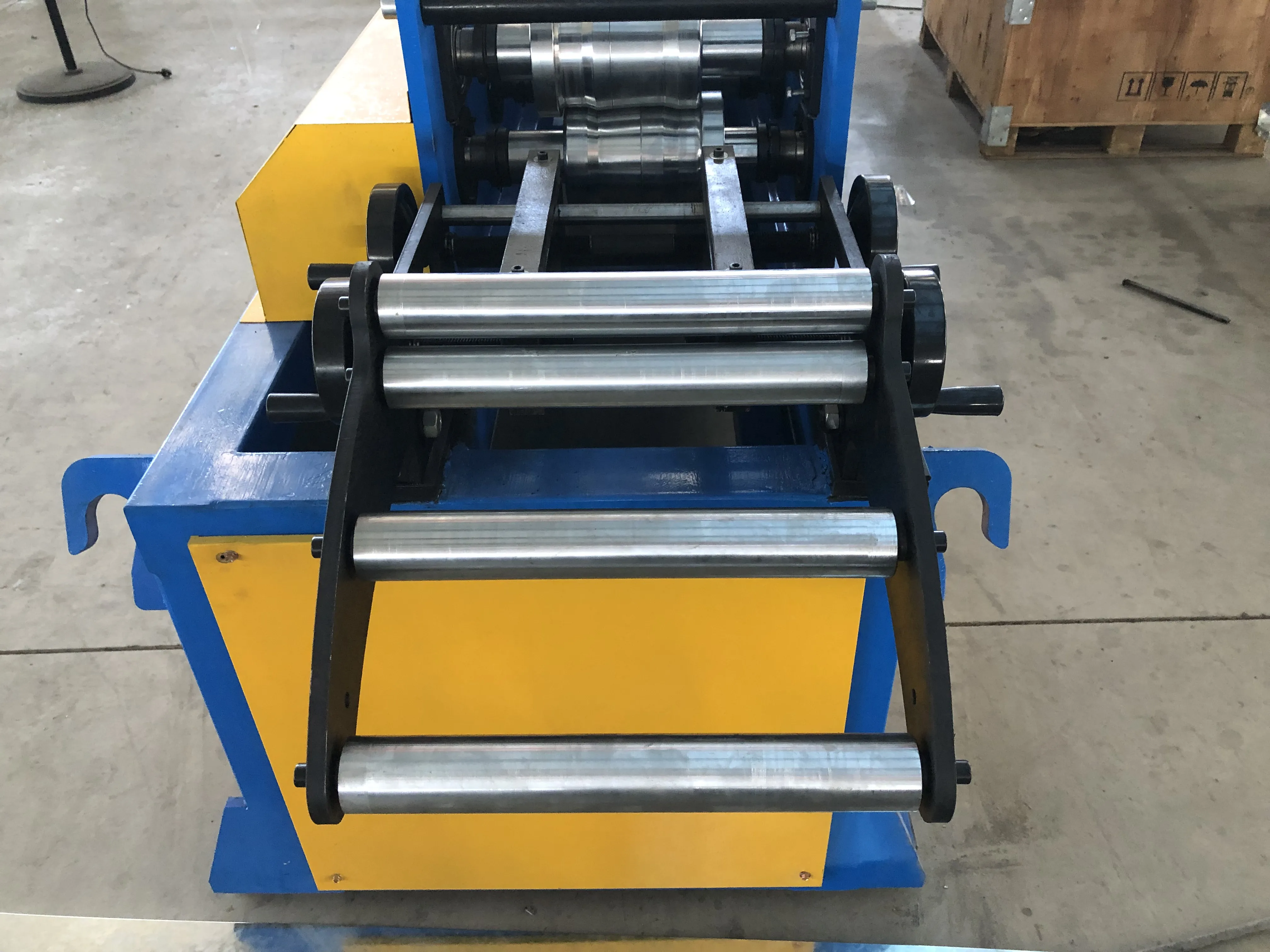

Feeding device	with fourrollers
Rolling shaft	Shaft material: 45# STEEL
	Shaft diameter: 60mm
	Tempering treatment
Forming step	14 steps
Work speed	0-15m/min

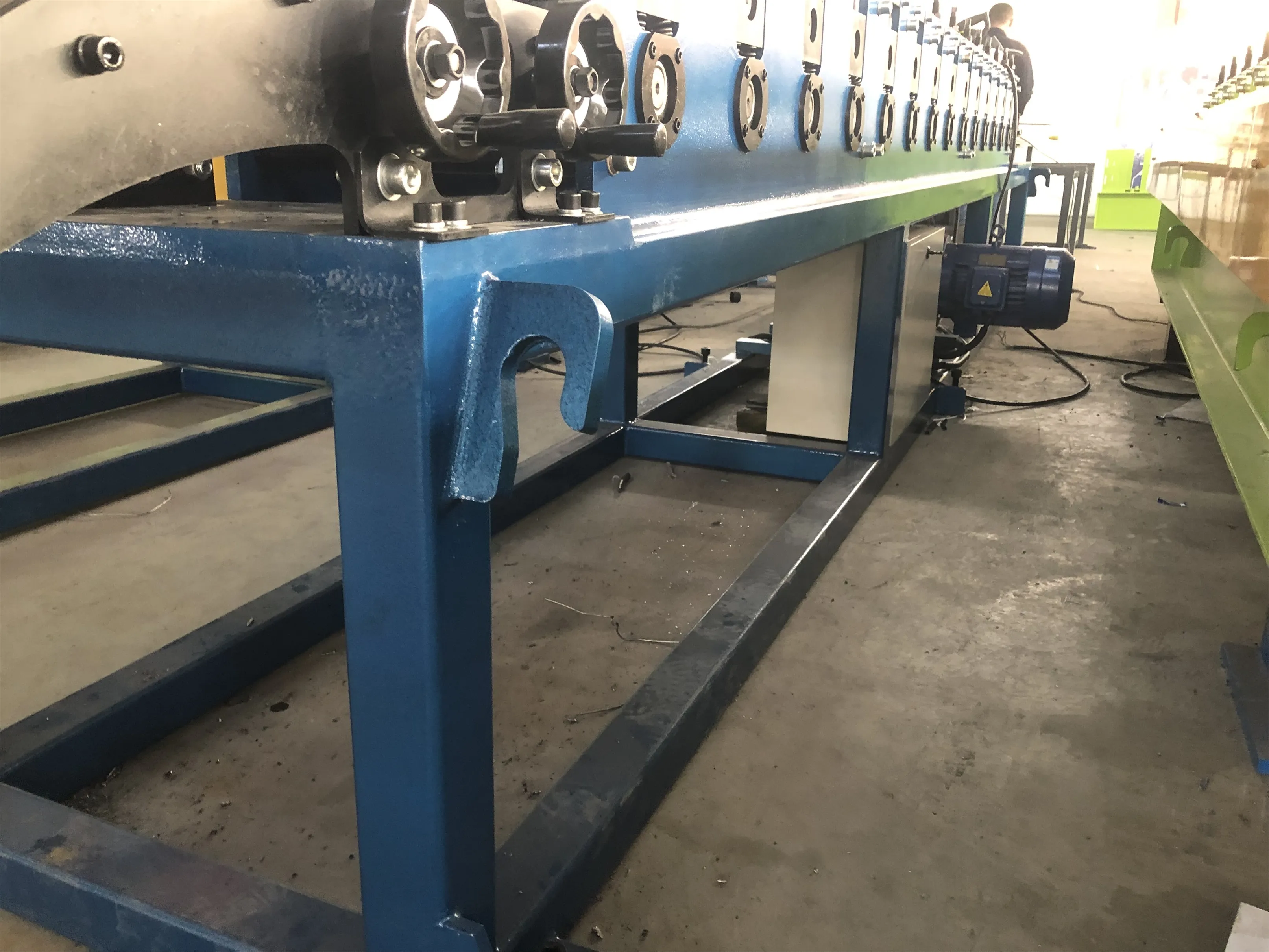

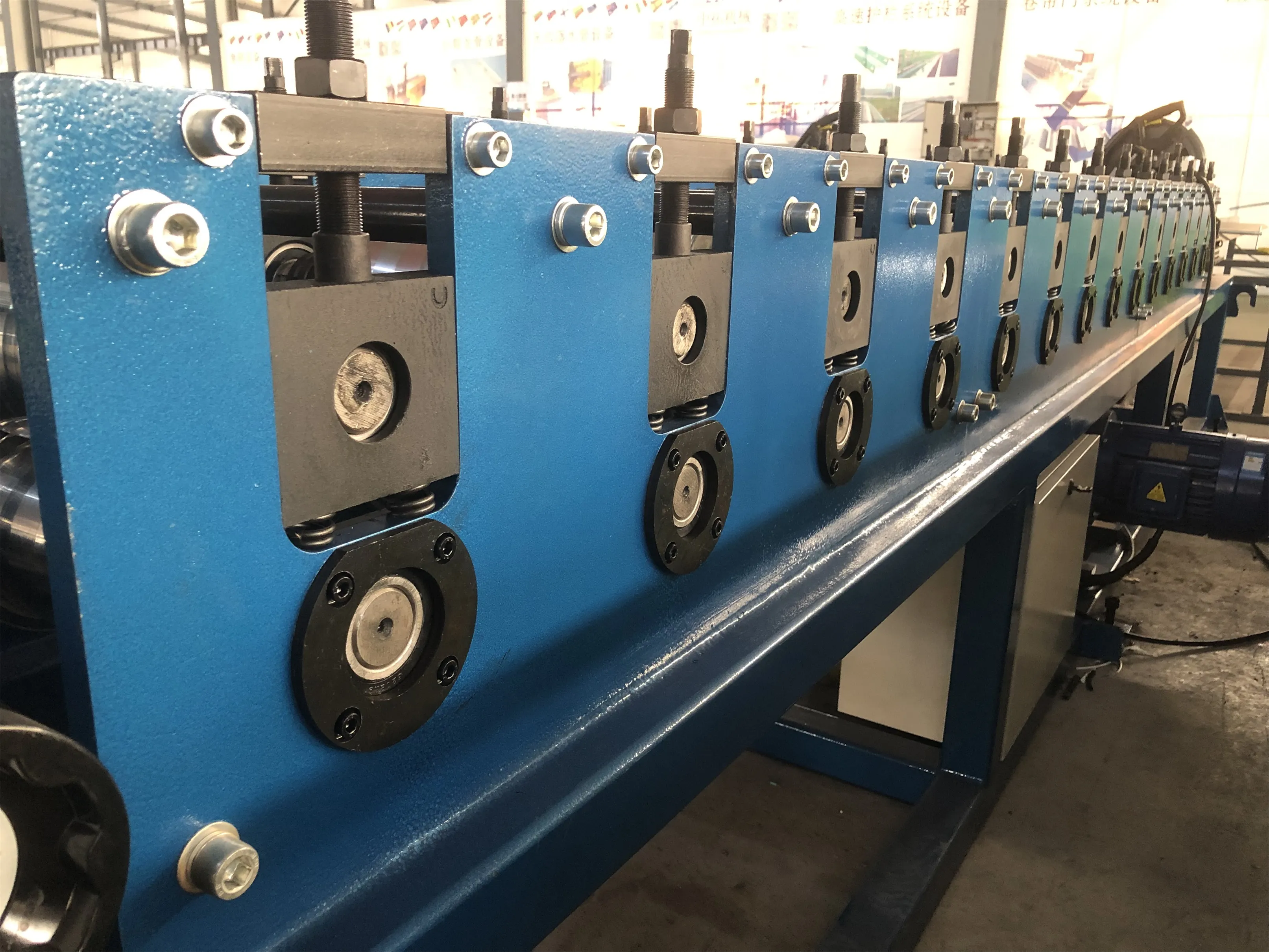

Machine frame	middle plate structure
Bearing	Chinese famous brand Haerbin
Work power	5.5KW

Part 3: Control system

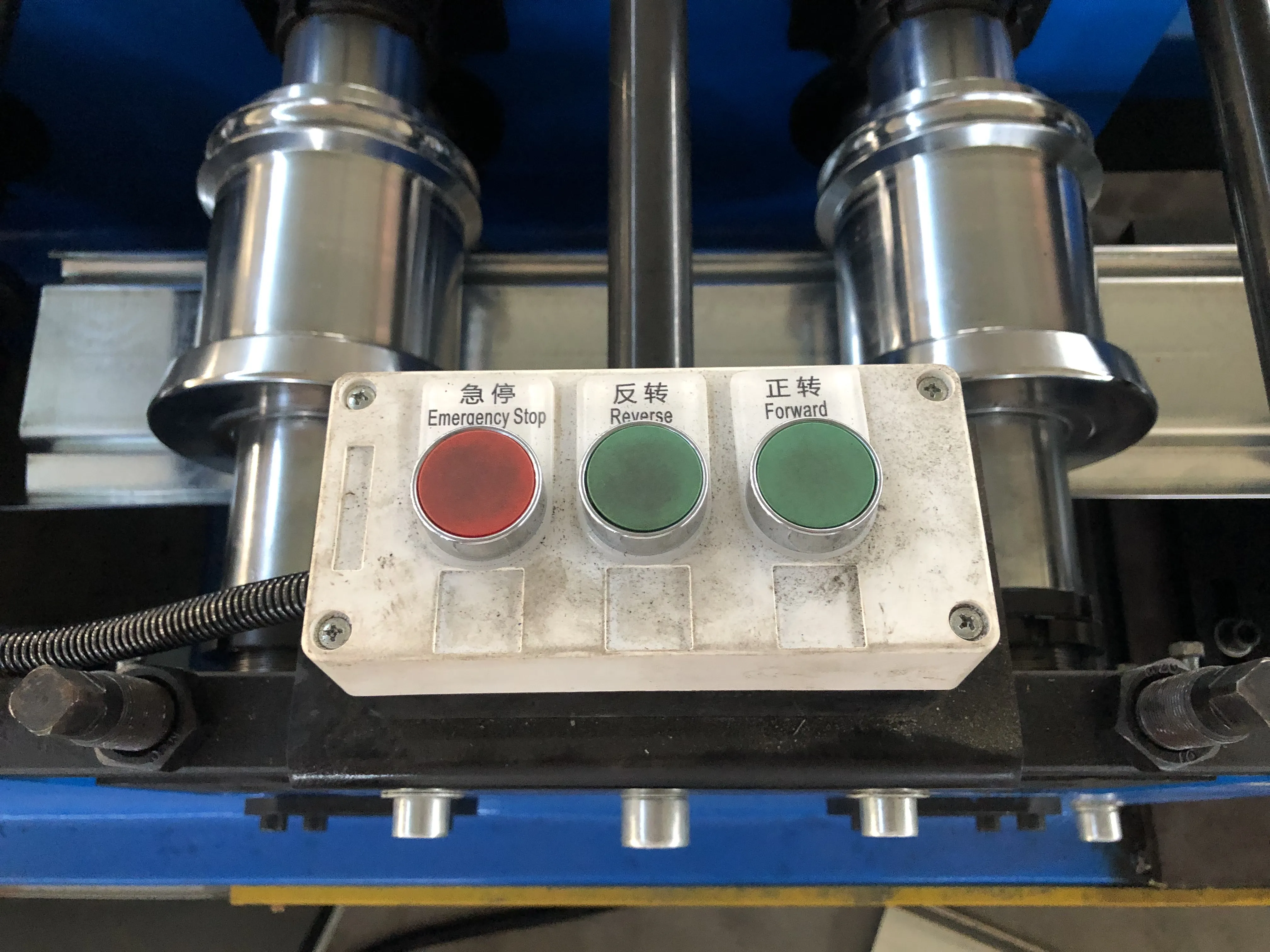

Three buttons	Forward, reverse, emergency stop
Limit switch	two limit switches

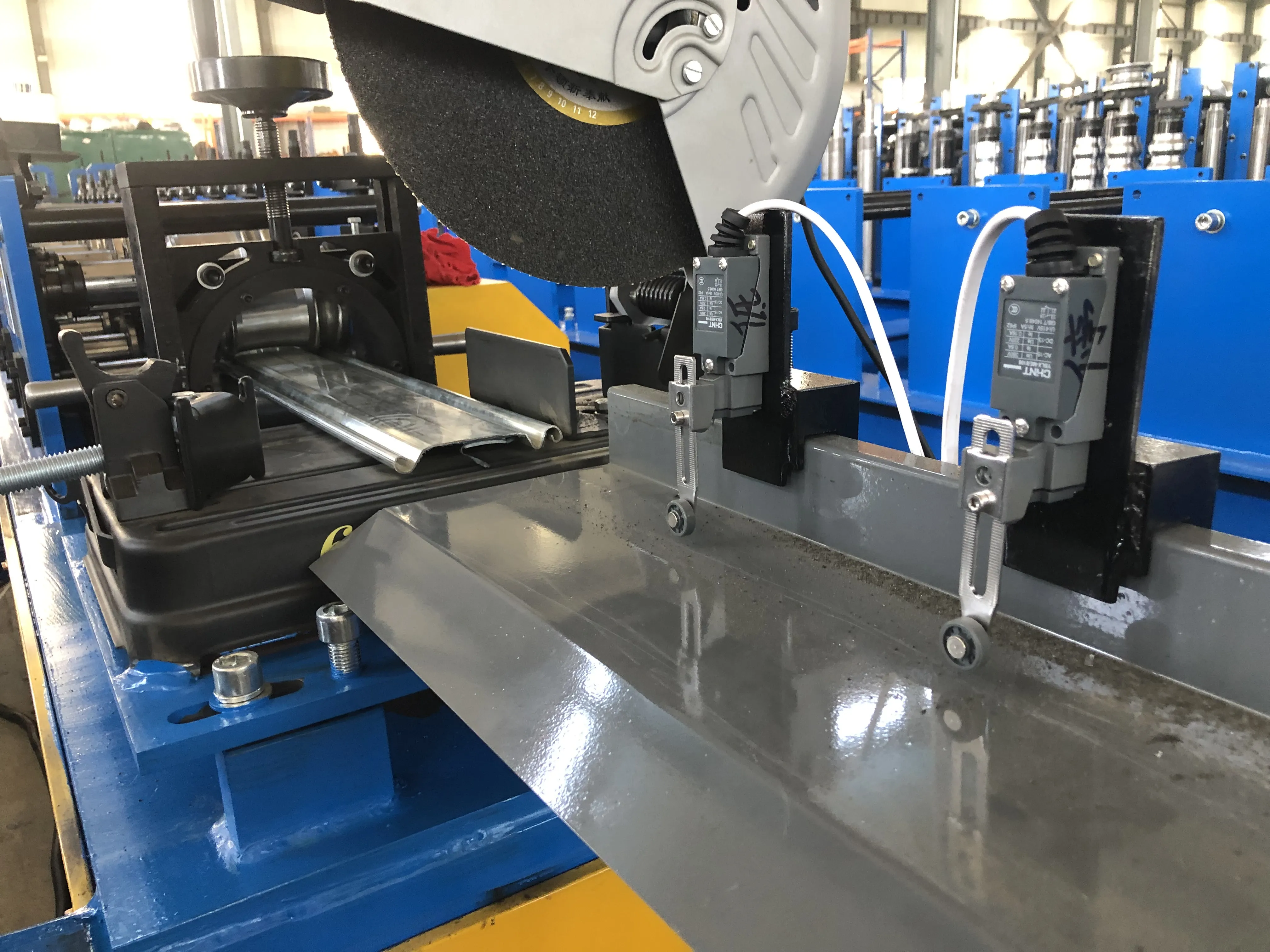

	On the receiving rack, there are two limit switches. When the product touches switch 1, it will slow down and stop when it touches the second switch. The distance from the saw blade to the second switch is the set product length.

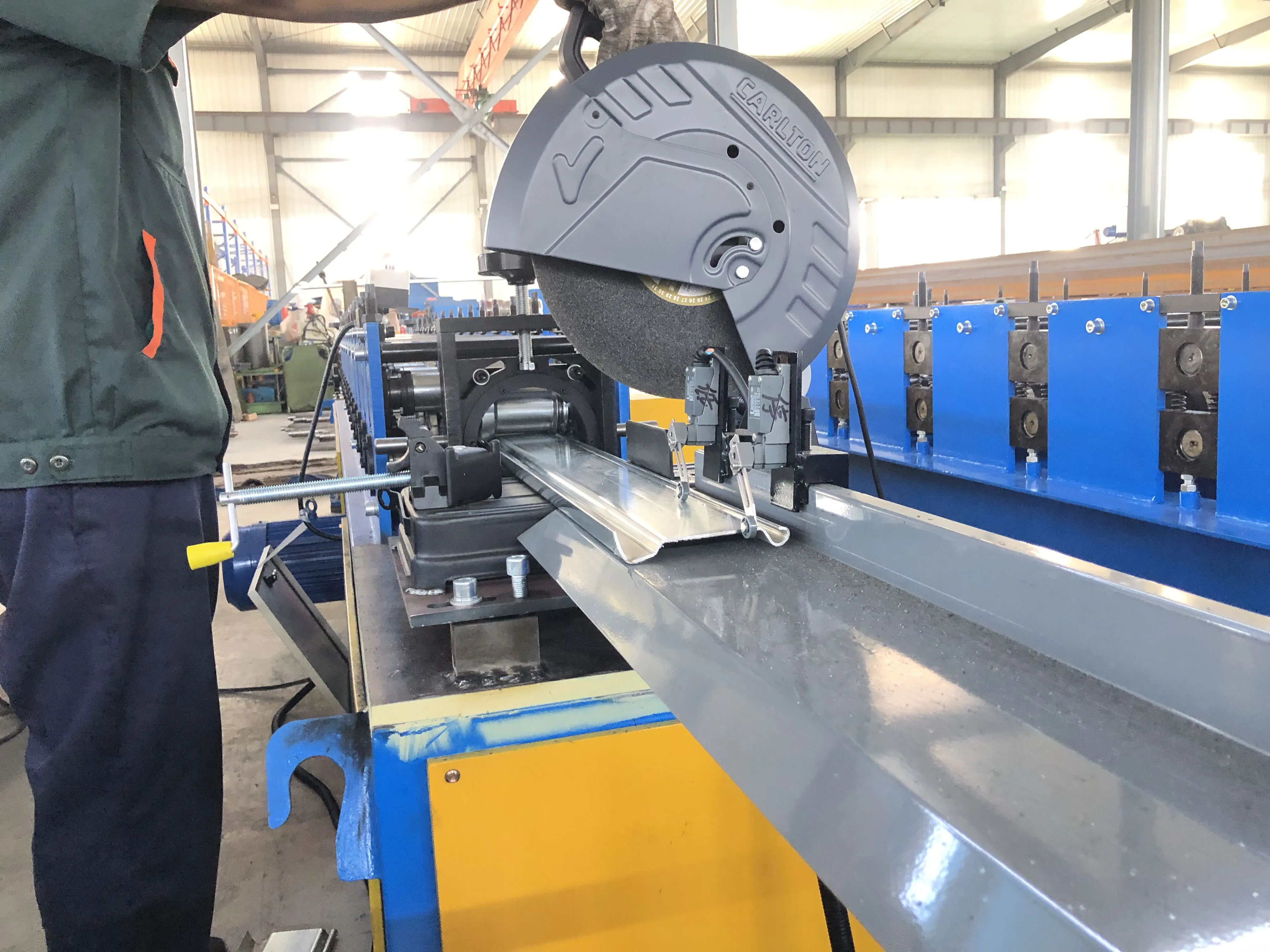

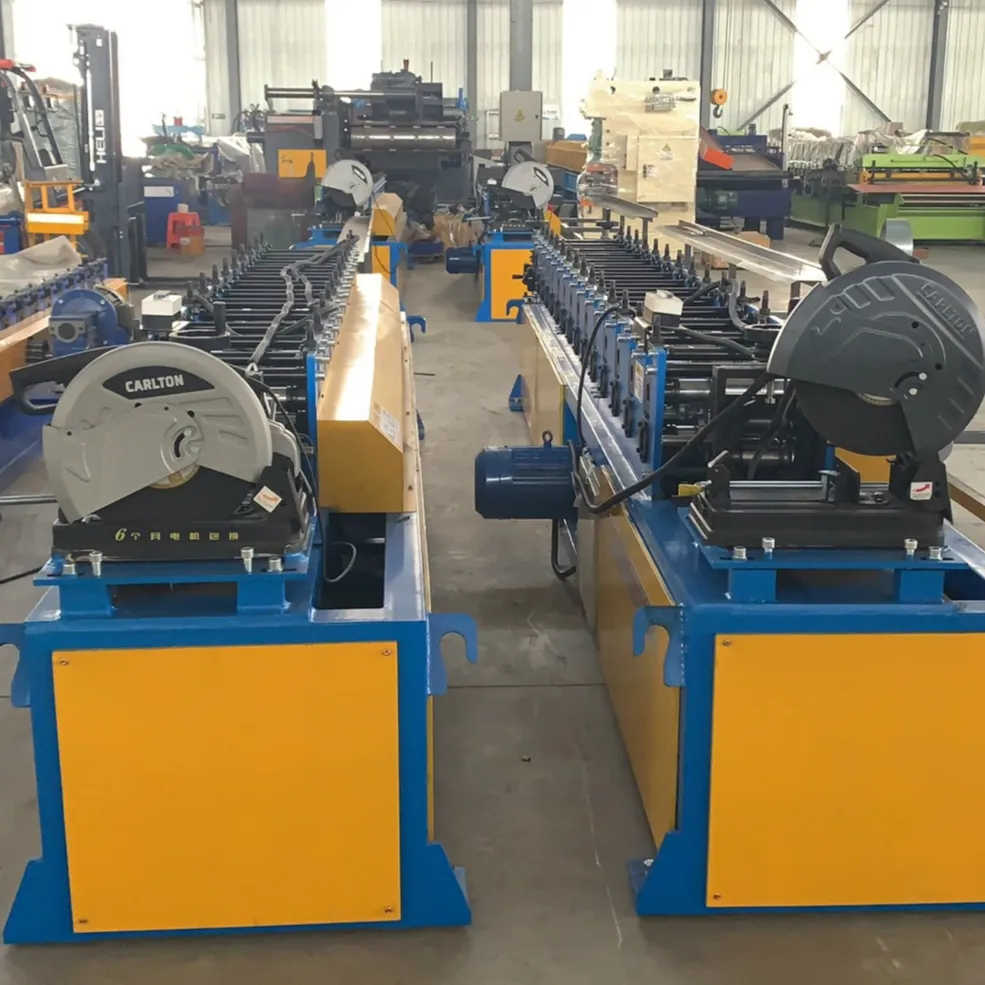

Part 4: Cutting
Power of grinding wheel	2.4KW
Cutting method	manual

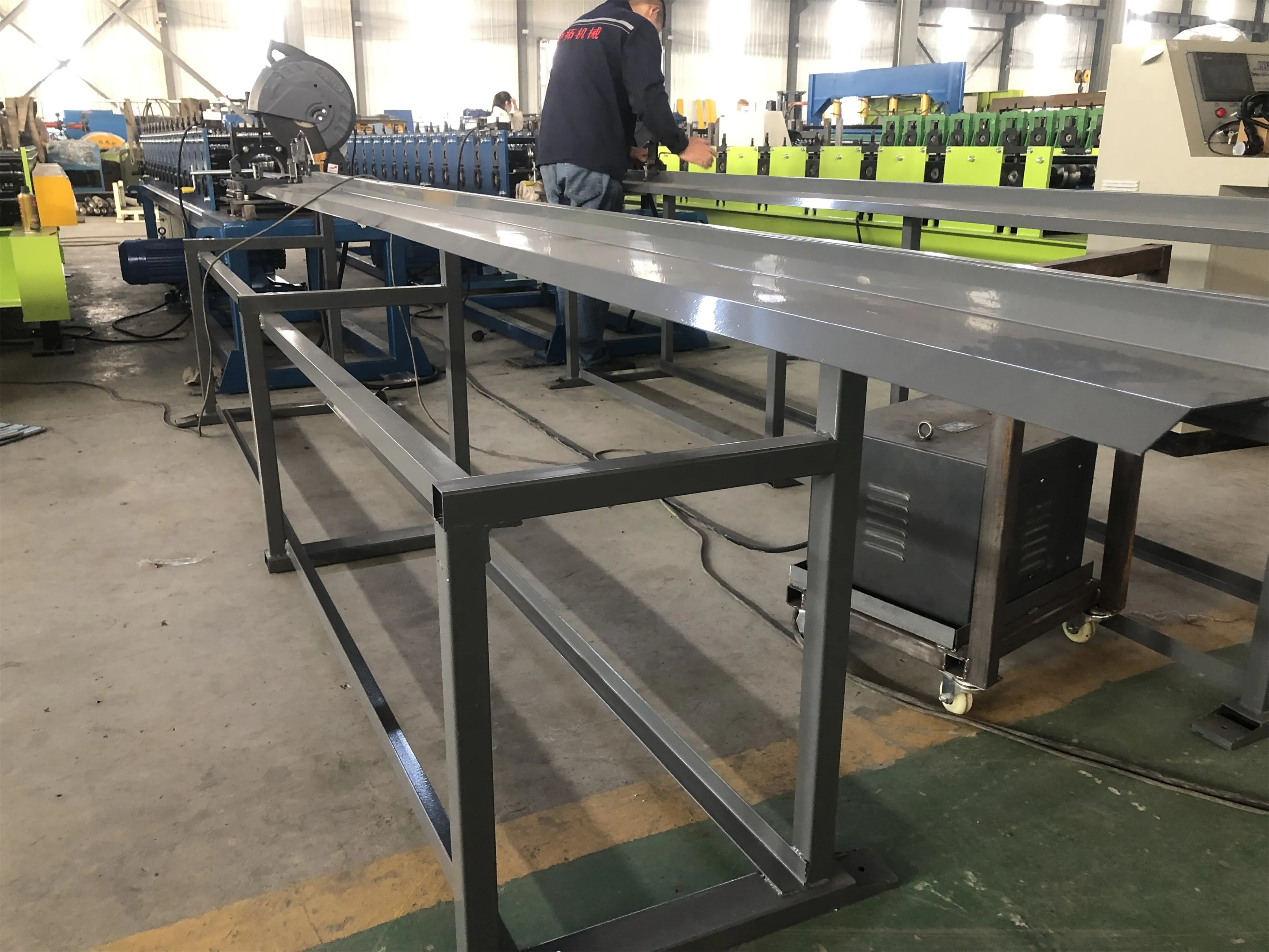

Part 5: Product table
Table	Length: 3 meter
	Table total width: 500 mm
	Table material: square pipe welded

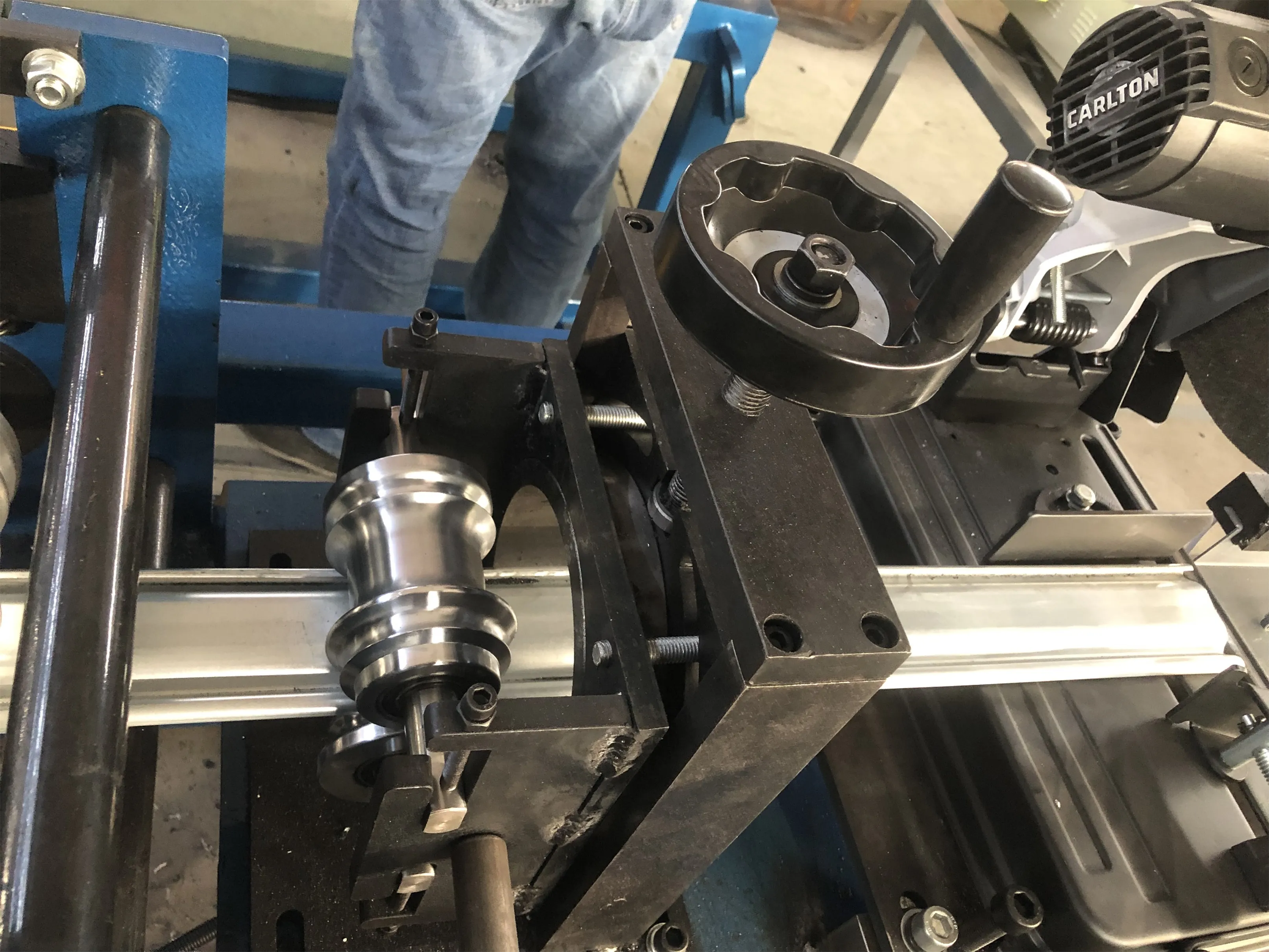

Whole steel plate welded, more durable. Turkey head straightening system

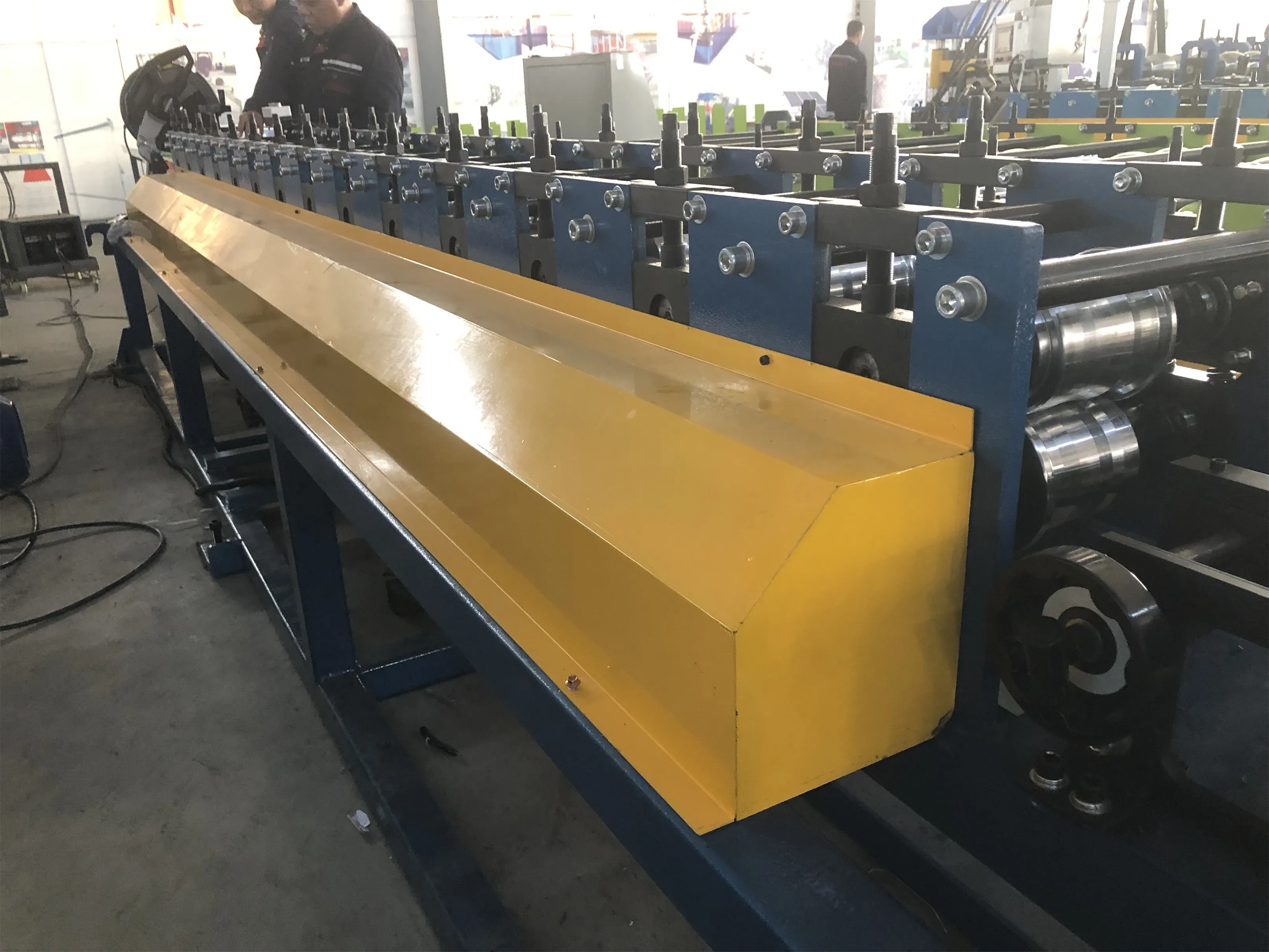

With hook, easy to lifting equipped with a protective cover for safer operation
