EPS PU Sandwich Panel Roll Forming Machine with High Quality zt960

Name: EPS PU Sandwich Panel Roll Forming Machine with High Quality zt960
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT115577345

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

zt960

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Spec
EPS/PUR

EPS PU sandwich panel roll forming machine with high quality

Product Description

EPS PU sandwich panel roll forming machine with high quality including unwinding, before cutting, film,

beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that

the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automaticcontrol system, userfriendly interface for easy operation, monitoring, advanced computer control, easy to adjust the

entire line of argument, effectively ensure the production line stable and efficient operation.

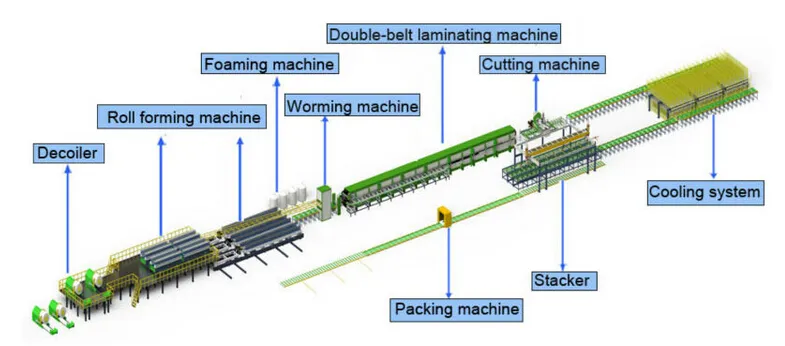

EPS PU sandwich panel roll forming machine with high quality production Process:

(The upper)Dncoiler ---Cutting ---Film---Beading---Roll forming \

(Lower part)Uncoiler ---Cutting →Film→Beading→Roll forming /

---Rock wool delivery---Glue---Sealing side foam--- laminating machine with Foam,Solidify,Roll forming---

Cutting ---Run-out table

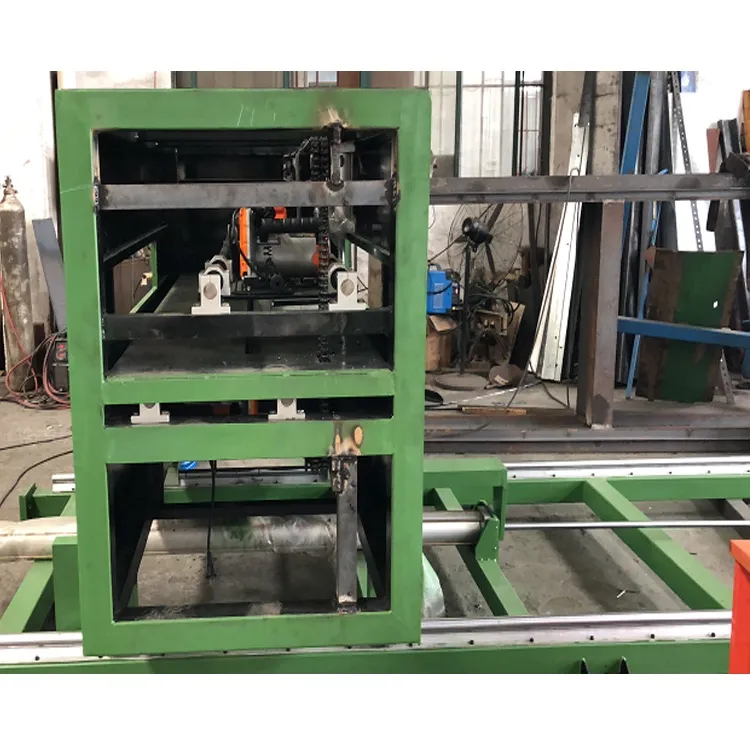

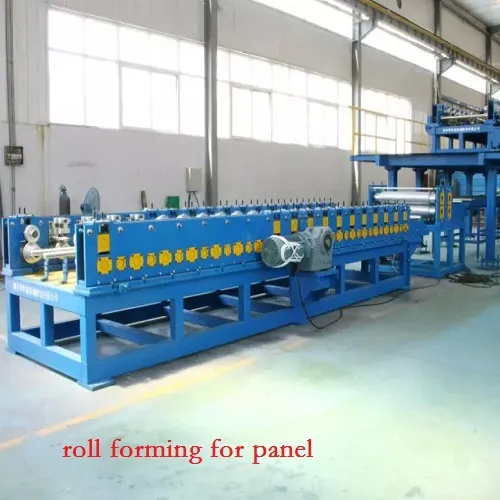

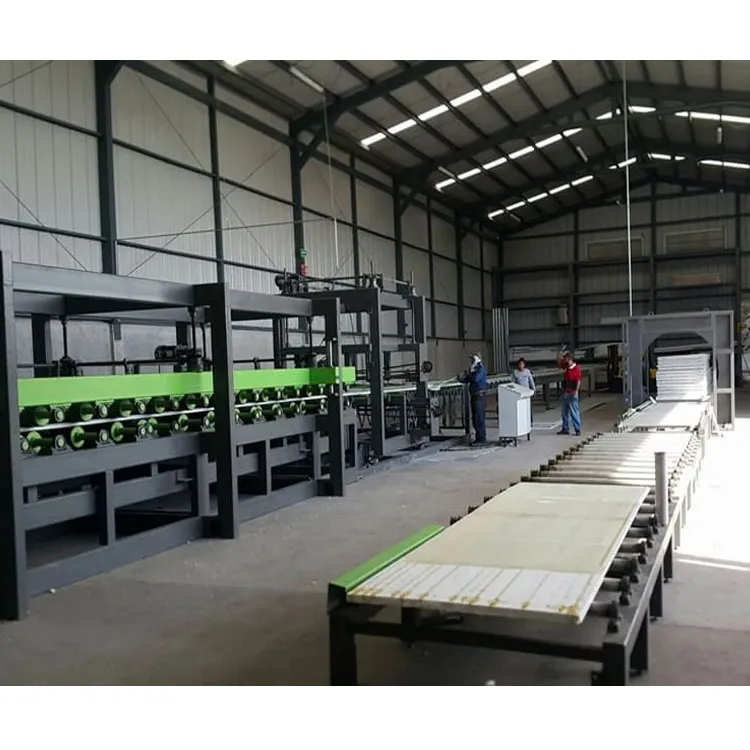

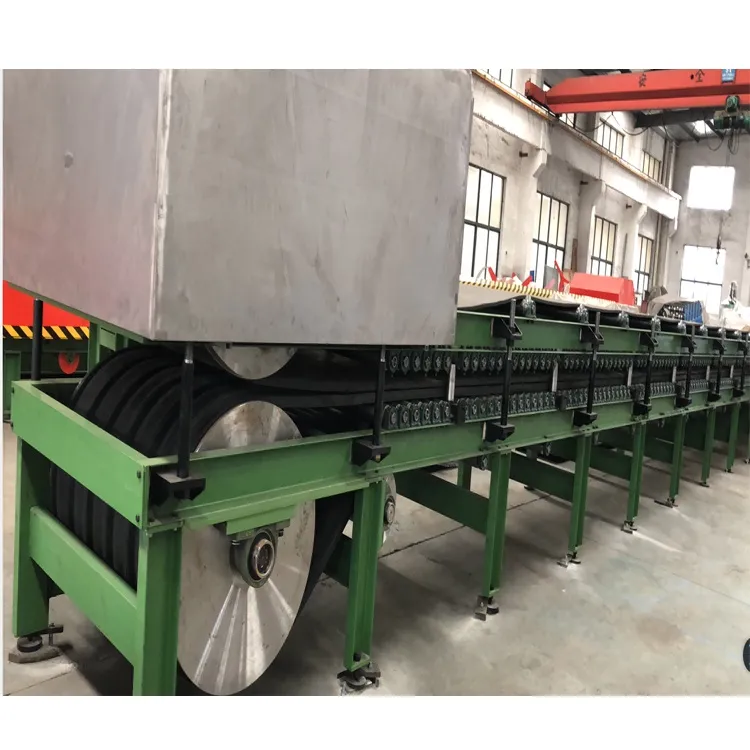

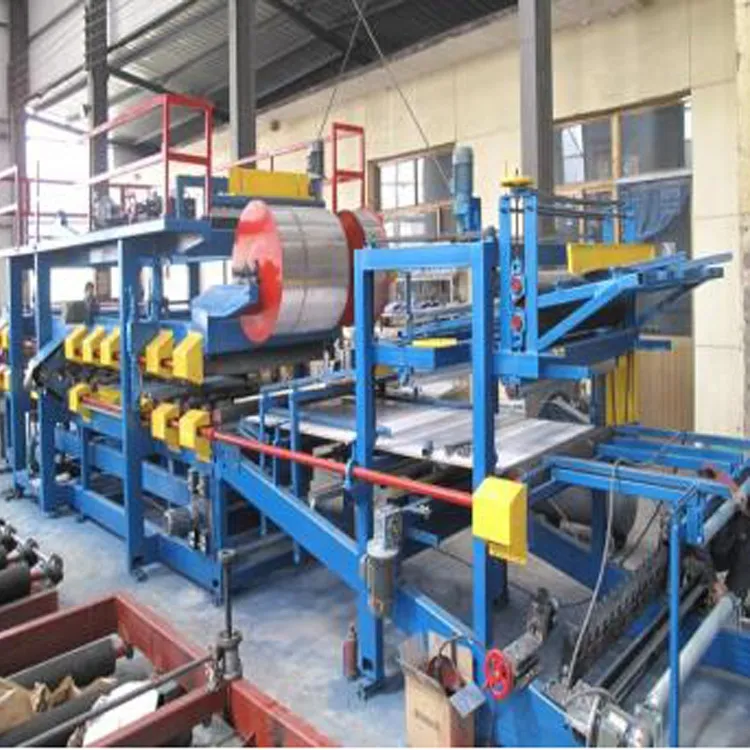

Details of EPS PU sandwich panel roll forming machine with high quality :

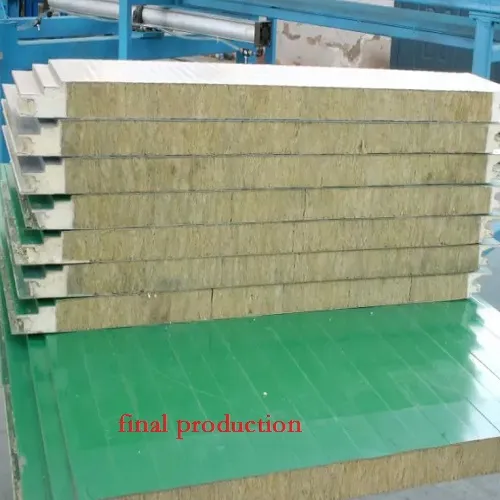

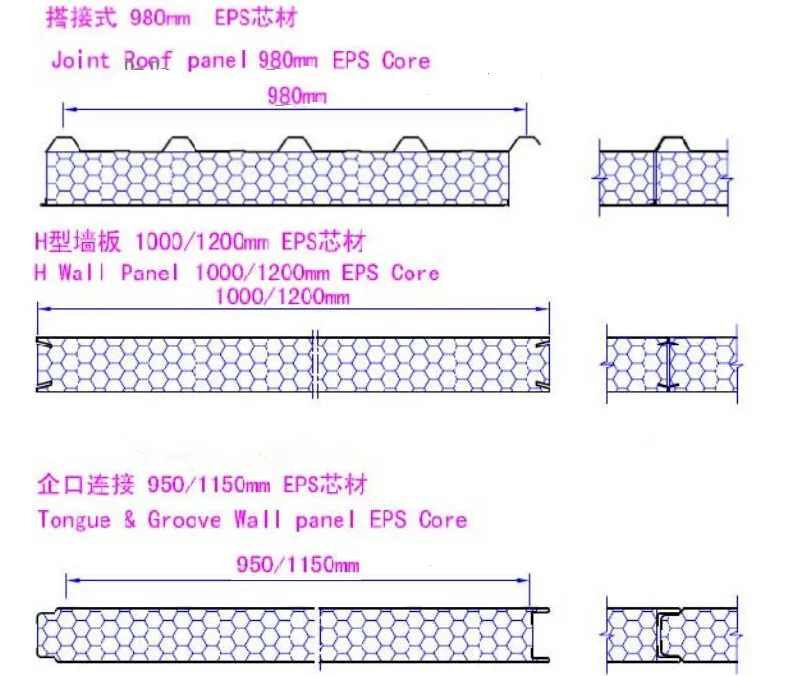

Panel showing :

Parameters of sandwich panel roll forming machine :

Name	Parameters	QTY
Raw material	Material:Colored steel Coil thickness:0.4~0.6mm Coil weight:Max 5T Coil width: Max 1250mm Coil inner diameter:ø508mm Coil outer diameter:ø1100mm

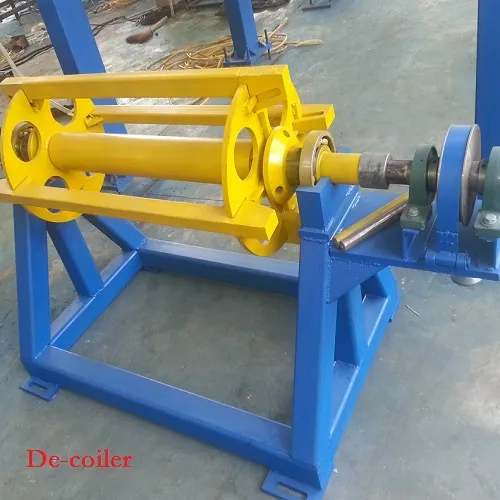

Un-coiler	Bear weight:5T Mandrel expansion :465 – 515 mm	2
Broach	Effective cutting width:1300mm Cutting thickness:0.4-0.6mm	2
Laminating machine	PVC coil outer diameter:300mm PVC coil inner diameter:70-82mm Maximum coil width:1250mm	2
Beading Equipment	Speed:10m/min Power:2.2kw or according to the profile Diameter of roller:according to the profile Power supply:motor Material of roller:l 40Cr quenched and tempered, chrome	2
Roll forming	Frame:Cantilever structure Speed:10m/min Power:4kw up, 7.5kw down Shaft diameter:50 mm Distance roller head:350mm Rollers: 11 up, 18 down	2
Rock wool delivery device	Motor Power:2*1.5Kw Speed:8m/min The maximum transport width:1200mm	1
Dispensing Systems	Effective volume:150L Unit motor power:10KW	1

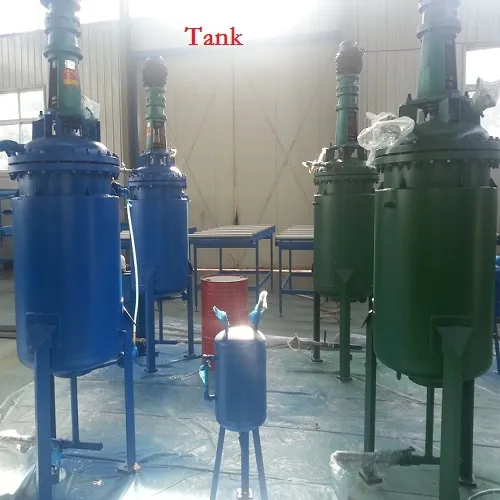

Tank with Stirrer	Effective volume:150L Unit motor power:10KW	1
Roll forming machine	Length:10mm Width:1200mm Lifting speed:200mm/min Drive motor power:2.2Kw4 Lifting motor power:1.5Kw4 Speed:10 m/min	1

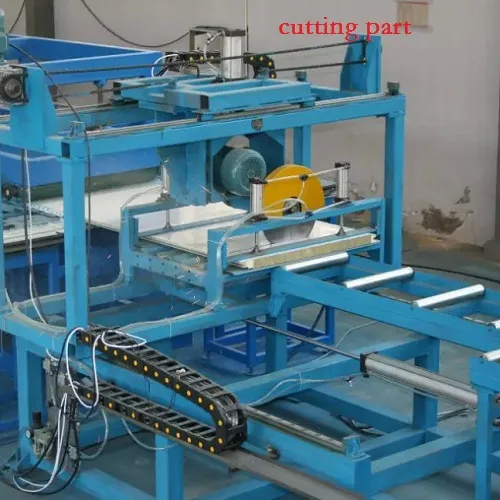

Cutting part	Cutting motor power:7.5Kw Lateral movement motor power:1.1 KW Traversing speed:150 mm/s Cutting width:1300 mm Cutting error:±2mm	1
PLC control system	In accordance with international standards to control cabinet,operating station.Mitsubishi PLC, Inovance inverter,

Packaging & Shipping

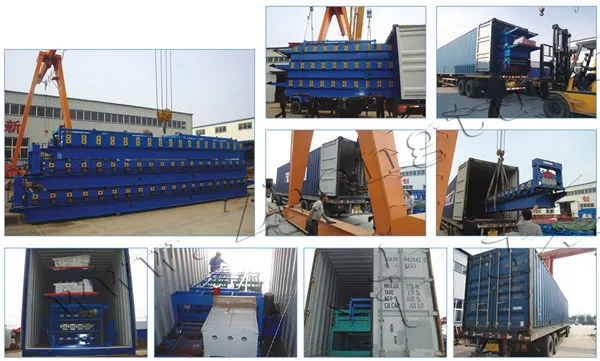

Packaging Detail of sandwich panel roll forming machine :
