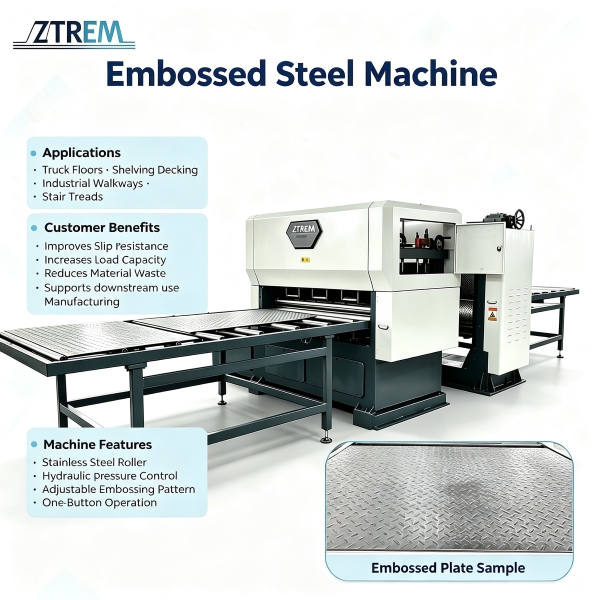

Embossed Steel Machine 5m/min Speed for Reliable Patterns
On truck floors, shelving decking, and industrial walkways, the raised patterns are not painted or carved. They are pressed into the metal. An embossed steel machine is what creates these patterns at scale.
If you manufacture these products, you have likely faced the same question: flat plates are not enough. Smooth surfaces create safety risks. Cargo shifts during transport. People walk on slippery floors. Thicker plates cost more and weigh more. Embossing solves both problems at once, adding slip resistance and rigidity.
So how does embossing actually work, and what role does this equipment play? Let's break it down from the basic principle to the production line.
How Embossing Forms Patterns

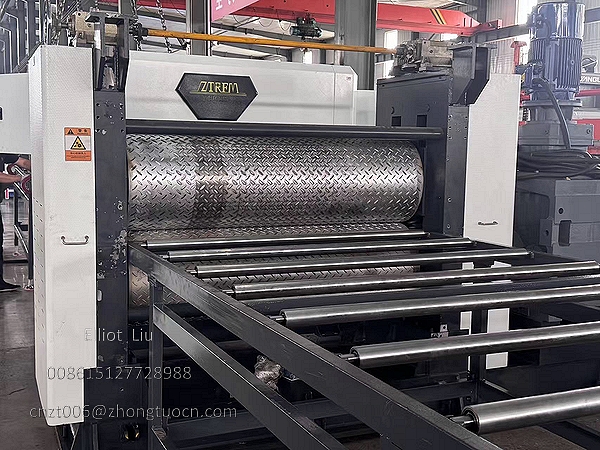

The principle is straightforward. Metal passes between two rollers under pressure. The surface deforms permanently, and the pattern transfers onto the plate.
One roller carries the pattern. The other provides support. As the plate moves between them, pressure causes the metal surface to flow into the shape of the patterned roller. This is a cold process and does not require heating.
Pressure Creates the Pattern
The raised areas on the patterned roller push into the plate surface. The metal flows into the recessed areas, creating a permanent deformation. The process runs continuously. Plates enter one end and exit with patterns on the other.
Cold Forming vs. Material Removal
Embossing differs from etching or engraving. Etching removes material through chemical action. Engraving removes material through cutting. Both reduce plate thickness. Embossing does not remove material. It changes the surface shape. Thickness and weight stay nearly the same.
Applications That Require Embossing
This equipment processes carbon steel plates into embossed products for several industries.
-
Truck floors. Embossing increases friction, keeping cargo in place during transport.
-
Shelving decking. Embossing adds load capacity and slip resistance.
-

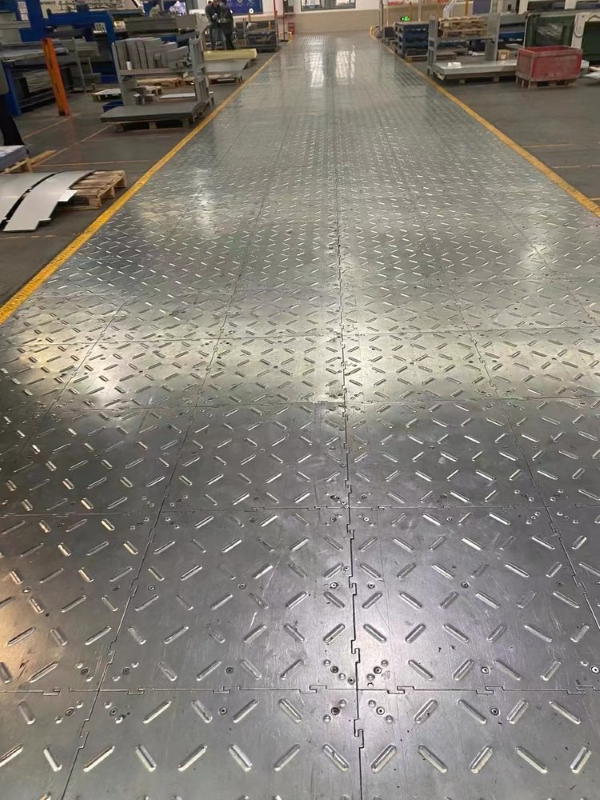

Industrial walkways and maintenance platforms. Embossed plates are used on stair treads, equipment platforms, and access areas.
-
Equipment tread plates and stair treads. These applications require slip resistant surfaces.
What these products share is the need for a plate that is both slip resistant and load bearing. Flat plates cannot deliver that. An embossed steel machine turns flat plates into finished products that meet these requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Processable material | Carbon steel |
| Material thickness range | 1.2 - 5 mm |
| Maximum width capacity | ≤1520mm |
| Cutting length | Adjustable |
| Working speed | 5m/min |
| Input coil supporting table | 1 set, Length 5m |
| Embossing machine | 1 set |
| Leveling machine | 1 set |
| Receiving table | 1 set, Length 5m |
What Affects the Embossing Result
Three main factors affect the final result: material, thickness, and pattern design.
Material Type
Carbon steel is the specified material for this equipment.
Plate Thickness
Thickness affects the process. Thinner plates form patterns more easily. Thicker plates need more pressure and carry more internal stress, making leveling more important.
Pattern Design
Different patterns suit different applications. Pattern depth and shape affect processing parameters.
Small Batch vs. Continuous Production
There are two ways to run embossing. Small batch processing is usually manual or semi automatic. Each plate is loaded and embossed individually. It is flexible and works for small orders or samples, but it is slow and pattern consistency is hard to maintain.
As order volume grows, manual methods cannot keep pattern depth, spacing, and position consistent across every plate. Delivery times also become an issue.
Batch production needs consistent pattern depth, spacing, and position across every run. Mechanical processing delivers this reliably. Plates pass through the embossing rollers at a steady speed. Pressure stays the same. Pattern depth stays uniform from the first plate to the last.
How Continuous Production Works
In continuous production, an embossed steel machine runs as part of a complete line.
Plates enter from the input coil supporting table. They go through the leveling machine first. The leveler prepares the plate surface for embossing. This step helps achieve more uniform pattern depth.

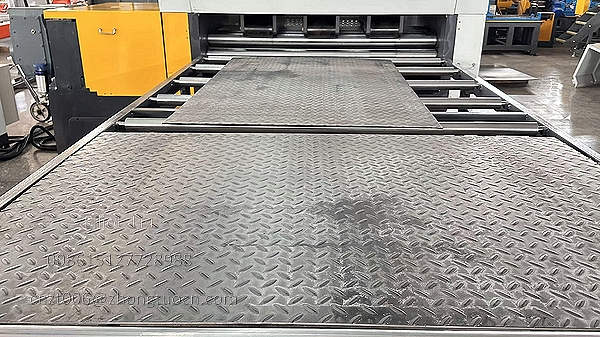

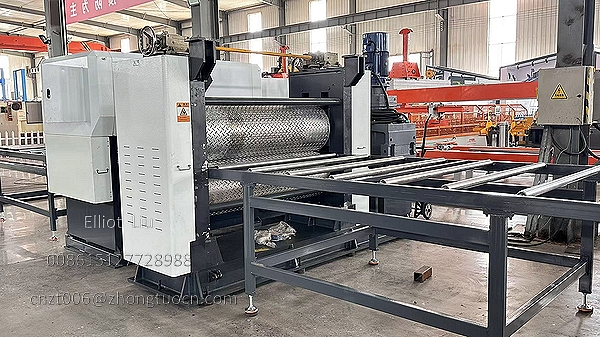

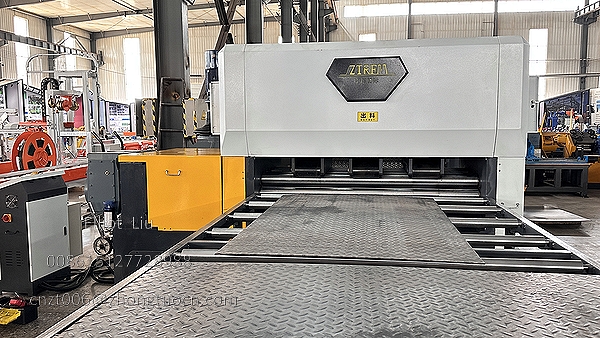

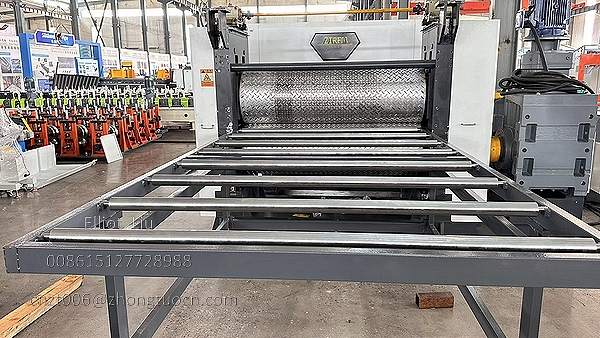

Then the plates enter the embossing machine. The rollers apply steady pressure, and patterns form continuously as the plates pass through at a uniform speed. The receiving table collects finished plates at the end.
The Role of the Machine in the Process
A steel embossing machine does three specific jobs in continuous production.
-

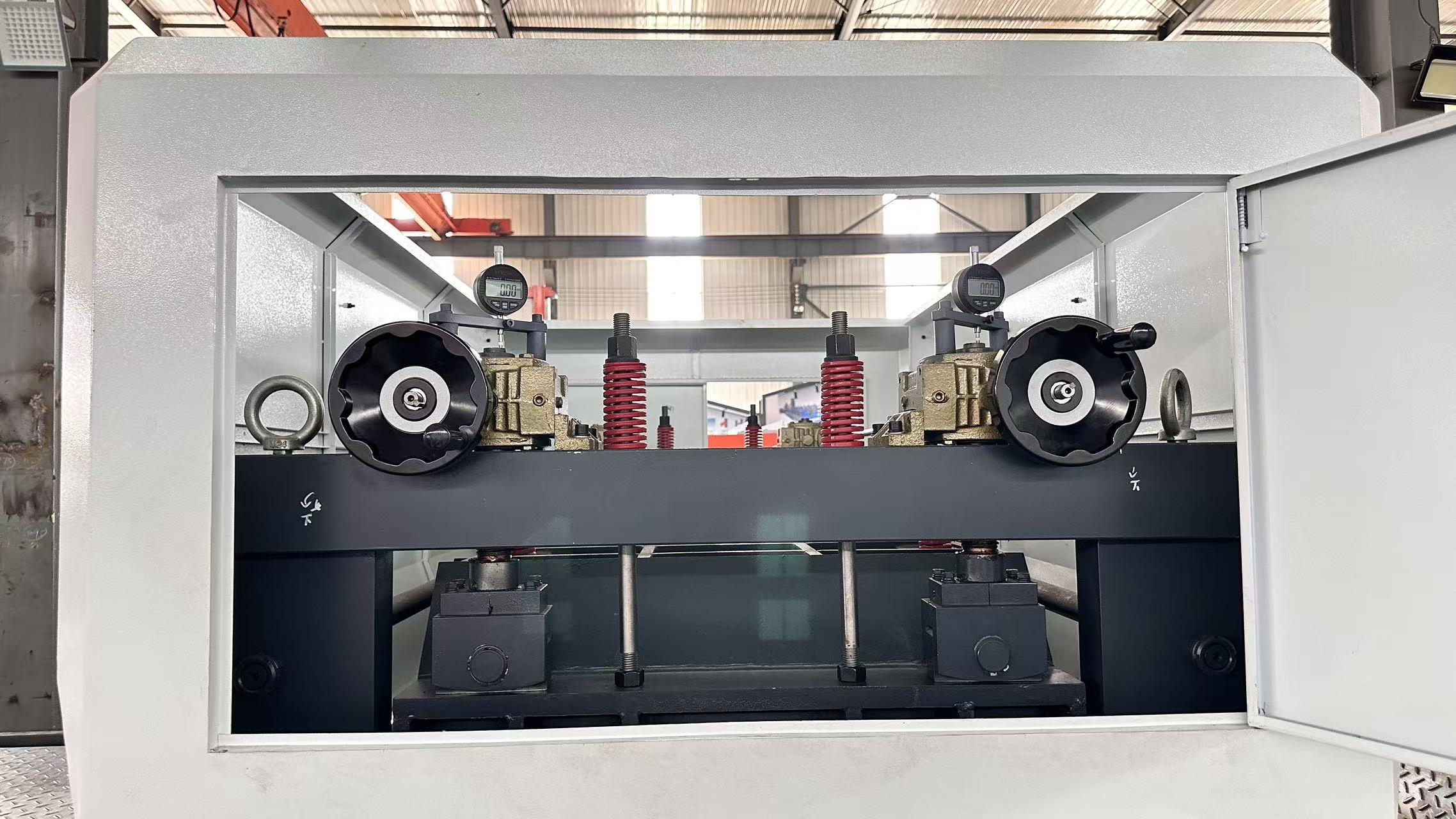

Maintains steady pressure. Roller gap and pressure stay constant during operation. Every plate receives the same pressure.
-
Ensures processing consistency. The machine eliminates the random fluctuations of manual work.
-
Integrates the production line. Feeding, leveling, embossing, and collection run together. Plates go in and finished products come out.
Machine Advantages
A sheet metal embossing machine offers clear benefits for continuous production.
-
Consistent pressure across the entire run.
-
Continuous processing without frequent stops.
-
Integrated leveling and embossing in one line.
These advantages make the machine suitable for manufacturers who need repeatable results across large orders.
Embossing uses pressure to create plastic deformation on a metal surface. Small batches can be done manually or with semi automatic methods. Larger production runs require repeatable mechanical processing.
An embossed steel machine makes the process controllable. Pressure stays stable. Patterns remain consistent. The process repeats reliably. If your products need slip resistance, load capacity, and consistent patterns, a steel embossing machine is worth considering. Choose the processing method that fits your production volume and material requirements.
