Durable Flexible Shelf Support Upright Rack Roll Forming Machine 2.0-2.5 mm

Shelf Support Roll Forming Machine 80t Punching for Reliable Continuous Operation

Many workshops face a common problem: the forming line runs fast, but punching falls behind and material piles up. Or the line stops for each cut and restarts after. No matter how fast the forming section runs, output drops when downstream steps cannot keep pace. A shelf support roll forming machine that combines forming, punching, tracking shear, collecting, and control in one system solves this problem. Below we look at applications, advantages, specifications, and the production flow. This helps you decide if the equipment fits your production needs.

Applications

This shelf support roll forming machine is used in rack manufacturing plants for continuous upright forming lines. Facilities that produce rack uprights in volume use this equipment.

The uprights produced are the vertical load bearing components in rack systems. They are used in:

• Pallet racks and heavy duty racks in logistics centers

• High bay racks in ecommerce fulfillment centers

• Raw material and finished goods storage racks in industrial facilities

• Adjustable rack systems in third party logistics warehouses

• Display shelving in retail environments

A storage shelf upright rack forming machine typically handles similar applications for storage rack production. These industries all use uprights produced by this type of equipment.

Advantages

• Online punching happens simultaneously with forming, so the material keeps moving

• Servo tracking shear cuts while the material moves, as the machine keeps running during cutting

• Adjustable dies allow size changes by adjusting the die setting, without replacing the entire die set

• Hydraulic collecting table receives finished pieces and stacks them

• PLC coordinates all stations for synchronized operation

Technical Specifications

Production Flow

Here is how the material moves through the line.

Decoiling and Leveling

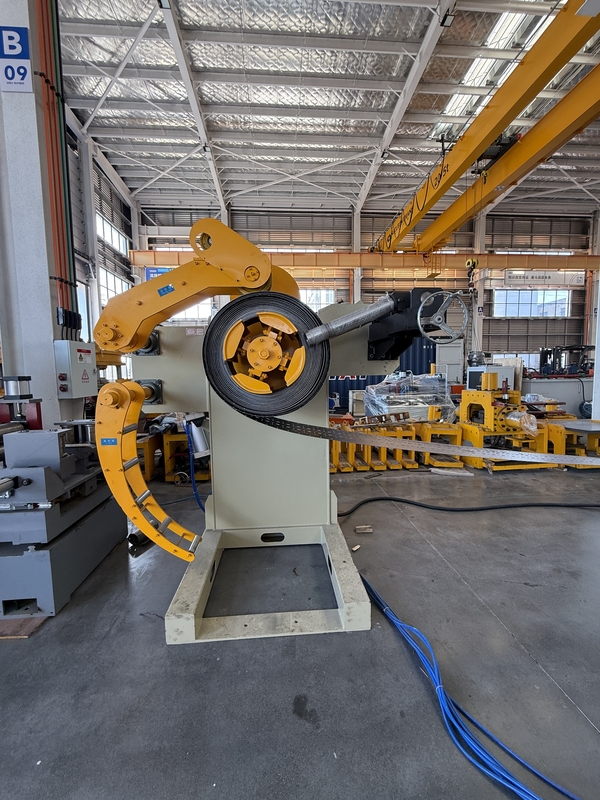

Material feeds from the decoiler and enters the leveling unit. This prepares the strip for the forming process.

Continuous Forming

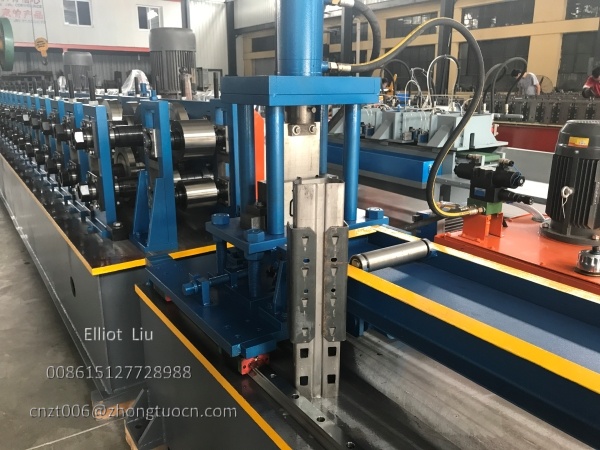

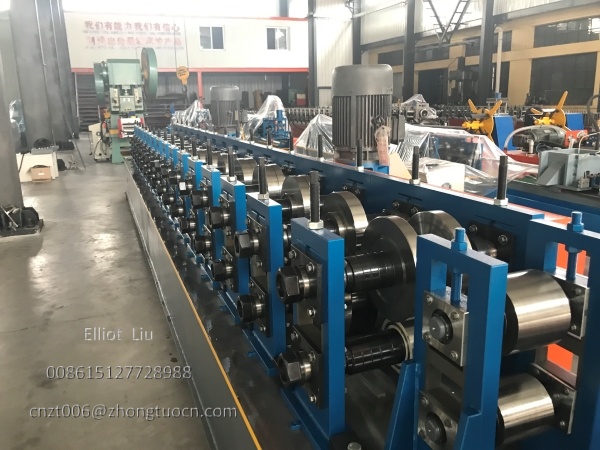

Leveled material enters the forming unit. The unit uses a cast steel frame and gearbox drive. Twenty roller stations gradually form the strip into the upright section shape. The shelf support roll forming machine maintains consistent shape throughout the run.

Online Punching

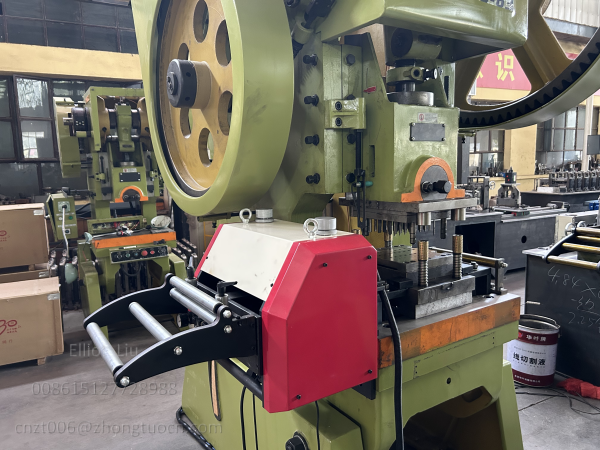

Formed uprights enter the punching station. An 80 ton pneumatic press with adjustable dies punches the holes. Punching happens while the material moves through the station.

Tracking Cutoff

A servo tracking shear cuts the upright to length while the material moves. The line does not stop for cutting, as the shear travels with the material.

Finished Product Collecting

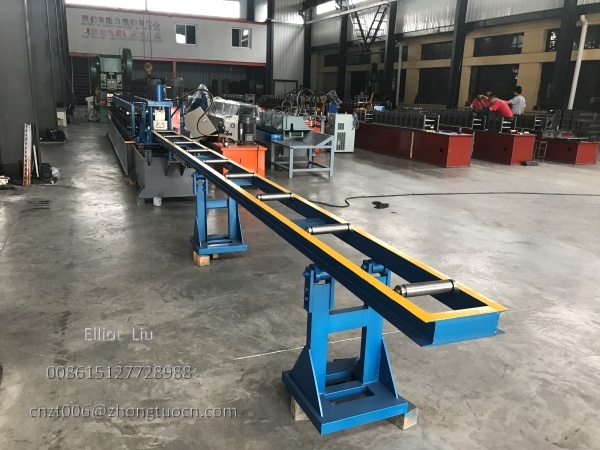

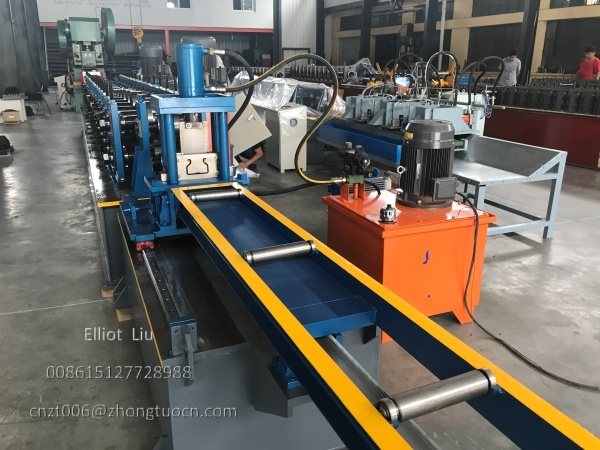

Cut uprights drop onto the hydraulic collecting table. The table is 6 meters long. The shelf support roll forming machine uses PLC to coordinate all stations. Operators set parameters and switch sizes through the touchscreen.

How the PLC Coordinates the Line

The PLC coordinates all stations so they work at the same pace. It receives signals from each station. Based on the set length and quantity, it triggers punching, cutting, and other actions.Operators use the touchscreen to set parameters, switch sizes, and check status. The control system supports multiple languages including Chinese and English.

The shelf support roll forming machine relies on this coordinated control to maintain consistent production flow. A shelf system steel upright rack making machine follows similar control logic for upright production.

Production Questions

Q: Does the line stop when changing sizes?

The adjustable die design allows hole pattern changes without replacing the entire die set. The die adjustment happens through the PLC settings.

Q: Does punching get out of sync with forming?

The line uses coordinated control. Punching triggers based on material position. The punching station follows the material flow through the line.

Q: Does cutting affect surface quality?

The shear uses Cr12MoV blades. Cutting happens on the move, so the material does not stop during cutting.

When evaluating a shelf support roll forming machine, do not look only at the forming section. Look at whether the whole line forms a complete production flow from forming through punching, cutting, and collecting. Only when all stations work together can the line deliver consistent output. If you are evaluating upright production equipment, this is the perspective to take.
