Double Model Shutter Machine Aluminum Roller Shutters Door Making Machine Security Insulated Fire Door Roll Forming Machine 30 m/min+roll machine+13KW

Cangzhou Zhongtuo International Trade Co., Ltd

Double Model Shutter Machine Aluminum Roller Shutters Door Making Machine Security Insulated Fire Door Roll Forming Machine 30 m/min+roll machine+13KW

Name: Double Model Shutter Machine Aluminum Roller Shutters Door Making Machine Security Insulated Fire Door Roll Forming Machine 30 m/min+roll machine+13KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT81396333

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

30 m/min

Model Number:

roll machine

Power(W):

13KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380 V
Rolling Thinckness
0.8 mm ~ 1.2 mm
Feeding Width
1200mm

Product Description

Double Model Shutter Machine Aluminum Roller Shutters Door Making Machine Security Insulated Fire Door Roll Forming Machine

Double Model Shutter Machine Aluminum Roller Shutters Door Making Machine Security Insulated Fire Door Roll Forming Machine.Rolling shutter doors are suitable for super markets, garages and varies public areas.its space-saving and stable enough to prevent theft and fire.
We can provide various roller shutter machines for producing roller shutter shutters. The data in the equipment can be set in the PLC computer. We can also add servo motors and uninterrupted cutting to the rolling door production equipment, so that the speed reaches 20-25m/m. We choose a steel thickness of sufficient thickness to make the rolling door stronger, improve product quality, and help customers expand the market.

Roller Shutter Door Roll Forming Machine,we used double bearings,so we make sure machine working low noise and more stable working. High quality Roller Shutter Door Roll Forming Machine produce nice door panel.We make sure finish product same with your drawing or samples.

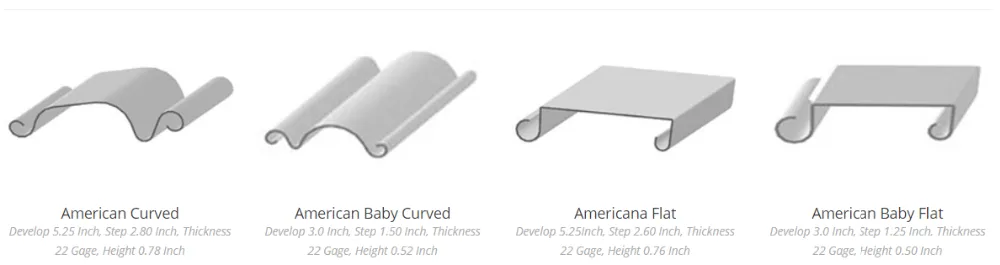

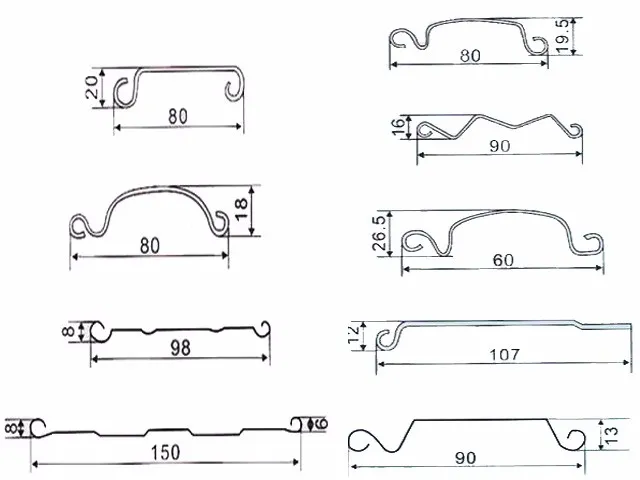

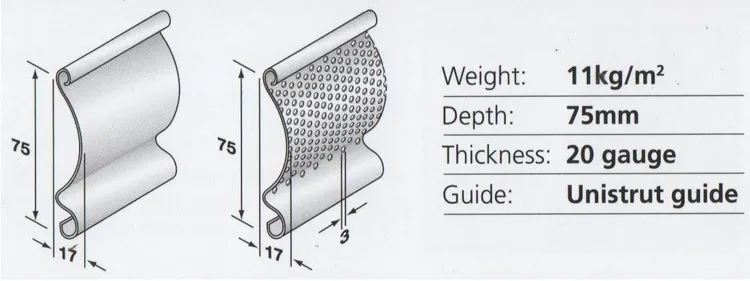

shutter door profiles:

Double Model Shutter Machine Aluminum Roller Shutters Door Making Machine Security Insulated Fire Door Roll Forming Machine
1.Formed Material	GI		Thickness:0.6-1.2mm

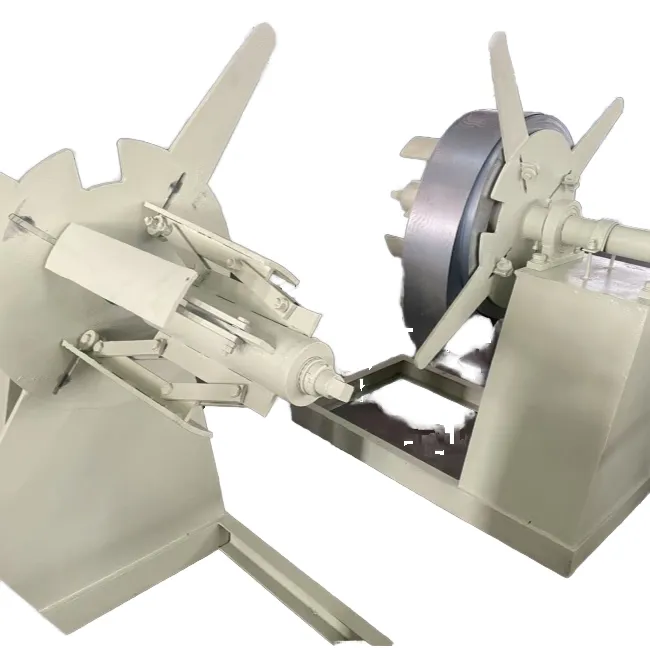

2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		12 rows(As your requirement)
		Diameter of shaft		50mm solid shaft

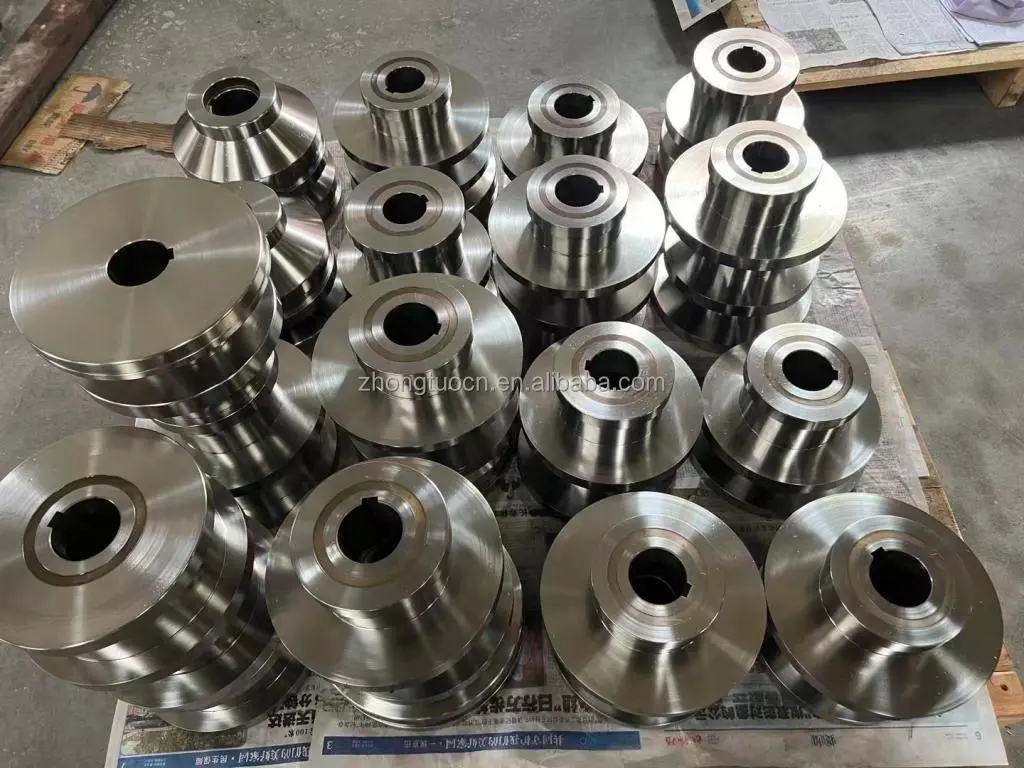

		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		Metal steel welded
		Drive		Chain transmission
		Dimension(LWH)		55008001200(customize)
		Weight		About 3T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	20-25m/min(customized)		Speed is adjustable according to customer's request

Products Display

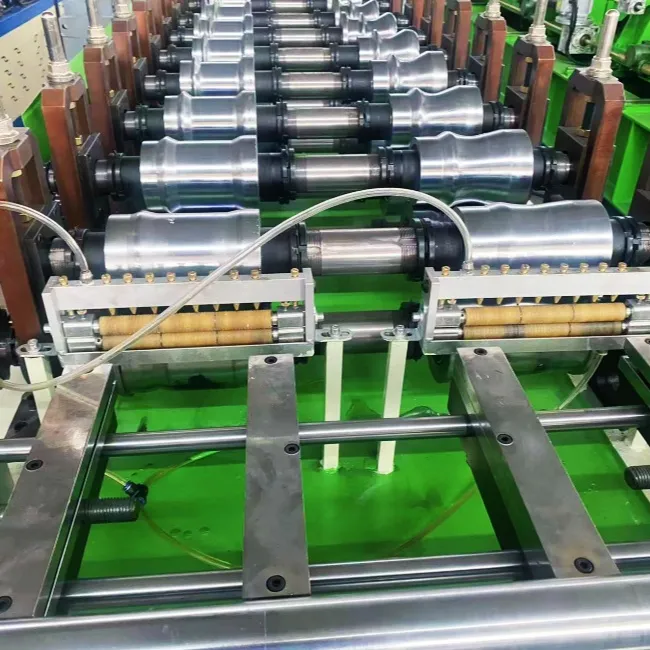

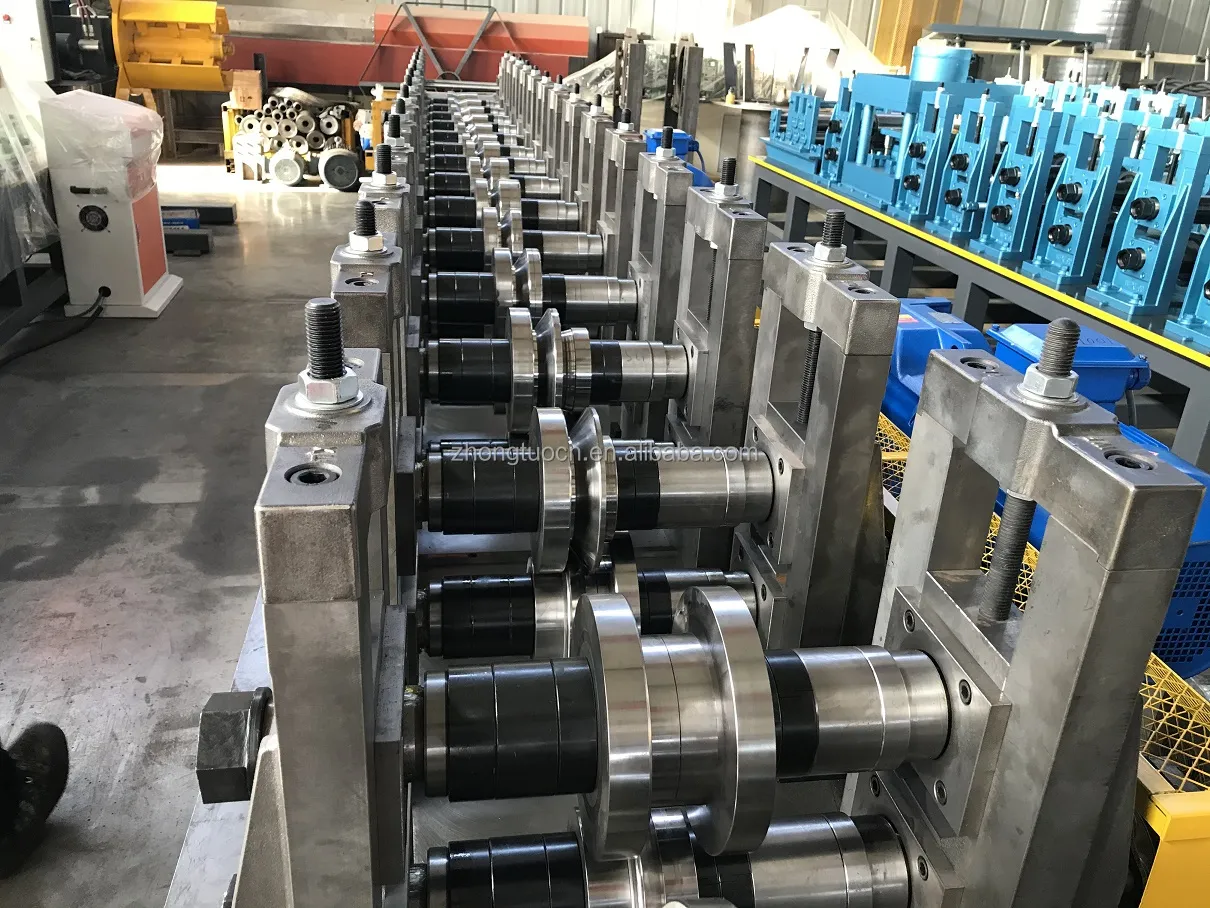

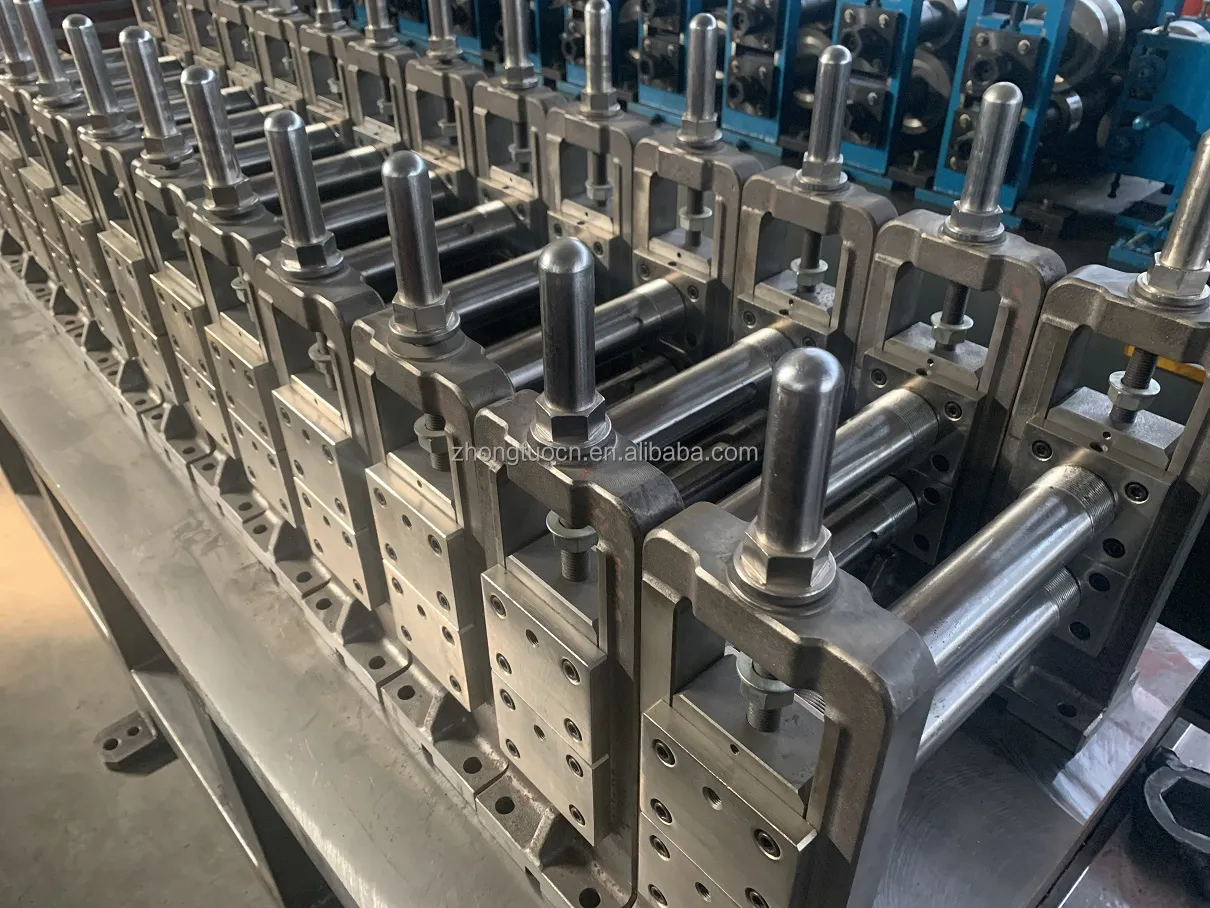

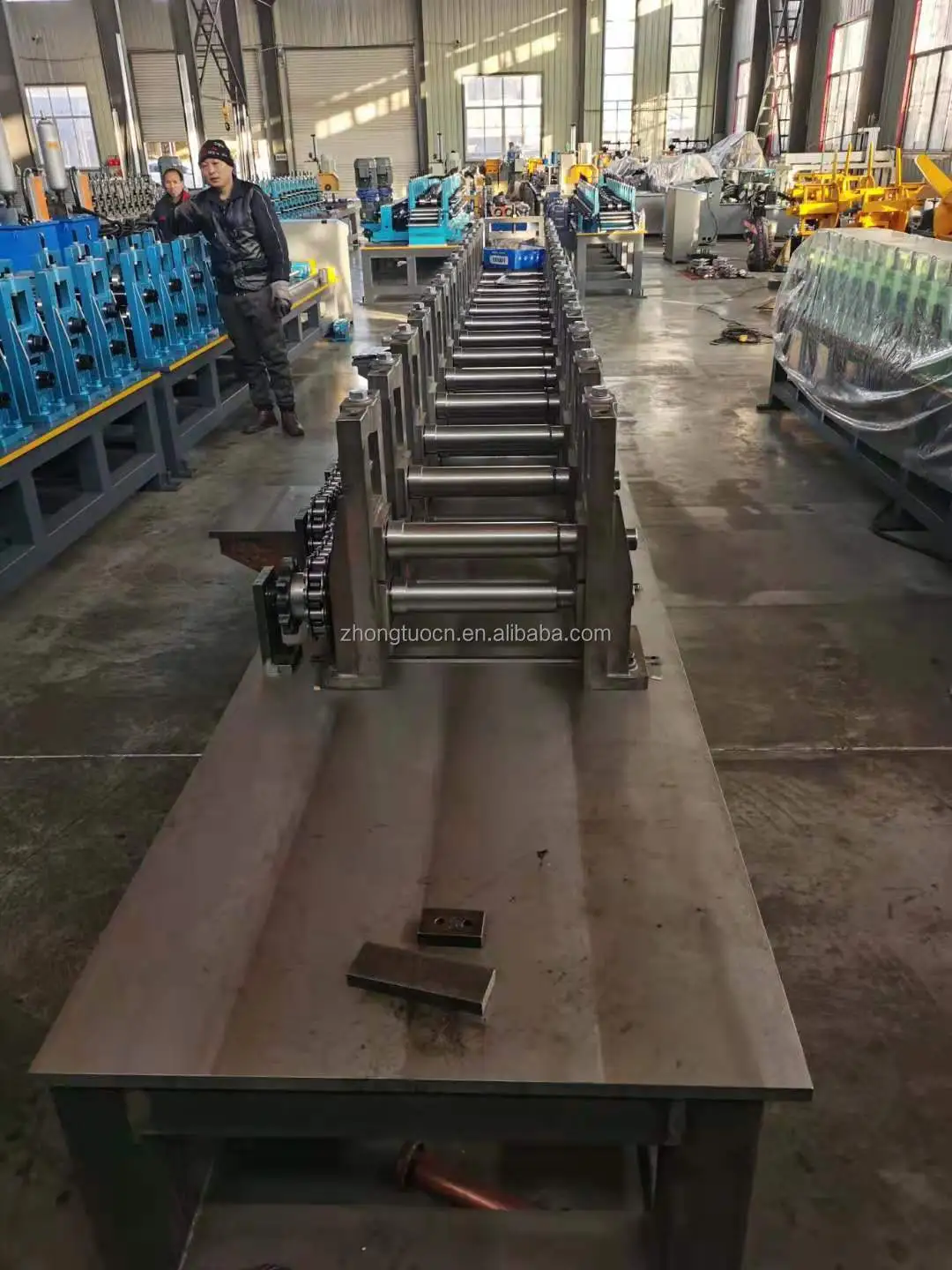

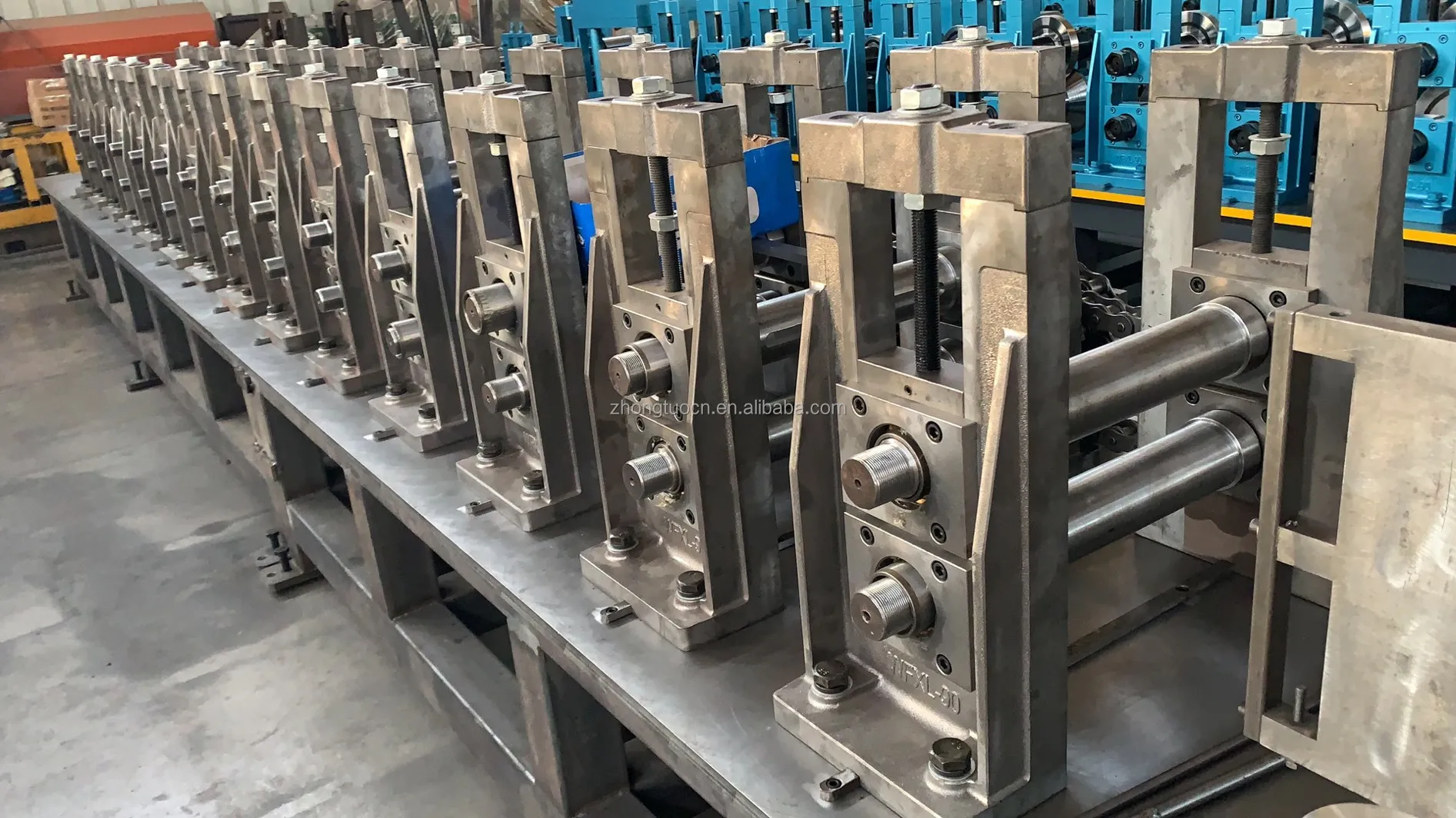

Roll Forming Device

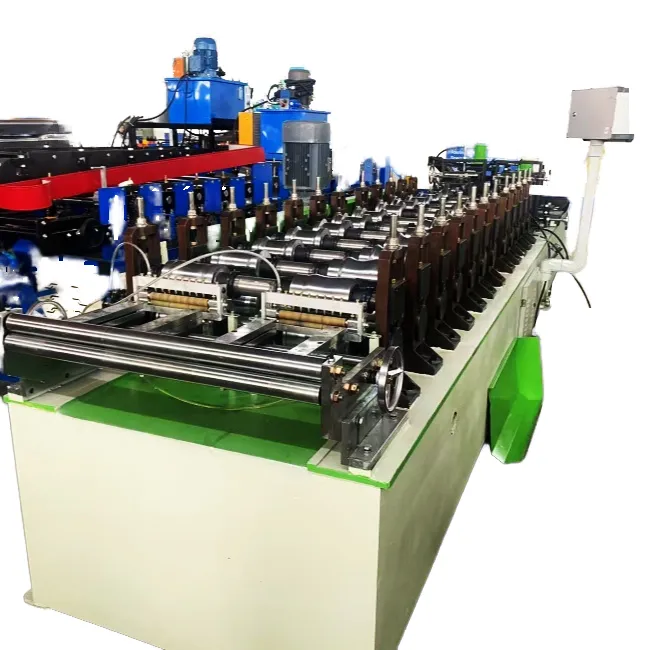

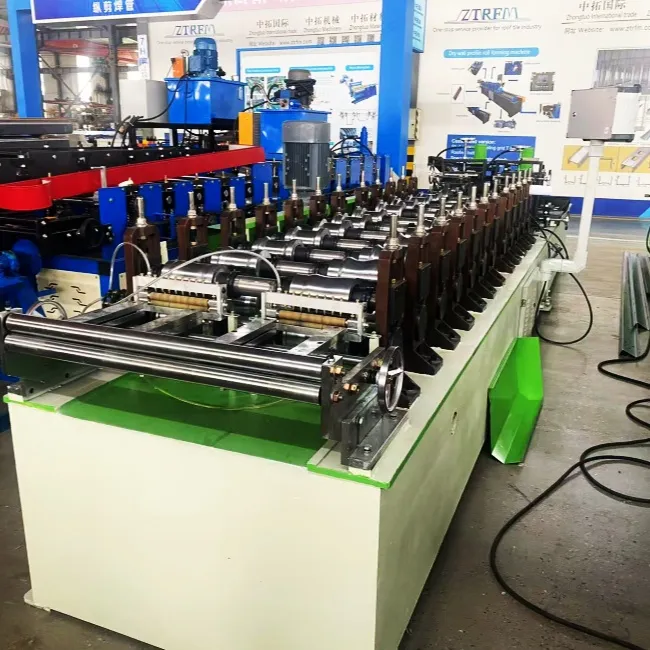

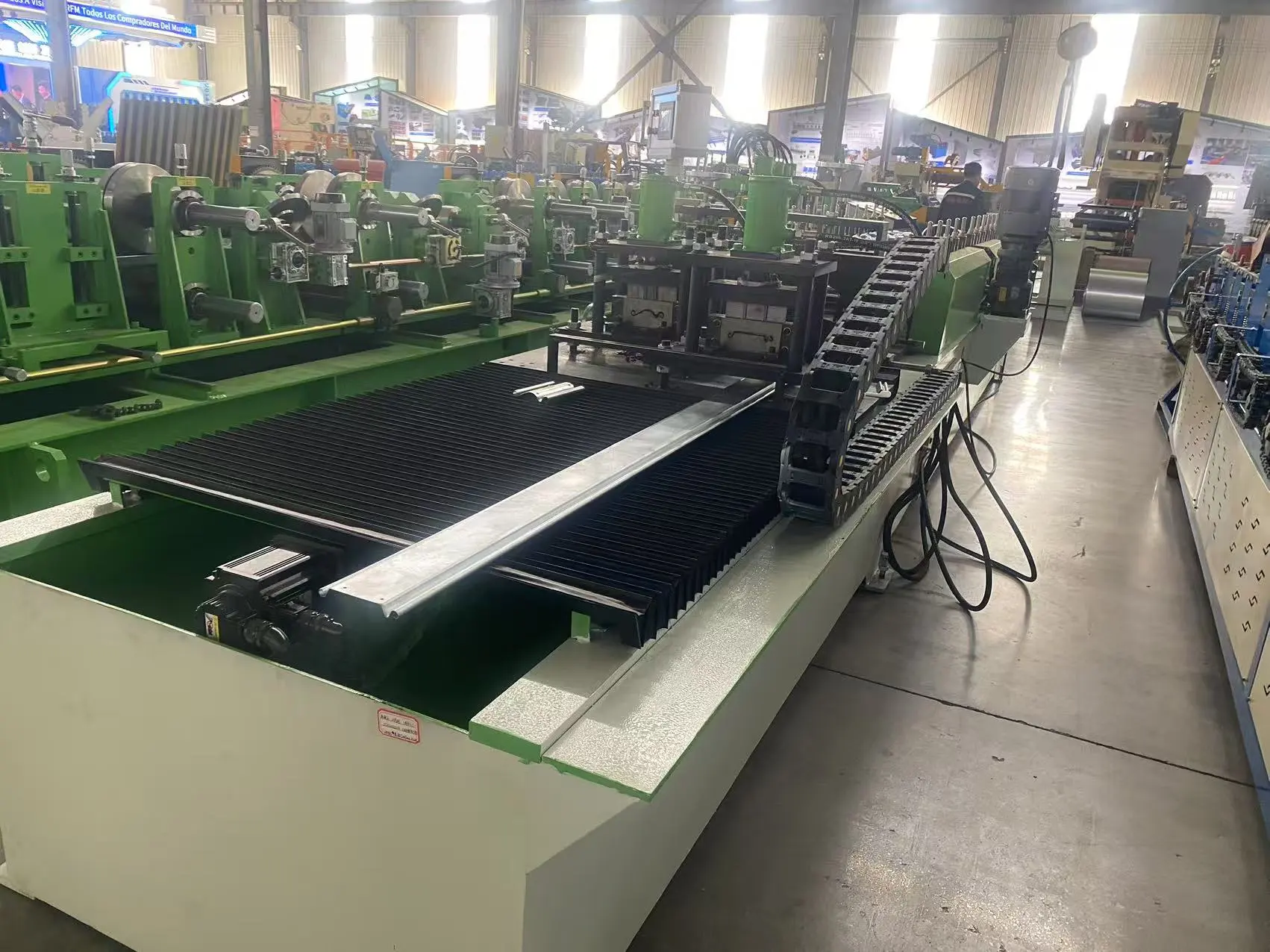

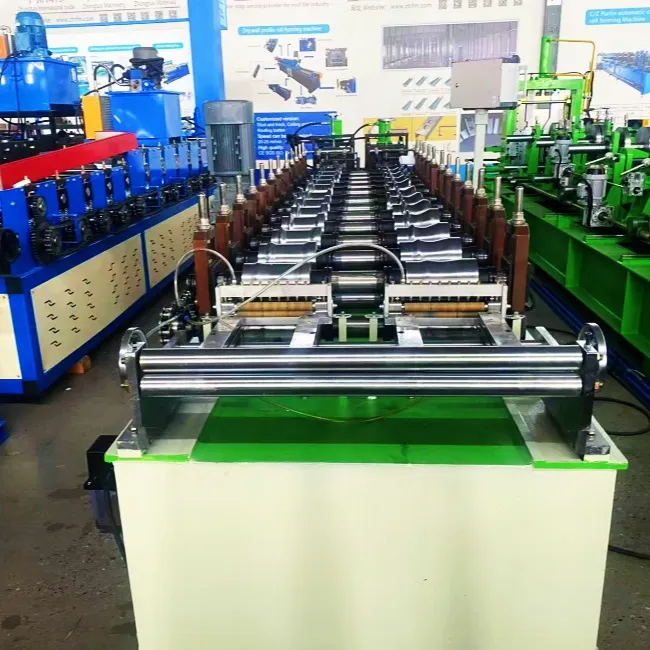

Whole showing

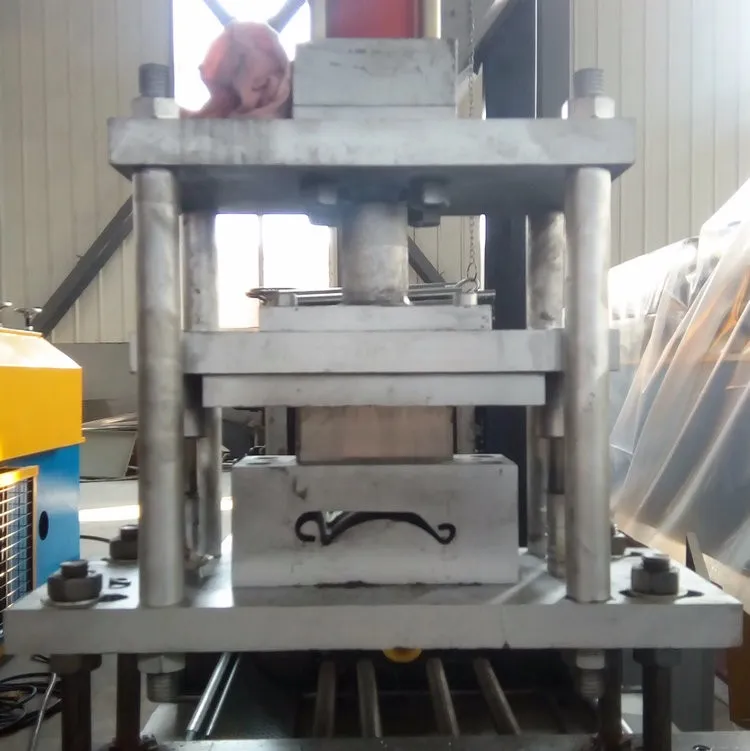

Hydraulic cutting device
