Double layer steel deck roll forming machine

Floor decking forming machine in factory

Product Overview

The double layer steel deck roll forming machine (2 in 1 floor decking forming machine) produces two deck profiles on one machine frame, with 20 upper and 22 lower forming rows. One PLC, one drive and one operator cover two product lines, cutting equipment investment and workshop space while producing galvanized steel floor decking panels.

Two-in-one double layer design: two deck profiles (e.g., YX76 + YX51/YX65) on one frame
42 forming stations with precision 40Cr alloy steel rollers
High-speed production: 15 m/min (49.21 ft/min)
Intelligent PLC system with remote monitoring (Siemens/Delta)
Precision hydraulic cutting with quenched Cr12MoV blades
CE, BV, STV, ISO certified

Key Features

Two-in-One Double Layer Design - One machine, two product lines. Produces two deck profiles (e.g., YX76 + YX51/YX65) on one machine frame with 20 upper and 22 lower forming rows. One PLC, one drive and one operator cover both lines, cutting investment and workshop space for diverse profiles.
Precision Cold Forming with Premium Materials - 42 forming stations with precision-finished 40Cr alloy steel rollers and heat-treated 45# steel shafts ensure high rigidity, consistent sheet shape and lasting stability.
High-Speed Production - A 22 kW drive forms galvanized coils from 0.7 mm to 1.2 mm at up to 15 m/min (49.21 ft/min) for fast output and rapid ROI.
Intelligent PLC System with Remote Monitoring - Imported Siemens/Delta PLC auto-controls speed, panel length and order counting. The touch screen is easy to learn; new workers can run the line after half a day, reducing reliance on skilled operators.
Precision Hydraulic Cutting - Quenched Cr12MoV blades deliver clean, accurate cuts on every profile.

Technical Specifications

Item	Specification
Type	Floor decking forming machine (double layer 2 in 1)
Use	Produce floor decking panels
Tile type	Galvanized steel
Rolling thickness	0.7 - 1.2 mm
Feeding width	1250 mm
Roller stations	Upper layer 20 rows; lower layer 22 rows (42 in total)
Roller material	40Cr alloy steel
Shaft material	45# steel, heat treatment
Forming speed	15 m/min (49.21 ft/min)
Power	22 kW
Voltage	220 V / 380 V / 440 V
Cutting type	Hydraulic cutting
Cutting blade material	Cr12MoV
PLC system	Imported Siemens/Delta (automatic control of speed, length, orders)
Machine weight	18000 kg
Warranty	More than 5 years
Certification	CE, BV, STV, ISO

Machine Structure

Steel deck machine forming section

The machine is built on a heavy steel frame with two forming lines (20 upper rows and 22 lower rows), a hydraulic cutting station with thick guide columns, chain-driven transmission and a control console with touch screen.

Finished Product

Finished galvanized floor decking sheet

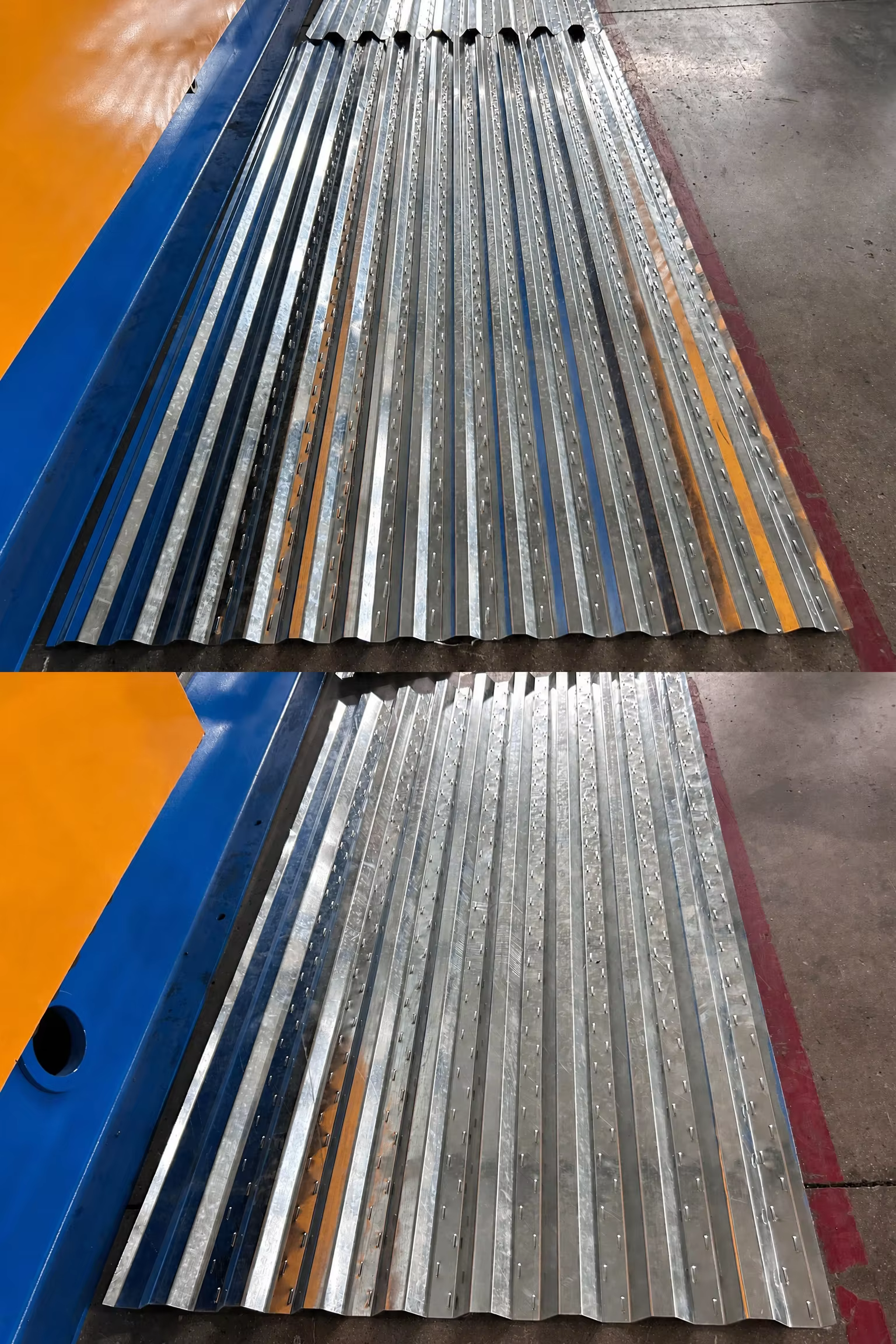

The finished galvanized floor decking sheets feature repeating ribs with mechanical embossments that provide a strong bond with concrete when used as composite floor deck.

Certifications

CE certified equipment certificates

The equipment is CE certified for international procurement and meets CE, BV, STV and ISO standards, supported by machinery test report and video outgoing inspection.

Company Profile

Factory, showroom and workshop of the manufacturer

Manufactured by ZTREM (Zhongtuo Roll Forming Machinery Co., Ltd.), a roll forming equipment company with a modern factory, corporate showroom and manufacturing workshop, providing remote monitoring support and after-sales service.

Packing & Shipping

Package size: 1100 x 150 x 180 cm; machine weight: 18000 kg
