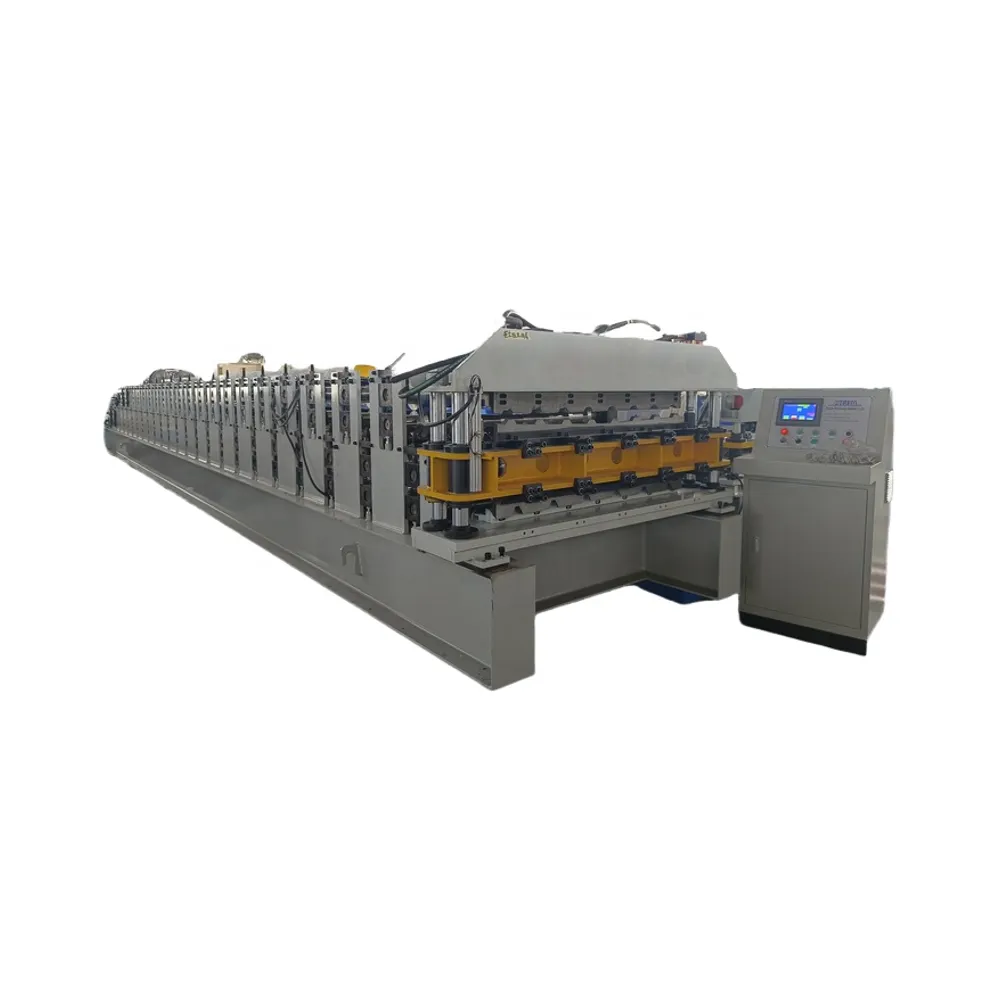

Double Layer Roofing Sheet Machine TR6 TR8 Trapezoidal Tile Making Machine with Gear & Bearing 7.5KW Motor 380V 20 M/Min+Trapezoidal corrugated Tile sheet making machine+7.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

Double Layer Roofing Sheet Machine TR6 TR8 Trapezoidal Tile Making Machine with Gear & Bearing 7.5KW Motor 380V 20 M/Min+Trapezoidal corrugated Tile sheet making machine+7.5KW

Name: Double Layer Roofing Sheet Machine TR6 TR8 Trapezoidal Tile Making Machine with Gear & Bearing 7.5KW Motor 380V 20 M/Min+Trapezoidal corrugated Tile sheet making machine+7.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT58413448

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

Trapezoidal corrugated Tile sheet making machine

Power(W):

7.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

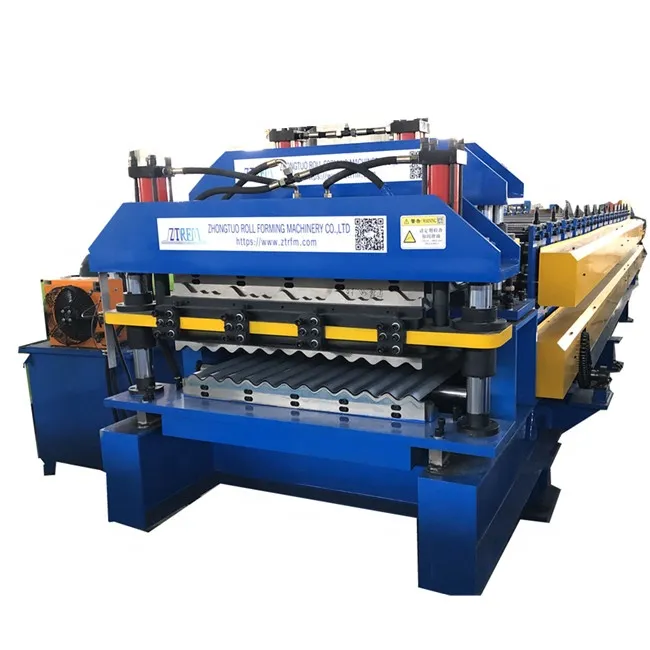

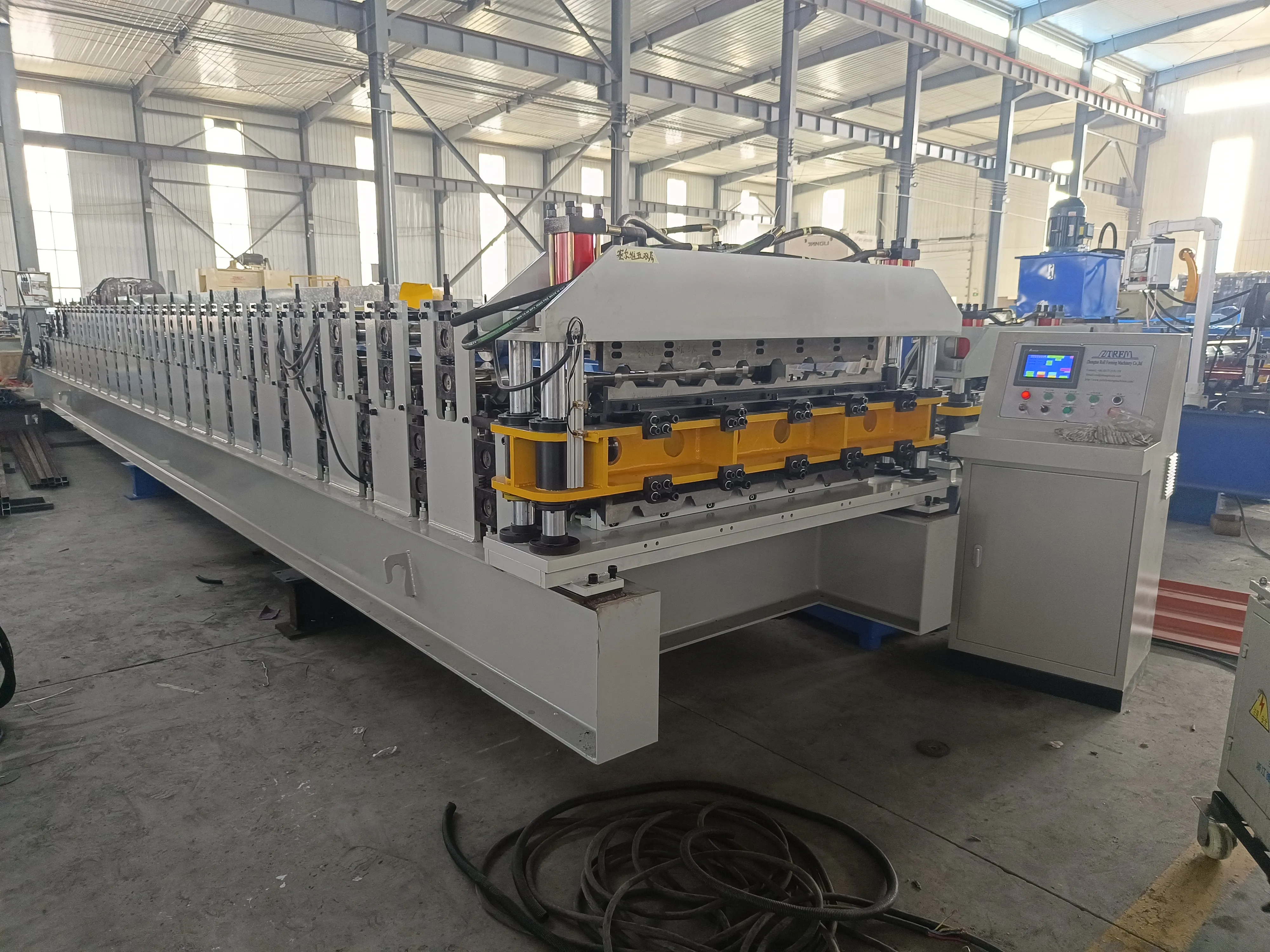

TR6 TR8 Trapezoidal Tile sheet making machine

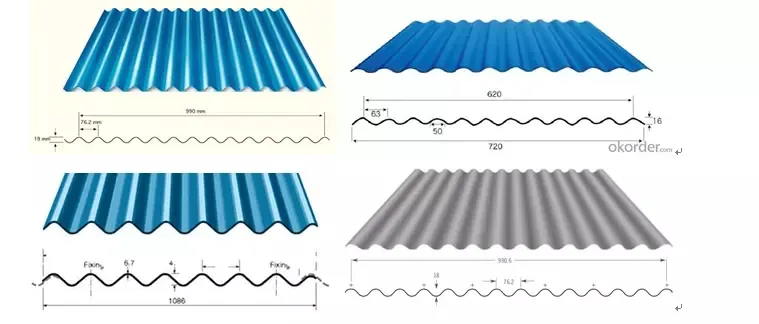

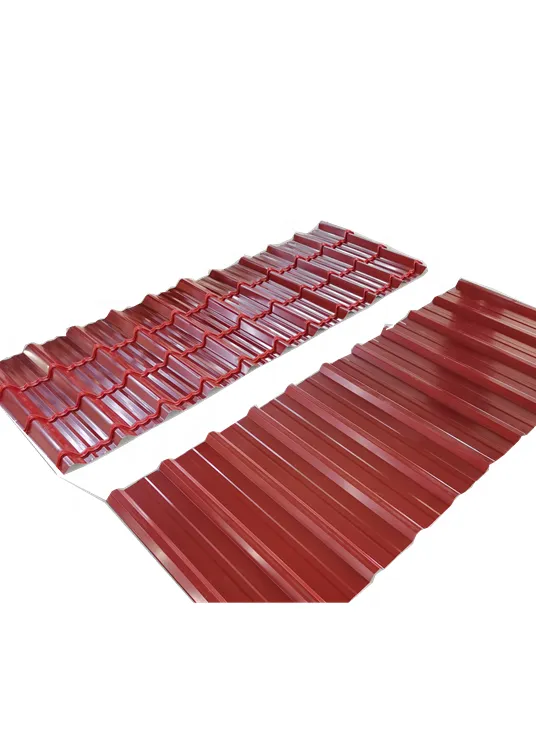

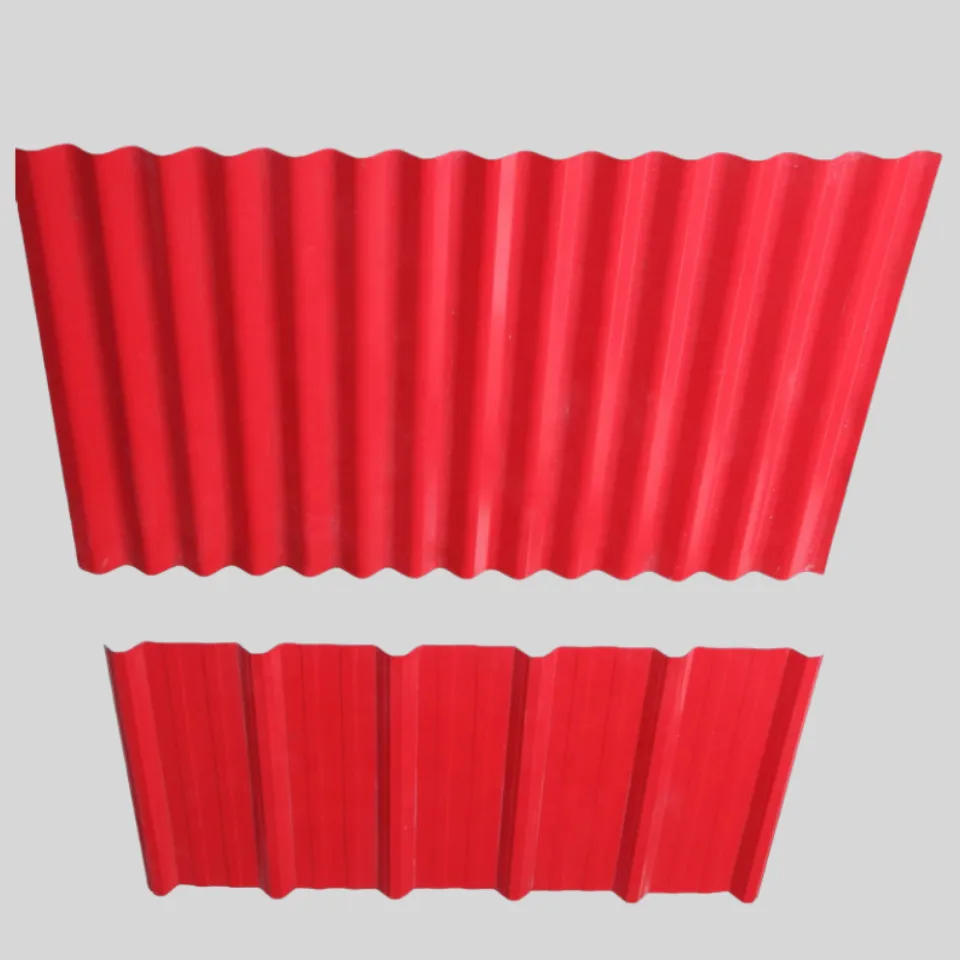

Trapezoidal corrugated Tile sheet making machine is for making the roofing sheet.As it have two layers,can produce two types roofing sheet on one machine.These pictures' machine is for make the corrugated type and trapezoid type roofing sheet.

Machines' advantages 1. Saving cost: two types of roofing sheets can be produced on one machine. (Note: two layers cannot be produced at the

same time)

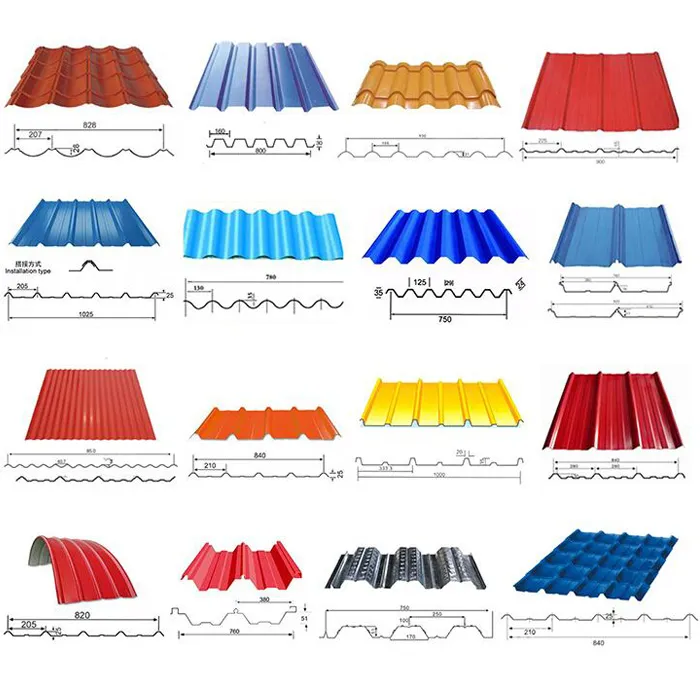

2. Wide applicability: Suitable for the requirements of producing different panels (roofing panel profile drawing can
be customized).

3. Strong and durable: our machine materials are well treated for long term use.

4. Space-saving: one machine
produces two types, saving factory space.

5. Fully automatic and easy to operate.

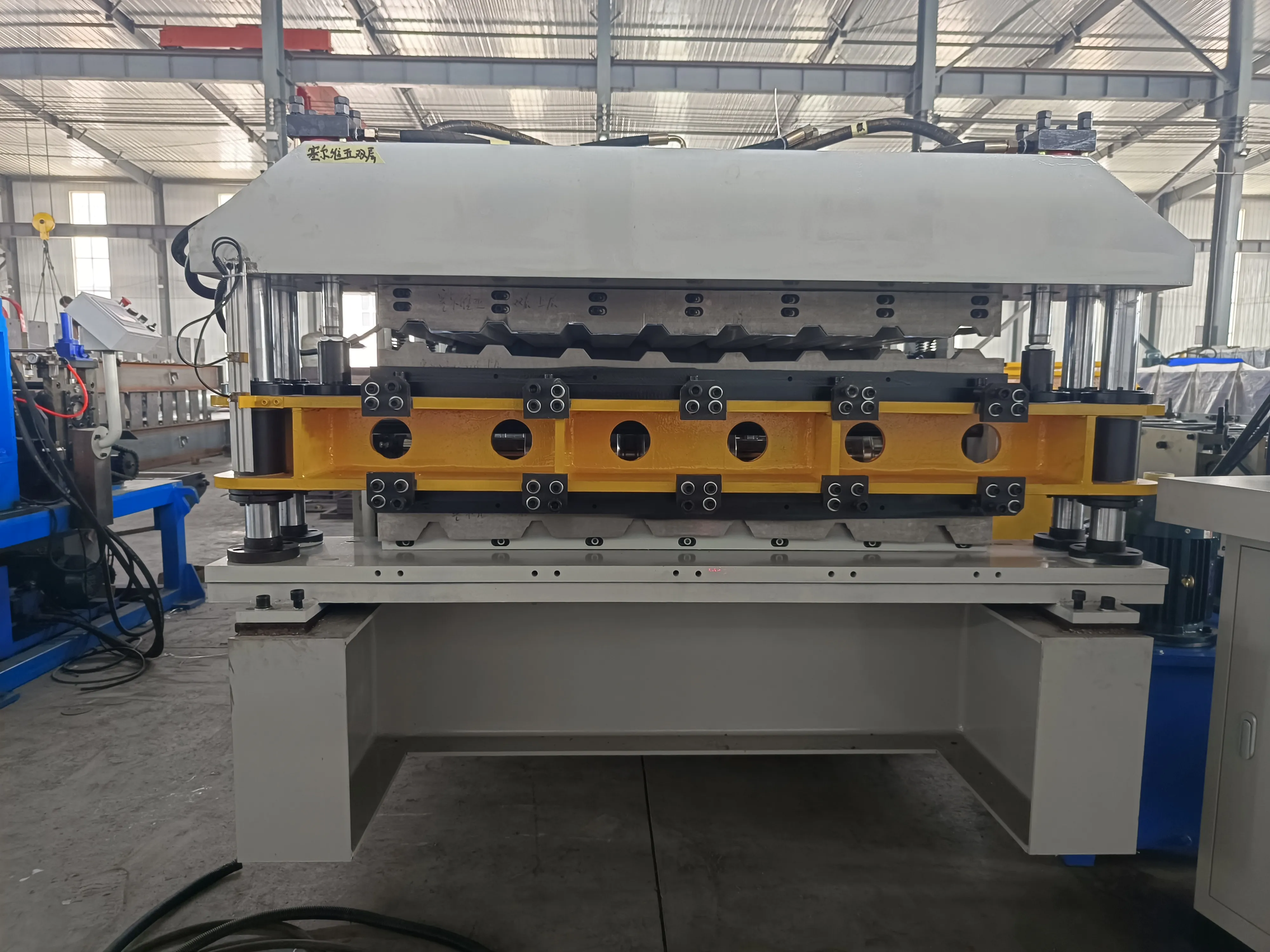

Double Layer TR4 TR6 Roof sheet Machine
Main frame			350mm H beam structure
Material of rollers			High grade 45 high quality steel by CNC machining and hard chrome coating
Forming stations			16 stations + 17 stations
Diameter of shafts			Φ80mm solid(Guaranteed)
Material of shafts			High grade 45#,with heat treatment
Forming speed			About 0-30m/min
Voltage			220V/50HZ/3P
Transmission way			By double chains
Main motor			Servo motor 7.5kw,Yaskawa
Cutting blade material			Cr12Mov quenched treatment to improve hardness
Cutting type			Electric cutting
Driving method			By motor,7.5 kw
Cover			Whole cover for roll former,without cutter.2 parts can slide side to side easily.

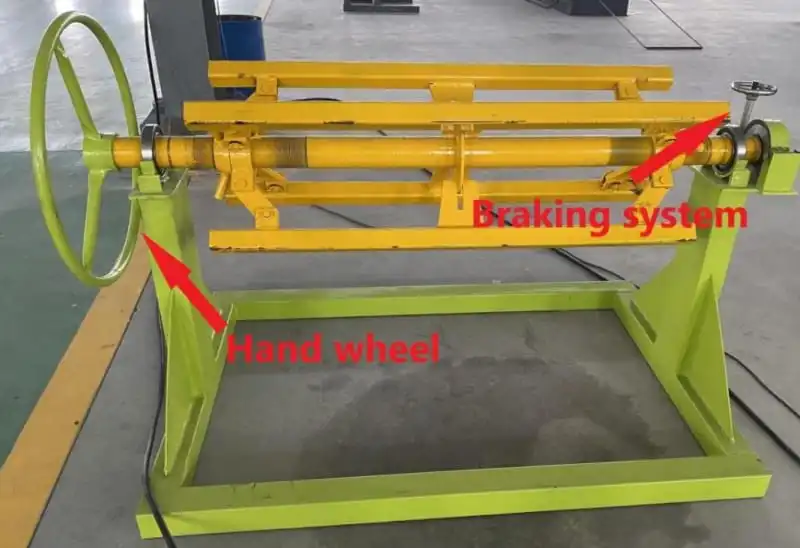

Manual Decoiler

1.Equipped with a manual wheel and brake

(prevent the deposition of material and contribute decoiling. )

2.Simple structure. 3.Passively decoiling.

4.Very inexpensive

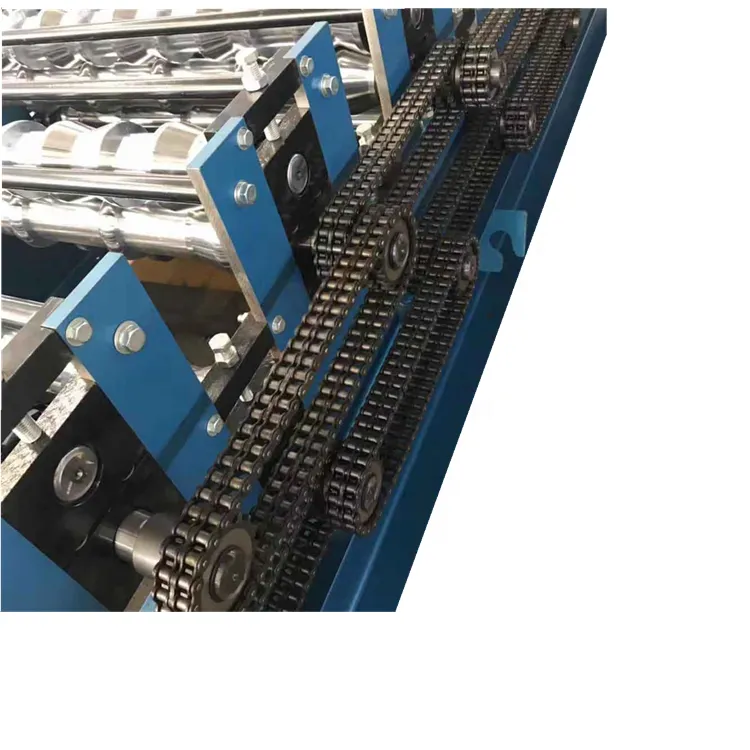

Transportation

Double-chian transmission
Ensure the high speed of the machine

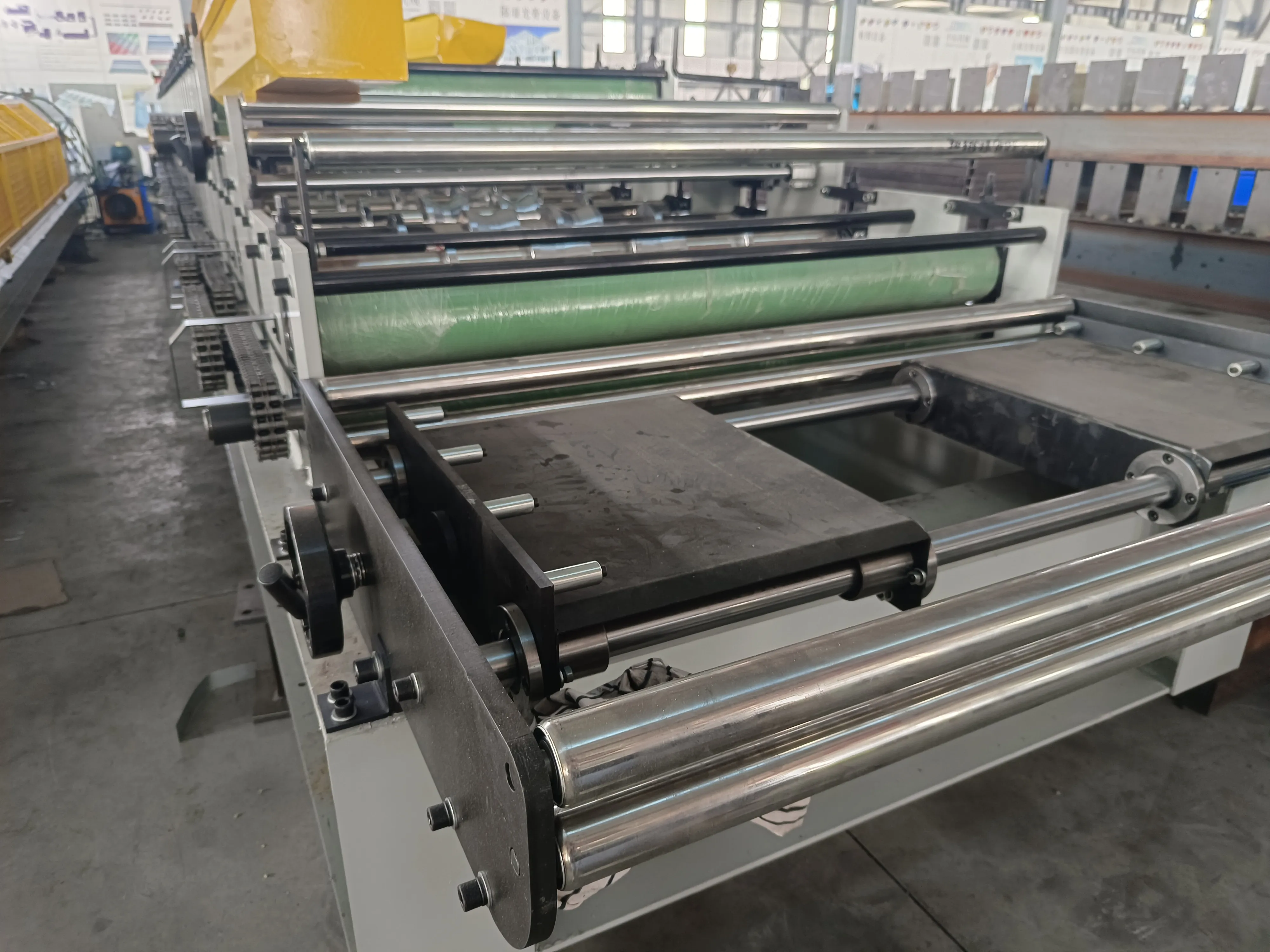

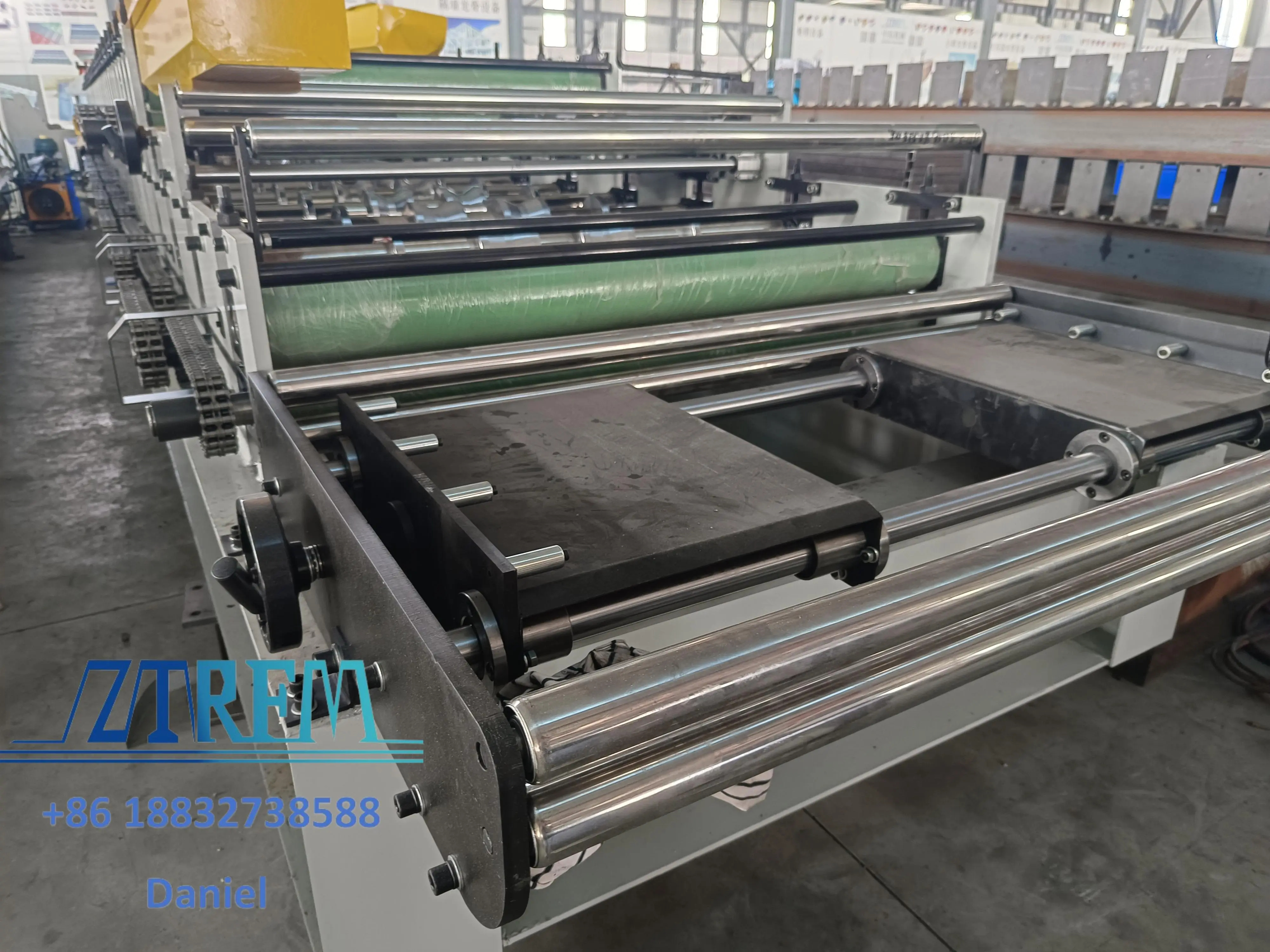

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

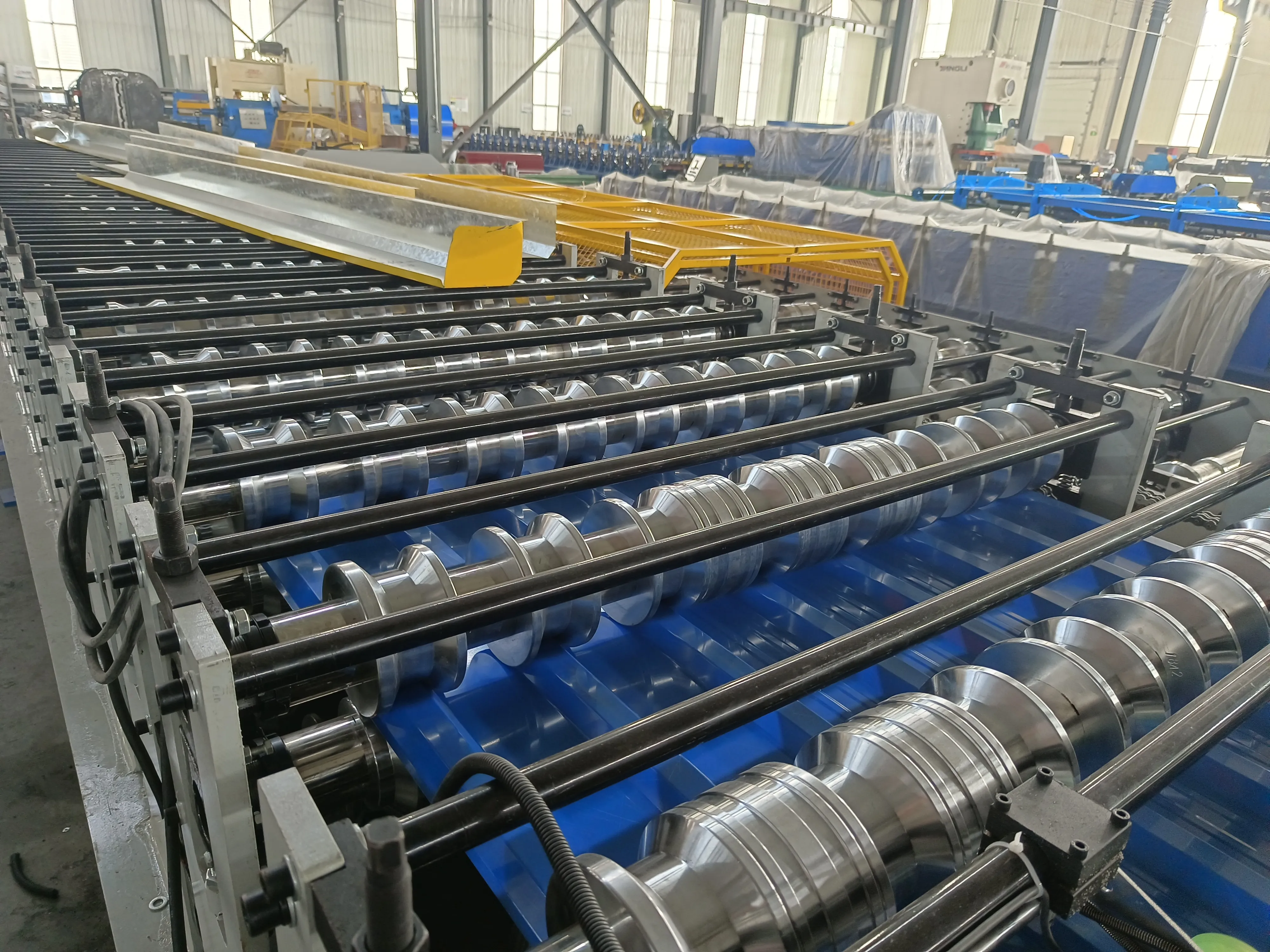

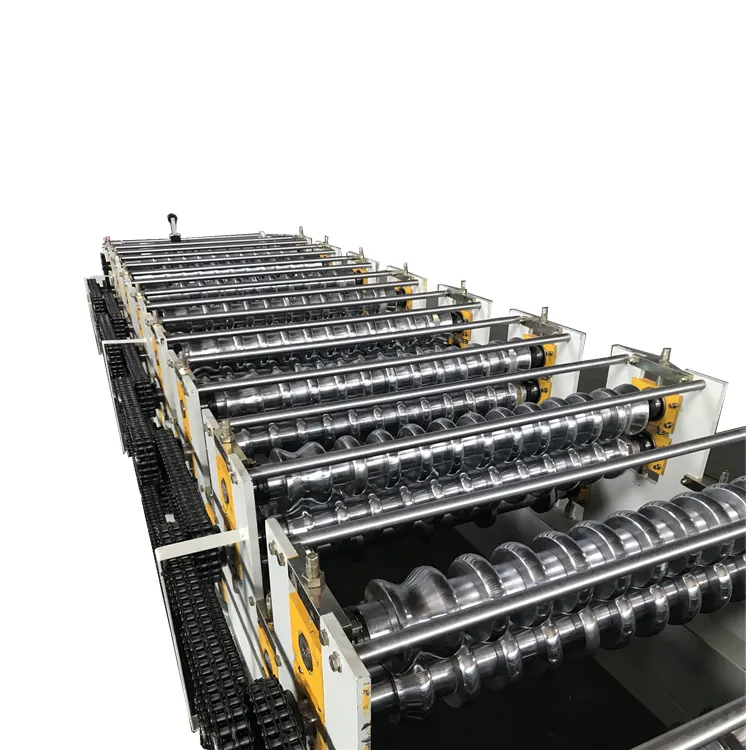

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

Cutting system

1.Two kinds of cutter

2. Fully automated cut of products

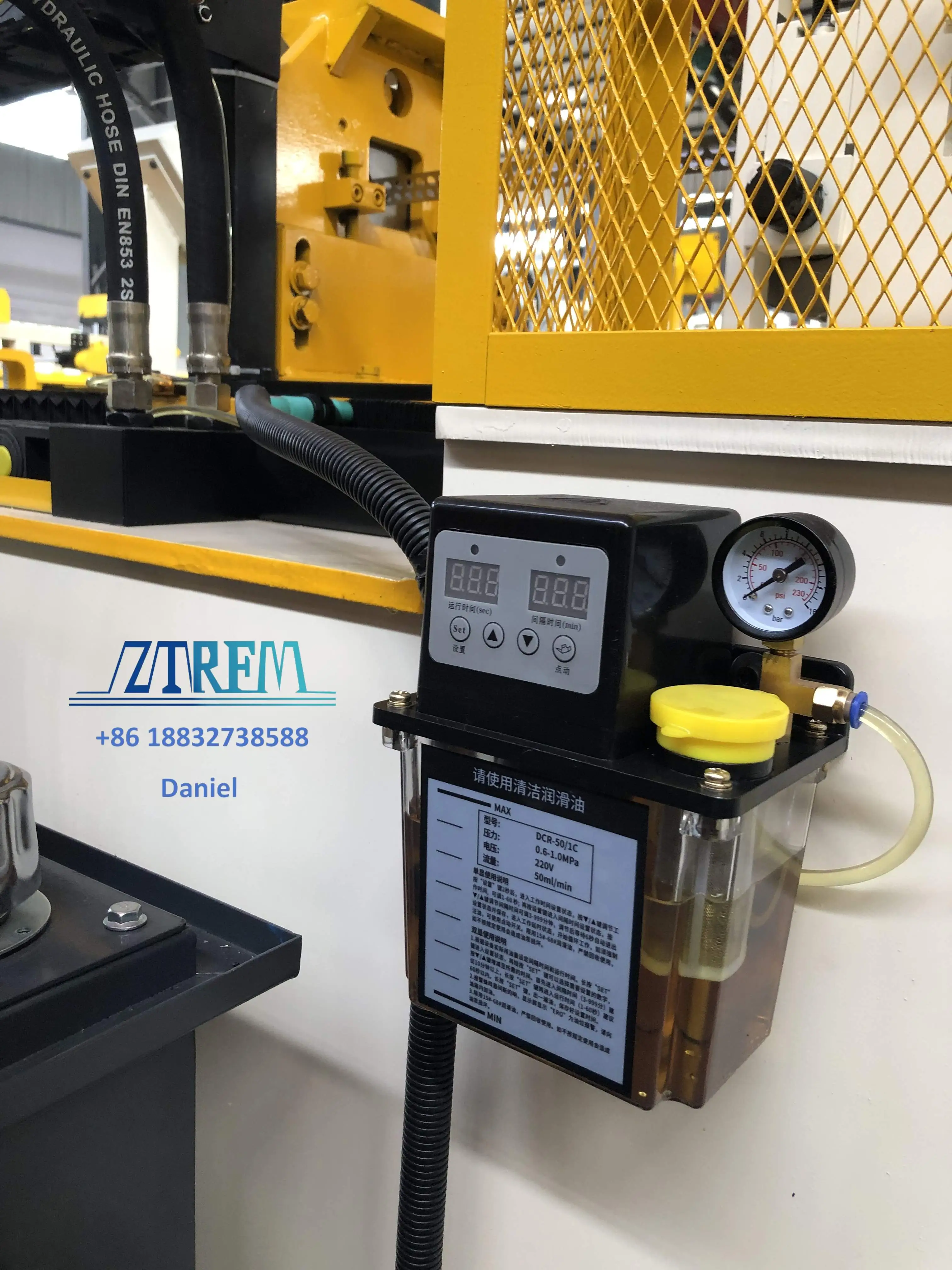

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

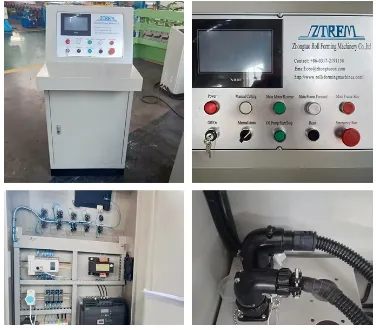

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

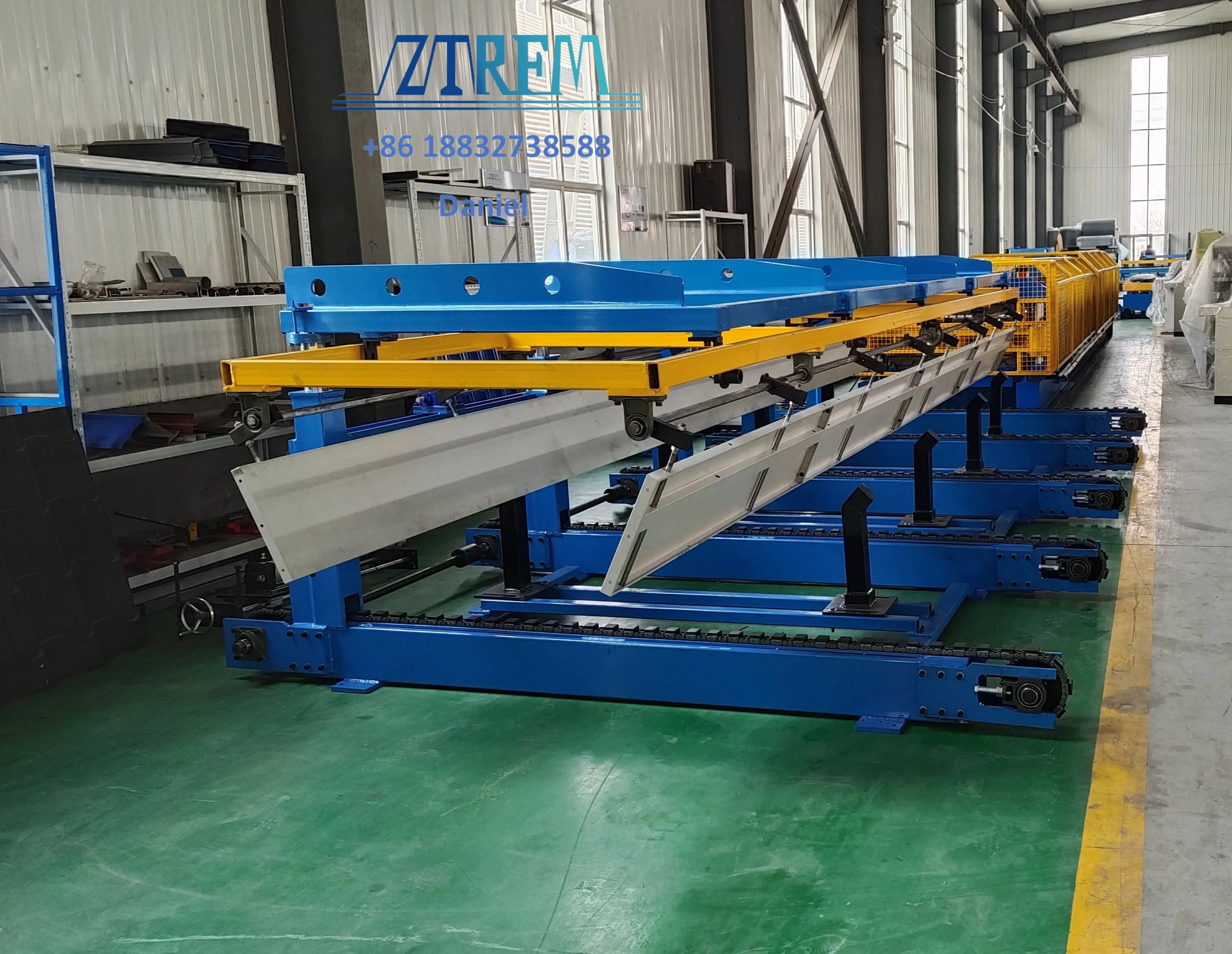

Automatic Stacker

1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

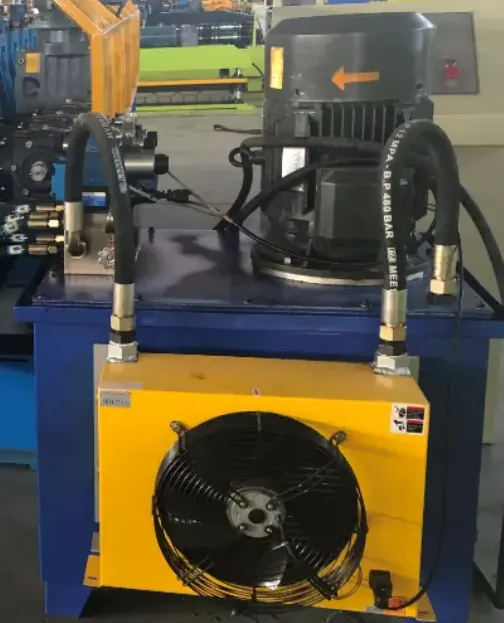

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

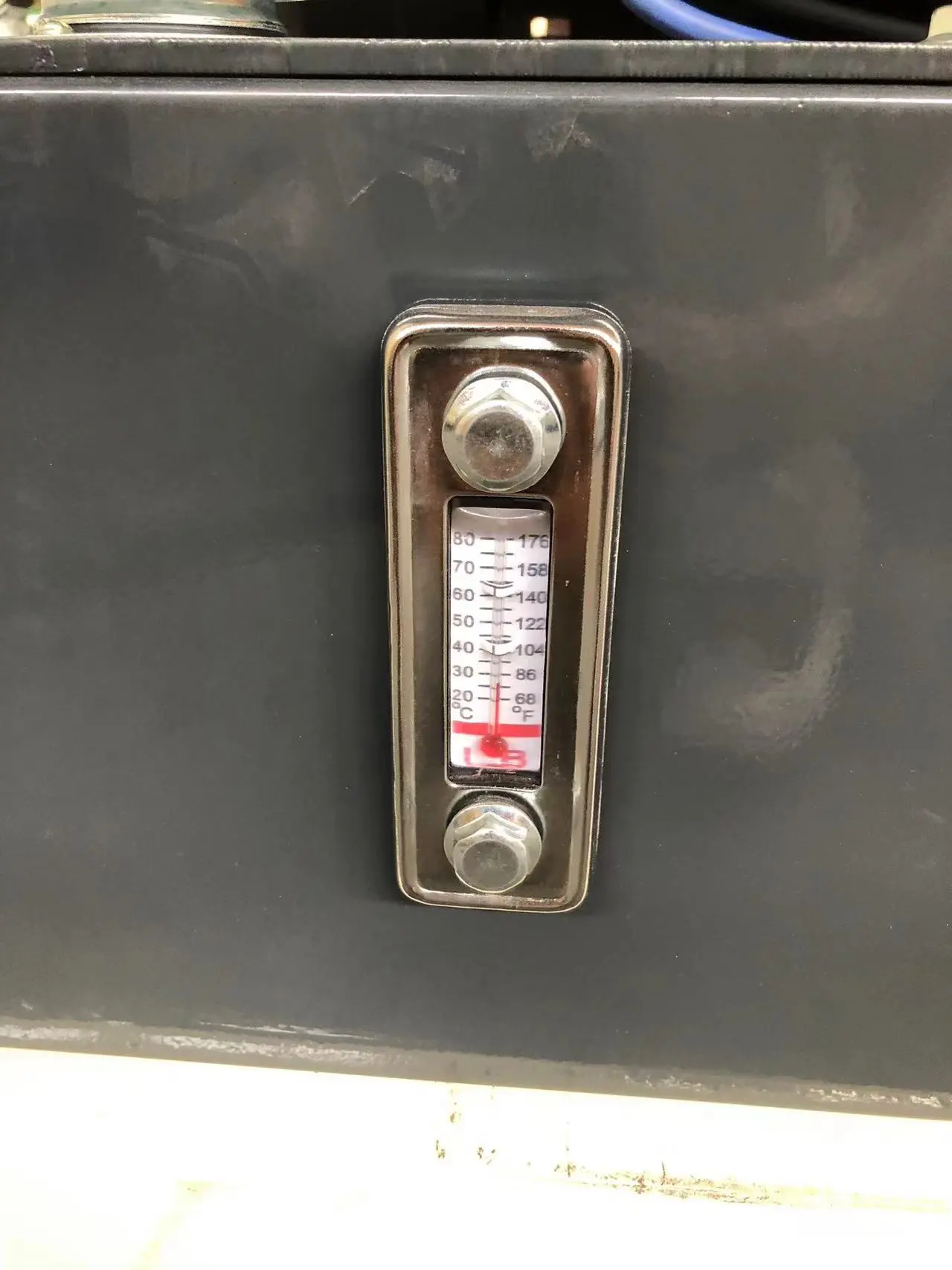

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

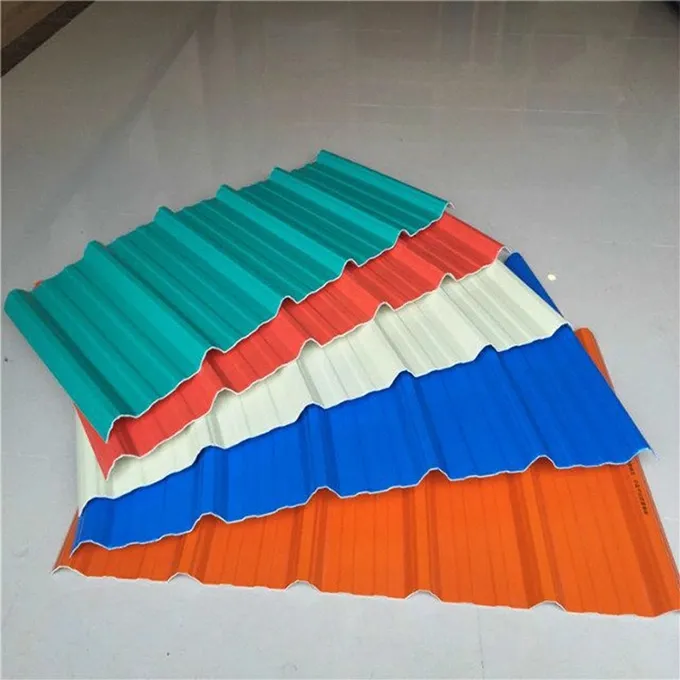

Product display

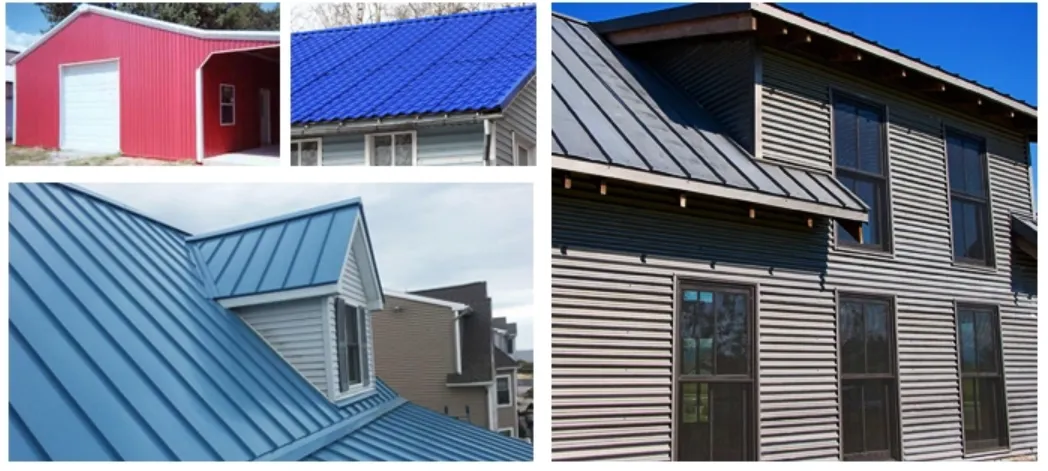

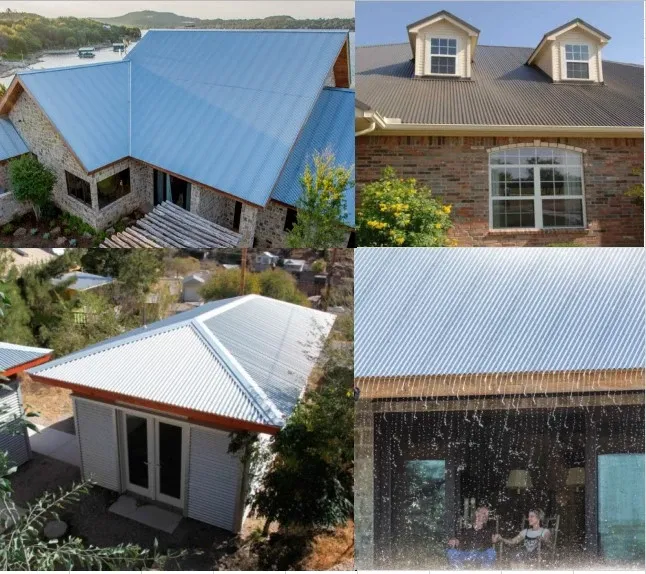

Application

Exhibition

Certification

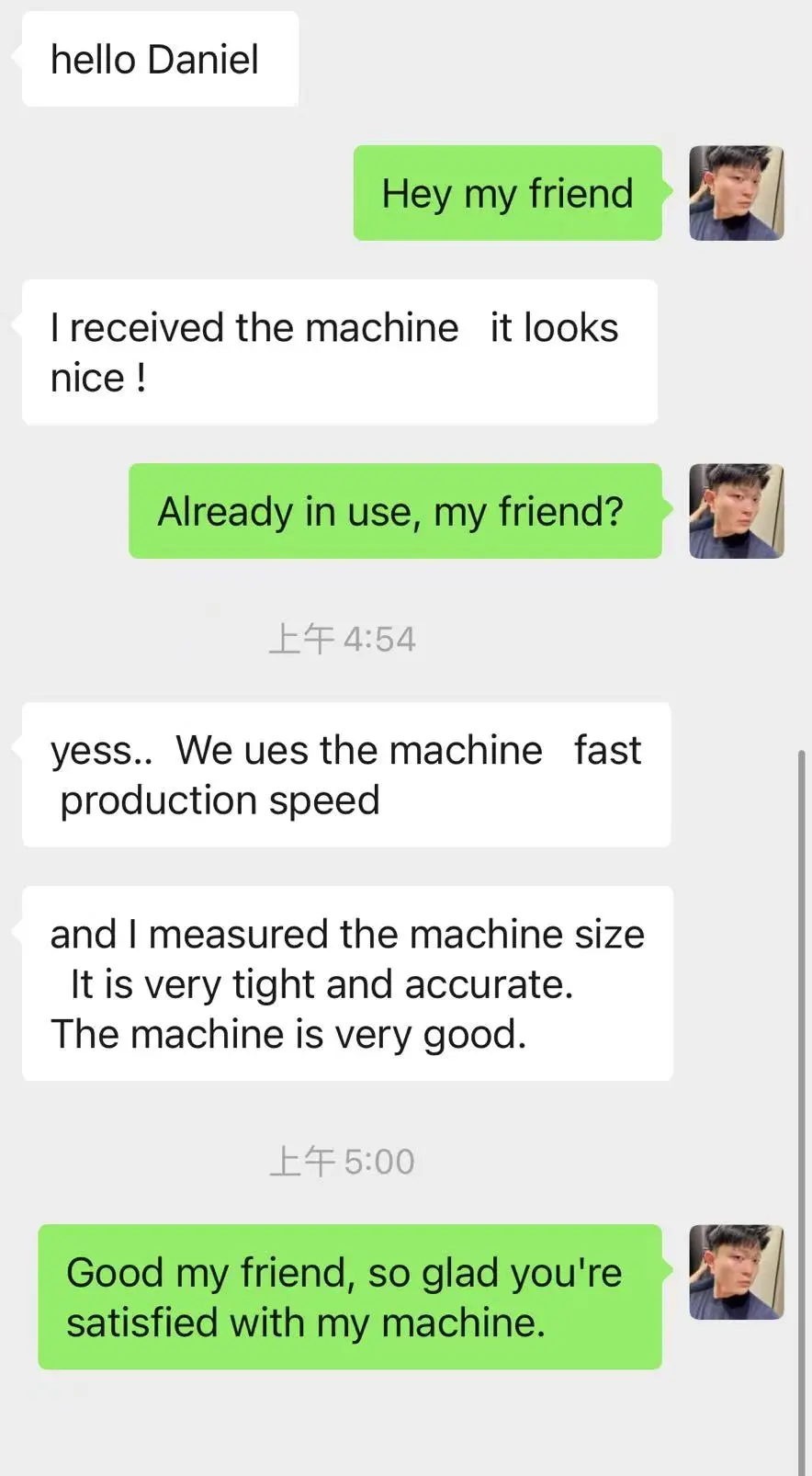

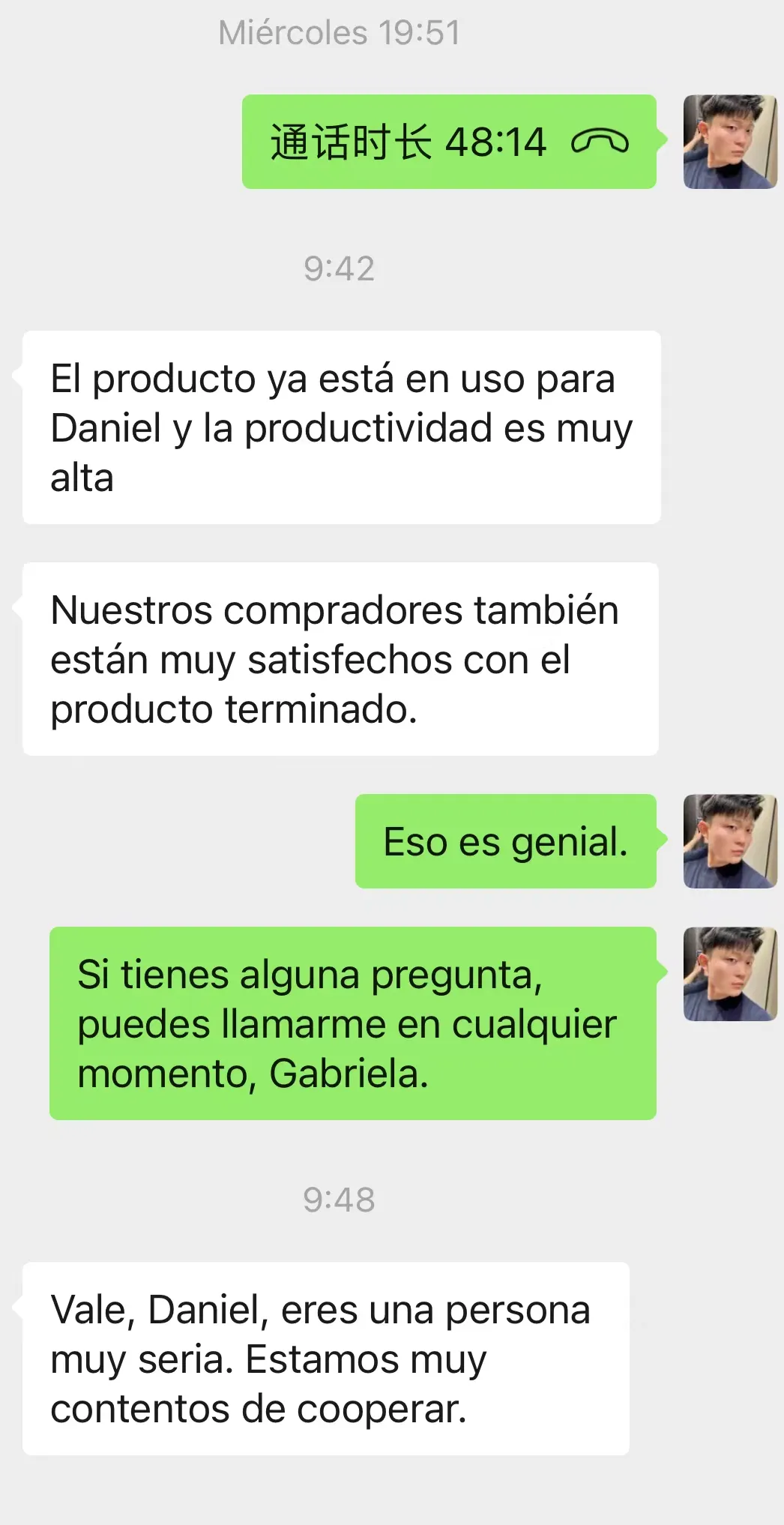

Customer Photos
