Double Layer Roof Tile Roll Forming Machine — 2-in-1 Roofing Panel Production Line

The double layer roof tile roll forming machine is a space-saving, high-efficiency cold roll forming line designed to produce two different metal roofing profiles in one machine. Typically, the upper layer forms elegant glazed step tiles, while the lower layer produces trapezoidal or corrugated roof panels. It is the right choice for roofing manufacturers, steel-structure factories, building-material suppliers and contractors who need profile flexibility without buying two separate machines.



Why Choose a Double Layer Roof Tile Machine?

Instead of running one single-profile tile machine, you get one frame, two production systems. The operator can switch between upper and lower roller groups to make different roof sheets according to market orders. This reduces floor space, initial investment, and maintenance cost while increasing the range of sellable roofing products.



Key Selling Points

2-in-1 profile production: glazed tile + trapezoidal/corrugated panel in one line

Space-saving design: replaces two single-layer machines, saves workshop area

Stable cold roll forming: no heat damage to coating; smooth surface and accurate shape

Automatic operation: PLC + HMI control, length setting, batch counting, auto cutting

Customizable: profile drawing, coil width, thickness, speed, voltage, brand of PLC

Export ready: optional CE/ISO documentation, container packing, installation support



How It Works

Production flow:

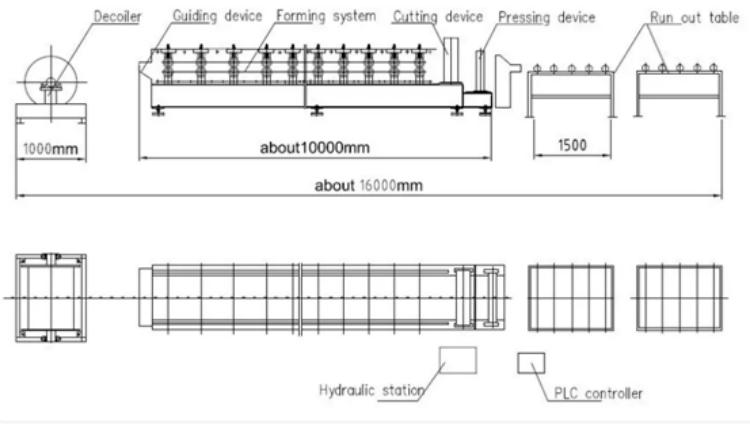

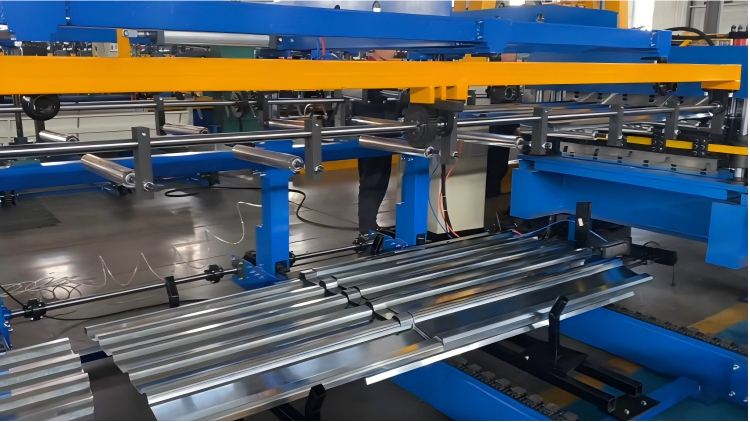

Hydraulic/Manual Decoiler → Feeding & Guide → Leveling → Roll Forming (upper/lower layer) → Hydraulic Cutting → Run-out Table → Stacking

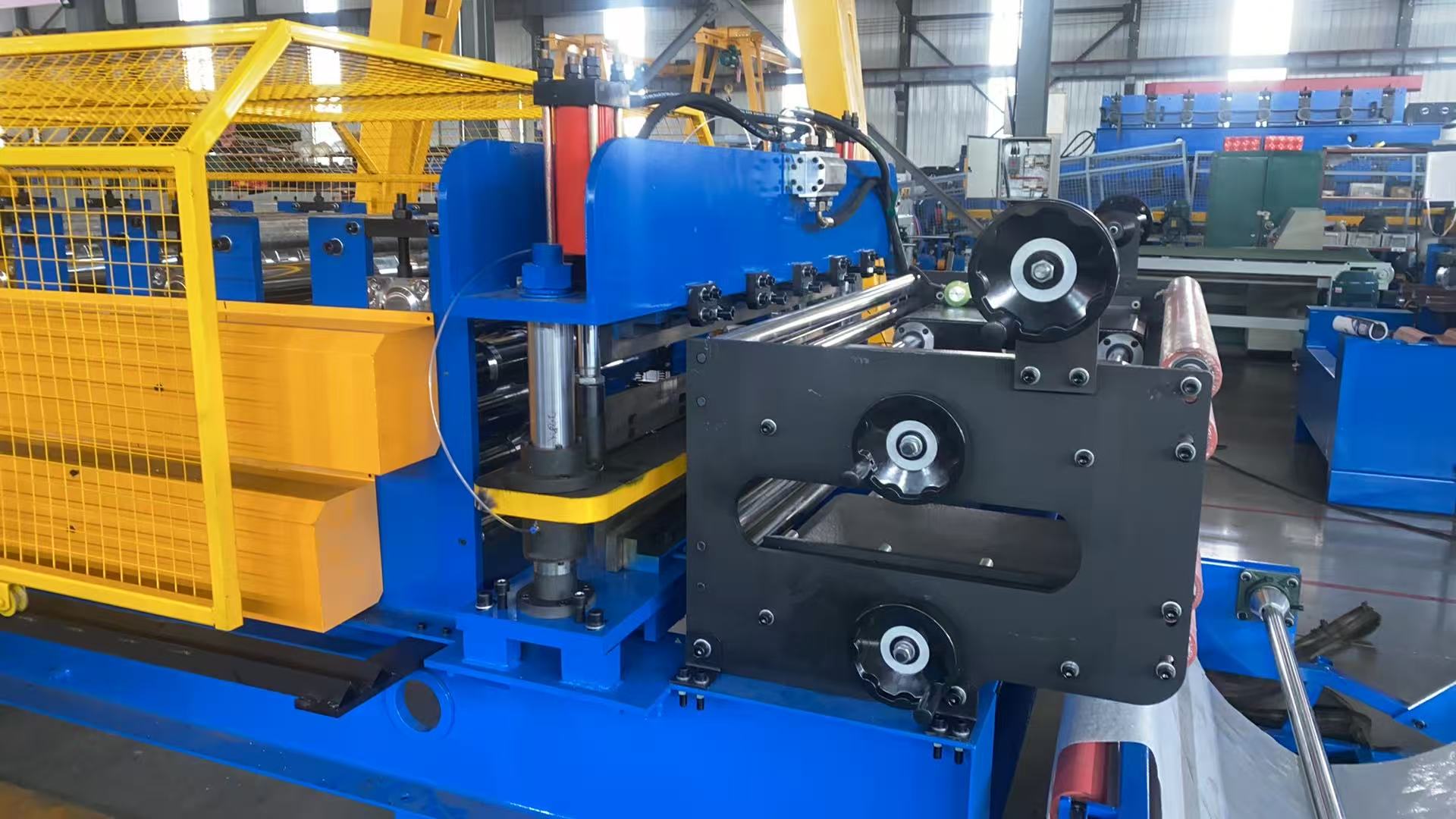

The machine gradually bends PPGI, GI, GL, aluminum or color steel coil into finished roof tiles. Upper and lower layers usually work alternately; each layer has independent roller stations and cutting position, so profile change does not require removing the whole roller set.



Technical Specifications

Item	Specification
Machine type	Double layer roof tile / roofing panel roll forming machine

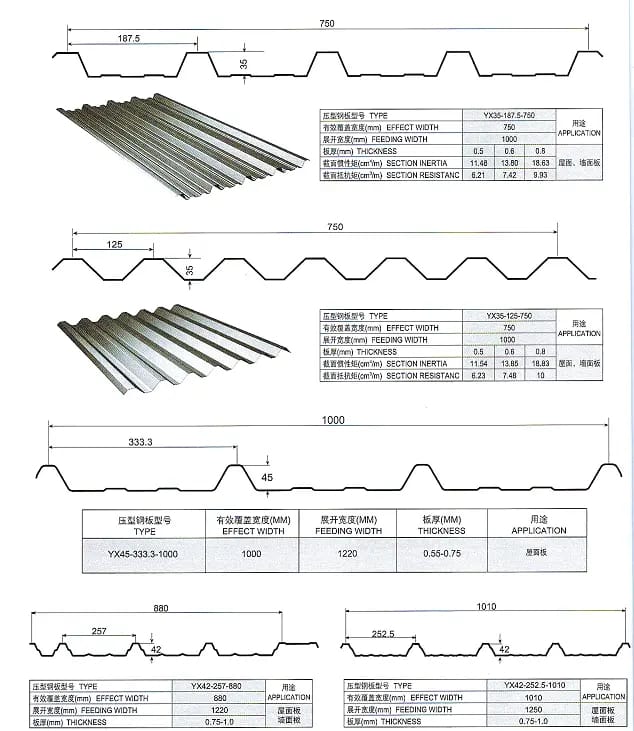

Upper layer profile	Glazed step tile / corrugated sheet (customizable)

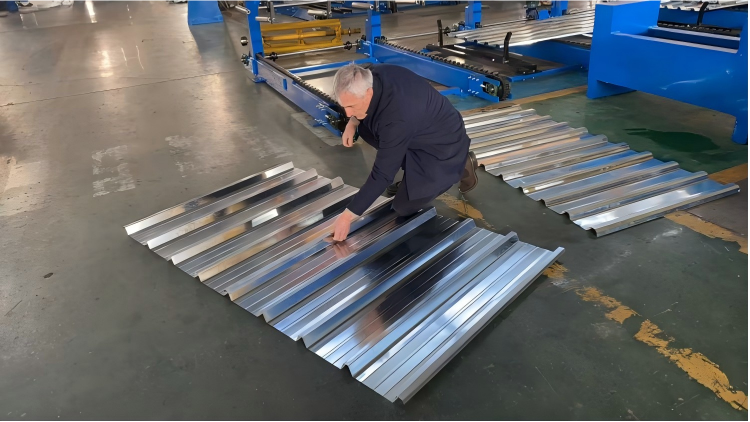

Lower layer profile	Trapezoidal roof panel / IBR / corrugated sheet (customizable)
Raw material	PPGI, GI, GL, aluminum, color steel coil
Material thickness	0.3–0.8 mm (optional 0.2–1.0 mm)
Coil width	914 / 1000 / 1200 / 1250 mm, customized
Yield strength	235–550 MPa
Decoiler	Manual 5T / hydraulic 5–10T
Forming stations	Upper 14–22 stations; lower 12–20 stations
Roller material	45# steel, hard chrome plated
Shaft diameter	Φ70–Φ80 mm, high-grade steel
Frame	Welded steel, H-beam or middle plate 14–22 mm
Drive type	Chain / gearbox drive
Main motor	5.5–11 kW per layer, depends on profile
Hydraulic power	4–7.5 kW
Cutting type	Hydraulic cutting, Cr12 / Cr12MoV blade
Cutting tolerance	±1–2 mm
Control system	PLC + touch screen, Delta/Siemens/Omron optional
Forming speed	10–20 m/min, high-speed type up to 25–30 m/min
Voltage	380V/3PH/50Hz, customizable
Safety	Guard cover, emergency stop, overload protection

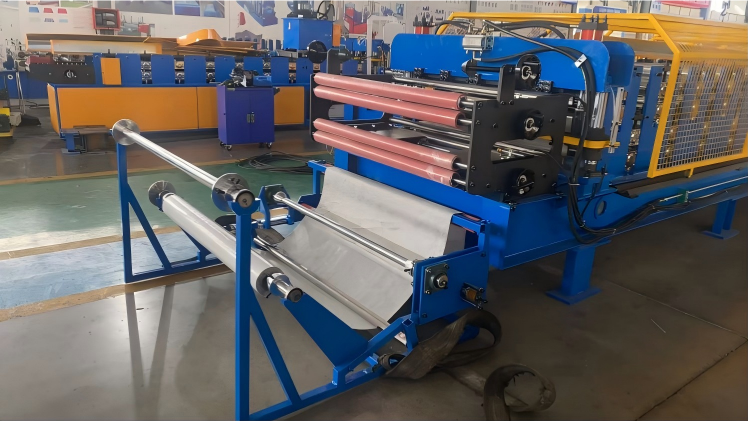

Options	Auto stacker, servo feeding, punching, foil/film device, remote support

All parameters can be customized according to your roof tile drawing and local installation standard.



Application Scenarios

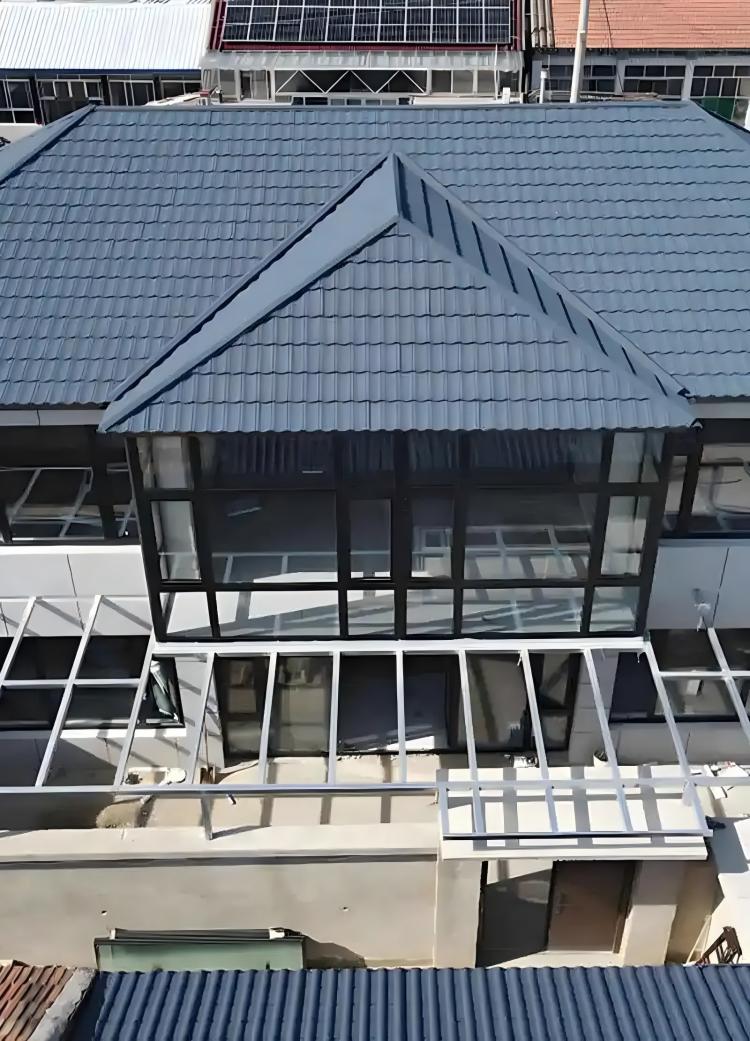

Residential roofing: villas, prefab houses, rural housing, roof renovation

Commercial & industrial buildings: warehouses, factories, shopping centers, workshops

Public infrastructure: stations, logistics parks, schools, clinics, airport auxiliary buildings

Roofing material factories: produce multiple profiles for distributors and project tenders

Export markets: Southeast Asia, Middle East, Africa, South America, Eastern Europe



Competitive Advantages for Buyers

Lower investment cost​ — one machine replaces two single-layer lines.

Faster order response​ — switch profiles for different clients without major retooling.

Better factory layout​ — vertical double-layer structure saves aisle and footprint.

Consistent quality​ — precision rollers and hydraulic cut ensure repeatable dimensions.

Easy operation​ — multilingual HMI, auto length control, fault alarm, counting function.

Long service life​ — chrome-plated rollers, rigid frame, industrial electric parts.



Customization & Order Process

Send your roof profile drawing or sample photo

Confirm material, thickness, width, speed, voltage

Receive proposal, quotation and production lead time

Sign contract, production, in-house running test

Inspection, packing, shipment, installation guide / onsite service



FAQ

Q1: Can the two layers work at the same time?​

Usually the upper and lower layers run alternately, not simultaneously, because they share the same length-cut control and output table in most designs. This still saves space and cost compared with two machines.

Q2: Which profiles can be combined?​

Common combination is glazed step tile + trapezoidal panel. We also do corrugated + IBR, corrugoidal + step tile, or two wall/roof profiles according to your drawing.

Q3: What coil can be used?​

PPGI, GI, galvalume, aluminum and color steel coil are supported. Thickness and width are customized.

Q4: How long is production and delivery?​

Standard machine: 30–45 working days; customized profile or high-automation line: 45–60 working days, plus sea freight.

Q5: Do you provide installation?​

Yes. We provide manuals, videos, remote guidance, and onsite installation/commissioning for large orders.
