Double Layer Roof Sheet Making Machine Roll Forming Machine Standard Dual Layer (Wave + Trapezoidal)

General Industry Tech Hebei Developing Co.,Ltd

Double Layer Roof Sheet Making Machine Roll Forming Machine Standard Dual Layer (Wave + Trapezoidal)

Name: Double Layer Roof Sheet Making Machine Roll Forming Machine Standard Dual Layer (Wave + Trapezoidal)
Brand: 中拓无界
Price: 18000 USD
Availability: InStock

$18,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT123657122

TypeTile Forming Machine

Tile TypeColored Glaze Steel / Corrugated Sheet

UseRoof & Wall Cladding

Rolling Thickness0.3-0.6mm (24-30 Gauge)

Feeding Width1250 mm

Effective Width1000-1220 mm

Frame Structure50mm Guide Pillar with Welded Middle Plate

Roller Material45# Forged Steel, Hard Chrome Plated

Shaft Material45# Solid Steel, Quenched and Tempered

Cutter Blade MaterialCr12 Steel with Vacuum Heat Treatment

Control SystemPLC with Touch Screen (Multilingual)

Voltage380V/50Hz 3-Phase (Customizable 220V-480V)

Total Weight6800 kg (6.8 Tons)

Warranty1 Year Full Machine Warranty

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Configuration:

Standard Dual Layer (Wave + Trapezoidal)

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel / Corrugated Sheet
Use
Roof & Wall Cladding
Rolling Thickness
0.3-0.6mm (24-30 Gauge)
Feeding Width
1250 mm
Effective Width
1000-1220 mm
Frame Structure
50mm Guide Pillar with Welded Middle Plate
Roller Material
45# Forged Steel, Hard Chrome Plated
Shaft Material
45# Solid Steel, Quenched and Tempered
Cutter Blade Material
Cr12 Steel with Vacuum Heat Treatment
Control System
PLC with Touch Screen (Multilingual)
Voltage
380V/50Hz 3-Phase (Customizable 220V-480V)
Total Weight
6800 kg (6.8 Tons)
Warranty
1 Year Full Machine Warranty
Machine Type
Double Layer Roll Forming Machine
Suitable Profiles
Corrugated Wave & Trapezoidal / IBR Sheet
Working Speed
15-25 m/min
Material Thickness / Gauge
0.3 - 0.6 mm (24-30 Gauge, Max 0.8mm / 22 Gauge)
Infeed Width
1200 mm / 1250 mm
Roller Material
45# Forged Steel with 0.05mm Hard Chrome
Main Motor Power
5.5 kW
Hydraulic Station Power
4.0 kW

High-Speed Double Layer Roof Sheet Roll Forming Machine

2-in-1 Dual Profile Production | Corrugated Wave & Trapezoidal IBR Profiles | 50mm Pillar Frame

Dual-Function Footprint: Combines two independent production lines into one single machine frame, saving 50% factory floor space and reducing capital investment.
Robust Guide Pillar Construction: Built with 50mm solid guide pillars and welded middle plates, ensuring zero vibration and long-term geometric accuracy under high-speed operation.
High-Precision Rollers: 45# forged steel rollers precision CNC-machined and hard chrome coated (0.05mm thickness) to protect prepainted coils against scratching.
Intelligent PLC Control: Multilingual touchscreen interface with automatic length setting, batch piece counting, and high-precision hydraulic post-cutting (±1.0mm tolerance).

Double Layer Roof Sheet Roll Forming Machine Hero View

1. Product Overview & Dual Profile Capacity

The Double Layer Metal Roofing Sheet Roll Forming Machine is an integrated, industrial-grade manufacturing solution engineered for producing both sinusoidal corrugated wave sheets (upper layer) and trapezoidal / IBR high-rib panels (lower layer) on a single compact chassis. By switching the feeding direction and selecting the corresponding program on the PLC touch screen, operators can effortlessly alternate between two popular roof and wall cladding profiles without changing tooling or adjusting roller stands.

This versatile line is widely utilized in pre-engineered steel buildings (PEB), industrial warehouses, commercial roofing, agricultural shelters, residential roofing projects, and architectural facade cladding.

Upper Layer - Sinusoidal Corrugated Metal Roof Sheet

Upper Layer: Corrugated Wave Sheet

Classic sinusoidal curve for residential and agricultural roofing

Lower Layer - Trapezoidal IBR Metal Roof Sheet

Lower Layer: Trapezoidal / IBR High-Rib Sheet

Heavy-duty high-load rib design for industrial and commercial roofing

2. Core Engineering & Technical Advantages

Heavy-Duty 50mm Guide Pillar Structure: Unlike conventional cheap bracket/wall-plate designs, our machine employs 50mm diameter solid guide pillars with heavy welded middle plates. This rigid design eliminates structural deflection, ensuring long service life and uniform profile geometry across millions of meters.
Precision CNC Forged 45# Steel Rollers: All forming rollers are forged from premium 45# carbon steel, precision CNC turned, and finished with a hard chromium plating (thickness 0.05mm). The mirror-finish surface prevents paint peeling, film tearing, or scratching on prepainted PPGI/PPGL coils.
Independent Dual Hydraulic Cutting Dies: Equipped with dual upper and lower Cr12 alloy steel hydraulic shear cutters. The blades undergo vacuum heat treatment (HRC 58-62) to deliver clean, burr-free cuts with no sheet distortion.
Intelligent Automation & Dual Inverter Control: Centralized PLC electrical system paired with a responsive HMI touch display supports English, Spanish, Russian, and French. Fully automated batch programming with high-precision optical encoder length measuring (tolerance ±1.0mm).
Energy-Efficient Hydraulic Station: Built with a 4.0kW hydraulic pump system, high-pressure oil lines, and automatic cooling protection to support 24/7 continuous factory production.

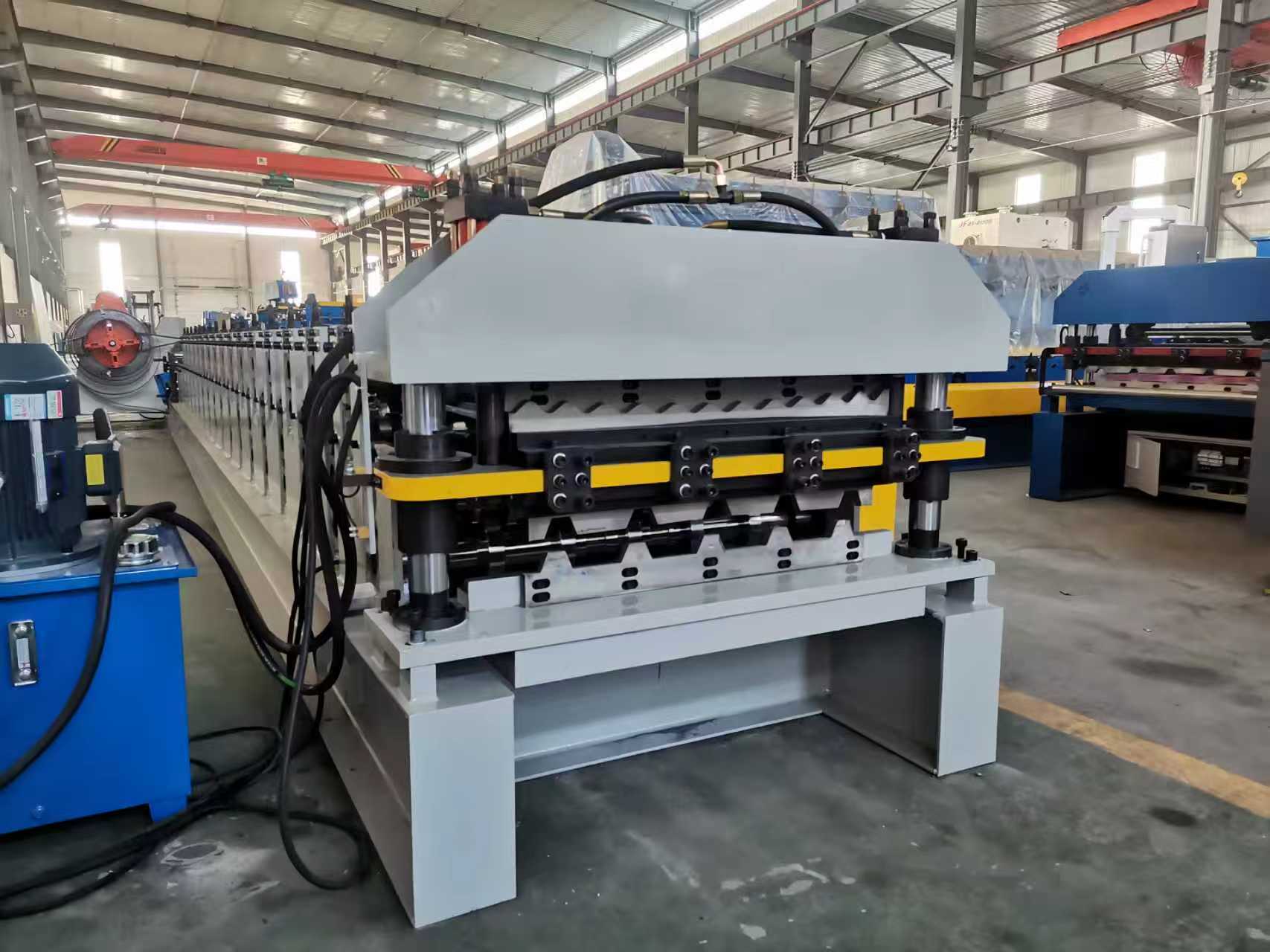

Precision Dual Forming Stations and Hard Chrome Plated Rollers

Figure 1: High-precision 45# chrome-plated forming roller stations with 50mm guide pillar framework.

Infeed Guiding System and Dual Layer Forming Stand

Figure 2: Infeed guiding table with adjustable width handwheels and multi-stage gradual roll forming passes.

3. Technical Specifications

Technical Parameter	Specification Value
Machine Model	Double Layer Roll Forming Machine (Wave + Trapezoidal)
Raw Material Compatibility	PPGI, PPGL, GI (Galvanized Steel), Aluminum Coils
Material Thickness / Gauge Range	0.3 mm – 0.6 mm (24–30 Gauge, customizable up to 22 Gauge / 0.8 mm)
Coil Infeed Width	1200 mm / 1250 mm (Customizable)
Effective Cover Width	1000 mm / 1050 mm / 1220 mm (per customized profile)
Forming Speed	15 – 25 m/min (Adjustable via Frequency Inverter)
Roller Material & Surface	Forged 45# High-Grade Steel, 0.05mm Hard Chrome Plated
Shaft Diameter & Material	Ø 70mm / 75mm Solid 45# Steel, Quenched & Tempered
Machine Frame & Side Plates	50mm Guide Pillar Structure, Middle Plate Welded Frame
Main Motor Power	5.5 kW Heavy Duty Motor with Speed Reducer
Hydraulic Station Power	4.0 kW Hydraulic Pump Station
Cutting Type & Blade Material	Hydraulic Post-Cut Dual Dies, Cr12 Steel (HRC 58-62)
Control System & Langauges	PLC Touch Screen (English / Spanish / Russian / Multi-langauge)
Length Measuring Accuracy	± 1.0 mm (Rotary Optical Encoder)
Working Voltage	380V / 50Hz / 3-Phase (220V/440V/480V Customizable)
Overall Dimensions (LWH)	9500 mm × 1650 mm × 1500 mm
Total Machine Weight	Approx. 6,800 kg (6.8 Tons)
Standard Certifications	CE Compliant, ISO 9001:2015, Machinery Inspection Passed
