Double Layer Glaze Tile Corrugated Metal Roofing Sheet Making Machine 20 M/Min+Double Layer Glaze Tile Corrugated Metal Roof Machine+7.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

Double Layer Glaze Tile Corrugated Metal Roofing Sheet Making Machine 20 M/Min+Double Layer Glaze Tile Corrugated Metal Roof Machine+7.5KW

Name: Double Layer Glaze Tile Corrugated Metal Roofing Sheet Making Machine 20 M/Min+Double Layer Glaze Tile Corrugated Metal Roof Machine+7.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT59420308

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

Double Layer Glaze Tile Corrugated Metal Roof Machine

Power(W):

7.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Galvanized Steel
Use
ROOF
Voltage
380 V, 220V Electrical Equipment
Rolling Thinckness
0.3-0.8mm
Feeding Width
1250mm(As customized)

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

Double Layer Glaze Tile Corrugated Metal Roof Machine

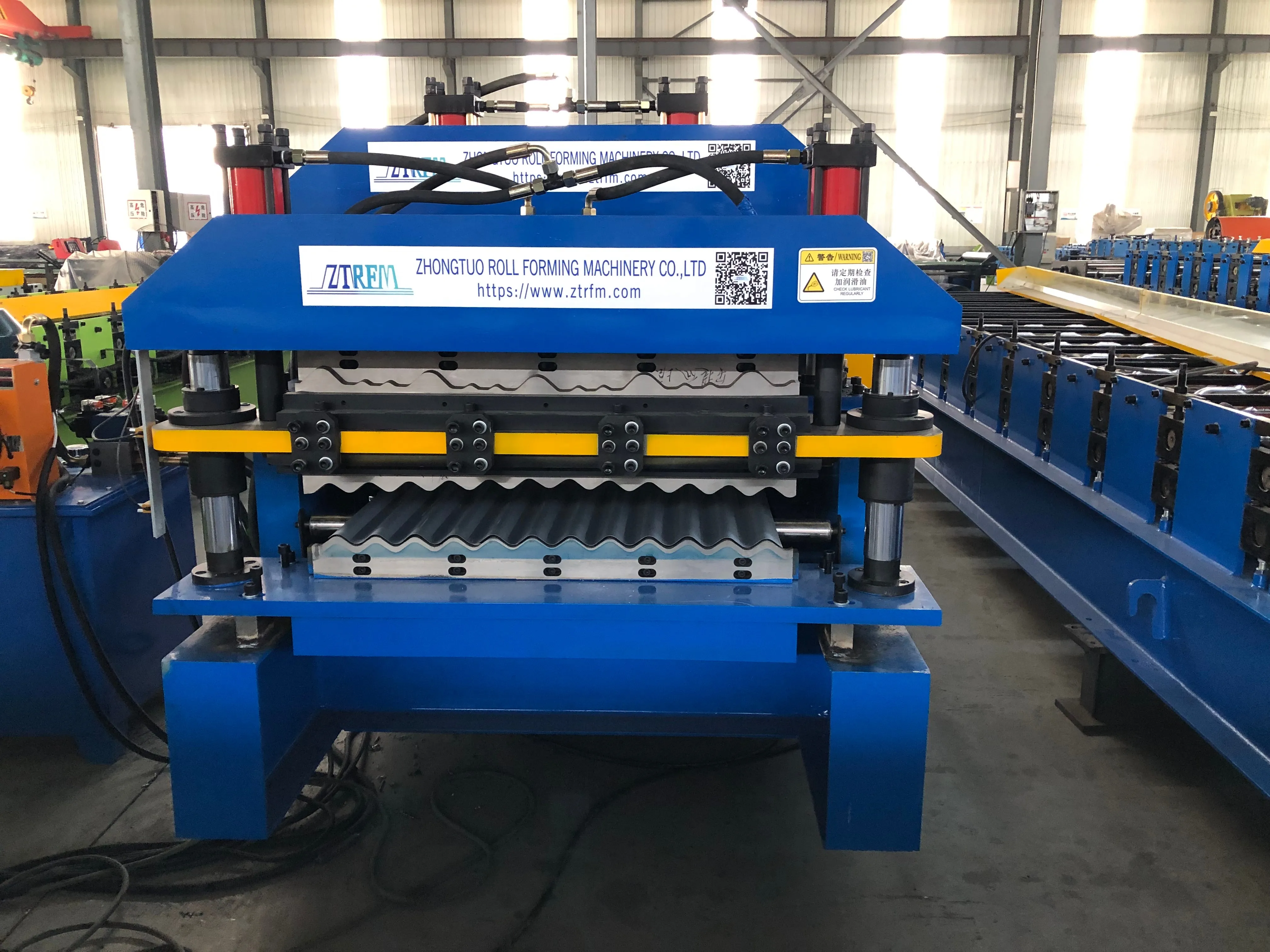

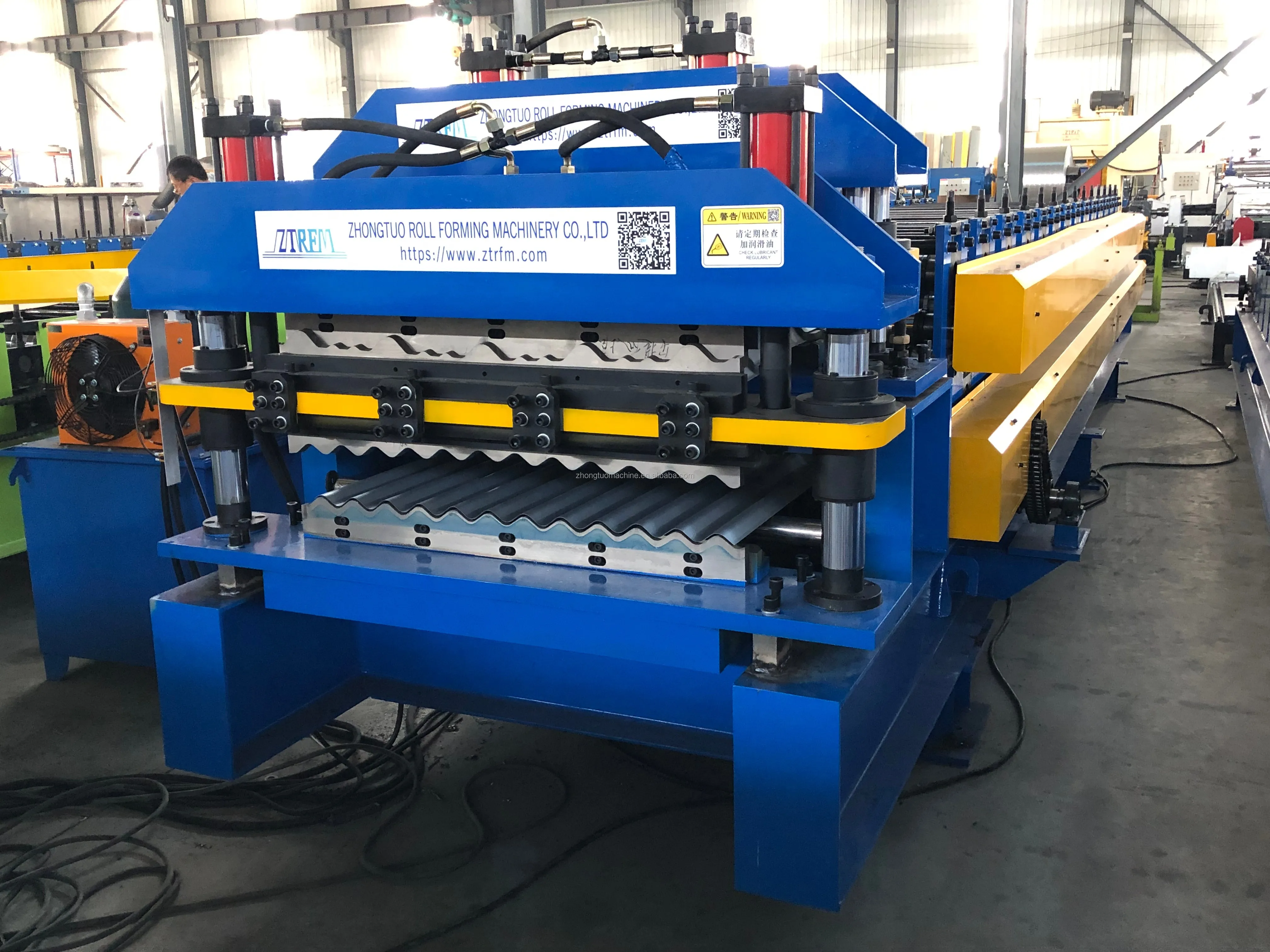

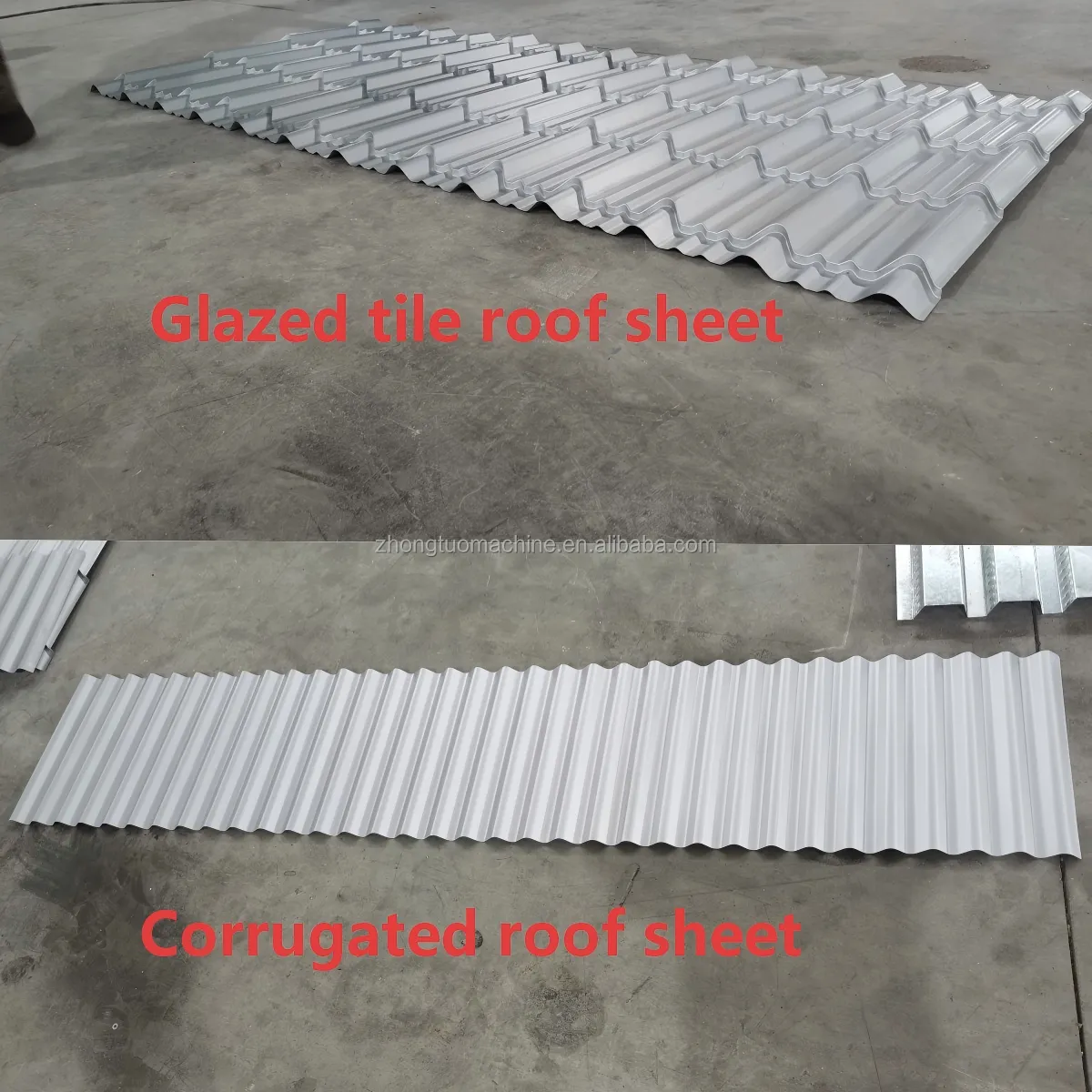

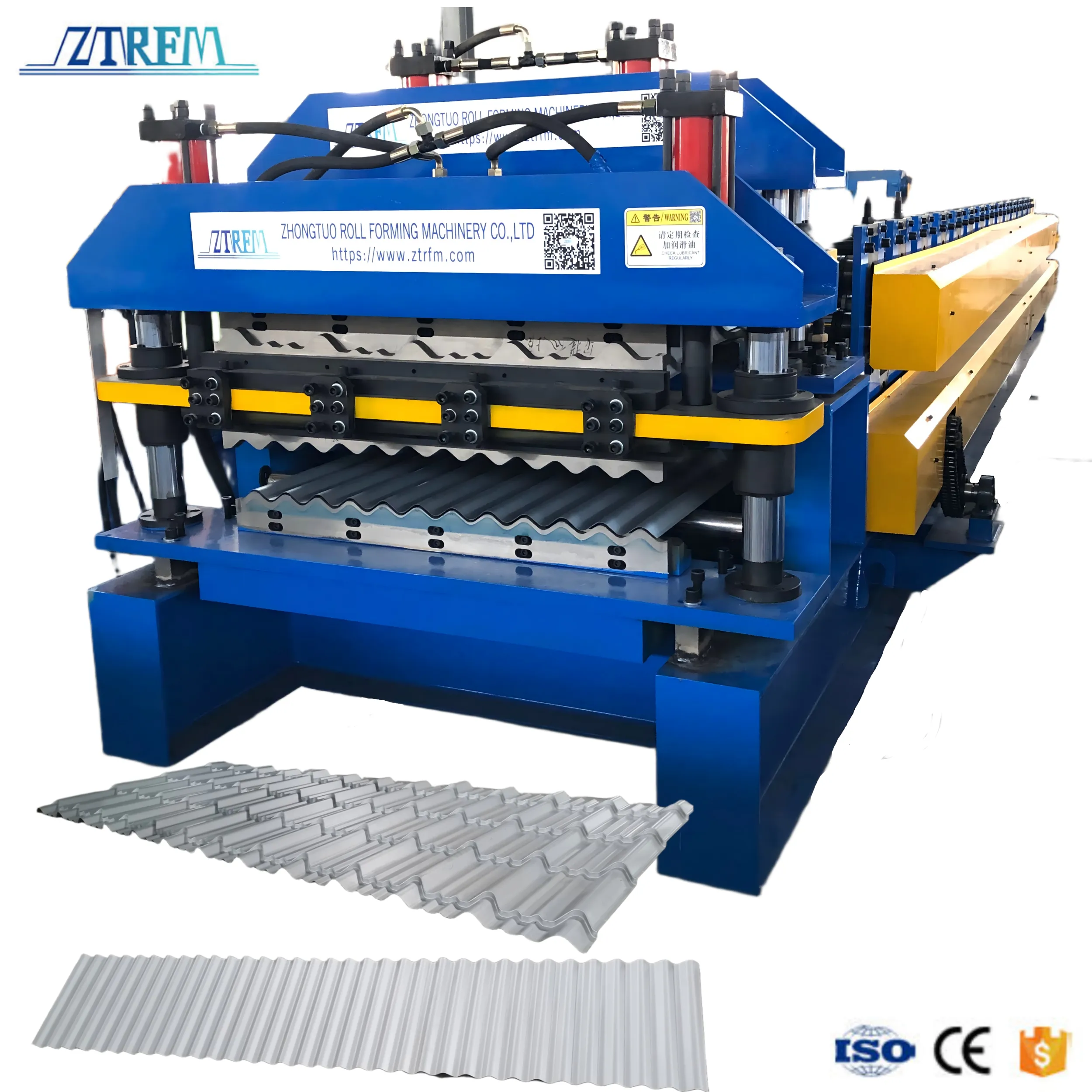

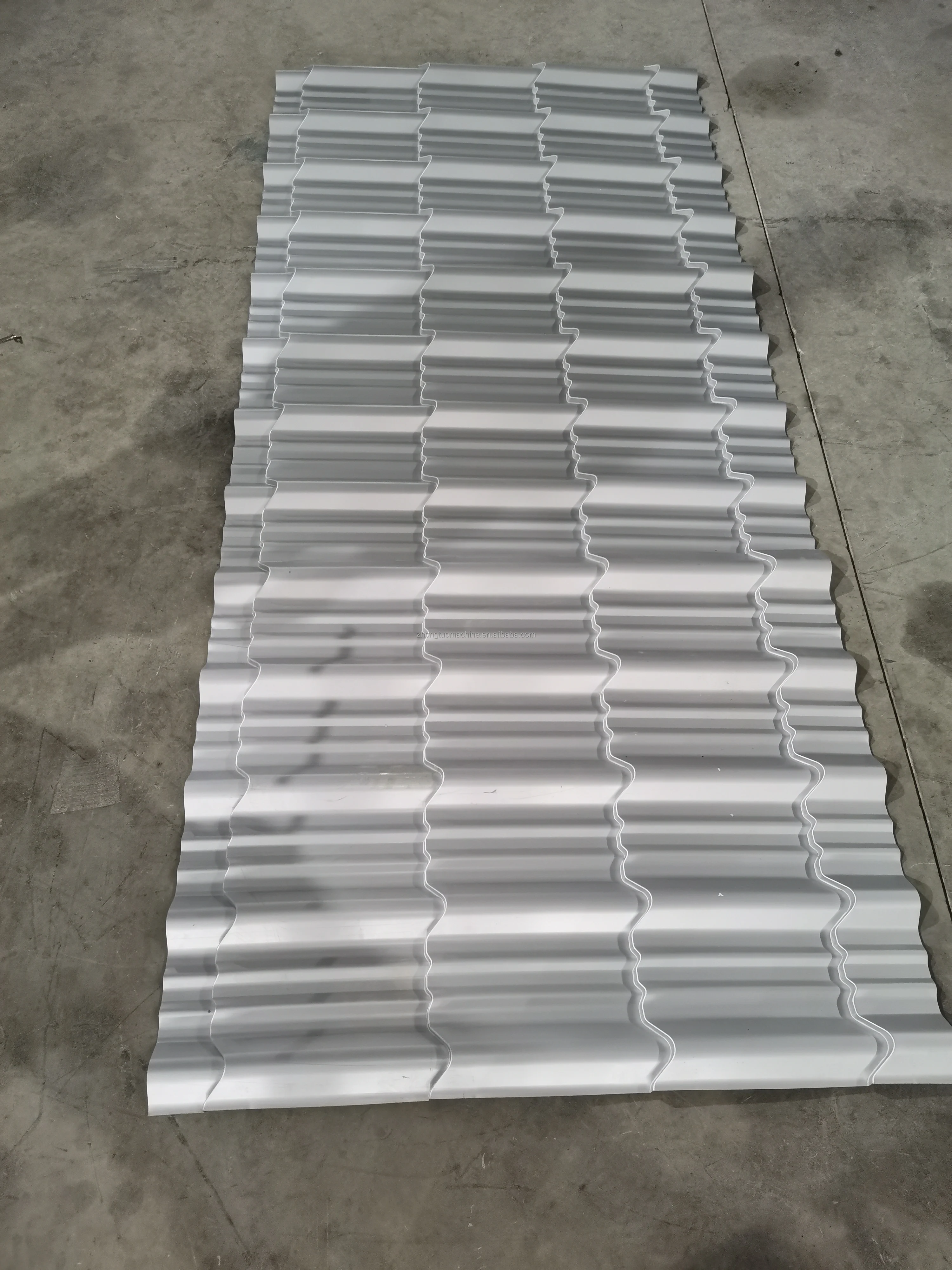

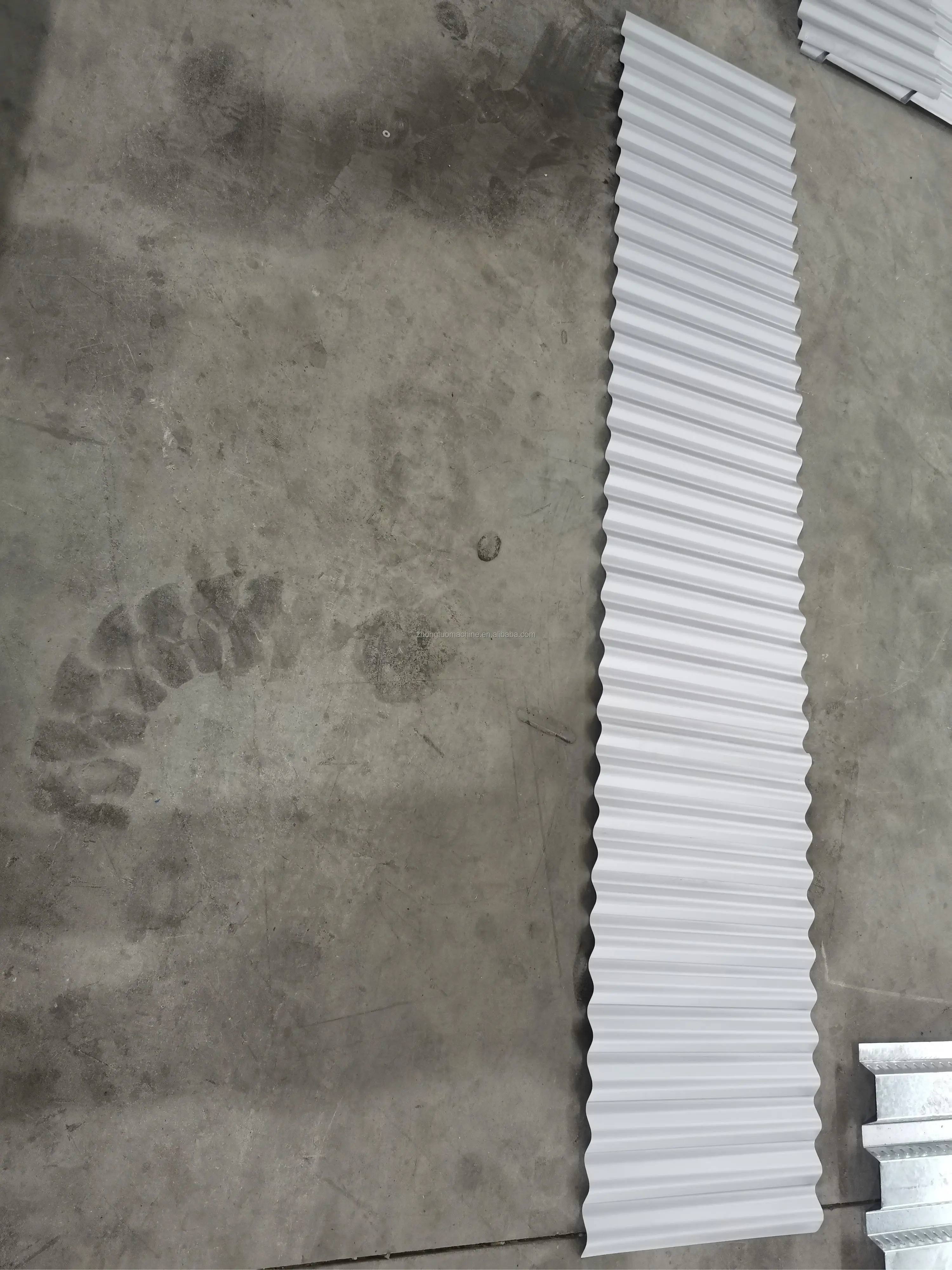

Double Layer Glaze Tile Corrugated Metal Roof Machine integrates glazed tiles and corrugated roof tiles on one machine, which can meet the production of two types of roof tile patterns on one machine, ensuring that the machine is more adaptable to the needs of the local construction market. The machine adopts a Siemens electrical control system, and the upper and lower layers can be switched for production by directly adjusting the brake of the chain. The operation is simple and it is increasingly popular in the different country building market

Machines' advantages 1. Saving cost: two types of roofing sheets can be produced on one machine. (Note: two layers cannot be produced at the

same time)

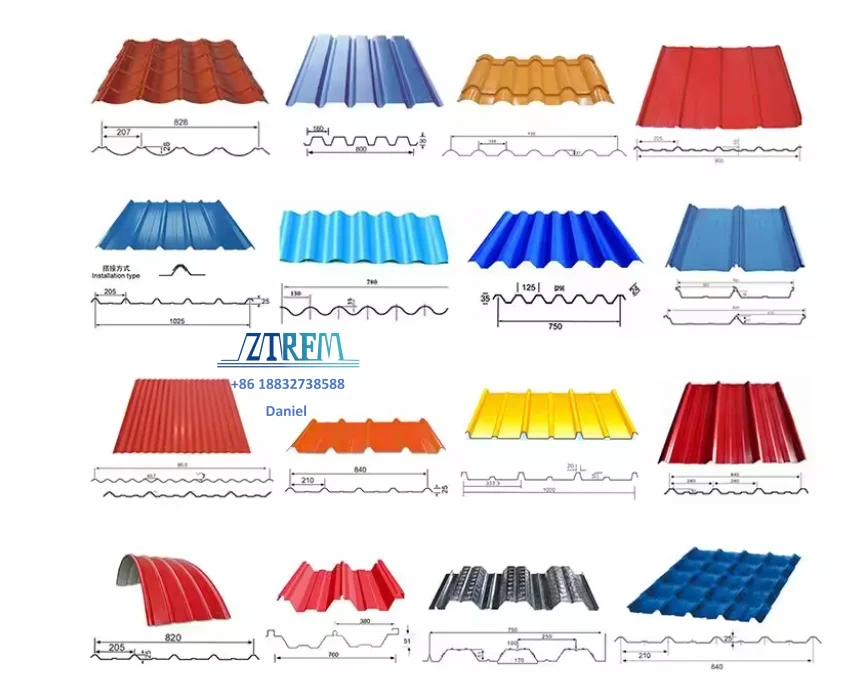

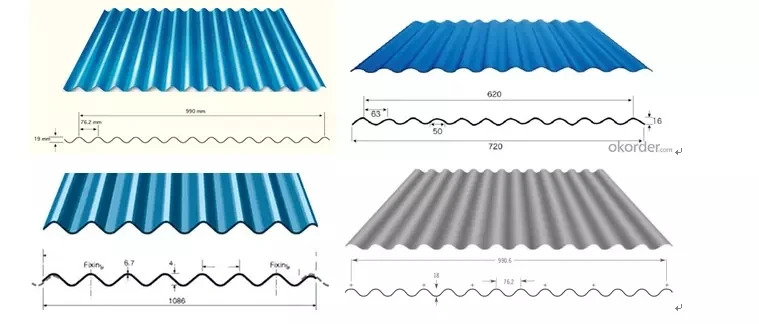

2. Wide applicability: Suitable for the requirements of producing different panels (roofing panel profile drawing can
be customized). so our machine popular in different country , we can as your local popular roof profile to customized machine for you. let your panels more popular and more easier to sell!

3. Strong and durable: our machine main frame using 350H-beam welding , and add diagonal bracing can strength basic frame, can machine main froming part using 25mm mideum plate welding , more thicker and more bigger support power

4. Space-saving: two types tiles in one frame , easy to installation and saving warehouse space.

5. Fully automatic and easy to operate: PLC control system can automatic adjust producing speed and production sheets length , and whole producing line just need 1-2workers can operate

Main roll forming machine
Machine frame	350mm H beam structure, with 18mm welded steel middle support plate.
Material of rollers	High grade 45# forged steel
Material of rollers		Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life

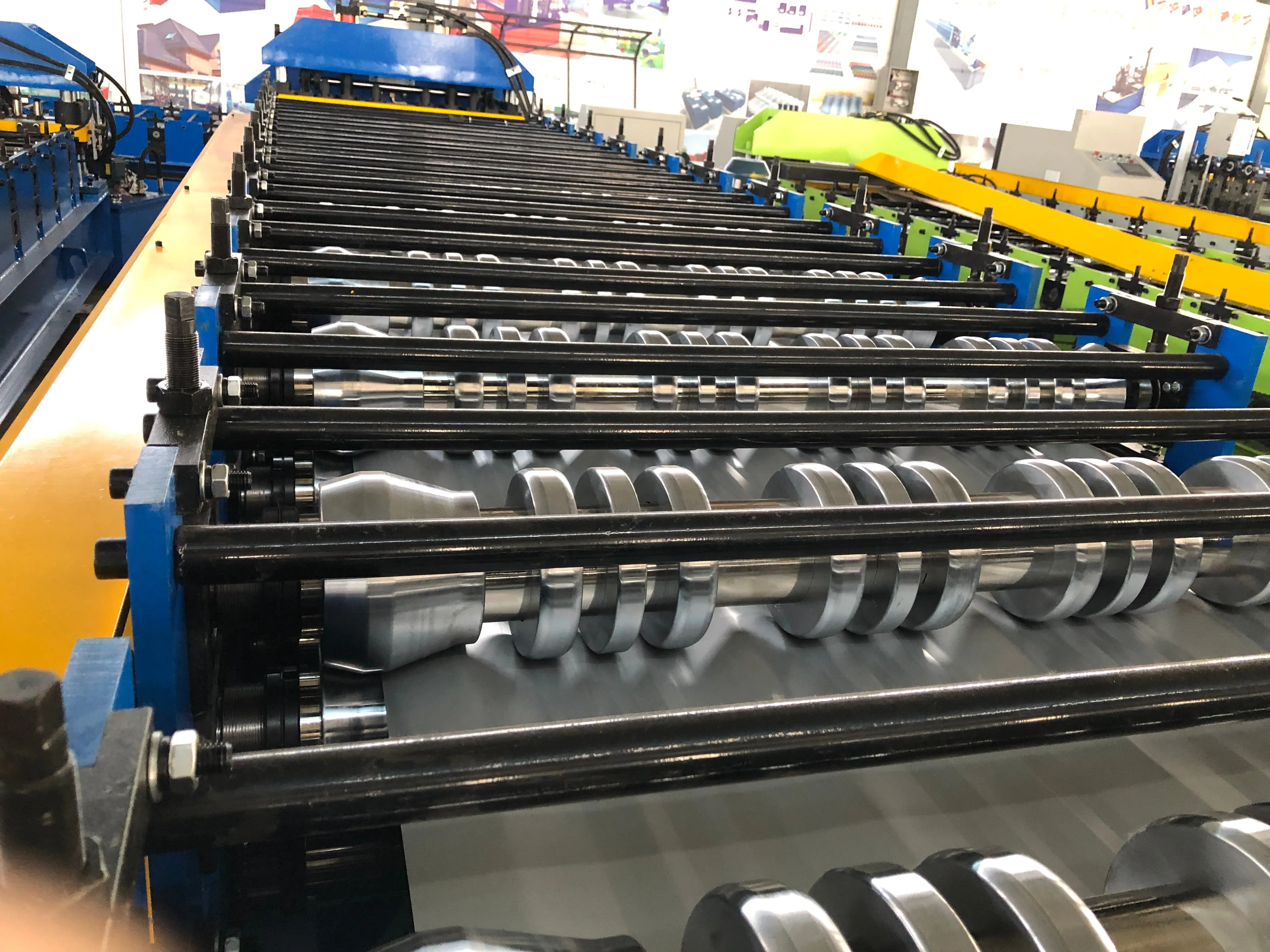

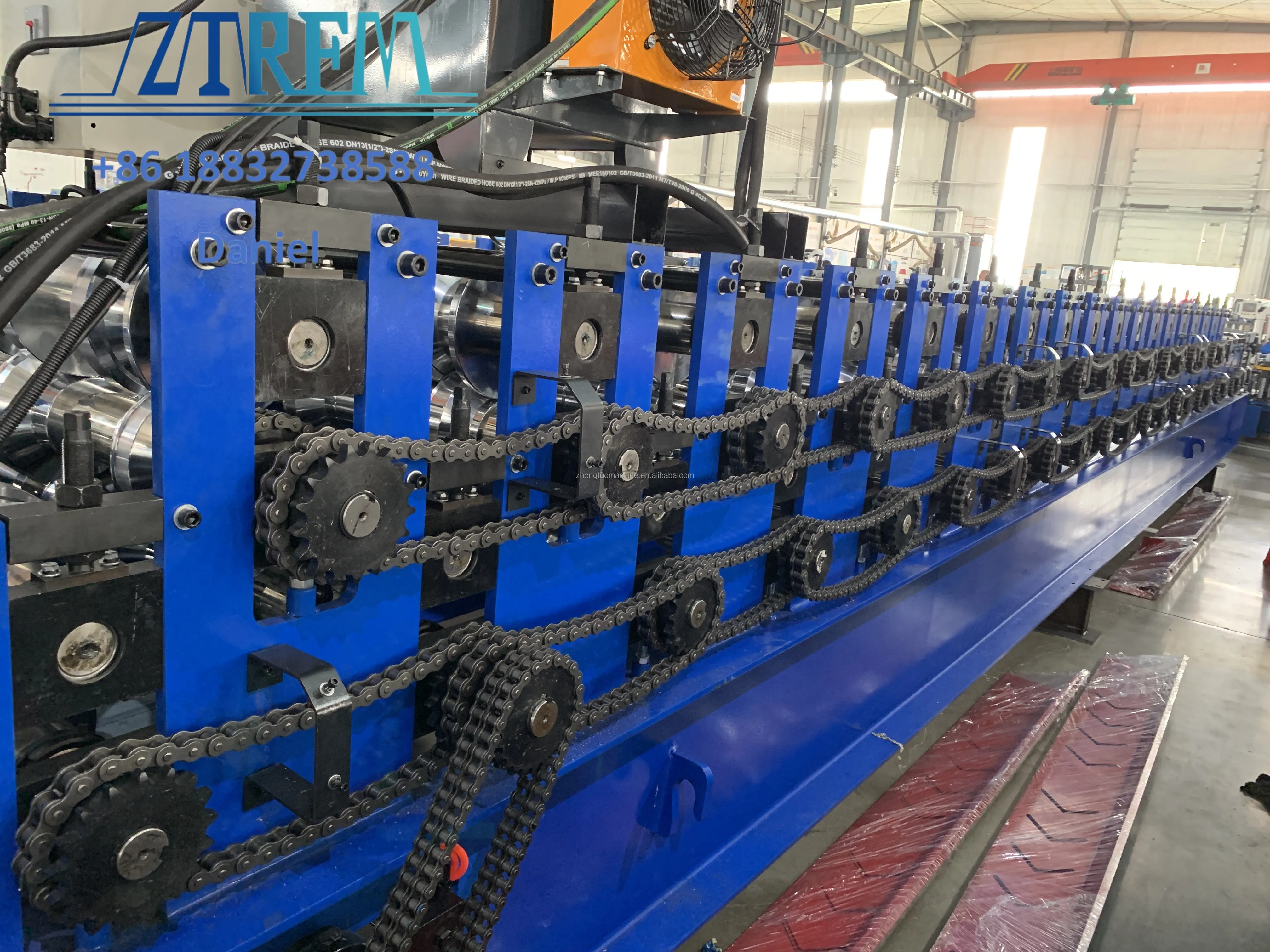

Forming stations	glazed tile 18 rows/corrugated 20 rows
Forming stations		Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision.
Diameter of shafts	Φ80mm solid
Material of shafts	High grade 45#,with heat treatment
Forming speed	20m/min
voltage	380V/50HZ/3P (as requested)
Transmission way	By 1 inch chain (double chains)
Main motor	7.5kw
Cutting blade material	Gcr12 quenched treatment
Cutting type	hydraulic post cutting
Driving method	By pillar type Cylinder

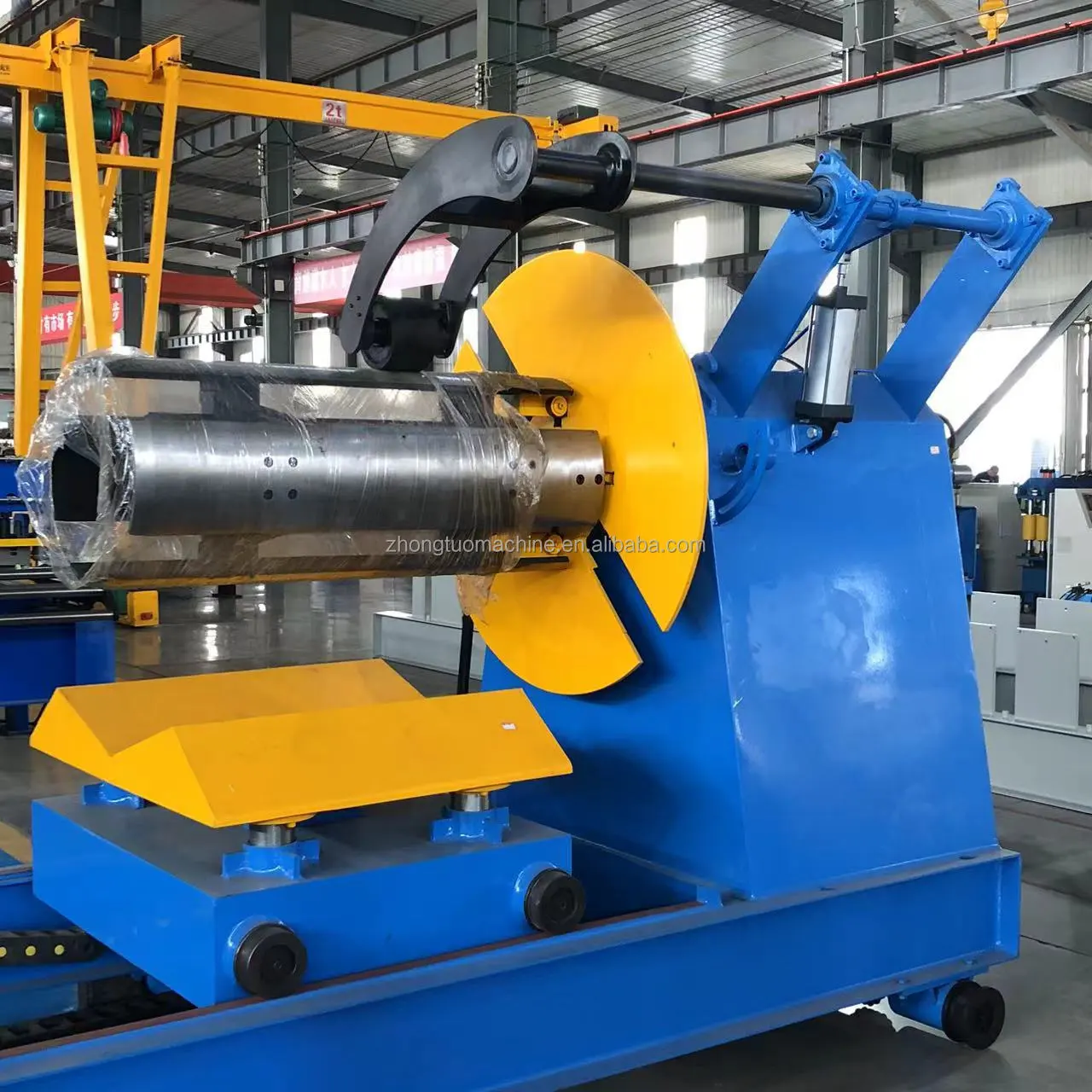

Hydraulic Decoiler

1. Our decoiler have pneumatic press arm can prevent open coils power to damage workers!

2. Through hydraulic station provide power to open coils. Save labors

3. Opening coils can reach 35m/min

4. Loading car can help put coils , through the romate control to up and down, come and back.

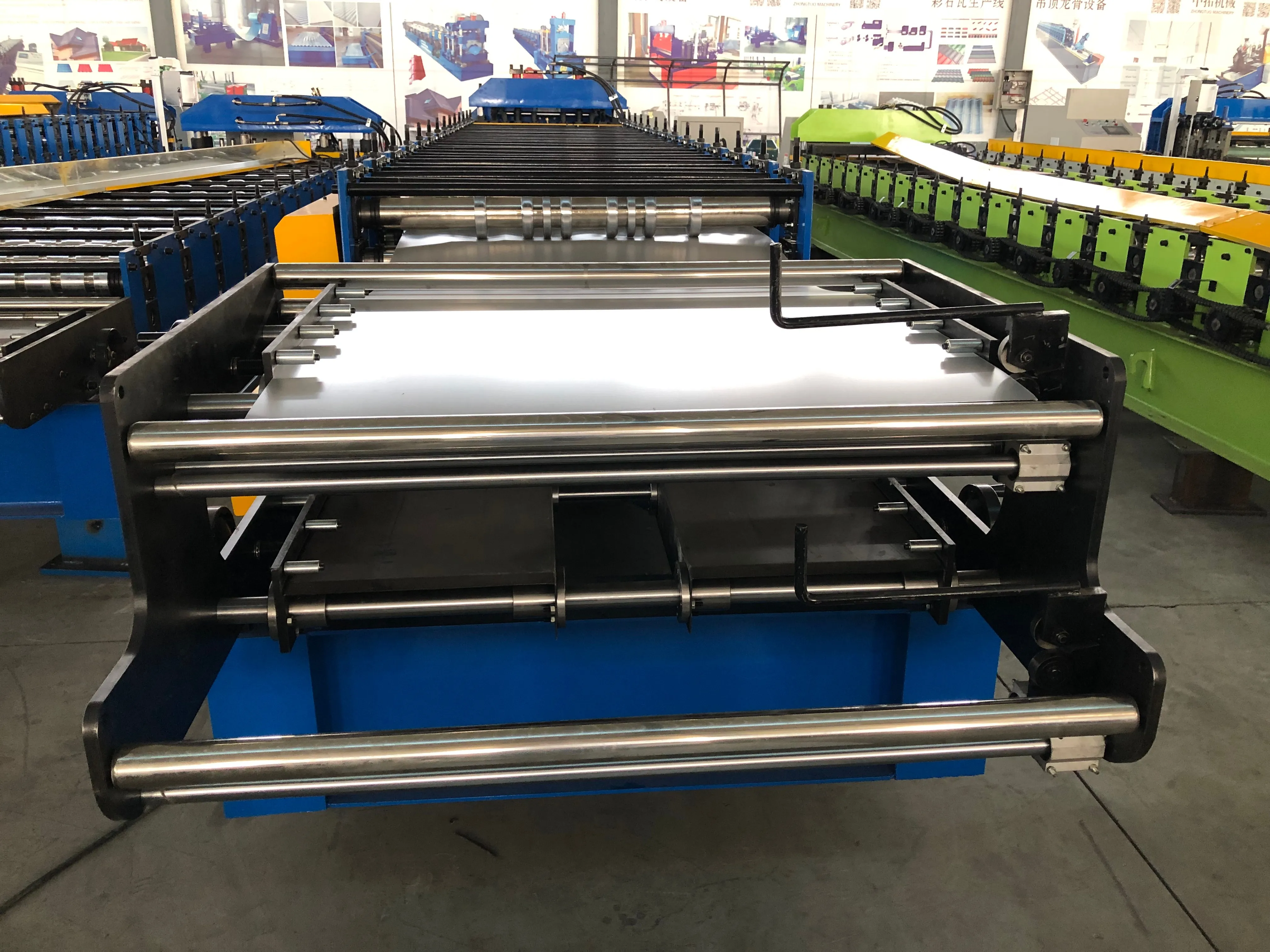

Feeding Device

1. Plastic rollers or Nelon rollers: reduce friction force between materials and machine , protect materials surface.

2.Hand wheels: Can adjust feeding materials coils width, keep feeding accuracy.

3.Stainless rollers: Support and press materials, keep materials in right position , convenient to feeding

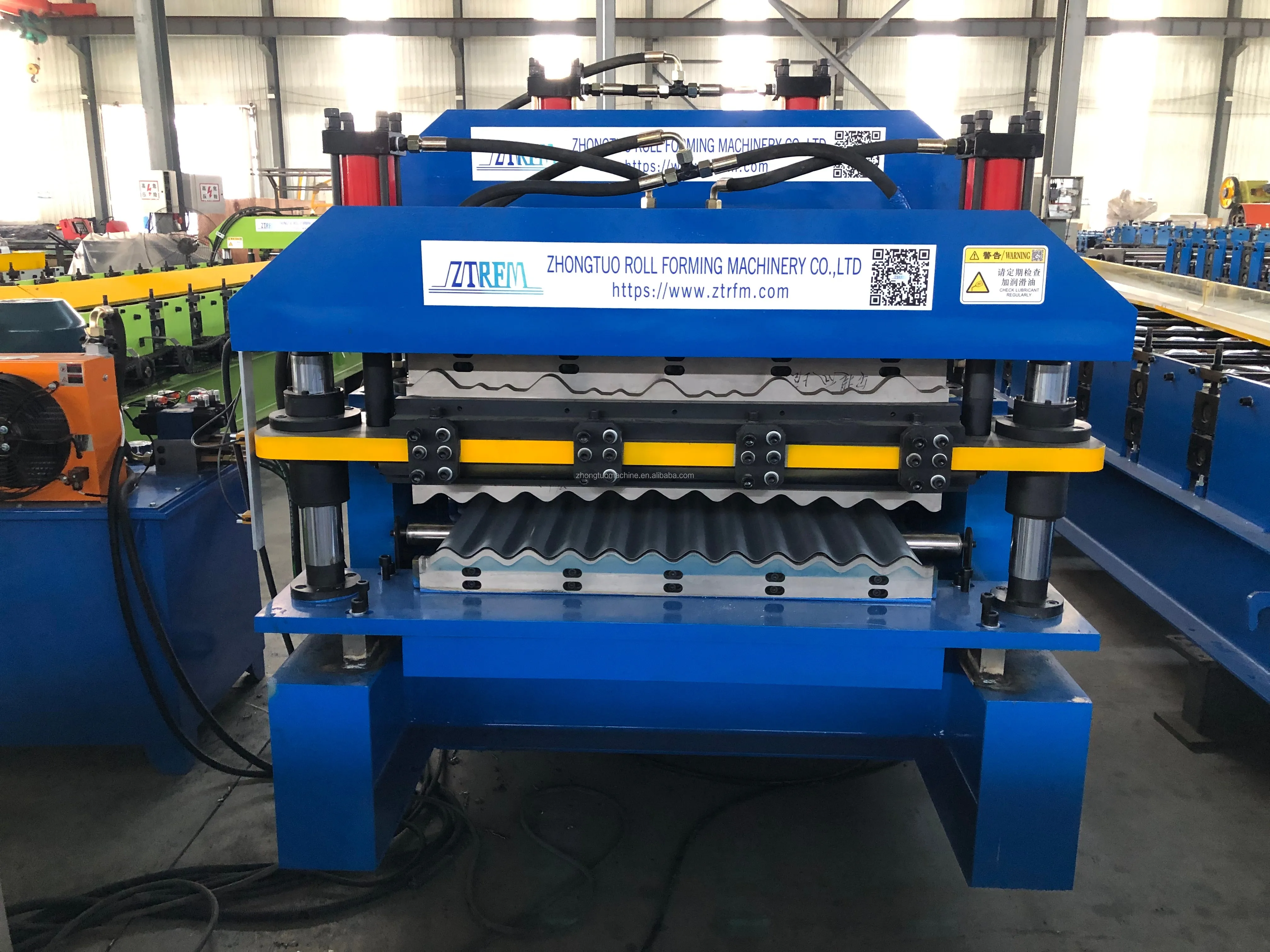

Main forming machine

1.Rollers: High grade 45# forged steel

2. Shaft: Φ80mm solid
High grade 45#,with heat treatment

3. Roller station: glazed tile 18 rows/corrugated 20 rows

4. Forming speed: 20m/min

Transmission

1.Type: Double 1 inch chains; have more stronge power

2.Tension device: Can adjust chains tension , delay using life of chains .

3. Chain brake: Simply adjust the brake of the chain to switch between the upper and lower layers for production. The operation is simple and it only takes new workers 5 minutes to complete the operation

Shearing system

1.Cutting blade material: Gcr12 quenched treatment
2.Cutting type: hydraulic post cutting
3.Driving method:By pillar type Cylinder

4.Automatic filler: can automatic add oil on cutter, delay the cutting using life and save labor

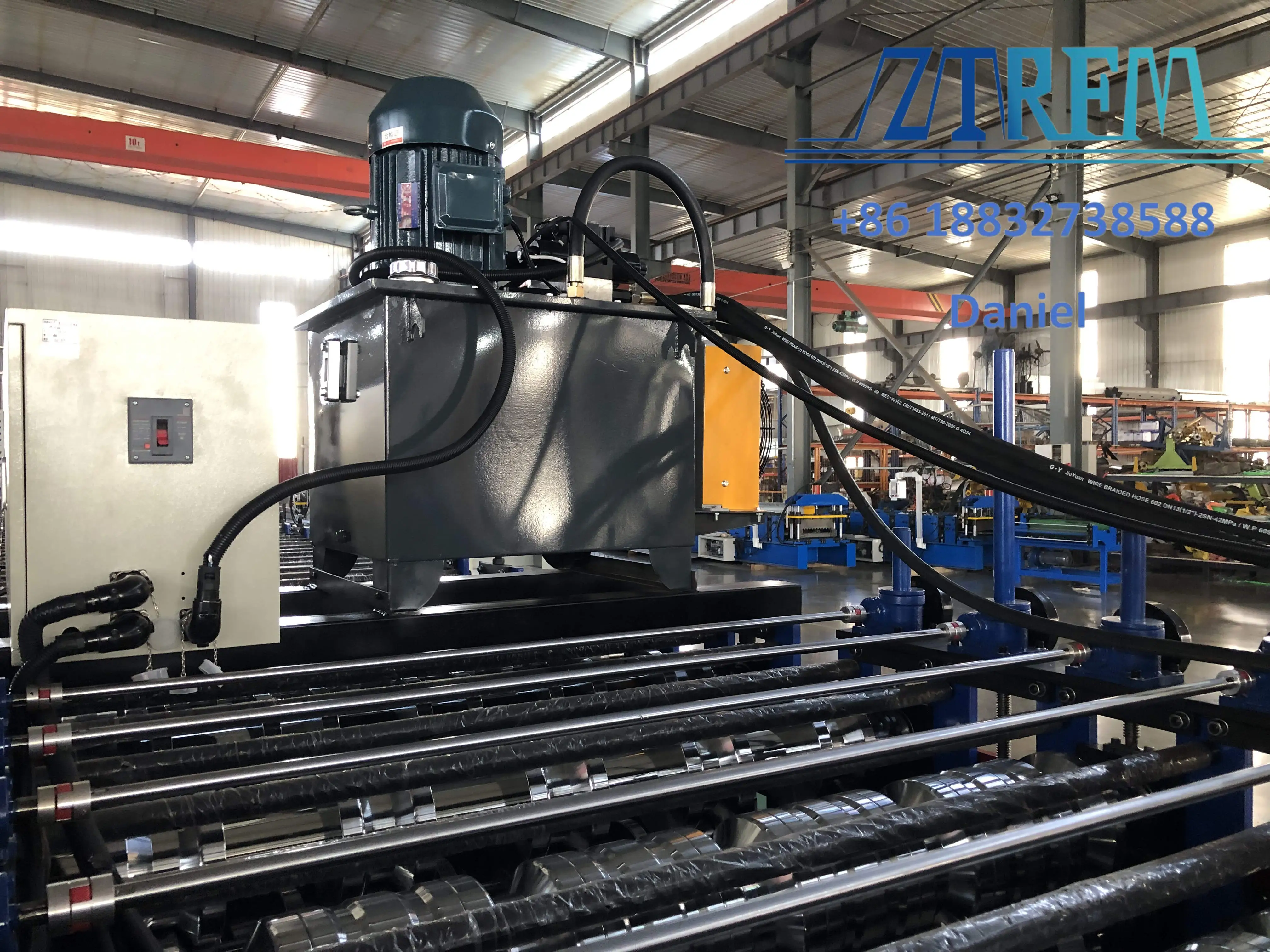

Hydraulic station

1.Hydraulic station motor:5.5KW
2. Hydraulic oil:46# hydraulic oil
3. Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, twohydraulic pipes. And one of electromagnetism valve
4. The air-cooling system of the hydraulic station can be customized according to the customer, and it is equipped with an automatic thermometer, which is convenient for workers to monitor the working temperature of the hydraulic station at any time.

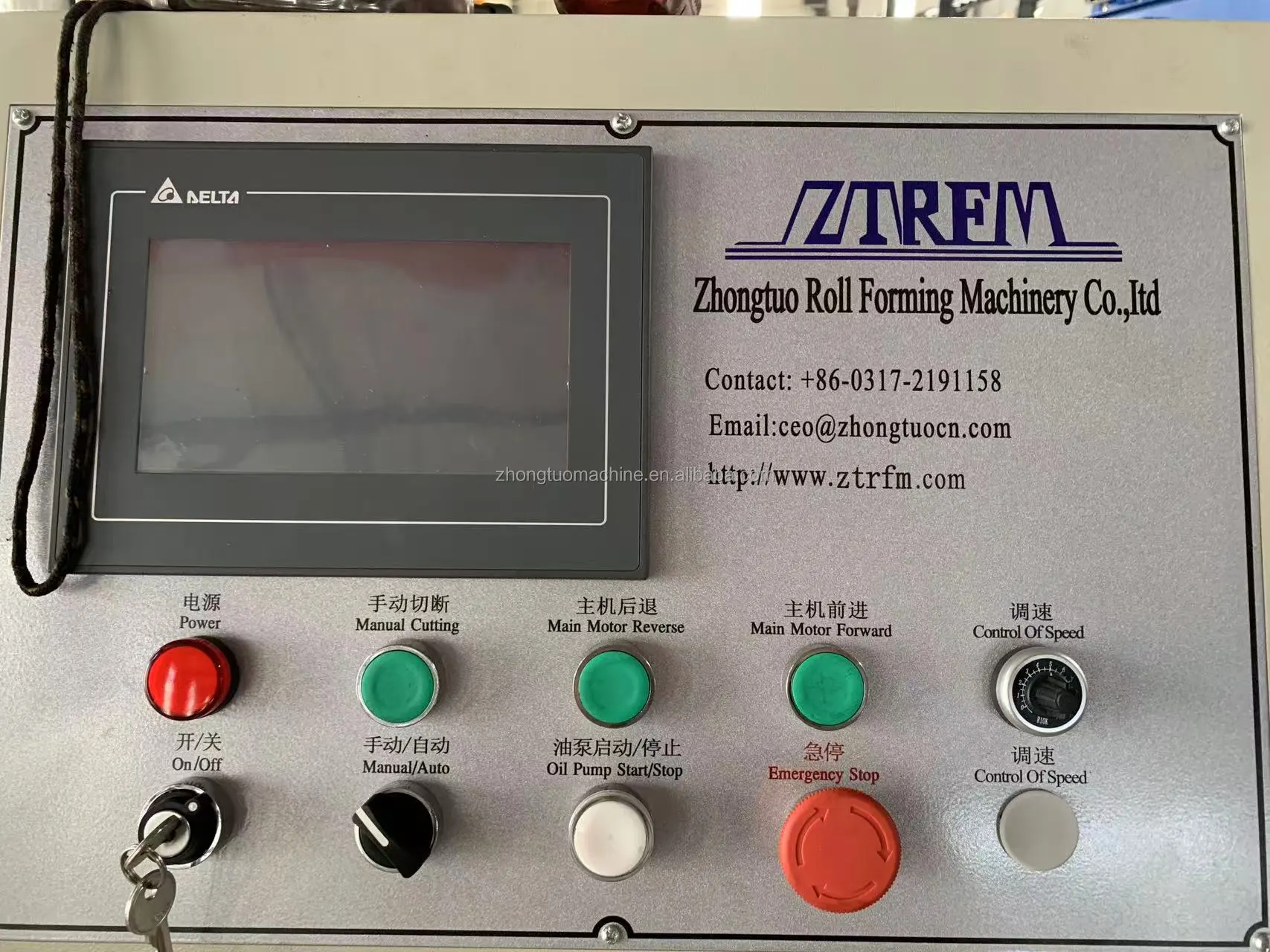

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation
4.Languages can be customized

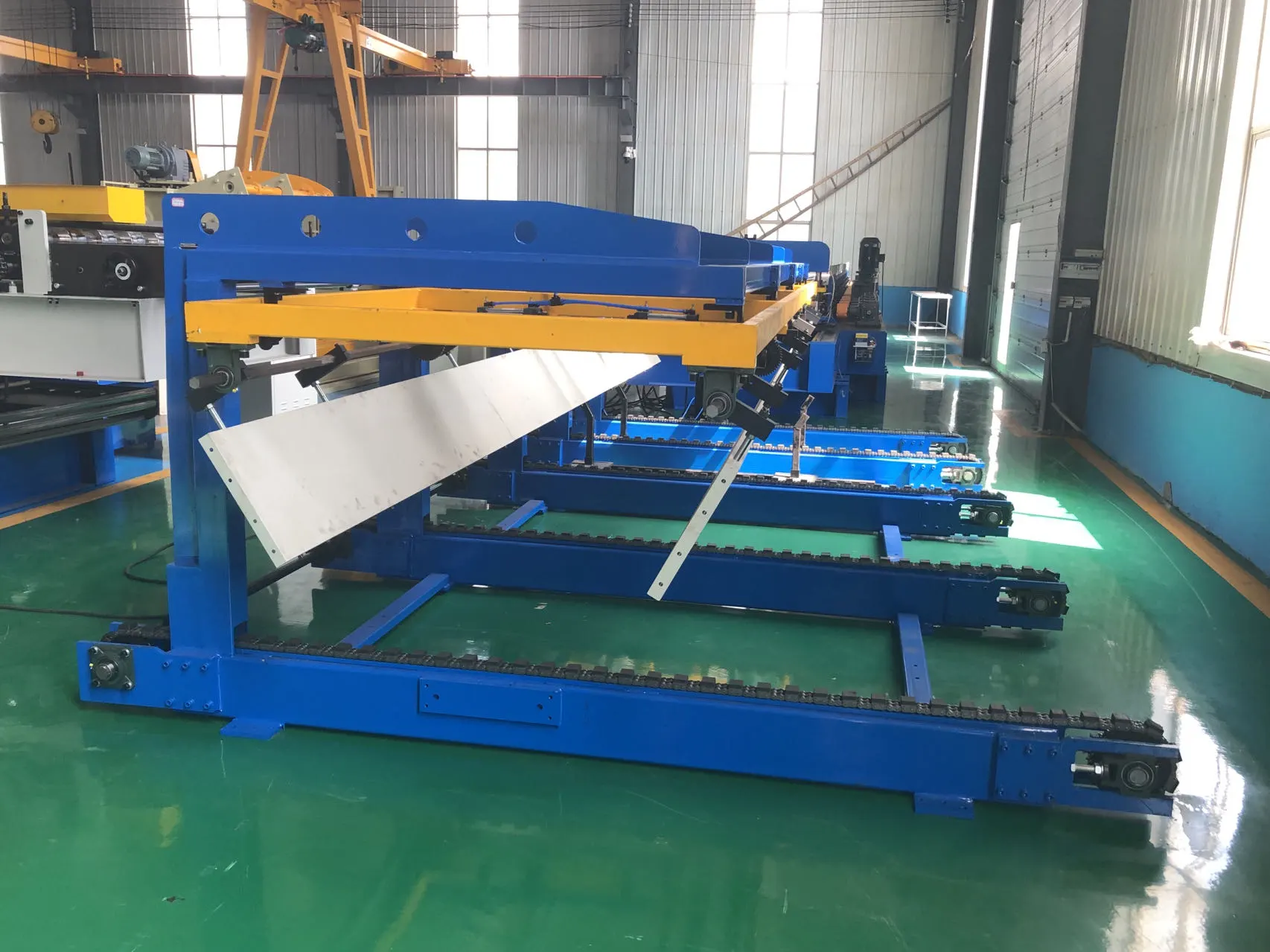

Automatic Stacker

1. Saving manpower

2. Can improve productivity

3. Equipped with rubber wheels and nylon pads to better protect the finished product.
