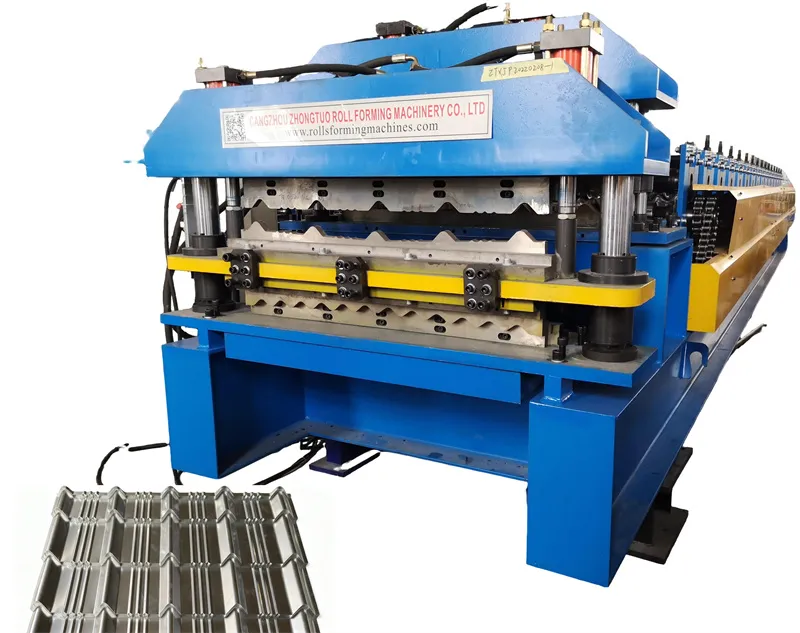

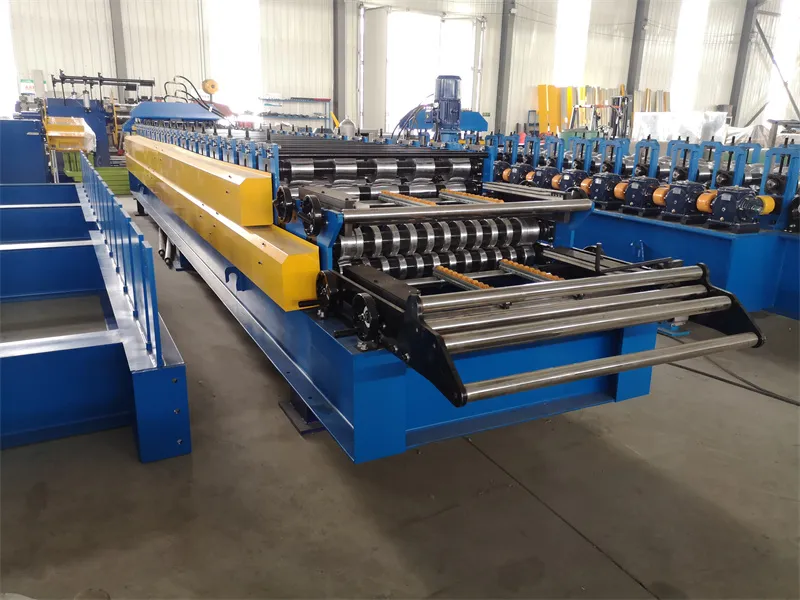

Double-Layer Corrugated Roof Glazed Tile Forming Machine Engine Motor Pump High-Accuracy 380V Roll Forming Line for Roofing ztrfm double layer corrugated roof roll forming machine+5.5KW+15 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

Double-Layer Corrugated Roof Glazed Tile Forming Machine Engine Motor Pump High-Accuracy 380V Roll Forming Line for Roofing ztrfm double layer corrugated roof roll forming machine+5.5KW+15 m/min

Name: Double-Layer Corrugated Roof Glazed Tile Forming Machine Engine Motor Pump High-Accuracy 380V Roll Forming Line for Roofing ztrfm double layer corrugated roof roll forming machine+5.5KW+15 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT58632564

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ztrfm double layer corrugated roof roll forming machine

Power(W):

5.5KW

Production Capacity:

15 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380 V
Rolling Thinckness
0.2-0.8mm
Feeding Width
1250 mm

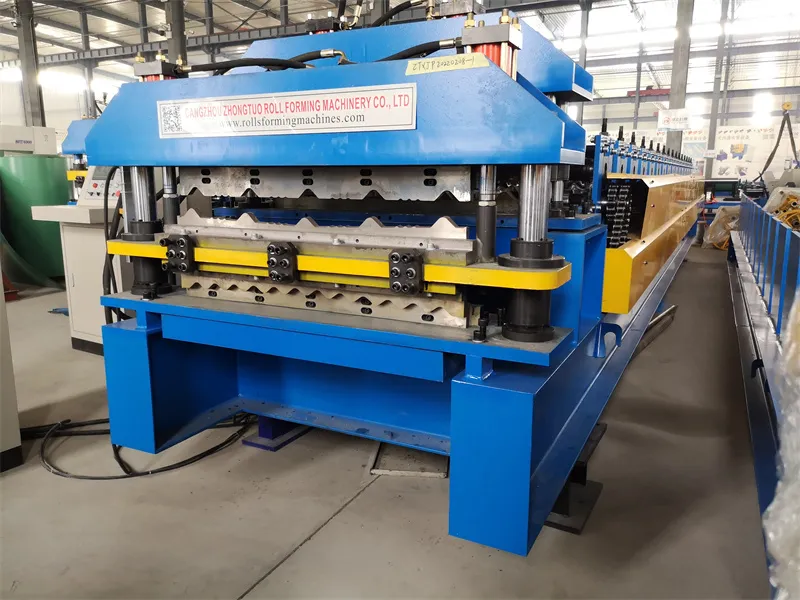

Design Idea：
Higher speed 0-30m/min:Main motor uses Servo motor to improve the speed,Electric motor cutting instead of hydraulic cutting, speed will be higher,Twice as fast as normal design mode.

Save space and cost: A double-layer machine also can save the working space in the factory, not only save the cost of machine.

Protect cover: design the machine cover to protect the machine body and it's also safe for the worker.

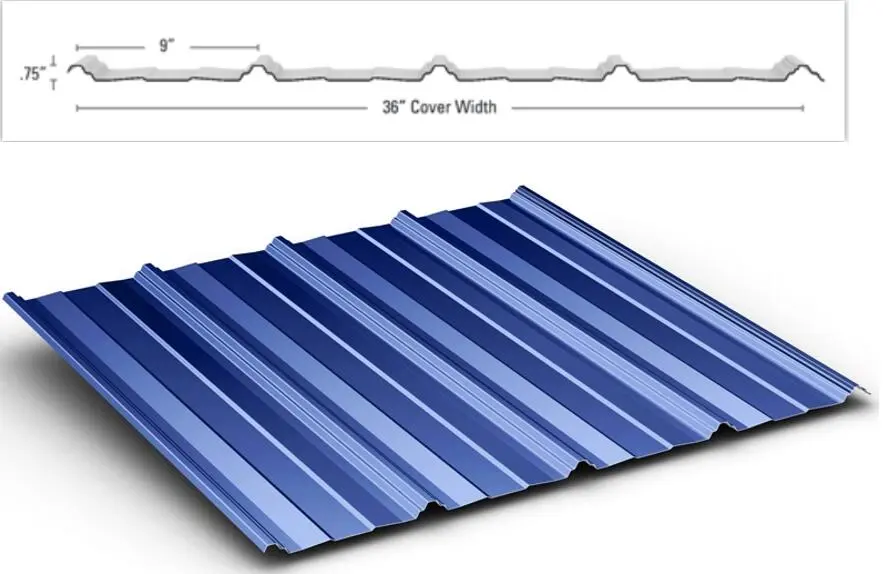

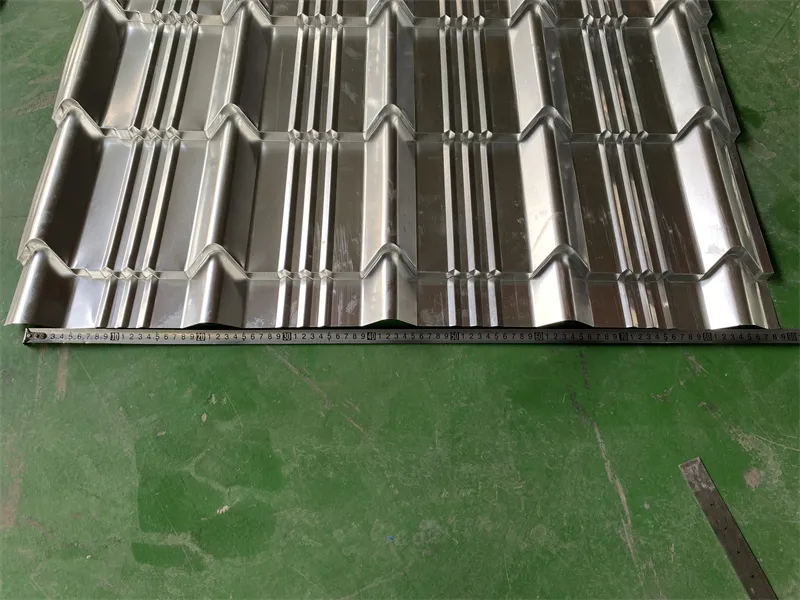

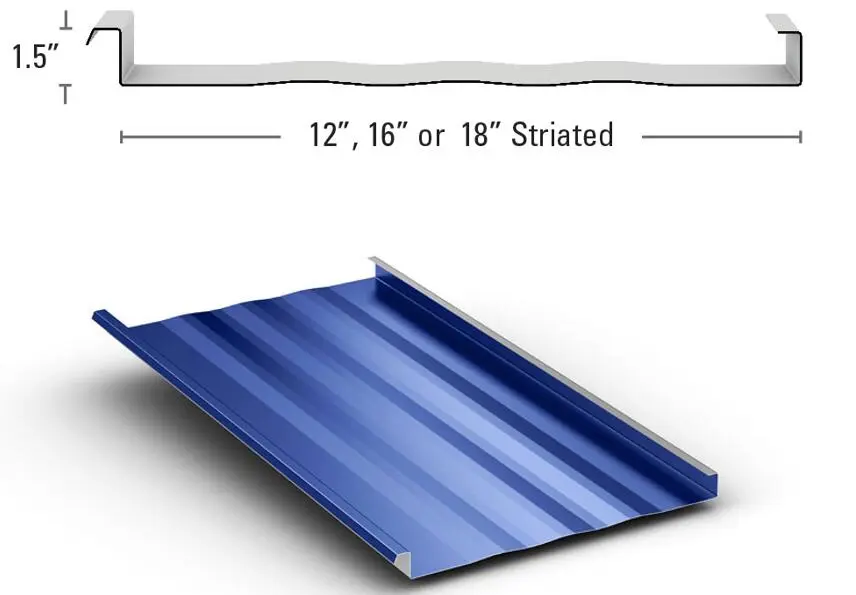

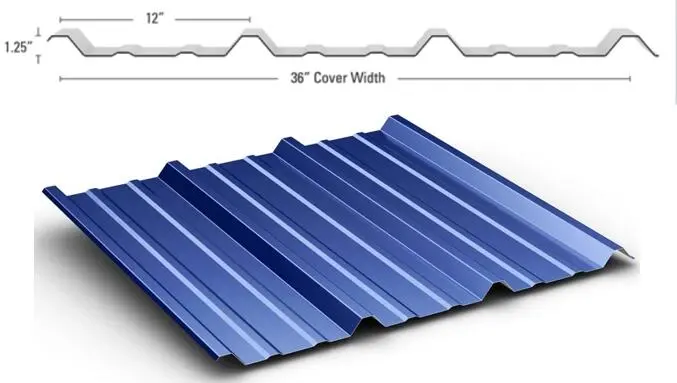

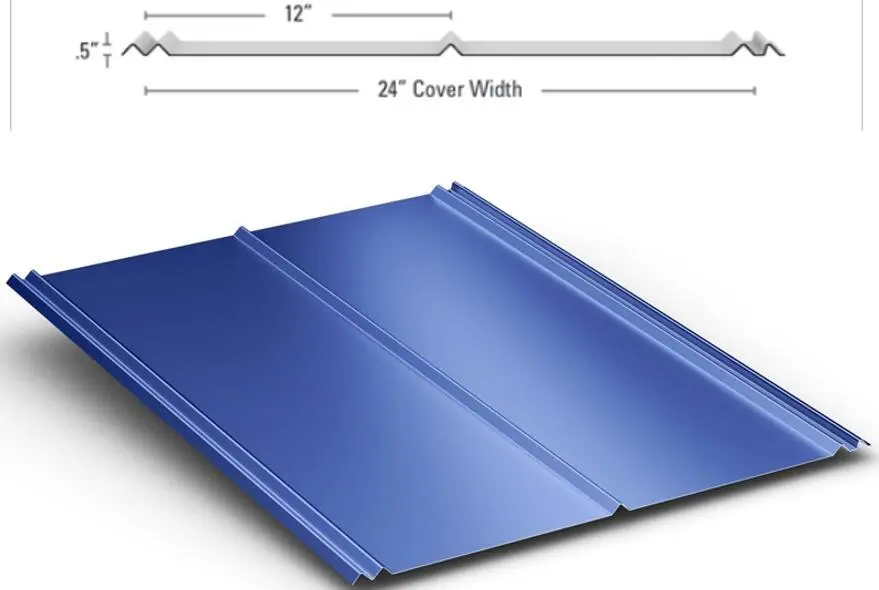

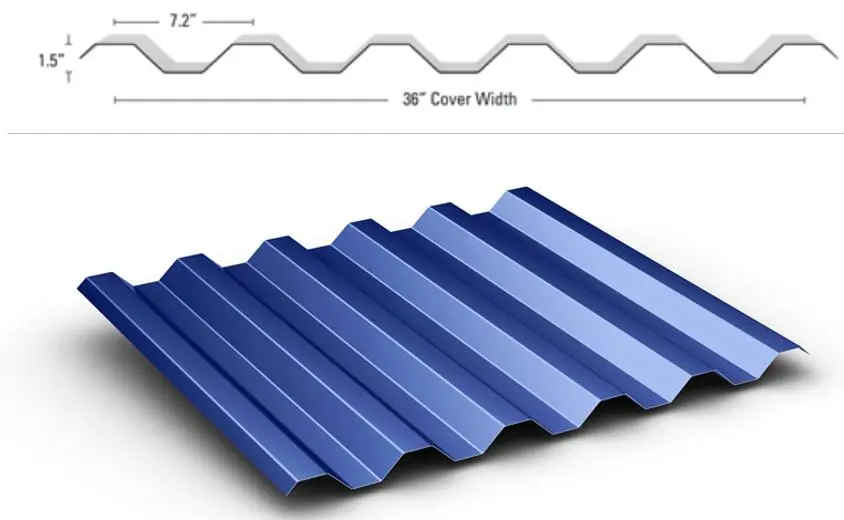

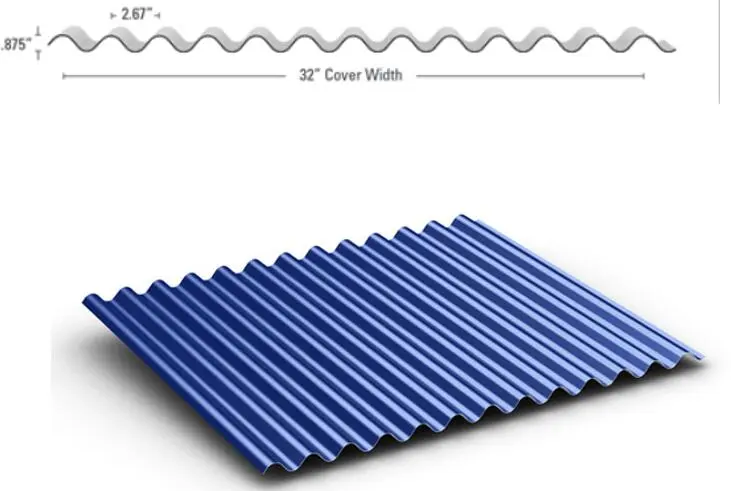

Profile drawing for reference:

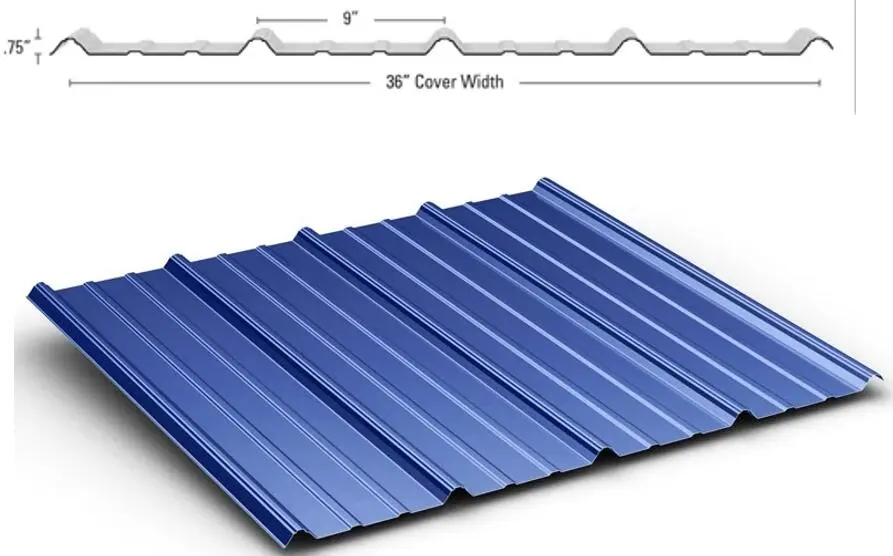

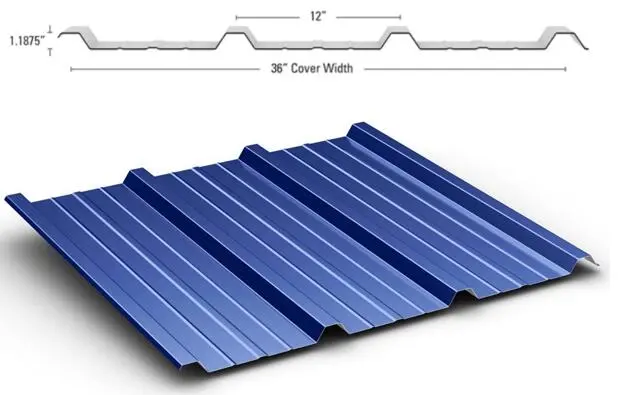

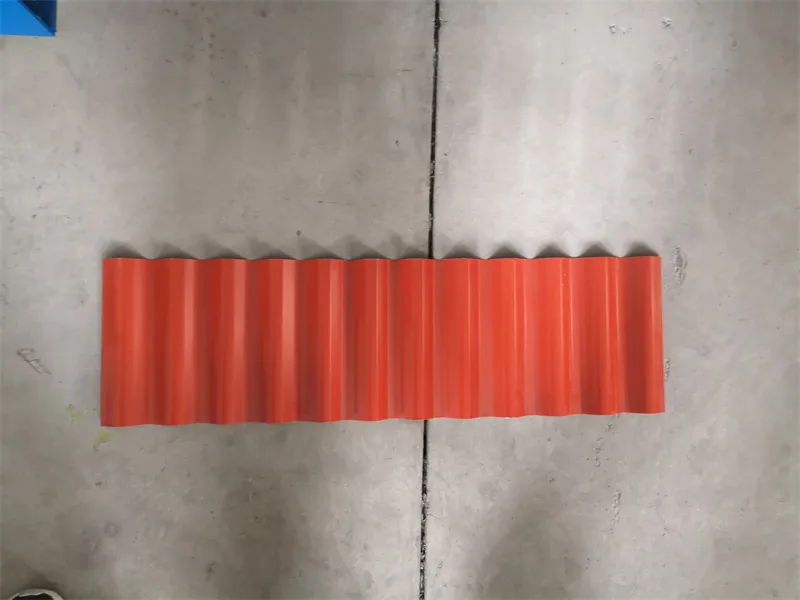

Double layer roof sheet roll forming machine can produce two profile roof sheets on one machine,this machine is hot sale to America,which up layer can produce AG panel,and down layer for produce R panel. These two profile drawings are very famous in America,it is almost the standard profiles.The raw material width for 42 inch and 43 inch is also used a lot in USA,especially 42 inch.

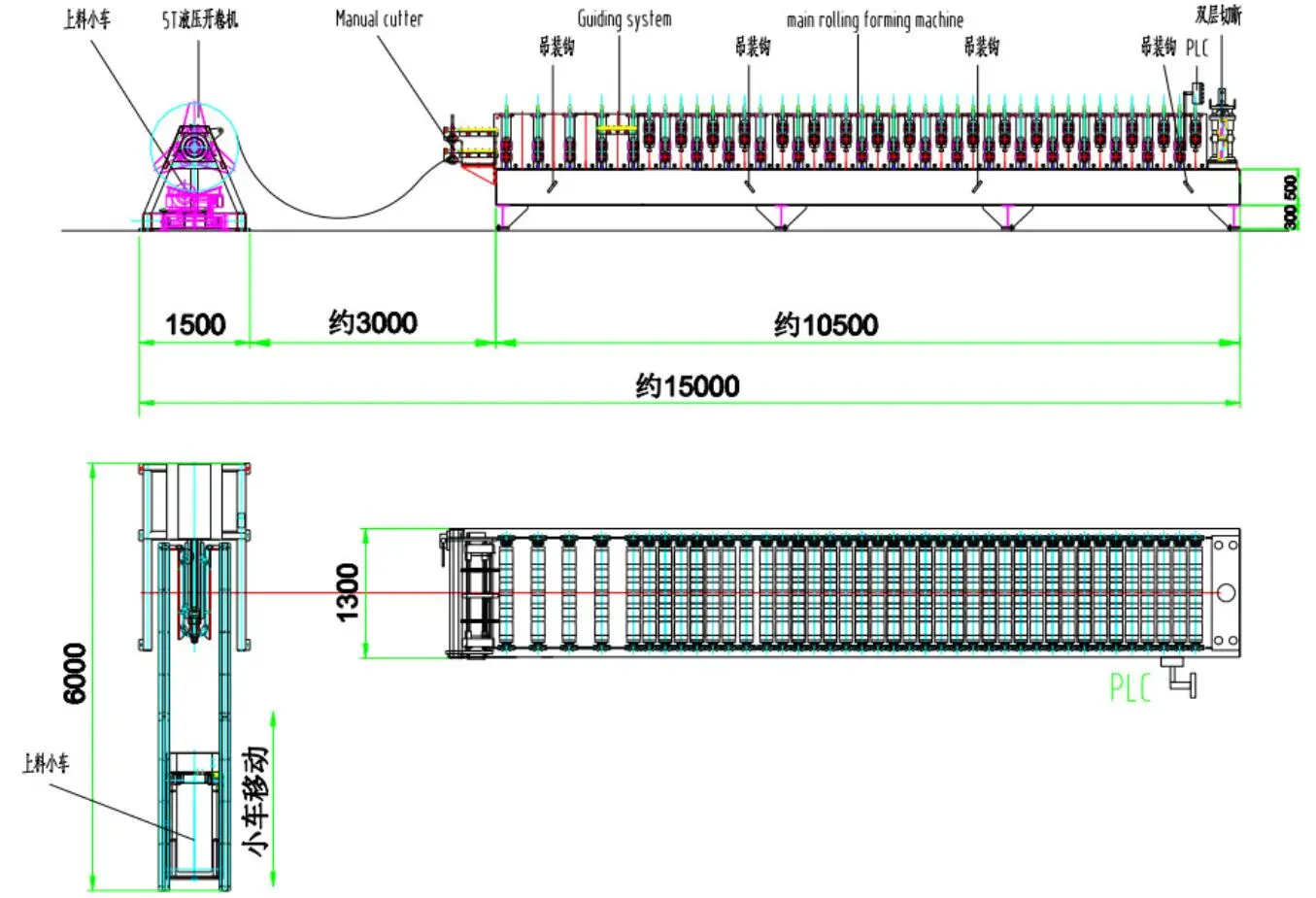

Processing Flow

Decoiler ------ Feeding material ------- Roll forming the material-------- Cutting----------Receiving the prodcut

840 900 Double-Layer Double Layer Corrugated Roof Glazed Tile Forming Machine Roofing Panel Roll Forming Line for Kenya Market
Raw material	PPGI,GIAI
Material of rollers	High grade 45 high quality steel by CNC machining and hard chrome coating
Material of rollers		Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Forming stations	16 stations + 17 stations
Diameter of shafts	Φ70mm solid(Guaranteed)
Material of shafts	High grade 45#,with heat treatment
Forming speed	About 0-20m/min
Voltage	380V/50HZ/3P

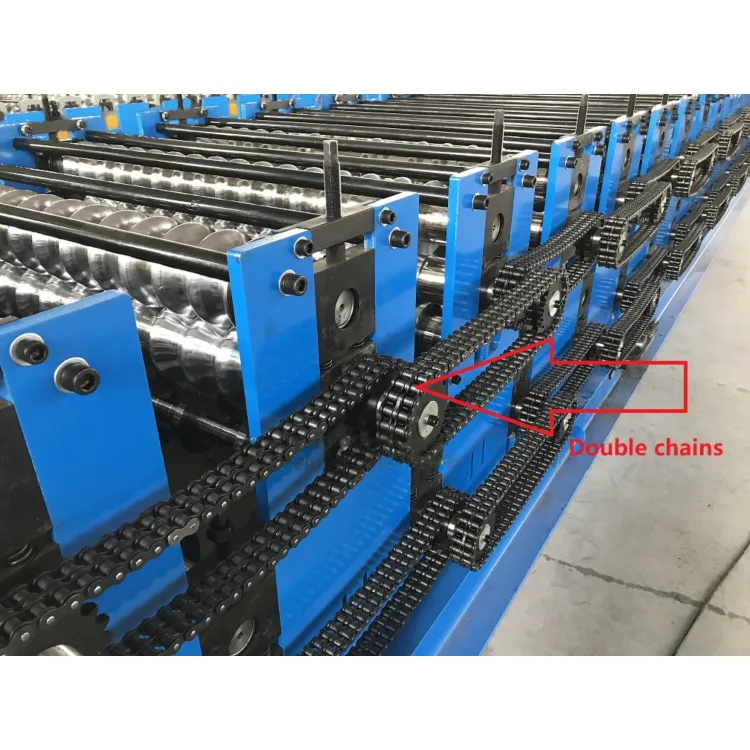

Transmission way	By double chains
Main motor	Servo motor 7.5kw,Yaskawa
Cutting blade material	Cr12Mov quenched treatment to improve hardness
Cutting type	Electric cutting
Driving method	By motor,5.5 kw
Dimension of the machine	About 9.5m1.65m1.5m(LWH)
Cover	Whole cover for roll former,without cutter.2 parts can slide side to side easily.

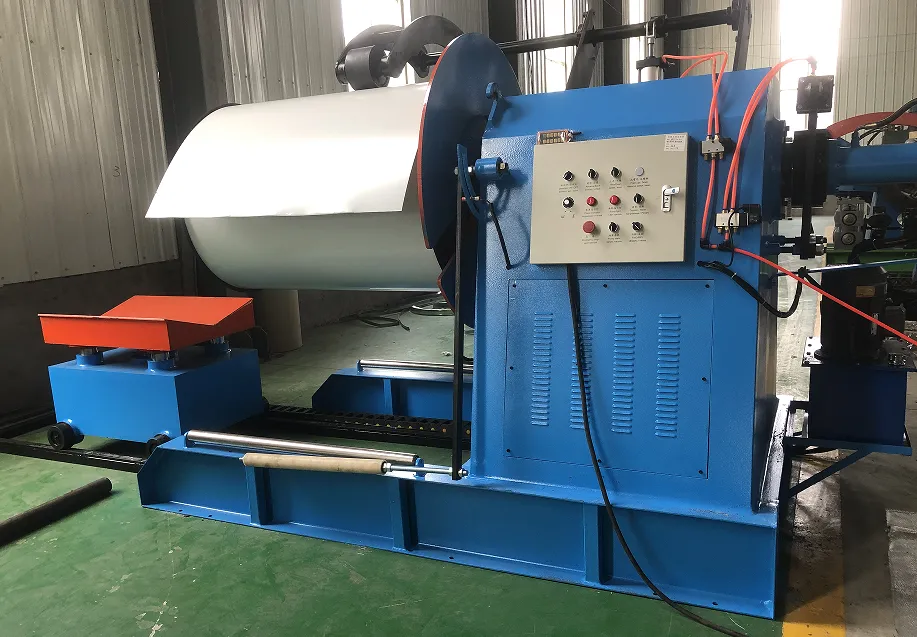

5ton Hydraulic Decoiler With Loading Car

Carrying capacity: 6 tons
Max coil width: 1250 mm
Feeding speed: 0-40 m/min (adjustable)
Driving motor power: 7.5 kw
Hydraulic motor power: 3 kw

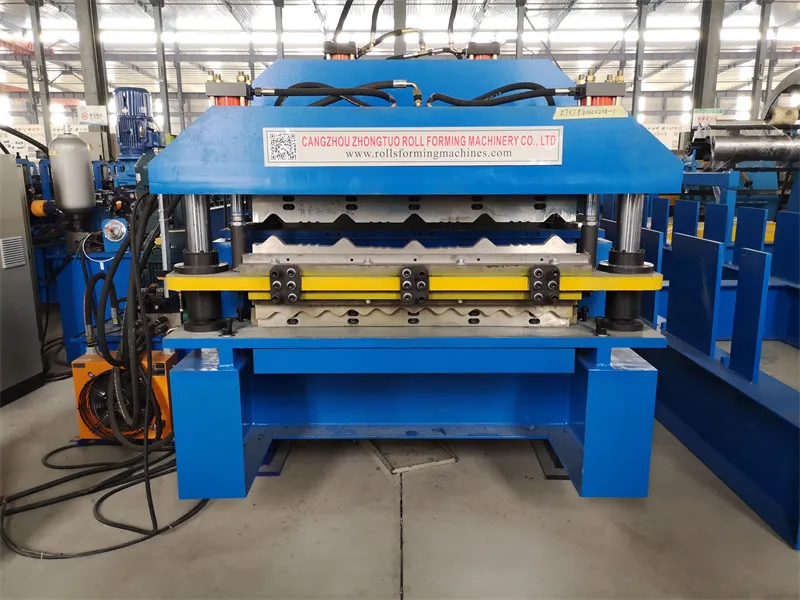

Feeding and roll forming

1. Rubber rollers protect raw material surface
2. With handwheels easy adjust for feeding different thickness raw material.

3.The feeding part is mold iron frame ,and there is a handle can adjust feeding width

4. The cover can be moved , that will be convenient for the worker to check the rollers. also can make sure worker's safe when the machine running.

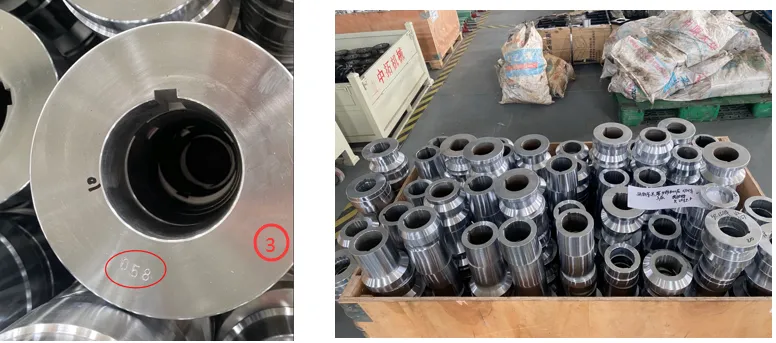

Roller details

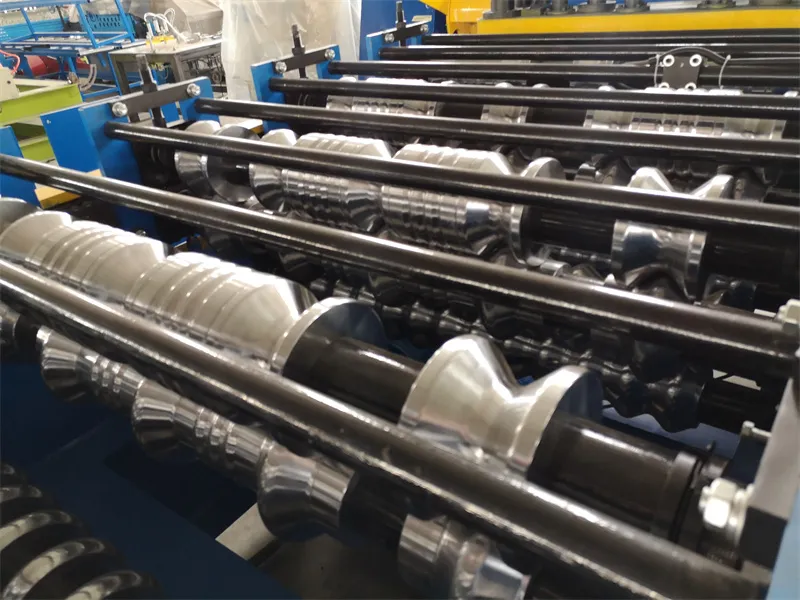

1.rollers High grade 45 high quality steel by CNC machining and hard chrome coating good hardness.

2. Each roller has number and with keynotes, it can fix on the shaft stablely

Machine frame and Transmission device

1. This machine frame we use welding plate , the thickness is 20mm

2.Gear and double chain drive,strong and stable.

Electric cutting

Electric high speed cutting,good cutting shape no bending and no burring.

PLC control system

Brand

PLC brand : Delta

Inverter brand: Delta Low electric part: Schneider

Encoder: Omron

Function:

1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized) 4.National coinsurance,spar parts Brand Siemens and Schneider.

5v roof panel

Maxima standing seam panel

max-rib panel

mega-rib panel

Mesa panel

multi-cor M-cor panel

muti-riv panel

R panel

U panel

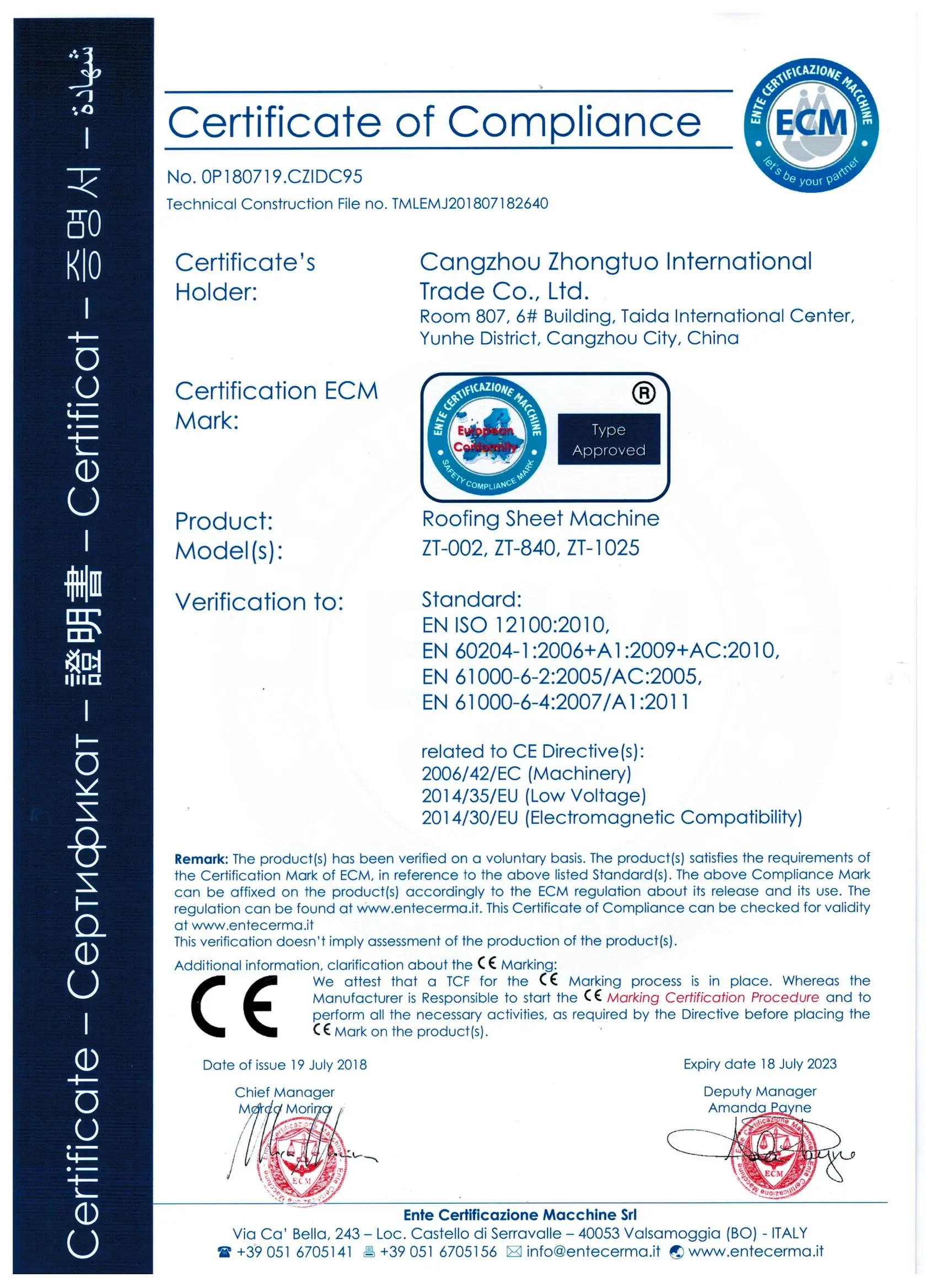

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)

Our Machine Sells Well In US
Gets High Praise From US Customers！
