Double-Head Automatic Coil Decoiler Machine Patented Technology Reliable Tension Control Smooth Operation for Heavy Duty Metal DBMT-200(0.6T/Non-powered)

Shenzhen Lihao Machine Equipment Co., Ltd

Double-Head Automatic Coil Decoiler Machine Patented Technology Reliable Tension Control Smooth Operation for Heavy Duty Metal DBMT-200(0.6T/Non-powered)

Name: Double-Head Automatic Coil Decoiler Machine Patented Technology Reliable Tension Control Smooth Operation for Heavy Duty Metal DBMT-200(0.6T/Non-powered)
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT72055815

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

DBMT-200(0.6T/Non-powered)

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Voltage
customize
Power(W)
customize
Feeding Speed
20 M/Min

Products Description

Contact us，you will get a top professional partner in the industry to turn your product from concept to reality.

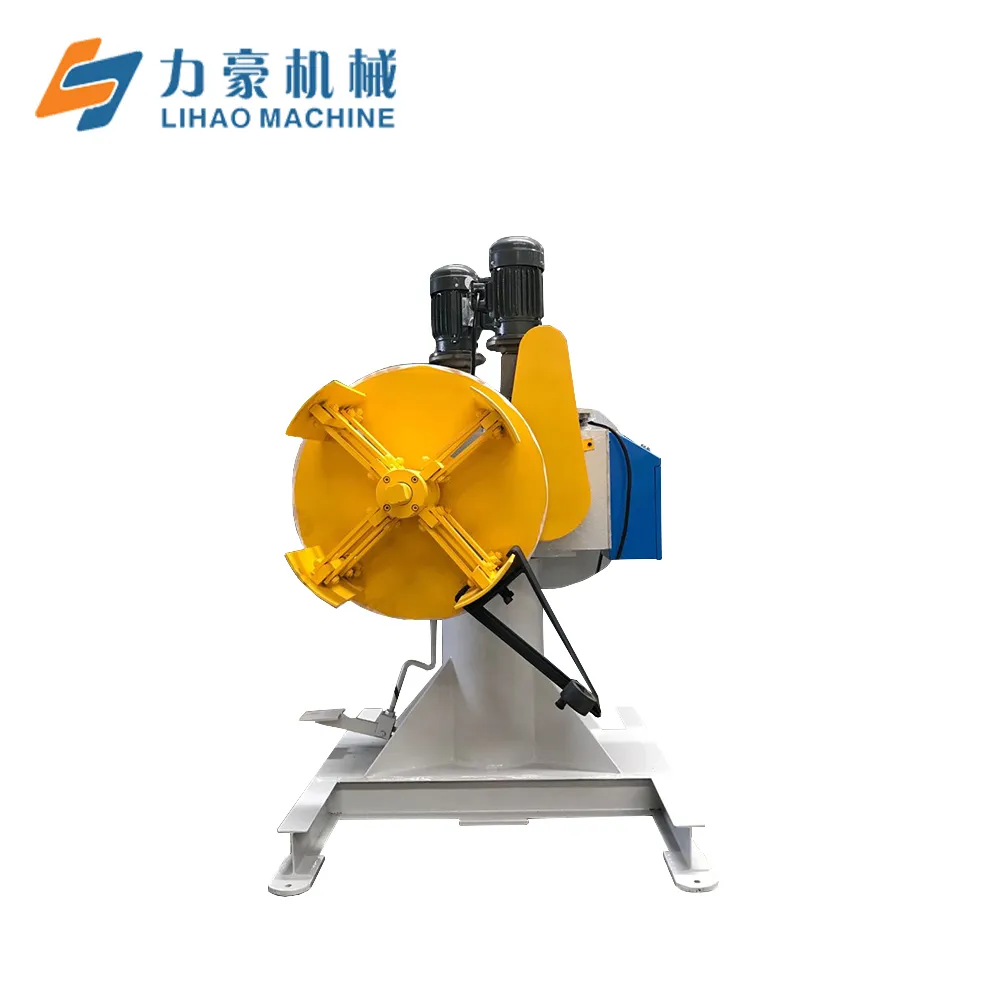

Our Double-Head Uncoiler is an advanced and reliable solution for efficiently handling and unwinding metal coils in various industrial applications. Designed for high-capacity processing, this uncoiler ensures smooth operation and high precision, making it an essential piece of equipment in modern manufacturing lines. Whether you're working with stainless steel, aluminum, or other metal coils, our uncoiler offers the durability and functionality required to optimize your production process.

COMPANY NAME	Shenzhen Lihao Machine Equipment Co., Ltd.
BUSINESS TYPE	Manufacturer
CERTIFICATES	ISO 9001,SGS,CE
QAULITY POLICY	Customer-centric, Action concurrent with words

Model			DBMT-150	DBMT-200	DBMT-300	DBMT-400
Max. width	mm	150	200	300	400
Max. Loading weight for each side	Kg	500	500	800	1000
Coil inner dia.	mm	Φ460-540	Φ460-540	Φ460-540	Φ460-540
Max. Coil outer dia.	mm	Φ1200	Φ1200	Φ1200	Φ1200

Products Details

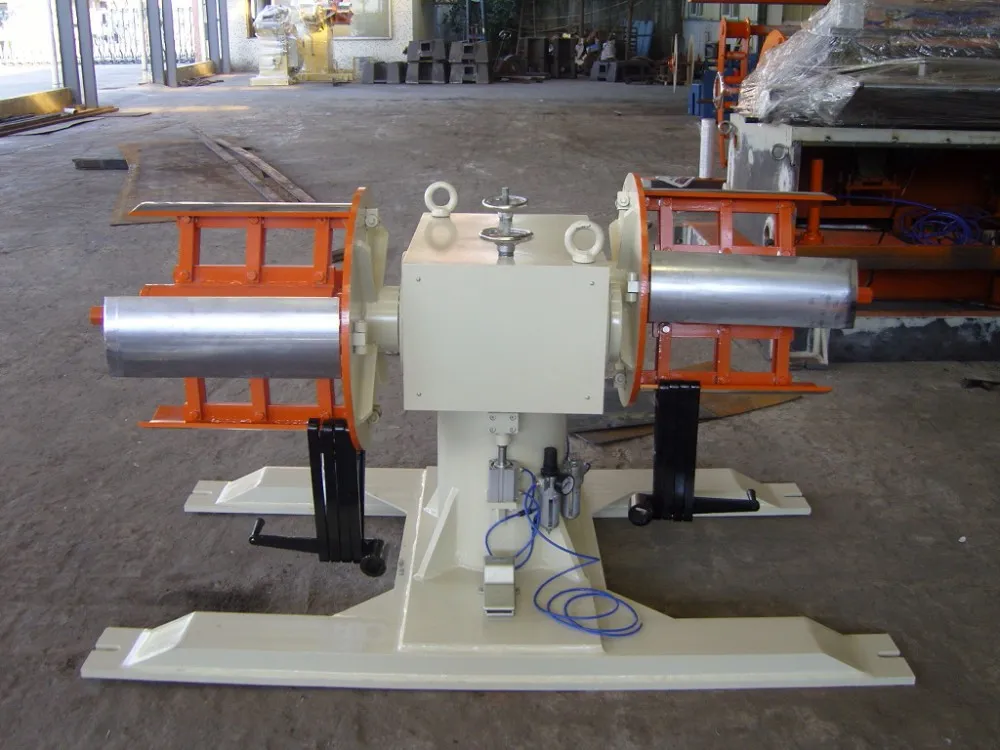

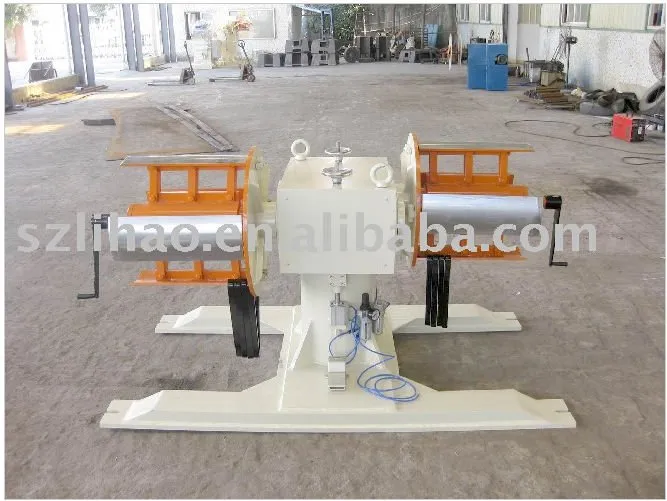

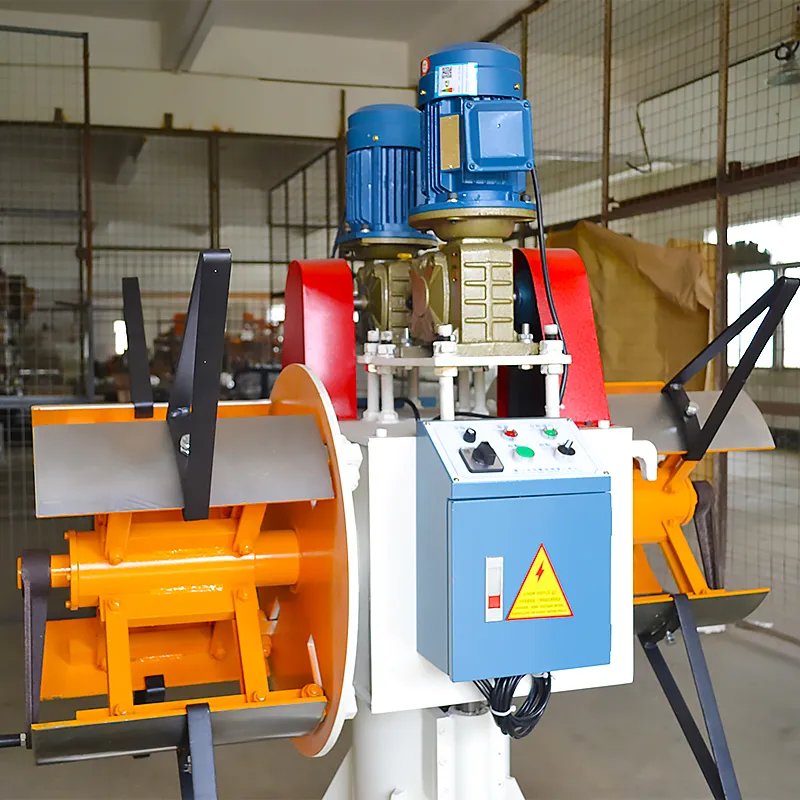

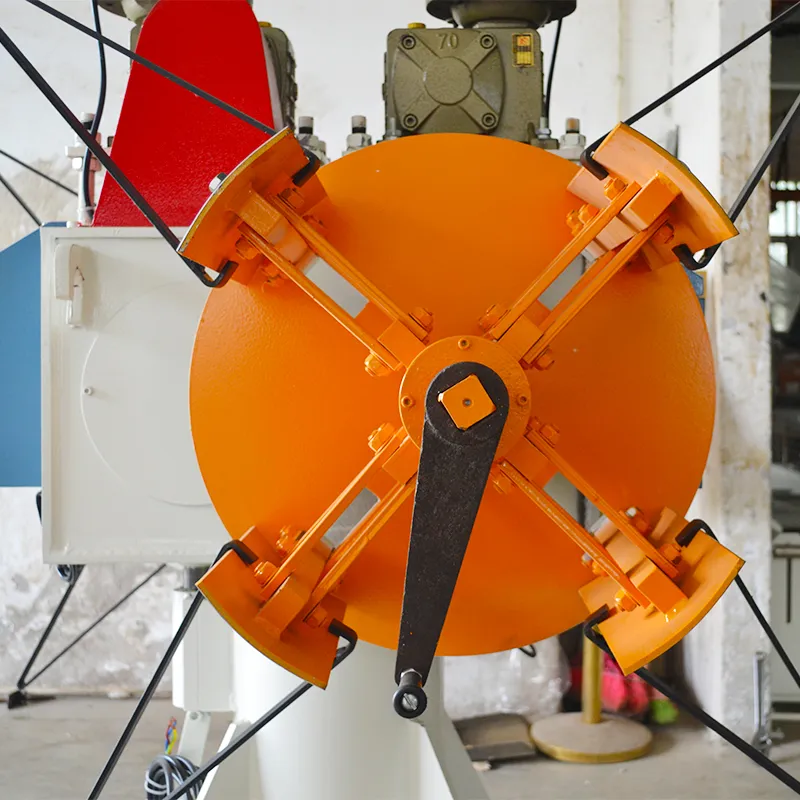

Dual-Head Design

The dual-head system allows for simultaneous or alternating operation, reducing downtime and increasing production efficiency. While one coil is being processed, the other can be prepared for the next cycle, ensuring continuous and smooth operation.

Automatic Coil Changeover

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

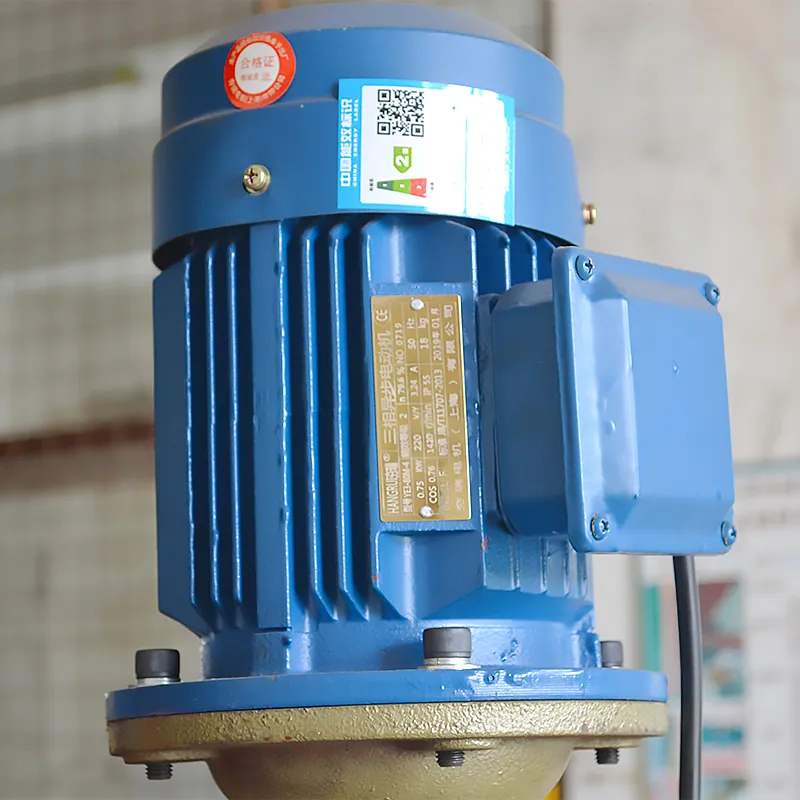

Power Part

Use 80-type worm gear vertical reducer, use the speed converter of the gear to reduce the number of revolutions of the motor to the required number of revolutions, and obtain a mechanism with a larger torque. Use vertical motor, low vibration, low noise, stator and rotor parts use pure copper coils, the life is ten times that of ordinary coils, and ball bearings are installed at both ends, with low friction and low temperature.

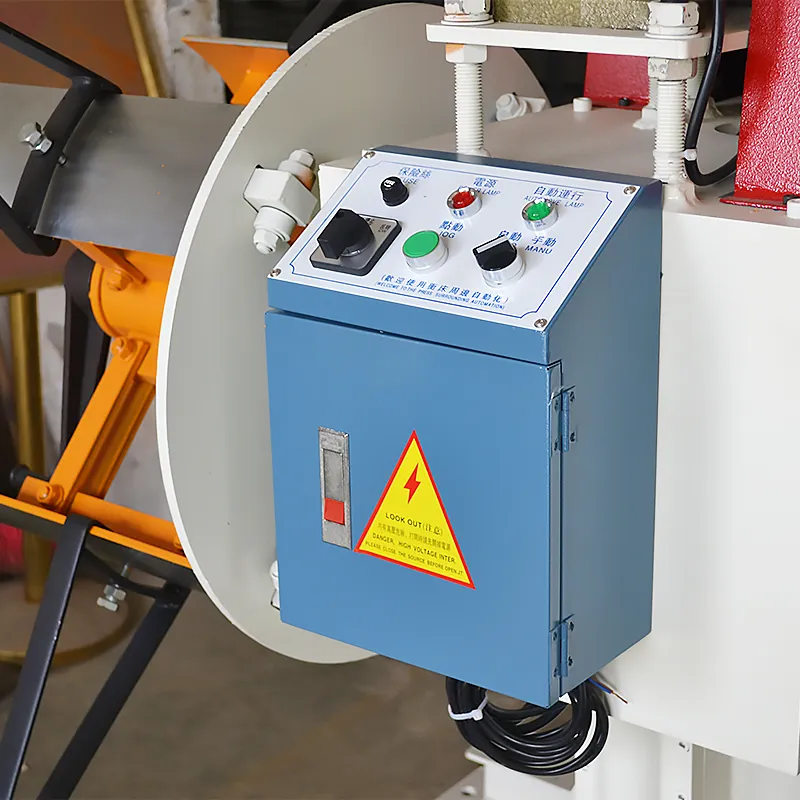

Control Box

Silver alloy relay, all-copper coil, flame-retardant safety base, long-lasting and durable. Safety protection adjustment circuit delay relay, silver alloy contacts, multiple and dials to meet different delay ranges. The switch adopts sliding contact and has self-cleaning function. The normally open and normally closed contacts adopt a separate bonding structure, which can work with different poles and is equipped with anti-rotation positioning and anti-loosening installation gaskets. The self-resetting flat button is adopted, with light force and moderate key travel. The building block combination structure contacts adopt ketone-based composite points, which have strong conductivity and large carrying current, and the life span reaches 1 million times.

Benefits

Increased Efficiency:

The dual-head system and automatic coil changeover ensure continuous production with minimal downtime.

Improved Precision:

Advanced tension control and precise coil unwinding reduce the likelihood of material damage, enhancing the overall quality of your finished products. Cost-Effective:

The high load capacity and robust construction minimize the need for frequent repairs and replacements, leading to long-term cost savings. Enhanced Safety:

The safety features protect both operators and equipment, ensuring a secure working environment. Versatility:

Ideal for a variety of materials and industries, making it a versatile addition to your production line. Applications Steel Industry:

Efficiently unwinding steel coils for further processing, including cutting, slitting, and forming. Automotive Industry:

Handling automotive-grade metal coils for stamping, bending, and other manufacturing processes. Construction Industry:

Processing large metal coils for building materials, reinforcement bars, and other construction components. Electronics Manufacturing:

Uncoiler aluminum and other materials for use in electronic devices and components.

Company Profile

Shenzhen Lihao Machinery Equipment Co., Ltd. was established in 2002, with its headquarters located in Shenzhen, China. To meet the growing market demand and enhance production capacity, the company expanded in 2020 by founding Hunan Lihao Machinery Equipment Co., Ltd. in Yongzhou, Hunan. Lihao Machinery specializes in the research, development, manufacturing, and sales of stamping automation equipment. Its main product lines include decoilers, straighteners, feeders, punch presses, molds, and material racks. These products are widely used in industries such as home appliances, automotive, hardware, and electronics, achieving advanced levels in design precision, equipment performance, and operational stability both domestically and internationally. Currently, Lihao Machinery operates nearly 20 offices across China and has agents in countries including India, Mexico, and Kyrgyzstan. Its products are exported to regions such as North America, South America, Southeast Asia, and Europe. The company emphasizes product quality and leverages its strong technical expertise, supported by an R&D team with over 20 years of experience. Lihao Machinery was the first in the industry to earn the "High-tech Enterprise" title. It has also implemented a comprehensive quality management system certified by ISO9000, 2000, and EU CE standards, ensuring its products meet the highest international quality benchmarks.

Lihao Pre-sales Service

1. Customized Equipment: Based on the technical parameters of the application-related equipment provided by the customer, we can modify our machines to meet the customer's convenience and high production efficiency.

2. Solution Design: According to the customer's product processing requirements, we design unique solutions to support higher manufacturing efficiency and better processing quality.

Lihao After-sales Service

1. As a professional manufacturer and supplier of automation machines, LIHAO provides English training videos and user manuals for all machines, covering installation, operation, maintenance, and troubleshooting. Additionally, we offer technical guidance through remote means such as TeamViewer, email, phone, mobile, WhatsApp, Skype, and 24/7 online chat when you encounter issues with installation, operation, or adjustments.

2. Customers can choose to come to our factory for 2-5 days of training. We will provide professional guidance and effective face-to-face training.
3. Our engineers will provide on-site guidance and training services at your location. We will require your assistance in
arranging visa procedures, prepaying travel expenses, and accommodating us during the business trip and service period.

Seeking Quality Distributors Worldwide

We are Shenzhen Lihao Machinery Equipment Co., Ltd., specializing in the development and manufacturing of stamping automation equipment. Our products are widely used in the home appliance, automotive, hardware, and electronics industries. To expand our market reach, we are inviting experienced and resourceful Agents from around the world to join our team and drive industry growth together.
Why Partner with Us?
- High-Quality Products: ISO9000 and CE certified
- Expert Technical Support: Over 20 years of R&D experience
- Comprehensive Market Assistance: Extensive marketing resources

We look forward to a successful partnership with you!
