                           Discontinuous PU sandwich panel machine

1. Made by Korean Technology and designer

2. ISO CE certificate

3. Competitive price

4. Thoughtful sales service



 Fully Automatic Sandwich panel making machine, wall and roof panel roll forming machine line, Discontinuous PU sandwich panel machine allows make sandwich panel in batch and fully automatic.



It-has-including unwinding, before cutting, film,  beading  / molding, rock wool  and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance. Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected. The production line is equipped with automatic control system, user friendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.

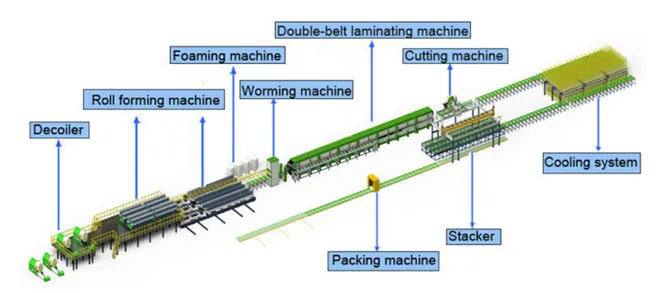

Discontinuous PU sandwich panel machine working flow:

Sandwich Panel for EPS, PU and rockwood making machine production Process:

(The upper)Dncoiler ---Cutting ---Film---Beading---Roll forming \ (Lower part)Uncoiler -- Cutting →Film→Beading→Roll forming /---Rock wool delivery---Glue---Sealing side foam--- laminating machine with Foam,Solidify,Roll forming---Cutting ---Run-out table

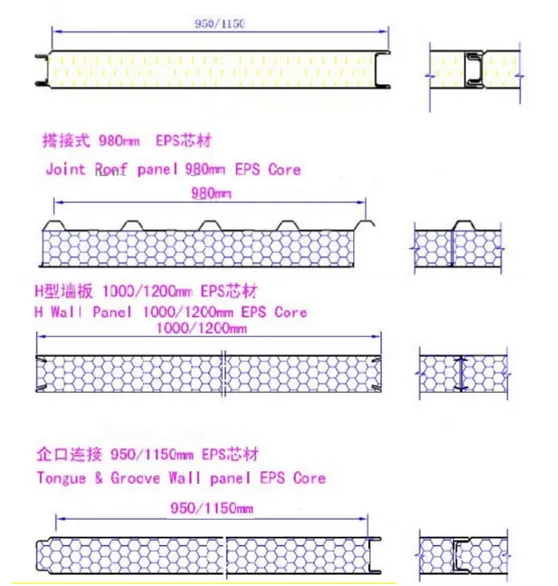

PU Panel, EPS panel, Rock wood panel ects, sandwich panel drawing profiles showing:

PU Sandwich Panel production line is specially designed for producing Z-lock PU sandwich panel continuously.

The facing material of this panel can be PPGI, Aluminum foil, PVC sheets, etc and the core materials can be Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS.Panel shape can be tailor-made according to customer's detailed requirements.

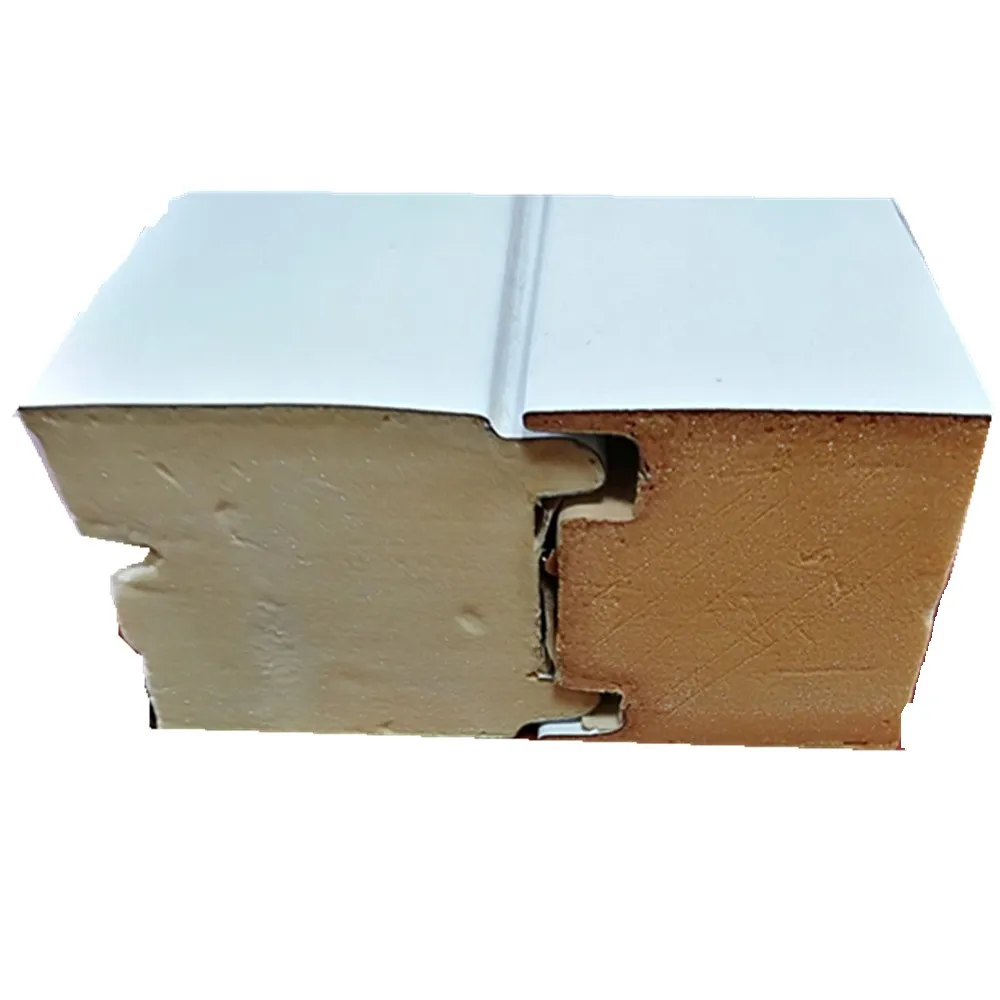

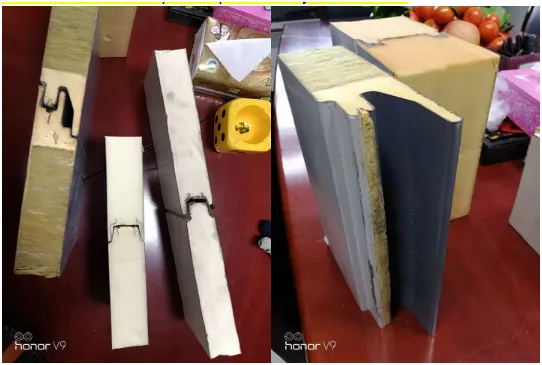

Here are some finished product pictures for your reference:

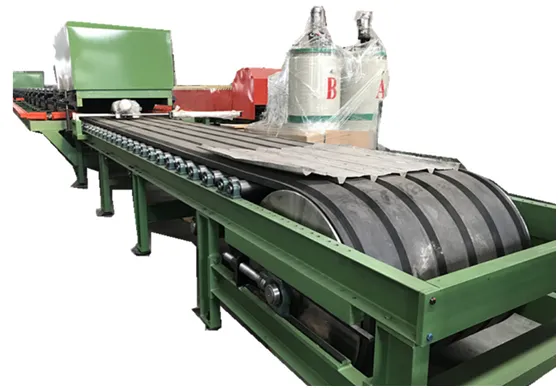

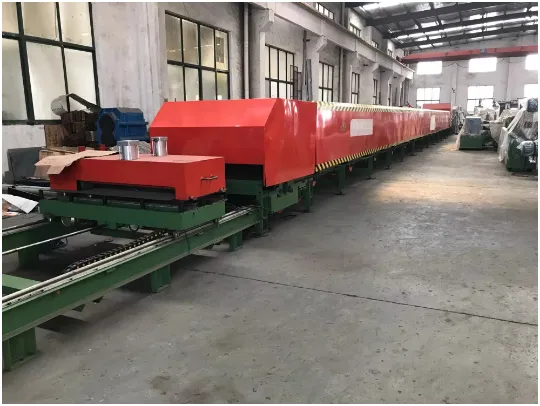

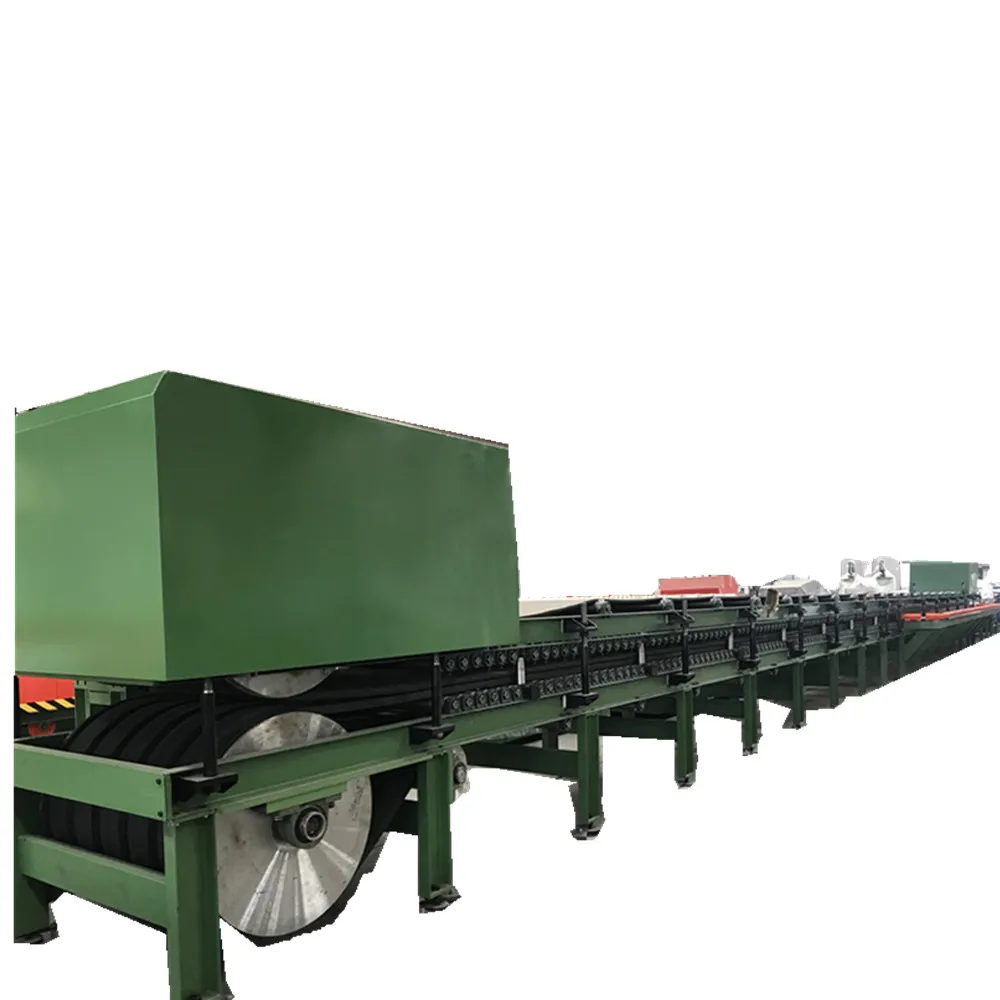

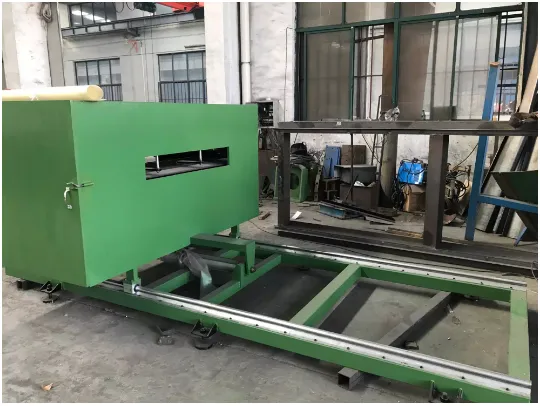

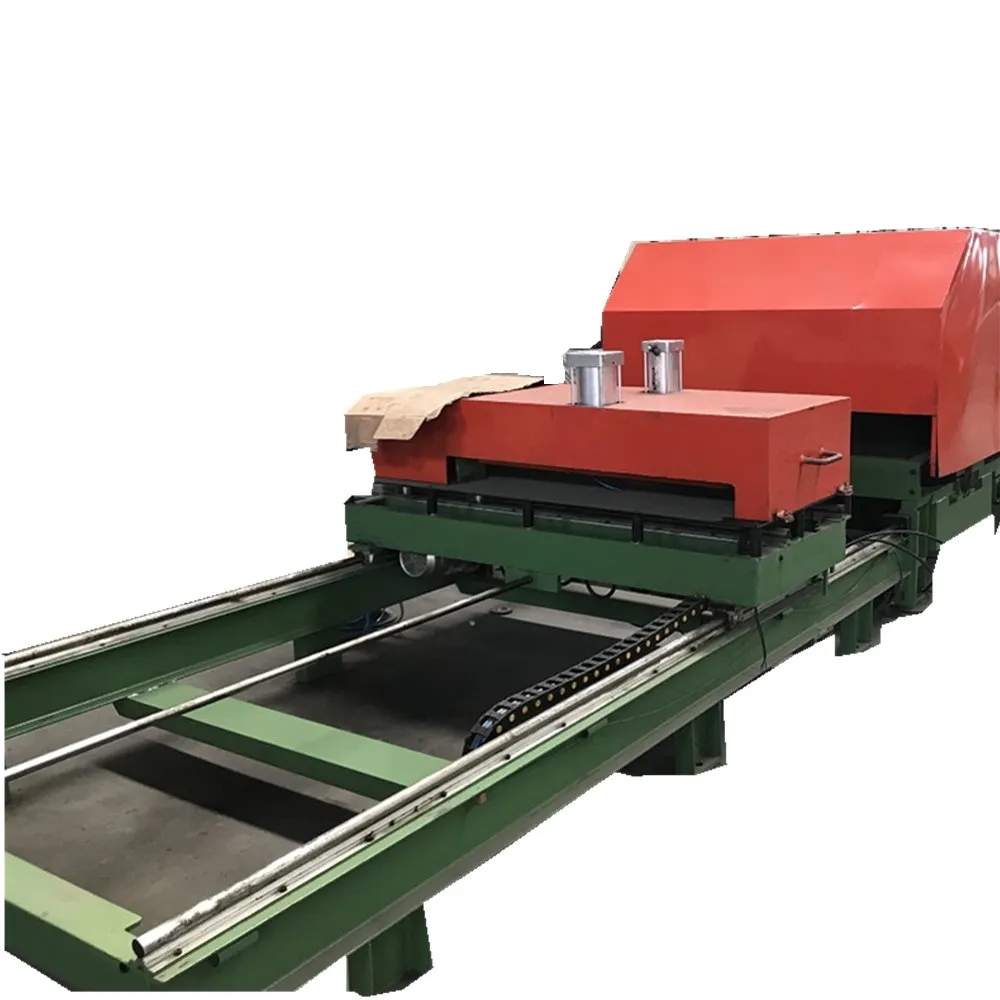

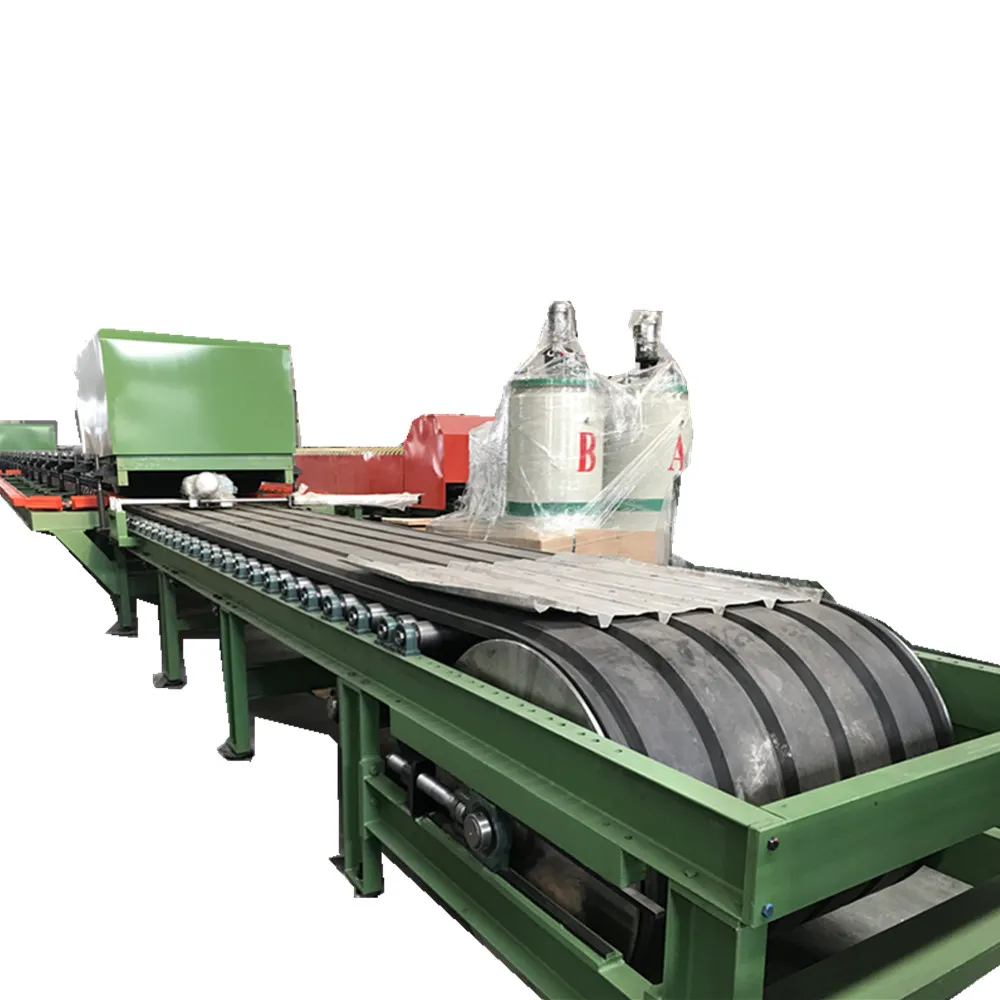

Fully Automatic Sandwich Panel for EPS, PU and rockwood making machine more details pictures for your reference.



Speed	0~8m/min, frequency control
Total power	about 200 KW
Production line length	more than 100 m
Workshop required	about 120m x 18m x 5.5m
PU injection machine	two or four components
Double belt length	24m or tailor-made
