Deck Sheet Roll Forming Machine Floor Decking Machine Floor Decking Machine

General Industry Tech Hebei Developing Co.,Ltd

Deck Sheet Roll Forming Machine Floor Decking Machine Floor Decking Machine

Name: Deck Sheet Roll Forming Machine Floor Decking Machine Floor Decking Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120752264

Machine TypeFloor decking machine (deck sheet roll forming machine)

Key Selling PointsHigh productivity

AdvantageEasy installation and operation

Dimension (L*W*H)15 * 1.85 * 1.5 m

Weight15500 kg

Warranty2 years

CertificationCE, ISO

Core ComponentsMotor, bearing, gear, pump, gearbox, engine, PLC

UseROOF

After-Sales ServiceMachinery test report and video outgoing inspection provided

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Type:

Floor Decking Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Machine Type
Floor decking machine (deck sheet roll forming machine)
Key Selling Points
High productivity
Advantage
Easy installation and operation
Dimension (L*W*H)
15 * 1.85 * 1.5 m
Weight
15500 kg
Warranty
2 years
Certification
CE, ISO
Core Components
Motor, bearing, gear, pump, gearbox, engine, PLC
Use
ROOF
After-Sales Service
Machinery test report and video outgoing inspection provided
Forming Stations
28 roller stations
Working Speed
0-15 m per minute
Power
18.5 kW x 2 sets
Voltage
480 V, 60 Hz, 3 phase or as requested
Feeding Width
1250 mm
Machine Frame
400 H beam steel welded
Shaft
45# steel precision-machined, 95 mm diameter
Roller Material
45# steel chrome plated
Raw Material
Galvanized coils, yield strength up to 550 MPa

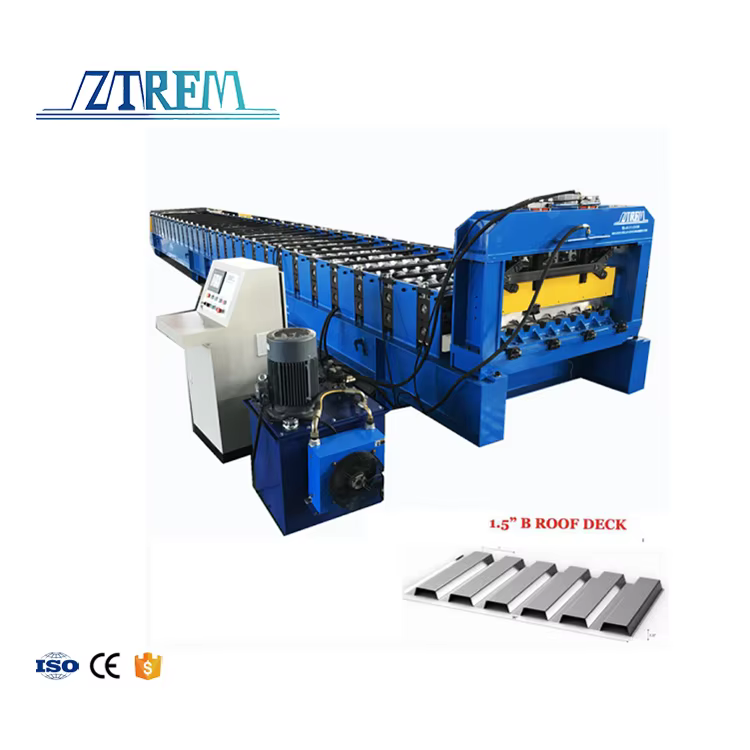

Deck sheet roll forming machine with control console and hydraulic unit

Product Overview

Factory direct sale deck sheet roll forming machine (floor decking machine) for roof use. With 28 roller stations on a 400 H beam steel welded frame, this high productivity line forms galvanized coils (yield strength up to 550 MPa) into 1.5" B roof deck profiles at 0-15 m per minute. Easy installation and operation, powered by 18.5 kW x 2 sets of motors and CE/ISO certified.

High productivity floor decking line: 0-15 m per minute, 28 roller stations
Easy installation and operation
400 H beam steel welded machine frame for stability
95 mm diameter 45# steel precision-machined shafts; 45# steel chrome plated rollers
Processes galvanized coils with yield strength up to 550 MPa
CE and ISO certified; factory direct sale from ZTRFM

Key Features

High Productivity - Forms deck sheets at 0-15 m per minute with 18.5 kW x 2 sets of motors and 28 roller stations in one continuous automatic line.
Easy Installation and Operation - Simple structure and operation for quick setup and low maintenance.
Heavy-Duty Construction - 400 H beam steel welded machine frame; 95 mm diameter 45# steel precision-machined shafts and 45# steel chrome plated rollers for long service life.
High-Strength Material Support - Processes galvanized coils with yield strength up to 550 MPa.
Certified Quality - CE and ISO certified with machinery test report and video outgoing inspection provided.

Technical Specifications

Item	Specification
Product name	Direct sale deck sheet roll forming machine / floor decking machine
Machine type	Floor decking machine (deck sheet roll forming machine)
Forming stations	28 roller stations
Working speed	0-15 m per minute
Power	18.5 kW x 2 sets
Voltage	480 V, 60 Hz, 3 phase or as requested
Feeding width	1250 mm
Raw material	Galvanized coils, yield strength up to 550 MPa
Machine frame	400 H beam steel welded
Shaft material	45# steel precision-machined, 95 mm diameter
Roller material	45# steel chrome plated
Core components	Pressure vessel, motor, bearing, gear, pump, gearbox, engine, PLC
Dimension (LWH)	15 * 1.85 * 1.5 m
Weight	15500 kg
Warranty	2 years
Certification	CE, ISO
Machinery test report	Provided
Video outgoing inspection	Provided
Place of origin	China

B-Deck Profile

1.5 inch B roof deck profile specifications

Machine forms 1.5" B roof deck profile: rib height 1-1/2", 6" center to center, 6 major ribs, coverage 36", gauges 18/20/22, finishes G60 and G90.

Machine Scenes

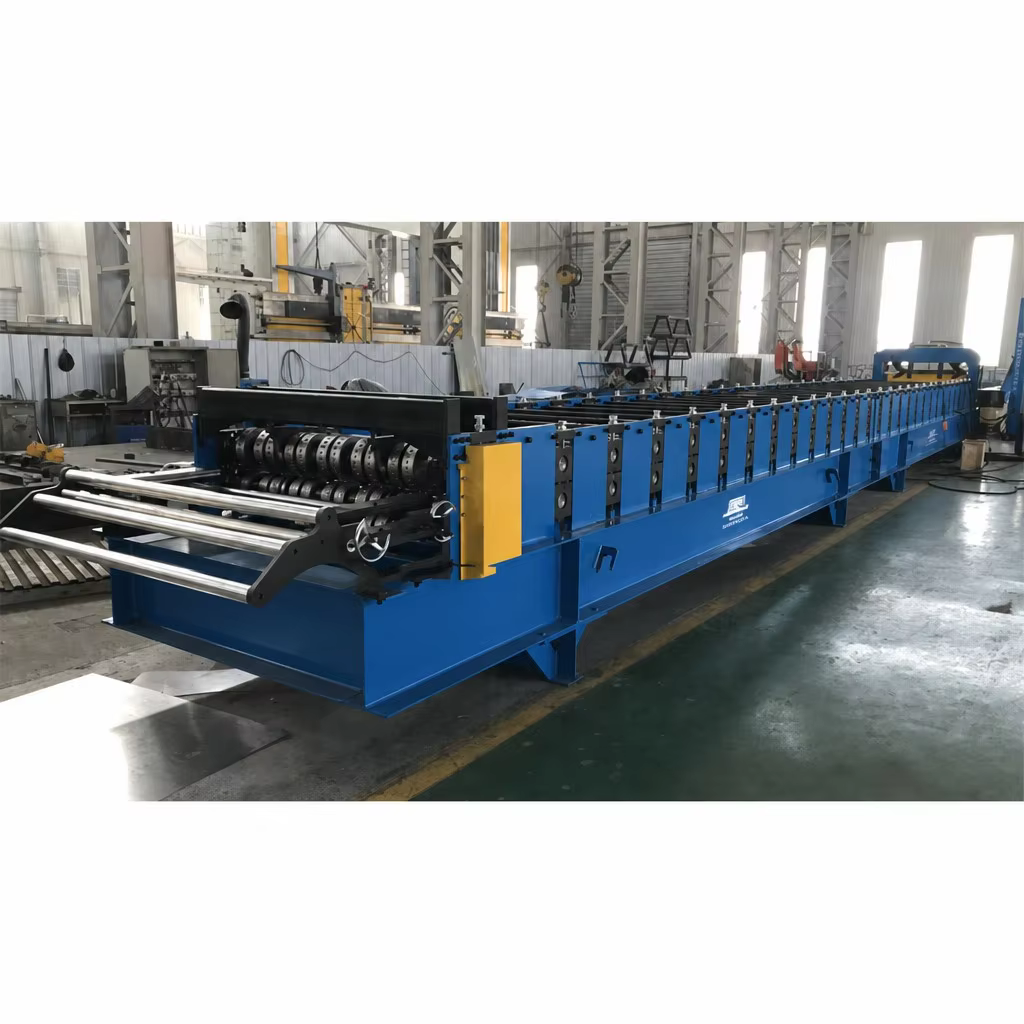

Deck sheet forming line with 28 stations in workshop

The full automatic line in the workshop - 28 roller stations on a heavy-duty 400 H beam steel frame, from uncoiler entry to hydraulic shear exit.

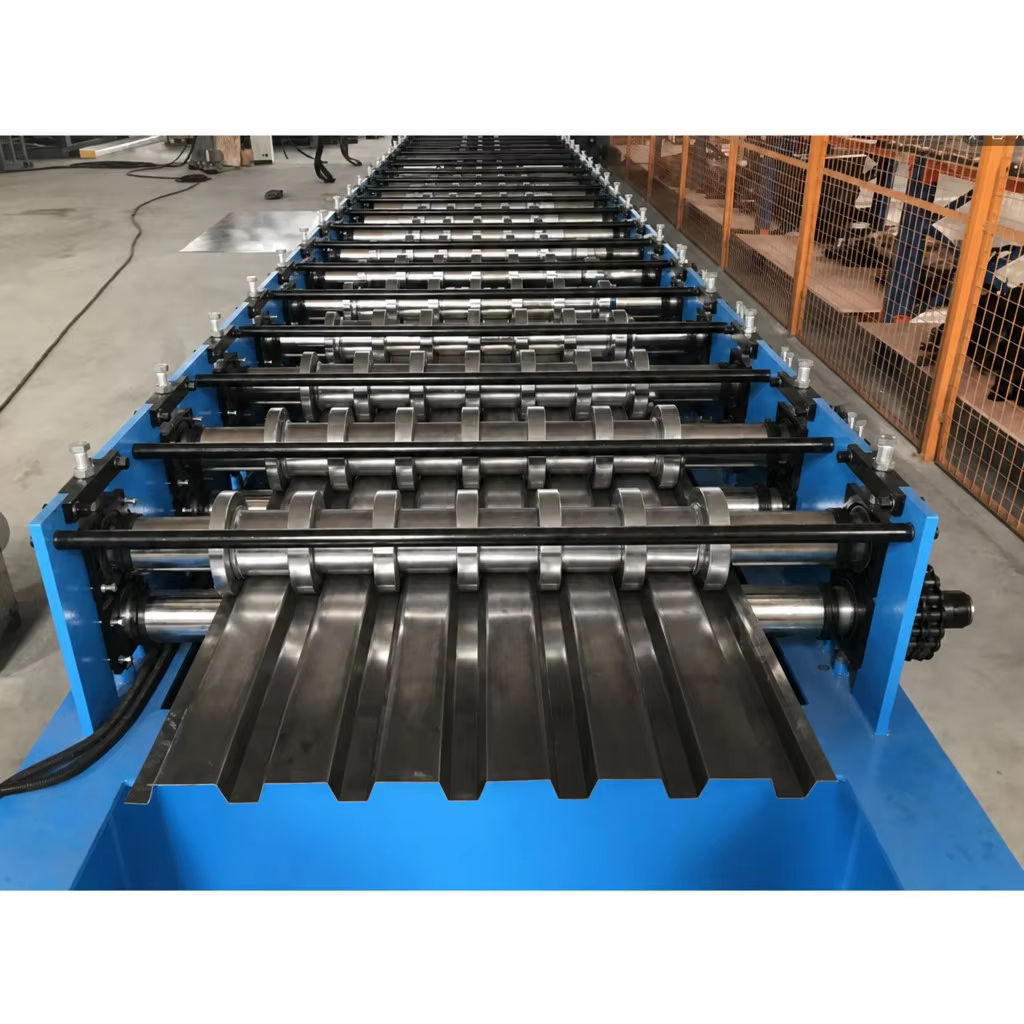

Roller stations forming five-rib deck sheet

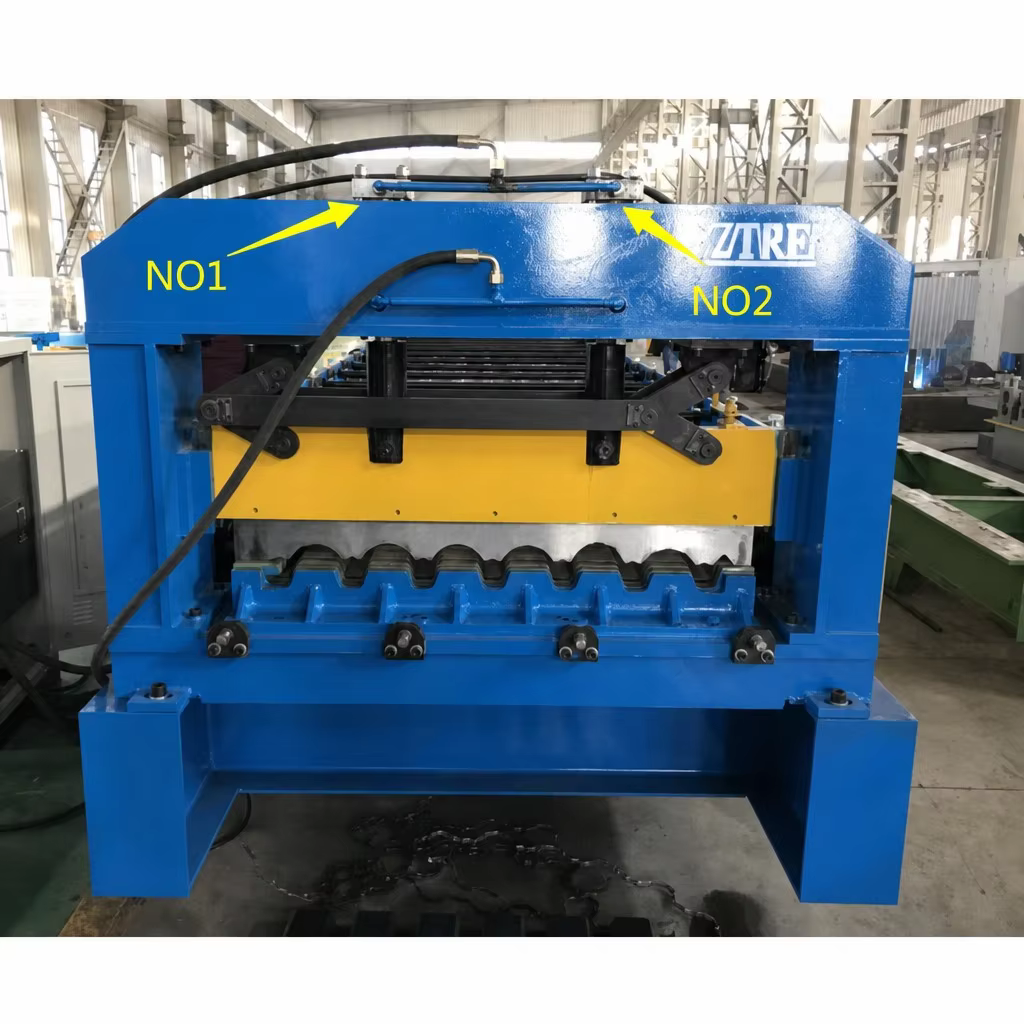

Hydraulic shear unit at the exit end

Hydraulic cutting unit (No.1/No.2 cylinders) cuts the formed deck sheet to length automatically at the exit end.

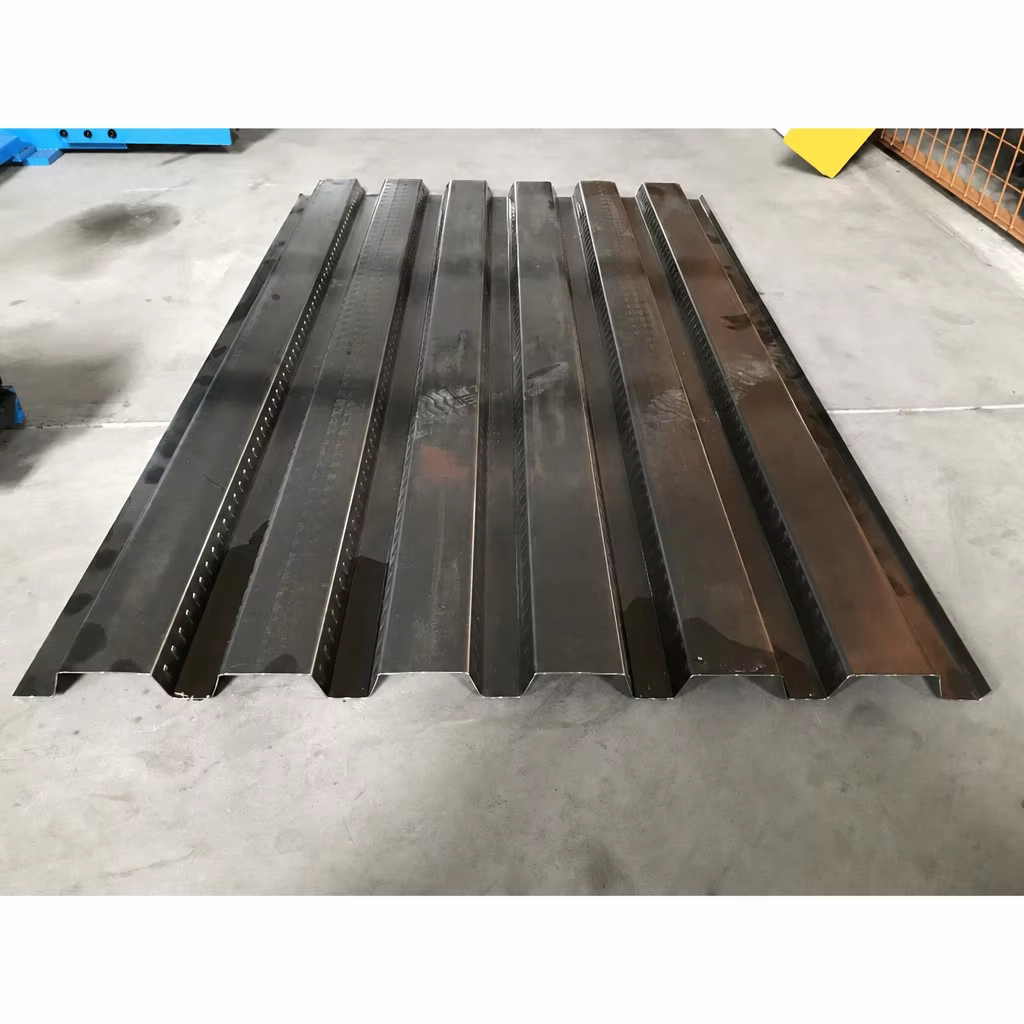

Finished corrugated deck sheet profile

Finished 1.5" B deck sheet with trapezoidal ribs, cleanly cut to length and ready for packing.

Certifications

CE certified - complies with EU standards
ISO certified quality management
Alibaba.com Trade Assurance available on this product

Company Profile

Packing & Shipping

Selling unit: set
Lead time: 60 days for 1 set
Machinery test report and video outgoing inspection provided before shipment
