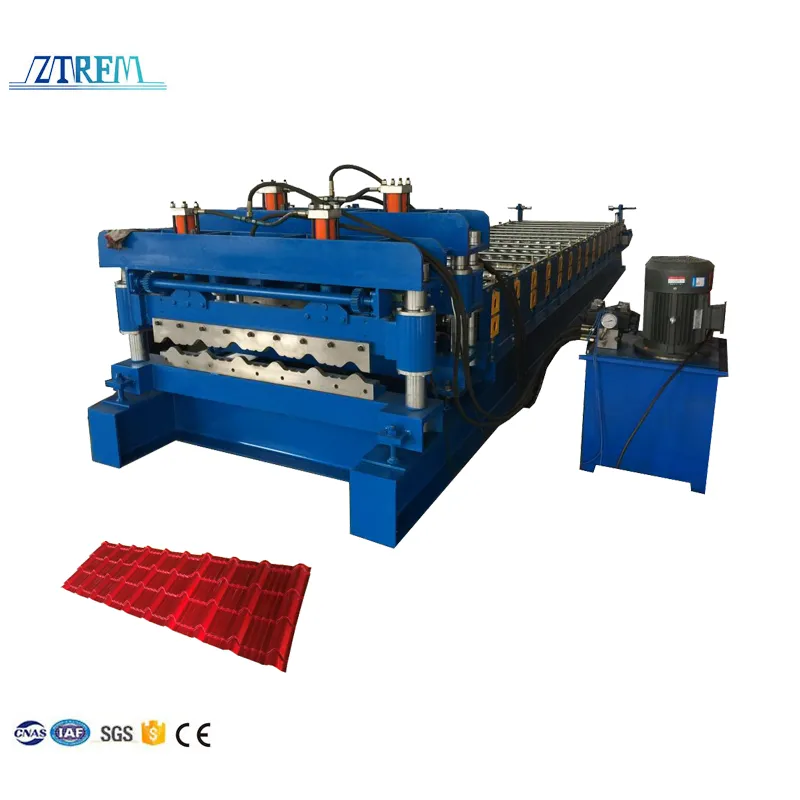

Customized Product Step Tiles Roll Forming Machines Galvanized Steel Roofing Sheet Press Machine 20 M/Min+10kw

Cangzhou Zhongtuo International Trade Co., Ltd

Customized Product Step Tiles Roll Forming Machines Galvanized Steel Roofing Sheet Press Machine 20 M/Min+10kw

Name: Customized Product Step Tiles Roll Forming Machines Galvanized Steel Roofing Sheet Press Machine 20 M/Min+10kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT52975244

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Power(W):

10kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V or as required
Rolling Thinckness
0.3-0.8mm
Feeding Width
1000mm

ZTRFM Heat And Thermal Roof Insulation Aluminum Composite Panels Forming Machines Tile Making Machinery

ZTRFM Heat and thermal roof insulation Aluminum Composite Panels Forming Machines Tile making machinery is designed to make the roofing sheet in the design of step tile with more functions like to Anti-rust Steel Sheet Metal Roofing Tiles.

Nowadays, steel roofing reduces corrosion and improves its lifespan through the process of galvanization. Galvanized steel roofs have more than 50-70 years of exceptional roofing lifespan and capability. Zhongtuo metal roofing tile use 6 layer filming to reach this aim.

On the other hand, aluminum coating steel roofs gives corrugated and standing seam metal roofs the anti-corrosive properties of aluminum while having the heft and density of steel. Aluminum is a lightweight roofing material that's impervious to rusting.

However, it is too light that windstorms can tear them off properties without fail. Zhongtuo new material can solve all those problems. It is a little heavy but not too heavy. In the function, it can be used to replace the sandwich panels.

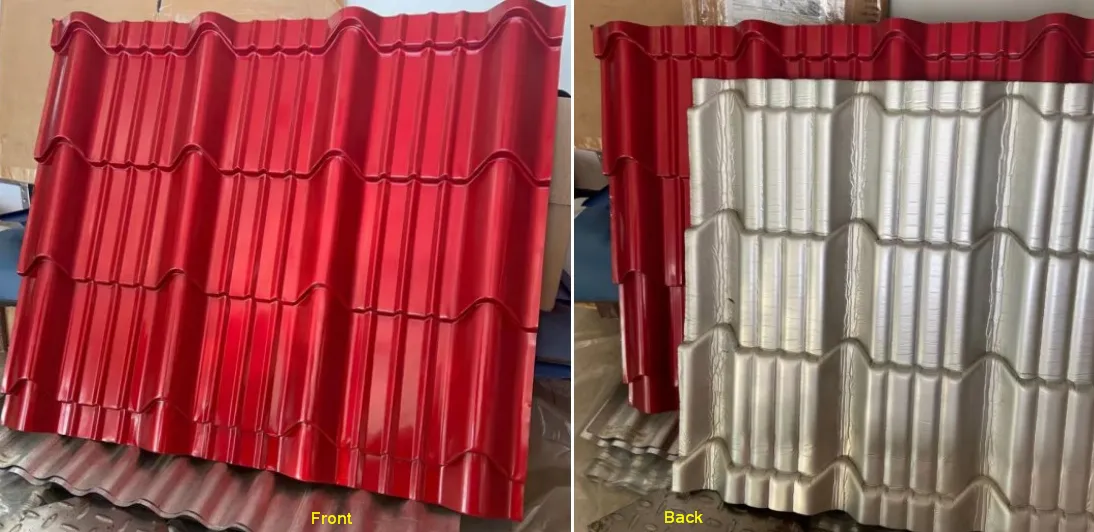

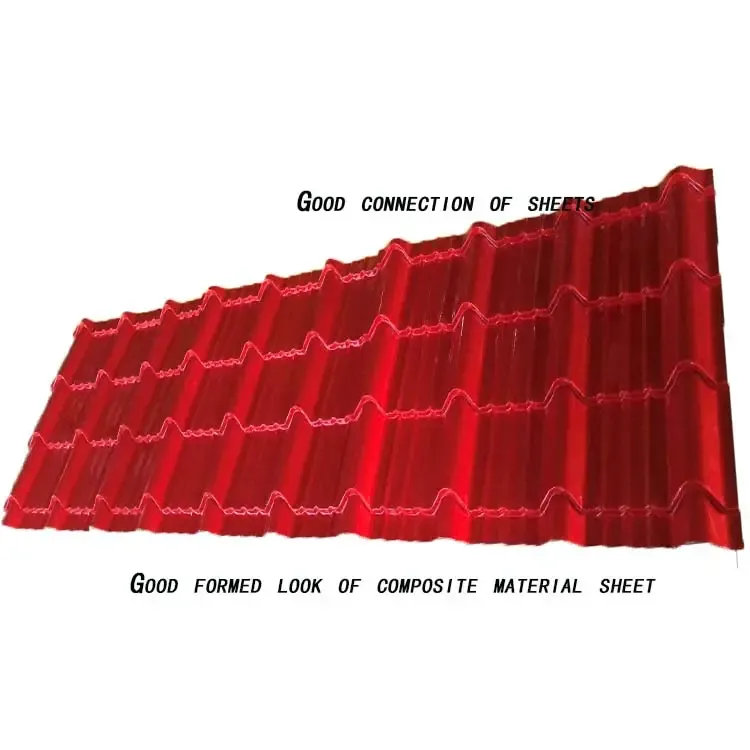

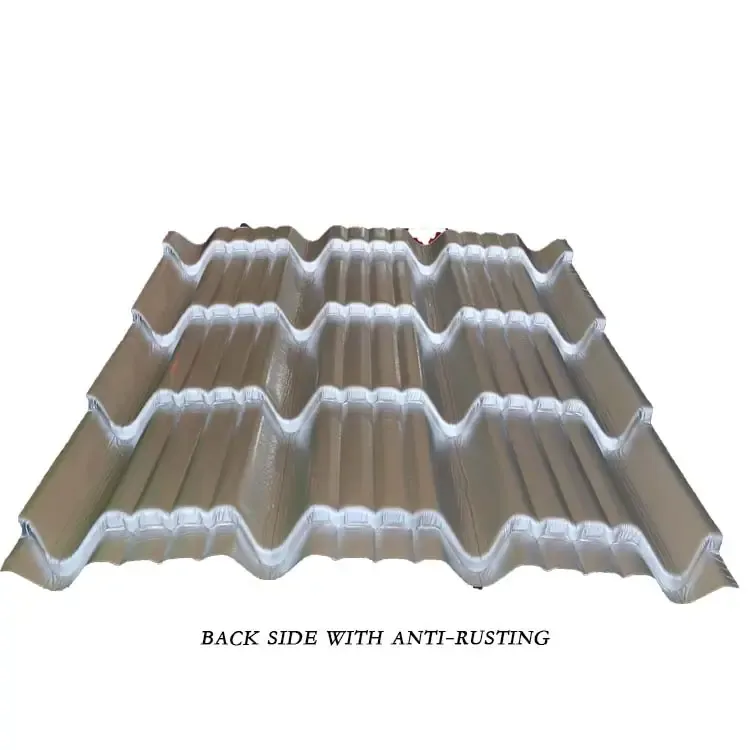

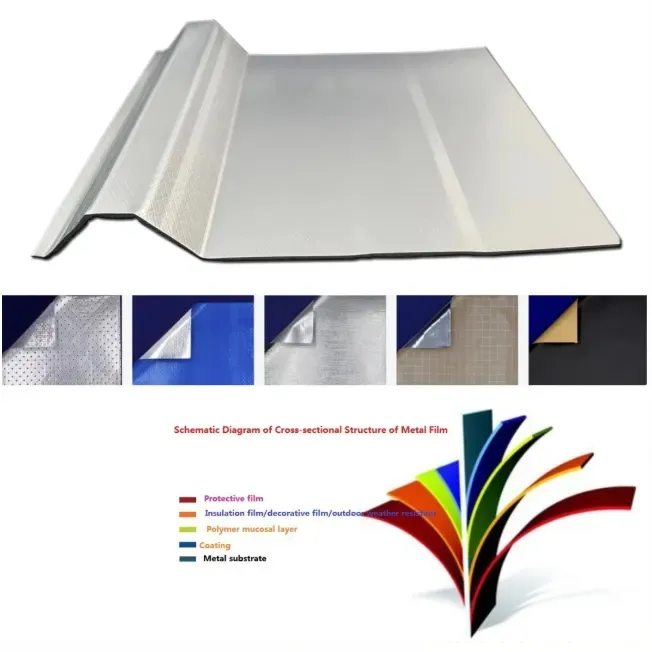

The pictures for the finished product:

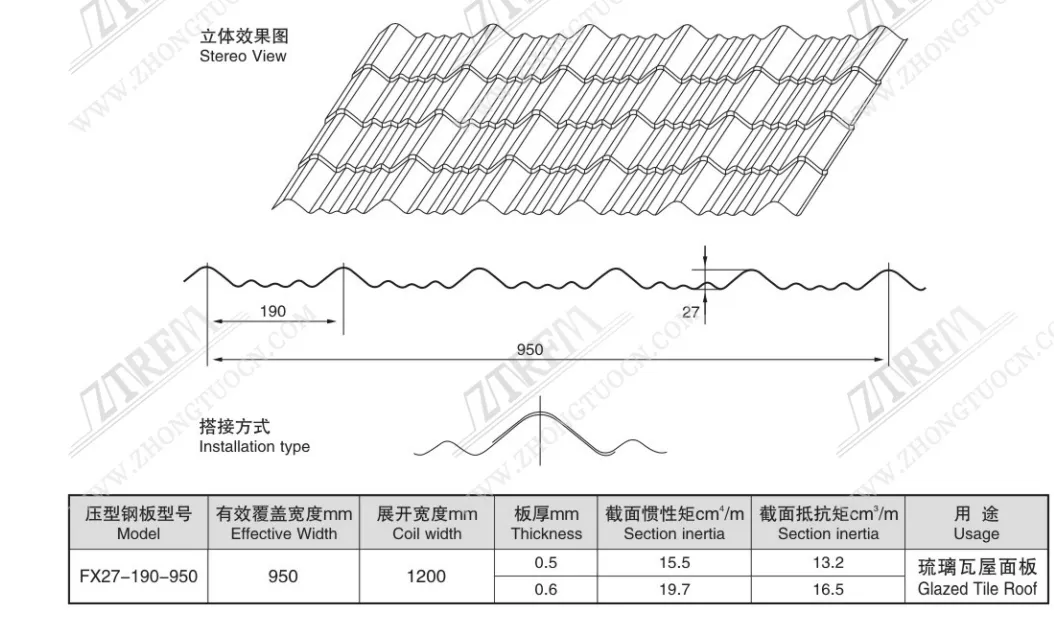

Profile drawing for reference:

Working flow as below:

ZTRFM Heat And Thermal Roof Insulation Aluminum Composite Panels Forming Machines Tile Making Machinery
Raw material	PPGI GI composite insulated metal material
Raw material thickness	0.3- 0.8 mm (or as your request)
Raw material thickness		Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Roller station	20 stations
Roller material	45# steel with quenched treatment
Shaft diameter	80mm
Shaft material	45# steel with tempered
Transmission	by chain
Motor power	7.5kw Servo moter
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	5.5kw
Cutting blade material	Cr12 with quenched treatment
Cutting tolerance	+/-1mm
Control system	PLC

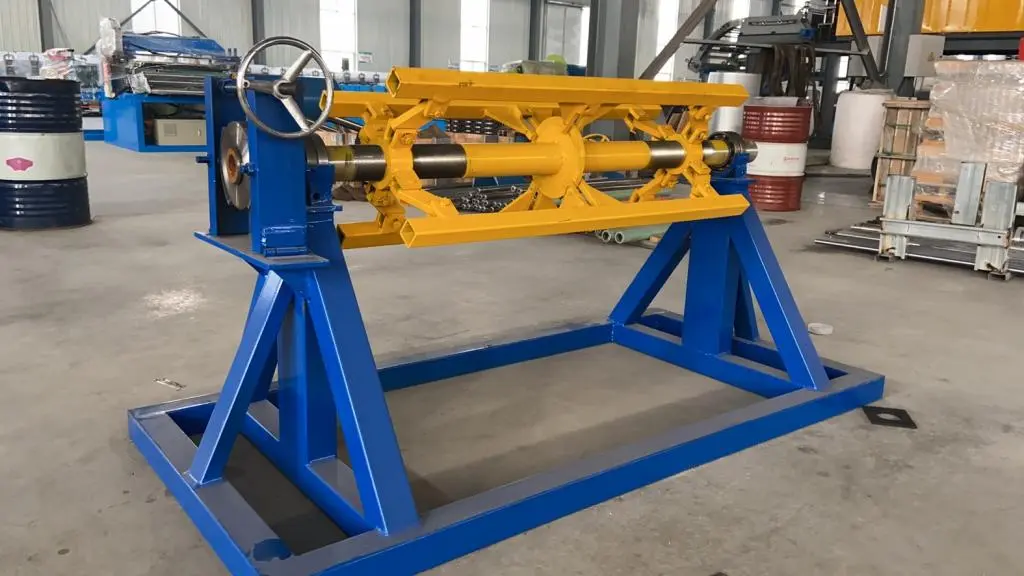

Manual Decolier

1. Capacity:5 tons

2. Inner diameter: 450-550 mm

3. Uncoiling width: 1200mm

Structure: welded by the steel plates and profiled bar.
Advantage: With simple brake and handwheel for easy working.

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.

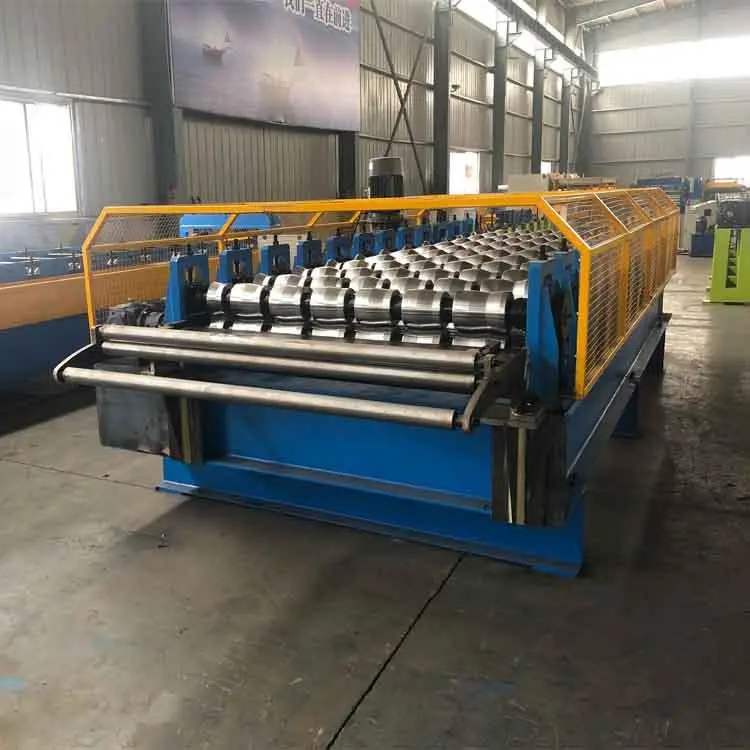

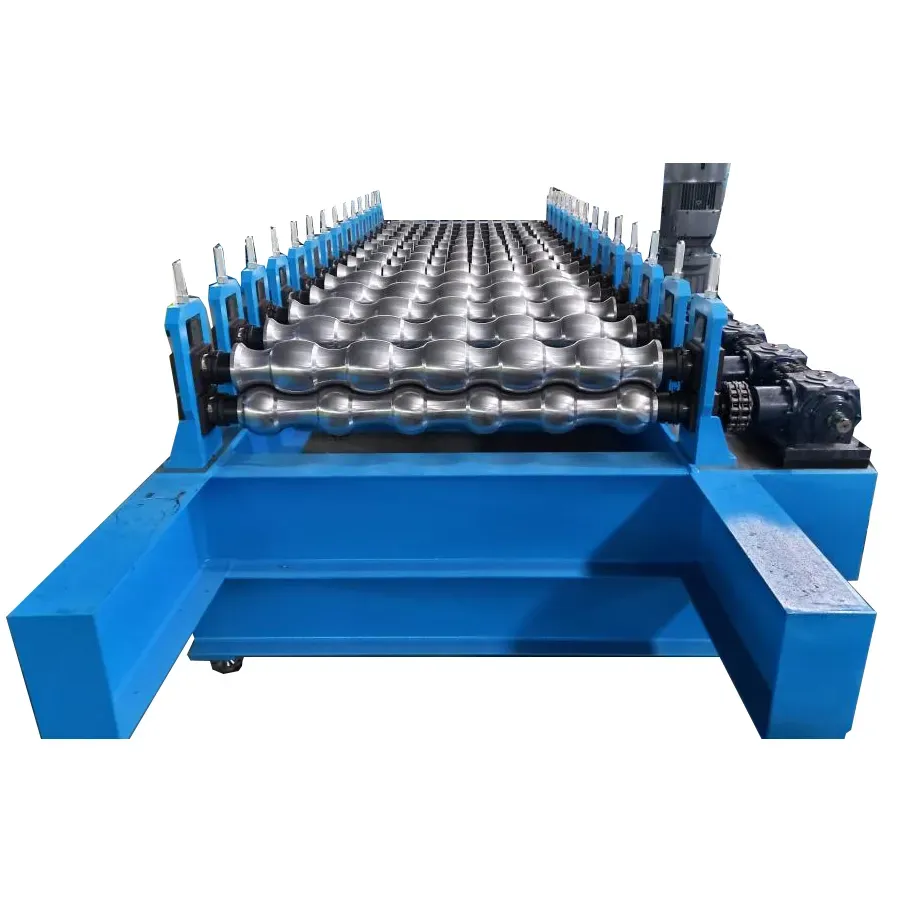

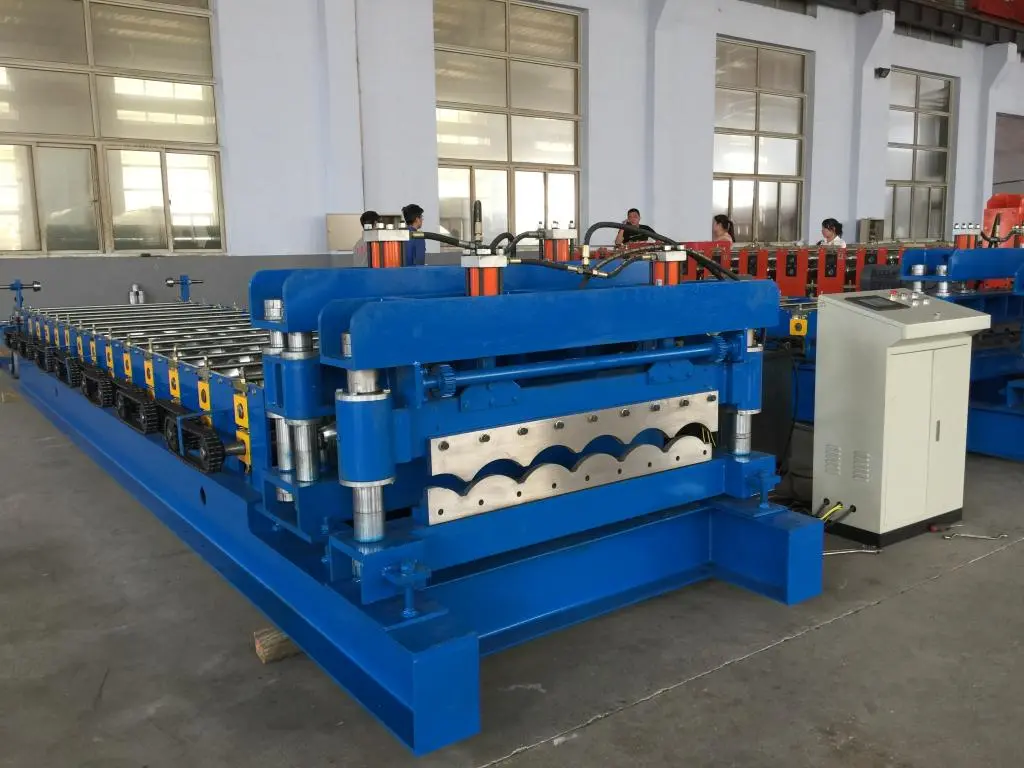

Main Roll Forming System

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.

Feature: Ensure stability , precision and lifetime.

Shearing Mechanism

1. Feature: Ensure stability, precision and cutting speed

2. Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

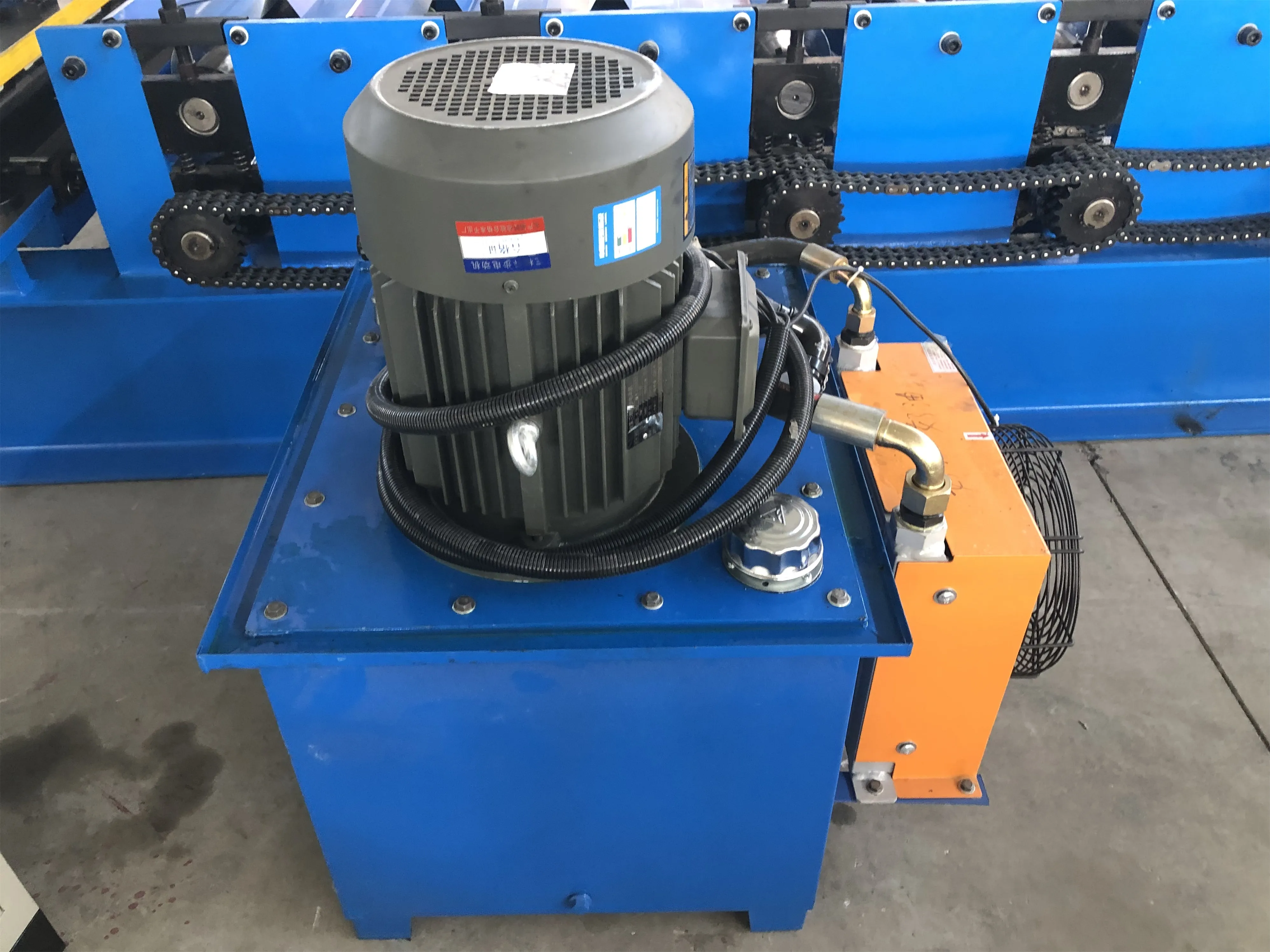

Hydraulic system

1. Hydraulic station motor: 5.5KW

2. Hydraulic oil: 46# hydraulic oil

All of our hydraulic stations are equipped with fan cooling, which can cool down the coil’s temperature after long time working or the working at hot weather.

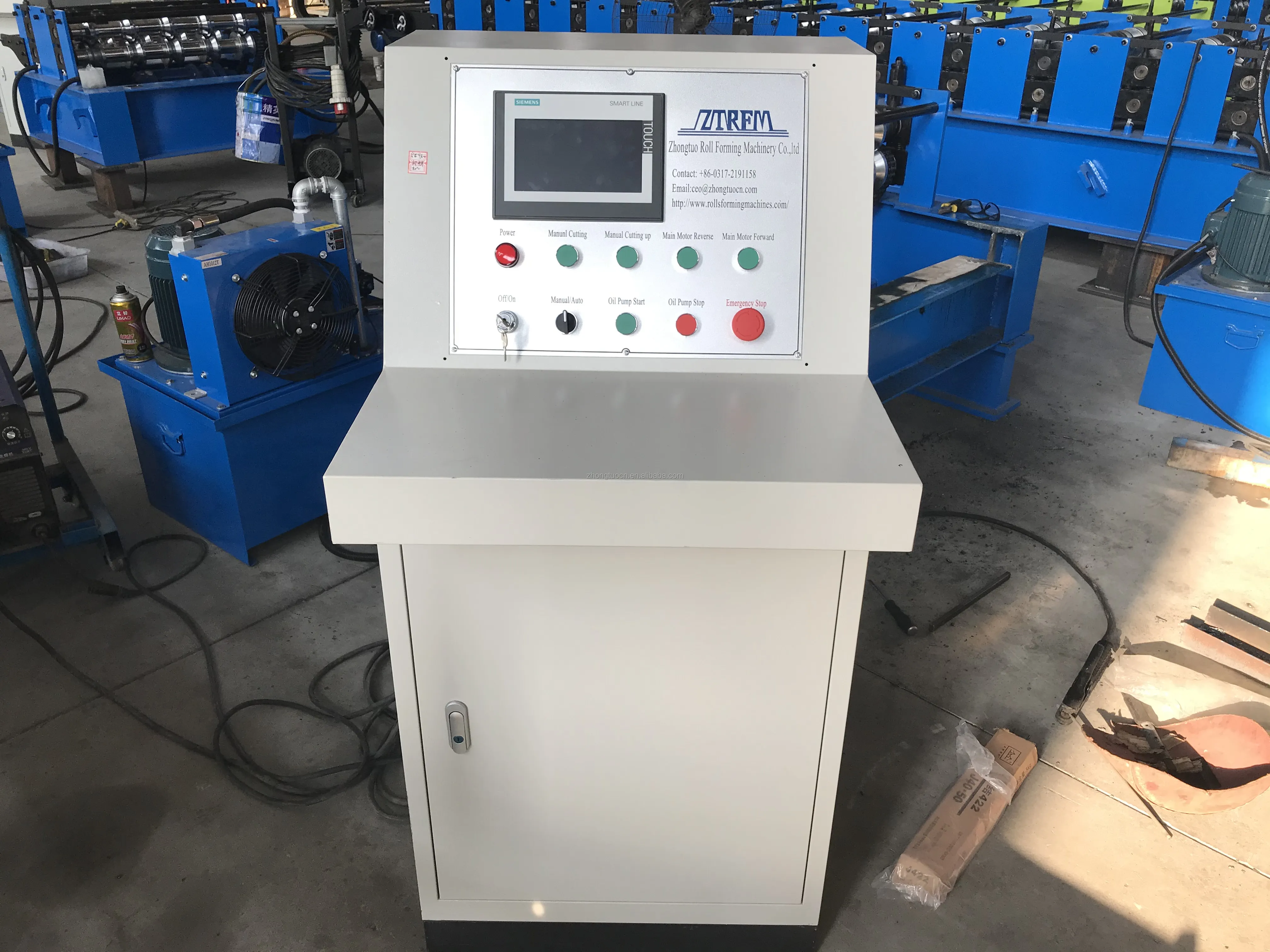

Controlling device

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2. Other electric element are Panasonic

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
