Cost-effective Urban Road Protection W Beam Traffic Safety Barrier Guardrail System 13-DC-GR-190719003

Cost-effective Urban Road Protection W Beam Traffic Safety Barrier Guardrail System



Crash barriers are used to protect traffic from roadside obstacles or hazards, such as slopes steep enough to cause rollover crashes, fixed objects like bridge piers, and bodies of water. Roadside barriers can also be used with medians, to prevent vehicles from colliding with hazards within the median.They are designed in pursuance to?the principle of keeping the vehicle inside the road in a secure way and at the same time minimizing the loss of life and property in case of an accident.

Dachu Guardrail Introduction
Wuhan Dachu Traffic Facilities Co.,Ltd. (Wuhan Dachu) supplies qualified barrier systems to the traffic safety area, construction industries, etc. With the strength and reputation of the Central China, Wuhan Dachu is committed to delivering quality, reliability and superior service to meet the demands of clients.

Wuhan Dachu manufacture W-Beam and Thrie-Beam guardrail to both China and abroad, and the products conforms to the requirements of different international standards, such as AASHTO Standard, AS/NZS Standard, EN Standard, etc.

Dachu Guardrail Popular Application

1. Road/Expressway/Highway Guardrails;
2. Roadway guard rails crash barriers;
3. Roadway crash barriers;
4. Service roads,car parking lot guardrails;
5. Car parking guardrails;
6. Warehouses;
7. Distribution depots;
8. Industrial barriers;
9. Pedestrian areas;
10. Bridge guardrail.

Dachu Guardrail Post Specification

Base Material	A572/Q345B/HA350/Q235B/A36/S355JR/S275JR
Guardrail I(H) post	150*100*4.3*5.5*1500/1800/1830/2000mm, 150*100*4*4*1500/1800/1830/2000mm, 127*64*7*1800/1830/2160mm,etc.
Guardrail U post	150*100*4/4.3/5/6/7/9mm*700/750/1800/1850/2100/2400mm, 178*76*18*4.3/5/6mm, 150*76*6/8*1830mm, 120*68*5*1800mm, etc.
Guardrail C post	150*110*18*4.3/5/6/7/9*1800/1830/2000/2160mm, 150*76*18*4.3/5/6/7/9*1800/1830/2000/2160mm, 125*50*23*16*4.5*1980mm,etc.
Guardrail Round post	114*3/4/4.5*750/1000/1200/1500/1800/1950mm,140*4/4.5*750/1000/1200/1500/1800/1950/2000/2150mm,etc.
Surface Treatment	Hot Dip Galvanized or Powder Coated
Galvanizing Thickness	300g/m2 (40µ), 550g/m2 (80µ) or 610g/m2 (85µ) or 1100 g/m2 (160µ) or 1220 g/m2 (170µ) or customized
Certificate	AASHTO, AS/NZS, EN, ISO9001, ISO14000, SGS, CE, B.V.
Required relevant parts	Guardrail Beams, Terminal Ends, Spacers, Reflector, Backup plate and Bolt & Nut & Washer, etc.
Feature	Great corrosion resistant, high intensity, long and durable,  low cost, higher security, environmental protection, etc.
Function	To connect the guardrail beam with the spacer, or to hold the beam, strengthening guardrail protective effect.
Others	Other special specification as per client's requirement or drawings.

 Dachu Guardrail Post Image





Wuhan Dachu manufactures Trafffic Safety Barrier according to the Standards as below:

1. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail - USA);
2. AS/NZS 3845:1999(Road Safety Barrier Systems - Australia/New Zealand);
3. BS EN-1317(Road Restraint Systems - Europe);
4. JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China);
5. Or tailor-make according to client's requirements.



Dachu Guardrail Qualification

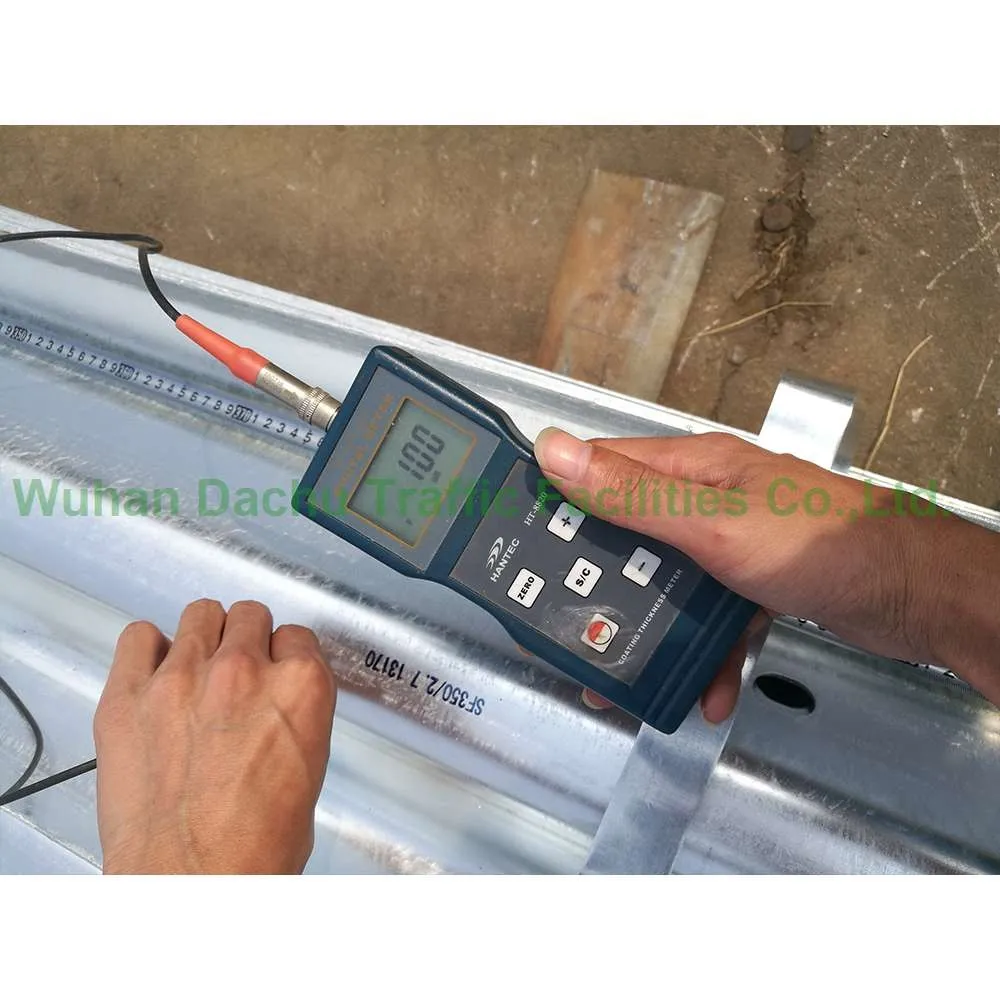

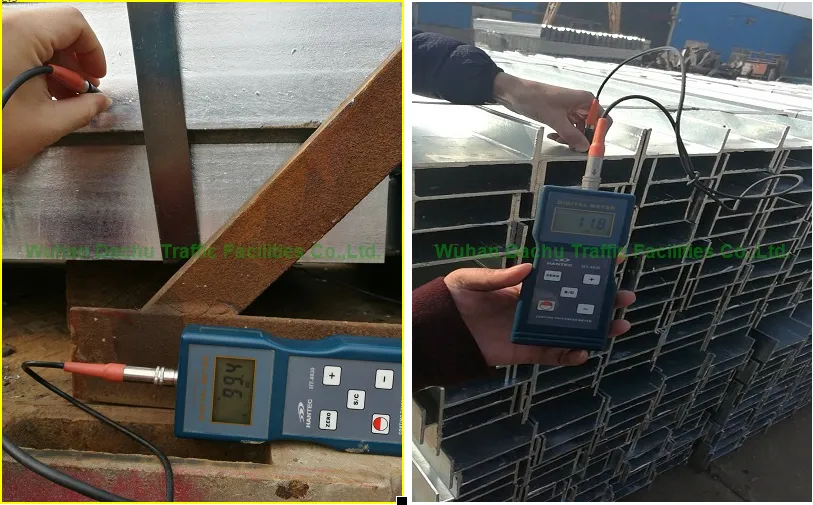

Dachu Guardrail Inspection



Dachu Traffic Safety Barrier Packing

Dachu Traffic Safety Barrier FAQ

     A:  4 km or Two full containers of guardrails.


    A: We are guardrail factory, self making and self marketing.

    A: FOB China port is recommended for guardrails,but CNF/CIF destination port is also acceptable.

    A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the guardrail order items and quantities.

    A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test in the name of costomers' company.

    A: Yes, we could send you guardrail samples for free, you just need to pay the postage fee.
